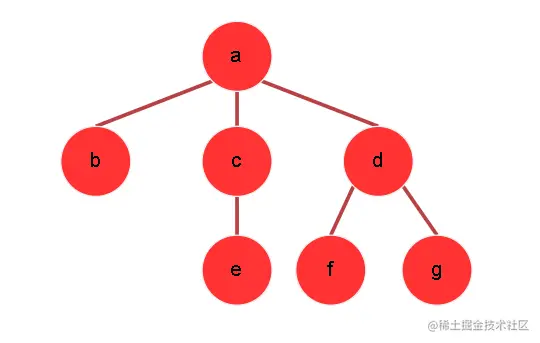

树形结构--有向无环图

  • 树形结构有一个根节点
  • 树形结构没有回路，是向下展开
  • 树是图的一种

度：树中一个节点拥有的最多的分支数

深度：树最深有几层

叶子节点：没有分支的节点

节点：既不是叶子节点也不是根节点

特殊的树形结构（二叉树）

规定树的度最多为 2，也就是任何一个节点最多有两个分支

满二叉树

  1. 所有的叶子节点都在最底层
  2. 每个非叶子节点都有两个子节点

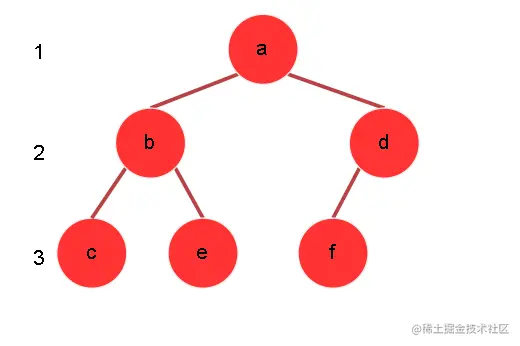

完全二叉树

国内定义：

  1. 叶子节点全都在最后一层或倒数第二层
  2. 非叶子节点，如果没有左孩子那么一定没有右孩子

国际定义

  1. 叶子节点全都在最后一层或倒数第二层
  2. 如果有叶子节点，就必然有两个叶子节点

二叉树中的子树

在二叉树中每个节点都认为自己是根节点

子树：二叉树中的每一个节点或者叶子节点，都是一棵子树的根节点。

左子树、右子树

二叉树的遍历（将集合中的每个元素进行遍历和查看）

传递二叉树要传入根节点

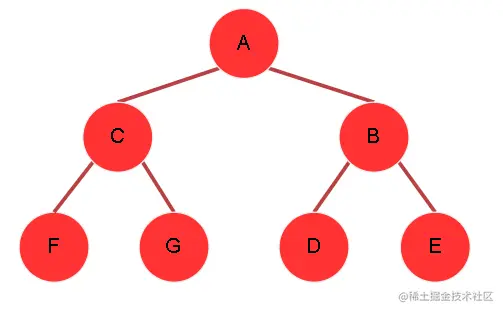

创建一个二叉树;
function Tree(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a = new Tree("A");
var b = new Tree("B");
var c = new Tree("C");
var d = new Tree("D");
var e = new Tree("E");
var f = new Tree("F");
var g = new Tree("G");

a.left = c;
a.right = b;
c.left = f;
c.right = g;
b.left = d;
b.right = e;
前序遍历（先根次序遍历）

根左右

// 前序遍历
function PreOrder(root) {
  if (root == null) return;
  console.log(root.value);
  PreOrder(root.left);
  PreOrder(root.right);
}
PreOrder(a);
中序遍历（中根次序遍历）

左根右

// 中序遍历
function inOrder(root) {
  if (root == null) return;
  inOrder(root.left);
  console.log(root.value);
  inOrder(root.right);
}
inOrder(a);
后序遍历（后根次序遍历）

左右根

// 后序遍历
function PostOrder(root) {
  if (root == null) return;
  PostOrder(root.left);
  PostOrder(root.right);
  console.log(root.value);
}
PostOrder(a);

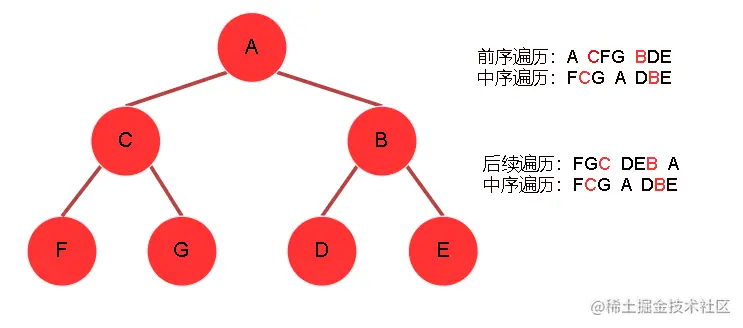

还原二叉树

还原二叉树必须有中序遍历

通过代码实现前序、中序还原二叉树

var preOrder = ["a", "c", "f", "g", "b", "d", "e"];
var inOrder = ["f", "c", "g", "a", "d", "b", "e"];

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

function Restore(pre, inOrder) {
  if (
    pre == null ||
    inOrder == null ||
    pre.length == 0 ||
    inOrder.length == 0 ||
    pre.length != inOrder.length
  )
    return null;
  var root = new Node(pre[0]); //找到根节点
  var index = inOrder.indexOf(root.value); //找到位置然后截取
  var pLeft = pre.slice(1, 1 + index); //前序遍历的左子树
  var pRight = pre.slice(index + 1, pre.length); //前序遍历的右子树
  var inLeft = inOrder.slice(0, index); //中序遍历的左子树
  var inRight = inOrder.slice(index + 1, inOrder.length); //中序遍历的右子树
  root.left = Restore(pLeft, inLeft); //还原左子树并赋值
  root.right = Restore(pRight, inRight); //还原右子树并赋值
  // 返回根节点
  return root;
}

var r = Restore(preOrder, inOrder);
console.log(r.left);

通过代码实现中序、后序还原二叉树

var postOrder = ["f", "g", "c", "d", "e", "b", "a"];
var inOrder = ["f", "c", "g", "a", "d", "b", "e"];

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

function Restore(post, inOrder) {
  if (
    post == null ||
    inOrder == null ||
    post.length == 0 ||
    inOrder.length == 0 ||
    post.length != inOrder.length
  )
    return null;
  var root = new Node(post[post.length - 1]); //找到根节点
  var index = inOrder.indexOf(root.value); //找到位置然后截取

  var pLeft = post.slice(0, index); //后续遍历的左子树
  var pRight = post.slice(index, post.length - 1); //后续遍历的右子树
  var inLeft = inOrder.slice(0, index); //中序遍历的左子树
  var inRight = inOrder.slice(index + 1, inOrder.length); //中序遍历的右子树
  root.left = Restore(pLeft, inLeft); //还原左子树并赋值
  root.right = Restore(pRight, inRight); //还原右子树并赋值
  // 返回根节点
  return root;
}

var r = Restore(postOrder, inOrder);
console.log(r.left);

二叉树的搜索

二叉树的深度优先搜索

更适合探索未知

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a = new Node("a");
var b = new Node("b");
var c = new Node("c");
var d = new Node("d");
var e = new Node("e");
var f = new Node("f");
var g = new Node("g");

a.left = c;
a.right = b;
c.left = f;
c.right = g;
b.left = d;
b.right = e;

// 深度优先搜索和二叉树前序遍历的顺序是一样的
function deepSearch(root, target) {
  if (root == null) return false;
  if (root.value == target) return true;
  var left = deepSearch(root.left, target);
  var right = deepSearch(root.right, target);
  return left || right;
}

console.log(deepSearch(a, "g"));

二叉树的广度优先搜索

更适合探索局域

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a = new Node("a");
var b = new Node("b");
var c = new Node("c");
var d = new Node("d");
var e = new Node("e");
var f = new Node("f");
var g = new Node("g");

a.left = c;
a.right = b;
c.left = f;
c.right = g;
b.left = d;
b.right = e;

// 深度优先搜索和二叉树前序遍历的顺序是一样的
function broadSearch(rootList, target) {
  if (rootList == null || rootList.length == 0) return false;
  var childList = []; //当前层所有节点的子节点，传入下一层递归
  for (var i = 0; i < rootList.length; i++) {
    if (rootList[i] != null && rootList[i].value == target) {
      return true;
    } else {
      // 不等于目标值，把他的子节点放入，之后需要遍历
      childList.push(rootList[i].left);
      childList.push(rootList[i].right);
    }
  }
  return broadSearch(childList, target);
}

console.log(broadSearch([a], "e"));

二叉树的比较

二叉树的左右子树交换位置算不算是相同的二叉树？

一般情况下，左右子树互换不算相同二叉树

左右子树不能互换的情况

这里是强调左右子树不能交换;
function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a1 = new Node("a");
var b1 = new Node("b");
var c1 = new Node("c");
var d1 = new Node("d");
var e1 = new Node("e");
var f1 = new Node("f");
var g1 = new Node("g");

a1.left = c1;
a1.right = b1;
c1.left = f1;
c1.right = g1;
b1.left = d1;
b1.right = e1;

var a2 = new Node("a");
var b2 = new Node("b");
var c2 = new Node("c");
var d2 = new Node("d");
var e2 = new Node("e");
var f2 = new Node("f");
var g2 = new Node("g");

a2.left = c2;
a2.right = b2;
c2.left = f2;
c2.right = g2;
b2.left = d2;
b2.right = e2;

function compare(root1, root2) {
  if (root1 == root2) return true; //同一棵树
  if ((root1 == null && root2 != null) || (root2 == null && root1 != null))
    return false;
  if (root1.value != root2.value) return false; //相同位置的值不相等
  var leftBool = compare(root1.left, root2.left); //判断左子树是否相同
  var rightBool = compare(root1.right, root2.right); //判断右子树是否相同
  return leftBool && rightBool;
}

var res = compare(a1, a2);
console.log(res);

左右子树可以互换的情况

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a1 = new Node("a");
var b1 = new Node("b");
var c1 = new Node("c");
var d1 = new Node("d");
var e1 = new Node("e");
var f1 = new Node("f");
var g1 = new Node("g");

a1.left = c1;
a1.right = b1;
c1.left = f1;
c1.right = g1;
b1.left = d1;
b1.right = e1;

var a2 = new Node("a");
var b2 = new Node("b");
var c2 = new Node("c");
var d2 = new Node("d");
var e2 = new Node("e");
var f2 = new Node("f");
var g2 = new Node("g");

a2.left = c2;
a2.right = b2;
c2.left = f2;
c2.right = g2;
b2.left = d2;
b2.right = e2;

function compare(root1, root2) {
  if (root1 == root2) return true; //同一棵树
  if ((root1 == null && root2 != null) || (root2 == null && root1 != null))
    return false;
  if (root1.value != root2.value) return false; //相同位置的值不相等
  return (
    (compare(root1.left, root2.left) && compare(root1.right, root2.right)) ||
    (compare(root1.left, root2.right) && compare(root1.right, root2.left))
  );
}

var res = compare(a1, a2);
console.log(res);

二叉树的 diff 算法

function Node(value) {
  this.value = value;
  this.left = null;
  this.right = null;
}

var a1 = new Node("a");
var b1 = new Node("b");
var c1 = new Node("c");
var d1 = new Node("d");
var e1 = new Node("e");
var f1 = new Node("f");
var g1 = new Node("g");

a1.left = c1;
a1.right = b1;
c1.left = f1;
c1.right = g1;
b1.left = d1;
b1.right = e1;

var a2 = new Node("a");
var b2 = new Node("i");
var c2 = new Node("c");
var d2 = new Node("p");
var e2 = new Node("e");
var f2 = new Node("f");
var g2 = new Node("g");

a2.left = c2;
a2.right = b2;
c2.left = f2;
c2.right = g2;
b2.left = d2;
// b2.right = e2;

// 二叉树的diff算法
// 用一个对象数组记录删除、新增、修改的情况
function diff(root1, root2, diffList) {
  if (root1 == root2) return diffList;
  if (root1 == null && root2 !== null) {
    // 新增节点
    diffList.push({ type: "新增", origin: null, now: root2 });
  } else if (root1 != null && root2 == null) {
    // 删除了节点
    diffList.push({ type: "删除", origin: root1, now: null });
  } else if (root1.value != root2.value) {
    // 相同位置的节点值不同，修改了
    diffList.push({ type: "修改", origin: root1.value, now: root2.value });
    // 注意这里还要继续往下，因为删除节点那么就不会存在它的子节点，
    // 但是只是修改就需要对它的子节点继续递归
    diff(root1.left, root2.left, diffList);
    diff(root1.right, root2.right, diffList);
  } else {
    //以上情况之外
    diff(root1.left, root2.left, diffList);
    diff(root1.right, root2.right, diffList);
  }
}
var diffList = [];
diff(a1, a2, diffList);
console.log(diffList);
