消息处理机制在Android系统中占据着非常重要的地位，fws以及app层普遍使用此机制进行消息的分发和消费，在Native层 Looper以及消息队列在大多数模块仍有使用，比如SurfaceFlinger、Audio模块等，大部分文章只讲java层的运行逻辑，本文尝试从java层到Native层，从源码入手对消息处理机制进行全面的剖析和讲解。文章分为如下几个部分：背景知识、运行环境、消息处理、退出机制
一、背景知识
-
生产者和消费者
-
线程本地存储
二、运行环境

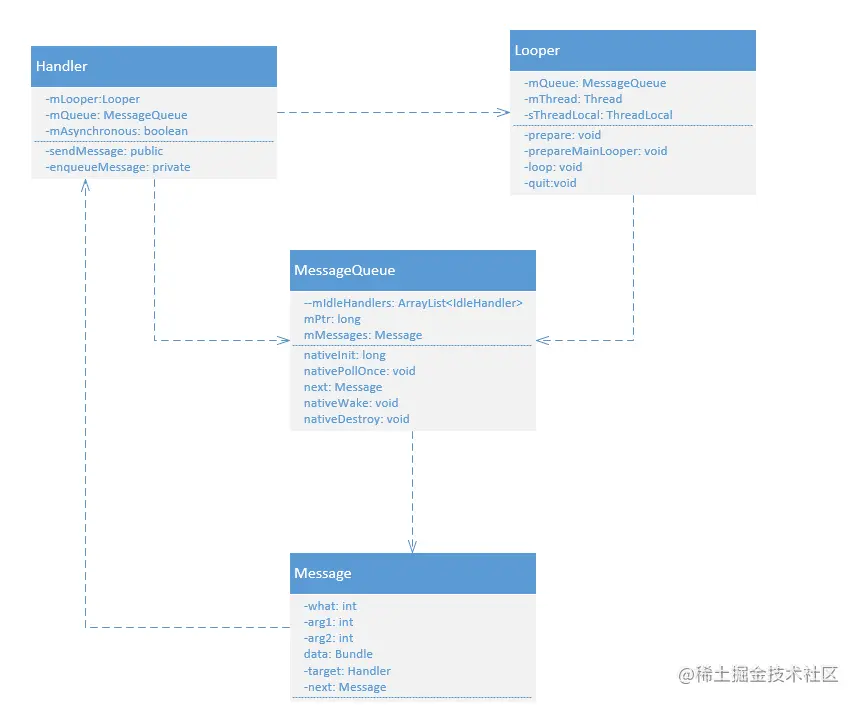

类关系图
环境搭建
- Java层 当冷启动一个App时，AMS调用startProcessLocked方法并且附加一些参数，通知Zygote进程fork出App进程， 具体源码如下：
//frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
private final void startProcessLocked(ProcessRecord app, String hostingType,
String hostingNameStr, String abiOverride, String entryPoint, String[] entryPointArgs) {
if (entryPoint == null) entryPoint = "android.app.ActivityThread";
......
ProcessStartResult startResult;
if (hostingType.equals("webview_service")) {
......
} else {
// entryPoint表示App进程的入口函数，根据JVM的运行规则，这里是ActivityThread的main函数
startResult = Process.start(entryPoint,
app.processName, uid, uid, gids, debugFlags, mountExternal,
app.info.targetSdkVersion, seInfo, requiredAbi, instructionSet,
app.info.dataDir, invokeWith, entryPointArgs);
}
}
在ActivityTread的main函数中，会初始化主线程的Looper并调用其loop方法，开启消息循环处理流程
//frameworks/base/core/java/android/app/ActivityThread.java
public static void main(String[] args) {
......
Looper.prepareMainLooper();
......
ActivityThread thread = new ActivityThread();
......
Looper.loop();
}
来看下Looper类重要的成员变量以及方法
//frameworks/base/core/java/android/os/Looper.java
static final ThreadLocal<Looper> sThreadLocal = new ThreadLocal<Looper>();
private static Looper sMainLooper; // guarded by Looper.class
final MessageQueue mQueue;
final Thread mThread;
/**
* Initialize the current thread as a looper, marking it as an
* application's main looper. The main looper for your application
* is created by the Android environment, so you should never need
* to call this function yourself. See also: {@link #prepare()}
*/
public static void prepareMainLooper() {
prepare(false);
synchronized (Looper.class) {
if (sMainLooper != null) {
throw new IllegalStateException("The main Looper has already been prepared.");
}
sMainLooper = myLooper();
}
}
private static void prepare(boolean quitAllowed) {
if (sThreadLocal.get() != null) {
throw new RuntimeException("Only one Looper may be created per thread");
}
// 线程本地存储对象，存储与当前线程关联的Looper
sThreadLocal.set(new Looper(quitAllowed));
}
private Looper(boolean quitAllowed) {
//1. 创建消息队列
mQueue = new MessageQueue(quitAllowed);
//2. 初始化当前线程引用
mThread = Thread.currentThread();
}
2. Native层 顺着上面Looper的构造函数中，会初始化与之关联的消息队列，我们来看下消息队列的初始化过程。
//frameworks/base/core/java/android/os/MessageQueue.java
public final class MessageQueue {
// mPtr 代表native层的MsgQueue对象的内存地址
private long mPtr; // used by native code
/**以native开头的函数，通过JNI调用走到fws的Native层*/
private native static long nativeInit();
private native static void nativeDestroy(long ptr);
private native void nativePollOnce(long ptr, int timeoutMillis);
private native static void nativeWake(long ptr);
/**以native开头的函数，通过JNI调用走到fws的Native层*/
MessageQueue(boolean quitAllowed) {
mQuitAllowed = quitAllowed;
mPtr = nativeInit();
}
}
// frameworks/base/core/jni/android_os_MessageQueue.cpp
static jlong android_os_MessageQueue_nativeInit(JNIEnv* env, jclass clazz) {
NativeMessageQueue* nativeMessageQueue = new NativeMessageQueue();
if (!nativeMessageQueue) {
jniThrowRuntimeException(env, "Unable to allocate native queue");
return 0;
}
nativeMessageQueue->incStrong(env);
return reinterpret_cast<jlong>(nativeMessageQueue);
}
来看下NativeMessageQueue对象的实例化函数
NativeMessageQueue::NativeMessageQueue() :mPollEnv(NULL), mPollObj(NULL),
mExceptionObj(NULL) {
mLooper = Looper::getForThread();
// 在native层，创建当前线程对应的Looper，注意，这里的Looper对象和java层的并无关联
if (mLooper == NULL) {
mLooper = new Looper(false);
Looper::setForThread(mLooper);
}
}
此时的Looper是native层的类，看下其初始化函数
Looper::Looper(bool allowNonCallbacks)
: mAllowNonCallbacks(allowNonCallbacks),
mSendingMessage(false),
mPolling(false),
mEpollRebuildRequired(false),
mNextRequestSeq(0),
mResponseIndex(0),
mNextMessageUptime(LLONG_MAX) {
mWakeEventFd.reset(eventfd(0, EFD_NONBLOCK | EFD_CLOEXEC));
AutoMutex _l(mLock);
rebuildEpollLocked();
}
void Looper::rebuildEpollLocked() {
// Close old epoll instance if we have one.
if (mEpollFd >= 0) {
#if DEBUG_CALLBACKS
ALOGD("%p ~ rebuildEpollLocked - rebuilding epoll set", this);
#endif
mEpollFd.reset();
}
// Allocate the new epoll instance and register the wake pipe.
mEpollFd.reset(epoll_create1(EPOLL_CLOEXEC));
LOG_ALWAYS_FATAL_IF(mEpollFd < 0, "Could not create epoll instance: %s", strerror(errno));
struct epoll_event eventItem;
memset(& eventItem, 0, sizeof(epoll_event)); // zero out unused members of data field union
eventItem.events = EPOLLIN;
eventItem.data.fd = mWakeEventFd.get();
// epoll机制，注册mWakeEventFd 到mEpollFd池
int result = epoll_ctl(mEpollFd.get(), EPOLL_CTL_ADD, mWakeEventFd.get(), &eventItem);
LOG_ALWAYS_FATAL_IF(result != 0, "Could not add wake event fd to epoll instance: %s",
strerror(errno));
for (size_t i = 0; i < mRequests.size(); i++) {
const Request& request = mRequests.valueAt(i);
struct epoll_event eventItem;
request.initEventItem(&eventItem);
// epoll机制，request.fd 到mEpollFd池
int epollResult = epoll_ctl(mEpollFd.get(), EPOLL_CTL_ADD, request.fd, &eventItem);
if (epollResult < 0) {
ALOGE("Error adding epoll events for fd %d while rebuilding epoll set: %s",
request.fd, strerror(errno));
}
}
}
Looper还提供了添加EventFd的能力，在Activity启动过程中，系统会将Input事件和Display事件注册到Looper对应的epoll池中
Input事件注册流程
//frameworks/base/core/java/android/view/ViewRootImpl.java
public void setView() {
......
if (mInputChannel != null) {
if (mInputQueueCallback != null) {
mInputQueue = new InputQueue();
mInputQueueCallback.onInputQueueCreated(mInputQueue);
}
mInputEventReceiver = new WindowInputEventReceiver(mInputChannel,
Looper.myLooper());
}
......
}
final class WindowInputEventReceiver extends InputEventReceiver {
public WindowInputEventReceiver(InputChannel inputChannel, Looper looper) {
super(inputChannel, looper);
}
@Override
public void onInputEvent(InputEvent event) {
enqueueInputEvent(event, this, 0, true);
}
@Override
public void onBatchedInputEventPending() {
if (mUnbufferedInputDispatch) {
super.onBatchedInputEventPending();
} else {
scheduleConsumeBatchedInput();
}
}
@Override
public void dispose() {
unscheduleConsumeBatchedInput();
super.dispose();
}
}
// frameworks/base/core/java/android/view/InputEventReceiver.java
public abstract class InputEventReceiver {
/**
* Creates an input event receiver bound to the specified input channel.
*
* @param inputChannel The input channel.
* @param looper The looper to use when invoking callbacks.
*/
public InputEventReceiver(InputChannel inputChannel, Looper looper) {
......
if (inputChannel == null) {
throw new IllegalArgumentException("inputChannel must not be null");
}
if (looper == null) {
throw new IllegalArgumentException("looper must not be null");
}
mInputChannel = inputChannel;
mMessageQueue = looper.getQueue();
mReceiverPtr = nativeInit(new WeakReference<InputEventReceiver>(this),
inputChannel, mMessageQueue);
mCloseGuard.open("dispose");
.....
}
//frameworks/base/core/jni/android_view_InputEventReceiver.cpp
static jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak,
jobject inputChannelObj, jobject messageQueueObj) {
sp<InputChannel> inputChannel = android_view_InputChannel_getInputChannel(env,
inputChannelObj);
if (inputChannel == NULL) {
jniThrowRuntimeException(env, "InputChannel is not initialized.");
return 0;
}
sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
if (messageQueue == NULL) {
jniThrowRuntimeException(env, "MessageQueue is not initialized.");
return 0;
}
sp<NativeInputEventReceiver> receiver = new NativeInputEventReceiver(env,
receiverWeak, inputChannel, messageQueue);
// 注册fd事件
status_t status = receiver->initialize();
if (status) {
String8 message;
message.appendFormat("Failed to initialize input event receiver. status=%d", status);
jniThrowRuntimeException(env, message.string());
return 0;
}
receiver->incStrong(gInputEventReceiverClassInfo.clazz); // retain a reference for the object
return reinterpret_cast<jlong>(receiver.get());
}
status_t NativeInputEventReceiver::initialize() {
setFdEvents(ALOOPER_EVENT_INPUT);
return OK;
}
void NativeInputEventReceiver::setFdEvents(int events) {
if (mFdEvents != events) {
mFdEvents = events;
int fd = mInputConsumer.getChannel()->getFd();
if (events) {
ALOGD("hzk addFd ~ NativeInputEventReceiver setFdEvents init %d", fd);
// 将需要监听的Input事件的fd 添加到looper关联的epoll池中
mMessageQueue->getLooper()->addFd(fd, 0, events, this, NULL);
} else {
mMessageQueue->getLooper()->removeFd(fd);
}
}
}
说完Input事件相关的fd注册流程，来看下Display事件相关的fd，还是从ViewRootImpl.java中开始探究，ViewRootImpl在初始化的时候，会创建Choreographer的实例
// frameworks/base/core/java/android/view/ViewRootImpl.java
public ViewRootImpl(Context context, Display display) {
mContext = context;
mWindowSession = WindowManagerGlobal.getWindowSession();
mDisplay = display;
......
mDensity = context.getResources().getDisplayMetrics().densityDpi;
mNoncompatDensity = context.getResources().getDisplayMetrics().noncompatDensityDpi;
mFallbackEventHandler = new PhoneFallbackEventHandler(context);
//创建Choreographer对象
mChoreographer = Choreographer.getInstance();
mDisplayManager = (DisplayManager)context.getSystemService(Context.DISPLAY_SERVICE);
loadSystemProperties();
}
// frameworks/base/core/android/view/Choreographer.java
private Choreographer(Looper looper) {
mLooper = looper;
mHandler = new FrameHandler(looper);
mDisplayEventReceiver = USE_VSYNC ? new FrameDisplayEventReceiver(looper) : null;
mLastFrameTimeNanos = Long.MIN_VALUE;
mFrameIntervalNanos = (long)(1000000000 / getRefreshRate());
mCallbackQueues = new CallbackQueue[CALLBACK_LAST + 1];
for (int i = 0; i <= CALLBACK_LAST; i++) {
mCallbackQueues[i] = new CallbackQueue();
}
}
// FrameDisplayEventReceiver继承自DisplayEventReceiver
// frameworks/base/core/java/android/view/DisplayEventReceiver.java
/**
* Creates a display event receiver.
* @param looper The looper to use when invoking callbacks.
*/
public DisplayEventReceiver(Looper looper) {
if (looper == null) {
throw new IllegalArgumentException("looper must not be null");
}
mMessageQueue = looper.getQueue();
mReceiverPtr = nativeInit(new WeakReference<DisplayEventReceiver>(this), mMessageQueue);
mCloseGuard.open("dispose");
}
// frameworks/base/core/jni/android_view_DisplayEventReceiver.cpp
static jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak,
jobject messageQueueObj) {
sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
if (messageQueue == NULL) {
jniThrowRuntimeException(env, "MessageQueue is not initialized.");
return 0;
}
sp<NativeDisplayEventReceiver> receiver = new NativeDisplayEventReceiver(env,
receiverWeak, messageQueue);
// NativeDisplayEventReceiver继承自DisplayEventDispathcer，
status_t status = receiver->initialize();
if (status) {
String8 message;
message.appendFormat("Failed to initialize display event receiver. status=%d", status);
jniThrowRuntimeException(env, message.string());
return 0;
}
receiver->incStrong(gDisplayEventReceiverClassInfo.clazz); // retain a reference for the object
return reinterpret_cast<jlong>(receiver.get());
}
// frameworks/base/libs/androidfw/DisplayEventDispatcher.cpp
DisplayEventDispatcher::DisplayEventDispatcher(const sp<Looper>& looper) :
mLooper(looper), mWaitingForVsync(false) {
ALOGD("hzk dispatcher %p ~ Initializing display event dispatcher and mReceiver is %p.", this, mReceiver);
ALOGV("dispatcher %p ~ Initializing display event dispatcher.", this);
}
// frameworks/base/libs/androidfw/DisplayEventDispatcher.h
class DisplayEventDispatcher : public LooperCallback {
public:
DisplayEventDispatcher(const sp<Looper>& looper);
status_t initialize();
void dispose();
status_t scheduleVsync();
protected:
virtual ~DisplayEventDispatcher() = default;
private:
sp<Looper> mLooper;
// 构造函数被调用时，会实例化mReceiver
DisplayEventReceiver mReceiver;
bool mWaitingForVsync;
virtual void dispatchVsync(nsecs_t timestamp, int32_t id, uint32_t count) = 0;
virtual void dispatchHotplug(nsecs_t timestamp, int32_t id, bool connected) = 0;
virtual int handleEvent(int receiveFd, int events, void* data);
bool processPendingEvents(nsecs_t* outTimestamp, int32_t* id, uint32_t* outCount);
}
DisplayEventReceiver要单独拎出来讲下，在该类的构造函数中，App与SufaceFlinger建立联系
DisplayEventReceiver::DisplayEventReceiver() {
// 1, 获取SurfaceFlinger的引用对象
sp<ISurfaceComposer> sf(ComposerService::getComposerService());
if (sf != NULL) {
//2. 创建Display事件连接
mEventConnection = sf->createDisplayEventConnection();
if (mEventConnection != NULL) {
mDataChannel = mEventConnection->getDataChannel();
}
}
}
DisplayEventReceiver::~DisplayEventReceiver() {
}
status_t DisplayEventReceiver::initCheck() const {
if (mDataChannel != NULL)
return NO_ERROR;
return NO_INIT;
}
// 获取客户端的fd，交给主线程的Looper.cpp 并执行addFd，注册到与之相关的epoll池中
int DisplayEventReceiver::getFd() const {
if (mDataChannel == NULL)
return NO_INIT;
return mDataChannel->getFd();
}
status_t DisplayEventReceiver::setVsyncRate(uint32_t count) {
if (int32_t(count) < 0)
return BAD_VALUE;
if (mEventConnection != NULL) {
mEventConnection->setVsyncRate(count);
return NO_ERROR;
}
return NO_INIT;
}
status_t DisplayEventReceiver::requestNextVsync() {
if (mEventConnection != NULL) {
mEventConnection->requestNextVsync();
return NO_ERROR;
}
return NO_INIT;
}
ssize_t DisplayEventReceiver::getEvents(DisplayEventReceiver::Event* events,
size_t count) {
return DisplayEventReceiver::getEvents(mDataChannel, events, count);
}
ssize_t DisplayEventReceiver::getEvents(const sp<BitTube>& dataChannel,
Event* events, size_t count)
{
return BitTube::recvObjects(dataChannel, events, count);
}
ssize_t DisplayEventReceiver::sendEvents(const sp<BitTube>& dataChannel,
Event const* events, size_t count)
{
return BitTube::sendObjects(dataChannel, events, count);
}
至此，Looper的初始化过程就结束了，整个流程将贯穿java层和native层，我们再回到上面ActivitThread的main方法中，此时Looper对象已经初始化完毕，接着会调用Looper.loop方法循环处理消息
三、消息处理
来看下Looper.java的loop方法
public static void loop() {
final Looper me = myLooper();
......
// for循环，满足某些条件时才退出
for (;;) {
if (!loopOnce(me, ident, thresholdOverride)) {
return;
}
}
}
具体的处理逻辑在loopOnce函数中(只列出重点代码行)
private static boolean loopOnce(final Looper me, final long ident, final int thresholdOverride) {
// 从looper关联的MsgQueue中获取消息
Message msg = me.mQueue.next(); // might block
if (msg == null) {
// No message indicates that the message queue is quitting.
return false;
}
......
try {
// 调用msg相关的target对象进行处理(其实就是Handler)
msg.target.dispatchMessage(msg);
} catch (Exception exception) {
throw exception;
}
......
msg.recycleUnchecked();
return true;
}
我们来重点关注下MessgeQueue的next函数
Message next() {
// Return here if the message loop has already quit and been disposed.
// This can happen if the application tries to restart a looper after quit
// which is not supported.
final long ptr = mPtr;
if (ptr == 0) {
return null;
}
int pendingIdleHandlerCount = -1; // -1 only during first iteration
int nextPollTimeoutMillis = 0;
for (;;) {
if (nextPollTimeoutMillis != 0) {
Binder.flushPendingCommands();
}
// 1. 检查native层是否有消息需要处理，当nextPollTimeoutMillis==-1时，会阻塞当前线程
nativePollOnce(ptr, nextPollTimeoutMillis);
synchronized (this) {
// Try to retrieve the next message. Return if found.
final long now = SystemClock.uptimeMillis();
Message prevMsg = null;
Message msg = mMessages;
if (msg != null && msg.target == null) {
// Stalled by a barrier. Find the next asynchronous message in the queue.
do {
prevMsg = msg;
msg = msg.next;
} while (msg != null && !msg.isAsynchronous());
}
if (msg != null) {
if (now < msg.when) {
// Next message is not ready. Set a timeout to wake up when it is ready.
nextPollTimeoutMillis = (int) Math.min(msg.when - now, Integer.MAX_VALUE);
} else {
// Got a message.
mBlocked = false;
if (prevMsg != null) {
prevMsg.next = msg.next;
} else {
mMessages = msg.next;
}
msg.next = null;
if (DEBUG) Log.v(TAG, "Returning message: " + msg);
msg.markInUse();
// 返回可用的msg
return msg;
}
} else {
// No more messages.
nextPollTimeoutMillis = -1;
}
}
// Run the idle handlers.
// We only ever reach this code block during the first iteration.
for (int i = 0; i < pendingIdleHandlerCount; i++) {
final IdleHandler idler = mPendingIdleHandlers[i];
mPendingIdleHandlers[i] = null; // release the reference to the handler
boolean keep = false;
try {
// 当消息队列为空闲时，处理idler
keep = idler.queueIdle();
} catch (Throwable t) {
Log.wtf(TAG, "IdleHandler threw exception", t);
}
if (!keep) {
synchronized (this) {
mIdleHandlers.remove(idler);
}
}
}
// Reset the idle handler count to 0 so we do not run them again.
pendingIdleHandlerCount = 0;
// While calling an idle handler, a new message could have been delivered
// so go back and look again for a pending message without waiting.
nextPollTimeoutMillis = 0;
}
}
上述代码是消息队列的核心逻辑，主要做了如下几件事：
- 检查Native层是否有消息要处理，如果有，则先处理Native层的Msg(Native层的消息至少有两类：InputEvent，输入事件-IMMS；DisplayEvent，显示事件-SurfaceFlinger).
- 找到头部的异步消息(Msg的消息类型为asynchronous)
- 如果msg不为null，则返回该msg；否则，将nextPollTimeoutMillis赋值为-1(在下个for循环时，传给natviePollOnce，可以起到阻塞当前线程的作用)
- 如果消息为null，接下来获取已缓存的Idler数组，并逐一调用其queueIdle(多用于处理一些非及时的功能，比如app升级信息提示等)
java层的处理逻辑，目前已经全部讲完了，接下来着重分析下native层，我们从nativePollOnce入手
// frameworks/base/core/jni/android_os_MessageQueue.cpp
static void android_os_MessageQueue_nativePollOnce(JNIEnv* env, jobject obj,
jlong ptr, jint timeoutMillis) {
// 转换ptr，获取到NativeMsgQueue对象
NativeMessageQueue* nativeMessageQueue = reinterpret_cast<NativeMessageQueue*>(ptr);
nativeMessageQueue->pollOnce(env, obj, timeoutMillis);
}
void NativeMessageQueue::pollOnce(JNIEnv* env, jobject pollObj, int timeoutMillis) {
mPollEnv = env;
mPollObj = pollObj;
// 调用looper的pollOnce方法，并传入timeoutMillis
mLooper->pollOnce(timeoutMillis);
mPollObj = NULL;
mPollEnv = NULL;
if (mExceptionObj) {
env->Throw(mExceptionObj);
env->DeleteLocalRef(mExceptionObj);
mExceptionObj = NULL;
}
}
在Natvie层还是使用looper处理消息,但是翻遍Looper.cpp,并没有发现有pollOnce方法，我们来看下其头文件
// system/core/libutils/include/utils/Looper.h
class Looper : public RefBase {
public:
......
int pollOnce(int timeoutMillis, int* outFd, int* outEvents, void** outData);
inline int pollOnce(int timeoutMillis) {
return pollOnce(timeoutMillis, nullptr, nullptr, nullptr);
}
}
下面看下Looper.cpp中相关的逻辑
int Looper::pollOnce(int timeoutMillis, int* outFd, int* outEvents, void** outData) {
int result = 0;
for (;;) {
while (mResponseIndex < mResponses.size()) {
const Response& response = mResponses.itemAt(mResponseIndex++);
int ident = response.request.ident;
if (ident >= 0) {
int fd = response.request.fd;
int events = response.events;
void* data = response.request.data;
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - returning signalled identifier %d: "
"fd=%d, events=0x%x, data=%p",
this, ident, fd, events, data);
#endif
if (outFd != nullptr) *outFd = fd;
if (outEvents != nullptr) *outEvents = events;
if (outData != nullptr) *outData = data;
return ident;
}
}
if (result != 0) {
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - returning result %d", this, result);
#endif
if (outFd != nullptr) *outFd = 0;
if (outEvents != nullptr) *outEvents = 0;
if (outData != nullptr) *outData = nullptr;
return result;
}
result = pollInner(timeoutMillis);
}
}
int Looper::pollInner(int timeoutMillis) {
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - waiting: timeoutMillis=%d", this, timeoutMillis);
#endif
// Adjust the timeout based on when the next message is due.
if (timeoutMillis != 0 && mNextMessageUptime != LLONG_MAX) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
int messageTimeoutMillis = toMillisecondTimeoutDelay(now, mNextMessageUptime);
if (messageTimeoutMillis >= 0
&& (timeoutMillis < 0 || messageTimeoutMillis < timeoutMillis)) {
timeoutMillis = messageTimeoutMillis;
}
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - next message in %" PRId64 "ns, adjusted timeout: timeoutMillis=%d",
this, mNextMessageUptime - now, timeoutMillis);
#endif
}
// Poll.
int result = POLL_WAKE;
mResponses.clear();
mResponseIndex = 0;
// We are about to idle.
mPolling = true;
struct epoll_event eventItems[EPOLL_MAX_EVENTS];
int eventCount = epoll_wait(mEpollFd.get(), eventItems, EPOLL_MAX_EVENTS, timeoutMillis);
// No longer idling.
mPolling = false;
// Acquire lock.
mLock.lock();
// Rebuild epoll set if needed.
if (mEpollRebuildRequired) {
mEpollRebuildRequired = false;
rebuildEpollLocked();
goto Done;
}
// Check for poll error.
if (eventCount < 0) {
if (errno == EINTR) {
goto Done;
}
ALOGW("Poll failed with an unexpected error: %s", strerror(errno));
result = POLL_ERROR;
goto Done;
}
// Check for poll timeout.
if (eventCount == 0) {
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - timeout", this);
#endif
result = POLL_TIMEOUT;
goto Done;
}
// Handle all events.
#if DEBUG_POLL_AND_WAKE
ALOGD("%p ~ pollOnce - handling events from %d fds", this, eventCount);
#endif
for (int i = 0; i < eventCount; i++) {
int fd = eventItems[i].data.fd;
uint32_t epollEvents = eventItems[i].events;
if (fd == mWakeEventFd.get()) {
if (epollEvents & EPOLLIN) {
awoken();
} else {
ALOGW("Ignoring unexpected epoll events 0x%x on wake event fd.", epollEvents);
}
} else {
ssize_t requestIndex = mRequests.indexOfKey(fd);
if (requestIndex >= 0) {
int events = 0;
if (epollEvents & EPOLLIN) events |= EVENT_INPUT;
if (epollEvents & EPOLLOUT) events |= EVENT_OUTPUT;
if (epollEvents & EPOLLERR) events |= EVENT_ERROR;
if (epollEvents & EPOLLHUP) events |= EVENT_HANGUP;
pushResponse(events, mRequests.valueAt(requestIndex));
} else {
ALOGW("Ignoring unexpected epoll events 0x%x on fd %d that is "
"no longer registered.", epollEvents, fd);
}
}
}
Done: ;
// Invoke pending message callbacks.
mNextMessageUptime = LLONG_MAX;
while (mMessageEnvelopes.size() != 0) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
const MessageEnvelope& messageEnvelope = mMessageEnvelopes.itemAt(0);
if (messageEnvelope.uptime <= now) {
// Remove the envelope from the list.
// We keep a strong reference to the handler until the call to handleMessage
// finishes. Then we drop it so that the handler can be deleted *before*
// we reacquire our lock.
{ // obtain handler
sp<MessageHandler> handler = messageEnvelope.handler;
Message message = messageEnvelope.message;
mMessageEnvelopes.removeAt(0);
mSendingMessage = true;
mLock.unlock();
#if DEBUG_POLL_AND_WAKE || DEBUG_CALLBACKS
ALOGD("%p ~ pollOnce - sending message: handler=%p, what=%d",
this, handler.get(), message.what);
#endif
handler->handleMessage(message);
} // release handler
mLock.lock();
mSendingMessage = false;
result = POLL_CALLBACK;
} else {
// The last message left at the head of the queue determines the next wakeup time.
mNextMessageUptime = messageEnvelope.uptime;
break;
}
}
// Release lock.
mLock.unlock();
// Invoke all response callbacks.
for (size_t i = 0; i < mResponses.size(); i++) {
Response& response = mResponses.editItemAt(i);
if (response.request.ident == POLL_CALLBACK) {
int fd = response.request.fd;
int events = response.events;
void* data = response.request.data;
#if DEBUG_POLL_AND_WAKE || DEBUG_CALLBACKS
ALOGD("%p ~ pollOnce - invoking fd event callback %p: fd=%d, events=0x%x, data=%p",
this, response.request.callback.get(), fd, events, data);
#endif
// Invoke the callback. Note that the file descriptor may be closed by
// the callback (and potentially even reused) before the function returns so
// we need to be a little careful when removing the file descriptor afterwards.
int callbackResult = response.request.callback->handleEvent(fd, events, data);
if (callbackResult == 0) {
removeFd(fd, response.request.seq);
}
// Clear the callback reference in the response structure promptly because we
// will not clear the response vector itself until the next poll.
response.request.callback.clear();
result = POLL_CALLBACK;
}
}
return result;
}
这段代码比较长，主要做了如下几件事：
- 通过epoll_wait等待系统消息，如果timeoutMillis为-1，则阻塞当前线程；如果等于0，则立即返回
- 如果eventCount不为0，则将相关的request封装成Response并放入mResponses中
- 调用request的callback函数，执行相关操作
接着看下当线程处于阻塞态，新的Msg到来时，线程被唤醒的机制
// framewors/base/core/java/android/os/MessageQueue.java
boolean enqueueMessage(Message msg, long when) {
if (msg.target == null) {
throw new IllegalArgumentException("Message must have a target.");
}
synchronized (this) {
......
msg.markInUse();
msg.when = when;
Message p = mMessages;
boolean needWake;
if (p == null || when == 0 || when < p.when) {
// New head, wake up the event queue if blocked.
msg.next = p;
mMessages = msg;
needWake = mBlocked;
} else {
msg.next = p; // invariant: p == prev.next
prev.next = msg;
}
// We can assume mPtr != 0 because mQuitting is false.
if (needWake) {
nativeWake(mPtr);
}
}
return true;
}
static void android_os_MessageQueue_nativeWake(JNIEnv* env, jclass clazz, jlong ptr) {
NativeMessageQueue* nativeMessageQueue = reinterpret_cast<NativeMessageQueue*>(ptr);
nativeMessageQueue->wake();
}
void NativeMessageQueue::wake() {
mLooper->wake();
}
void Looper::wake() {
uint64_t inc = 1;
// 唤醒wakeEventFd
ssize_t nWrite = TEMP_FAILURE_RETRY(write(mWakeEventFd.get(), &inc, sizeof(uint64_t)));
if (nWrite != sizeof(uint64_t)) {
if (errno != EAGAIN) {
LOG_ALWAYS_FATAL("Could not write wake signal to fd %d (returned %zd): %s",
mWakeEventFd.get(), nWrite, strerror(errno));
}
}
}
上述代码会唤醒主线程，
