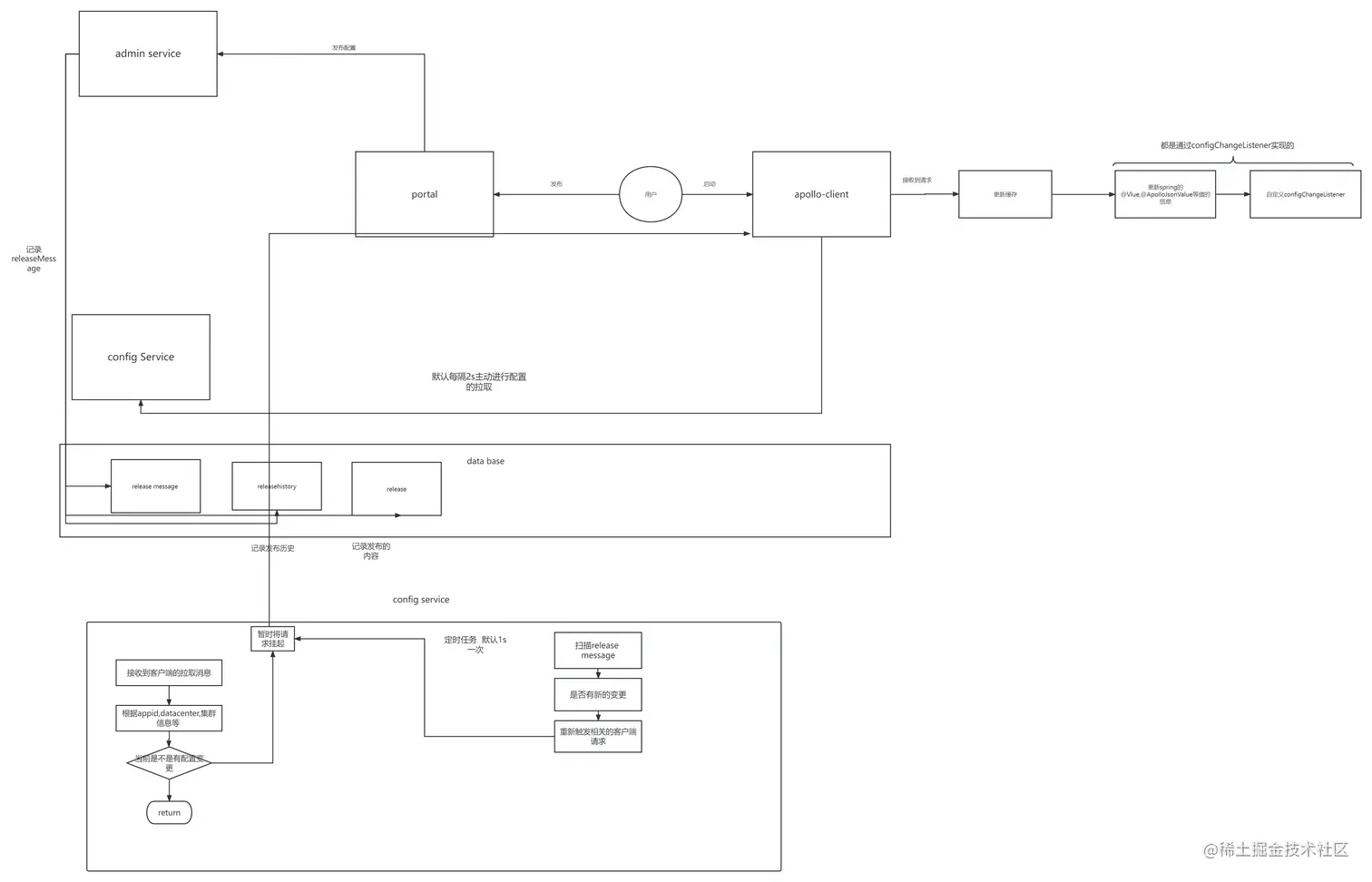

一.Apollo 发布配置流程图
step1: 客户端发起长轮询请求
此时由于没有配置的变更所以当前请求被暂时挂起ds
step2: 管理员在后台发布配置
step3: portal调用adminService进行基础信息的落库-> releaseMessage,releaseHistory,release
step4: configService 定时扫描releaseMessage表重新触发客户端请求
step5: 客户端触发configChanngeListener 变更配置信息
二 源码分析 [talk is cheap show me the code]
step1 客户端发起长轮询请求
RemoteConfigLongPollService # doLongPollingRefresh
logger.info("doLongPollingRefresh start");
final Random random = new Random();
ServiceDTO lastServiceDto = null;
//限流相关
while (!m_longPollingStopped.get() && !Thread.currentThread().isInterrupted()) {
if (!m_longPollRateLimiter.tryAcquire(5, TimeUnit.SECONDS)) {
//wait at most 5 seconds
try {
TimeUnit.SECONDS.sleep(5);
} catch (InterruptedException e) {
}
}
Transaction transaction = Tracer.newTransaction("Apollo.ConfigService", "pollNotification");
String url = null;
try {
if (lastServiceDto == null) {
//选择一个configService
//直接随机选就可以 无状态部署的
List<ServiceDTO> configServices = getConfigServices();
lastServiceDto = configServices.get(random.nextInt(configServices.size()));
}
//拼接请求的URL
url =
assembleLongPollRefreshUrl(lastServiceDto.getHomepageUrl(), appId, cluster, dataCenter,
m_notifications);
logger.info("long polling url:{}",url);
logger.info("Long polling from {}", url);
HttpRequest request = new HttpRequest(url);
//设置请求的超时时间
request.setReadTimeout(LONG_POLLING_READ_TIMEOUT);
if (!StringUtils.isBlank(secret)) {
Map<String, String> headers = Signature.buildHttpHeaders(url, appId, secret);
request.setHeaders(headers);
}
transaction.addData("Url", url);
//发起请求等待response
final HttpResponse<List<ApolloConfigNotification>> response =
m_httpClient.doGet(request, m_responseType);
step2 configService 处理长轮询请求
configService: NotificationControllerV2 # pollNotification
@GetMapping
public DeferredResult<ResponseEntity<List<ApolloConfigNotification>>> pollNotification(
@RequestParam(value = "appId") String appId,
@RequestParam(value = "cluster") String cluster,
@RequestParam(value = "notifications") String notificationsAsString, //这里是客户端监听的所有namespace
@RequestParam(value = "dataCenter", required = false) String dataCenter,
@RequestParam(value = "ip", required = false) String clientIp) {
List<ApolloConfigNotification> notifications = null;
logger.info("poll start config service===>appid:{},cluster:{},notificationsAsString:{}",appId,cluster,notificationsAsString);
try {
notifications =
gson.fromJson(notificationsAsString, notificationsTypeReference);
} catch (Throwable ex) {
Tracer.logError(ex);
}
if (CollectionUtils.isEmpty(notifications)) {
throw new BadRequestException("Invalid format of notifications: " + notificationsAsString);
}
//过滤
Map<String, ApolloConfigNotification> filteredNotifications = filterNotifications(appId, notifications);
if (CollectionUtils.isEmpty(filteredNotifications)) {
throw new BadRequestException("Invalid format of notifications: " + notificationsAsString);
}
//构建一个DeferredResult 如果没有结果暂时将请求挂起
DeferredResultWrapper deferredResultWrapper = new DeferredResultWrapper(bizConfig.longPollingTimeoutInMilli());
Set<String> namespaces = Sets.newHashSetWithExpectedSize(filteredNotifications.size());
Map<String, Long> clientSideNotifications = Maps.newHashMapWithExpectedSize(filteredNotifications.size());
//....根据client传递的参数设置namespace
//构建watchKey
Multimap<String, String> watchedKeysMap =
watchKeysUtil.assembleAllWatchKeys(appId, cluster, namespaces, dataCenter);
logger.info("poll watchedKeysMap:{}",watchedKeysMap);
Set<String> watchedKeys = Sets.newHashSet(watchedKeysMap.values());
/**
* 1、set deferredResult before the check, for avoid more waiting
* If the check before setting deferredResult,it may receive a notification the next time
* when method handleMessage is executed between check and set deferredResult.
*/
deferredResultWrapper
.onTimeout(() -> logWatchedKeys(watchedKeys, "Apollo.LongPoll.TimeOutKeys"));
deferredResultWrapper.onCompletion(() -> {
//设置返回结果后的回调
//unregister all keys
logger.info("onCompletion ===>watchedKeys will remove:{}",watchedKeys);
for (String key : watchedKeys) {
deferredResults.remove(key, deferredResultWrapper);
}
logWatchedKeys(watchedKeys, "Apollo.LongPoll.CompletedKeys");
});
//register all keys
for (String key : watchedKeys) {
this.deferredResults.put(key, deferredResultWrapper);
}
logWatchedKeys(watchedKeys, "Apollo.LongPoll.RegisteredKeys");
logger.debug("Listening {} from appId: {}, cluster: {}, namespace: {}, datacenter: {}",
watchedKeys, appId, cluster, namespaces, dataCenter);
/**
* 2、check new release
*/
List<ReleaseMessage> latestReleaseMessages =
releaseMessageService.findLatestReleaseMessagesGroupByMessages(watchedKeys);
/**
* Manually close the entity manager.
* Since for async request, Spring won't do so until the request is finished,
* which is unacceptable since we are doing long polling - means the db connection would be hold
* for a very long time
*/
entityManagerUtil.closeEntityManager();
List<ApolloConfigNotification> newNotifications =
getApolloConfigNotifications(namespaces, clientSideNotifications, watchedKeysMap,
latestReleaseMessages);
if (!CollectionUtils.isEmpty(newNotifications)) {
//设置结果 返回给客户端
deferredResultWrapper.setResult(newNotifications);
}
return deferredResultWrapper.getResult();
}
step3 客户端提交发布版本
adminService--->releaseController
@Transactional
@PostMapping("/apps/{appId}/clusters/{clusterName}/namespaces/{namespaceName}/releases")
public ReleaseDTO publish(@PathVariable("appId") String appId,
@PathVariable("clusterName") String clusterName,
@PathVariable("namespaceName") String namespaceName,
@RequestParam("name") String releaseName,
@RequestParam(name = "comment", required = false) String releaseComment,
@RequestParam("operator") String operator,
@RequestParam(name = "isEmergencyPublish", defaultValue = "false") boolean isEmergencyPublish) {
//查询namespace
Namespace namespace = namespaceService.findOne(appId, clusterName, namespaceName);
if (namespace == null) {
throw new NotFoundException("Could not find namespace for %s %s %s", appId, clusterName,
namespaceName);
}
//进行版本的发布: 存储至release表 存储发布历史 releaseHistory
Release release = releaseService.publish(namespace, releaseName, releaseComment, operator, isEmergencyPublish);
//send release message
Namespace parentNamespace = namespaceService.findParentNamespace(namespace);
String messageCluster;
if (parentNamespace != null) {
messageCluster = parentNamespace.getClusterName();
} else {
messageCluster = clusterName;
}
//存储releaseMessage 供configService扫描
messageSender.sendMessage(ReleaseMessageKeyGenerator.generate(appId, messageCluster, namespaceName),
Topics.APOLLO_RELEASE_TOPIC);
return BeanUtils.transform(ReleaseDTO.class, release);
}
step4 configService 定时扫描releaseMessage 进行更新配置的通知
ReleaseMessageScanner
private boolean scanAndSendMessages() {
//current batch is 500
List<ReleaseMessage> releaseMessages =
//maxIdScanned 上次拉取的id 找他之后的500条
releaseMessageRepository.findFirst500ByIdGreaterThanOrderByIdAsc(maxIdScanned);
if (CollectionUtils.isEmpty(releaseMessages)) {
return false;
}
//Notify ReleaseMessageListener
fireMessageScanned(releaseMessages);
int messageScanned = releaseMessages.size();
long newMaxIdScanned = releaseMessages.get(messageScanned - 1).getId();
// check id gaps, possible reasons are release message not committed yet or already rolled back
//下面这个表达式成立代表的是当前ID断开了 也就是有任务还没有提交或者已经回滚
if (newMaxIdScanned - maxIdScanned > messageScanned) {
//记录下当前的可能回滚或者是还没有提交的id
recordMissingReleaseMessageIds(releaseMessages, maxIdScanned);
}
maxIdScanned = newMaxIdScanned;
return messageScanned == 500;
}
step5 扫描到消息 返回客户端
@Override
public void handleMessage(ReleaseMessage message, String channel) {
logger.info("message received - channel: {}, message: {}", channel, message);
String content = message.getMessage();
Tracer.logEvent("Apollo.LongPoll.Messages", content);
if (!Topics.APOLLO_RELEASE_TOPIC.equals(channel) || Strings.isNullOrEmpty(content)) {
return;
}
//解析出修改的nameSpace
String changedNamespace = retrieveNamespaceFromReleaseMessage.apply(content);
if (Strings.isNullOrEmpty(changedNamespace)) {
logger.error("message format invalid - {}", content);
return;
}
if (!deferredResults.containsKey(content)) {
return;
}
// 为了避免并发修改异常重新创建一个 List 取出当前关注这个消息的请求
List<DeferredResultWrapper> results = Lists.newArrayList(deferredResults.get(content));
ApolloConfigNotification configNotification = new ApolloConfigNotification(changedNamespace, message.getId());
configNotification.addMessage(content, message.getId());
//do async notification if too many clients......
for (DeferredResultWrapper result : results) {
//为之前缓存的请求设置result 返回给客户端
result.setResult(configNotification);
}
logger.debug("Notification completed");
}
step6 客户端接收到消息 处理
@Override
protected synchronized void sync() {
Transaction transaction = Tracer.newTransaction("Apollo.ConfigService", "syncRemoteConfig");
try {
//历史消息
ApolloConfig previous = m_configCache.get();
//获取最新的消息
ApolloConfig current = loadApolloConfig();
logger.info("previous:{} current:{}",GSON.toJson(previous),GSON.toJson(current));
//reference equals means HTTP 304
//如果不一样则更新缓存并触发一系列的listener 进行配置的更新
if (previous != current) {
logger.debug("Remote Config refreshed!");
m_configCache.set(current);
this.fireRepositoryChange(m_namespace, this.getConfig());
}
if (current != null) {
Tracer.logEvent(String.format("Apollo.Client.Configs.%s", current.getNamespaceName()),
current.getReleaseKey());
}
transaction.setStatus(Transaction.SUCCESS);
} catch (Throwable ex) {
transaction.setStatus(ex);
throw ex;
} finally {
transaction.complete();
}
}
更新@Value的配置
AutoUpdateConfigChangeListener # onChange
@Override
public void onChange(ConfigChangeEvent changeEvent) {
Set<String> keys = changeEvent.changedKeys();
if (CollectionUtils.isEmpty(keys)) {
return;
}
for (String key : keys) {
// 1. check whether the changed key is relevant
Collection<SpringValue> targetValues = springValueRegistry.get(beanFactory, key);
if (targetValues == null || targetValues.isEmpty()) {
continue;
}
// 2. update the value
for (SpringValue val : targetValues) {
updateSpringValue(val);
}
}
}
总结
以上就是Apollo我们在后台进行配置更新的时候服务端和客户端需要做的事情 可能有些东西被一笔带过了 如果感兴趣的话可以去看一下源码 搭建一下源码的运行环境 自己打点日志 debug一下 能够更清晰的认识整个过程!
