1.添加pom依赖
<dependency>
<groupId>org.activiti</groupId>
<artifactId>activiti-spring-boot-starter-basic</artifactId>
<version>6.0.0</version>
<exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</exclusion>
<exclusion>
<artifactId>activation</artifactId>
<groupId>javax.activation</groupId>
</exclusion>
<exclusion>
<artifactId>mybatis</artifactId>
<groupId>org.mybatis</groupId>
</exclusion>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-security</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.activiti</groupId>
<artifactId>activiti-json-converter</artifactId>
<version>6.0.0</version>
<exclusions>
<exclusion>
<groupId>org.activiti</groupId>
<artifactId>activiti-bpmn-model</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-codec</artifactId>
<version>1.7</version>
</dependency>
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-css</artifactId>
<version> 1.7</version>
</dependency>
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-svg-dom</artifactId>
<version>1.7</version>
</dependency>
<dependency>
<groupId>org.apache.xmlgraphics</groupId>
<artifactId>batik-svggen</artifactId>
<version>1.7</version>
</dependency>
2.获取activiti编辑模型页面的静态资源
注：6.0没有提供编辑模型的静态页面，这里我们使用官方5.22.0的静态资源

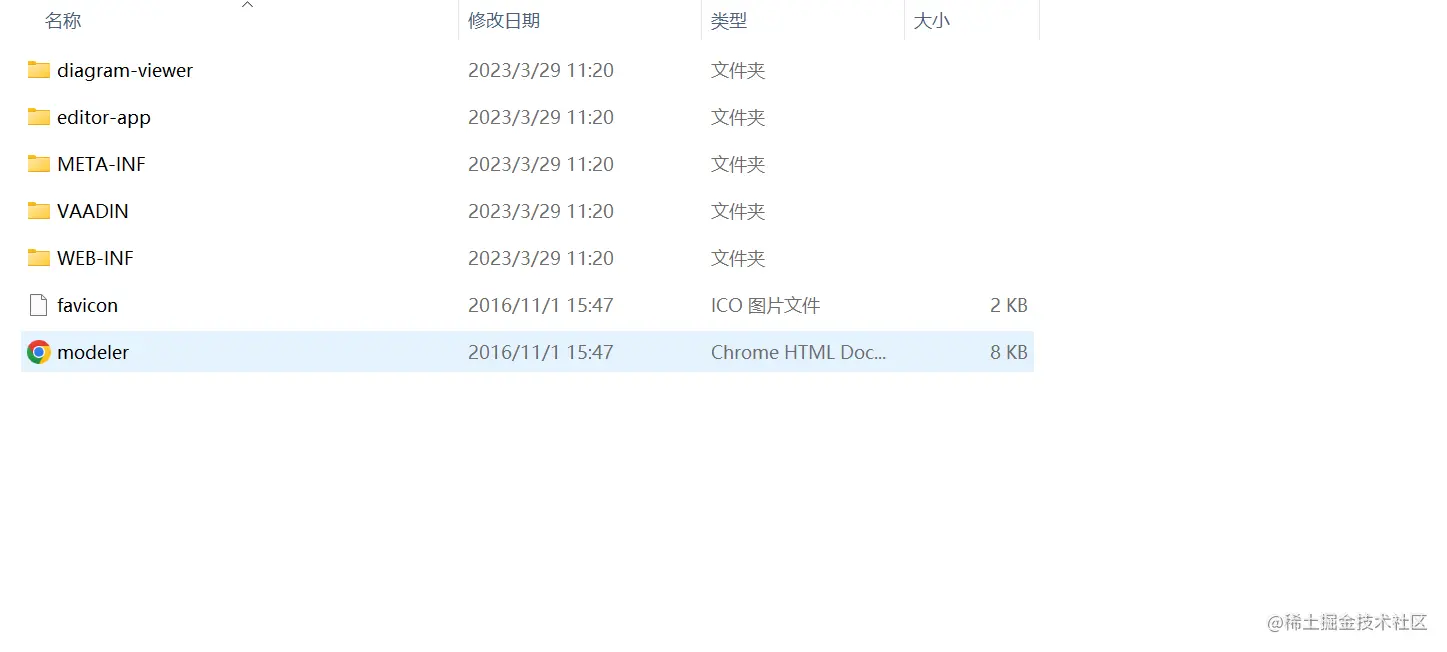

3.下载完成之后，把wars里的2个war包拷贝到webapps下面，启动tomcat

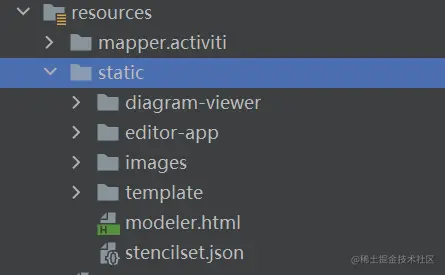

4.把启动后生产的静态资源拷贝到static下面。
5.修改启动类入口
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class,
SecurityAutoConfiguration.class,
org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration.class,
org.springframework.boot.actuate.autoconfigure.security.servlet.ManagementWebSecurityAutoConfiguration.class})
@EnableCustomSwagger2
6.下载处理模型的相关接口，包括创建模型，发布，保存等接口
地址：github.com/Activiti/Ac… 把StencilsetRestResource.java、ModelEditorJsonRestResource.java、ModelSaveRestResource.java拷贝到controller下面
