浏览器两大路由机制

63 阅读1分钟

hash 路由

不改变页面地址,在后面加哈希值。

通过改变location中的hash值,页面渲染不同内容,页面不会刷新。

hash 路由实现 SPA 的逻辑:

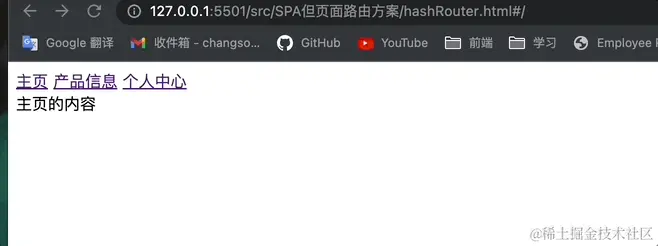

Mar-28-2023 13-27-28.gif

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>hash 路由简单实现</title>
  </head>
  <body>
    <div id="nav">
      <a href="#/">主页</a>
      <a href="#/product">产品信息</a>
      <a href="#/personal">个人中心</a>
    </div>
    <div id="box"></div>
  </body>
</html>
  <script>
      // 哈希路由:通过改变location中的hash值,页面渲染不同内容,页面不会刷新
      var boxDiv = document.getElementById('box');
      var routerList = [
        { path: '/', component: '主页的内容' },
        { path: '/product', component: '产品信息的内容' },
        { path: '/personal', component: '个人中心的内容' },
      ];
      function hashMap() {
        var path = location.hash.substring(1);
        console.log(path);
        routerList.find((router) => {
          if (router.path === path) {
            boxDiv.innerText = router.component;
            return true;
          }
          return false;
        });
      }
      // 页面刚进来hash设为#/,显示主页内容
      location.hash = '/';
      hashMap();
      // 监听路由变化,显示不同内容
      window.onhashchange = hashMap;
    </script>

history 路由

history路由也叫浏览器路由:

  • 利用h5中的History API来实现页面地址的切换【可以不刷新页面】
  • 根据不同的地址,到路由表中匹配,从而让容器渲染不同的内容

问题: 我们切换的地址,在页面不刷新的情况下是没有问题的, 但是如果页面刷新,这个地址是不存在的,会报404错误!! 此时我们需要服务器的配合:在地址不存在的情况下,也可以把主页面内容返回!!

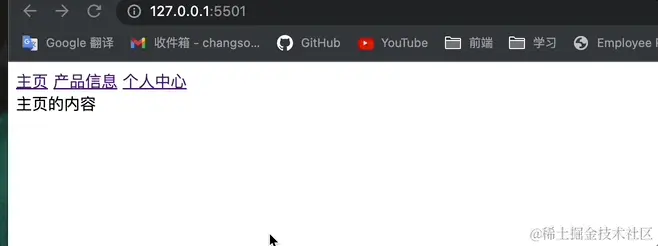

Mar-28-2023 13-29-25.gif

上图中,原地址是 http://127.0.0.1:5501/src/SPA但页面路由方案/historyRouter.html ,因为 history.pushState 方法替换了 pathname,所以看到的才是图中那样,但是实际根本不存在http://127.0.0.1:5501/product 这个地址,所以刷新页面,会报错 404。

代码实现:

   <script>
      var boxDiv = document.getElementById('box');
      var navDiv = document.getElementById('nav');
      var routerList = [
        { path: '/', component: '主页的内容' },
        { path: '/product', component: '产品信息的内容' },
        { path: '/personal', component: '个人中心的内容' },
      ];
      // 在navDiv上做a标签的事件委托: 点击a标签实现页面地址切换,但是不能刷新页面
      navDiv.onclick = function (e) {
        var target = e.target;
        if (target.tagName === 'A') {
          // 阻止a标签的页面跳转和刷新行为
          e.preventDefault();
          // 手动用history的方法改变地址
          history.pushState({}, '', target.href);
          console.log(location.pathname);
          pathChange();
        }
      };
      function pathChange() {
        var path = location.pathname;
        console.log(path);
        routerList.find((router) => {
          if (router.path === path) {
            boxDiv.innerText = router.component;
            return true;
          }
          return false;
        });
      }

      // 页面刚进来地址设为/,显示主页内容
      // history.pushState({}, '', '/');
      // pathChange();

      /**
       * 监听popstate地址变化,执行history的go/forward/back等方法触发,
       * 但是执行pushState和replaceState不会触发
       */
      window.onpopstate = pathChange;
    </script>
