tx3.26笔试-拖拽实现

71 阅读1分钟

给的题是这样的,让填充部分代码

<!DOCTYPE html>
<html>
	<head>
		<meta charset=utf-8>
		<style type="text/css">
			section {
				width: 500px;
				height: 500px;
				position: relative;
				background-color: #333;
				overflow: hidden;
			}
			img {
				width: 150px;
				height: 100px;
				display: block;
				position: absolute;
				cursor: move;
			}
		</style>
	</head>
	<body>
		<section id="dragwall"></section>

		<script type="text/javascript">
			var dragwall = {
				init(param) {
					const el = param.el
					const src = param.src
					if(!el || !src) return
					if(!Array.isArray(src)) return
					this.createElement(el, src)
				},
				createElement(el, src) {
					for(const item of src) {
						/**
                 * clientX: 鼠标相对于浏览器x轴的位置

                 * clientY: 鼠标相对于浏览器y轴的位置

                 * offsetLeft: 返回当前元素左上角相对于 HTMLElement.offsetParent 节点的左边界偏移的像素值

                 * offsetTop: 返回当前元素左上角相对于 HTMLElement.offsetParent 节点的上边界偏移的像素值

                 * HTMLElement.offsetParent: 返回一个指向最近的(指包含层级上的最近)包含该元素的定位元素或者最近的 table,td,th,body 元素。当元素的 style.display 设置为 "none" 时,offsetParent 返回 null

                 */
						const img = document.createElement('img')
						// TODO: 给img动态添加src路径,设置随机定位位置
						img.src = item;
						img.style.top = parseInt(Math.random()*(400-0)+0) + 'px';
						img.style.left = parseInt(Math.random()*(350-0)+0) + 'px';

						img.onmousedown = function(event) {
							disX = event.clientX - img.offsetLeft
							disY = event.clientY - img.offsetTop
							document.onmousemove = function(event) {
								// TODO: 完善图片拖动的代码逻辑
								img.style.left = event.clientX - disX + 'px';
								img.style.top = event.clientY - disY + 'px';
								console.log(event)
							}
							document.onmouseup = function(event) {
								document.onmousemove = null
								document.onmouseup = null
							}
							return false
						}
						el.appendChild(img)
					}
				}
			}
			dragwall.init({
				// TODO: 请获取id=dragwall的节点

				el: document.getElementById('dragwall'),
				src: [
					'https://uploadfiles.nowcoder.com/images/20211201/920662346_1638346653702/132A122A64D68E816977F049277D1A35',
					'https://uploadfiles.nowcoder.com/images/20211201/920662346_1638346825557/31EBC4370166F179D3BFDC3E4FCEB5B0',
					'https://uploadfiles.nowcoder.com/images/20211201/920662346_1638346825557/FE88E01440218FA643954E80A16BEDBB',
					'https://uploadfiles.nowcoder.com/images/20211201/920662346_1638346825568/7FDC1A630C238AF0815181F9FAA190F5',
					'https://uploadfiles.nowcoder.com/images/20211201/920662346_1638346825568/980806D97986C9DEBBBF750E990548FF',
				]
			})
		</script>
	</body>
</html>

这里有几个点需要记住:

获取m-n范围的随机数

当作公式去记住他!!!

Math.random()*(n-m)+m

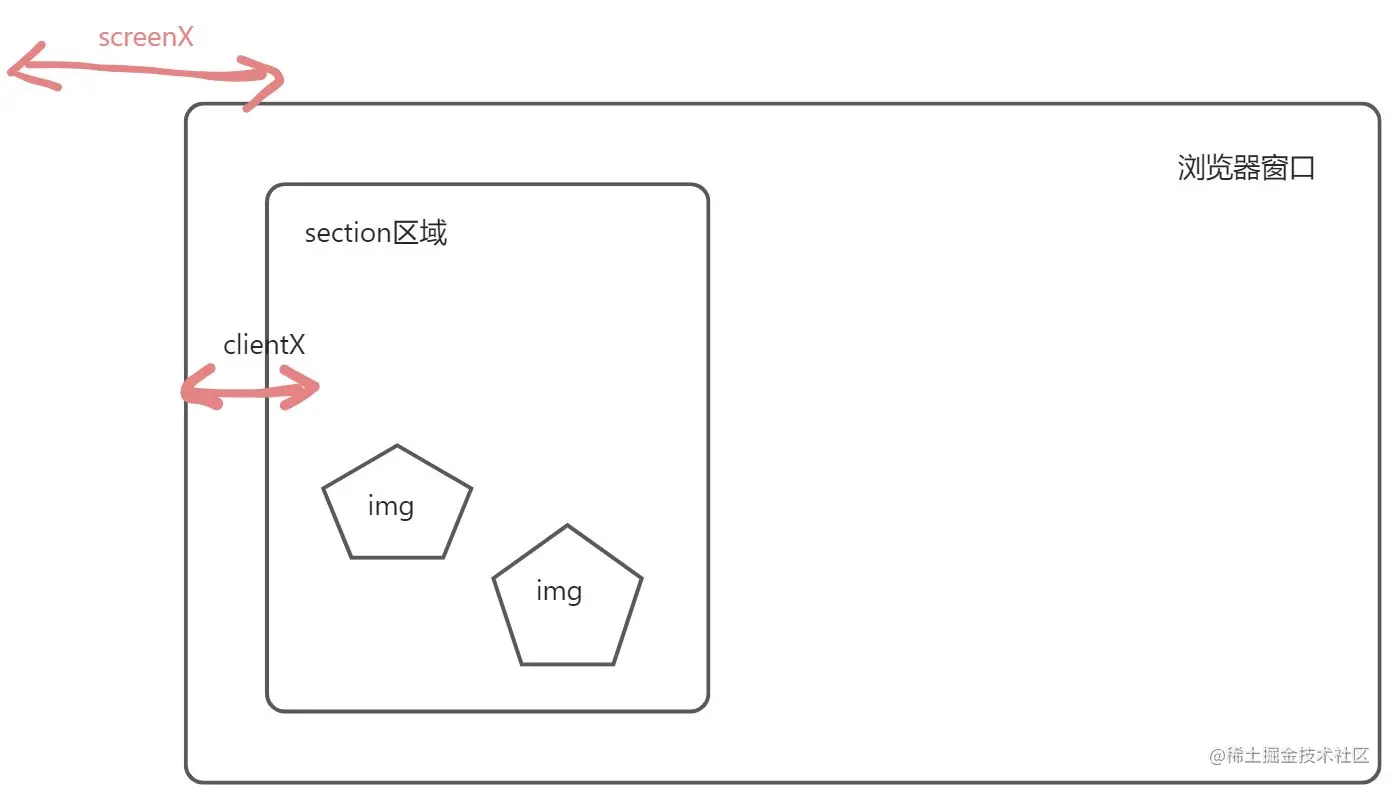

clientX 事件属性返回当事件被触发时鼠标指针相对于浏览器页面(或客户区)的水平坐标。

screenX 事件属性可返回事件发生时鼠标指针相对于屏幕的水平坐标。

offsetLeft 是一个只读属性,返回当前元素相对于 offsetParent 节点左边界的偏移像素值。

意思就是,offsetLeft在img上(img.offsetLeft),那么其实就相当于相对section区域的一个左偏移值
