win10系统scrapy工程打包和部署

apiudong
154 阅读6分钟

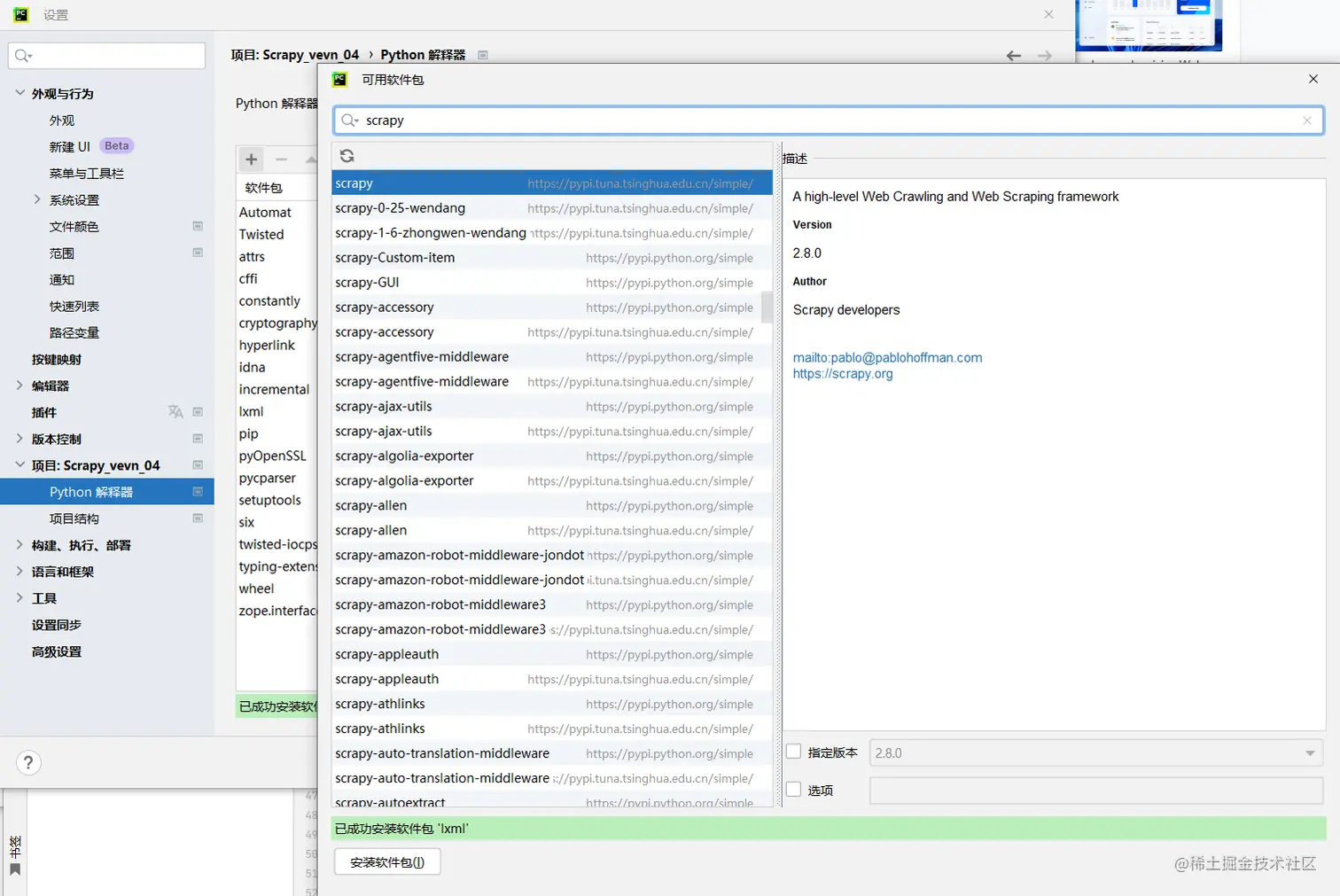

安装scrapy相关库：

# 安装顺序参考如下：
zope.interface
pyopenssl
twisted
lxml
scrapy


查看scrapy安装情况：

(venv) PS G:\Python_pj\Scrapy_vevn_04> scrapy -h
Scrapy 2.8.0 - no active project

Usage:
  scrapy <command> [options] [args]

Available commands:
  bench         Run quick benchmark test
  fetch         Fetch a URL using the Scrapy downloader
  genspider     Generate new spider using pre-defined templates
  runspider     Run a self-contained spider (without creating a project)
  settings      Get settings values
  shell         Interactive scraping console
  startproject  Create new project
  version       Print Scrapy version
  view          Open URL in browser, as seen by Scrapy

  [ more ]      More commands available when run from project directory

Use "scrapy <command> -h" to see more info about a command

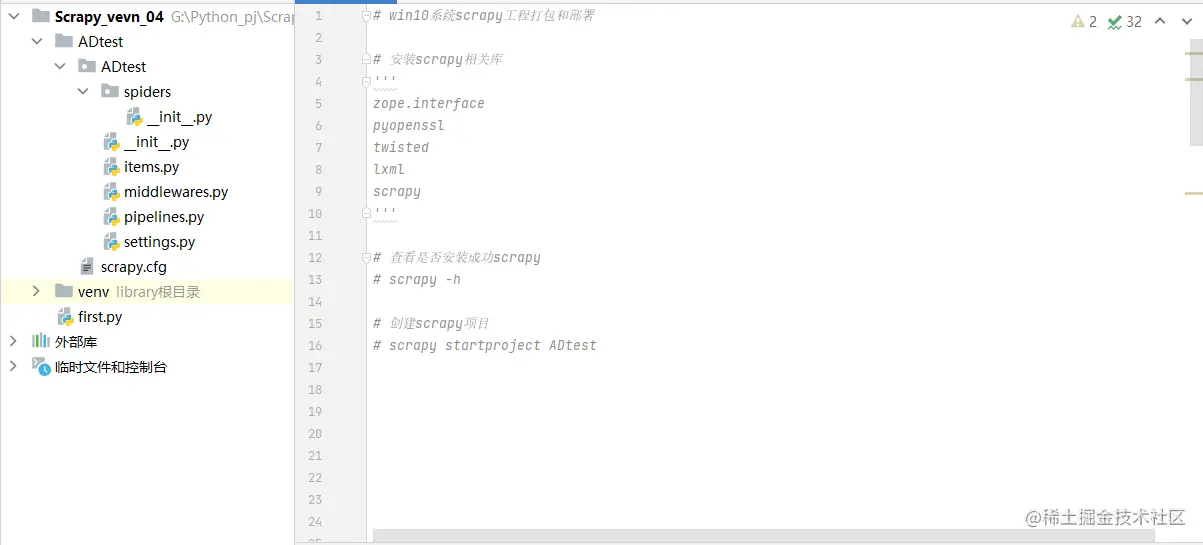

创建scrapy项目：

(venv) PS G:\Python_pj\Scrapy_vevn_04> scrapy startproject ADtest
New Scrapy project 'ADtest', using template directory 'G:\Python_pj\Scrapy_vevn_04\venv\Lib\site-packages\scrapy\templates\project', created in:
    G:\Python_pj\Scrapy_vevn_04\ADtest
You can start your first spider with:
    cd ADtest
    scrapy genspider example example.com
(venv) PS G:\Python_pj\Scrapy_vevn_04>


创建scrapy爬虫：

  • 快速创建 scrapy genspider baidu baidu.com
  • 指定模板创建 scrapy genspider -t basic tencent tencent.com
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapy genspider baidu baidu.com
Created spider 'baidu' using template 'basic' in module:
  ADtest.spiders.baidu
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapy genspider -t basic tencent tencent.com
Created spider 'tencent' using template 'basic' in module:
  ADtest.spiders.tencent
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapy list
baidu
tencent
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest>

测试scrapy爬虫：

  • 执行爬虫 scrapy crawl baidu
2023-03-27 16:18:23 [scrapy.core.engine] INFO: Spider opened
2023-03-27 16:18:23 [scrapy.extensions.logstats] INFO: Crawled 0 pages (at 0 pages/min), scraped 0 items (at 0 items/min)
2023-03-27 16:18:23 [scrapy.extensions.telnet] INFO: Telnet console listening on 127.0.0.1:6023
2023-03-27 16:18:23 [scrapy.core.engine] DEBUG: Crawled (200) <GET http://baidu.com/robots.txt> (referer: None)
2023-03-27 16:18:23 [scrapy.downloadermiddlewares.robotstxt] DEBUG: Forbidden by robots.txt: <GET http://baidu.com/>
2023-03-27 16:18:23 [scrapy.core.engine] INFO: Closing spider (finished)


安装scrapy-redis库：

  • pip安装数据库包 pip install scrapy-redis

scrapyd部署：

  • 服务器端部署环境 pip install scrapyd
  • 客户端部署工具 pip install scrapyd-client

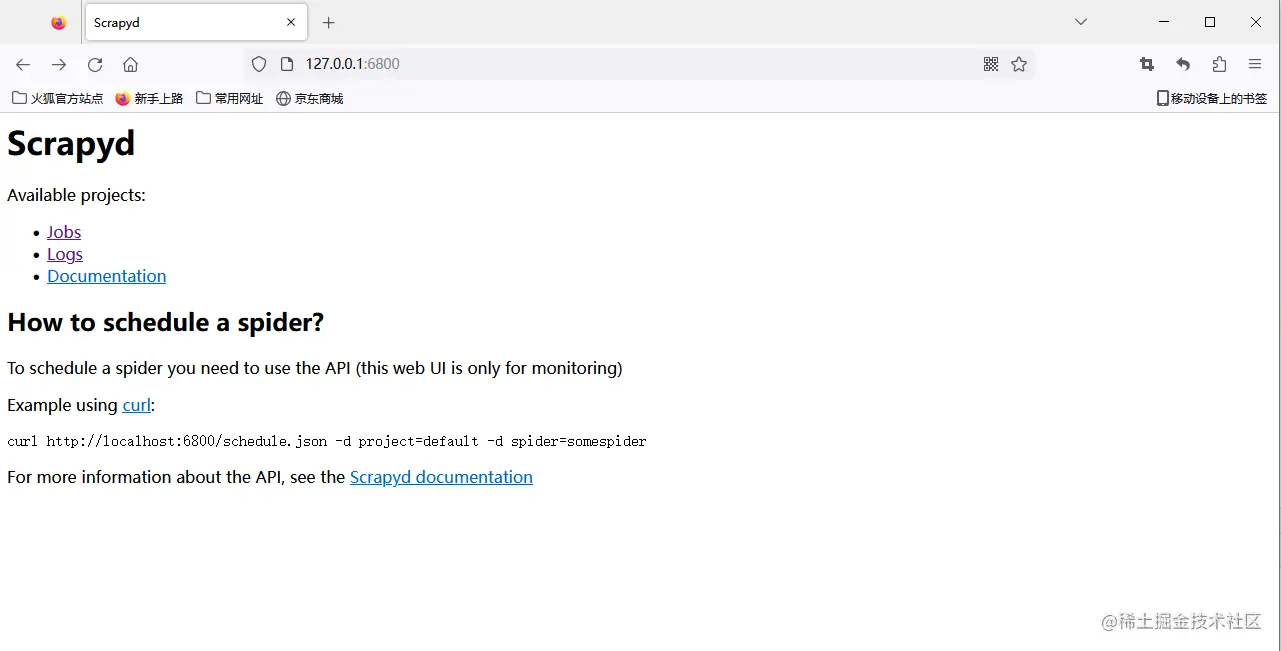

启动服务（服务器端打开并保持开启）：

  • dbs文件夹 服务器端开启服务出现（存放数据库）
(venv) PS G:\Python_pj\Scrapy_vevn_04> scrapyd
2023-03-27T16:36:06+0800 [-] Loading G:\Python_pj\Scrapy_vevn_04\venv\lib\site-packages\scrapyd\txapp.py...
2023-03-27T16:36:06+0800 [-] Basic authentication disabled as either `username` or `password` is unset

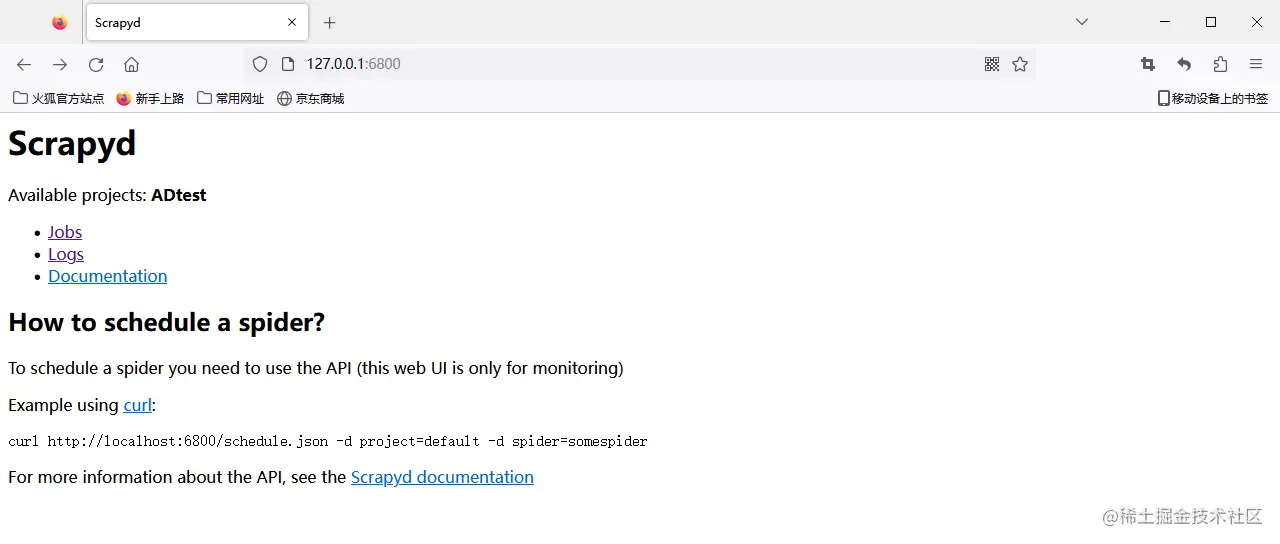

2023-03-27T16:36:06+0800 [-] Scrapyd web console available at http://127.0.0.1:6800/
2023-03-27T16:36:06+0800 [-] Loaded.
2023-03-27T16:36:06+0800 [twisted.application.app.AppLogger#info] twistd 22.10.0 (G:\Python_pj\Scrapy_vevn_04\venv\Scripts\python.exe 3.10.5) starti
ng up.
2023-03-27T16:36:06+0800 [twisted.application.app.AppLogger#info] reactor class: twisted.internet.selectreactor.SelectReactor.
2023-03-27T16:36:06+0800 [-] Site starting on 6800
2023-03-27T16:36:06+0800 [twisted.web.server.Site#info] Starting factory <twisted.web.server.Site object at 0x000001B5F3BE3970>
2023-03-27T16:36:06+0800 [Launcher] Scrapyd 1.4.1 started: max_proc=80, runner='scrapyd.runner'


客户端开始部署服务

  • 客户端是否正常 scrapyd-deploy -h
(venv) PS G:\Python_pj\Scrapy_vevn_04> scrapyd-deploy -h
usage: scrapyd-deploy [-h] [-p PROJECT] [-v VERSION] [-l] [-a] [-d] [-L TARGET] [--egg FILE] [--build-egg FILE] [--include-dependencies] [TARGET]

Deploy Scrapy project to Scrapyd server

positional arguments:
  TARGET

options:
  -h, --help            show this help message and exit
  -p PROJECT, --project PROJECT
                        the project name in the TARGET
  -v VERSION, --version VERSION
                        the version to deploy. Defaults to current timestamp
  -l, --list-targets    list available targets
  -a, --deploy-all-targets
                        deploy all targets
  -d, --debug           debug mode (do not remove build dir)
  -L TARGET, --list-projects TARGET
                        list available projects in the TARGET
  --egg FILE            use the given egg, instead of building it
  --build-egg FILE      only build the egg, don't deploy it
  --include-dependencies
                        include dependencies from requirements.txt in the egg
(venv) PS G:\Python_pj\Scrapy_vevn_04>
  • 部署命令 scrapyd-deploy

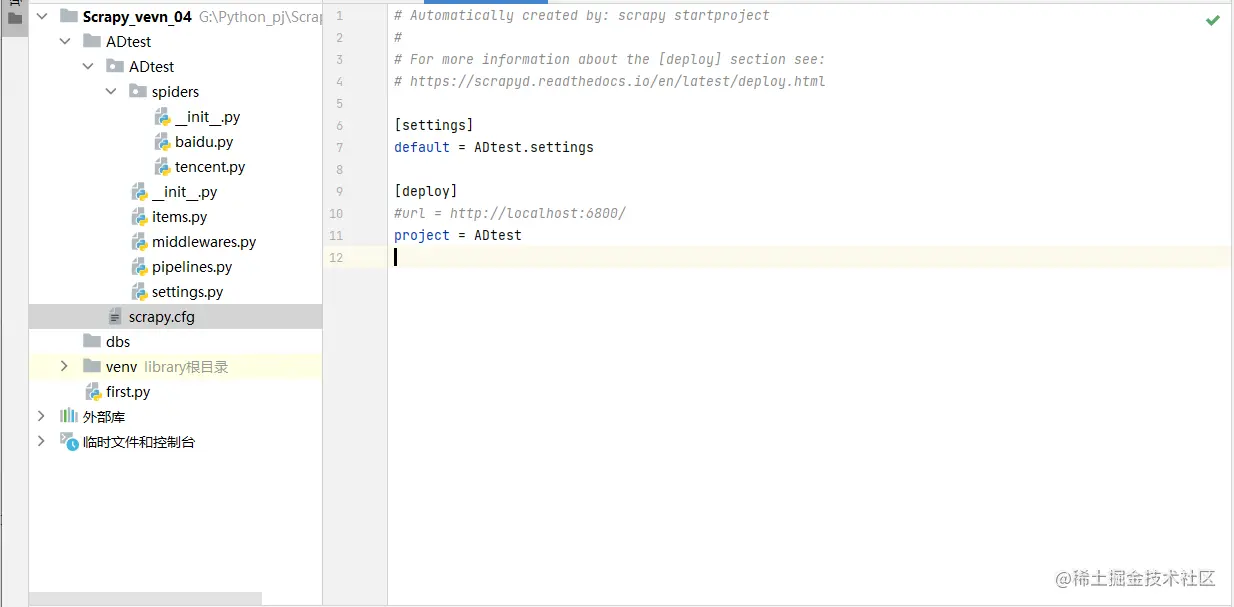

# 配置文件没有打开url地址
(venv) PS G:\Python_pj\Scrapy_vevn_04> cd ADtest
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapyd-deploy
Unknown target: default


  • 打包完成
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapyd-deploy
Packing version 1679907159
Deploying to project "ADtest" in http://localhost:6800/addversion.json
Server response (200):
{"node_name": "PS2022ZYSKWXTZ", "status": "ok", "project": "ADtest", "version": "1679907159", "spiders": 2}

(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest>


再次进行部署测试

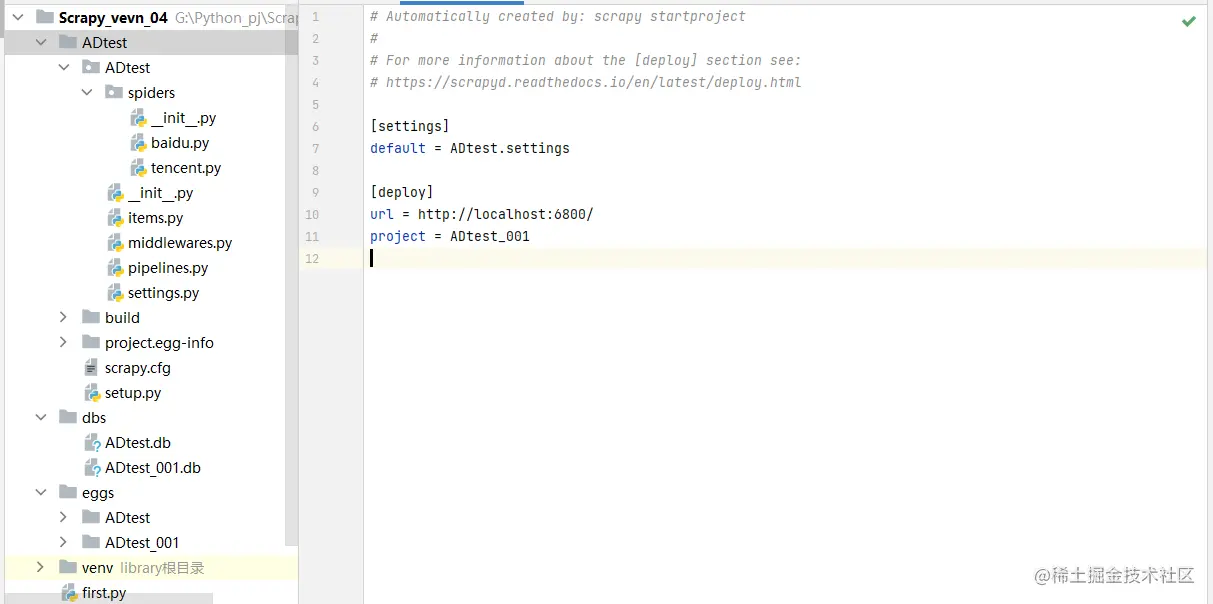

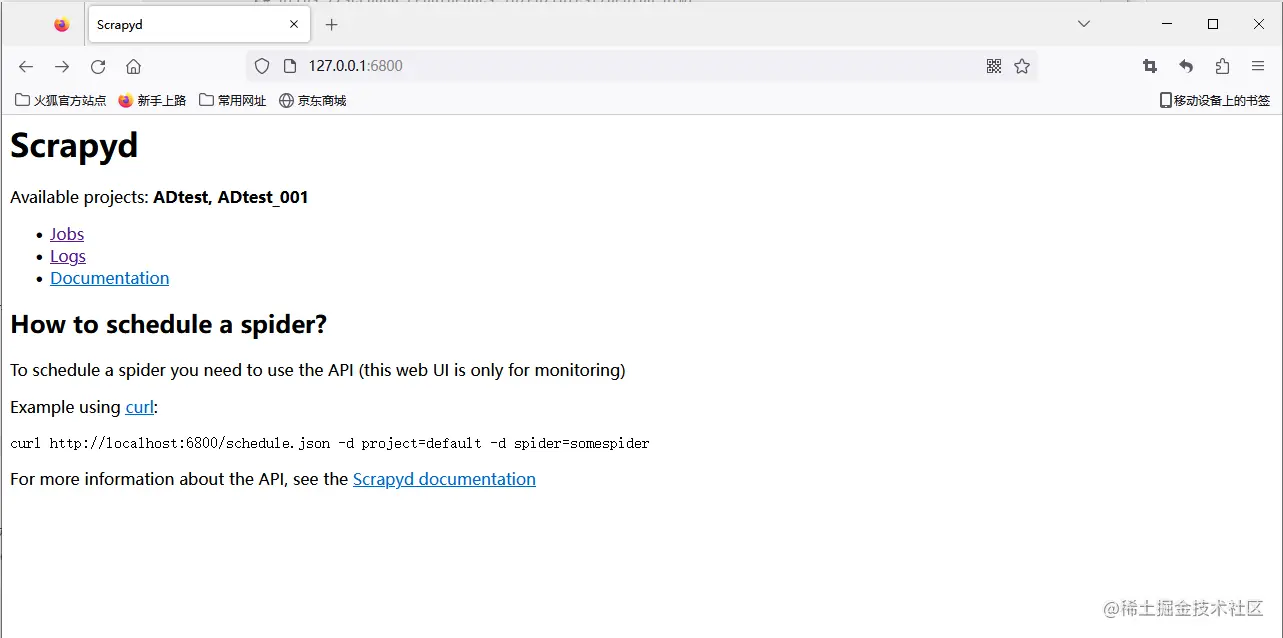

  • project改名再次部署并查看
(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest> scrapyd-deploy
Packing version 1679907735
Deploying to project "ADtest_001" in http://localhost:6800/addversion.json
Server response (200):
{"node_name": "PS2022ZYSKWXTZ", "status": "ok", "project": "ADtest_001", "version": "1679907735", "spiders": 2}

(venv) PS G:\Python_pj\Scrapy_vevn_04\ADtest>

07.png 08.png

补充说明

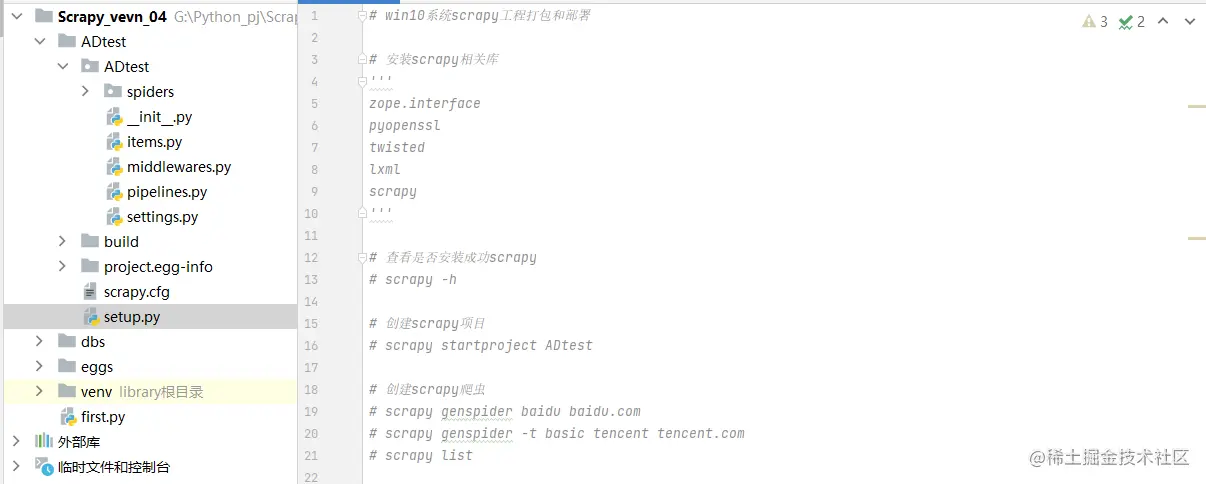

  • 客户端部署打包需要安装库 pip install pywin32
  • 客户端完成打包会出现新增文件源码文件夹不受影响
  • 部署打包完成后服务器端会更新dbs和eggs文件内容

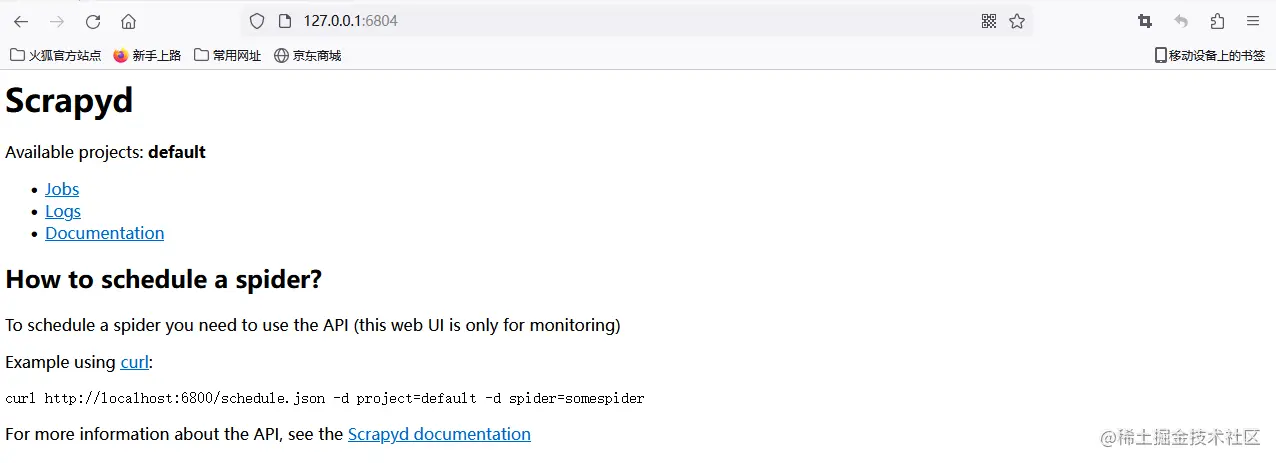

服务器部署多个scrapyd

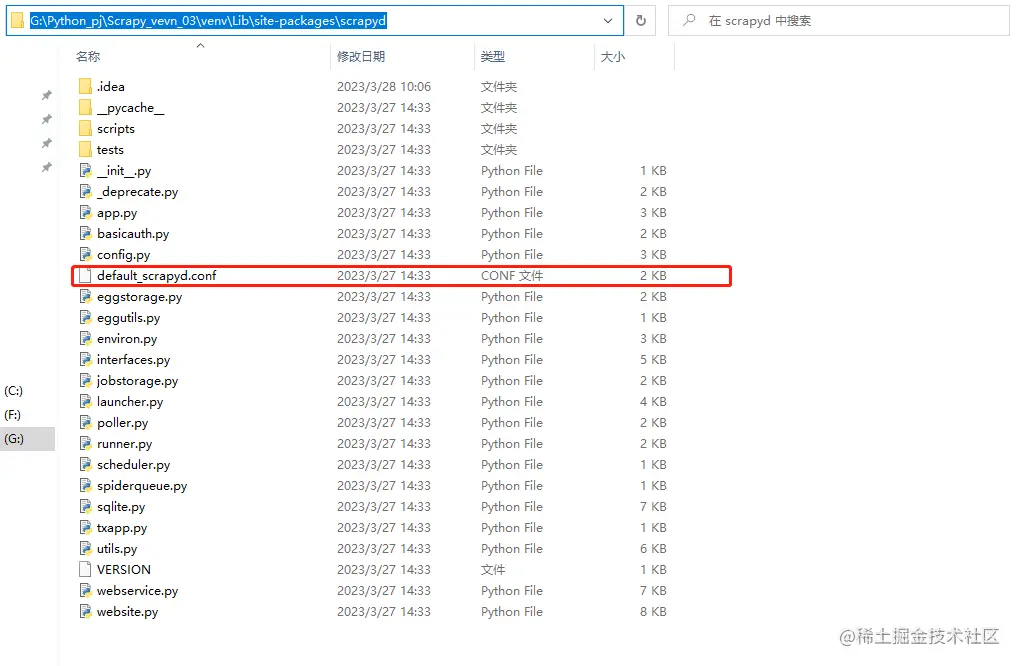

  • 新建多个文件夹，每个文件夹放入配置文件 注意是复制出来请不要改原始文件

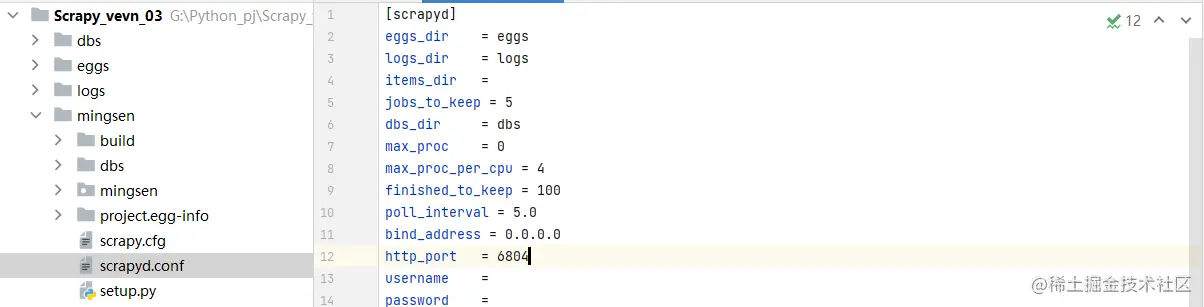

  • 修改配置文件端口号 原始端口：6800

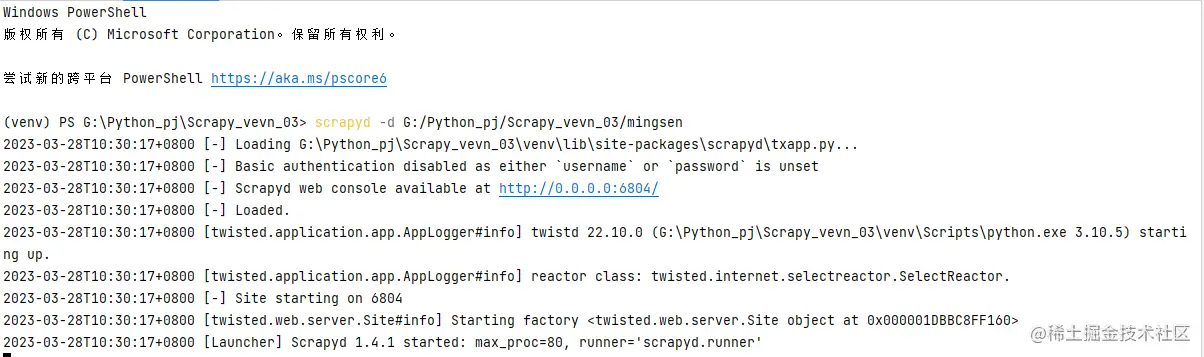

  • 按文件夹路径启动服务测试 scrapyd -d G:/Python_pj/Scrapy_vevn_03/mingsen

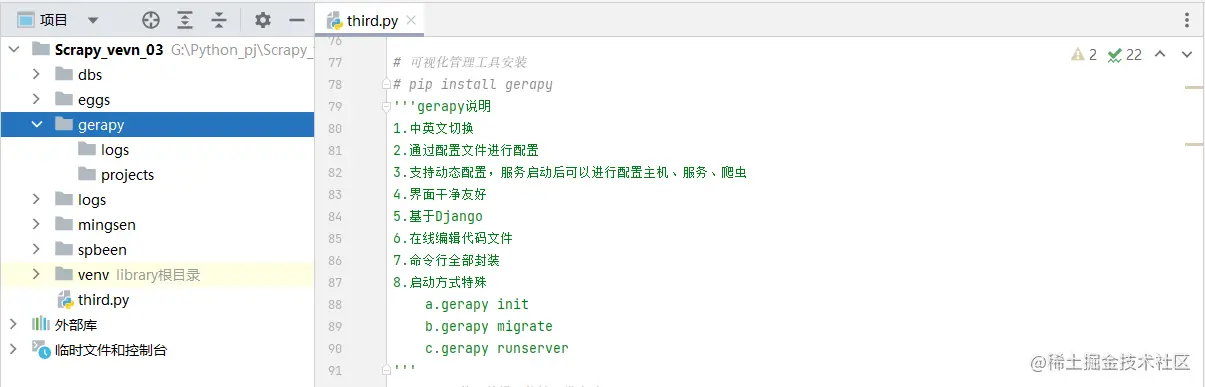

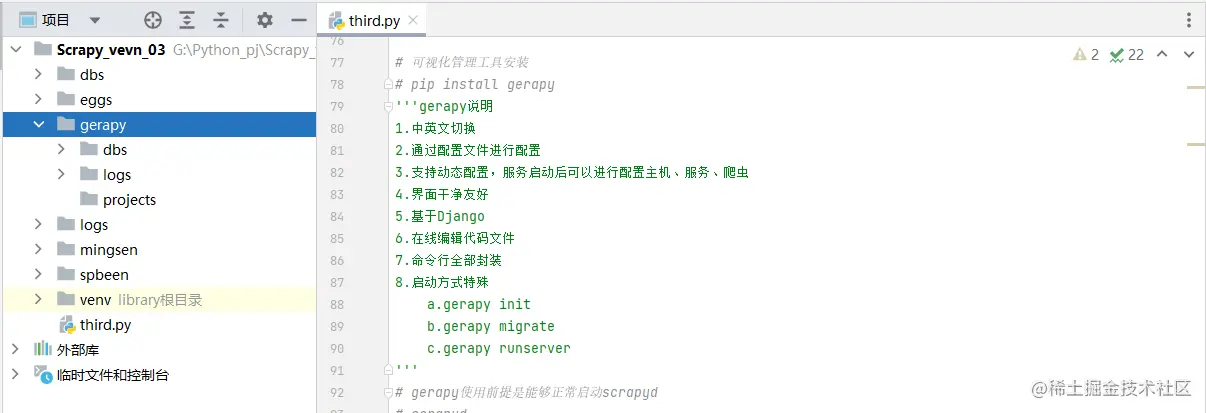

可视化管理工具Gerapy

1.中英文切换
2.通过配置文件进行配置
3.支持动态配置，服务启动后可以进行配置主机、服务、爬虫
4.界面干净友好
5.基于Django
6.在线编辑代码文件
7.命令行全部封装
8.启动方式特殊
    a.gerapy init
    b.gerapy migrate
    c.gerapy runserver
  • Gerapy安装 pip install gerapy
  • 使用前提是scrapyd可以正常使用
(venv) PS G:\Python_pj\Scrapy_vevn_03> scrapyd
2023-03-28T11:51:55+0800 [-] Loading G:\Python_pj\Scrapy_vevn_03\venv\lib\site-packages\scrapyd\txapp.py...
2023-03-28T11:51:56+0800 [-] Basic authentication disabled as either `username` or `password` is unset
2023-03-28T11:51:56+0800 [-] Scrapyd web console available at http://127.0.0.1:6800/
2023-03-28T11:51:56+0800 [-] Loaded.
2023-03-28T11:51:56+0800 [twisted.application.app.AppLogger#info] twistd 22.10.0 (G:\Python_pj\Scrapy_vevn_03\venv\Scripts\python.exe 3.10.5) starti
ng up.
2023-03-28T11:51:56+0800 [twisted.application.app.AppLogger#info] reactor class: twisted.internet.selectreactor.SelectReactor.
2023-03-28T11:51:56+0800 [-] Site starting on 6800
2023-03-28T11:51:56+0800 [twisted.web.server.Site#info] Starting factory <twisted.web.server.Site object at 0x000002084DD4F100>
2023-03-28T11:51:56+0800 [Launcher] Scrapyd 1.4.1 started: max_proc=80, runner='scrapyd.runner'

初始化 gerapy init

(venv) PS G:\Python_pj\Scrapy_vevn_03> gerapy init
Initialized workspace gerapy
(venv) PS G:\Python_pj\Scrapy_vevn_03>


迁移 gerapy migrate

# 进入路径gerapy迁移，把所有模型转变为数据库文件
(venv) PS G:\Python_pj\Scrapy_vevn_03> cd .\gerapy\
(venv) PS G:\Python_pj\Scrapy_vevn_03\gerapy> gerapy migrate


启动服务 gerapy runserver

(venv) PS G:\Python_pj\Scrapy_vevn_03\gerapy> gerapy runserver
Watching for file changes with StatReloader
Performing system checks...

INFO - 2023-03-28 12:01:46,329 - process: 14800 - scheduler.py - gerapy.server.core.scheduler - 105 - scheduler - successfully synced task with jobs
 with force
System check identified no issues (0 silenced).
March 28, 2023 - 12:01:46
Django version 2.2.28, using settings 'gerapy.server.server.settings'
Starting development server at http://127.0.0.1:8000/
Quit the server with CTRL-BREAK.

# 停止服务：命令行中Ctrl+C


创建用户密码 gerapy createsuperuser

(venv) PS G:\Python_pj\Scrapy_vevn_03\gerapy> gerapy createsuperuser
Username (leave blank to use 'admin'): admin
Email address:
Password:
Password (again):
This password is too short. It must contain at least 8 characters.
This password is too common.
This password is entirely numeric.
Bypass password validation and create user anyway? [y/N]: y
Superuser created successfully.

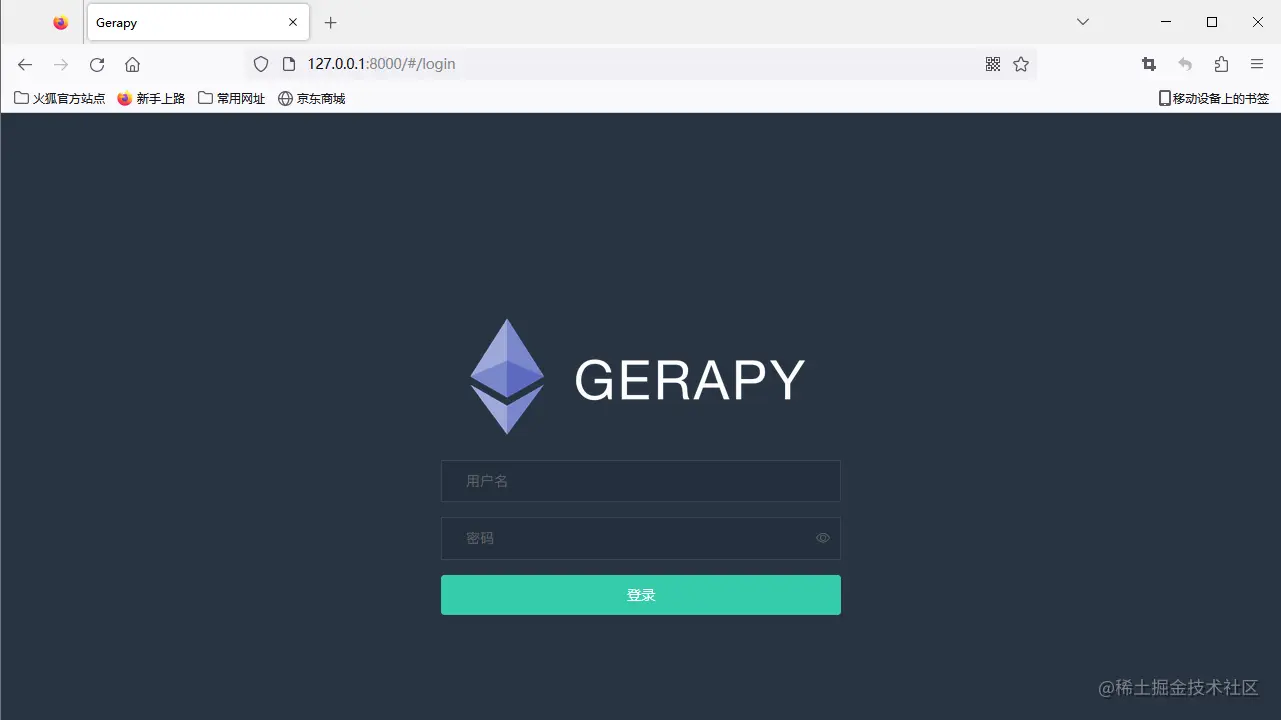

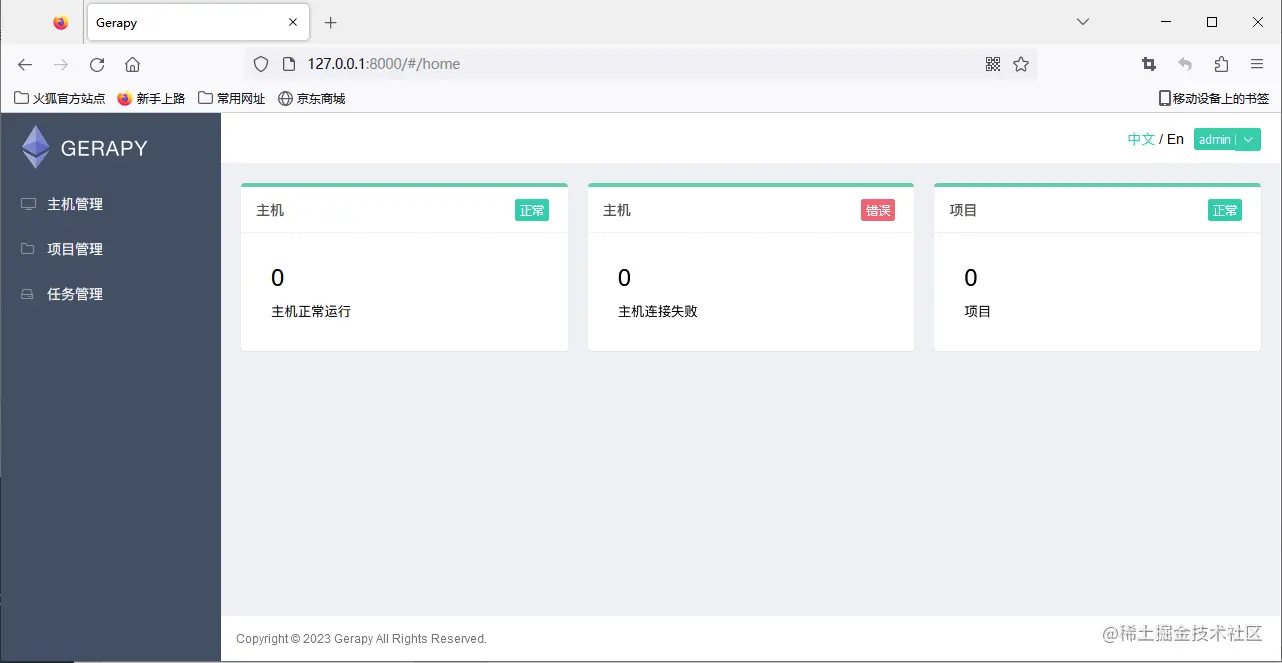

可视化界面
