今日,下暴雨,天黑蒙蒙的。写篇文吧。

先看效果

先来看看效果:👆👆👆 (文章封面)

准备素材

准备一个白底背景图,和黑模式图,和一个中间分隔条。

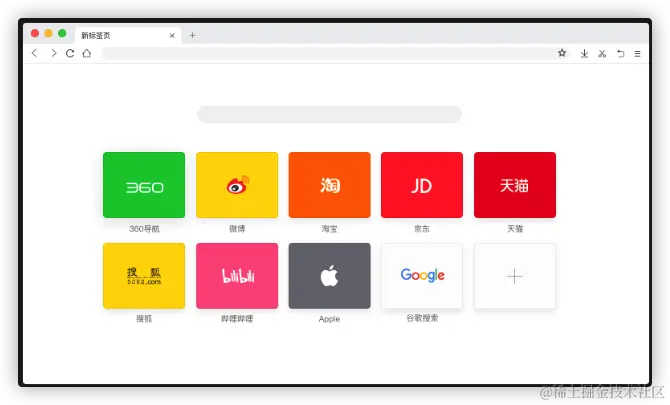

白色底图:

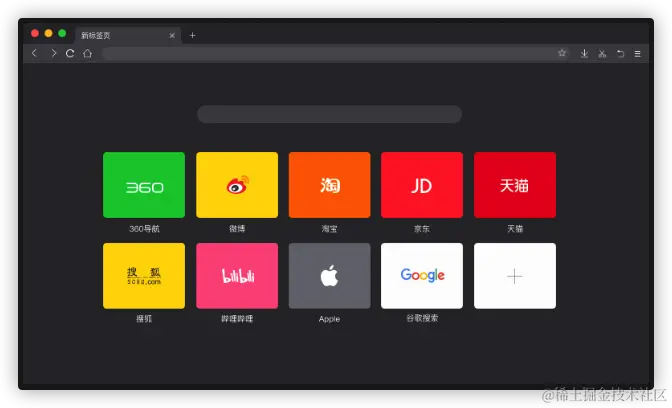

黑色图:

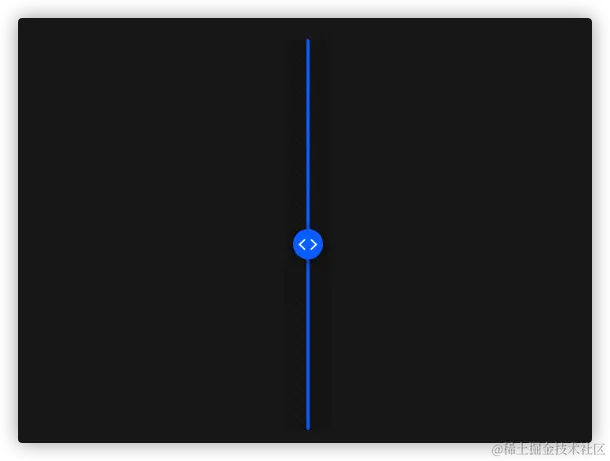

分隔条:



衷心建议,如果想换成人变装模式,反差越大越精彩。

原理

一个盒子(背景图就是白色的那张),通过range类型的滑块input的拖动,来改变黑底图相对盒子的宽度width,以及分割线相对盒子最左边的距离left。

代码

// html

<div class="box">
    <span class="divider" style="left: 44%"></span>
    <input id="rangeInput" type="range" min="0" max="100" value="50" />
    <div class="blackBg" style="width: 44%"></div>
</div>
// css
.box {
    width: 782px;
    height: 452px;
    position: relative;
    top: 0;
    background-image: url('白色底图')
}

.divider {
    width: 58px;
    height: 486px;
    position: absolute;
    z-index: 2;
    background-image: url('分隔线图')
}

.blackBg {
    width: 0;
    height: 100%;
    background-image: url('黑色图'),
    background-size: 782px 452px;
    background-positon: left top;
    background-repeat: no-repeat;
}

// type='range'的input
#rangeInput {
    width: 100%;
    position: absolute;
    z-index: 3;
    top: calc(50% + 10px);
    opacity: 0;
    cursor: ew-resize;
}

js 部分

<script type="text/javascript">
function setPosition(e) {
  $(".divider").css({ left: e + "%" }), // 动 分隔条 相对盒子最左边的 距离 -> left
    $(".blackBg").css({ width: e + "%" }); // 动 黑图 的 宽度 -> width
}

$("#rangeInput").bind("input", function() {
  const e = $(this).val(); // 0 - 100
  setPosition(e);
});
</script>

另外一种写法

实现方式: 就两张图做背景图片,然后控制布局位置,控制容器的宽高就行了。

<style>
      * {
        margin: 0px;
        padding: 0px;
        user-select: none;
      }
      .div {
        border: 1px solid lightgray;
        width: 400px;
        height: 200px;
        margin: 10px;
        float: left;
        position: relative;
      }
      .img1 {
        position: absolute;
        top: 0;
        bottom: 0;
        left: 0;
        width: 50%;
      }
      .img2 {
        position: absolute;
        top: 0;
        bottom: 0;
        left: 50%;
        right: 0;
      }
      .img1,
      .img2 {
        background-position: center center;
        background-size: 400px 200px;
        background-repeat: no-repeat;
      }
      .img1 {
        background-position-x: 0;
      }
      .img2 {
        background-position-x: 100%;
      }
      .bar {
        position: absolute;
        top: 0;
        bottom: 0;
        right: -4px;
        width: 8px;
        background-color: #037FFF;
        cursor: ew-resize;
      }
      .stop {
        pointer-events: none;
      }
    </style>
  </head>
  <body>
    <div class="div">
      <div class="img1" style="background-image: url(./image/black-bg.png);">
        <div class="bar" data-flag="0"></div>
      </div>
      <div
        class="img2"
        style="background-image: url(./image/box-bg.png);"
      ></div>
    </div>
  </body>

  <script>
  $(document).ready(function() {
    $(".bar").mousedown(function() {
      $(this)
        .parent()
        .addClass("stop");
      $(this)
        .parent()
        .next()
        .addClass("stop");
      $(this).attr("data-flag", "1");
    });
    $(".div").mousemove(function(e) {
      const temp = $(this)
        .find(".bar")
        .attr("data-flag");
      if (temp == "1") {
        const w = $(this).width();
        const x = e.offsetX;
        const p = parseFloat((x / w).toFixed(2)) * 100;
        $(this)
          .children(".img1")
          .css("width", p + "%");
        $(this)
          .children(".img2")
          .css("left", p + "%");
      }
    });
    $(document).mouseup(function() {
      $(".img1,.img2").removeClass("stop");
      $(".bar").attr("data-flag", "0");
    });
  });
</script>

效果如下:

好了,就这样,最后来个变身吧。下一篇。

层叠图片拖动对比

层叠图片拖动对比,实现原图和经过处理的图片进行对比,拖动中间的分割线来进行两张图片的细节对比。
