Zynq 裸机 PS + PL 双网口实现之 lwip 库文件修改

Hello阿尔法
1,316 阅读6分钟

因项目需要，为实现 Zynq 裸机双网口通信功能，其中 ENET0 连接 PS 端网口，ENET1 通过 EMIO 扩展连接 PL 端网口，原 Lwip 库无板载 PHY 芯片支持及 EMIO 配置选项，故将 Lwip 库文件进行修改以满足功能需求。

修改对象

Xilinx Vivado 2017.4 库文件 lwip141_v2_0

新增功能

  • 添加 PHY 芯片 KSZ9031 支持，10/100/1000 Mbps 速度自适应

  • 添加 SDK 中 Lwip 参数设置对话框 emio_options 选项

  • 添加通过 MDIO 配置 GMII to RGMII 寄存器相关的两个宏配置

测试环境

  • Windows 10，Vivado 2017.4

  • 黑金 Zynq 7035 板卡，芯片型号：XC7Z035-2FFG676I

  • 100M 以太网，TCP、UDP 通信

修改内容

1. 修改 lwip141_v2_0\src\contrib\ports\xilinx\netif\xaxiemacif_physpeed.c 文件

添加宏定义：

#define MICREL_PHY_IDENTIFIER		0x22
#define MICREL_PHY_KSZ9031_MODEL	0x220

添加 phy 芯片 ksz9031 速度获取函数：

unsigned int get_phy_speed_ksz9031(XAxiEthernet *xaxiemacp, u32 phy_addr)
{
    u16 control;
    u16 status;
    u16 partner_capabilities;
    xil_printf("Start PHY autonegotiation \r\n");

    XAxiEthernet_PhyWrite(xaxiemacp,phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 2);
    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_MAC, &control);
    //control |= IEEE_RGMII_TXRX_CLOCK_DELAYED_MASK;
    control &= ~(0x10);
    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_MAC, control);

    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);

    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, &control);
    control |= IEEE_ASYMMETRIC_PAUSE_MASK;
    control |= IEEE_PAUSE_MASK;
    control |= ADVERTISE_100;
    control |= ADVERTISE_10;
    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, control);

    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
                                                                    &control);
    control |= ADVERTISE_1000;
    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
                                                                    control);

    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);
    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
                                                                &control);
    control |= (7 << 12);	/* max number of gigabit attempts */
    control |= (1 << 11);	/* enable downshift */
    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
                                                                control);
    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
    control |= IEEE_CTRL_AUTONEGOTIATE_ENABLE;
    control |= IEEE_STAT_AUTONEGOTIATE_RESTART;

    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
    control |= IEEE_CTRL_RESET_MASK;
    XAxiEthernet_PhyWrite(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

    while (1) {
        XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
        if (control & IEEE_CTRL_RESET_MASK)
            continue;
        else
            break;
    }
    xil_printf("Waiting for PHY to complete autonegotiation.\r\n");

    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_STATUS_REG_OFFSET, &status);
    while ( !(status & IEEE_STAT_AUTONEGOTIATE_COMPLETE) ) {
        sleep(1);
        XAxiEthernet_PhyRead(xaxiemacp, phy_addr, IEEE_STATUS_REG_OFFSET,
                                                                &status);
        }

    xil_printf("autonegotiation complete \r\n");

    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, 0x1f, &partner_capabilities);

    if ( (partner_capabilities & 0x40) == 0x40)/* 1000Mbps */
        return 1000;
    else if ( (partner_capabilities & 0x20) == 0x20)/* 100Mbps */
        return 100;
    else if ( (partner_capabilities & 0x10) == 0x10)/* 10Mbps */
        return 10;
    else
        return 0;
}

修改 get_IEEE_phy_speed 函数，添加对 ksz9031 的支持：

unsigned get_IEEE_phy_speed(XAxiEthernet *xaxiemacp)
{
    u16 phy_identifier;
    u16 phy_model;
    u8 phytype;

#ifdef XPAR_AXIETHERNET_0_BASEADDR
    u32 phy_addr = detect_phy(xaxiemacp);

    /* Get the PHY Identifier and Model number */
    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, PHY_IDENTIFIER_1_REG, &phy_identifier);
    XAxiEthernet_PhyRead(xaxiemacp, phy_addr, PHY_IDENTIFIER_2_REG, &phy_model);

/* Depending upon what manufacturer PHY is connected, a different mask is
 * needed to determine the specific model number of the PHY. */
    if (phy_identifier == MARVEL_PHY_IDENTIFIER) {
        phy_model = phy_model & MARVEL_PHY_MODEL_NUM_MASK;

        if (phy_model == MARVEL_PHY_88E1116R_MODEL) {
            return get_phy_speed_88E1116R(xaxiemacp, phy_addr);
        } else if (phy_model == MARVEL_PHY_88E1111_MODEL) {
            return get_phy_speed_88E1111(xaxiemacp, phy_addr);
        }
    } else if (phy_identifier == TI_PHY_IDENTIFIER) {
        phy_model = phy_model & TI_PHY_DP83867_MODEL;
        phytype = XAxiEthernet_GetPhysicalInterface(xaxiemacp);

        if (phy_model == TI_PHY_DP83867_MODEL && phytype == XAE_PHY_TYPE_SGMII) {
            return get_phy_speed_TI_DP83867_SGMII(xaxiemacp, phy_addr);
        }

        if (phy_model == TI_PHY_DP83867_MODEL) {
            return get_phy_speed_TI_DP83867(xaxiemacp, phy_addr);
        }
    }
    else if(phy_identifier == MICREL_PHY_IDENTIFIER)
    {
        xil_printf("Phy %d is KSZ9031\n\r", phy_addr);
        return get_phy_speed_ksz9031(xaxiemacp, phy_addr);
    }
    else {
        LWIP_DEBUGF(NETIF_DEBUG, ("XAxiEthernet get_IEEE_phy_speed: Detected PHY with unknown identifier/model.\r\n"));
    }
#endif
#ifdef PCM_PMA_CORE_PRESENT
    return get_phy_negotiated_speed(xaxiemacp, phy_addr);
#endif
}

2. 修改 lwip141_v2_0\src\contrib\ports\xilinx\netif\xemacpsif_physpeed.c 文件

添加宏定义：

#define MICREL_PHY_IDENTIFIER				0x22
#define MICREL_PHY_KSZ9031_MODEL			0x220

添加 phy 芯片 ksz9031 速度获取函数：

static u32_t get_phy_speed_ksz9031(XEmacPs *xemacpsp, u32_t phy_addr)
{
    u16_t temp;
    u16_t control;
    u16_t status;
    u16_t status_speed;
    u32_t timeout_counter = 0;
    u32_t temp_speed;
    u32_t phyregtemp;

    xil_printf("Start PHY autonegotiation \r\n");

    XEmacPs_PhyWrite(xemacpsp,phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 2);
    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_CONTROL_REG_MAC, &control);
    control |= IEEE_RGMII_TXRX_CLOCK_DELAYED_MASK;
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_CONTROL_REG_MAC, control);

    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);

    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, &control);
    control |= IEEE_ASYMMETRIC_PAUSE_MASK;
    control |= IEEE_PAUSE_MASK;
    control |= ADVERTISE_100;
    control |= ADVERTISE_10;
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_AUTONEGO_ADVERTISE_REG, control);

    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
                    &control);
    control |= ADVERTISE_1000;
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_1000_ADVERTISE_REG_OFFSET,
                    control);

    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_PAGE_ADDRESS_REGISTER, 0);
    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
                                                                &control);
    control |= (7 << 12);	/* max number of gigabit attempts */
    control |= (1 << 11);	/* enable downshift */
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_COPPER_SPECIFIC_CONTROL_REG,
                                                                control);
    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
    control |= IEEE_CTRL_AUTONEGOTIATE_ENABLE;
    control |= IEEE_STAT_AUTONEGOTIATE_RESTART;
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
    control |= IEEE_CTRL_RESET_MASK;
    XEmacPs_PhyWrite(xemacpsp, phy_addr, IEEE_CONTROL_REG_OFFSET, control);

    while (1) {
        XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_CONTROL_REG_OFFSET, &control);
        if (control & IEEE_CTRL_RESET_MASK)
            continue;
        else
            break;
    }

    XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_STATUS_REG_OFFSET, &status);

    xil_printf("Waiting for PHY to complete autonegotiation.\r\n");

    while ( !(status & IEEE_STAT_AUTONEGOTIATE_COMPLETE) ) {
        sleep(1);
        XEmacPs_PhyRead(xemacpsp, phy_addr,
                        IEEE_COPPER_SPECIFIC_STATUS_REG_2,  &temp);
        timeout_counter++;

        if (timeout_counter == 30) {
            xil_printf("Auto negotiation error \r\n");
            return;
        }
        XEmacPs_PhyRead(xemacpsp, phy_addr, IEEE_STATUS_REG_OFFSET, &status);
    }
    xil_printf("autonegotiation complete \r\n");

    XEmacPs_PhyRead(xemacpsp, phy_addr,0x1f,
                    &status_speed);

    if ( (status_speed & 0x40) == 0x40)/* 1000Mbps */
        return 1000;
    else if ( (status_speed & 0x20) == 0x20)/* 100Mbps */
        return 100;
    else if ( (status_speed & 0x10) == 0x10)/* 10Mbps */
        return 10;
    else
        return 0;
    return XST_SUCCESS;
}

修改 get_IEEE_phy_speed 函数，添加对 ksz9031 的支持：

static u32_t get_IEEE_phy_speed(XEmacPs *xemacpsp, u32_t phy_addr)
{
    u16_t phy_identity;
    u32_t RetStatus;

    XEmacPs_PhyRead(xemacpsp, phy_addr, PHY_IDENTIFIER_1_REG,
                    &phy_identity);
    if(phy_identity == MICREL_PHY_IDENTIFIER)
    {
        RetStatus = get_phy_speed_ksz9031(xemacpsp, phy_addr);
    }
    else if (phy_identity == PHY_TI_IDENTIFIER) {
        RetStatus = get_TI_phy_speed(xemacpsp, phy_addr);
    } else {
        RetStatus = get_Marvell_phy_speed(xemacpsp, phy_addr);
    }

    return RetStatus;
}

修改 lwip141_v2_0\data\lwip141.mld 文件

添加如下字段：

    BEGIN CATEGORY emio_options
    PARAM name = emio_options, desc = "Settings for ETH using EMIO in PL";
    PARAM name = use_gmii2rgmii_core_on_eth0, desc = "Settings for ETH0 using GMII to RGMII ip core in PL", type = bool, default = false;
    PARAM name = use_gmii2rgmii_core_on_eth1, desc = "Settings for ETH1 using GMII to RGMII ip core in PL", type = bool, default = false;
    PARAM name = gmii2rgmii_core_address_on_eth0, desc = "Settings for ETH0's PHY address of GMII to RGMII ip core in PL", type = int, default = 0;
    PARAM name = gmii2rgmii_core_address_on_eth1, desc = "Settings for ETH1's PHY address of GMII to RGMII ip core in PL", type = int, default = 0;
    END CATEGORY

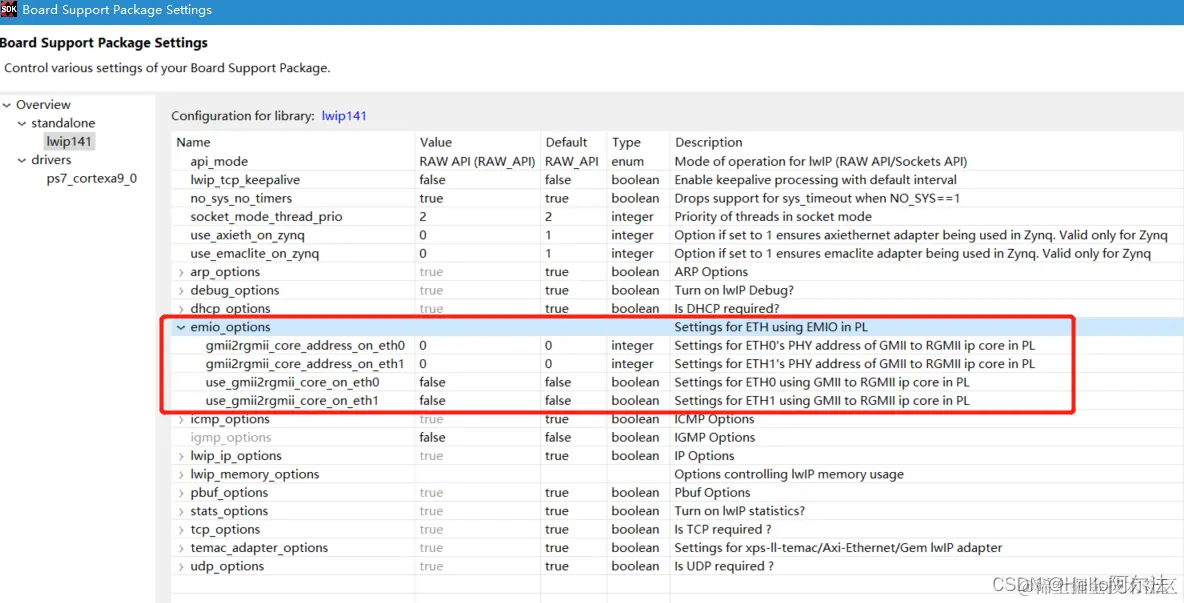

SDK Bsp‘s Settins 效果如图所示：

在这里插入图片描述

3. 修改 lwip141_v2_0\data\lwip141.tcl 文件

在 proc generate_lwip_opts {libhandle} 所在的大括号内添加如下字段：

    # EMIO options
    set use_gmii2rgmii_core_on_eth0 [common::get_property CONFIG.use_gmii2rgmii_core_on_eth0 $libhandle]
    set use_gmii2rgmii_core_on_eth1 [common::get_property CONFIG.use_gmii2rgmii_core_on_eth1 $libhandle]
    set gmii2rgmii_core_address_on_eth0 [common::get_property CONFIG.gmii2rgmii_core_address_on_eth0 $libhandle]
    set gmii2rgmii_core_address_on_eth1 [common::get_property CONFIG.gmii2rgmii_core_address_on_eth1 $libhandle]

    if { $use_gmii2rgmii_core_on_eth0 == true } {
       puts $lwipopts_fd "\#define XPAR_GMII2RGMIICON_0N_ETH1_ADDR $gmii2rgmii_core_address_on_eth0"
    }

    if { $use_gmii2rgmii_core_on_eth1 == true } {
       puts $lwipopts_fd "\#define XPAR_GMII2RGMIICON_0N_ETH1_ADDR $gmii2rgmii_core_address_on_eth1"
    }

板载验证

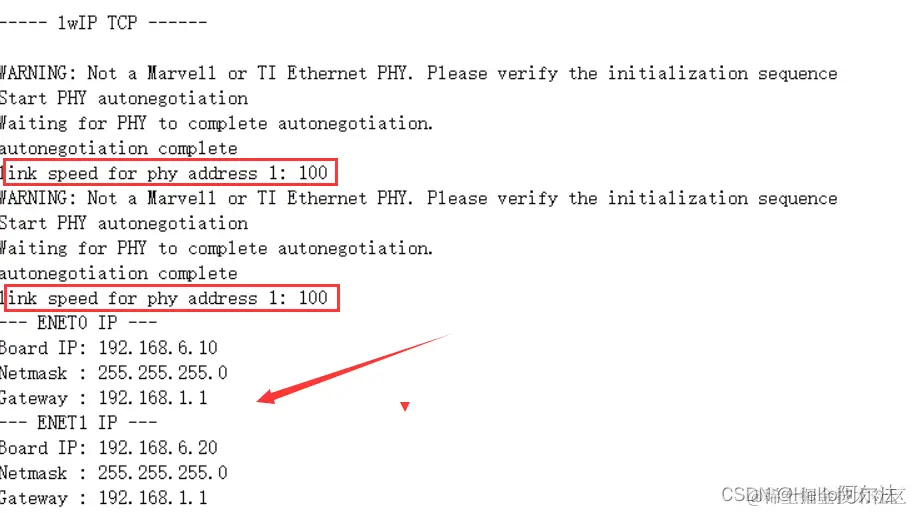

网卡启动时 log 信息输出：
