三台主机
node1 172.16.195.136 (作为控制层面的节点)
node2 172.16.195.137
node3 172.16.195.138
安装软件（三台都安装）
#安装containerd，本示例使用containerd管理容器
# step 1: 安装必要的一些系统工具
sudo apt-get update
sudo apt-get -y install apt-transport-https ca-certificates curl software-properties-common
# step 2: 安装GPG证书
curl -fsSL https://mirrors.aliyun.com/docker-ce/linux/ubuntu/gpg | sudo apt-key add -
# Step 3: 写入软件源信息
sudo add-apt-repository "deb [arch=amd64] https://mirrors.aliyun.com/docker-ce/linux/ubuntu $(lsb_release -cs) stable"
# Step 4: 更新并安装containerd
sudo apt-get -y update
sudo apt-get -y install containerd
主机初始化配置（可以三台主机都设置上）
# 集群主机名
echo "172.16.195.136 node1" >> /etc/hosts
echo "172.16.195.137 node2" >> /etc/hosts
echo "172.16.195.138 node3" >> /etc/hosts
# 交换分区
sed -i 's/^\(.*swap.*\)$/#\1/g' /etc/fstab
swapoff -a
# 网络内核模块
tee /etc/modules-load.d/containerd.conf << EOF
overlay
br_netfilter
EOF
modprobe overlay
modprobe br_netfilter
# 数据包转发
tee /etc/sysctl.d/kubernetes.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF
sysctl --system
# k8s源
apt-get update && apt-get install -y apt-transport-https
curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add -
cat <<EOF >/etc/apt/sources.list.d/kubernetes.list
deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main
EOF
apt-get update
apt-get install -y kubelet kubeadm kubectl
systemctl enable kubelet --now
生成containerd的默认配置文件（三台主机都设置上）
mkdir /etc/containerd
containerd config default | tee /etc/containerd/config.toml
sed -i 's#registry.k8s.io/pause:3.8#registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.9#g' /etc/containerd/config.toml
sed -i 's#SystemdCgroup = false#SystemdCgroup = true#g' /etc/containerd/config.toml
#重启containerd
systemctl restart containerd
修改crictl配置文件，获得containerd的sock信息，没有该文件的话创建一个（三台主机都设置上）
root@node1:~# cat /etc/crictl.yaml
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
初始化（node1即控制层面执行）
kubeadm init --kubernetes-version=1.26.3 --apiserver-advertise-address=172.16.195.136 --apiserver-bind-port=6443 --image-repository=registry.cn-hangzhou.aliyuncs.com/google_containers --service-cidr=10.96.0.0/12 --pod-network-cidr=10.244.0.0/16 --cri-socket=unix:///run/containerd/containerd.sock
注意事项：apiserver-advertise-address需要使用本机上网卡的ip，否则的话会导致etcd绑定ip失败启动不了，从而apiserver也启动不了
初始化成功，显示如下信息
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 172.16.195.136:6443 --token mv274d.pnyhrlx36y6dle1b \
--discovery-token-ca-cert-hash sha256:59b2b7da05ffe85d0686595a1a3e388f1bd403e045e85712c5884faf6cdf0ea7
按着上面的提示执行命令（node1即控制层面执行）
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
获取flannel（node1即控制层面执行）

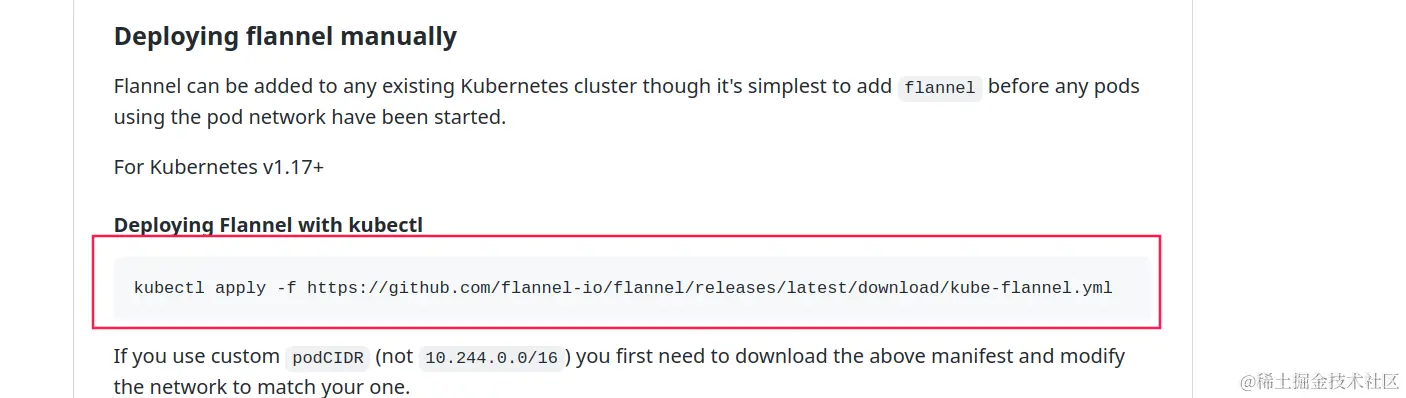

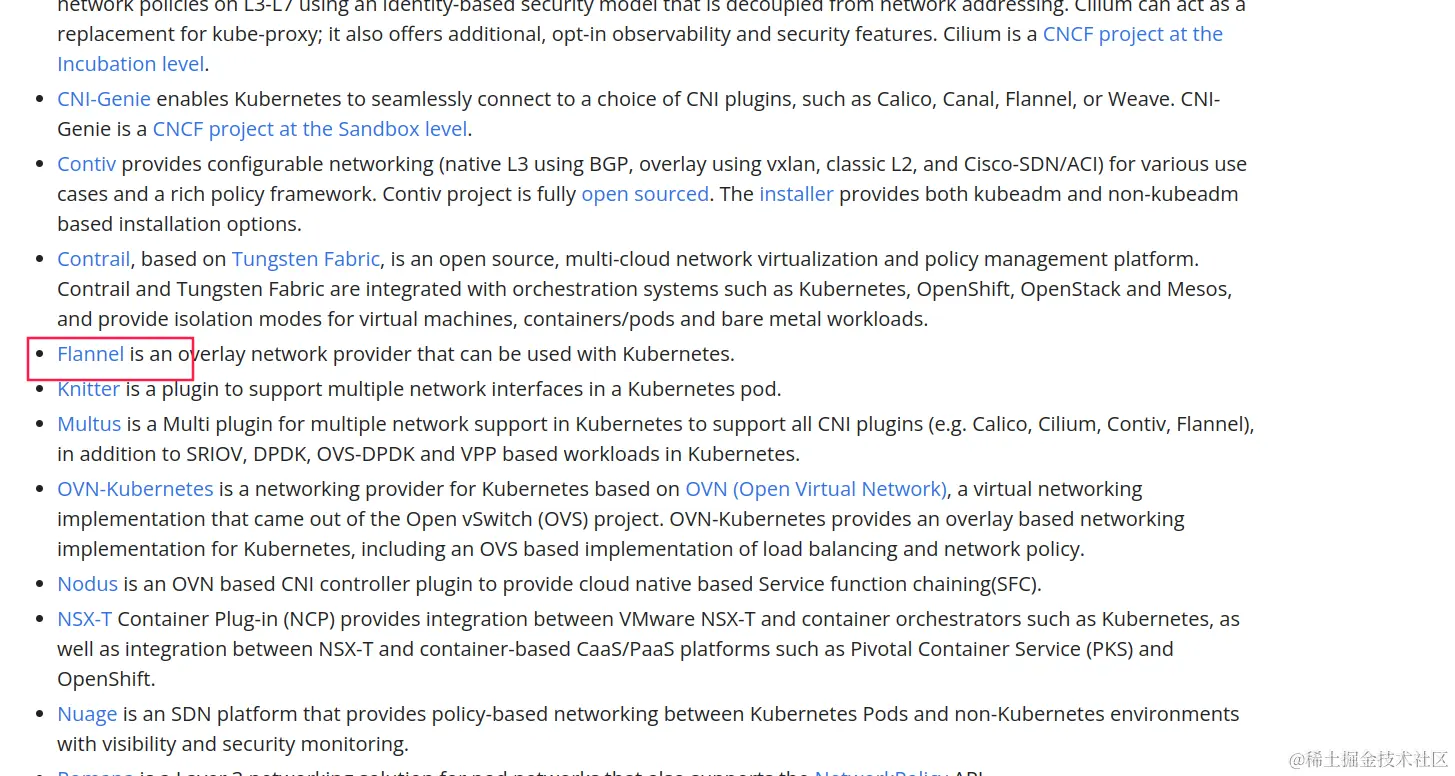

访问https://kubernetes.io/docs/concepts/cluster-administration/addons/ 获取flannel
使用kubectl部署flannel
执行命令
kubectl apply -f https://github.com/flannel-io/flannel/releases/latest/download/kube-flannel.yml

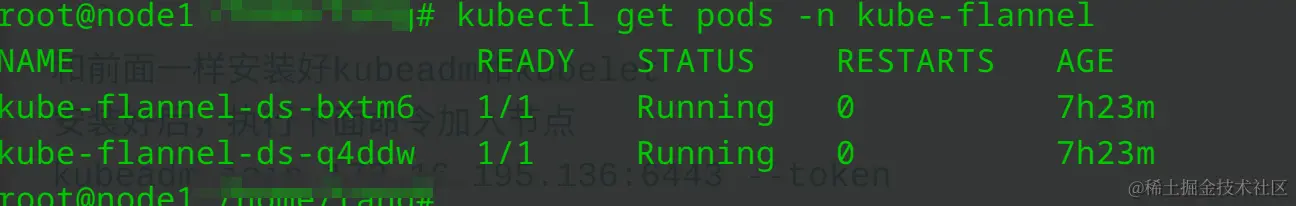

执行完后，查看flannel是否启动成功

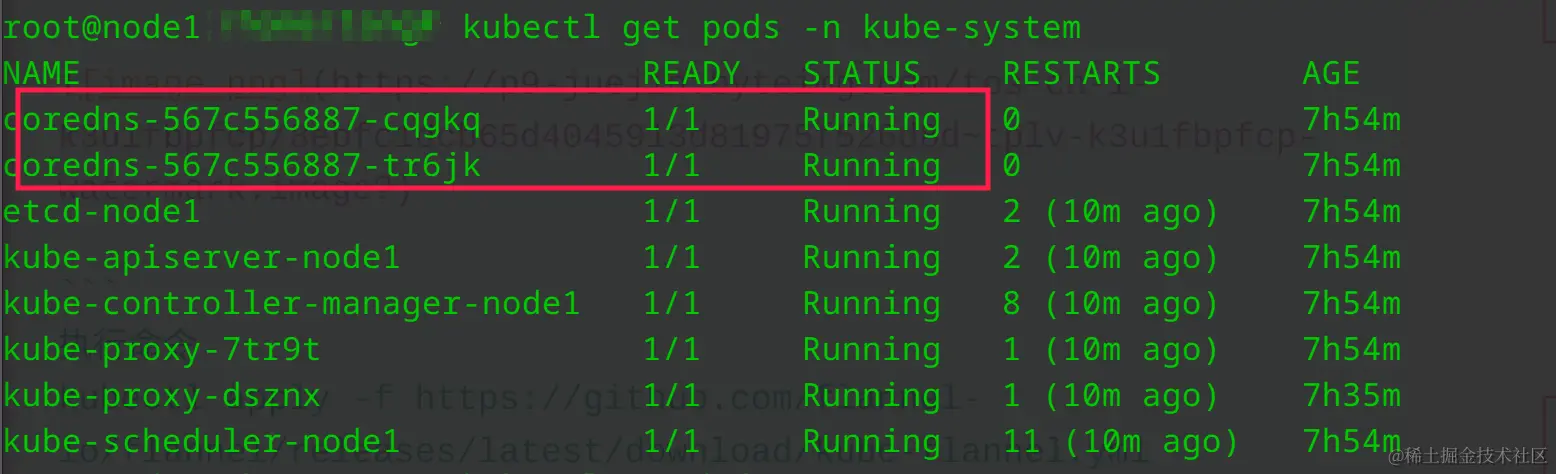

可以看到，当flannel运行成功后，coreDNS也运行成功了

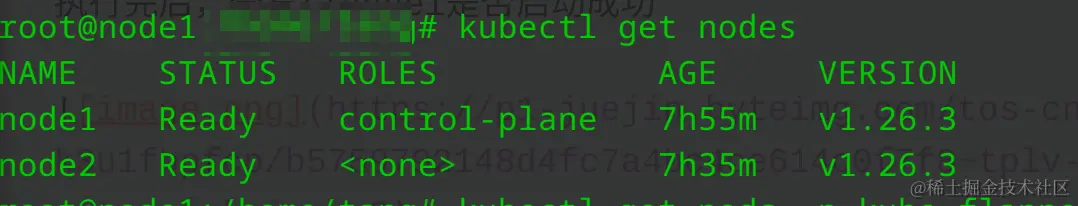

查看节点状态,显示ready
数据层面节点配置（node2和node3执行）
和前面一样安装好kubeadm和kubelet
安装好后，执行下面命令加入节点
kubeadm join 172.16.195.136:6443 --token mv274d.pnyhrlx36y6dle1b \
--discovery-token-ca-cert-hash sha256:59b2b7da05ffe85d0686595a1a3e388f1bd403e045e85712c5884faf6cdf0ea7
排错

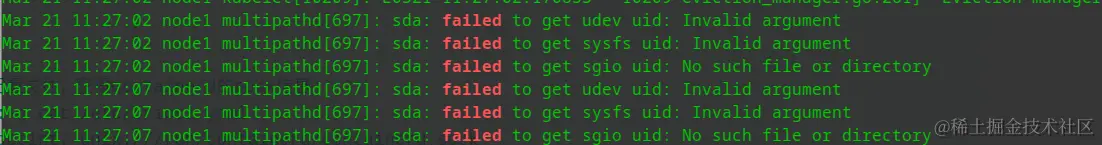

- 初始化时候会出现multipath错误， 通过journalctl -xeu kubelet | grep Failed 命令查看
解决办法
修改/etc/multipath.conf文件，添加
blacklist {
devnode "^sd([a-z])"
}
重启服务 systemctl restart multipathd.service
