目的

对于现存的多个微服务实例，需要对外提供服务，如果对每个微服务实现对外服务，单独配置十分麻烦,也不利于管理。API网关就是这些微服务对外提供服务的统一入口，客户端访问内部的微服务都需要通过API网关转发路由。除此外，我们还可以在网关层做授权认证，流量控制，负载均衡，使得各个微服务关注自己的业务，提高API的可用性、可维护性和可扩展性。

Kong

Kong Gateway是一个轻量级、快速、可扩展和平台无关的云原生API网关。Kong是基于Nginx和PostgreSQL构建的，能提供易于使用的RESTfulAPI操作和配置API管理系统。

服务和路由

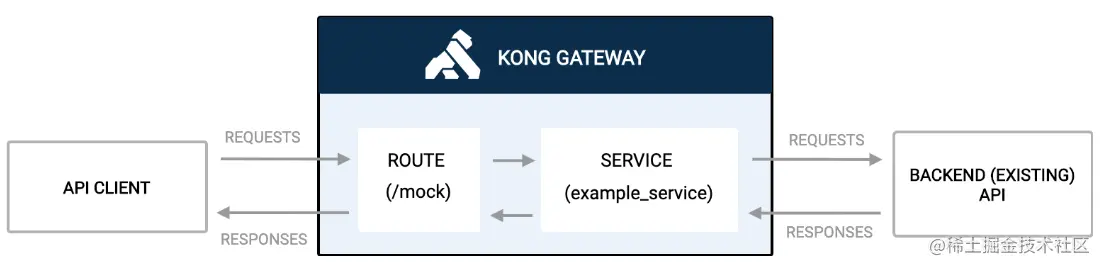

客户端发送请求给Kong Gateway，有它来对路由进行匹配，然后交由具体的服务去处理，最后返回。

安装

docker compose安装：docker-kong/compose at master · Kong/docker-kong (github.com)

下载文件进入目录后执行命令：

# 无数据库支持模式
make kong-dbless
# 有数据库支持模式
make kong-postgres

启动后会存在几个端口映射：

8000: 代理HTTP请求并转发
8443：代理HTTPS请求并转发
8001：AdminAPI，管理API的端口，管理者可对Kong的监听服务进行配置
8444：管理者对HTTPS请求进行监控

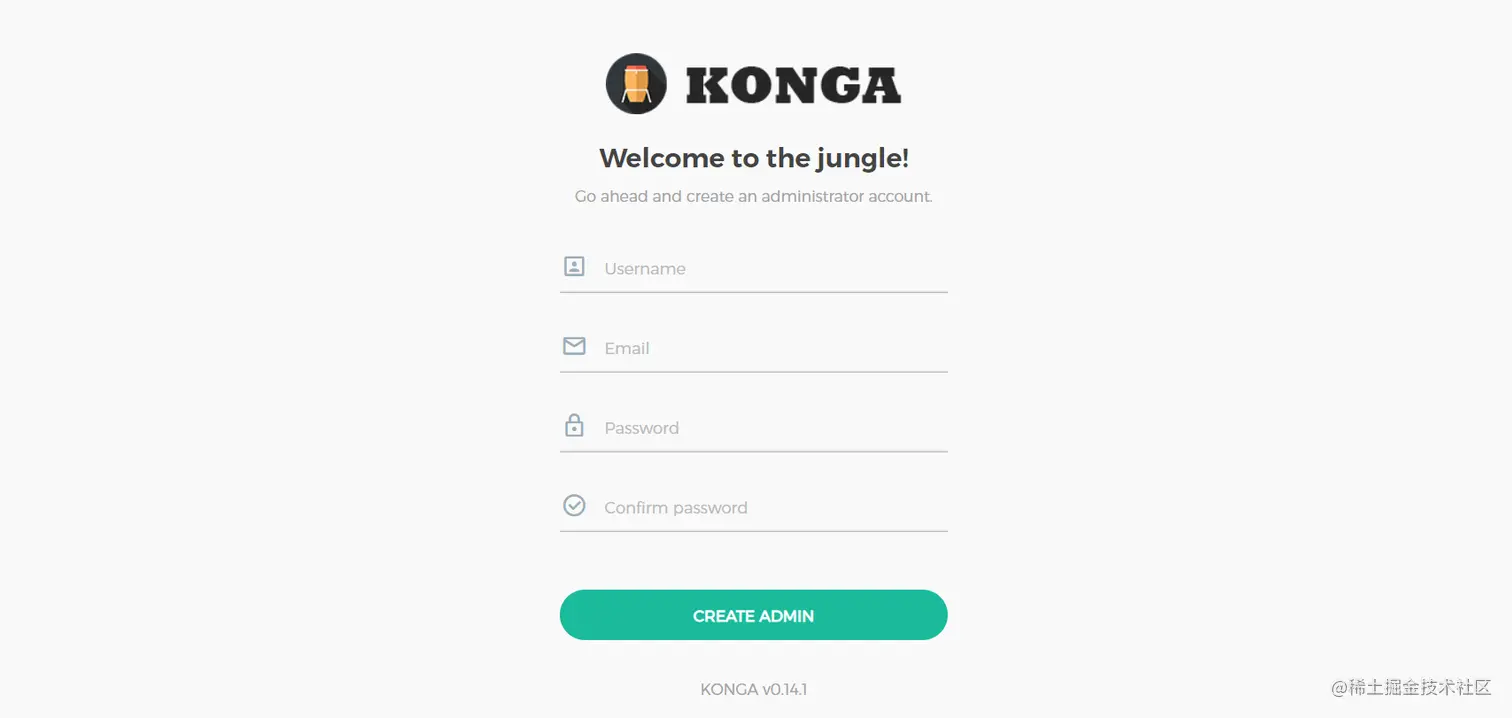

安装konga

用于kong管理UI，通过UI观察到现在kong的所有的配置，并且可以对于管理kong节点情况进行查看、监控和预警

向docker-compose.yml文件中添加service, 有关数据库的配置也要修改一下

  konga:
    image: pantsel/konga:latest
    container_name: konga
    networks:
      - kong-net
    environment:
      DB_ADAPTER: postgres
      DB_HOST: postgres
      DB_PORT: 5432
      DB_USER: kong
      DB_PASSWORD: kong
      DB_DATABASE: kong
      NODE_ENV: production
    ports:
      - "8888:1337"
    restart: on-failure
    depends_on:
      - db
      - kong
      - kong-migrations

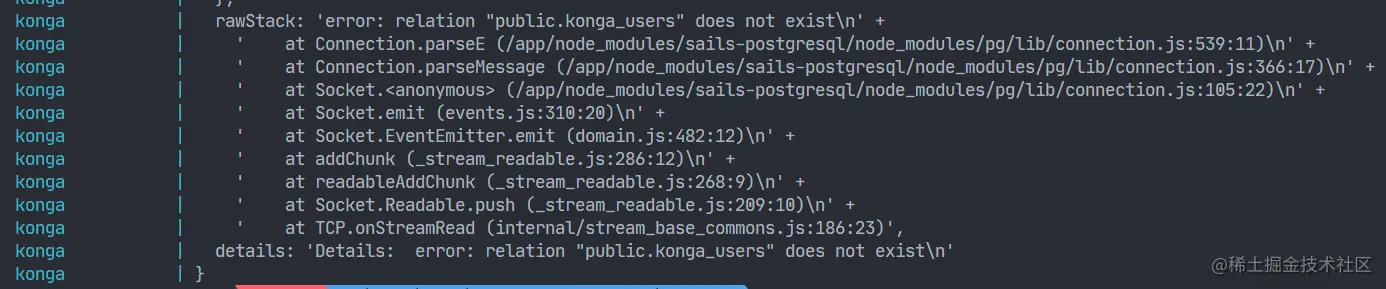

出现上面错误需要将Node_ENV: production => Node_ENV: development

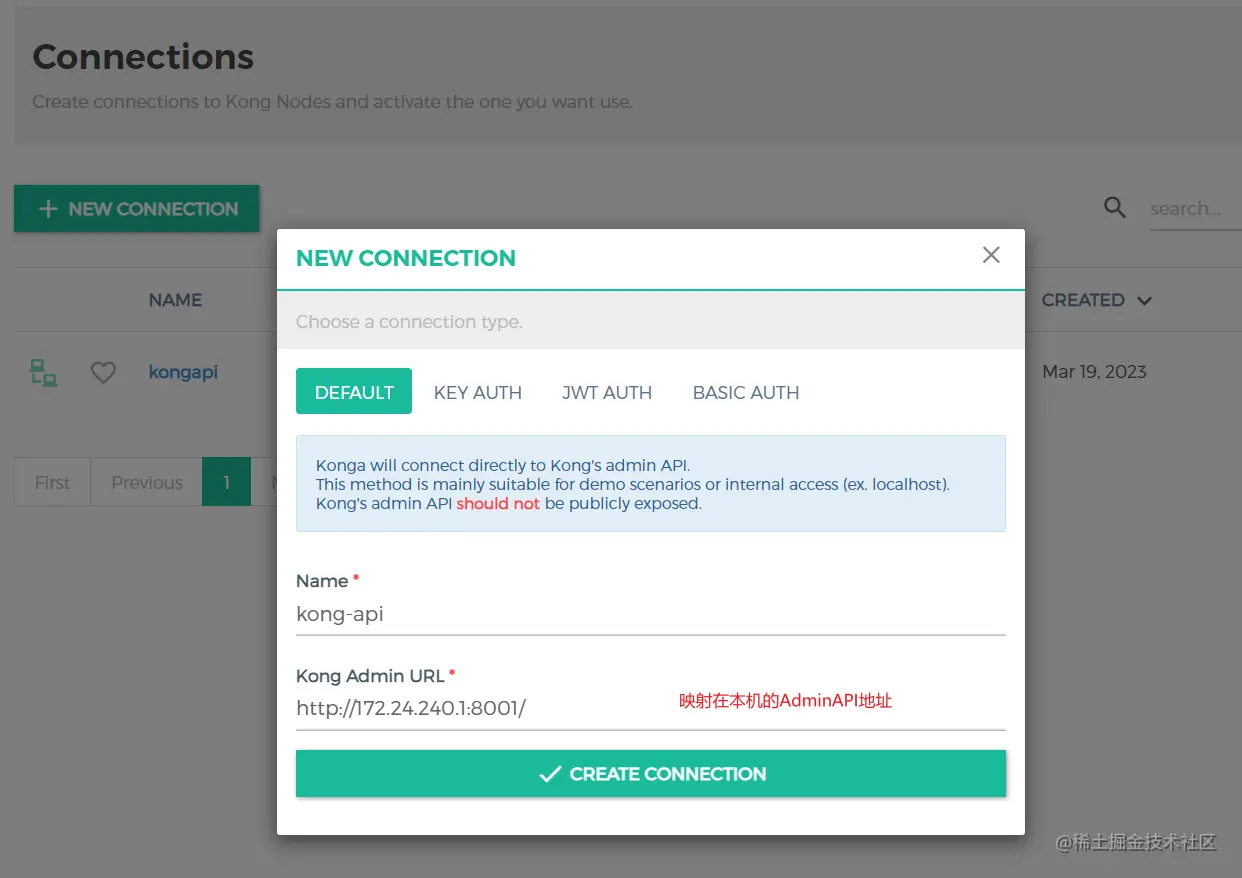

创建Connections

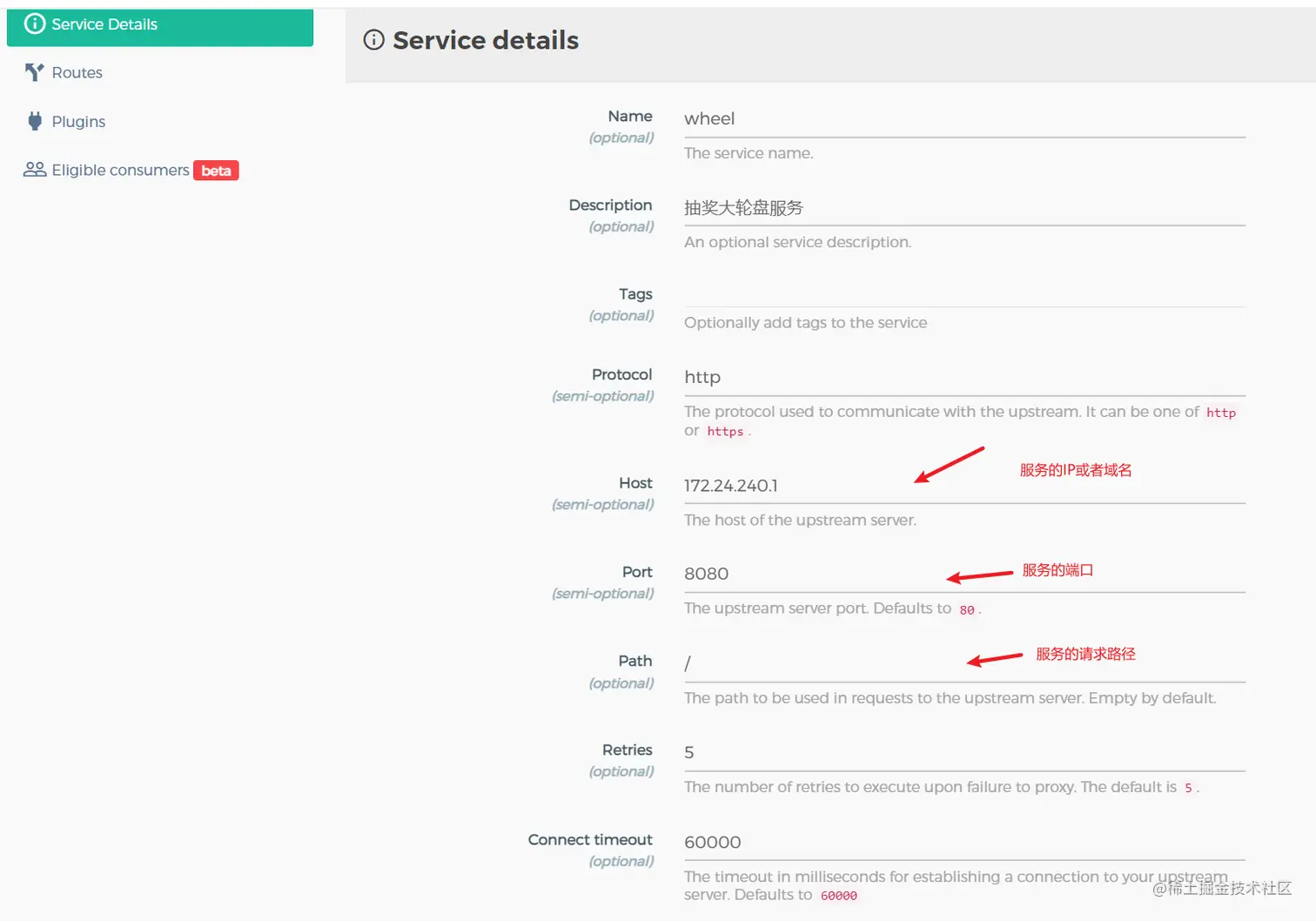

创建services

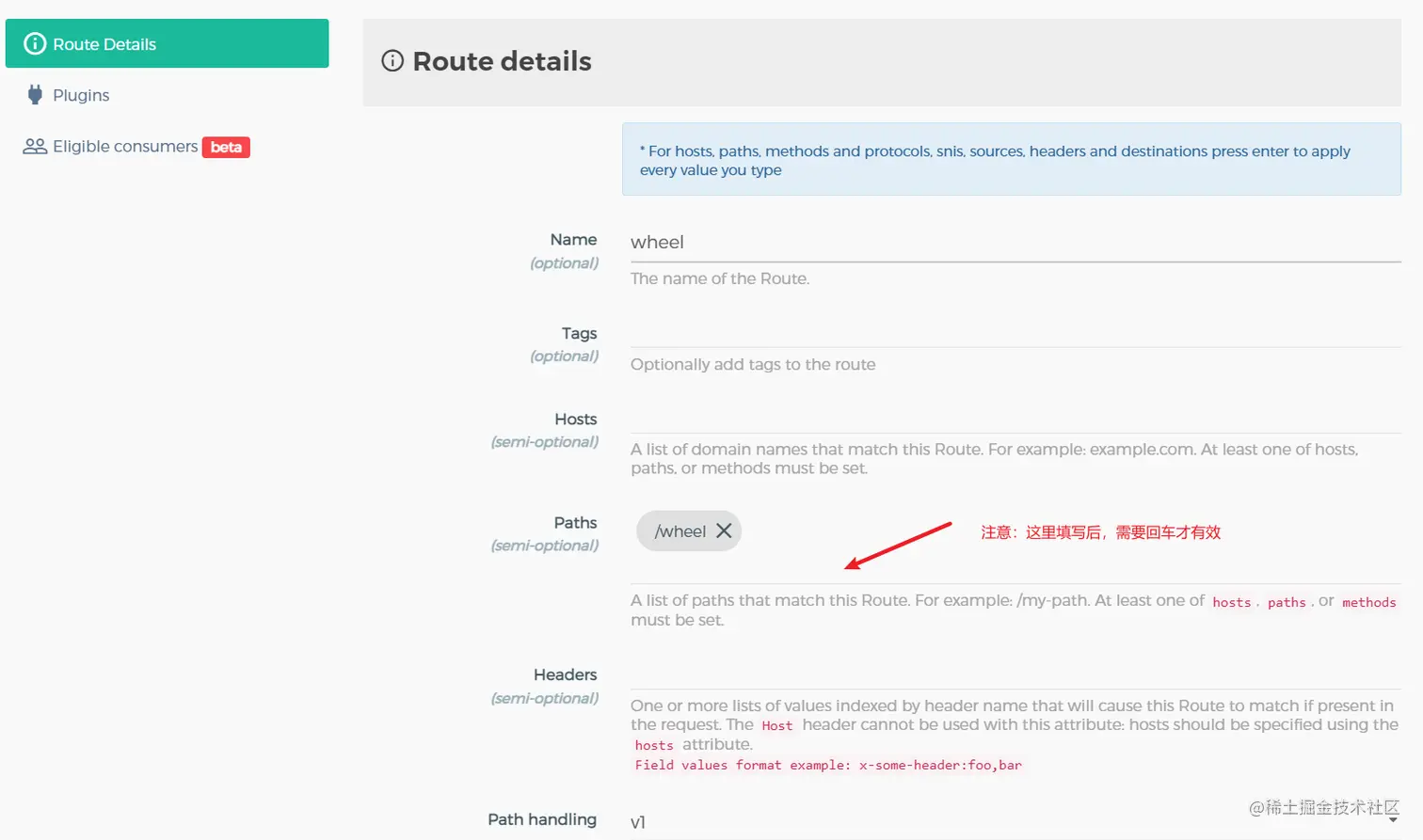

创建routes

需要进入Service页面，然后再添加Route

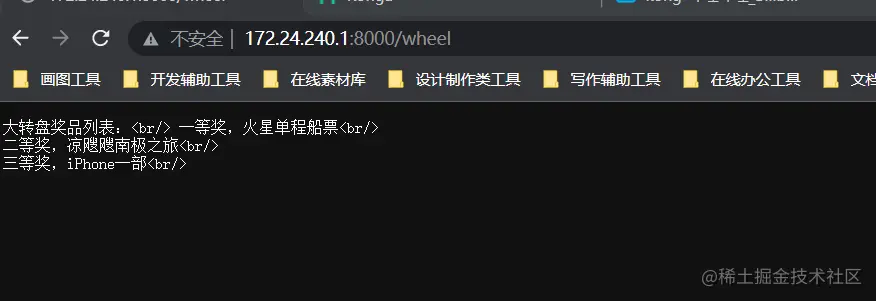

代理访问效果

http:代理端口在8000 从这里开始我将 172.24.240.1 改成了 buddyxiao.com (在hosts文件中修改，容器中的kong也需要配置) 172.24.240.1 和 172.27.0.1 是我不同时间启动电脑自动分配的本机IP

    extra_hosts:
      - "buddyxiao.com:172.27.0.1"

添加插件

比如：添加 API KEYS 认证

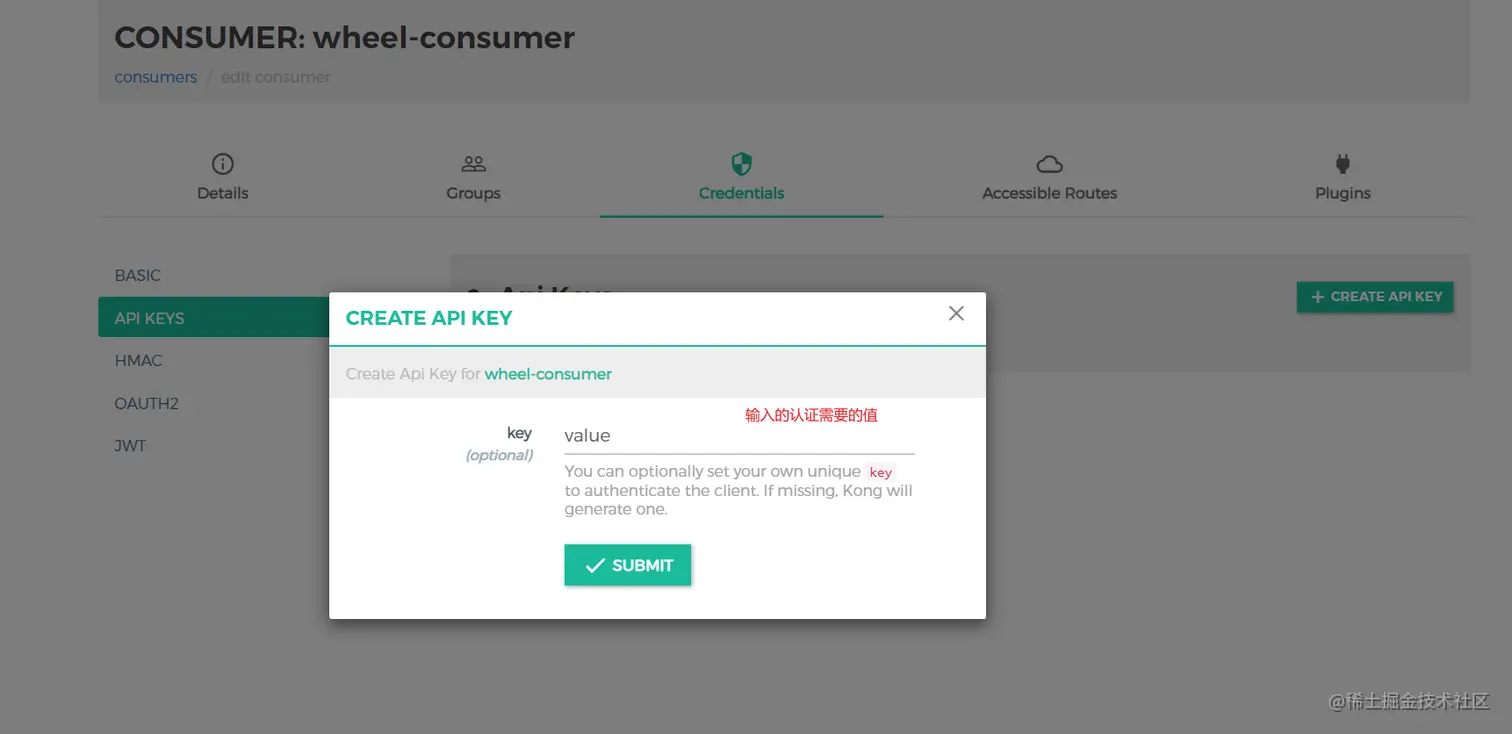

创建一个Consumer

先添加一个使用wheel服务的消费者，表示使用该服务的访问需要携带key值进行认证。

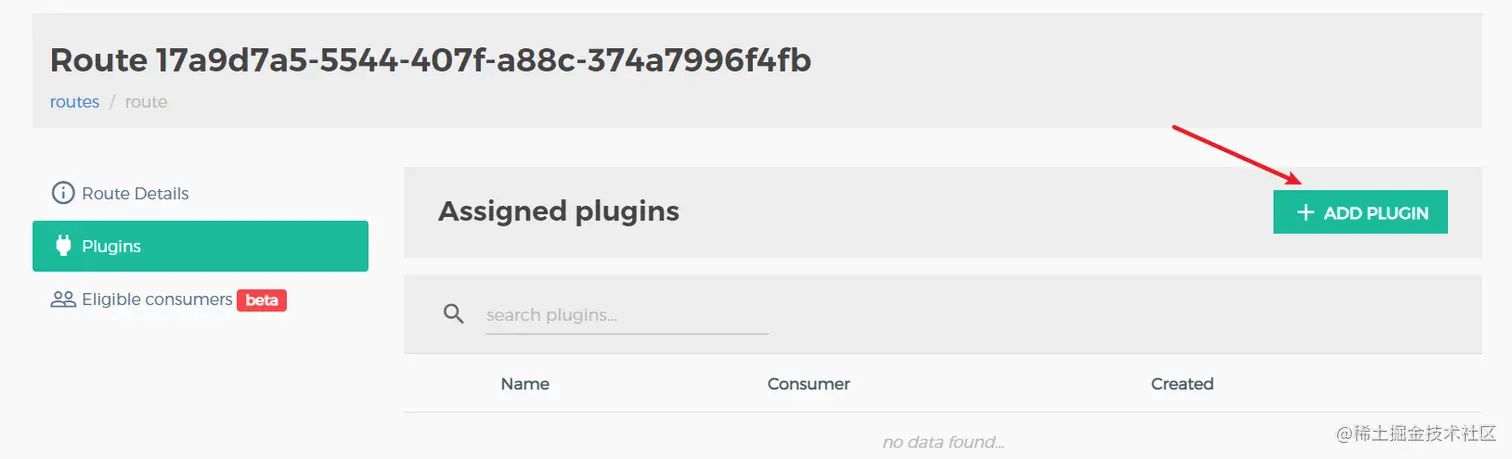

在Route中添加Plugins

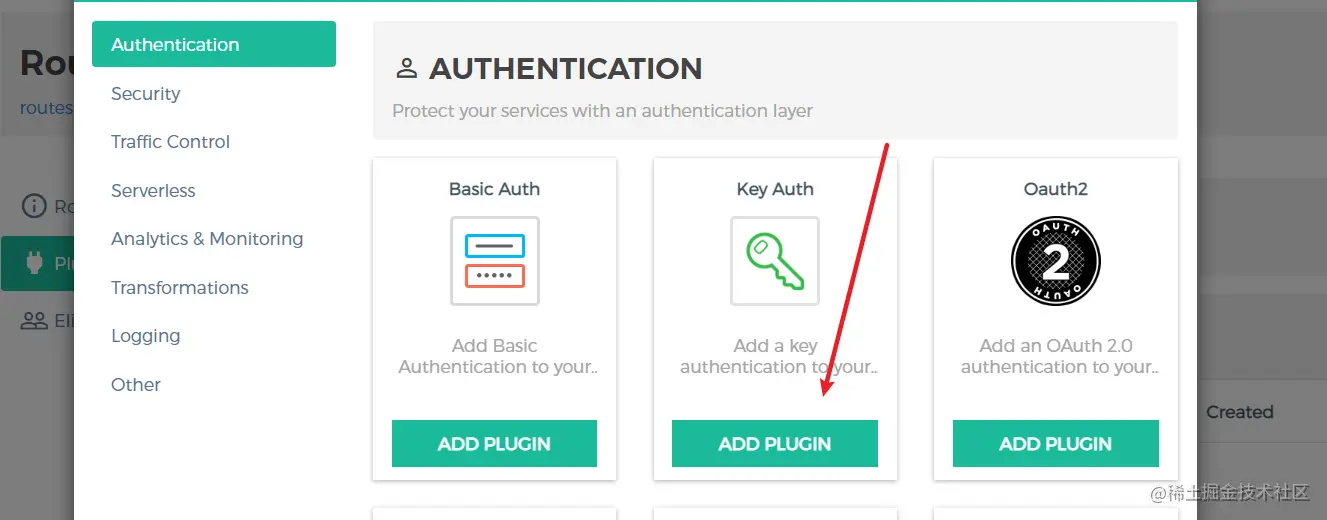

找到wheel路由，然后添加Key Auth

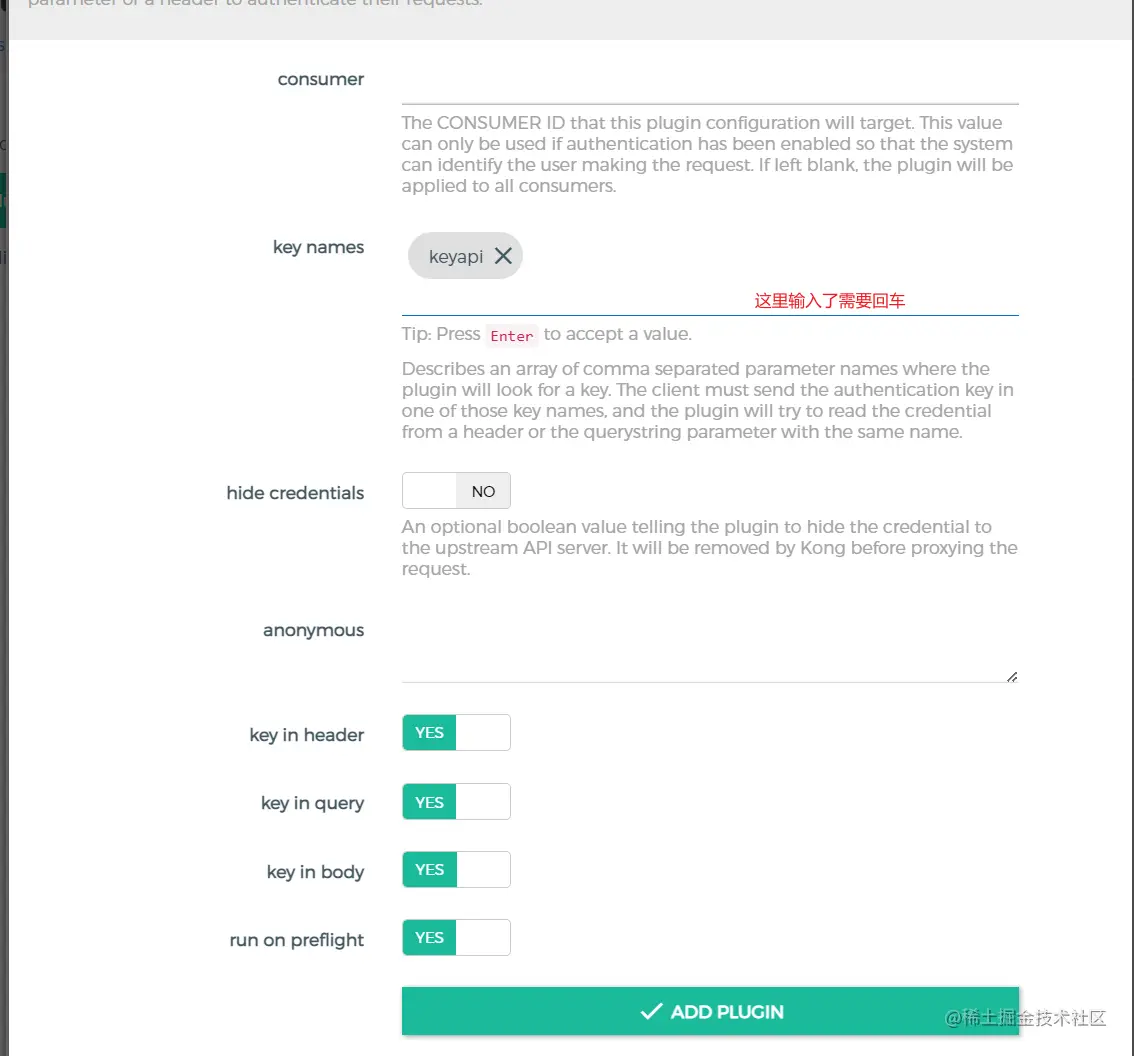

设置key的名称

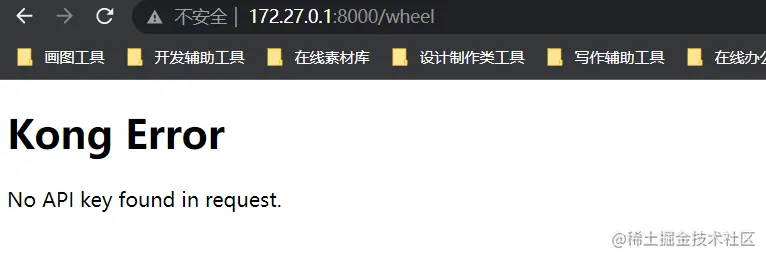

再次访问，无法得到有效响应

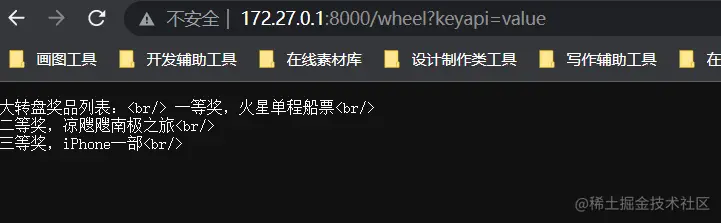

在请求中携带key,value (前面设置了可以在url、header和body中)

负载均衡

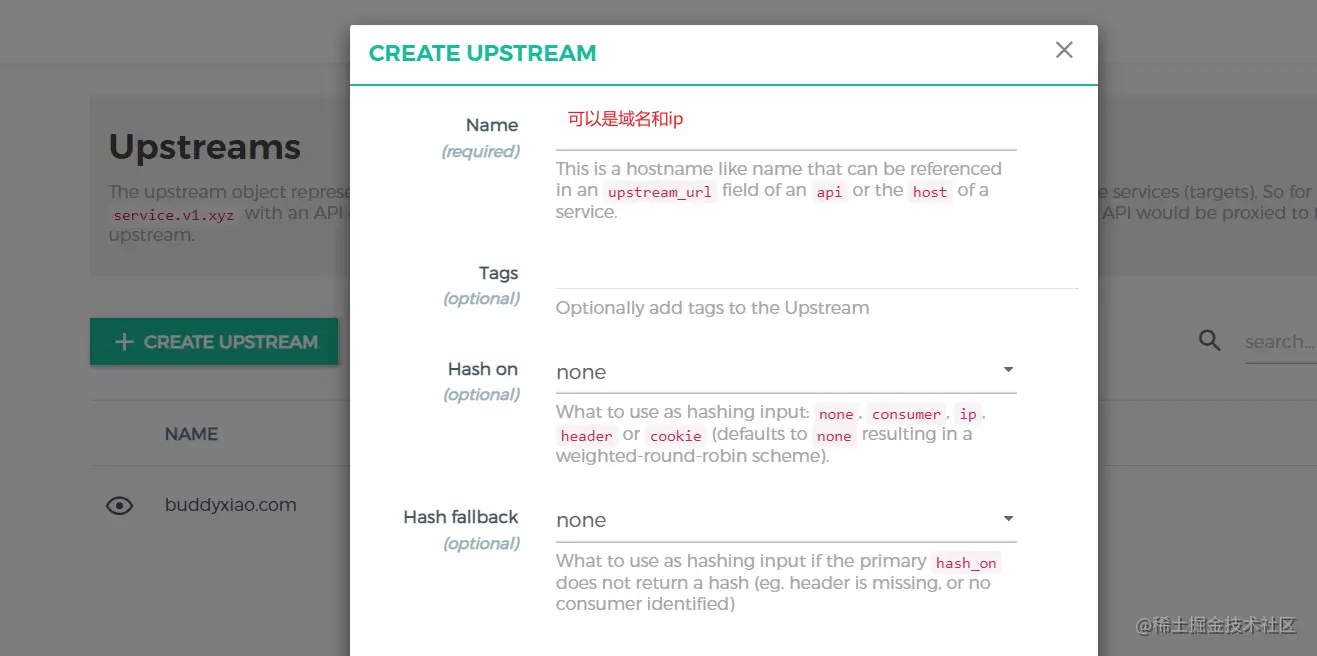

创建upstream

进入upstreams页面

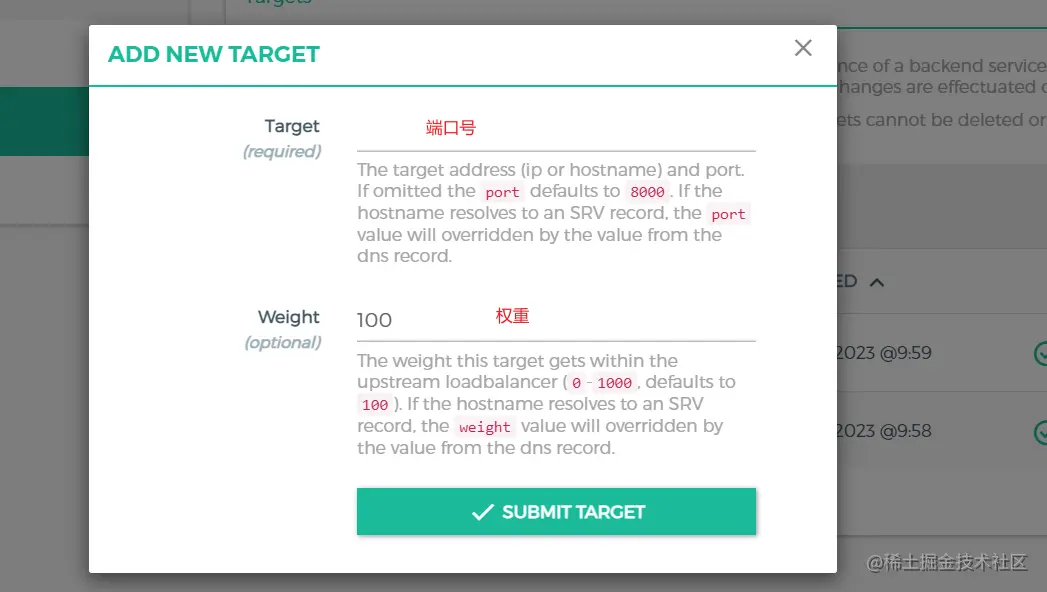

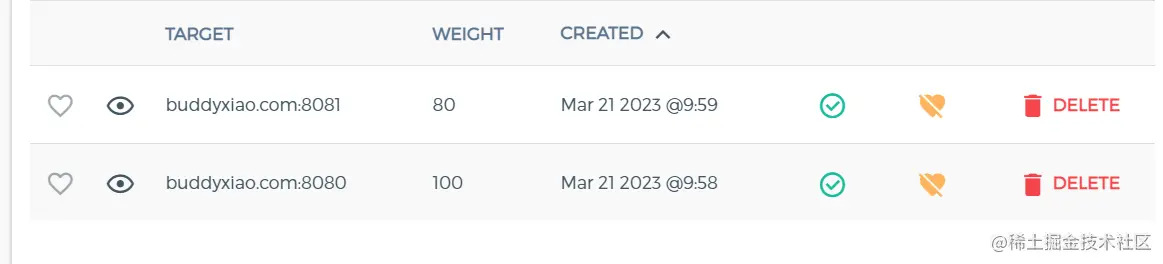

创建Target

点击Defalut,再找到Targets

配置文件

version: '3.9'

x-kong-config:
  &kong-env
  KONG_DATABASE: ${KONG_DATABASE:-off}
  KONG_PG_DATABASE: kong
  KONG_PG_HOST: db
  KONG_PG_USER: kong
  KONG_PG_PASSWORD_FILE: /run/secrets/kong_postgres_password

volumes:
  kong_data: {}
  kong_prefix_vol:
    driver_opts:
      type: tmpfs
      device: tmpfs
  kong_tmp_vol:
    driver_opts:
      type: tmpfs
      device: tmpfs

networks:
  kong-net:
    external: false

services:
  kong-migrations:
    image: "${KONG_DOCKER_TAG:-kong:latest}"
    command: kong migrations bootstrap
    profiles: [ "database" ]
    depends_on:
      - db
    environment:
      <<: *kong-env
    secrets:
      - kong_postgres_password
    networks:
      - kong-net
    restart: on-failure

  kong-migrations-up:
    image: "${KONG_DOCKER_TAG:-kong:latest}"
    command: kong migrations up && kong migrations finish
    profiles: [ "database" ]
    depends_on:
      - db
    environment:
      <<: *kong-env
    secrets:
      - kong_postgres_password
    networks:
      - kong-net
    restart: on-failure

  kong:
    image: "${KONG_DOCKER_TAG:-kong:latest}"
    user: root
    extra_hosts:
      - "buddyxiao.com:172.27.0.1"
    environment:
      <<: *kong-env
      KONG_ADMIN_ACCESS_LOG: /dev/stdout
      KONG_ADMIN_ERROR_LOG: /dev/stderr
      KONG_PROXY_LISTEN: "0.0.0.0:8000"
      KONG_ADMIN_LISTEN: "0.0.0.0:8001,0.0.0.0:8444 ssl"
      KONG_PROXY_ACCESS_LOG: /dev/stdout
      KONG_PROXY_ERROR_LOG: /dev/stderr
      KONG_PREFIX: ${KONG_PREFIX:-/var/run/kong}
      KONG_DECLARATIVE_CONFIG: "/opt/kong/kong.yaml"
    secrets:
      - kong_postgres_password
    networks:
      - kong-net
    ports:
      # The following two environment variables default to an insecure value (0.0.0.0)
      # according to the CIS Security test.
      # - "${KONG_INBOUND_PROXY_LISTEN:-0.0.0.0}:8000:8000/tcp"
      # - "${KONG_INBOUND_SSL_PROXY_LISTEN:-0.0.0.0}:8443:8443/tcp"
      # Making them mandatory but undefined, like so would be backwards-breaking:
      # - "${KONG_INBOUND_PROXY_LISTEN?Missing inbound proxy host}:8000:8000/tcp"
      # - "${KONG_INBOUND_SSL_PROXY_LISTEN?Missing inbound proxy ssl host}:8443:8443/tcp"
      # Alternative is deactivating check 5.13 in the security bench, if we consider Kong's own config to be enough security here

      - "8000:8000/tcp"
      - "8001:8001/tcp"
      - "8444:8444/tcp"
      - "8443:8443/tcp"
    healthcheck:
      test: [ "CMD", "kong", "health" ]
      interval: 10s
      timeout: 10s
      retries: 10
    restart: on-failure:5
    read_only: true
    volumes:
      - kong_prefix_vol:${KONG_PREFIX:-/var/run/kong}
      - kong_tmp_vol:/tmp
      - ./config:/opt/kong
    security_opt:
      - no-new-privileges

  konga:
    image: pantsel/konga:latest
    container_name: konga
    networks:
      - kong-net
    environment:
      DB_ADAPTER: postgres
      DB_HOST: postgres
      DB_PORT: 5432
      DB_USER: kong
      DB_PASSWORD: kong
      DB_DATABASE: kong
      NODE_ENV: development
    ports:
      - "8888:1337"
    restart: on-failure
    depends_on:
      - db
      - kong
      - kong-migrations

  db:
    image: postgres:9.5
    hostname: postgres
    profiles: [ "database" ]
    environment:
      POSTGRES_DB: kong
      POSTGRES_USER: kong
      POSTGRES_PASSWORD_FILE: /run/secrets/kong_postgres_password
    secrets:
      - kong_postgres_password
    healthcheck:
      test: [ "CMD", "pg_isready", "-U", "kong" ]
      interval: 30s
      timeout: 30s
      retries: 3
    restart: on-failure
    stdin_open: true
    tty: true
    ports:
      - 5432:5432
    networks:
      - kong-net
    volumes:
      - kong_data:/var/lib/postgresql/data

secrets:
  kong_postgres_password:
    file: ./POSTGRES_PASSWORD
