Simple Concepts

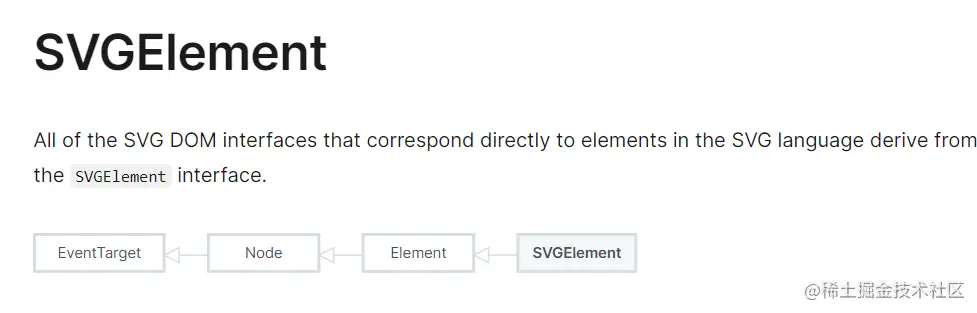

SVGElement

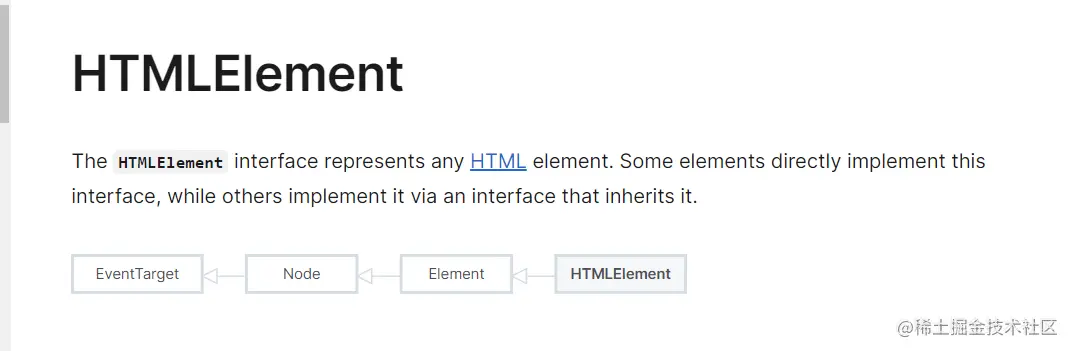

HTMLElement
SVG
// Create SVG group to hold everything in
this.group = this.paper.addGroup("g");
SVG Element
/**
* Represents available SVG elements that can be added to paper.
* 同时上述link，可以去查看具体的分类
*/
export type SVGElementNames = "a" | "altGlyph" | "altGlyphDef" | "altGlyphItem" | "animate"
| "animateColor" | "animateMotion" | "animateTransform"
| "circle" | "clipPath" | "color-profile" | "cursor" | "defs" | "desc" | "ellipse" | "feBlend" |
"feColorMatrix" | "feComponentTransfer" | "feComposite" | "feConvolveMatrix" | "feDiffuseLighting"
| "feDisplacementMap" | "feDistantLight" | "feFlood" | "feFuncA" | "feFuncB" | "feFuncG" | "feFuncR"
| "feGaussianBlur" | "feImage" | "feMerge" | "feMergeNode" | "feMorphology" | "feOffset" | "fePointLight"
| "feSpecularLighting" | "feSpotLight" | "feTile" | "feTurbulence" | "feConvolveMatrix" | "filter" |
"font" | "font-face" | "font-face-format" | "font-face-name" | "font-face-src" | "font-face-uri" |
"foreignObject" | "g" | "glyph" | "glyphRef" | "hkern" | "image" | "line" | "linearGradient" |
"marker" | "mask" | "metadata" | "missing-glyph" | "mpath" | "path" | "pattern" | "polygon" | "polyline"
| "radialGradient" | "rect" | "script" | "set" | "stop" | "style" | "svg" | "switch" | "symbol" | "text"
| "textPath" | "title" | "tref" | "tspan" | "use" | "view" | "vkern";
SVG Attributes
/**
* Defines available SVG attributes.
*/
export type SVGAttribute =
"accent-height" | "accumulate" | "additive" | "alignment-baseline" | "allowReorder"
| "alphabetic" | "amplitude" | "arabic-form" | "aria-checked" | "aria-describedby"
| "aria-hidden" | "aria-label" | "aria-labelledby" | "aria-live" | "aria-controls"
| "aria-orientation" | "aria-valuemax" | "aria-valuemin" | "aria-valuenow"
| "aria-valuetext" | "ascent" | "attributeName" | "attributeType" | "autoReverse"
| "azimuth" | "baseFrequency" | "baseline-shift" | "baseProfile" | "bbox" | "begin"
| "bias" | "by" | "calcMode" | "cap-height" | "class" | "clip" | "clipPathUnits"
| "clip-path" | "clip-rule" | "color" | "color-interpolation" | "color-interpolation-filters"
| "color-profile" | "color-rendering" | "contentScriptType" | "contentStyleType" | "cursor"
| "cx" | "cy" | "d" | "decelerate" | "descent" | "diffuseConstant" | "direction" | "display"
| "divisor" | "dominant-baseline" | "dur" | "dx" | "dy" | "edgeMode" | "elevation"
| "enable-background" | "end" | "exponent" | "externalResourcesRequired" | "fill"
| "fill-opacity" | "fill-rule" | "filter" | "filterRes" | "filterUnits" | "flood-color"
| "flood-opacity" | "focusable" | "font-family" | "font-size" | "font-size-adjust"
| "font-stretch" | "font-style" | "font-variant" | "font-weight" | "format" | "from"
| "fx" | "fy" | "g1" | "g2" | "glyph-name" | "glyph-orientation-horizontal"
| "glyph-orientation-vertical" | "glyphRef" | "gradientTransform" | "gradientUnits"
| "hanging" | "height" | "href" | "horiz-adv-x" | "horiz-origin-x" | "id" | "ideographic"
| "image-rendering" | "in" | "in2" | "intercept" | "k" | "k1" | "k2" | "k3" | "k4"
| "kernelMatrix" | "kernelUnitLength" | "kerning" | "keyPoints" | "keySplines" | "keyTimes"
| "lang" | "lengthAdjust" | "letter-spacing" | "lighting-color" | "limitingConeAngle" | "local"
| "marker-end" | "marker-mid" | "marker-start" | "markerHeight" | "markerUnits" | "markerWidth"
| "mask" | "maskContentUnits" | "maskUnits" | "mathematical" | "max" | "media" | "method" | "min"
| "mode" | "name" | "numOctaves" | "offset" | "onabort" | "onactivate" | "onbegin" | "onclick"
| "onend" | "onerror" | "onfocusin" | "onfocusout" | "onload" | "onmousedown" | "onmousemove"
| "onmouseout" | "onmouseover" | "onmouseup" | "onrepeat" | "onresize" | "onscroll" | "onunload"
| "onzoom" | "opacity" | "operator" | "order" | "orient" | "orientation" | "origin" | "overflow"
| "overline-position" | "overline-thickness" | "panose-1" | "paint-order" | "pathLength"
| "patternContentUnits" | "patternTransform" | "patternUnits" | "pointer-events" | "points"
| "pointsAtX" | "pointsAtY" | "pointsAtZ" | "preserveAlpha" | "preserveAspectRatio" | "primitiveUnits"
| "r" | "radius" | "refX" | "refY" | "rendering-intent" | "repeatCount" | "repeatDur" | "requiredExtensions"
| "requiredFeatures" | "restart" | "result" | "role" | "rotate" | "rx" | "ry" | "scale" | "seed" | "shape-rendering"
| "slope" | "spacing" | "specularConstant" | "specularExponent" | "speed" | "spreadMethod" | "startOffset"
| "stdDeviation" | "stemh" | "stemv" | "stitchTiles" | "stop-color" | "stop-opacity" | "strikethrough-position"
| "strikethrough-thickness" | "string" | "stroke" | "stroke-dasharray" | "stroke-dashoffset" | "stroke-linecap"
| "stroke-linejoin" | "stroke-miterlimit" | "stroke-opacity" | "stroke-width" | "style" | "surfaceScale"
| "systemLanguage" | "tabindex" | "tableValues" | "target" | "targetX" | "targetY" | "text-anchor" | "text-decoration"
| "text-rendering" | "textLength" | "to" | "transform" | "type" | "u1" | "u2" | "underline-position"
| "underline-thickness" | "unicode" | "unicode-bidi" | "unicode-range" | "units-per-em" | "v-alphabetic"
| "v-hanging" | "v-ideographic" | "v-mathematical" | "values" | "version" | "vert-adv-y" | "vert-origin-x"
| "vert-origin-y" | "viewBox" | "viewTarget" | "visibility" | "width" | "widths" | "word-spacing" | "writing-mode"
| "x" | "x-height" | "x1" | "x2" | "xChannelSelector" | "xlink:actuate" | "xlink:arcrole" | "xlink:href" | "xlink:role"
| "xlink:show" | "xlink:title" | "xlink:type" | "xml:base" | "xml:lang" | "xml:space" | "y" | "y1" | "y2"
| "yChannelSelector" | "z" | "zoomAndPan";
创建SVG标签元素
constructor(container: HTMLElement, id: string) {
//html dom对象传入
this.container = container;
this.id = id;
// 创建一个符合svg规范的标识位svg的元素，并作为子元素
let svg = <SVGSVGElement>document.createElementNS($dom.SVGNS, "svg");
svg.setAttribute("version", "1.1");
svg.setAttributeNS($dom.XMLNS, "xmlns", $dom.SVGNS);
svg.setAttributeNS($dom.XMLNS, "xmlns:xlink", $dom.XLINK);
svg.setAttribute("role", "group");
this.container.appendChild(svg);
// 添加描述标签desc
//let desc: SVGElement = <SVGElement>document.createElementNS($dom.SVGNS, "desc");
//desc.appendChild(document.createTextNode("JavaScript chart by amCharts"));
//svg.appendChild(desc);
// 添加defs标签
this.defs = <SVGDefsElement>document.createElementNS($dom.SVGNS, "defs");
svg.appendChild(this.defs);
// 给svg节点设置width，height
svg.style.width = "100%";
svg.style.height = "100%";
svg.style.overflow = "visible";
this.svg = svg;
}
//创建一个新的元素，
public add(elementName: SVGElementNames): AMElement {
return new AMElement(elementName);
}
//创建一个新的Group元素
public addGroup(groupName: SVGElementNames): Group {
return new Group(groupName);
}

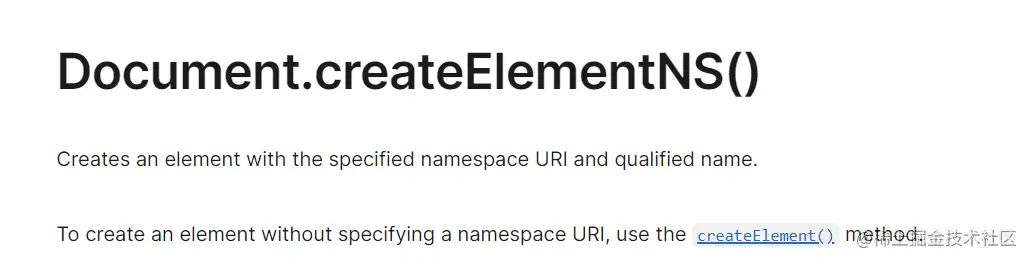

createElementNS(namespaceURI, qualifiedName)
createElementNS(namespaceURI, qualifiedName, options)
其中，NameSpaceURL 仅限如下三个：
- HTML: www.w3.org/1999/xhtml
- SVG: www.w3.org/2000/svg
- MATHML: www.w3.org/1998/Math/M…
AMElement类，包含基本的属性、方法
export class AMElement implements IDisposer{
....
}

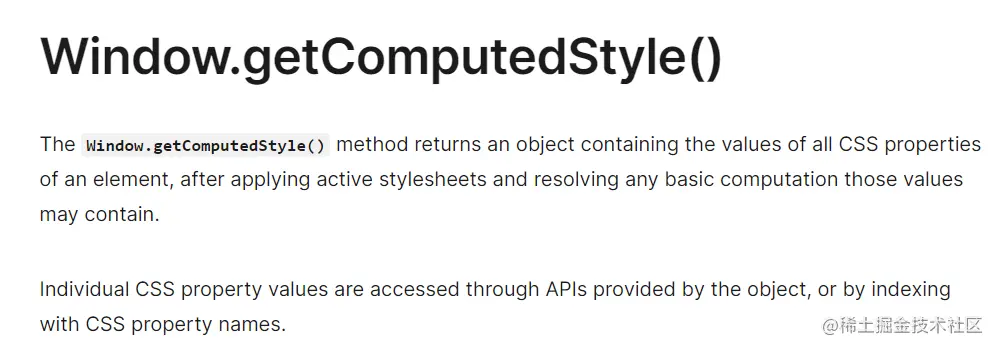

windows.getComputedStyle
/**
* Returns element's width.
*
* @ignore Exclude from docs
* @param element Element
* @return Width (px)
* @deprecated Not used anywhere
*/
export function width(element: HTMLElement): number {
let cs = getComputedStyle(element);
let paddingX = parseFloat(cs.paddingLeft) + parseFloat(cs.paddingRight);
let borderX = parseFloat(cs.borderLeftWidth) + parseFloat(cs.borderRightWidth);
return element.clientWidth - paddingX - borderX;
}
style设置使用node.style
/**
* Adds style attributes to element's node.
*
* @param attributes Object containing attribute: value pairs
* @return The same element
*/
public addStyle(attributes: Object): AMElement {
// @todo Review because it's a bit messy and maybe not needed (pratically not used)
$object.each(attributes, (attributeName, attributeValue) => {
if (!$type.hasValue(attributeValue)) {
this.removeStyle(attributeName);
}
else {
(<any>this.node.style)[attributeName] = attributeValue;
}
});
return this;
}
属性设置使用node.setAttributes
/**
* Sets a set of attributes on a element.
*
* @param attributes An object with attribute names (key) and values
* @return The same element
*/
public attr(attributes: ISVGAttribute): AMElement {
$object.each(attributes, (attributeName, attributeValue) => {
if (!$type.hasValue(attributeValue)) {
this.node.removeAttribute(attributeName);
}
else {
// this is for performance testing
//if(attributeValue == this.node.getAttribute(attributeName)){
// console.log(attributeName, attributeValue)
//}
this.node.setAttribute(attributeName, attributeValue);
}
});
return this;
}
dispose方法 -- 最终就是从父类中移除子节点
/**
* Removes element's node from DOM.
*/
public removeNode(): void {
if (this.node) {
if (this.node.parentNode) {
this.node.parentNode.removeChild(this.node);
}
}
}
