Kubernetes-nacos-nfs单机版部署

背景

简单的在kubernetes上部署单例的nacos服务注册发现中心及配置中心

一、环境准备，安装kubernetes集群

当前节点base、master、slave1、slave2

kubernetes安装不在此赘述，请参考参考资料进行安装

kubernetes安装nfs不在此赘述，请参考参考资料进行安装

参考资料

1-Kubernetes基于Centos7构建基础环境（一）

2-Kubernetes基于Centos7构建基础环境（二）

3-Kubernetes基于Centos7构建基础环境（三）

4-Kubernetes-基于Centos7安装面板及监控（四）

1-kubernetes-nfs动态存储部署)

集群名称	集群域名	说明
base	base.xincan.cn	部署harbor、nfs等服务
master	master.xincan.cn	kubernetes主节点，做污点容忍，排除业务资源，nfs客户端等
slave1	slave1.xincan.cn	kubernetes从节点，nfs客户端等
slave2	slave2.xincan.cn	kubernetes从节点，nfs客户端等

二、总体流程：

当前nacos版本为1.4.2
找一台虚拟机部署harbor、nfs服务，我这里不在赘述，请参照前面的文档；
在nfs服务端创建nacos数据存储挂载本地位置(nacos-single)；
在kubernetes主节点上某个目录下创建nacos-single文件夹，也可以自定义，主要保证内部kubernetes资源定义文件一样即可；
进入此文件夹之后，复制一下文档中列出的kubernetes资源并保存到此目录下，所有资源如下列表;
创建数据库

[root@master nacos-single]# tree
nacos-single
├── 1-nacos-namespace.yaml
├── 2-nacos-pv.yaml
├── 3-nacos-pvc.yaml
├── 4-nacos-configmap.yaml
├── 5-nacos-deployment.yaml
└── 6-nacos-service.yaml

资源创建；
效果展示；
连接测试；

三、创建数据库

参照2-kubernetes-mysql-nfs单机版部署

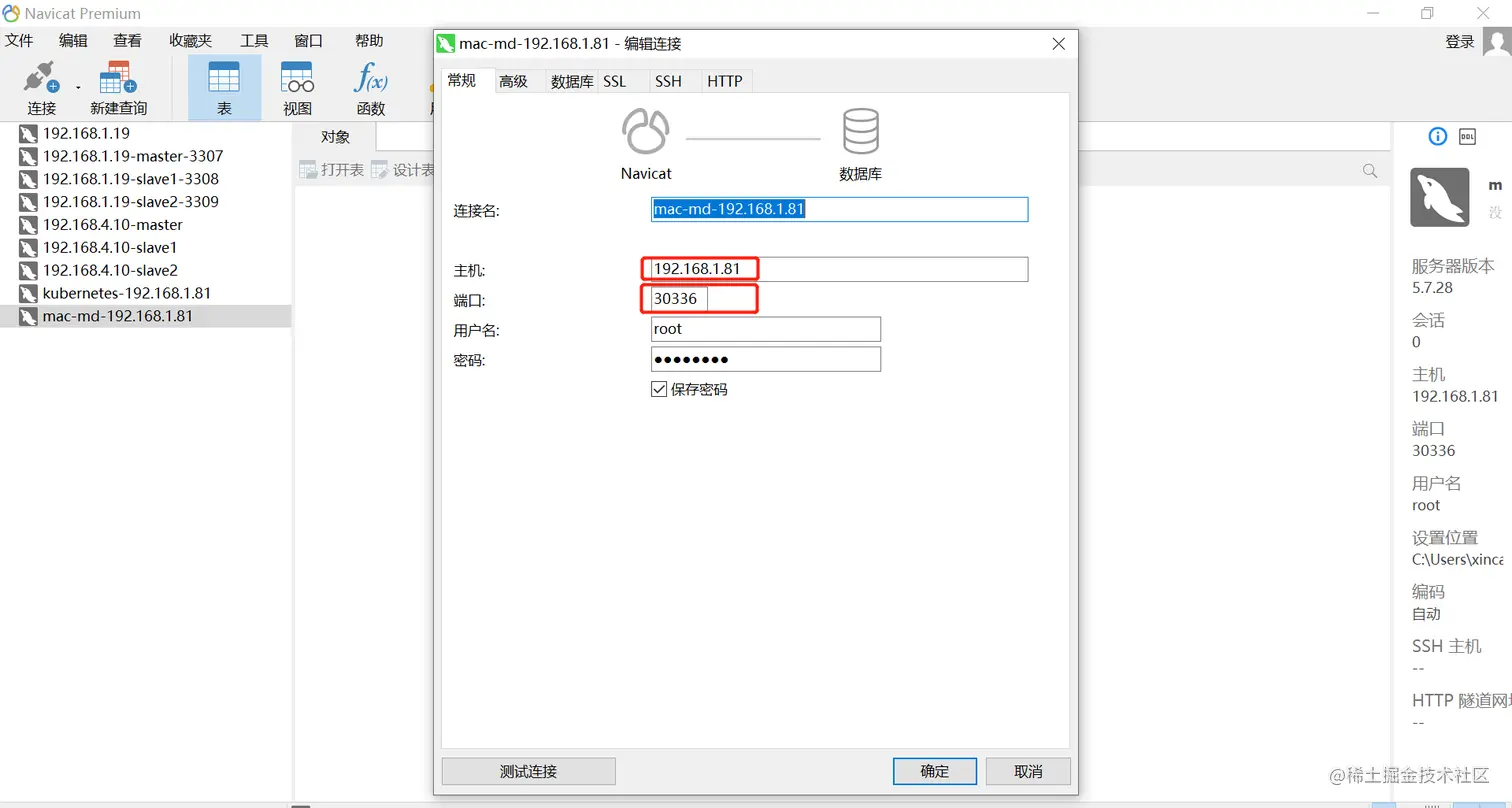

开放mysql service端口，当前开放端口为30336

[root@master mysql-single]# kubectl -n mysql get pod,svc
NAME                        READY   STATUS    RESTARTS   AGE
pod/mysql-88b8cd69b-xn8qz   1/1     Running   0          80s

NAME                    TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/mysql-service   NodePort   10.101.230.59   <none>        3306:30336/TCP   80s

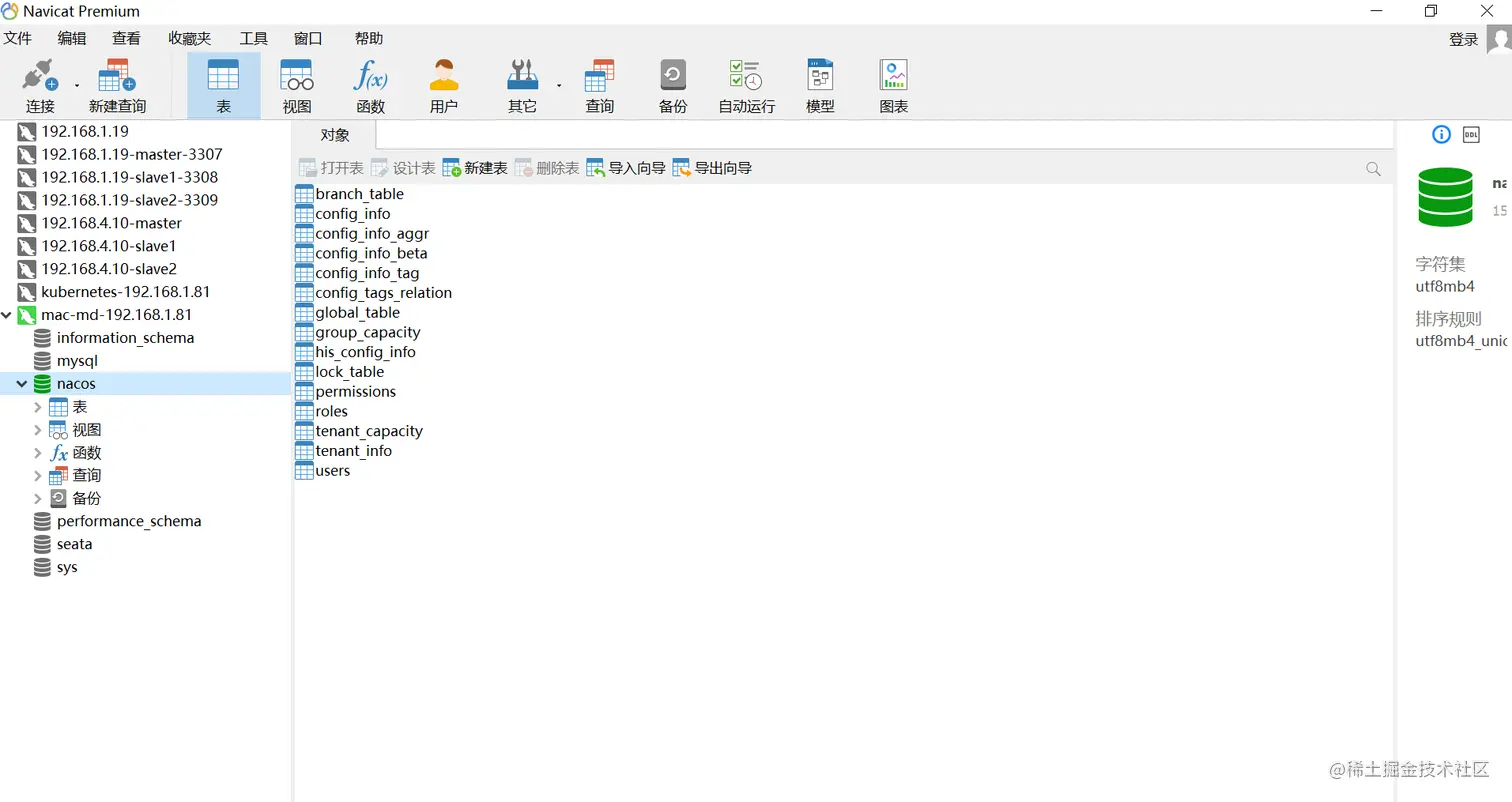

创建nacos数据库

导入如下数据
- sql地址：github.com/alibaba/nac…

/*
 * Copyright 1999-2018 Alibaba Group Holding Ltd.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info   */
/******************************************/
CREATE TABLE `config_info` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(255) DEFAULT NULL,
  `content` longtext NOT NULL COMMENT 'content',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  `app_name` varchar(128) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  `c_desc` varchar(256) DEFAULT NULL,
  `c_use` varchar(64) DEFAULT NULL,
  `effect` varchar(64) DEFAULT NULL,
  `type` varchar(64) DEFAULT NULL,
  `c_schema` text,
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_aggr   */
/******************************************/
CREATE TABLE `config_info_aggr` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(255) NOT NULL COMMENT 'group_id',
  `datum_id` varchar(255) NOT NULL COMMENT 'datum_id',
  `content` longtext NOT NULL COMMENT '内容',
  `gmt_modified` datetime NOT NULL COMMENT '修改时间',
  `app_name` varchar(128) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfoaggr_datagrouptenantdatum` (`data_id`,`group_id`,`tenant_id`,`datum_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='增加租户字段';


/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_beta   */
/******************************************/
CREATE TABLE `config_info_beta` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL COMMENT 'content',
  `beta_ips` varchar(1024) DEFAULT NULL COMMENT 'betaIps',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfobeta_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_beta';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_info_tag   */
/******************************************/
CREATE TABLE `config_info_tag` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  `tag_id` varchar(128) NOT NULL COMMENT 'tag_id',
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL COMMENT 'content',
  `md5` varchar(32) DEFAULT NULL COMMENT 'md5',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  `src_user` text COMMENT 'source user',
  `src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_configinfotag_datagrouptenanttag` (`data_id`,`group_id`,`tenant_id`,`tag_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_tag';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = config_tags_relation   */
/******************************************/
CREATE TABLE `config_tags_relation` (
  `id` bigint(20) NOT NULL COMMENT 'id',
  `tag_name` varchar(128) NOT NULL COMMENT 'tag_name',
  `tag_type` varchar(64) DEFAULT NULL COMMENT 'tag_type',
  `data_id` varchar(255) NOT NULL COMMENT 'data_id',
  `group_id` varchar(128) NOT NULL COMMENT 'group_id',
  `tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
  `nid` bigint(20) NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`nid`),
  UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
  KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = group_capacity   */
/******************************************/
CREATE TABLE `group_capacity` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `group_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群',
  `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数，，0表示使用默认值',
  `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_group_id` (`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群、各Group容量信息表';

/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = his_config_info   */
/******************************************/
CREATE TABLE `his_config_info` (
  `id` bigint(64) unsigned NOT NULL,
  `nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
  `data_id` varchar(255) NOT NULL,
  `group_id` varchar(128) NOT NULL,
  `app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
  `content` longtext NOT NULL,
  `md5` varchar(32) DEFAULT NULL,
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
  `src_user` text,
  `src_ip` varchar(50) DEFAULT NULL,
  `op_type` char(10) DEFAULT NULL,
  `tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
  PRIMARY KEY (`nid`),
  KEY `idx_gmt_create` (`gmt_create`),
  KEY `idx_gmt_modified` (`gmt_modified`),
  KEY `idx_did` (`data_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='多租户改造';


/******************************************/
/*   数据库全名 = nacos_config   */
/*   表名称 = tenant_capacity   */
/******************************************/
CREATE TABLE `tenant_capacity` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `tenant_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Tenant ID',
  `quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
  `usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
  `max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
  `max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数',
  `max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
  `max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
  `gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容量信息表';


CREATE TABLE `tenant_info` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
  `kp` varchar(128) NOT NULL COMMENT 'kp',
  `tenant_id` varchar(128) default '' COMMENT 'tenant_id',
  `tenant_name` varchar(128) default '' COMMENT 'tenant_name',
  `tenant_desc` varchar(256) DEFAULT NULL COMMENT 'tenant_desc',
  `create_source` varchar(32) DEFAULT NULL COMMENT 'create_source',
  `gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
  `gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
  KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';

CREATE TABLE `users` (
	`username` varchar(50) NOT NULL PRIMARY KEY,
	`password` varchar(500) NOT NULL,
	`enabled` boolean NOT NULL
);

CREATE TABLE `roles` (
	`username` varchar(50) NOT NULL,
	`role` varchar(50) NOT NULL,
	UNIQUE INDEX `idx_user_role` (`username` ASC, `role` ASC) USING BTREE
);

CREATE TABLE `permissions` (
    `role` varchar(50) NOT NULL,
    `resource` varchar(255) NOT NULL,
    `action` varchar(8) NOT NULL,
    UNIQUE INDEX `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
);

INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);

INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');

四、资源创建

创建nacos的命名空间Namespace，名称为：nacos
- 将所有的资源挂载到此命名空间下；

[root@master nacos-single]# vim 1-nacos-namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: nacos
  labels:
    app: nacos

创建nacos的存储资源PersistentVolume，名称为：nacos-pv

[root@master nacos-single]# vim 2-nacos-pv.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: nacos-pv
  namespace: nacos
spec:
  accessModes:
  - ReadWriteOnce
  capacity:
    storage: 2Gi
  claimRef:
    apiVersion: v1
    kind: PersistentVolumeClaim
    name: nacos-pvc
    namespace: nacos
  persistentVolumeReclaimPolicy: Retain
  storageClassName: nfs
  nfs:
    path: /nfs/data/nacos-single
    server: 172.16.124.130
  volumeMode: Filesystem

创建nacos的存储匹配资源PersistentVolumeClaim，名称为：nacos-pvc

[root@master nacos-single]# vim 3-nacos-pvc.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nacos-pvc
  namespace: nacos
  labels:
    app: nacos
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi

创建nacos的配置资源ConfigMap，名称为：nacos-config

[root@master nacos-single]# vim 4-nacos-configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: nacos-config
  namespace: nacos
data:
  mysql.database.num: "1"
  mysql.service.host: "mysql-service.mysql"
  mysql.service.db.name: "nacos-single"
  mysql.service.port: "3306"
  mysql.user: "root"
  mysql.password: "123456"

创建nacos实例资源Deployment，名称为：nacos

[root@master nacos-single]# vim 5-nacos-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nacos
  namespace: nacos
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nacos
  template:
    metadata:
      labels:
        app: nacos
    spec:
      containers:
        - name: nacos
          image: base.xincan.cn/library/nacos-server:v1.4.2
          imagePullPolicy: IfNotPresent
          resources:
            requests:
              cpu: "500m"
              memory: "1Gi"
          ports:
            - containerPort: 8848
              name: client-port
          env:
            - name: MYSQL_DATABASE_NUM
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.database.num
            - name: MYSQL_SERVICE_HOST
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.service.host
            - name: MYSQL_SERVICE_DB_NAME
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.service.db.name
            - name: MYSQL_SERVICE_PORT
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.service.port
            - name: MYSQL_SERVICE_USER
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.user
            - name: MYSQL_SERVICE_PASSWORD
              valueFrom:
                configMapKeyRef:
                  name: nacos-config
                  key: mysql.password
            - name: SPRING_DATASOURCE_PLATFORM
              value: "mysql"
            - name: NACOS_SERVER_PORT
              value: "8848"
            - name: NACOS_APPLICATION_PORT
              value: "8848"
            - name: MODE
              value: "standalone"
            - name: PREFER_HOST_MODE
              value: "hostname"
          volumeMounts:
            - name: nacos-nfs-storage
              mountPath: /home/nacos/plugins/peer-finder
              subPath: peer-finder
            - name: nacos-nfs-storage
              mountPath: /home/nacos/data
              subPath: data
            - name: nacos-nfs-storage
              mountPath: /home/nacos/logs
              subPath: logs
      volumes:
        - name: nacos-nfs-storage
          persistentVolumeClaim:
            claimName: nacos-pvc

创建nacos对外暴露资源Service，名称为：nacos-service

[root@master nacos-single]# vim 6-nacos-service.yaml

apiVersion: v1
kind: Service
metadata:
  name: nacos-service
  namespace: nacos
  labels:
    app: nacos
spec:
  ports:
    - name: client-port
      port: 8848
      targetPort: 8848
      nodePort: 31150
  type: NodePort
  selector:
    app: nacos

创建资源

进入nacos-single执行命令：kubectl apply -f ../nacos-single/
删除所有资源命令：kubectl delete -f ../nacos-single/

[root@master nacos-single]# kubectl apply -f ../nacos-single/
namespace/nacos created
persistentvolume/nacos-pv created
persistentvolumeclaim/nacos-pvc created
configmap/nacos-config created
deployment.apps/nacos created
service/nacos-service created
[root@master nacos-single]#


[root@master nacos-single]# kubectl delete -f ../nacos-single/
namespace "nacos" deleted
persistentvolume "nacos-pv" deleted
persistentvolumeclaim "nacos-pvc" deleted
configmap "nacos-config" deleted
deployment.apps "nacos-server" deleted
service "nacos" deleted
[root@master nacos-single]#

五、效果展示

通过kubectl -n nacos get pv,pvc,cm,pod,svc，查询nacos命名空间下对应资源，pv（persistentvolume）数据挂载资源，pvc等等资源

[root@master nacos-single]# kubectl -n nacos get pv,pvc,cm,pod,svc
NAME                         CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM              STORAGECLASS   REASON   AGE

persistentvolume/mysql-pv    5Gi        RWO            Retain           Bound    mysql/mysql-pvc    nfs                     26m
persistentvolume/nacos-pv    2Gi        RWO            Retain           Bound    nacos/nacos-pvc    nfs                     95s

NAME                              STATUS   VOLUME     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/nacos-pvc   Bound    nacos-pv   2Gi        RWO                           95s

NAME                         DATA   AGE
configmap/kube-root-ca.crt   1      95s
configmap/nacos-config       6      95s

NAME                         READY   STATUS    RESTARTS   AGE
pod/nacos-5bb6f6bdd4-dmz6z   1/1     Running   0          95s

NAME                    TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE
service/nacos-service   NodePort   10.101.2.6   <none>        8848:30716/TCP   95s
[root@master nacos-single]#

六、测试连接、外部地址访问

通过地址端口号访问
- 获取NodePort端口
- 登录名称：nacos
- 登录密码：nacos

[root@master nacos-single]# kubectl -n nacos get svc
NAME            TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)          AGE
nacos-service   NodePort   10.101.2.6   <none>        8848:30716/TCP   3m52s
[root@master nacos-single]#

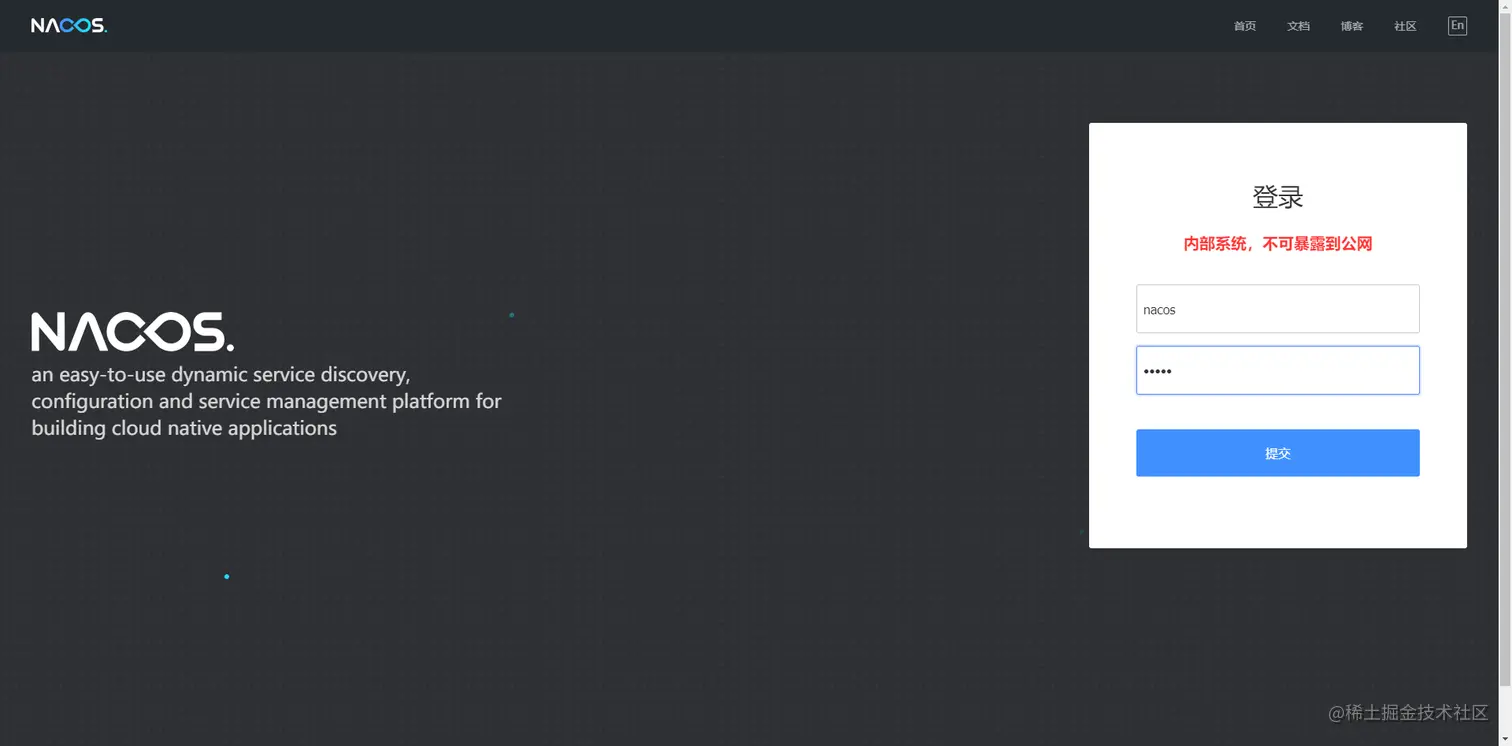

访问地址：http://192.168.1.81:30716/nacos

七：结束语

至此单机版Kubernetes部署nacos单机版完成
