4-Kubernetes-基于Centos7安装面板及监控（四）
环境准备
-
准备三台虚拟机，每台虚机请参照Kubernetes基于Centos7构建基础环境（一）、Kubernetes基于Centos7构建基础环境（二）、Kubernetes基于Centos7构建基础环境（三）进行安装构建
-
安装Git
一、 三台虚拟机配置表
- 服务器配置
| 服务器IP | 域名 | 别名 | 服务器类别 | 登录用户 | 登录密码 | CPU | 内存 |
|---|---|---|---|---|---|---|---|
| 192.168.1.55 | master55.xincan.cn | master55 | master | root | root | 2核 | 4G |
| 192.168.1.56 | slave56.xincan.cn | slave56 | slave | root | root | 4核 | 8G |
| 192.168.1.57 | slave57.xincan.cn | slave57 | slave | root | root | 4核 | 8G |
- 工具版本
- docker version: v19.03.11
- Kubernetes version: v1.18.2
- 参考地址kubernetes监控终级方案
一、安装Git
- 安装git所需要的安装包
- 切换到/usr/local/src/下
[root@master55 /]# yum install curl-devel expat-devel gettext-devel openssl-devel zlib-devel gcc perl-ExtUtils-MakeMaker
[root@master55 /]# cd /usr/local/src/
- 下载git
- 版本为： git-2.23.0.tar.xz
- 解压并切换到解压当前目录下
[root@master55 src]# wget https://mirrors.edge.kernel.org/pub/software/scm/git/git-2.23.0.tar.xz
[root@master55 src]# tar -xvf git-2.23.0.tar.xz && cd git-2.23.0/
[root@master55 src]#
- 开始安装
[root@master55 src]# make prefix=/usr/local/git all
[root@master55 src]# make prefix=/usr/local/git install
[root@master55 src]# echo "export PATH=$PATH:/usr/local/git/bin" >> /etc/profile
[root@master55 src]# source /etc/profile
二、kube-promethues部署
- 下载安装源码，切换到第三节创建的k8s目录下，
- 进行git clone github.com/coreos/kube…拉取
- 安装文件都在kube-prometheus/manifests/ 目录下，切换到此目录
[root@master55 k8s]# git clone https://github.com/coreos/kube-prometheus.git
Cloning into 'kube-prometheus'...
remote: Enumerating objects: 8381, done.
remote: Total 8381 (delta 0), reused 0 (delta 0), pack-reused 8381
Receiving objects: 100% (8381/8381), 4.70 MiB | 421.00 KiB/s, done.
Resolving deltas: 100% (5082/5082), done.
[root@master55 k8s]# ls
calico kube-prometheus
# 切换到kube-prometheus/manifests/下
[root@master55 k8s]# cd kube-prometheus/manifests/
[root@master55 manifests]# ls
alertmanager-alertmanager.yaml node-exporter-clusterRoleBinding.yaml prometheus-clusterRole.yaml
alertmanager-secret.yaml node-exporter-clusterRole.yaml prometheus-operator-serviceMonitor.yaml
alertmanager-serviceAccount.yaml node-exporter-daemonset.yaml prometheus-prometheus.yaml
alertmanager-serviceMonitor.yaml node-exporter-serviceAccount.yaml prometheus-roleBindingConfig.yaml
alertmanager-service.yaml node-exporter-serviceMonitor.yaml prometheus-roleBindingSpecificNamespaces.yaml
grafana-dashboardDatasources.yaml node-exporter-service.yaml prometheus-roleConfig.yaml
grafana-dashboardDefinitions.yaml prometheus-adapter-apiService.yaml prometheus-roleSpecificNamespaces.yaml
grafana-dashboardSources.yaml prometheus-adapter-clusterRoleAggregatedMetricsReader.yaml prometheus-rules.yaml
grafana-deployment.yaml prometheus-adapter-clusterRoleBindingDelegator.yaml prometheus-serviceAccount.yaml
grafana-serviceAccount.yaml prometheus-adapter-clusterRoleBinding.yaml prometheus-serviceMonitorApiserver.yaml
grafana-serviceMonitor.yaml prometheus-adapter-clusterRoleServerResources.yaml prometheus-serviceMonitorCoreDNS.yaml
grafana-service.yaml prometheus-adapter-clusterRole.yaml prometheus-serviceMonitorKubeControllerManager.yaml
kube-state-metrics-clusterRoleBinding.yaml prometheus-adapter-configMap.yaml prometheus-serviceMonitorKubelet.yaml
kube-state-metrics-clusterRole.yaml prometheus-adapter-deployment.yaml prometheus-serviceMonitorKubeScheduler.yaml
kube-state-metrics-deployment.yaml prometheus-adapter-roleBindingAuthReader.yaml prometheus-serviceMonitor.yaml
kube-state-metrics-serviceAccount.yaml prometheus-adapter-serviceAccount.yaml prometheus-service.yaml
kube-state-metrics-serviceMonitor.yaml prometheus-adapter-service.yaml setup
kube-state-metrics-service.yaml prometheus-clusterRoleBinding.yaml
[root@master55 manifests]#
- 官方把所有文件都放在一起,这里我复制了然后分类下，切换到k8s目录下进行操作
[root@master55 k8s]# mkdir prometheus
[root@master55 k8s]# cp kube-prometheus/manifests/* prometheus/
[root@master55 k8s]# cd prometheus/
[root@master55 prometheus]# mkdir -p operator node-exporter alertmanager grafana kube-state-metrics prometheus serviceMonitor adapter
- 将kube-prometheus/manifests/setup下的文件都复制到/prometheus/operator/下
[root@master55 k8s]# cp -f kube-prometheus/manifests/setup/* /k8s/prometheus/operator/
- 将prometheus/operator/下0namespace-namespace.yaml文件移动到/k8s/prometheus/下
[root@master55 k8s]# mv prometheus/operator/0namespace-namespace.yaml prometheus/
- 切换到prometheus目录下，进行文件归置
[root@master55 k8s]# cd prometheus/
[root@master55 prometheus]# mv *-serviceMonitor* serviceMonitor/
[root@master55 prometheus]# mv grafana-* grafana/
[root@master55 prometheus]# mv kube-state-metrics-* kube-state-metrics/
[root@master55 prometheus]# mv alertmanager-* alertmanager/
[root@master55 prometheus]# mv node-exporter-* node-exporter/
[root@master55 prometheus]# mv prometheus-adapter* adapter/
[root@master55 prometheus]# mv prometheus-* prometheus/
- 注意：新版本的默认label变了，需要修改选择器为beta.kubernetes.io/os，不然安装的时候会卡住,修改选择器
[root@master55 prometheus]# sed -ri '/linux/s#kubernetes.io#beta.&#' \
alertmanager/alertmanager-alertmanager.yaml \
prometheus/prometheus-prometheus.yaml \
node-exporter/node-exporter-daemonset.yaml \
kube-state-metrics/kube-state-metrics-deployment.yaml
[root@master55 prometheus]#
- 注意：镜像使用dockerhub上的
[root@master55 prometheus]# sed -ri '/quay.io/s#quay.io/prometheus#prom#' \
alertmanager/alertmanager-alertmanager.yaml \
prometheus/prometheus-prometheus.yaml \
node-exporter/node-exporter-daemonset.yaml
[root@master55 prometheus]#
- 注意：镜像使用dockerhub上的
[root@master55 prometheus]# find -type f -exec sed -ri 's#k8s.gcr.io#gcr.azk8s.cn/google_containers#' {} \;
[root@master55 prometheus]#
- 生成namespace
[root@master55 prometheus]# kubectl apply -f .
namespace/monitoring created
[root@master55 prometheus]#
- 安装operator
[root@master55 prometheus]# kubectl apply -f operator/
customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com created
customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com created
clusterrole.rbac.authorization.k8s.io/prometheus-operator created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
deployment.apps/prometheus-operator created
service/prometheus-operator created
serviceaccount/prometheus-operator created
[root@master55 prometheus]#
- 依次安装其他组件
[root@master55 prometheus]# kubectl apply -f adapter/
[root@master55 prometheus]# kubectl apply -f alertmanager/
[root@master55 prometheus]# kubectl apply -f node-exporter/
[root@master55 prometheus]# kubectl apply -f kube-state-metrics/
[root@master55 prometheus]# kubectl apply -f grafana/
[root@master55 prometheus]# kubectl apply -f prometheus/
[root@master55 prometheus]# kubectl apply -f serviceMonitor/
[root@master55 prometheus]#
- 查看整体状态
[root@master55 /]# kubectl -n monitoring get all
# Pod查看
NAME READY STATUS RESTARTS AGE
pod/alertmanager-main-0 2/2 Running 0 28m
pod/alertmanager-main-1 2/2 Running 0 28m
pod/alertmanager-main-2 2/2 Running 0 28m
pod/grafana-5c55845445-hzhbk 1/1 Running 0 38m
pod/kube-state-metrics-665c856fb9-7ggrg 3/3 Running 0 38m
pod/node-exporter-dqfd7 2/2 Running 0 39m
pod/node-exporter-gf8gr 2/2 Running 0 39m
pod/node-exporter-mcl79 2/2 Running 0 39m
pod/prometheus-adapter-5cdcdf9c8d-665fj 1/1 Running 0 39m
pod/prometheus-operator-6f98f66b89-6spkk 2/2 Running 0 32m
# Service查看
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/alertmanager-main ClusterIP 10.111.117.158 <none> 9093/TCP 39m
service/alertmanager-operated ClusterIP None <none> 9093/TCP,9094/TCP,9094/UDP 28m
service/grafana ClusterIP 10.111.25.63 <none> 3000/TCP 38m
service/kube-state-metrics ClusterIP None <none> 8443/TCP,9443/TCP 38m
service/node-exporter ClusterIP None <none> 9100/TCP 39m
service/prometheus-adapter ClusterIP 10.109.99.195 <none> 443/TCP 39m
service/prometheus-k8s ClusterIP 10.110.243.126 <none> 9090/TCP 38m
service/prometheus-operator ClusterIP None <none> 8443/TCP 32m
# DaemonSet查看
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
daemonset.apps/node-exporter 3 3 3 3 3 beta.kubernetes.io/os=linux 39m
# Deployment查看
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/grafana 1/1 1 1 38m
deployment.apps/kube-state-metrics 1/1 1 1 38m
deployment.apps/prometheus-adapter 1/1 1 1 39m
deployment.apps/prometheus-operator 1/1 1 1 32m
# Replicaset查看
NAME DESIRED CURRENT READY AGE
replicaset.apps/grafana-5c55845445 1 1 1 38m
replicaset.apps/kube-state-metrics-665c856fb9 1 1 1 38m
replicaset.apps/prometheus-adapter-5cdcdf9c8d 1 1 1 39m
replicaset.apps/prometheus-operator-6f98f66b89 1 1 1 32m
# StatefulSet查看
NAME READY AGE
statefulset.apps/alertmanager-main 3/3 28m
[root@master55 /]#
- Kubernetes查看所有svc
[root@master55 prometheus]# kubectl -n monitoring get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
alertmanager-main ClusterIP 10.111.117.158 <none> 9093/TCP 115m
alertmanager-operated ClusterIP None <none> 9093/TCP,9094/TCP,9094/UDP 104m
grafana NodePort 10.111.25.63 <none> 3000:31533/TCP 114m
kube-state-metrics ClusterIP None <none> 8443/TCP,9443/TCP 115m
node-exporter ClusterIP None <none> 9100/TCP 115m
prometheus-adapter ClusterIP 10.109.99.195 <none> 443/TCP 115m
prometheus-k8s ClusterIP 10.110.243.126 <none> 9090/TCP 114m
prometheus-operator ClusterIP None <none> 8443/TCP 108m
[root@master55 prometheus]#
- Kubernetes暴露grafana外网访问端口
- 修改type: ClusterIP为 type: NodePort ,默认外网端口NodePort对应的是31533，找到如下代码，
[root@master55 prometheus]# kubectl -n monitoring edit svc grafana
spec:
clusterIP: 10.111.25.63
externalTrafficPolicy: Cluster
ports:
- name: http
nodePort: 31533
port: 3000
protocol: TCP
targetPort: http
selector:
app: grafana
sessionAffinity: None
type: NodePort

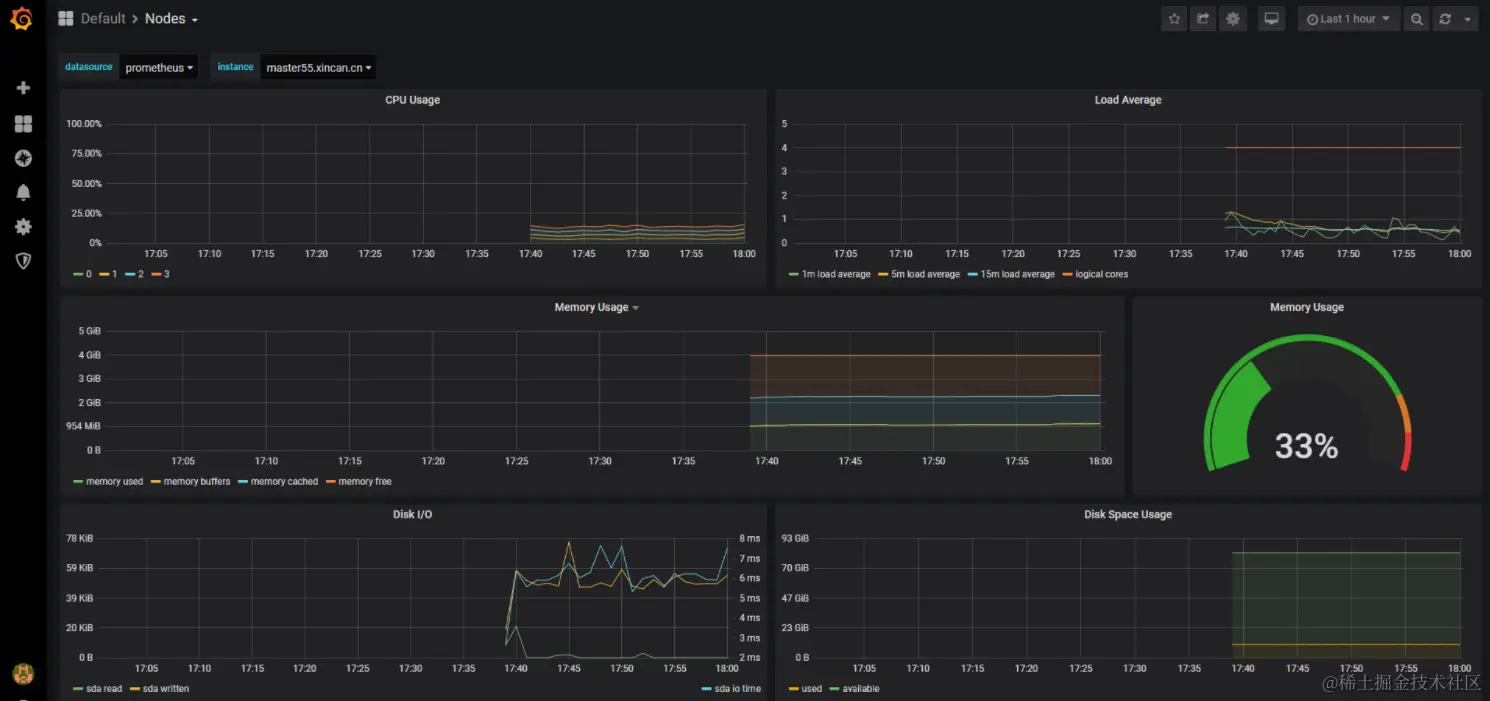

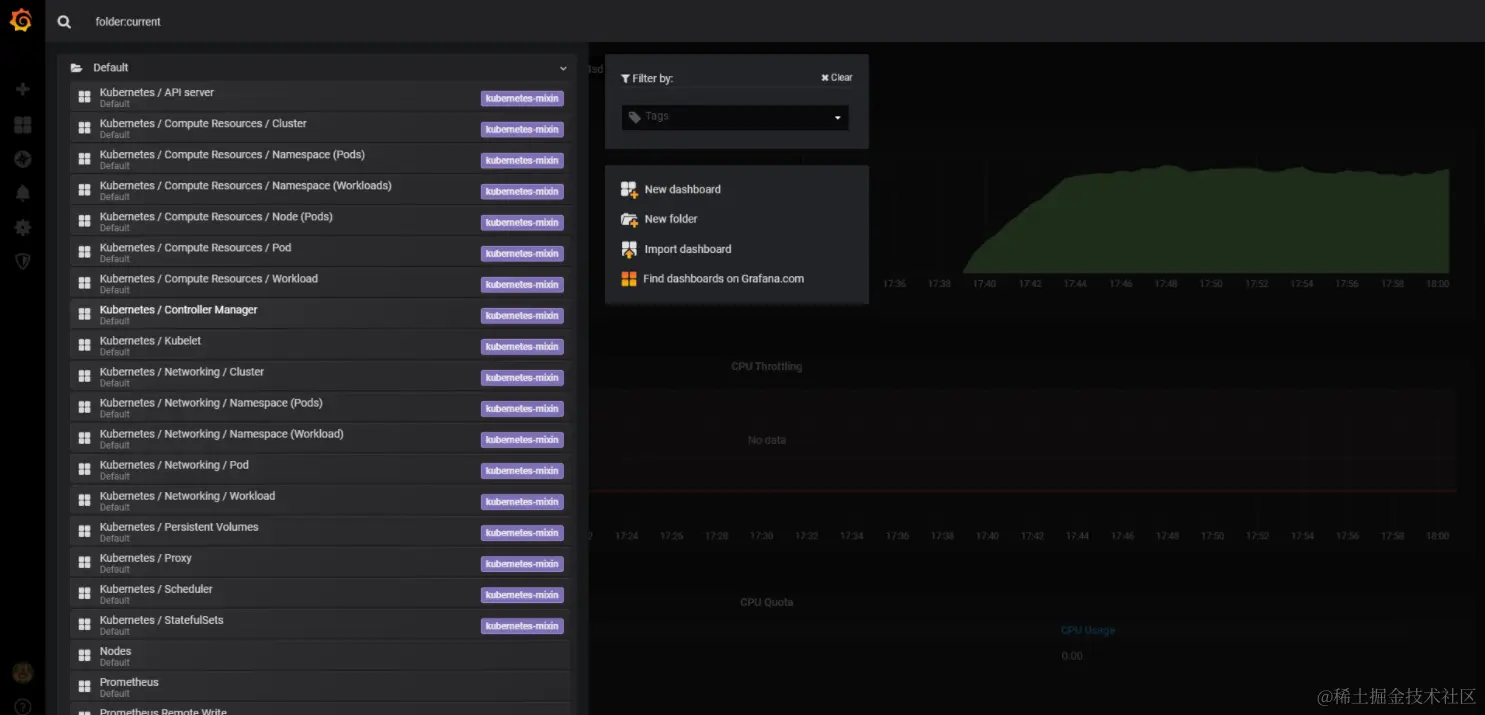

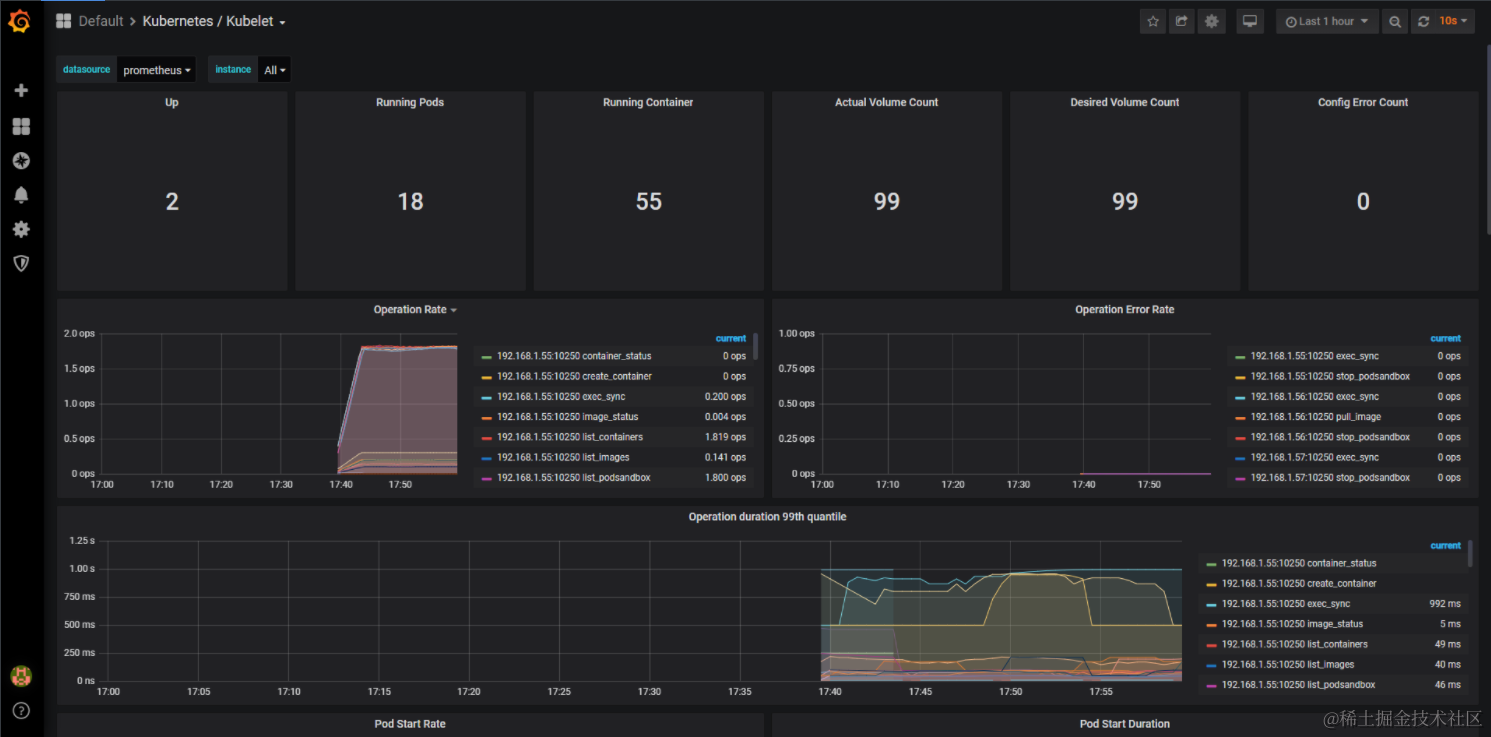

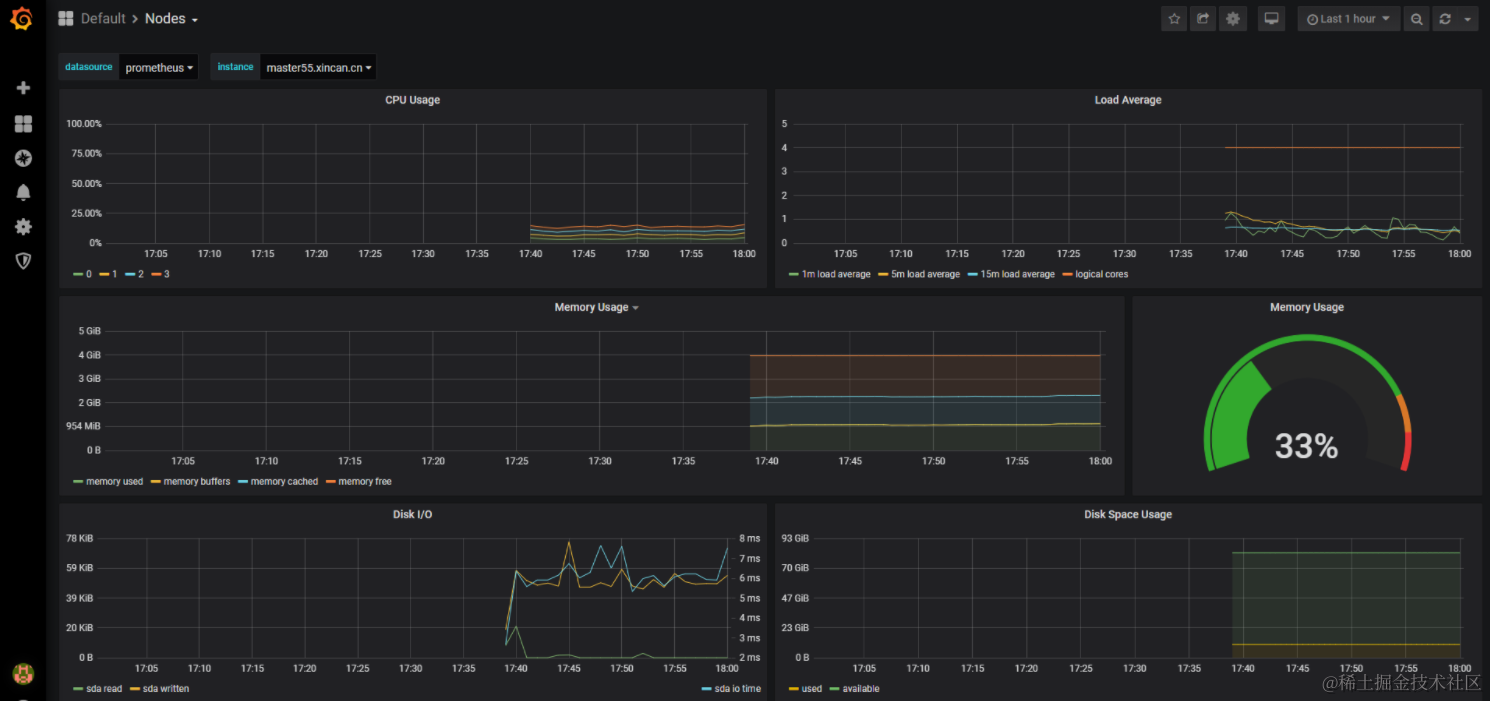

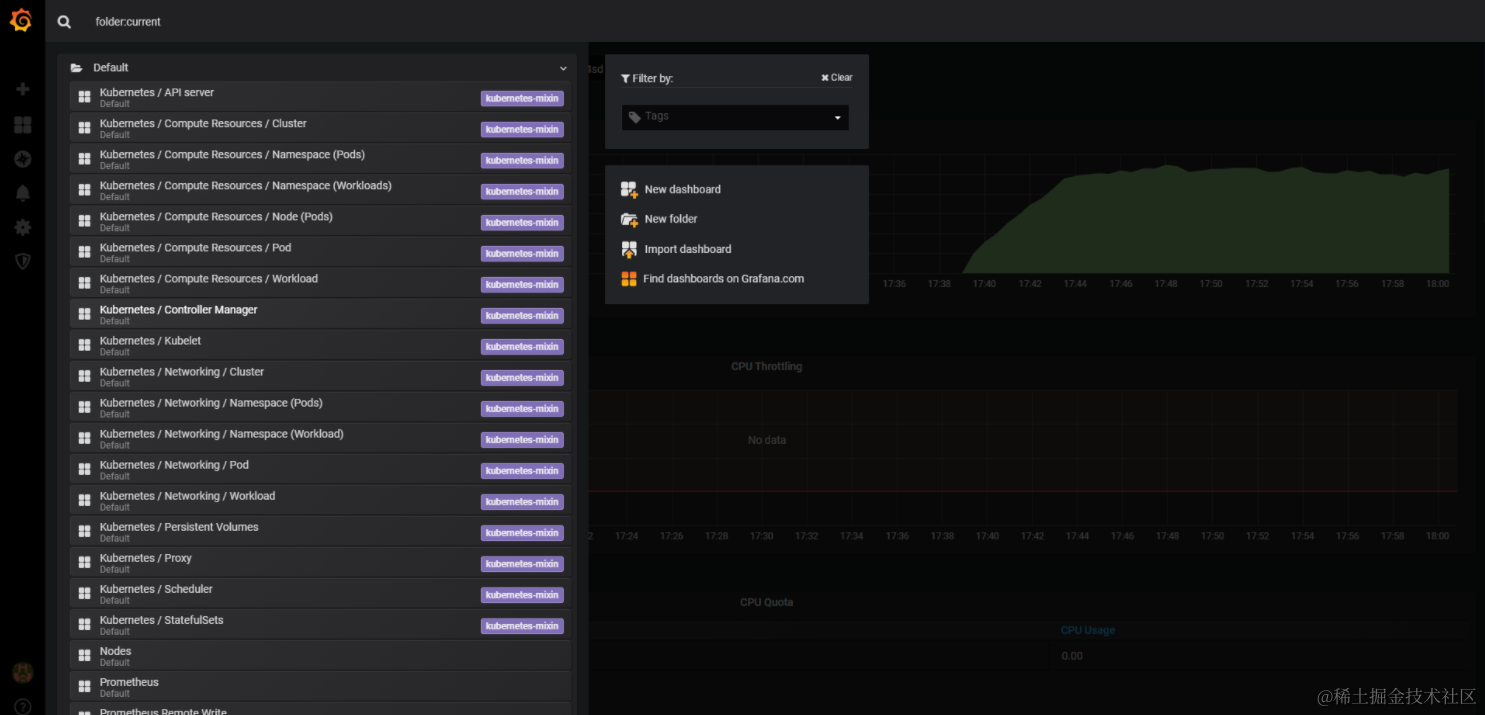

- 最终效果图（部分效果图）
三、 安装kubernetes-dashboard
- 下载dashboard所需资源
- git clone github.com/xincan/kube…
- k8s下完整目录如下
- calico存放网络插件文件编排
- kube-prometheus存放pormetheus相关文件编排
- kubernetes-dashboard存放Kubernetes面板文件编排
- prometheus存放整理后监控相关文件编排
[root@xincan /]#cd /k8s/
[root@xincan k8s]#git clone https://github.com/xincan/kubernetes.git
[root@xincan k8s]#ls
calico kube-prometheus kubernetes-dashboard prometheus
- 安装Dashboard
[root@master55 k8s]# cd kubernetes-dashboard/
[root@master55 kubernetes-dashboard]# ls
login-token recommended.yaml
[root@master55 kubernetes-dashboard]#kubectl create -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
[root@master55 kubernetes-dashboard]#
- 查看kubernetes-dashboard命名空间下pod，svc
[root@master55 kubernetes-dashboard]# kubectl get pod,svc -n kubernetes-dashboard
NAME READY STATUS RESTARTS AGE
pod/dashboard-metrics-scraper-779f5454cb-hzgc4 1/1 ContainerCreating 0 30s
pod/kubernetes-dashboard-857bb4c778-gsf2q 1/1 ContainerCreating 0 30s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/dashboard-metrics-scraper ClusterIP 10.105.54.169 <none> 8000/TCP 30s
service/kubernetes-dashboard ClusterIP 10.110.40.170 <none> 443/TCP 31s
[root@master55 kubernetes-dashboard]#
- 增加nodePort: 30001,设置dashboard访问端口，修改type: NodePort,保存退出自动更新
- 也可以使用kubectl patch svc -n kube-system kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}'进行修改
[root@master55 kubernetes-dashboard]#kubectl edit svc -n kubernetes-dashboard kubernetes-dashboard
spec:
clusterIP: 10.110.40.170
externalTrafficPolicy: Cluster
ports:
- nodePort: 30000
port: 443
protocol: TCP
targetPort: 8443
selector:
k8s-app: kubernetes-dashboard
sessionAffinity: None
type: NodePort
- 修改完成后，可以看到kubernetes-dashboard的type为NodePort，端口为30000
[root@master55 kubernetes-dashboard]# kubectl get svc -n kubernetes-dashboard kubernetes-dashboard
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes-dashboard NodePort 10.110.40.170 <none> 443:30001/TCP 14m
[root@master55 kubernetes-dashboard]#
四、 Token令牌登录
- 在kube-system命名空间下创建xincan-dashboard-admin用户
[root@master55 k8s]# kubectl create serviceaccount xincan-dashboard-admin -n kube-system
serviceaccount/xincan-dashboard-admin created
- 查看用户
[root@master55 k8s]# kubectl get serviceaccount xincan-dashboard-admin -n kube-system
NAME SECRETS AGE
xincan-dashboard-admin 1 7s
[root@master55 k8s]#
- 在kube-system命名空间下，创建xincan-dashboard-admin权限
[root@master55 k8s]# kubectl create clusterrolebinding dashboard-cluster-admin --clusterrole=cluster-admin --serviceaccount=kube-system:xincan-dashboard-admin
clusterrolebinding.rbac.authorization.k8s.io/dashboard-cluster-admin created
- 查看权限xincan-dashboard-admin是否生效
[root@master55 k8s]# kubectl get secret -n kube-system
NAME TYPE DATA AGE
attachdetach-controller-token-fk6c9 kubernetes.io/service-account-token 3 91m
bootstrap-signer-token-kjw62 kubernetes.io/service-account-token 3 91m
bootstrap-token-90s06v bootstrap.kubernetes.io/token 7 91m
calico-kube-controllers-token-6824q kubernetes.io/service-account-token 3 85m
calico-node-token-22rkl kubernetes.io/service-account-token 3 85m
certificate-controller-token-4zhbc kubernetes.io/service-account-token 3 91m
clusterrole-aggregation-controller-token-vzbqs kubernetes.io/service-account-token 3 91m
coredns-token-xrqs4 kubernetes.io/service-account-token 3 91m
xincan-dashboard-admin-token-jkhl2 kubernetes.io/service-account-token 3 3m35s
[root@master55 k8s]#
- 获取xincan-dashboard-admin-token-jkhl2的token令牌
- 令牌如下

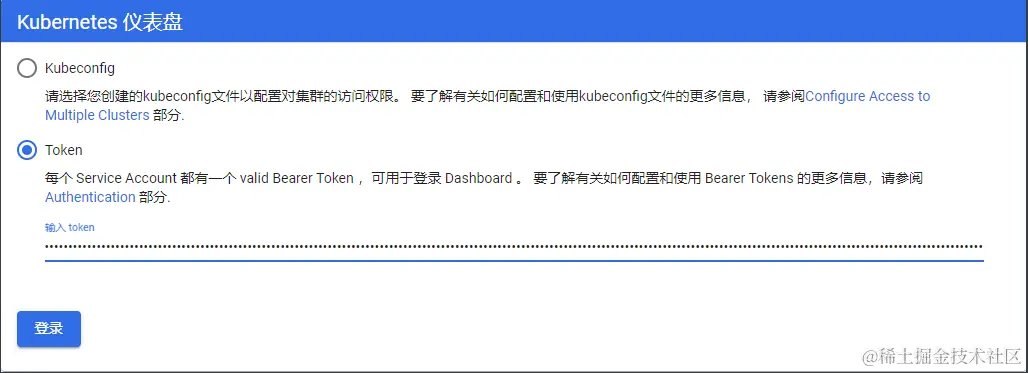

- 复制令牌然后到登录界面进行粘贴
[root@master55 k8s]# kubectl describe secret -n kube-system xincan-dashboard-admin-token-jkhl2
Name: xincan-dashboard-admin-token-jkhl2
Namespace: kube-system
Labels: <none>
Annotations: kubernetes.io/service-account.name: xincan-dashboard-admin
kubernetes.io/service-account.uid: c257c2f8-57cf-41d7-b8e6-b833a8ef0790
Type: kubernetes.io/service-account-token
Data
====
ca.crt: 1025 bytes
namespace: 11 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IkFfZDQ5YTBkcTIwVG1xdF9rWFJxWDJfblFMd1lfdWQwdllVVjFxZTVtcTQifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJ4aW5jYW4tZGFzaGJvYXJkLWFkbWluLXRva2VuLWpraGwyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6InhpbmNhbi1kYXNoYm9hcmQtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJjMjU3YzJmOC01N2NmLTQxZDctYjhlNi1iODMzYThlZjA3OTAiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06eGluY2FuLWRhc2hib2FyZC1hZG1pbiJ9.rPDqRpuVrQmTXJ7FHKz8isG4IqYs7aN5QgZCLVRLK1Ul0677pmPfFTgZpVzf5R9f6_h7kFLGFej9wq5QJ3NZn71jv1qhn9rYgabyZ9KsDZsE6SDwQQuHcVDz7iQ9prFezyqdiyBIxqoFEFhZyZe8pn-Ua53a7-P4Dm2xs2xMgbvrLt6b_b8--H_plV-6xrLKrM5BhG15HDi5MA7MXBZJzxTyuNC8CtjQ6ShuQFv5I3Fwqgugu9tqxGBk9Xjy82JGrdnvoSNRNThCMzlVZmClzrsT6CZ4BUw4t0x4dYhvbdo6IS5nnW0u_EOsaDdi1gqBjpeMX_tNT1ChqN55TnnPPw
[root@master55 k8s]#
五、 KubeConfig登录
- 设置变量
[root@master55 k8s]# DASH_TOCKEN=$(kubectl get secret -n kube-system xincan-dashboard-admin-token-jkhl2 -o jsonpath={.data.token}|base64 -d)
- 加载设置访问地址
[root@master55 k8s]# kubectl config set-cluster kubernetes --server=https://kubernetes.docker.internal:6443 --kubeconfig=/k8s/xincan-dashbord-admin.conf
Cluster "kubernetes" set.
- 加载设置刚才设置的变量
[root@master55 k8s]# kubectl config set-credentials xincan-dashboard-admin --token=$DASH_TOCKEN --kubeconfig=/k8s/xincan-dashbord-admin.conf
User "xincan-dashboard-admin" set.
[root@master55 k8s]# kubectl config set-context dashboard-admin@kubernetes --cluster=kubernetes --user=xincan-dashboard-admin --kubeconfig=/k8s/xincan-dashbord-admin.conf
Context "dashboard-admin@kubernetes" created.
[root@master55 k8s]# kubectl config use-context dashboard-admin@kubernetes --kubeconfig=/k8s/xincan-dashbord-admin.conf
Switched to context "dashboard-admin@kubernetes".
[root@master55 k8s]# ll
total 710420
-rw-r--r-- 1 root root 21079 Jul 12 22:24 calico-3.13.1.yaml
-rwxr-xr-x 1 root root 2051 Jul 16 14:40 get-k8s-images.sh
-rw-r--r-- 1 root root 727422976 Jul 16 14:57 k8s-imagesV1.18.5.tar
-rw-r--r-- 1 root root 901 Jul 16 15:54 k8s-token
drwxr-xr-x 3 root root 4096 Jul 16 17:47 kube-prometheus
drwxr-xr-x 2 root root 30 Jul 16 17:47 kubernetes-dashboard
-rw------- 1 root root 1321 Jul 16 17:01 xincan-dashbord-admin.conf
[root@master55 k8s]#

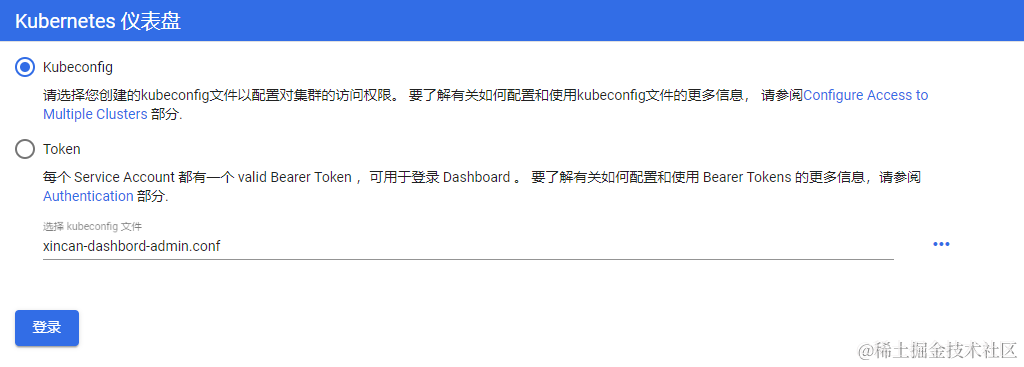

## 将生成后的xincan-dashbord-admin.conf复制到登录的主机，在需要时，上传这个配置文件即可

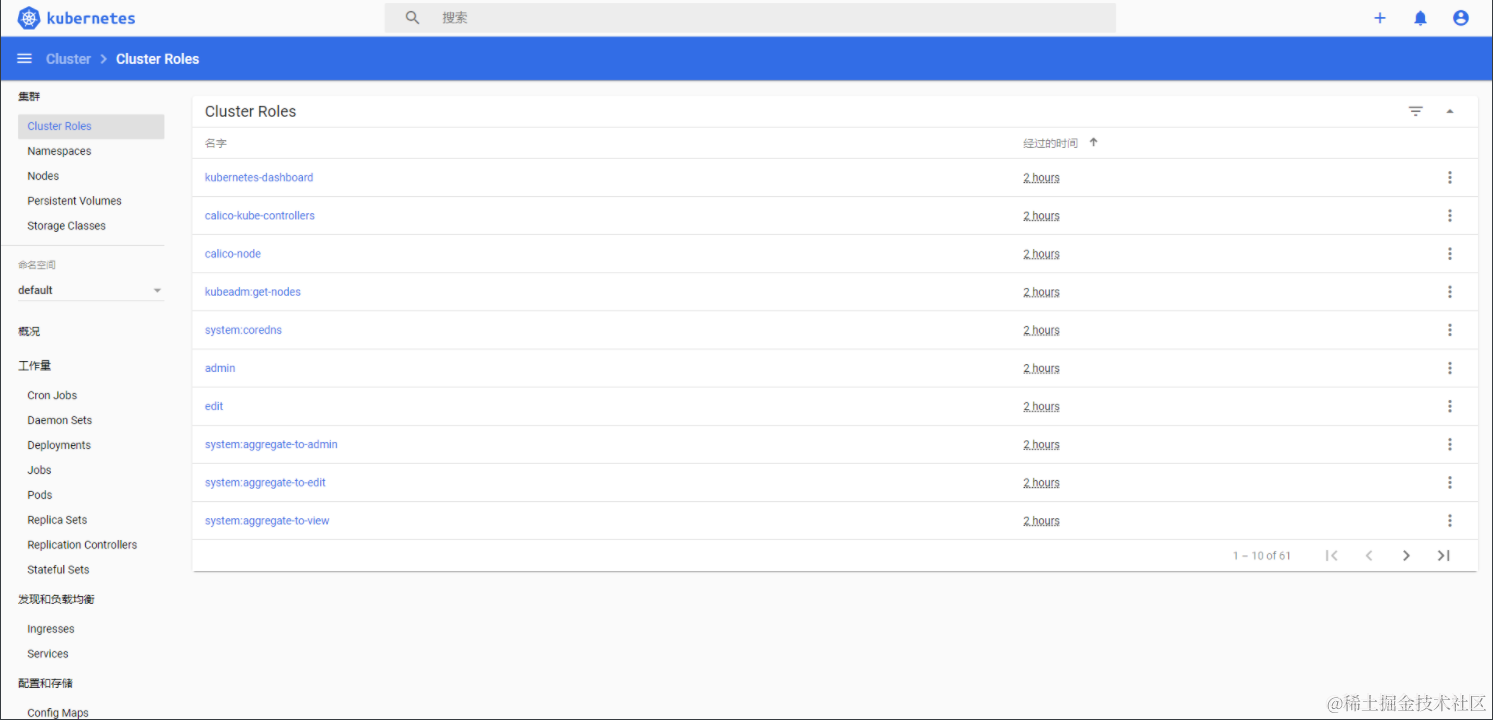

至此：Kubernetes面板、监控安装成功
