101Master1
移走或删除
mv /etc/ansible/* /tmp/
拷贝
cp -rf kubeasz/* /etc/ansible/
cd /etc/ansible/
#帮助文档
cat README.md
cp example/hosts.m-masters.example ./hosts
参考文档中部署步骤：github.com/easzlab/kub…
每个节点安装依赖工具安装python2.7
Master{101\102}-etcd{105\106\107}-node{110\111}
安装python2
apt-get install python2.7 -y
#软连接
ln -s /usr/bin/python2.7 /usr/bin/python
Master101
下载k8s： 在/etc/ansible/down/download.sh查看后、变量改成版本号即可
上传文件：k8s.1-13-5.tar.gz
cd /etc/ansible/bin
#解压缩
tar xvf k8s.1-13-5.tar.gz
#由于是嵌套关系、所以移动到当前目录下
mv bin/* .
修改文件（根据实际情况）
pwd
/etc/ansible
#修改文件（根据实际情况）
vim hosts
# 集群部署节点：一般为运行ansible 脚本的节点
# 变量 NTP_ENABLED (=yes/no) 设置集群是否安装 chrony 时间同步
[deploy]
192.168.37.101 NTP_ENABLED=no
# etcd集群请提供如下NODE_NAME，注意etcd集群必须是1,3,5,7...奇数个节点
[etcd]
192.168.37.105 NODE_NAME=etcd1
192.168.37.106 NODE_NAME=etcd2
192.168.37.107 NODE_NAME=etcd3
[new-etcd] # 预留组，后续添加etcd节点使用
#192.168.1.x NODE_NAME=etcdx
[kube-master]
192.168.37.101
[new-master] # 预留组，后续添加master节点使用
192.168.37.102
[kube-node]
192.168.37.110
[new-node] # 预留组，后续添加node节点使用
192.168.37.111
# 参数 NEW_INSTALL：yes表示新建，no表示使用已有harbor服务器
# 如果不使用域名，可以设置 HARBOR_DOMAIN=""
[harbor]
#192.168.1.8 HARBOR_DOMAIN="harbor.yourdomain.com" NEW_INSTALL=no
# 负载均衡(目前已支持多于2节点，一般2节点就够了) 安装 haproxy+keepalived
[lb]
192.168.1.1 LB_ROLE=backup
192.168.1.2 LB_ROLE=master
#【可选】外部负载均衡，用于自有环境负载转发 NodePort 暴露的服务等
[ex-lb]
#192.168.1.6 LB_ROLE=backup EX_VIP=192.168.1.250
#192.168.1.7 LB_ROLE=master EX_VIP=192.168.1.250
[all:vars]
# ---------集群主要参数---------------
#集群部署模式：allinone, single-master, multi-master
DEPLOY_MODE=multi-master
#集群主版本号，目前支持: v1.8, v1.9, v1.10，v1.11, v1.12, v1.13
K8S_VER="v1.13"
# 集群 MASTER IP即 LB节点VIP地址，为区别与默认apiserver端口，设置VIP监听的服务端口8443
# 公有云上请使用云负载均衡内网地址和监听端口
MASTER_IP="192.168.37.240"
KUBE_APISERVER="https://{{ MASTER_IP }}:6443"
# 集群网络插件，目前支持calico, flannel, kube-router, cilium
CLUSTER_NETWORK="calico"
# 服务网段 (Service CIDR），注意不要与内网已有网段冲突
SERVICE_CIDR="10.20.0.0/16"
# POD 网段 (Cluster CIDR），注意不要与内网已有网段冲突
CLUSTER_CIDR="172.20.0.0/16"
# 服务端口范围 (NodePort Range)
NODE_PORT_RANGE="30000-65000"
# kubernetes 服务 IP (预分配，一般是 SERVICE_CIDR 中第一个IP)
CLUSTER_KUBERNETES_SVC_IP="10.20.0.1"
# 集群 DNS 服务 IP (从 SERVICE_CIDR 中预分配)
CLUSTER_DNS_SVC_IP="10.20.254.254"
# 集群 DNS 域名
CLUSTER_DNS_DOMAIN="linux01.local."
# 集群basic auth 使用的用户名和密码
BASIC_AUTH_USER="admin"
BASIC_AUTH_PASS="123456"
# ---------附加参数--------------------
#默认二进制文件目录
bin_dir="/usr/bin"
#证书目录
ca_dir="/etc/kubernetes/ssl"
#部署目录，即 ansible 工作目录，建议不要修改
base_dir="/etc/ansible"
验证ansible 安装：ansible all -m ping 正常能看到节点返回 SUCCESS
ansible all -m ping
pwd
/etc/ansible
vim roles/prepare/templates/30-k8s-ulimits.conf.j2
* soft nofile 100000
* hard nofile 100000
* soft nproc 100000
* hard nproc 100000
注释掉、或删除
vim 01.prepare.yml
...
# prepare tasks for all nodes
- hosts:
- kube-master
- kube-node
- deploy
- etcd
# - lb <--注释此项
# 分步安装
## 1.在 /etc/kubernetes/ssl/ 可看一堆证书
ansible-playbook 01.prepare.yml
etcd下载地址：github.com/etcd-io/etc…
解压软件：etcd-v3.3.27-linux-amd64.tar.gz后、上传文件中的文件、如下
cd /opt
#上传文件中的etcd*文件
ll etcd*
-rw-r--r-- 1 root root 22480128 Oct 15 2021 etcd <--
-rw-r--r-- 1 root root 18045152 Oct 15 2021 etcdctl <--
#添加权限
chmod a+x etcd*
#执行一下、可看到版本号等信息
./etcd --version
etcd Version: 3.3.27
Git SHA: 973882f69
Go Version: go1.12.17
Go OS/Arch: linux/amd64
#替换
mv etcd* /etc/ansible/bin/
#检查是否替换
/etc/ansible/bin/etcd --version
etcd Version: 3.3.27
Git SHA: 973882f69
Go Version: go1.12.17
Go OS/Arch: linux/amd64
cd /etc/ansible
## 2.部署etcd
ansible-playbook 02.etcd.yml
验证etcd是否正常、可在etcd{105/106/107}任意主机
如在 105
# ps -ef |grep etcd
或
# export NODE_IPS="192.168.37.105 192.168.37.106 192.168.37.107"
#返回3个'successfully'
# for ip in ${NODE_IPS};do ETCDCTL_API=3 /usr/bin/etcdctl --endpoints=https://${ip}:2379 --cacert=/etc/kubernetes/ssl/ca.pem --cert=/etc/etcd/ssl/etcd.pem --key=/etc/etcd/ssl/etcd-key.pem endpoint health; done
https://192.168.37.105:2379 is healthy: successfully committed proposal: took = 6.280979ms
https://192.168.37.106:2379 is healthy: successfully committed proposal: took = 6.685073ms
https://192.168.37.107:2379 is healthy: successfully committed proposal: took = 6.405382ms
Master101（03.docker.yml手动装过、所以此处跳过）
./bin/kube-apiserver --version
Kubernetes v1.13.5 <--
# ansible-playbook 04.kube-master.yml
#查看状态
# kubectl get node
NAME STATUS ROLES AGE VERSION
192.168.37.101 Ready,SchedulingDisabled master 4m10s v1.13.5
node{110\111}
安装docker脚本\执行脚本
bash /opt/docker-install.sh
能否能下载镜像请在node110中测试、node111是在预留组中
docker pull harbor.123.com/linux01/alpine:v2
#查看镜像
docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
harbor.123.com/linux01/alpine v2 b2aa39c304c2 3 weeks ago 7.05MB
Master101
ansible-playbook 05.kube-node.yml
添加了新的node节点
kubectl get node
NAME STATUS ROLES AGE VERSION
192.168.37.101 Ready,SchedulingDisabled master 15m v1.13.5
192.168.37.110 Ready node 97s v1.13.5
cd /etc/ansible/
ansible-playbook 06.network.yml
检查整个calico网络的状态
# calicoctl node status
Calico process is running.
IPv4 BGP status
+----------------+-------------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+----------------+-------------------+-------+----------+-------------+
| 192.168.37.110 | node-to-node mesh | up | 05:36:00 | Established |
+----------------+-------------------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.
cp /usr/bin/docker* /etc/ansible/bin/
cp /usr/bin/containerd* /etc/ansible/bin/
添加node、已在'/etc/ansible/hosts'中添加
# kubectl get nodes
NAME STATUS ROLES AGE VERSION
192.168.37.101 Ready,SchedulingDisabled master 151m v1.13.5
192.168.37.110 Ready node 137m v1.13.5

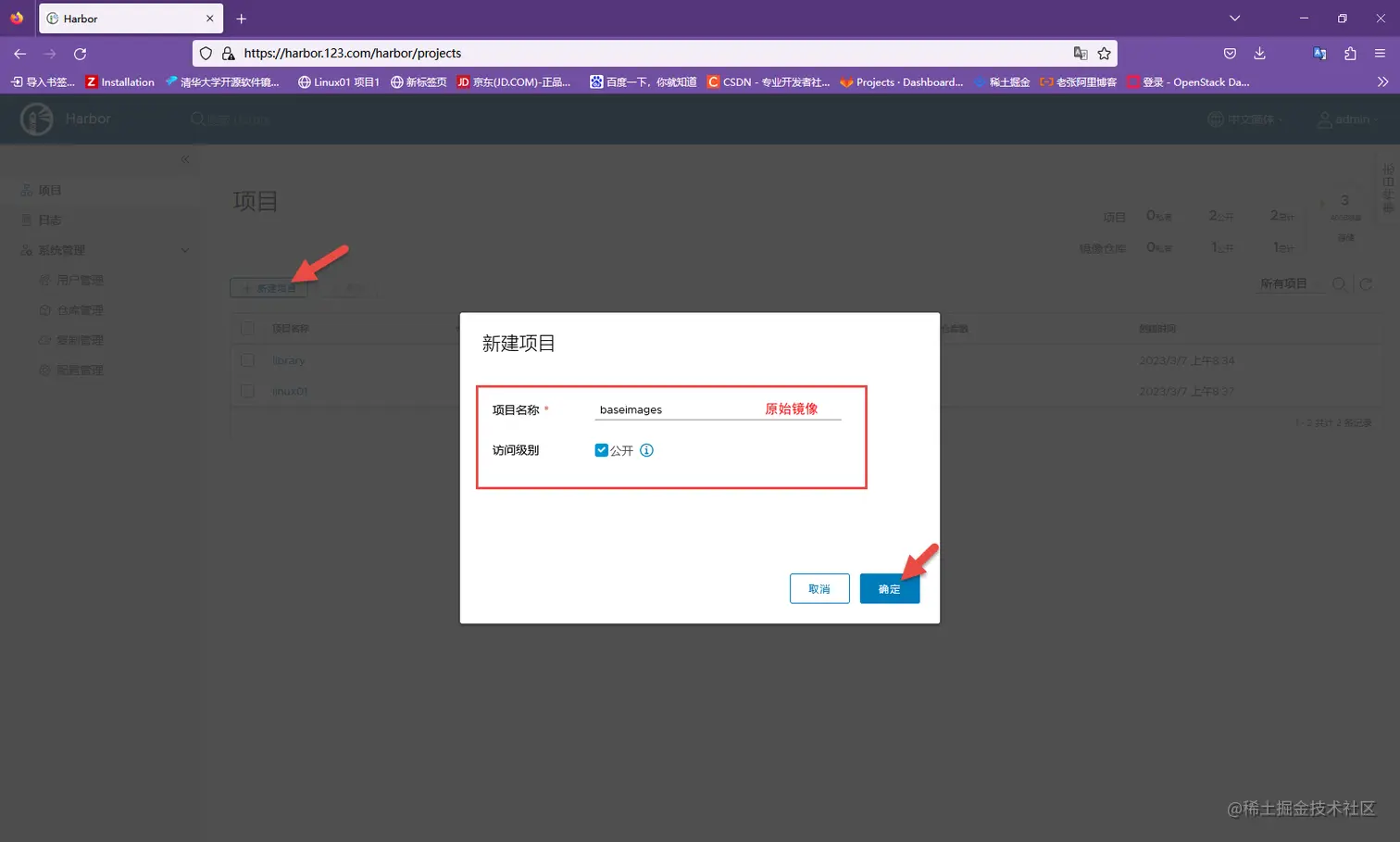

改为本地镜像下载
node1110
网络插件
#拉取镜像
docker pull mirrorgooglecontainers/pause-amd64:3.1
#修改tag号
docker tag mirrorgooglecontainers/pause-amd64:3.1 harbor.123.com/baseimages/pause-amd64:3.1
#登录 账号：admin 密码：123456
docker login harbor.123.com
#上传
docker push harbor.123.com/baseimages/pause-amd64:3.1
Master101
vim ./roles/kube-node/defaults/main.yml
# 默认使用kube-proxy的 'iptables' 模式，可选 'ipvs' 模式(experimental)
PROXY_MODE: "iptables"
# 基础容器镜像
SANDBOX_IMAGE: "harbor.123.com/baseimages/pause-amd64:3.1" <--改成内部地址
#SANDBOX_IMAGE: "mirrorgooglecontainers/pause-amd64:3.1" <--注释掉
#SANDBOX_IMAGE: "registry.access.redhat.com/rhel7/pod-infrastructure:latest"
# Kubelet 根目录
KUBELET_ROOT_DIR: "/var/lib/kubelet"
# node节点最大pod 数
MAX_PODS: 110
修改配置
vim /etc/systemd/system/kubelet.service
--max-pods=5000 \
# --pod-infra-container-image=mirrorgooglecontainers/pause-amd64:3.1 \ <--注释掉
--pod-infra-container-image=harbor.123.com/baseimages/pause-amd64:3.1 \ <--修改此行
重启服务
systemctl daemon-reload
systemctl restart kubelet
calico镜像下载地址:github.com/projectcali…
上传后解压、打镜像
cd /opt
tar xvf release-v3.4.4.tgz
cd release-v3.4.4/images
#导入镜像1
docker load -i calico-cni.tar
#修改tag号
docker tag calico/cni:v3.4.4 harbor.123.com/baseimages/calico-cni:v3.4.4
#上传镜像
docker push harbor.123.com/baseimages/calico-cni:v3.4.4
#导入镜像2
docker load -i calico-node.tar
#修改tag号
docker tag calico/node:v3.4.4 harbor.123.com/baseimages/calico-node:v3.4.4
#上传镜像
docker push harbor.123.com/baseimages/calico-node:v3.4.4
#导入镜像3
docker load -i calico-kube-controllers.tar
#修改tag号
docker tag calico/kube-controllers:v3.4.4 harbor.123.com/baseimages/kube-controllers:v3.4.4
#上传镜像
docker push harbor.123.com/baseimages/kube-controllers:v3.4.4
此步骤不要出错、否则后期排错非常麻烦！！！
vim /etc/ansible/roles/calico/templates/calico-v3.4.yaml.j2
- name: install-cni
#注释掉下行后、添加新的
# image: calico/cni:{{ calico_ver }}
image: harbor.123.com/baseimages/calico-cni:v3.4.4
- name: calico-node
#注释掉下行后、添加新的
# image: calico/node:{{ calico_ver }}
image: harbor.123.com/baseimages/calico-node:v3.4.4
- name: calico-kube-controllers
#注释掉下行后、添加新的
# image: calico/kube-controllers:{{ calico_ver }}
image: harbor.123.com/baseimages/kube-controllers:v3.4.4
添加node
cd /etc/ansible/
#添加node
ansible-playbook 20.addnode.yml
kubectl get nodes
NAME STATUS ROLES AGE VERSION
192.168.37.101 Ready,SchedulingDisabled master 4h v1.13.5
192.168.37.110 Ready node 3h46m v1.13.5
192.168.37.111 Ready node 87m v1.13.5
node111
查看是否下载变成内网
cat /etc/systemd/system/kubelet.service |grep image
--pod-infra-container-image=harbor.123.com/baseimages/pause-amd64:3.1 \
Master101
添加Master、注释掉下面选项
vim 21.addmaster.yml
# reconfigure and restart the haproxy service
#- hosts: lb <--
# roles: <--
# - lb <--
添加Master
# ansible-playbook 21.addmaster.yml
# calicoctl node status
Calico process is running.
IPv4 BGP status
+----------------+-------------------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+----------------+-------------------+-------+----------+-------------+
| 192.168.37.110 | node-to-node mesh | up | 16:45:41 | Established |
| 192.168.37.111 | node-to-node mesh | up | 17:01:42 | Established |
| 192.168.37.102 | node-to-node mesh | up | 17:15:32 | Established |
+----------------+-------------------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.
测试网络能否通信
#1.
# kubectl run net-test --image=alpine --replicas=4 sleep 360000
kubectl run --generator=deployment/apps.v1 is DEPRECATED and will be removed in a future version. Use kubectl run --generator=run-pod/v1 or kubectl create instead.
deployment.apps/net-test created
#2.
# kubectl get pod
NAME READY STATUS RESTARTS AGE
net-test-cd766cb69-24lgk 0/1 ContainerCreating 0 12s
net-test-cd766cb69-46dnb 1/1 Running 0 12s
net-test-cd766cb69-mwwlt 1/1 Running 0 12s
net-test-cd766cb69-snv44 0/1 ContainerCreating 0 12s
#3.
# kubectl get pod -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
net-test-cd766cb69-24lgk 1/1 Running 0 46s 172.20.104.1 192.168.37.111 <none> <none>
net-test-cd766cb69-46dnb 1/1 Running 0 46s 172.20.166.129 192.168.37.110 <none> <none>
net-test-cd766cb69-mwwlt 1/1 Running 0 46s 172.20.166.130 192.168.37.110 <none> <none>
net-test-cd766cb69-snv44 1/1 Running 0 46s 172.20.104.2 192.168.37.111 <none> <none>
#4.进到其中一个
# kubectl exec -it net-test-cd766cb69-24lgk sh
#5.查看IP
/ # ifconfig |grep 172.20.104.1
inet addr:172.20.104.1 Bcast:0.0.0.0 Mask:255.255.255.255
#6.可以ping通其他主机
/ # ping 172.20.166.129 -c 2
#7.ping外网(域名ping不通、因为没做DNS解析)
/ # ping 8.8.8.8 -c 2
