部署kube-dns
- 安装DNS
Mstart101
创建目录
mkdir -p /etc/ansible/manifests/dns/kube-dns
上传软件包:点击下载
# cd /etc/ansible/manifests/dns/kube-dns
# ll
total 136996
drwxr-xr-x 3 root root 4096 Mar 10 09:23 ./
drwxr-xr-x 3 root root 4096 Mar 10 09:21 ../
-rw-r--r-- 1 root root 3983872 Mar 10 09:23 busybox-online.tar.gz
-rw-r--r-- 1 root root 277 Mar 10 09:23 busybox.yaml
drwxr-xr-x 2 root root 4096 Mar 10 09:23 heapster/
-rw-r--r-- 1 root root 41687040 Mar 10 09:23 k8s-dns-dnsmasq-nanny-amd64_1.14.13.tar.gz
-rw-r--r-- 1 root root 51441152 Mar 10 09:23 k8s-dns-kube-dns-amd64_1.14.13.tar.gz
-rw-r--r-- 1 root root 43140608 Mar 10 09:23 k8s-dns-sidecar-amd64_1.14.13.tar.gz
-rw-r--r-- 1 root root 6305 Mar 10 09:23 kube-dns.yaml
打镜像一定要注意不要打错镜像
#镜像1
docker load -i k8s-dns-kube-dns-amd64_1.14.13.tar.gz
docker tag gcr.io/google-containers/k8s-dns-kube-dns-amd64:1.14.13 harbor.123.com/baseimages/k8s-dns-kube-dns-amd64:1.14.13
docker push harbor.123.com/baseimages/k8s-dns-kube-dns-amd64:1.14.13
#镜像2
docker load -i k8s-dns-dnsmasq-nanny-amd64_1.14.13.tar.gz
docker tag gcr.io/google-containers/k8s-dns-dnsmasq-nanny-amd64:1.14.13 harbor.123.com/baseimages/k8s-dns-dnsmasq-nanny-amd64:1.14.13
docker push harbor.123.com/baseimages/k8s-dns-dnsmasq-nanny-amd64:1.14.13
#镜像3
docker load -i k8s-dns-sidecar-amd64_1.14.13.tar.gz
docker tag gcr.io/google-containers/k8s-dns-sidecar-amd64:1.14.13 harbor.123.com/baseimages/k8s-dns-sidecar-amd64:1.14.13
docker push harbor.123.com/baseimages/k8s-dns-sidecar-amd64:1.14.13
提供server name域名的解析 提供DNS缓存，降低kubedns负载，提供性能 定期检查kubedns和dnsmasq的健康状态
vim kube-dns.yaml
修改了 33 102 153 复制176后添加174 添加175 195 208 209
创建
# kubectl apply -f kube-dns.yaml
service/kube-dns created
serviceaccount/kube-dns created
configmap/kube-dns created
deployment.extensions/kube-dns created
# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-cd9cdc588-54lnd 1/1 Running 1 9h
calico-node-hpf25 1/1 Running 1 8h
calico-node-pdplg 1/1 Running 1 9h
calico-node-qmm9p 1/1 Running 1 9h
calico-node-rxj65 1/1 Running 1 8h
kube-dns-7657d6b74c-nnzdl 3/3 Running 0 61s <--
导入busybox(工具箱)、用于测试
docker load -i busybox-online.tar.gz
docker tag quay.io/prometheus/busybox:latest harbor.123.com/baseimages/busybox:latest
docker push harbor.123.com/baseimages/busybox:latest
编写yaml文件、有严格的缩进关系(要注意前后缩进、空格距离等……)
vim busybox.yaml
apiVersion: v1
kind: Pod
metadata:
name: busybox
namespace: default #default namespace的DNS
spec:
containers:
- image: harbor.123.com/baseimages/busybox:latest
command:
- sleep
- "3600"
imagePullPolicy: Always
name: busybox
restartPolicy: Always
创建
# kubectl apply -f busybox.yaml
pod/busybox created
# kubectl get pod
NAME READY STATUS RESTARTS AGE
busybox 1/1 Running 0 48m
net-test-cd766cb69-24lgk 1/1 Running 1 9h
net-test-cd766cb69-46dnb 1/1 Running 1 9h
net-test-cd766cb69-mwwlt 1/1 Running 1 9h
net-test-cd766cb69-snv44 1/1 Running 1 9h
kubectl exec -it busybox sh
/ # ifconfig
/ # exit
# kubectl get service --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.20.0.1 <none> 443/TCP 11h
kube-system kube-dns ClusterIP 10.20.254.254 <none> 53/UDP,53/TCP 70m
#解析域名的IP地址
# kubectl exec busybox nslookup kube-dns.kube-system.svc.linux01.local
Server: 10.20.254.254
Address 1: 10.20.254.254 kube-dns.kube-system.svc.linux01.local
Name: kube-dns.kube-system.svc.linux01.local
Address 1: 10.20.254.254 kube-dns.kube-system.svc.linux01.local
# kubectl exec busybox nslookup kubernetes.default.svc.linux01.local
Server: 10.20.254.254
Address 1: 10.20.254.254 kube-dns.kube-system.svc.linux01.local
Name: kubernetes.default.svc.linux01.local
Address 1: 10.20.0.1 kubernetes.default.svc.linux01.local
上传软件包：kubernetes-dashboard-amd64-v1.10.1.tar.gz(已解压)
cd /etc/ansible/manifests/dashboard/
mkdir 1.10.1
cd 1.10.1/
# ll
total 119496
drwxr-xr-x 2 root root 4096 Mar 10 11:54 ./
drwxr-xr-x 4 root root 4096 Mar 10 11:32 ../
-rw-r--r-- 1 root root 357 Oct 5 2019 admin-user-sa-rbac.yaml
-rw-r--r-- 1 root root 122320384 Oct 5 2019 kubernetes-dashboard-amd64-v1.10.1.tar.gz
-rw-r--r-- 1 root root 4766 Oct 5 2019 kubernetes-dashboard.yaml
-rw-r--r-- 1 root root 2223 Oct 5 2019 read-user-sa-rbac.yaml
-rw-r--r-- 1 root root 458 Oct 5 2019 ui-admin-rbac.yaml
-rw-r--r-- 1 root root 477 Oct 5 2019 ui-read-rbac.yaml
打镜像一定要注意不要打错镜像
docker load -i kubernetes-dashboard-amd64-v1.10.1.tar.gz
docker tag gcr.io/google-containers/kubernetes-dashboard-amd64:v1.10.1 harbor.123.com/baseimages/kubernetes-dashboard-amd64:v1.10.1
docker push harbor.123.com/baseimages/kubernetes-dashboard-amd64:v1.10.1
修改配置信息
vim kubernetes-dashboard.yaml
image: harbor.123.com/baseimages/kubernetes-dashboard-amd64:v1.10.1
执行当前目录下'.yaml'文件
kubectl apply -f .
确保kubernetes-dashboard成功运行
# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-cd9cdc588-54lnd 1/1 Running 1 11h
calico-node-hpf25 1/1 Running 1 10h
calico-node-pdplg 1/1 Running 2 11h
calico-node-qmm9p 1/1 Running 1 11h
calico-node-rxj65 1/1 Running 1 10h
kube-dns-7657d6b74c-nnzdl 3/3 Running 0 120m
kubernetes-dashboard-5f46dbb585-xpdgl 1/1 Running 0 2m33s
查看当前集群状态
kubectl cluster-info
Kubernetes master is running at https://192.168.37.240:6443
KubeDNS is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
kubernetes-dashboard is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.

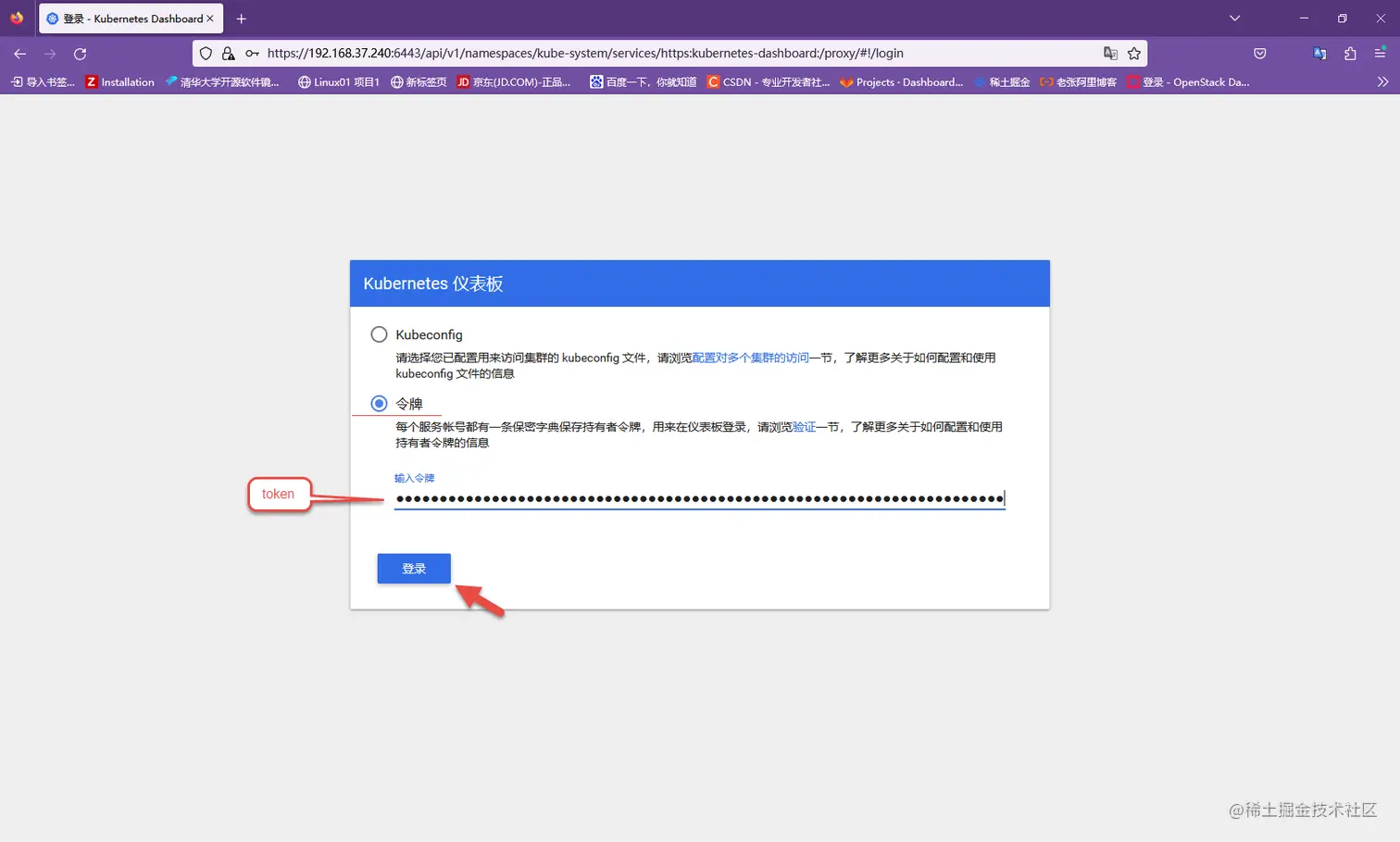

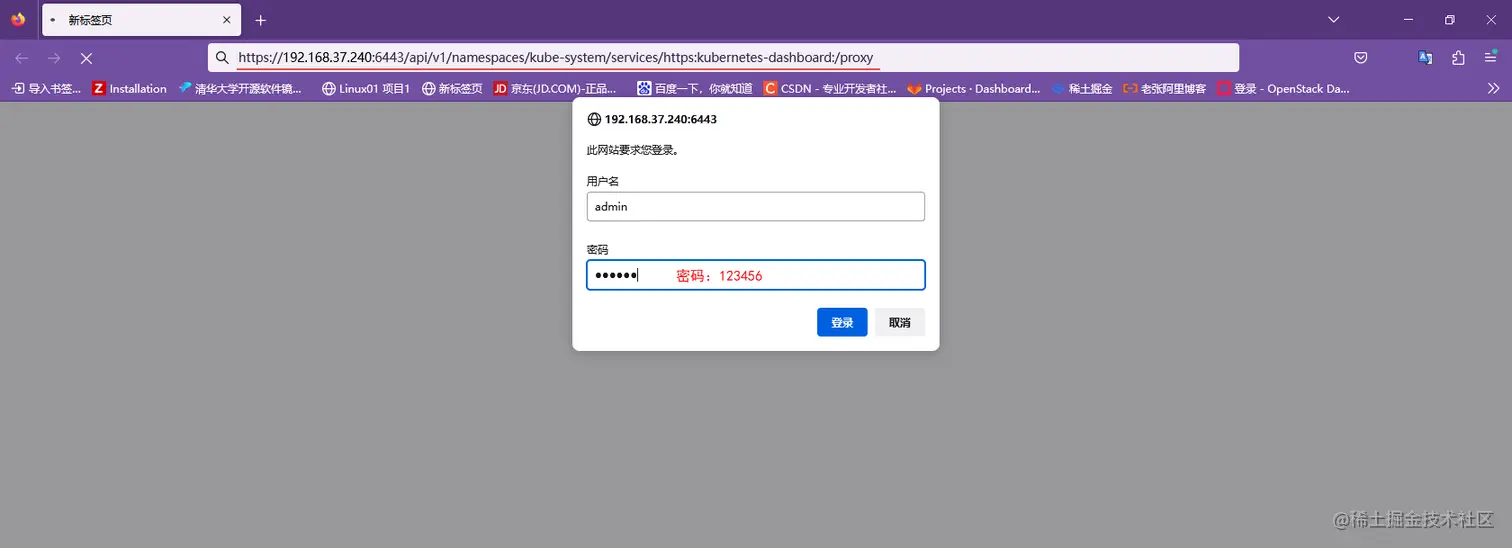

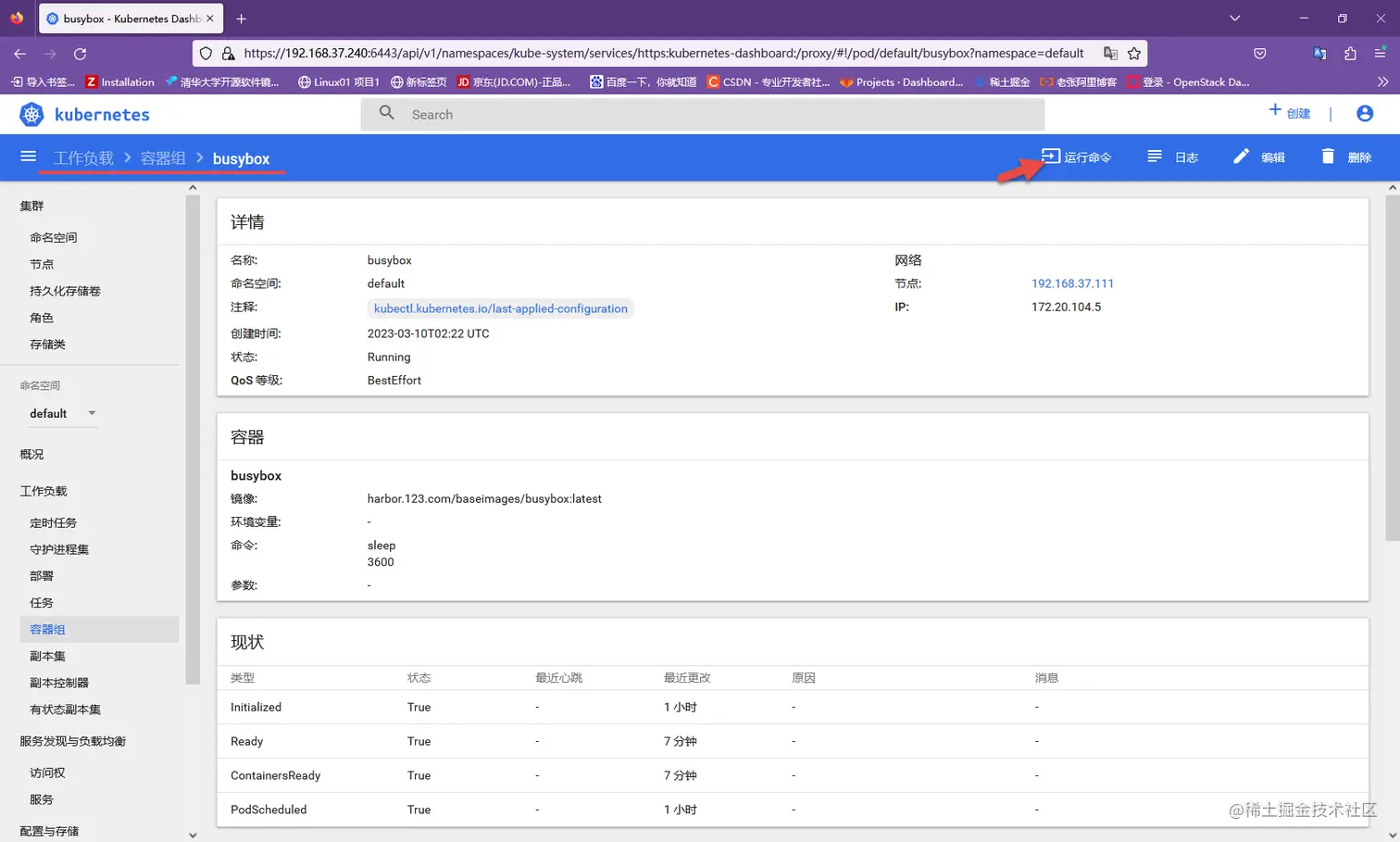

浏览器访问 'kubernetes-dashboard'
#kubectl -n kube-system get secret
NAME TYPE DATA AGE
admin-user-token-7qzql kubernetes.io/service-account-token 3 11m <--
calico-etcd-secrets Opaque 3 11h
calico-kube-controllers-token-srsbv kubernetes.io/service-account-token 3 11h
calico-node-token-9qg5t kubernetes.io/service-account-token 3 11h
dashboard-read-user-token-fv977 kubernetes.io/service-account-token 3 11m
default-token-kjqhw kubernetes.io/service-account-token 3 11h
kube-dns-token-vntv9 kubernetes.io/service-account-token 3 130m
kubernetes-dashboard-certs Opaque 0 12m
kubernetes-dashboard-key-holder Opaque 2 12m
kubernetes-dashboard-token-95fqn kubernetes.io/service-account-token 3 12m
# kubectl -n kube-system describe secret admin-user-token-7qzql |grep token
Name: admin-user-token-7qzql
Type: kubernetes.io/service-account-token
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTdxenFsIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJmY2I4NzcxNy1iZWY4LTExZWQtYTU4Yy0wMDBjMjllOTA3N2QiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.akRoxi5Kk4abXg3bPZe68aaOmRsWuuW_q-Ak080ZjH3h4mGHTlEr1sez9526L-9wVJVN7rhpMoDnn062mcmUEiEZPdzF2BFYTqu5sb-_MuX_vQx-ZCmwh-RBRF2v54YgpaohFVLGaahcgqYOpGGCqG1MhNhzevbG_1PyYxFIqlUSQURHTQRsAGrXVqemDSln-OFP1LOKjXMQV-jLAntdpGVCn2RVXNf2vbWT7gwwwuLdm-uIm0QbRTLw9zjxSbEzNuJS6gOFEP2QaMCzvLNZeA-Tm5m6kGYyhz2TQurKKdNVA_8rnwg0o0q4aD0H3Dc4AV38dMFlxoQ1M2goGLl3Rw
打镜像
cd /etc/ansible/manifests/dns/kube-dns/heapster
docker load -i heapster-amd64_v1.5.1.tar
docker tag gcr.io/google-containers/heapster-amd64:v1.5.1 harbor.123.com/baseimages/heapster-amd64:v1.5.1
docker push harbor.123.com/baseimages/heapster-amd64:v1.5.1
#修改配置文件中此项
vim heapster.yaml
...
image: harbor.123.com/baseimages/heapster-amd64:v1.5.1
web界面
docker load -i heapster-grafana-amd64-v4.4.3.tar
docker tag 8cb3de219af7 harbor.123.com/baseimages/heapster-grafana-amd64:v4.4.3
docker push harbor.123.com/baseimages/heapster-grafana-amd64:v4.4.3
#web界面
vim grafana.yaml
...
image: harbor.123.com/baseimages/heapster-grafana-amd64:v4.4.3
数据存储
docker load -i heapster-influxdb-amd64_v1.3.3.tar
docker tag gcr.io/google-containers/heapster-influxdb-amd64:v1.3.3 harbor.123.com/baseimages/heapster-influxdb-amd64:v1.3.3
docker push harbor.123.com/baseimages/heapster-influxdb-amd64:v1.3.3
#数据存储
vim influxdb.yaml
...
image: harbor.123.com/baseimages/heapster-influxdb-amd64:v1.3.3
执行当前目录下'.yaml'文件
kubectl apply -f .
# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-cd9cdc588-54lnd 1/1 Running 1 12h
calico-node-hpf25 1/1 Running 1 11h
calico-node-pdplg 1/1 Running 2 12h
calico-node-qmm9p 1/1 Running 1 12h
calico-node-rxj65 1/1 Running 1 12h
heapster-86749b8d5f-b88cc 1/1 Running 0 21s
kube-dns-7657d6b74c-nnzdl 3/3 Running 0 3h9m
kubernetes-dashboard-5f46dbb585-xpdgl 1/1 Running 0 71m
monitoring-grafana-b689448c4-qgbnx 1/1 Running 0 21s
monitoring-influxdb-8697d694c7-26d2n 1/1 Running 0 21s
# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-cd9cdc588-54lnd 1/1 Running 1 12h 192.168.37.111 192.168.37.111 <none> <none>
calico-node-hpf25 1/1 Running 1 11h 192.168.37.110 192.168.37.110 <none> <none>
calico-node-pdplg 1/1 Running 2 12h 192.168.37.101 192.168.37.101 <none> <none>
calico-node-qmm9p 1/1 Running 1 12h 192.168.37.111 192.168.37.111 <none> <none>
calico-node-rxj65 1/1 Running 1 12h 192.168.37.102 192.168.37.102 <none> <none>
heapster-86749b8d5f-b88cc 1/1 Running 0 73s 172.20.166.134 192.168.37.110 <none> <none>
kube-dns-7657d6b74c-nnzdl 3/3 Running 0 3h10m 172.20.166.133 192.168.37.110 <none> <none>
kubernetes-dashboard-5f46dbb585-xpdgl 1/1 Running 0 72m 172.20.104.6 192.168.37.111 <none> <none>
monitoring-grafana-b689448c4-qgbnx 1/1 Running 0 73s 172.20.104.7 192.168.37.111 <none> <none>
monitoring-influxdb-8697d694c7-26d2n 1/1 Running 0 73s 172.20.104.8 192.168.37.111 <none> <none>

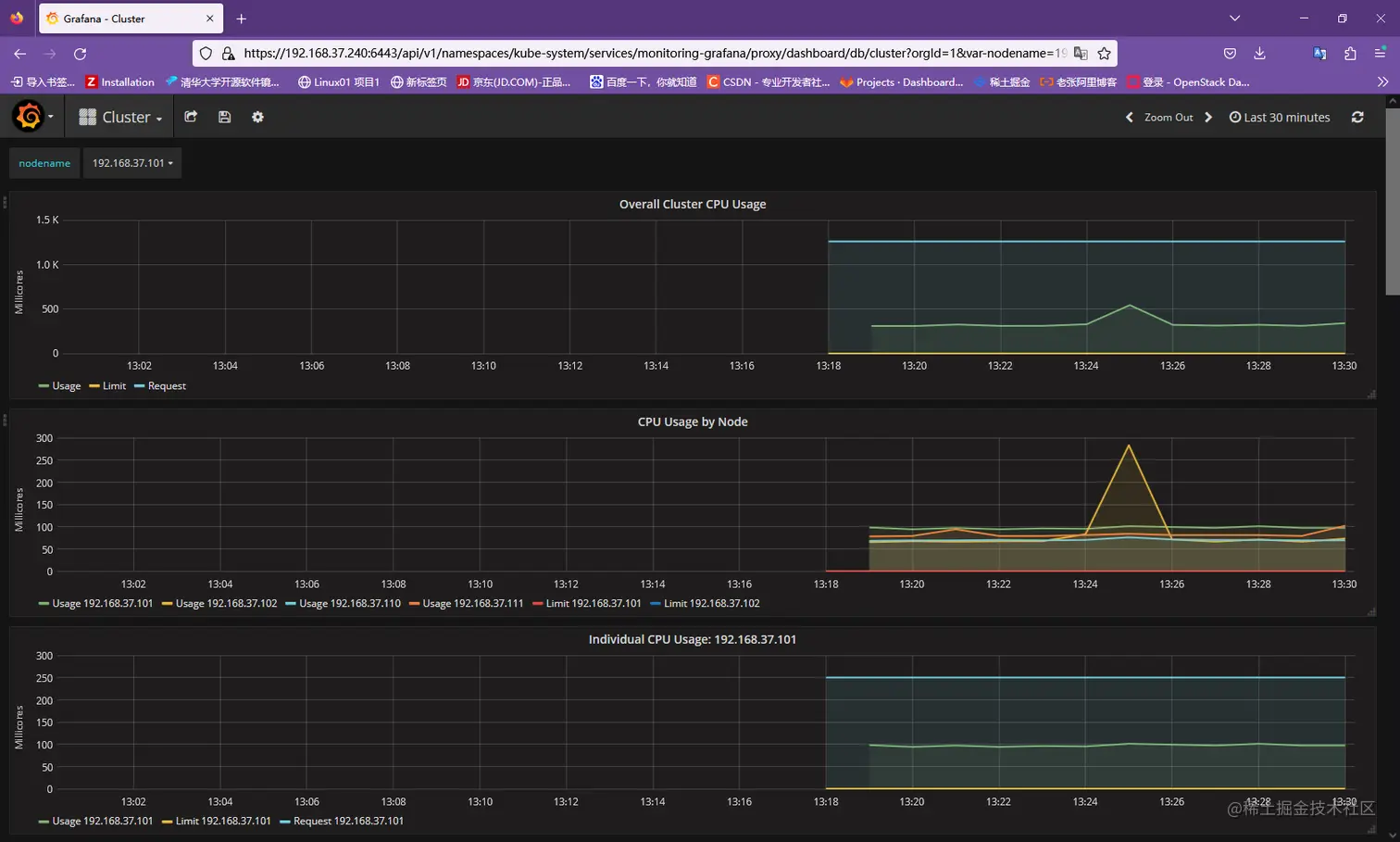

查看monitoring-grafana界面
kubectl cluster-info
Kubernetes master is running at https://192.168.37.240:6443
KubeDNS is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
kubernetes-dashboard is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/https:kubernetes-dashboard:/proxy
monitoring-grafana is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/monitoring-grafana/proxy
monitoring-influxdb is running at https://192.168.37.240:6443/api/v1/namespaces/kube-system/services/monitoring-influxdb/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
# kubectl get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.20.0.1 <none> 443/TCP 13h
# kubectl get service --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.20.0.1 <none> 443/TCP 13h
kube-system heapster ClusterIP 10.20.129.183 <none> 80/TCP 21m
kube-system kube-dns ClusterIP 10.20.254.254 <none> 53/UDP,53/TCP 3h29m
kube-system kubernetes-dashboard NodePort 10.20.0.80 <none> 443:59217/TCP 92m
kube-system monitoring-grafana ClusterIP 10.20.244.227 <none> 80/TCP 21m
kube-system monitoring-influxdb ClusterIP 10.20.159.9 <none> 8086/TCP 21m
#删除heapster
# kubectl delete service heapster -n kube-system
service "heapster" deleted
#发现heapster被删除
# kubectl get service --all-namespaces
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
default kubernetes ClusterIP 10.20.0.1 <none> 443/TCP 13h
kube-system kube-dns ClusterIP 10.20.254.254 <none> 53/UDP,53/TCP 3h37m
kube-system kubernetes-dashboard NodePort 10.20.0.80 <none> 443:59217/TCP 99m
kube-system monitoring-grafana ClusterIP 10.20.244.227 <none> 80/TCP 28m
kube-system monitoring-influxdb ClusterIP 10.20.159.9 <none> 8086/TCP 28m
#创建
# kubectl apply -f heapster.yaml
#IP地址发生变化
# kubectl get service --all-namespaces |grep heapster
NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-system heapster ClusterIP 10.20.120.29 <none> 80/TCP 4s
