Hyperledger Fabric --- 双机部署实现

KEEP_HUMBLE
723 阅读11分钟

4 多机部署（静态IP）

4.1 双机部署

4.1.1 部署前准备（2台安装好fabric环境的虚拟机）

硬件环境：2台Ubuntu虚拟机

软件环境：

  1. fabric v2.2.0

  2. go v1.15

  3. dokcer 20.10.7

  4. docker-compose 1.29.2

部署方案：3个orderer、2个组织、每个组织2个普通节点，通过静态IP的方式实现Hyperledger Fabric多机/分布式部署

以下操作在虚拟机1、2上都需要执行一次

安装git、Curl、docker、docker-compose、Go

** 安装git

使用下面命令安装git

sudo apt-get install git

下载完成后，配置一下Github代理，为git clone加速

git config --global url."github.com.cnpmjs.org".insteadOf github.com

** 安装Curl

使用下面命令安装最新版Curl

sudo apt-get install curl

** 安装docker

  1. 更新apt包索引并安装包以允许apt通过 HTTPS 使用存储库

sudo apt-get update

sudo apt-get install
apt-transport-https
ca-certificates
curl
gnupg
lsb-release

  1. 添加Docker官方的GPG密钥

curl -fsSL download.docker.com/linux/ubunt… | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

  1. 设置稳定存储库

echo
"deb [arch=amd64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] download.docker.com/linux/ubunt…
$(lsb_release -cs) stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

  1. 安装 Docker 引擎

需要更新apt包索引

sudo apt-get update

安装最新版本的Docker Engine和containerd

sudo apt-get install docker-ce docker-ce-cli containerd.io

验证安装

sudo docker run hello-world

  1. 设置以非root用户管理Docker

创建docker组

sudo groupadd docker

将您的用户添加到docker组中

sudo usermod -aG docker $USER

激活对组的更改

newgrp docker

验证您是否可以无管理员权限下使用docker

docker run hello-world

  1. 配置 Docker 开机启动

sudo systemctl enable docker.service

sudo systemctl enable containerd.service

  1. 配置代理(请参考1.4版本环境搭建中的介绍）

** 安装docker-compose

使用下面的命令安装docker-compose

sudo curl -L "github.com/docker/comp… -s)-$(uname -m)" -o /usr/local/bin/docker-compose

为下载的二进制文件添加可执行权限

sudo chmod +x /usr/local/bin/docker-compose

验证安装

docker-compose --version

** 安装Go

  1. 安装wget

sudo apt install wget

将下载的存档解压缩到 /usr/local/目录下并在/usr/local/go中创建一个 Go 树（推荐go1.15版本，比较稳定）

wget -c dl.google.com/go/go1.15.5… -O - | sudo tar -xz -C /usr/local

  1. 1.5.2 安装vim

sudo apt-get install vim

  1. Go环境变量配置

进入全局配置

vim /etc/profile

添加到末尾

export PATH=$PATH:/usr/local/go/bin export GO111MODULE=on export GOPROXY=goproxy.cn,direct

进入用户配置

vim ~/.bashrc

在末尾添加

export GOROOT=/usr/local/go

export PATH=PATH:PATH:GOROOT/bin

  1. 配置生效

source /etc/profile

source ~/.bashrc

  1. 验证Go安装

go version

4.1.1.2 安装fabric并进行网络环境测试

4.1.1.2.1 安装fabric

创建安装目录并执行下载脚本

mkdir -p gopath/src/github.com/hyperledger cd gopath/src/github.com/hyperledger touch bootstrap.sh

将下面的内容复制到bootstrap.sh脚本文件中，执行脚本进行下载即可，多尝试几次（ctrl+C强制终端）。

#!/bin/bash
#
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

# if version not passed in, default to latest released version
VERSION=2.2.0
# if ca version not passed in, default to latest released version
CA_VERSION=1.5.0
ARCH=$(echo "$(uname -s|tr '[:upper:]' '[:lower:]'|sed 's/mingw64_nt.*/windows/')-$(uname -m | sed 's/x86_64/amd64/g')")
MARCH=$(uname -m)

printHelp() {
    echo "Usage: bootstrap.sh [version [ca_version]] [options]"
    echo
    echo "options:"
    echo "-h : this help"
    echo "-d : bypass docker image download"
    echo "-s : bypass fabric-samples repo clone"
    echo "-b : bypass download of platform-specific binaries"
    echo
    echo "e.g. bootstrap.sh 2.3.2 1.5.0 -s"
    echo "will download docker images and binaries for Fabric v2.3.2 and Fabric CA v1.5.0"
}

# dockerPull() pulls docker images from fabric and chaincode repositories
# note, if a docker image doesn't exist for a requested release, it will simply
# be skipped, since this script doesn't terminate upon errors.

dockerPull() {
    #three_digit_image_tag is passed in, e.g. "1.4.7"
    three_digit_image_tag=$1
    shift
    #two_digit_image_tag is derived, e.g. "1.4", especially useful as a local tag for two digit references to most recent baseos, ccenv, javaenv, nodeenv patch releases
    two_digit_image_tag=$(echo "$three_digit_image_tag" | cut -d'.' -f1,2)
    while [[ $# -gt 0 ]]
    do
        image_name="$1"
        echo "====> hyperledger/fabric-$image_name:$three_digit_image_tag"
        docker pull "hyperledger/fabric-$image_name:$three_digit_image_tag"
        docker tag "hyperledger/fabric-$image_name:$three_digit_image_tag" "hyperledger/fabric-$image_name"
        docker tag "hyperledger/fabric-$image_name:$three_digit_image_tag" "hyperledger/fabric-$image_name:$two_digit_image_tag"
        shift
    done
}

cloneSamplesRepo() {
    # clone (if needed) hyperledger/fabric-samples and checkout corresponding
    # version to the binaries and docker images to be downloaded
    if [ -d test-network ]; then
        # if we are in the fabric-samples repo, checkout corresponding version
        echo "==> Already in fabric-samples repo"
    elif [ -d fabric-samples ]; then
        # if fabric-samples repo already cloned and in current directory,
        # cd fabric-samples
        echo "===> Changing directory to fabric-samples"
        cd fabric-samples
    else
        echo "===> Cloning hyperledger/fabric-samples repo"
        git clone -b main https://github.com/hyperledger/fabric-samples.git && cd fabric-samples
    fi

    if GIT_DIR=.git git rev-parse v${VERSION} >/dev/null 2>&1; then
        echo "===> Checking out v${VERSION} of hyperledger/fabric-samples"
        git checkout -q v${VERSION}
    else
        echo "fabric-samples v${VERSION} does not exist, defaulting main"
        git checkout -q main
    fi
}

# This will download the .tar.gz
download() {
    local BINARY_FILE=$1
    local URL=$2
    echo "===> Downloading: " "${URL}"
    curl -L --retry 5 --retry-delay 3 "${URL}" | tar xz || rc=$?
    if [ -n "$rc" ]; then
        echo "==> There was an error downloading the binary file."
        return 22
    else
        echo "==> Done."
    fi
}

pullBinaries() {
    echo "===> Downloading version ${FABRIC_TAG} platform specific fabric binaries"
    download "${BINARY_FILE}" "https://github.com/hyperledger/fabric/releases/download/v${VERSION}/${BINARY_FILE}"
    if [ $? -eq 22 ]; then
        echo
        echo "------> ${FABRIC_TAG} platform specific fabric binary is not available to download <----"
        echo
        exit
    fi

    echo "===> Downloading version ${CA_TAG} platform specific fabric-ca-client binary"
    download "${CA_BINARY_FILE}" "https://github.com/hyperledger/fabric-ca/releases/download/v${CA_VERSION}/${CA_BINARY_FILE}"
    if [ $? -eq 22 ]; then
        echo
        echo "------> ${CA_TAG} fabric-ca-client binary is not available to download  (Available from 1.1.0-rc1) <----"
        echo
        exit
    fi
}

pullDockerImages() {
    command -v docker >& /dev/null
    NODOCKER=$?
    if [ "${NODOCKER}" == 0 ]; then
        FABRIC_IMAGES=(peer orderer ccenv tools)
        case "$VERSION" in
        2.*)
            FABRIC_IMAGES+=(baseos)
            shift
            ;;
        esac
        echo "FABRIC_IMAGES:" "${FABRIC_IMAGES[@]}"
        echo "===> Pulling fabric Images"
        dockerPull "${FABRIC_TAG}" "${FABRIC_IMAGES[@]}"
        echo "===> Pulling fabric ca Image"
        CA_IMAGE=(ca)
        dockerPull "${CA_TAG}" "${CA_IMAGE[@]}"
        echo "===> List out hyperledger docker images"
        docker images | grep hyperledger
    else
        echo "========================================================="
        echo "Docker not installed, bypassing download of Fabric images"
        echo "========================================================="
    fi
}

DOCKER=true
SAMPLES=true
BINARIES=true

# Parse commandline args pull out
# version and/or ca-version strings first
if [ -n "$1" ] && [ "${1:0:1}" != "-" ]; then
    VERSION=$1;shift
    if [ -n "$1" ]  && [ "${1:0:1}" != "-" ]; then
        CA_VERSION=$1;shift
        if [ -n  "$1" ] && [ "${1:0:1}" != "-" ]; then
            THIRDPARTY_IMAGE_VERSION=$1;shift
        fi
    fi
fi

# prior to 1.2.0 architecture was determined by uname -m
if [[ $VERSION =~ ^1\.[0-1]\.* ]]; then
    export FABRIC_TAG=${MARCH}-${VERSION}
    export CA_TAG=${MARCH}-${CA_VERSION}
    export THIRDPARTY_TAG=${MARCH}-${THIRDPARTY_IMAGE_VERSION}
else
    # starting with 1.2.0, multi-arch images will be default
    : "${CA_TAG:="$CA_VERSION"}"
    : "${FABRIC_TAG:="$VERSION"}"
    : "${THIRDPARTY_TAG:="$THIRDPARTY_IMAGE_VERSION"}"
fi

BINARY_FILE=hyperledger-fabric-${ARCH}-${VERSION}.tar.gz
CA_BINARY_FILE=hyperledger-fabric-ca-${ARCH}-${CA_VERSION}.tar.gz

# then parse opts
while getopts "h?dsb" opt; do
    case "$opt" in
        h|\?)
            printHelp
            exit 0
            ;;
        d)  DOCKER=false
            ;;
        s)  SAMPLES=false
            ;;
        b)  BINARIES=false
            ;;
    esac
done

if [ "$SAMPLES" == "true" ]; then
    echo
    echo "Clone hyperledger/fabric-samples repo"
    echo
    cloneSamplesRepo
fi
if [ "$BINARIES" == "true" ]; then
    echo
    echo "Pull Hyperledger Fabric binaries"
    echo
    pullBinaries
fi
if [ "$DOCKER" == "true" ]; then
    echo
    echo "Pull Hyperledger Fabric docker images"
    echo
    pullDockerImages
fi

./bootstrap.sh

该脚本会自动拉取所需要fabric二进制文件、fabric示例和docker镜像，脚本执行完成后，将fabric-samples中的bin目录下的所有二进制文件都拷贝到/usr/local/bin中，以后便可在本地运行这些二进制文件

cd fabric-samples && cp -r /bin/* /usr/local/bin

4.1.1.2.2 启动test-network网络进行环境配置测试

cd test-network

./network up createChannel

若上述命令成功运行，表示网络搭建成功，退出网络，清除卷，开始多机部署准备。

./network down

docker volume prune

4.1.2 建立多机部署的工作目录

在hyperledger文件夹下(虚拟机1和虚拟机2的操作)

mkdir multiple-deployment cd multiple-deployment

4.1.2.1 配置文件准备

虚拟机1的操作

在multiple-deployment文件夹下新建crypto-config.yaml文件和configtx.yaml文件

cd ../..

touch crypto-config.yaml

touch configtx.yaml

将以下内容写进crypto-config.yaml文件中

OrdererOrgs:
  - Name: Orderer
    Domain: example.com
    Specs:
      - Hostname: orderer0
      - Hostname: orderer1
      - Hostname: orderer2

PeerOrgs:
  - Name: Org1
    Domain: org1.example.com
    EnableNodeOUs: true
    Template:
      Count: 2
    Users:
      Count: 1
  - Name: Org2
    Domain: org2.example.com
    EnableNodeOUs: true
    Template:
      Count: 2
    Users:
      Count: 1

将以下内容写进configtx.yaml文件中

Organizations:
    - &OrdererOrg
        Name: OrdererOrg
        ID: OrdererMSP
        MSPDir: crypto-config/ordererOrganizations/example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

    - &Org1
        Name: Org1MSP
        ID: Org1MSP
        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org1MSP.peer')"

        AnchorPeers:
            - Host: peer0.org1.example.com
              Port: 7051

    - &Org2
        Name: Org2MSP
        ID: Org2MSP
        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org2MSP.peer')"

        AnchorPeers:
            - Host: peer0.org2.example.com
              Port: 7051

Capabilities:
    Channel: &ChannelCapabilities
        V2_0: true
    Orderer: &OrdererCapabilities
        V2_0: true
    Application: &ApplicationCapabilities
        V2_0: true

Application: &ApplicationDefaults

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities

Orderer: &OrdererDefaults

    OrdererType: etcdraft

    Addresses: # orderer 集群节点
        - orderer0.example.com:7050
        - orderer1.example.com:8050
        - orderer2.example.com:7050
    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        MaxMessageCount: 10

        AbsoluteMaxBytes: 99 MB

        PreferredMaxBytes: 512 KB

    Organizations:

    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

Channel: &ChannelDefaults

    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    Capabilities:
        <<: *ChannelCapabilities

Profiles:

    TwoOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

    SampleMultiNodeEtcdRaft:
        <<: *ChannelDefaults
        Capabilities:
            <<: *ChannelCapabilities
        Orderer:
            <<: *OrdererDefaults
            OrdererType: etcdraft
            EtcdRaft:
                Consenters:
                - Host: orderer0.example.com
                  Port: 7050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.crt
                - Host: orderer1.example.com
                  Port: 8050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.crt
                - Host: orderer2.example.com
                  Port: 7050
                  ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
                  ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
            Addresses:
                - orderer0.example.com:7050
                - orderer1.example.com:8050
                - orderer2.example.com:7050
            Organizations:
            - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Application:
            <<: *ApplicationDefaults
            Organizations:
            - <<: *OrdererOrg
        Consortiums:
            SampleConsortium:
                Organizations:
                - *Org1
                - *Org2

4.1.2.1 准备链码

以下是虚拟机1的操作，复制fabric-samples样例中的名为abstore的链码（智能合约）到chaincode/go下

mkdir chaincode

mkdir chaincode/go

cp -r ../fabric-samples/chaincode/abstore/go/* chaincode/go

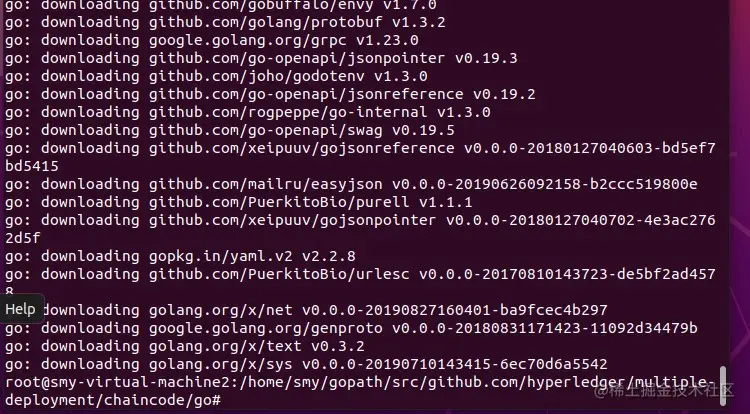

下载链码的依赖包

cd chaincode/go

go mod vendor

4.1.2.3 生成加密材料、证书

虚拟机1的操作

cryptogen generate --config=./crypto-config.yaml

4.1.2.4 生成创世区块、通道配置交易和锚节点更新文件

  1. 告诉网络去哪找configtx.yaml文件

export FABRIC_CFG_PATH=$PWD

  1. 通过configtxgen命令生成创世区块

configtxgen -profile SampleMultiNodeEtcdRaft -channelID multiple-deployment-channel -outputBlock ./channel-artifacts/genesis.block

  1. 通过configtxgen命令生成通道配置

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

  1. 定义组织1的锚节点（也称主节点）

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

  1. 定义组织2的锚节点

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

4.1.3 将在虚拟机1上生成的所有材料拷贝到虚拟机2中 ###

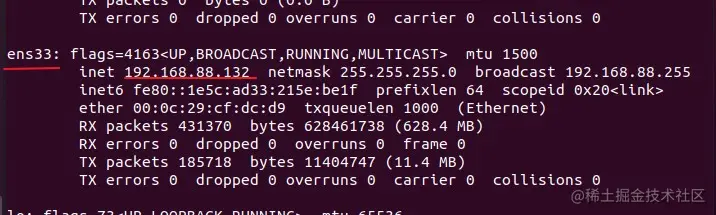

4.1.3.1 查询两个虚拟机的IP地址

apt install net-tools

ifconfig

虚拟机1的IP地址为:192.168.88.132

虚拟机2的IP地址为192.168.88.136

4.1.3.2 安装ssh服务

sudo apt-get install openssh-server

4.1.3.3 给虚拟机2上的文件夹权限

给虚拟机2上的multiple-deployment文件夹所有权限（为了使用scp命令），来到hyperledger目录下

chmod 777 multiple-deployment

您将其他主机的文件传送给虚拟机2的指定目录下，需要写权限，因为你需要提前给这个被操作的文件夹相应的权限。否则，请求会被拒绝。

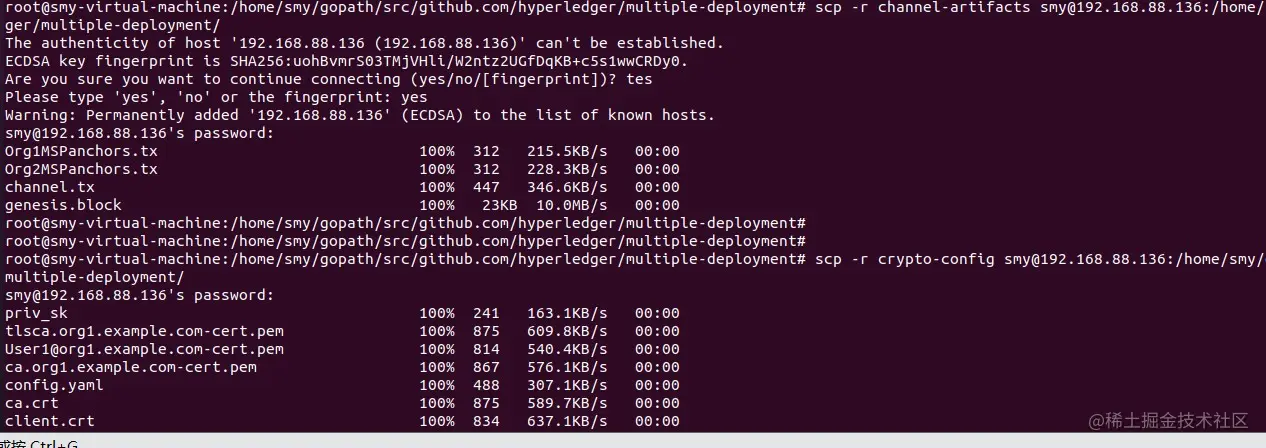

4.1.3.4 使用scp命令复制文件到虚拟机2上

在虚拟机1的multiple-deployment目录下执行以下命令

scp -r channel-artifacts smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/multiple-deployment/

scp -r crypto-config smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/multiple-deployment/

smy@192.168.88.136 (smy代表虚拟机2的用户名 后面是虚拟机2的IP的地址)

密码输入虚拟机2的密码即可

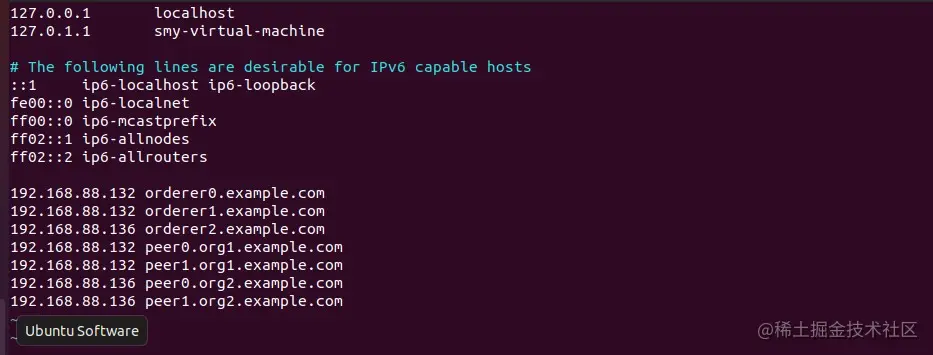

4.1.4 IP与域名映射配置（虚拟机1和虚拟机2都需要设定

通过修改/etc/hosts文件

sudo vim /etc/hosts

添加以下内容

虚拟机1的IP orderer0.example.com 虚拟机1的IP orderer1.example.com 虚拟机2的IP orderer2.example.com 虚拟机1的IP peer0.org1.example.com 虚拟机1的IP peer1.org1.example.com 虚拟机2的IP peer0.org2.example.com 虚拟机2的IP peer1.org2.example.com

完成添加后重启一下网络

sudo service network-manager restart

4.1.5 编写网络启动配置文件

编写启动配置文件docker-compose-up.yaml

4.1.5.1 在虚拟机1上编写

touch docker-compose-up.yaml

将以下内容写入docker-compose-up.yaml中，yaml文件中的虚拟机的IP记得修改成你们的虚拟机IP

version: '2'

services:
  orderer0.example.com:
    container_name: orderer0.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=DEBUG
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  orderer1.example.com:
    container_name: orderer1.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 8050:8050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org1.example.com
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer1.org1.example.com:
    container_name: peer1.org1.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer1.org1.example.com
      - CORE_PEER_ADDRESS=peer1.org1.example.com:8051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:8051
      - CORE_PEER_CHAINCODEADDRESS=peer1.org1.example.com:8052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org1.example.com:8051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:8051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 8051:8051
      - 8052:8052
      - 8053:8053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer1.org1.example.com:8051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

4.1.5.2 在虚拟机2上编写 ####

touch docker-compose-up.yaml

将以下内容写入docker-compose-up.yaml中，yaml文件中的虚拟机的IP记得修改成你们的虚拟机IP

version: '2'

services:
  orderer2.example.com:
    container_name: orderer2.example.com
    image: hyperledger/fabric-orderer
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_BOOTSTRAPMETHOD=file
      - ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp:/var/hyperledger/orderer/msp
        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/:/var/hyperledger/orderer/tls
    ports:
      - 7050:7050
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer0.org2.example.com
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 7051:7051
      - 7052:7052
      - 7053:7053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  peer1.org2.example.com:
    container_name: peer1.org2.example.com
    image: hyperledger/fabric-peer
    environment:
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_PEER_ID=peer1.org2.example.com
      - CORE_PEER_ADDRESS=peer1.org2.example.com:8051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:8051
      - CORE_PEER_CHAINCODEADDRESS=peer1.org2.example.com:8052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:8051
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org2.example.com:8051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_GOSSIP_USELEADERELECTION=true
      - CORE_PEER_GOSSIP_ORGLEADER=false
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Allow more time for chaincode container to build on install.
      - CORE_CHAINCODE_EXECUTETIMEOUT=300s
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    volumes:
       - /var/run/:/host/var/run/
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp
       - ./crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls
    ports:
      - 8051:8051
      - 8052:8052
      - 8053:8053
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer0.org2.example.com:7051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      #- FABRIC_LOGGING_SPEC=DEBUG
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer1.org2.example.com:8051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
        - /var/run/:/host/var/run/
        - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/go
        - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
        - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    extra_hosts:
      - "orderer0.example.com:虚拟机1的IP"
      - "orderer1.example.com:虚拟机1的IP"
      - "orderer2.example.com:虚拟机2的IP"
      - "peer0.org1.example.com:虚拟机1的IP"
      - "peer1.org1.example.com:虚拟机1的IP"
      - "peer0.org2.example.com:虚拟机2的IP"
      - "peer1.org2.example.com:虚拟机2的IP"

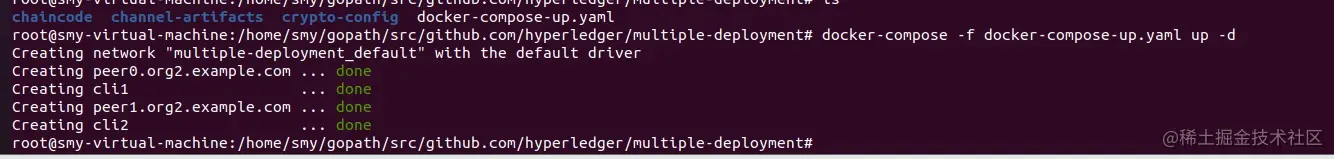

4.1.6 在两台虚拟机上启动网络

虚拟机1和虚拟机2的操作

docker-compose -f docker-compose-up.yaml up -d

4.1.7 创建通道、加入通道并更新锚节点

在虚拟机1上操作

进入cli1容器，也就是以peer0.org1的角色与网络交互

docker exec -it cli1 bash

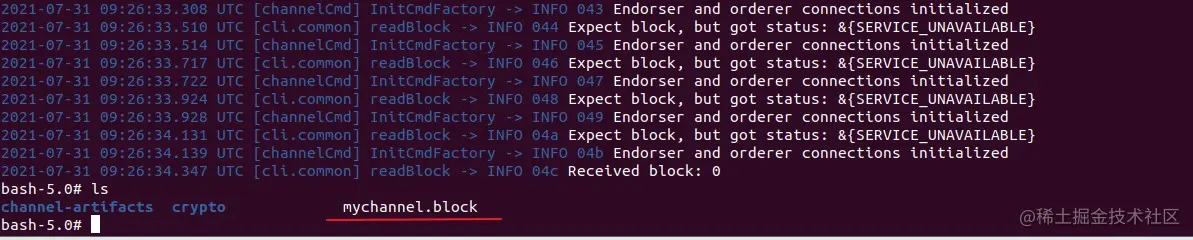

创建通道，这一步最好等网络跑起来15秒之后再操作，因为orderer之间要握手和选举raft领导节点，需要点时间。操作太快会报no Raft leader的错误

peer channel create -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

组织1的peer0节点加入通道mychannel

peer channel join -b mychannel.block

更新组织1的锚节点

peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

退出cli1容器，从cli1容器中拷贝出mychannel.block文件到multiple-deployment文件夹下，并复制到虚拟机2中

exit

docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./

scp mychannel.block smy@虚拟机2 IP:/home/smy/gopath/src/github.com/hyperledger/multiple-deployment/

在虚拟机2上的操作

将mychannel.block拷贝到虚拟机2的cli1（组织2的peer0角色）容器中

docker cp mychannel.block cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/

进入cli1容器

docker exec -it cli1 bash

加入通道

peer channel join -b mychannel.block

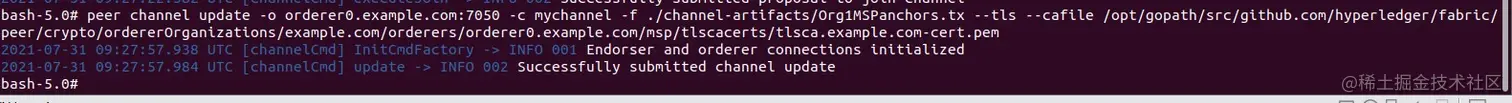

更新组织2的锚节点（主节点）

peer channel update -o orderer0.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

4.1.8 打包、安装链码并同意提交链码（智能合约）

接下来到虚拟机1的操作

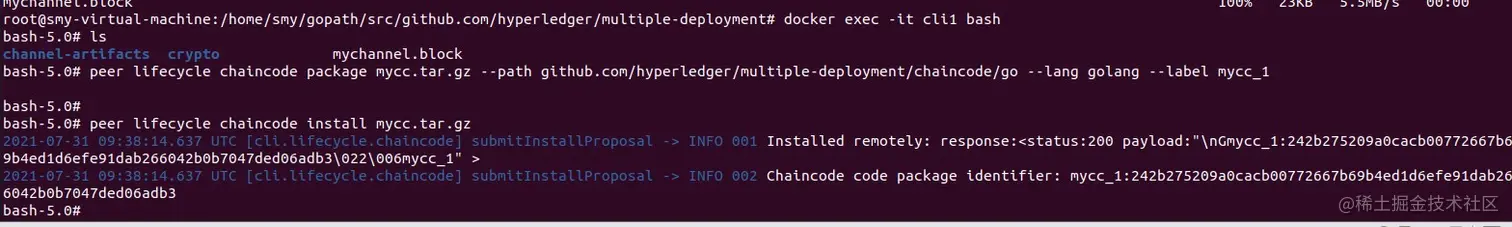

进入cli1容器中

docker exec -it cli1 bash

peer lifecycle chaincode package mycc.tar.gz --path github.com/hyperledger/multiple-deployment/chaincode/go --lang golang --label mycc_1

peer lifecycle chaincode install mycc.tar.gz

退出cli1容器，将打包的链码mycc.tar.gz从cli1容器中提取出来，并拷贝到虚拟机2的multiple-deployment目录下

exit

docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/mycc.tar.gz ./

scp mycc.tar.gz smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/multiple-deployment/

接下来到虚拟机2的操作

退出cli1容器，将multiple-deployment目录下的链码压缩包mycc.tar.gz复制到cli1（组织2的peer0）容器中

exit

docker cp mycc.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/

再次进入cli1容器，安装链码

docker exec -it cli1 bash

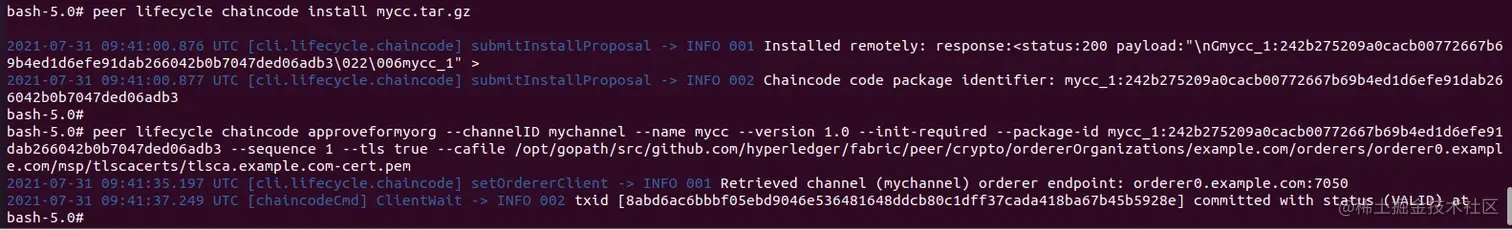

peer lifecycle chaincode install mycc.tar.gz

组织2同意提交链码，下面指令中的链码id记得替换成上一条指令生成的链码id

peer lifecycle chaincode approveformyorg --channelID mychannel --name mycc --version 1.0 --init-required --package-id mycc_1:242b275209a0cacb00772667b69b4ed1d6efe91dab266042b0b7047ded06adb3 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

接下来到虚拟机1的操作

再次进入cli1容器，同意提交链码

docker exec -it cli1 bash

peer lifecycle chaincode approveformyorg --channelID mychannel --name mycc --version 1.0 --init-required --package-id mycc_1:242b275209a0cacb00772667b69b4ed1d6efe91dab266042b0b7047ded06adb3 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

4.1.9 查看链码状态是否就绪

peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name mycc --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

4.1.10 提交链码

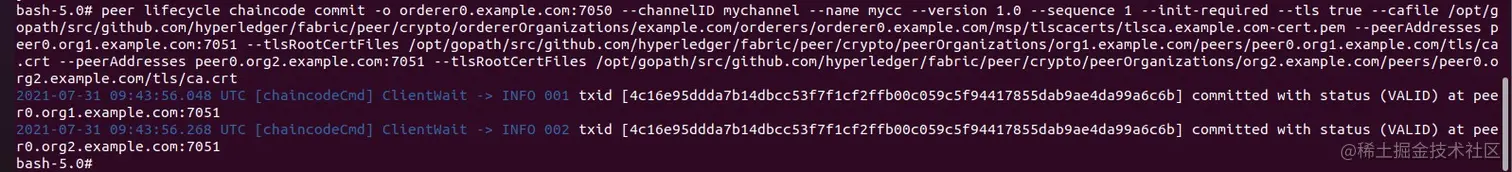

peer lifecycle chaincode commit -o orderer0.example.com:7050 --channelID mychannel --name mycc --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt

4.1.11 初始化链码

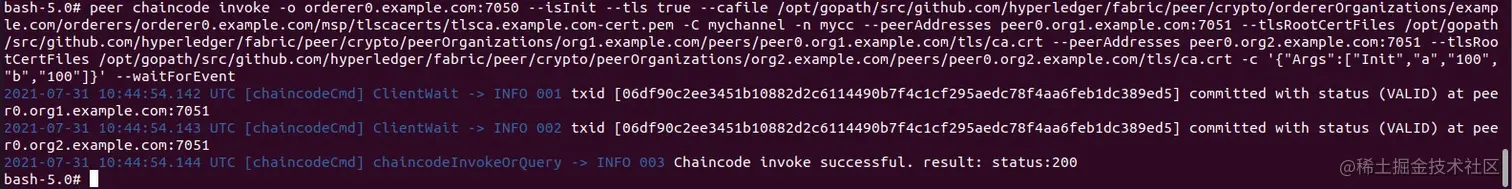

peer chaincode invoke -o orderer0.example.com:7050 --isInit --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["Init","a","100","b","100"]}' --waitForEvent

4.1.12 与链码交互（查询、调用）

虚拟机1查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

虚拟机2查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

双方均可查询到a的余额

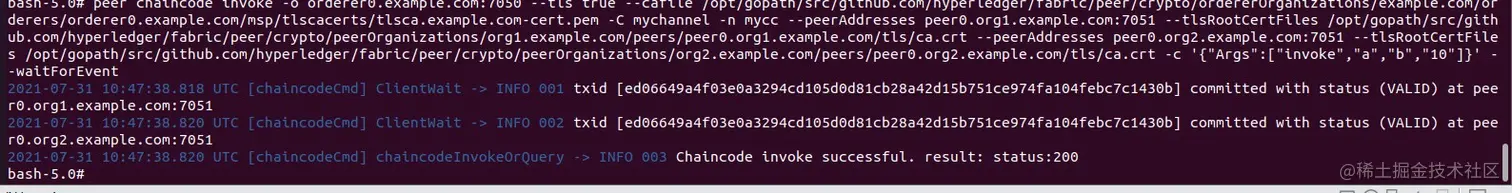

在虚拟机2上操作a转账10给b

peer chaincode invoke -o orderer0.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["invoke","a","b","10"]}' --waitForEvent

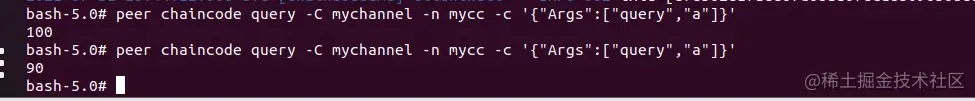

转账完成后查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

查询结果为90，转账成功

在虚拟机1查询a的余额

peer chaincode query -C mychannel -n mycc -c '{"Args":["query","a"]}'

在虚拟机2的操作已经和fabric网络的各节点中同步,Hyperledger Fabric 多机部署/分布式集群部署成功

如果要结束网络，可以在退出cli1容器后使用以下指令退出

docker-compose -f docker-compose-up.yaml down

docker-compose-up.yaml文件中还有各组织1、2的peer1节点，容器名为cli2，可以进入容器中使他们加入网络，同步消息，操作与peer0一样，（只需要将该节点加入通道后、安装链码就可以直接与网络中其他节点交互，一个通道的同一个链码只需要实例化一次）双机部署到此讲解完毕，我们下面将要学习三机部署。

avatar
文章
阅读
粉丝
