2.8 复杂网络实现
我们现在已经完成了一些基本操作，在1.4版本的最后章节，我就不把添加通道、添加cli再分开来介绍，我们在最后一节就尝试实现一个比较复杂的网络。
我们设计实现一个这样的网络：这个网络中包含有两个联盟X1、X2，联盟X1中包含组织1、组织2，联盟X2中包含组织2和组织3；联盟X1中创建了通道channel1，联盟X2中创建了通道channel2。排序模式选择solo单机测试模式，因此只使用一个排序服务。网络中一共有三个组织，org1、org2和org3，org1有三个peer节点，org2有三个peer节点，org3有两个peer节点，一共8个peer节点，对应从couchdb0-couchdb7这八个couchdb数据库，并且将所有peer节点都加入通道，其中组织2的三个peer节点不仅加入channel1也加入channel2！同时，每个组织拥有一个cli容器，org1对应cli1，org2对应cli2，org3对应cli3。我们将使用官方提供的链码，在通道1上的org1的锚节点上安装fabcar链码，在通道1上的org2的锚节点上安装mycc链码，在通道2上的org2上的锚节点上安装marbles链码，在通道2上的org3上的两个peer节点上安装marbles链码。我们最终要完成链码的安装、实例化、调用和查询等一系列操作，在重点部分我都会放上截图，但是很多之前展示过的步骤截图我们就直接略过。下面开始我们的设计(请在fabric-samples/first-network目录下操作，你也可以备份一份fabric-samples，然后在备份文件中进行操作修改)
2.8.1 修改相应配置文件
** base/docker-compose-base.yaml
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
version: '2'
services:
orderer.example.com:
container_name: orderer.example.com
extends:
file: peer-base.yaml
service: orderer-base
volumes:
- ../channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
- ../crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp
- ../crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls
- orderer.example.com:/var/hyperledger/production/orderer
ports:
- 7050:7050
peer0.org1.example.com:
container_name: peer0.org1.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer0.org1.example.com
- CORE_PEER_ADDRESS=peer0.org1.example.com:7051
- CORE_PEER_LISTENADDRESS=0.0.0.0:7051
- CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org1.example.com:8051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB #增加下面四行，表示使用#couchdb存储
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb0:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
- peer0.org1.example.com:/var/hyperledger/production
ports:
- 7051:7051
peer1.org1.example.com:
container_name: peer1.org1.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer1.org1.example.com
- CORE_PEER_ADDRESS=peer1.org1.example.com:8051
- CORE_PEER_LISTENADDRESS=0.0.0.0:8051
- CORE_PEER_CHAINCODEADDRESS=peer1.org1.example.com:8052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:8051
- CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb1:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls
- peer1.org1.example.com:/var/hyperledger/production
ports:
- 8051:8051
peer2.org1.example.com:
container_name: peer2.org1.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer2.org1.example.com
- CORE_PEER_ADDRESS=peer2.org1.example.com:7151
- CORE_PEER_LISTENADDRESS=0.0.0.0:7151
- CORE_PEER_CHAINCODEADDRESS=peer2.org1.example.com:7152
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7152
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org1.example.com:8051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer2.org1.example.com:7151
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb2:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer2.org1.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org1.example.com/peers/peer2.org1.example.com/tls:/etc/hyperledger/fabric/tls
- peer2.org1.example.com:/var/hyperledger/production
ports:
- 7151:7151
peer0.org2.example.com:
container_name: peer0.org2.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer0.org2.example.com
- CORE_PEER_ADDRESS=peer0.org2.example.com:9051
- CORE_PEER_LISTENADDRESS=0.0.0.0:9051
- CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:9052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:9052
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:9051
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org2.example.com:10051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb3:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
- peer0.org2.example.com:/var/hyperledger/production
ports:
- 9051:9051
peer1.org2.example.com:
container_name: peer1.org2.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer1.org2.example.com
- CORE_PEER_ADDRESS=peer1.org2.example.com:10051
- CORE_PEER_LISTENADDRESS=0.0.0.0:10051
- CORE_PEER_CHAINCODEADDRESS=peer1.org2.example.com:10052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:10052
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:10051
- CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:9051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb4:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls
- peer1.org2.example.com:/var/hyperledger/production
ports:
- 10051:10051
peer2.org2.example.com:
container_name: peer2.org2.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer2.org2.example.com
- CORE_PEER_ADDRESS=peer2.org2.example.com:10151
- CORE_PEER_LISTENADDRESS=0.0.0.0:10151
- CORE_PEER_CHAINCODEADDRESS=peer2.org2.example.com:10152
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:10152
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer2.org2.example.com:10151
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org2.example.com:10051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb5:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer2.org2.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org2.example.com/peers/peer2.org2.example.com/tls:/etc/hyperledger/fabric/tls
- peer2.org2.example.com:/var/hyperledger/production
ports:
- 10151:10151
peer0.org3.example.com:
container_name: peer0.org3.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer0.org3.example.com
- CORE_PEER_ADDRESS=peer0.org3.example.com:11051
- CORE_PEER_LISTENADDRESS=0.0.0.0:11051
- CORE_PEER_CHAINCODEADDRESS=peer0.org3.example.com:11052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:11052
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org3.example.com:11051
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org3.example.com:12051
- CORE_PEER_LOCALMSPID=Org3MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb6:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls:/etc/hyperledger/fabric/tls
- peer0.org3.example.com:/var/hyperledger/production
ports:
- 11051:11051
peer1.org3.example.com:
container_name: peer1.org3.example.com
extends:
file: peer-base.yaml
service: peer-base
environment:
- CORE_PEER_ID=peer1.org3.example.com
- CORE_PEER_ADDRESS=peer1.org3.example.com:12051
- CORE_PEER_LISTENADDRESS=0.0.0.0:12051
- CORE_PEER_CHAINCODEADDRESS=peer1.org3.example.com:12052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:12052
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org3.example.com:12051
- CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org3.example.com:11051
- CORE_PEER_LOCALMSPID=Org3MSP
- CORE_LEDGER_STATE_STATEDATABASE=CouchDB
- CORE_LEDGER_STATE_COUCHDBCONFIG_COUCHDBADDRESS=couchdb7:5984
- CORE_LEDGER_STATE_COUCHDBCONFIG_USERNAME=
- CORE_LEDGER_STATE_COUCHDBCONFIG_PASSWORD=
volumes:
- /var/run/:/host/var/run/
- ../crypto-config/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/msp:/etc/hyperledger/fabric/msp
- ../crypto-config/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/tls:/etc/hyperledger/fabric/tls
- peer1.org3.example.com:/var/hyperledger/production
ports:
- 12051:12051
** configtx.yaml
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
---
################################################################################
#
# Section: Organizations
#
# - This section defines the different organizational identities which will
# be referenced later in the configuration.
#
################################################################################
Organizations:
# SampleOrg defines an MSP using the sampleconfig. It should never be used
# in production but may be used as a template for other definitions
- &OrdererOrg
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: OrdererOrg
# ID to load the MSP definition as
ID: OrdererMSP
# MSPDir is the filesystem path which contains the MSP configuration
MSPDir: crypto-config/ordererOrganizations/example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Writers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Admins:
Type: Signature
Rule: "OR('OrdererMSP.admin')"
- &Org1
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org1MSP
# ID to load the MSP definition as
ID: Org1MSP
MSPDir: crypto-config/peerOrganizations/org1.example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org1MSP.admin')"
# leave this flag set to true.
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org1.example.com
Port: 7051
- &Org2
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org2MSP
# ID to load the MSP definition as
ID: Org2MSP
MSPDir: crypto-config/peerOrganizations/org2.example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org2MSP.admin')"
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org2.example.com
Port: 9051
- &Org3
# DefaultOrg defines the organization which is used in the sampleconfig
# of the fabric.git development environment
Name: Org3MSP
# ID to load the MSP definition as
ID: Org3MSP
MSPDir: crypto-config/peerOrganizations/org3.example.com/msp
# Policies defines the set of policies at this level of the config tree
# For organization policies, their canonical path is usually
# /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
Policies:
Readers:
Type: Signature
Rule: "OR('Org3MSP.admin', 'Org3MSP.peer', 'Org3MSP.client')"
Writers:
Type: Signature
Rule: "OR('Org3MSP.admin', 'Org3MSP.client')"
Admins:
Type: Signature
Rule: "OR('Org3MSP.admin')"
AnchorPeers:
# AnchorPeers defines the location of peers which can be used
# for cross org gossip communication. Note, this value is only
# encoded in the genesis block in the Application section context
- Host: peer0.org3.example.com
Port: 11051
################################################################################
#
# SECTION: Capabilities
#
# - This section defines the capabilities of fabric network. This is a new
# concept as of v1.1.0 and should not be utilized in mixed networks with
# v1.0.x peers and orderers. Capabilities define features which must be
# present in a fabric binary for that binary to safely participate in the
# fabric network. For instance, if a new MSP type is added, newer binaries
# might recognize and validate the signatures from this type, while older
# binaries without this support would be unable to validate those
# transactions. This could lead to different versions of the fabric binaries
# having different world states. Instead, defining a capability for a channel
# informs those binaries without this capability that they must cease
# processing transactions until they have been upgraded. For v1.0.x if any
# capabilities are defined (including a map with all capabilities turned off)
# then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
# Channel capabilities apply to both the orderers and the peers and must be
# supported by both.
# Set the value of the capability to true to require it.
Channel: &ChannelCapabilities
# V1.4.3 for Channel is a catchall flag for behavior which has been
# determined to be desired for all orderers and peers running at the v1.4.3
# level, but which would be incompatible with orderers and peers from
# prior releases.
# Prior to enabling V1.4.3 channel capabilities, ensure that all
# orderers and peers on a channel are at v1.4.3 or later.
V1_4_3: true
# V1.3 for Channel enables the new non-backwards compatible
# features and fixes of fabric v1.3
V1_3: false
# V1.1 for Channel enables the new non-backwards compatible
# features and fixes of fabric v1.1
V1_1: false
# Orderer capabilities apply only to the orderers, and may be safely
# used with prior release peers.
# Set the value of the capability to true to require it.
Orderer: &OrdererCapabilities
# V1.4.2 for Orderer is a catchall flag for behavior which has been
# determined to be desired for all orderers running at the v1.4.2
# level, but which would be incompatible with orderers from prior releases.
# Prior to enabling V1.4.2 orderer capabilities, ensure that all
# orderers on a channel are at v1.4.2 or later.
V1_4_2: true
# V1.1 for Orderer enables the new non-backwards compatible
# features and fixes of fabric v1.1
V1_1: false
# Application capabilities apply only to the peer network, and may be safely
# used with prior release orderers.
# Set the value of the capability to true to require it.
Application: &ApplicationCapabilities
# V1.4.2 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.4.2.
V1_4_2: true
# V1.3 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.3.
V1_3: false
# V1.2 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.2 (note, this need not be set if
# later version capabilities are set)
V1_2: false
# V1.1 for Application enables the new non-backwards compatible
# features and fixes of fabric v1.1 (note, this need not be set if
# later version capabilities are set).
V1_1: false
################################################################################
#
# SECTION: Application
#
# - This section defines the values to encode into a config transaction or
# genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults
# Organizations is the list of orgs which are defined as participants on
# the application side of the network
Organizations:
# Policies defines the set of policies at this level of the config tree
# For Application policies, their canonical path is
# /Channel/Application/<PolicyName>
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
Capabilities:
<<: *ApplicationCapabilities
################################################################################
#
# SECTION: Orderer
#
# - This section defines the values to encode into a config transaction or
# genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults
# Orderer Type: The orderer implementation to start
# Available types are "solo","kafka" and "etcdraft"
OrdererType: solo
Addresses:
- orderer.example.com:7050
# Batch Timeout: The amount of time to wait before creating a batch
BatchTimeout: 2s
# Batch Size: Controls the number of messages batched into a block
BatchSize:
# Max Message Count: The maximum number of messages to permit in a batch
MaxMessageCount: 10
# Absolute Max Bytes: The absolute maximum number of bytes allowed for
# the serialized messages in a batch.
AbsoluteMaxBytes: 99 MB
# Preferred Max Bytes: The preferred maximum number of bytes allowed for
# the serialized messages in a batch. A message larger than the preferred
# max bytes will result in a batch larger than preferred max bytes.
PreferredMaxBytes: 512 KB
Kafka:
# Brokers: A list of Kafka brokers to which the orderer connects
# NOTE: Use IP:port notation
Brokers:
- 127.0.0.1:9092
# EtcdRaft defines configuration which must be set when the "etcdraft"
# orderertype is chosen.
EtcdRaft:
# The set of Raft replicas for this network. For the etcd/raft-based
# implementation, we expect every replica to also be an OSN. Therefore,
# a subset of the host:port items enumerated in this list should be
# replicated under the Orderer.Addresses key above.
Consenters:
- Host: orderer.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
- Host: orderer2.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
- Host: orderer3.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt
- Host: orderer4.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt
- Host: orderer5.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/tls/server.crt
# Organizations is the list of orgs which are defined as participants on
# the orderer side of the network
Organizations:
# Policies defines the set of policies at this level of the config tree
# For Orderer policies, their canonical path is
# /Channel/Orderer/<PolicyName>
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# BlockValidation specifies what signatures must be included in the block
# from the orderer for the peer to validate it.
BlockValidation:
Type: ImplicitMeta
Rule: "ANY Writers"
################################################################################
#
# CHANNEL
#
# This section defines the values to encode into a config transaction or
# genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
# Policies defines the set of policies at this level of the config tree
# For Channel policies, their canonical path is
# /Channel/<PolicyName>
Policies:
# Who may invoke the 'Deliver' API
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
# Who may invoke the 'Broadcast' API
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
# By default, who may modify elements at this config level
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# Capabilities describes the channel level capabilities, see the
# dedicated Capabilities section elsewhere in this file for a full
# description
Capabilities:
<<: *ChannelCapabilities
################################################################################
#
# Profile
#
# - Different configuration profiles may be encoded here to be specified
# as parameters to the configtxgen tool
#
################################################################################
Profiles:
ThreeOrgsOrdererGenesis: #solo模式创世块配置
<<: *ChannelDefaults
Orderer:
<<: *OrdererDefaults
Organizations:
- *OrdererOrg
Capabilities:
<<: *OrdererCapabilities
Consortiums:
SampleConsortium:
Organizations:
- *Org1
- *Org2
- *Org3
ThreeOrgsChannel1: #通道1配置
Consortium: SampleConsortium
<<: *ChannelDefaults
Application:
<<: *ApplicationDefaults
Organizations:
- *Org1
- *Org2
Capabilities:
<<: *ApplicationCapabilities

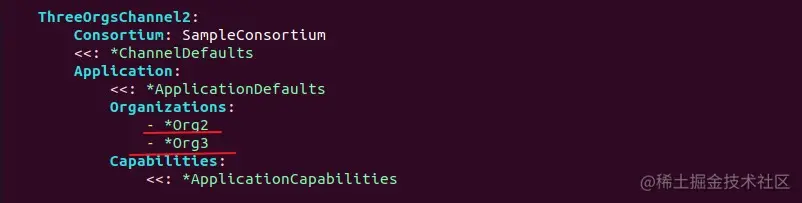

ThreeOrgsChannel2: #通道2配置
Consortium: SampleConsortium
<<: *ChannelDefaults
Application:
<<: *ApplicationDefaults
Organizations:
- *Org2
- *Org3
Capabilities:
<<: *ApplicationCapabilities
SampleDevModeKafka: #Kafka模式配置
<<: *ChannelDefaults
Capabilities:
<<: *ChannelCapabilities
Orderer:
<<: *OrdererDefaults
OrdererType: kafka
Kafka:
Brokers:
- kafka.example.com:9092
Organizations:
- *OrdererOrg
Capabilities:
<<: *OrdererCapabilities
Application:
<<: *ApplicationDefaults
Organizations:
- <<: *OrdererOrg
Consortiums:
SampleConsortium:
Organizations:
- *Org1
- *Org2
SampleMultiNodeEtcdRaft: #Raft模式配置
<<: *ChannelDefaults
Capabilities:
<<: *ChannelCapabilities
Orderer:
<<: *OrdererDefaults
OrdererType: etcdraft
EtcdRaft:
Consenters:
- Host: orderer.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
- Host: orderer2.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt
- Host: orderer3.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt
- Host: orderer4.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt
- Host: orderer5.example.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/tls/server.crt
Addresses:
- orderer.example.com:7050
- orderer2.example.com:7050
- orderer3.example.com:7050
- orderer4.example.com:7050
- orderer5.example.com:7050
Organizations:
- *OrdererOrg
Capabilities:
<<: *OrdererCapabilities
Application:
<<: *ApplicationDefaults
Organizations:
- <<: *OrdererOrg
Consortiums:
SampleConsortium:
Organizations:
- *Org1
- *Org2
** crypto-config.yaml
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
# ---------------------------------------------------------------------------
# Orderer
# ---------------------------------------------------------------------------
- Name: Orderer
Domain: example.com
EnableNodeOUs: true
# ---------------------------------------------------------------------------
# "Specs" - See PeerOrgs below for complete description
# ---------------------------------------------------------------------------
Specs:
- Hostname: orderer
- Hostname: orderer2
- Hostname: orderer3
- Hostname: orderer4
- Hostname: orderer5
# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
# ---------------------------------------------------------------------------
# Org1
# ---------------------------------------------------------------------------
- Name: Org1
Domain: org1.example.com
EnableNodeOUs: true
# ---------------------------------------------------------------------------
# "Specs"
# ---------------------------------------------------------------------------
# Uncomment this section to enable the explicit definition of hosts in your
# configuration. Most users will want to use Template, below
#
# Specs is an array of Spec entries. Each Spec entry consists of two fields:
# - Hostname: (Required) The desired hostname, sans the domain.
# - CommonName: (Optional) Specifies the template or explicit override for
# the CN. By default, this is the template:
#
# "{{.Hostname}}.{{.Domain}}"
#
# which obtains its values from the Spec.Hostname and
# Org.Domain, respectively.
# ---------------------------------------------------------------------------
# Specs:
# - Hostname: foo # implicitly "foo.org1.example.com"
# CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
# - Hostname: bar
# - Hostname: baz
# ---------------------------------------------------------------------------
# "Template"
# ---------------------------------------------------------------------------
# Allows for the definition of 1 or more hosts that are created sequentially
# from a template. By default, this looks like "peer%d" from 0 to Count-1.
# You may override the number of nodes (Count), the starting index (Start)
# or the template used to construct the name (Hostname).
#
# Note: Template and Specs are not mutually exclusive. You may define both
# sections and the aggregate nodes will be created for you. Take care with
# name collisions
# ---------------------------------------------------------------------------
Template:
Count: 3
# Start: 5
# Hostname: {{.Prefix}}{{.Index}} # default
# ---------------------------------------------------------------------------
# "Users"
# ---------------------------------------------------------------------------
# Count: The number of user accounts _in addition_ to Admin
# ---------------------------------------------------------------------------
Users:
Count: 1
# ---------------------------------------------------------------------------
# Org2: See "Org1" for full specification
# ---------------------------------------------------------------------------
- Name: Org2
Domain: org2.example.com
EnableNodeOUs: true
Template:
Count: 3
Users:
Count: 1
- Name: Org3
Domain: org3.example.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
** docker-compose-cli.yaml
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#
version: '2'
volumes:
orderer.example.com:
peer0.org1.example.com:
peer1.org1.example.com:
peer2.org1.example.com:
peer0.org2.example.com:
peer1.org2.example.com:
peer2.org2.example.com:
peer0.org3.example.com:
peer1.org3.example.com:
networks:
byfn:
services:
orderer.example.com:
extends:
file: base/docker-compose-base.yaml
service: orderer.example.com
container_name: orderer.example.com
networks:
- byfn
couchdb0:
container_name: couchdb0
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "5984:5984"
networks:
- byfn
peer0.org1.example.com:
container_name: peer0.org1.example.com
extends:
file: base/docker-compose-base.yaml
service: peer0.org1.example.com
depends_on:
- couchdb0
networks:
- byfn
couchdb1:
container_name: couchdb1
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "6984:5984"
networks:
- byfn
peer1.org1.example.com:
container_name: peer1.org1.example.com
extends:
file: base/docker-compose-base.yaml
service: peer1.org1.example.com
depends_on:
- couchdb1
networks:
- byfn
couchdb2:
container_name: couchdb2
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "7984:5984"
networks:
- byfn
peer2.org1.example.com:
container_name: peer2.org1.example.com
extends:
file: base/docker-compose-base.yaml
service: peer2.org1.example.com
depends_on:
- couchdb2
networks:
- byfn
couchdb3:
container_name: couchdb3
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "8984:5984"
networks:
- byfn
peer0.org2.example.com:
container_name: peer0.org2.example.com
extends:
file: base/docker-compose-base.yaml
service: peer0.org2.example.com
depends_on:
- couchdb3
networks:
- byfn
couchdb4:
container_name: couchdb4
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "9984:5984"
networks:
- byfn
peer1.org2.example.com:
container_name: peer1.org2.example.com
extends:
file: base/docker-compose-base.yaml
service: peer1.org2.example.com
depends_on:
- couchdb4
networks:
- byfn
couchdb5:
container_name: couchdb5
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "10084:5984"
networks:
- byfn
peer2.org2.example.com:
container_name: peer2.org2.example.com
extends:
file: base/docker-compose-base.yaml
service: peer2.org2.example.com
depends_on:
- couchdb5
networks:
- byfn
couchdb6:
container_name: couchdb6
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "11084:5984"
networks:
- byfn
peer0.org3.example.com:
container_name: peer0.org3.example.com
extends:
file: base/docker-compose-base.yaml
service: peer0.org3.example.com
depends_on:
- couchdb6
networks:
- byfn
couchdb7:
container_name: couchdb7
image: hyperledger/fabric-couchdb
environment:
- COUCHDB_USER=
- COUCHDB_PASSWORD=
ports:
- "12084:5984"
networks:
- byfn
peer1.org3.example.com:
container_name: peer1.org3.example.com
extends:
file: base/docker-compose-base.yaml
service: peer1.org3.example.com
depends_on:
- couchdb7
networks:
- byfn
cli1:
container_name: cli1
image: hyperledger/fabric-tools:$IMAGE_TAG
tty: true
stdin_open: true
environment:
- SYS_CHANNEL=$SYS_CHANNEL
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
#- FABRIC_LOGGING_SPEC=DEBUG
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_ID=cli1
- CORE_PEER_ADDRESS=peer0.org1.example.com:7051
- CORE_PEER_LOCALMSPID=Org1MSP
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: /bin/bash
volumes:
- /var/run/:/host/var/run/
- ./../chaincode/:/opt/gopath/src/github.com/chaincode
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./scripts:/opt/gopath/src/github.com/hyperledger/fabric/peer/scripts/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
depends_on:
- orderer.example.com
- peer0.org1.example.com
- peer1.org1.example.com
- peer2.org1.example.com
networks:
- byfn
cli2:
container_name: cli2
image: hyperledger/fabric-tools:$IMAGE_TAG
tty: true
stdin_open: true
environment:
- SYS_CHANNEL=$SYS_CHANNEL
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
#- FABRIC_LOGGING_SPEC=DEBUG
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_ID=cli2
- CORE_PEER_ADDRESS=peer0.org2.example.com:9051
- CORE_PEER_LOCALMSPID=Org2MSP
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: /bin/bash
volumes:
- /var/run/:/host/var/run/
- ./../chaincode/:/opt/gopath/src/github.com/chaincode
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./scripts:/opt/gopath/src/github.com/hyperledger/fabric/peer/scripts/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
depends_on:
- orderer.example.com
- peer0.org2.example.com
- peer1.org2.example.com
- peer2.org2.example.com
networks:
- byfn
cli3:
container_name: cli3
image: hyperledger/fabric-tools:$IMAGE_TAG
tty: true
stdin_open: true
environment:
- SYS_CHANNEL=$SYS_CHANNEL
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
#- FABRIC_LOGGING_SPEC=DEBUG
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_ID=cli3
- CORE_PEER_ADDRESS=peer0.org3.example.com:11051
- CORE_PEER_LOCALMSPID=Org3MSP
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: /bin/bash
volumes:
- /var/run/:/host/var/run/
- ./../chaincode/:/opt/gopath/src/github.com/chaincode
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./scripts:/opt/gopath/src/github.com/hyperledger/fabric/peer/scripts/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
depends_on:
- orderer.example.com
- peer0.org3.example.com
- peer1.org3.example.com
networks:
- byfn
2.8.2 生成加密材料、证书
cryptogen generate --config=./crypto-config.yaml
2.8.3 生成创世区块、通道配置交易和锚节点更新配置文件
告诉 configtxgen 工具去哪儿寻找它需要的 configtx.yaml 文件
export FABRIC_CFG_PATH=$PWD
mkdir channel-artifacts
2.8.3.1 生成创世区块 ####
configtxgen -profile ThreeOrgsOrdererGenesis -channelID byfn-sys-channel -outputBlock ./channel-artifacts/genesis.block
上面命令中 -profile ThreeOrg3OrdererGenesis 是我们在configtx.yaml末尾的Profiles中定义的系统级配置
2.8.3.2 创建通道配置交易 ####
1.创建通道channel1的通道配置交易channel1.tx(tx就是交易的意思 transactions)
configtxgen -profile ThreeOrgsChannel1 -outputCreateChannelTx ./channel-artifacts/channel1.tx -channelID channel1
-profile ThreeOrg3Channel1 是在configtx.yaml定义的通道级配置，这个配置指定生成的通道中包含的只有Org1和Org2的成员
2.创建通道channel2的通道配置交易channel2.tx
configtxgen -profile ThreeOrgsChannel2 -outputCreateChannelTx ./channel-artifacts/channel2.tx -channelID channel2
-profile ThreeOrg3Channel1 也是在configtx.yaml定义的通道级配置，这个配置指定生成的通道中包含的只有Org2和Org3的成员
2.8.3.3 为各通道上的各个组织定义锚节点 ####
为通道channel1上的 Org1 定义锚节点
configtxgen -profile ThreeOrgsChannel1 -outputAnchorPeersUpdate ./channel-artifacts/Channel1Org1MSPanchors.tx -channelID channel1 -asOrg Org1MSP
为通道channel1上的 Org2 定义锚节点
configtxgen -profile ThreeOrgsChannel1 -outputAnchorPeersUpdate ./channel-artifacts/Channel1Org2MSPanchors.tx -channelID channel1 -asOrg Org2MSP
为通道上channel2的Org2定义锚节点
configtxgen -profile ThreeOrgsChannel2 -outputAnchorPeersUpdate ./channel-artifacts/Channel2Org2MSPanchors.tx -channelID channel2 -asOrg Org2MSP
为通道上channel2的Org2定义锚节点
configtxgen -profile ThreeOrgsChannel2 -outputAnchorPeersUpdate ./channel-artifacts/Channel2Org3MSPanchors.tx -channelID channel2 -asOrg Org3MSP
注意定义不同通道上的组织锚节点时，使用的通道级配置是不同的！其中Org2不仅加入了通道1也加入了通道2，因此它的锚节点会被定义两次。
2.8.4 启动网络

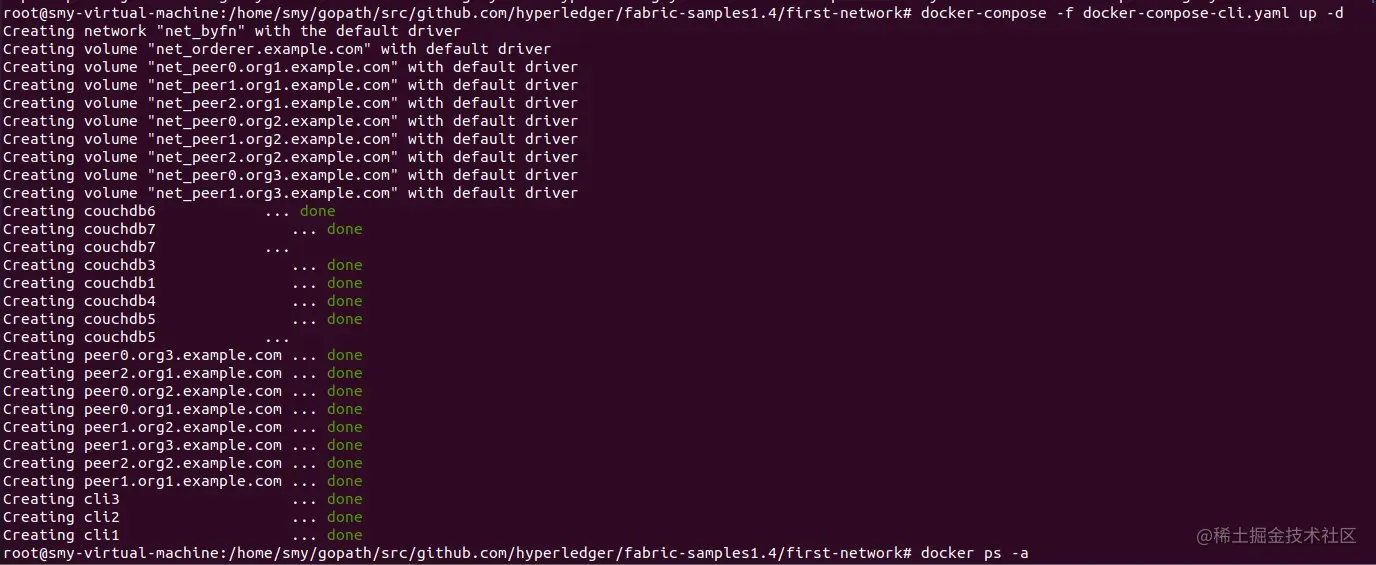

现在启动网络进行测试：
docker-compose -f docker-compose-cli.yaml

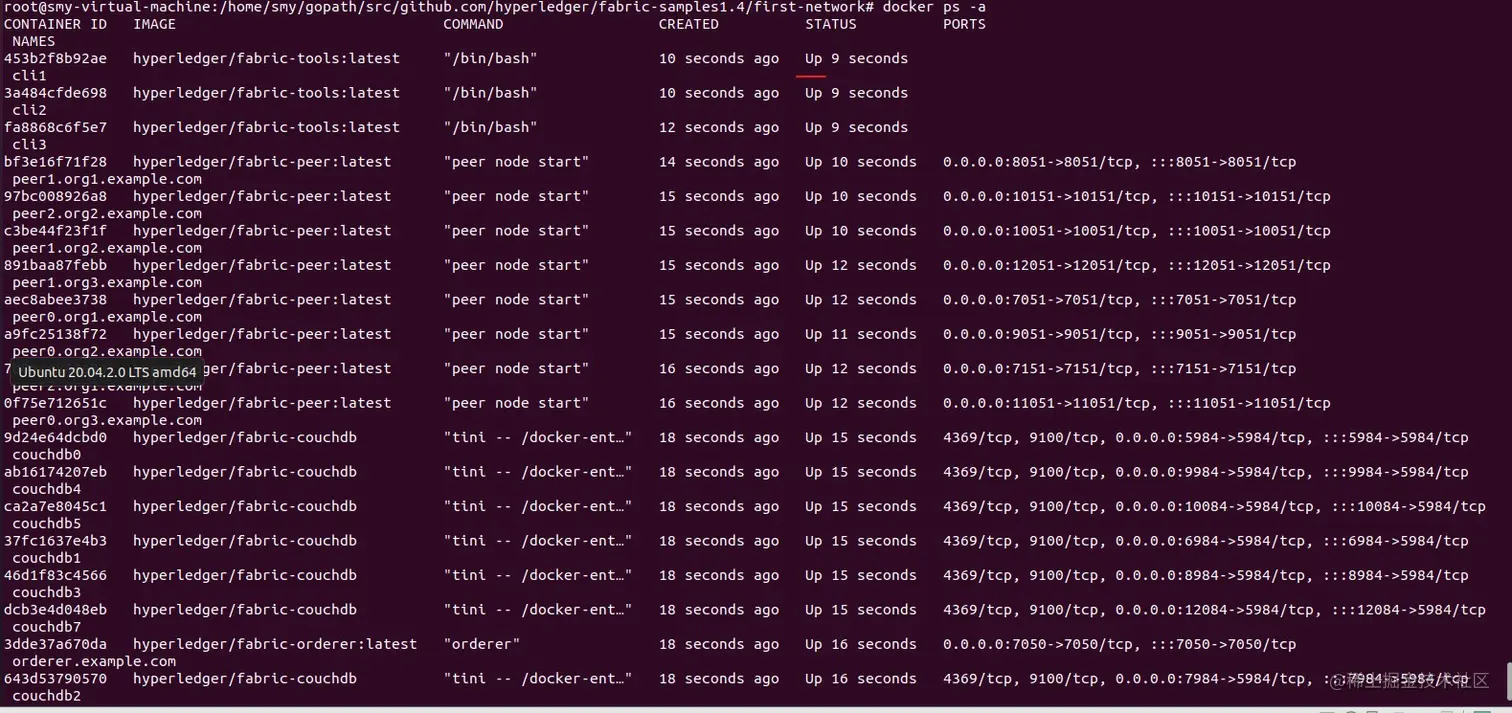

查看容器状态：
docker ps -a
如果您的配置正确，您所有容器的状态都应该时Up（启动），若有几个容器状态（Exited）请重新检查配置文件，重新生成相关材料。
开启三个终端 分别进入cli1、cli2、cli3 中
在终端1：
docker exec -it cli1 bash
在终端2：
docker exec -it cli2 bash
在终端3：
docker exec -it cli3 bash
2.8.5 创建通道并加入通道 ###
进入cli1默认身份为peer0.org1.example.com
进入cli2默认身份为peer0.org2.example.com
进入cli3默认身份为peer0.org3.exmaple.com
2.8.5.1 创建通道channel1 ####
在联盟1中仅包含Org1和Org2，因此只有以组织1和组织2的节点身份才能有权限创建通道1，下面这个命令在cli1或者cli2均可执行，以cli1为例：
peer channel create -o orderer.example.com:7050 -c channel1 -f ./channel-artifacts/channel1.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
通道创建成功，并生成了一个区块文件channel1.block
若我们以组织3的节点身份创建通道1，会报下面的错误(无权限)
2.8.5.2 创建通道channel2
在联盟2中仅包含Org2和Org3,因此只有以组织2和组织3的节点身份才能有权限创建通道2，下面这个命令在cli2或者cli3均可执行，以cli2为例：
peer channel create -o orderer.example.com:7050 -c channel2 -f ./channel-artifacts/channel2.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2.8.5.3 将Org1的所有节点都加入通道1
下面操作均在cli1中执行
peer0.org1.example.com加入channel1
peer channel join -b channel1.block
peer1.org1.example.com加入channel1
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp CORE_PEER_ADDRESS=peer1.org1.example.com:8051 CORE_PEER_LOCALMSPID="Org1MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt
peer channel join -b channel1.block
peer2.org1.example.com加入channel1
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp CORE_PEER_ADDRESS=peer2.org1.example.com:7151 CORE_PEER_LOCALMSPID="Org1MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer2.org1.example.com/tls/ca.crt
peer channel join -b channel1.block
2.8.5.4 将Org2的所有节点都加入通道1
因为加入通道1需要区块文件channel1.block，所以先将Org1创建通道生成的channl1.block复制到cli2中
下面操作在终端1执行
将channel1.block从cli1复制到本地终端
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel1.block ./
将channel1.block从本地终端复制到cli2中
docker cp channel1.block cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/
下面操作均在cli2中执行
peer0.org2.exmaple.com加入通道1
peer channel join -b channel1.block
peer1.org2.exmaple.com加入通道1
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer1.org2.example.com:10051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
peer channel join -b channel1.block
peer2.org2.exmaple.com加入通道1
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer2.org2.example.com:10151 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer2.org2.example.com/tls/ca.crt
peer channel join -b channel1.block
2.8.5.5 将Org2的所有节点都加入通道2
继续在cli2中操作
peer0.org2.exmaple.com加入通道2
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer0.org2.example.com:9051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
peer channel join -b channel2.block
peer1.org2.exmaple.com加入通道2
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer1.org2.example.com:10051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt
peer channel join -b channel2.block
peer2.org2.exmaple.com加入通道2
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer2.org2.example.com:10151 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer2.org2.example.com/tls/ca.crt
peer channel join -b channel2.block
2.8.5.6 将Org3所有节点加入通道2
将节点加入通道2需要区块文件channel2.block，先将区块文件从cli2复制到cli3中
我们回到终端2，将channel2.block复制到本地终端
docker cp cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel2.block ./
将本地终端目录下的channel2.block复制到cli3中
docker cp channel2.block cli3:/opt/gopath/src/github.com/hyperledger/fabric/peer/
下面操作全部在cli3中执行
peer0.org3.exmaple.com加入通道2
peer channel join -b channel2.block
peer1.org3.exmaple.com加入通道2
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp CORE_PEER_ADDRESS=peer1.org3.example.com:12051 CORE_PEER_LOCALMSPID="Org3MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer1.org3.example.com/tls/ca.crt
peer channel join -b channel2.block
2.8.6 更新锚节点
2.8.6.1 更新通道1上的组织1的锚节点 将通道channel1上的Org1 的锚节点定义为 peer0.org1.example.com（cli1中）
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp CORE_PEER_ADDRESS=peer0.org1.example.com:7051 CORE_PEER_LOCALMSPID="Org1MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
peer channel update -o orderer.example.com:7050 -c channel1 -f ./channel-artifacts/Channel1Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2.8.6.2 更新通道1上的组织2的锚节点
将通道channel1上的Org2 的锚节点定义为 peer0.org2.example.com （cli2中）
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer0.org2.example.com:9051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
peer channel update -o orderer.example.com:7050 -c channel1 -f ./channel-artifacts/Channel1Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2.8.6.3 更新通道2上的组织2的锚节点 将通道channel2上的Org2 的锚节点定义为 peer0.org2.example.com （cli2中）
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer0.org2.example.com:9051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
peer channel update -o orderer.example.com:7050 -c channel2 -f ./channel-artifacts/Channel2Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2.8.6.4 更新通道2上的组织3的锚节点 将通道channel2上的Org3 的锚节点定义为 peer0.org3.example.com （cli3中）
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp CORE_PEER_ADDRESS=peer0.org3.example.com:11051 CORE_PEER_LOCALMSPID="Org3MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/ca.crt
peer channel update -o orderer.example.com:7050 -c channel2 -f ./channel-artifacts/Channel2Org3MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
2.8.7 安装并实例化链码
2.8.7.1 在通道channel1上的peer0.Org1安装链码mycc (cli1中)
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp CORE_PEER_ADDRESS=peer0.org1.example.com:7051 CORE_PEER_LOCALMSPID="Org1MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/chaincode_example02/go/
2.8.7.2 在通道channel1上的peer0.Org2安装链码mycc (cli2中)
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp CORE_PEER_ADDRESS=peer0.org2.example.com:9051 CORE_PEER_LOCALMSPID="Org2MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/chaincode_example02/go/
2.8.7.3 在通道channel2上的peer0.org2安装链码marble（cli2中）
peer chaincode install -n marbles -v 1.0 -p github.com/chaincode/marbles02/go
2.8.7.4 在通道channel2上的peer0.org3安装链码marbles (cli3中)
CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/users/Admin@org3.example.com/msp CORE_PEER_ADDRESS=peer0.org3.example.com:11051 CORE_PEER_LOCALMSPID="Org3MSP" CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org3.example.com/peers/peer0.org3.example.com/tls/ca.crt
peer chaincode install -n marbles -v 1.0 -p github.com/chaincode/marbles02/go
2.8.7.5 在通道channel1上实例化链码mycc (cli1)
peer chaincode instantiate -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel1 -n mycc -v 1.0 -c '{"Args":["init","a","100","b","200"]}' -P "AND ('Org1MSP.peer','Org2MSP.peer')"
2.8.7.6 在通道channel2上实例化链码marbles (cli2）
peer chaincode instantiate -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -v 1.0 -c '{"Args":["init"]}' -P "OR ('Org2MSP.peer','Org3MSP.peer')"
2.8.8 与链码交互

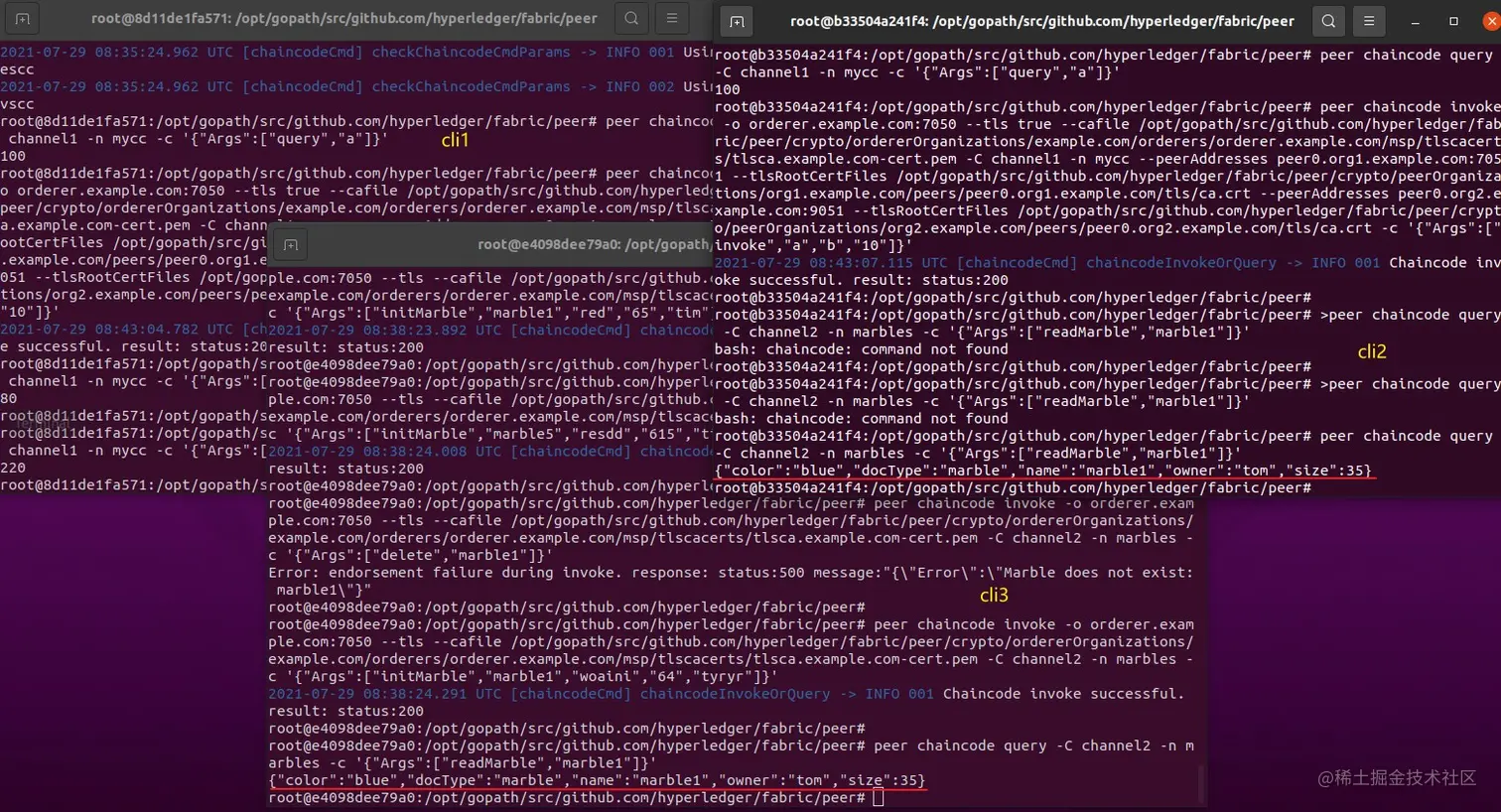

2.8.8.1 创建一些marbles的例子 （cli3）
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble1","blue","35","tom"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble2","red","50","tom"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble3","blue","70","tom"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble4","blue","35","tom"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["delete","marble1"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble1","red","65","tim"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble5","resdd","615","timid"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["delete","marble1"]}'
peer chaincode invoke -o orderer.example.com:7050 --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel2 -n marbles -c '{"Args":["initMarble","marble1","woaini","64","tyryr"]}'
2.8.8.2 查询
查询通道channel1上的链码mycc中键为a的值(cli1 OR cli2)
peer chaincode query -C channel1 -n mycc -c '{"Args":["query","a"]}'
2.8.8.2 调用

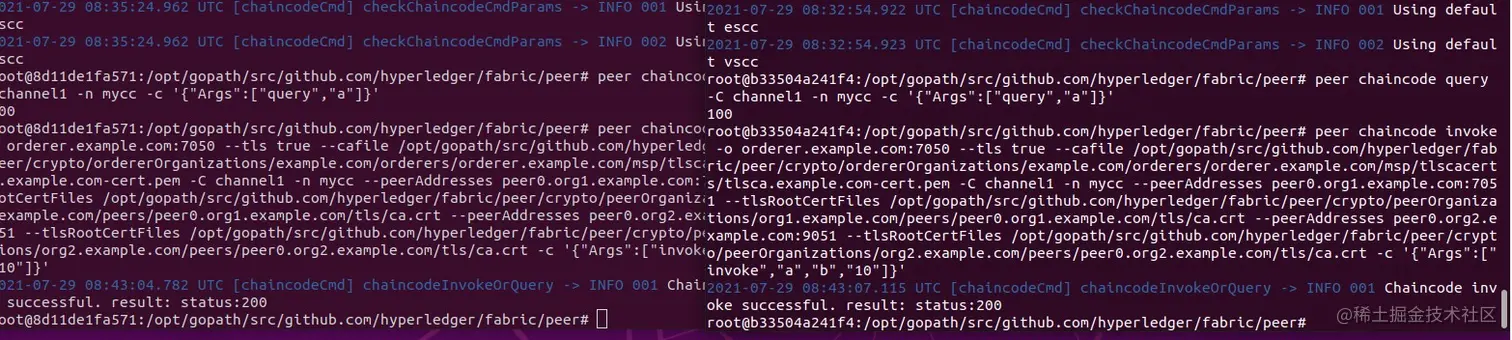

a向b转账10 （同时在cli1 cli2操作 一共转账两次）
peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C channel1 -n mycc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["invoke","a","b","10"]}'

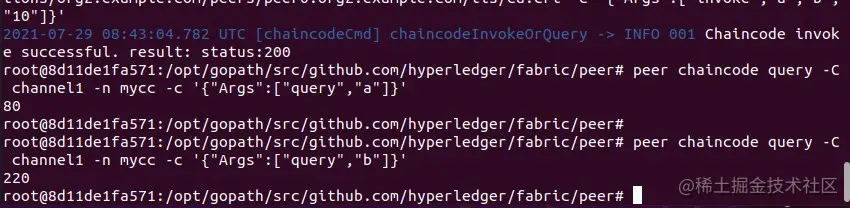

再次查询键为a的值并查询键为b的值
peer chaincode query -C channel1 -n mycc -c '{"Args":["query","a"]}'
peer chaincode query -C channel1 -n mycc -c '{"Args":["query","b"]}'

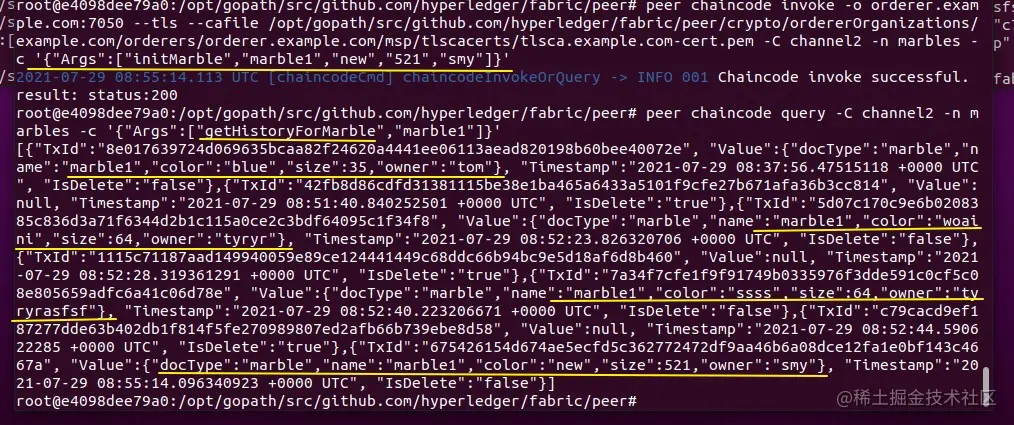

查询通道2上的链码marbles1的当前值（世界状态）以及它的交易历史（交易日志）
下面这个命令在cli2,cli3均可执行：
peer chaincode query -C channel2 -n marbles -c '{"Args":["readMarble","marble1"]}'
下面这个命令在cli2，cli3均可执行：
peer chaincode query -C channel2 -n marbles -c '{"Args":["getHistoryForMarble","marble1"]}'
将marble1所有历史记录（包括当前最新状态，在最下面）都显示出来
至此我们的设计就完成了，希望大家多多思考，自己多动手运行，争取理解多个联盟共存时，是如何通过通道实现隔离通信的，希望上述例子能够帮助你更好的理解fabric网络各组件的作用和运行逻辑。到此我们v1.4版本讲解结束，我们下面进入到v2.0以上版本的讲解。
