4.2 三机部署
在上一节中，我们尝试实现了在不同虚拟机上配置fabric网络，并实现了在虚拟机2上的操作和fabric网络的其他各节点中同步。在此基础上，我们尝试扩展一个虚拟机，实现在三台虚拟机上fabric网络同步。下面我们将详细介绍三机部署的配置过程
硬件环境：3台Ubuntu虚拟机
软件环境：
1.fabric v2.2.0 （2.x版本额均可）
2.go v1.15
3.dokcer 20.10.7
4.docker-compose 1.29.2
4.2.1 部署前环境准备
Hyperledger Fabric 2.x 生产环境的分布式部署，在三台虚拟机上分别安装好上述fabric环境
请参考双机部署中第1，2部分的详细介绍，在此不再赘述。
4.2.2 建立多机部署文件夹
在三台虚拟机上都需要建立
cd /home/xxxx/gopath/src/github.com/hyperledger
mkdir -p amops/multiple-deployment
4.2.3 设置Fabric服务的地址映射
三台虚拟机都需要配置

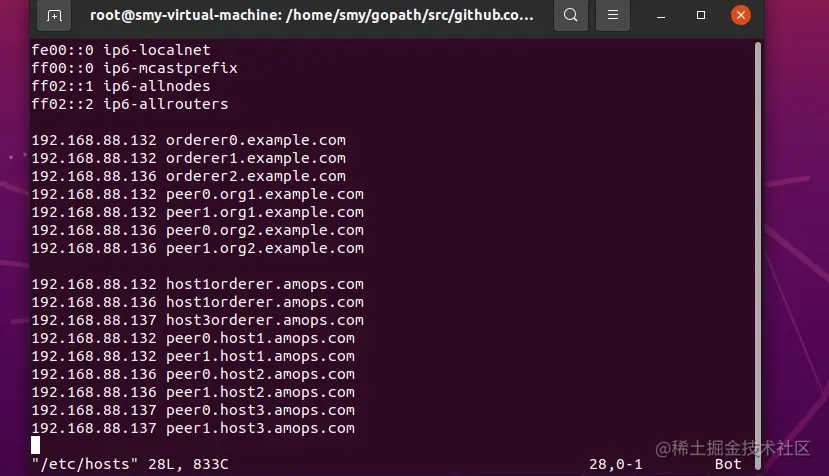

sudo vim /etc/hosts
把以下内容填充至hosts文件中，IP需要按实际情况更改
192.168.xxx.xxx host1orderer.amops.com 192.168.xxx.xxx host2orderer.amops.com 192.168.xxx.xxx host3orderer.amops.com 192.168.xxx.xxx peer0.host1.amops.com 192.168.xxx.xxx peer1.host1.amops.com 192.168.xxx.xxx peer0.host2.amops.com 192.168.xxx.xxx peer1.host2.amops.com 192.168.xxx.xxx peer0.host3.amops.com 192.168.xxx.xxx peer1.host3.amops.com
重启服务器网络
sudo service network-manager restart
4.2.4 建立链码文件夹，部署两个链码
仅需要在服务器1上操作即可
我们使用官方提供的两个链码（fabcar和sacc）
cd amops/multiple-deployment
mkdir chaincode
然后将示例提供的fabcar复制到chaincode目录下
cp -r ../../fabric-samples/chaincode/fabcar ./chaincode/
将示例提供的sacc复制到chaincode目录下
cp -r ../../fabric-samples/chaincode/sacc ./chaincode/
到链码文件夹下，下载链码的依赖文件
cd chaincode/fabcar/go/
go env -w GOPROXY=goproxy.io,direct go env -w GO111MODULE=on go mod vendor
cd ../../sacc/
go mod vendor
4.2.5 生成加密材料、证书和创世区块、通道交易配置和锚节点更新文件
在服务器1 的multiple-deployment文件夹下新建crypto-config.yaml文件和configtx.yaml文件（证书密钥和交易配置文件），用于生产证书、密钥、创世区块等文件（注：服务器2、3不用建这两个文件）
回到multiple-deployment目录下
touch crypto-config.yaml
touch configtx.yaml
将以下内容写进crypto-config.yaml文件中
OrdererOrgs:
- Name: Orderer
Domain: amops.com
Specs:
- Hostname: host1orderer
- Hostname: host2orderer
- Hostname: host3orderer
PeerOrgs:
- Name: Host1
Domain: host1.amops.com
EnableNodeOUs: true
Template:
Count: 2 #生成证书的数量
Users:
Count: 1 #生成用户证书个数
- Name: Host2
Domain: host2.amops.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
- Name: Host3
Domain: host3.amops.com
EnableNodeOUs: true
Template:
Count: 2
Users:
Count: 1
将以下内容写进configtx.yaml文件中
Organizations:
- &OrdererOrg
Name: OrdererOrg
ID: OrdererMSP
MSPDir: crypto-config/ordererOrganizations/amops.com/msp
Policies:
Readers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Writers:
Type: Signature
Rule: "OR('OrdererMSP.member')"
Admins:
Type: Signature
Rule: "OR('OrdererMSP.admin')"
- &Host1
Name: Host1MSP
ID: Host1MSP
MSPDir: crypto-config/peerOrganizations/host1.amops.com/msp
Policies:
Readers:
Type: Signature
Rule: "OR('Host1MSP.admin', 'Host1MSP.peer', 'Host1MSP.client')"
Writers:
Type: Signature
Rule: "OR('Host1MSP.admin', 'Host1MSP.client')"
Admins:
Type: Signature
Rule: "OR('Host1MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Host1MSP.peer')"
AnchorPeers:
- Host: peer0.host1.amops.com
Port: 7051
- &Host2
Name: Host2MSP
ID: Host2MSP
MSPDir: crypto-config/peerOrganizations/host2.amops.com/msp
Policies:
Readers:
Type: Signature
Rule: "OR('Host2MSP.admin', 'Host2MSP.peer', 'Host2MSP.client')"
Writers:
Type: Signature
Rule: "OR('Host2MSP.admin', 'Host2MSP.client')"
Admins:
Type: Signature
Rule: "OR('Host2MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Host2MSP.peer')"
AnchorPeers:
- Host: peer0.host2.amops.com
Port: 7051
- &Host3
Name: Host3MSP
ID: Host3MSP
MSPDir: crypto-config/peerOrganizations/host3.amops.com/msp
Policies:
Readers:
Type: Signature
Rule: "OR('Host3MSP.admin', 'Host3MSP.peer', 'Host3MSP.client')"
Writers:
Type: Signature
Rule: "OR('Host3MSP.admin', 'Host3MSP.client')"
Admins:
Type: Signature
Rule: "OR('Host3MSP.admin')"
Endorsement:
Type: Signature
Rule: "OR('Host3MSP.peer')"
AnchorPeers:
- Host: peer0.host3.amops.com
Port: 7051
Capabilities:
Channel: &ChannelCapabilities
V2_0: true
Orderer: &OrdererCapabilities
V2_0: true
Application: &ApplicationCapabilities
V2_0: true
Application: &ApplicationDefaults
Organizations:
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
LifecycleEndorsement:
Type: ImplicitMeta
Rule: "MAJORITY Endorsement"
Endorsement:
Type: ImplicitMeta
Rule: "MAJORITY Endorsement"
Capabilities:
<<: *ApplicationCapabilities
Orderer: &OrdererDefaults
OrdererType: etcdraft
Addresses: # orderer 集群节点
- host1orderer.amops.com:7050
- host2orderer.amops.com:7050
- host3orderer.amops.com:7050
# Batch Timeout: The amount of time to wait before creating a batch
BatchTimeout: 2s
# Batch Size: Controls the number of messages batched into a block
BatchSize:
MaxMessageCount: 10
AbsoluteMaxBytes: 99 MB
PreferredMaxBytes: 512 KB
Organizations:
Policies:
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
# BlockValidation specifies what signatures must be included in the block
# from the orderer for the peer to validate it.
BlockValidation:
Type: ImplicitMeta
Rule: "ANY Writers"
Channel: &ChannelDefaults
Policies:
# Who may invoke the 'Deliver' API
Readers:
Type: ImplicitMeta
Rule: "ANY Readers"
# Who may invoke the 'Broadcast' API
Writers:
Type: ImplicitMeta
Rule: "ANY Writers"
# By default, who may modify elements at this config level
Admins:
Type: ImplicitMeta
Rule: "MAJORITY Admins"
Capabilities:
<<: *ChannelCapabilities
Profiles:
ThreeOrgsChannel:
Consortium: SampleConsortium
<<: *ChannelDefaults
Application:
<<: *ApplicationDefaults
Organizations:
- *Host1
- *Host2
- *Host3
Capabilities:
<<: *ApplicationCapabilities
SampleMultiNodeEtcdRaft:
<<: *ChannelDefaults
Capabilities:
<<: *ChannelCapabilities
Orderer:
<<: *OrdererDefaults
OrdererType: etcdraft
EtcdRaft:
Consenters:
- Host: host1orderer.amops.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/tls/server.crt
- Host: host2orderer.amops.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host2orderer.amops.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host2orderer.amops.com/tls/server.crt
- Host: host3orderer.amops.com
Port: 7050
ClientTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host3orderer.amops.com/tls/server.crt
ServerTLSCert: crypto-config/ordererOrganizations/amops.com/orderers/host3orderer.amops.com/tls/server.crt
Addresses:
- host1orderer.amops.com:7050
- host2orderer.amops.com:7050
- host3orderer.amops.com:7050
Organizations:
- *OrdererOrg
Capabilities:
<<: *OrdererCapabilities
Application:
<<: *ApplicationDefaults
Organizations:
- <<: *OrdererOrg
Consortiums:
SampleConsortium:
Organizations:
- *Host1
- *Host2
- *Host3
服务器1的操作：生成证书、密钥、创世区块、各组织的交易配置文件等

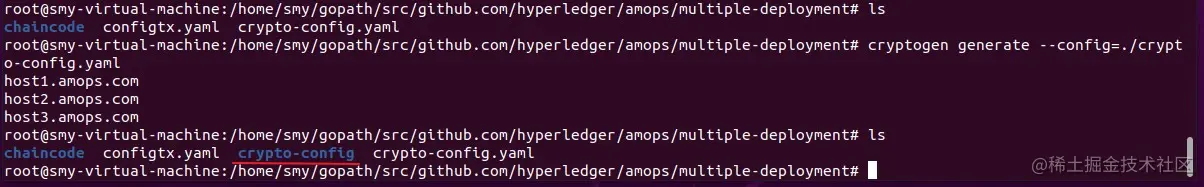

生成crypto-config.yaml定义的证书文件
cryptogen generate --config=./crypto-config.yaml

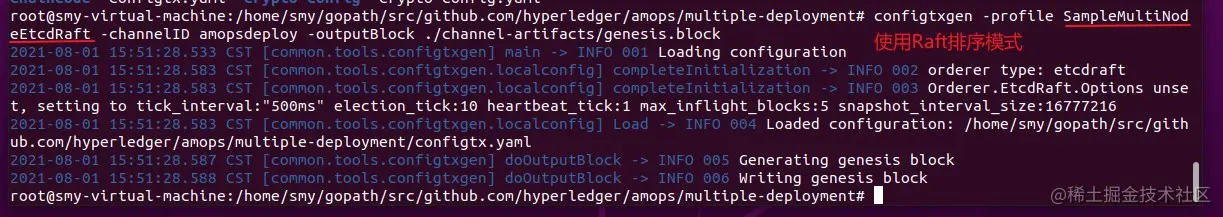

生成创世区块
configtxgen -profile SampleMultiNodeEtcdRaft -channelID amopsdeploy -outputBlock ./channel-artifacts/genesis.block

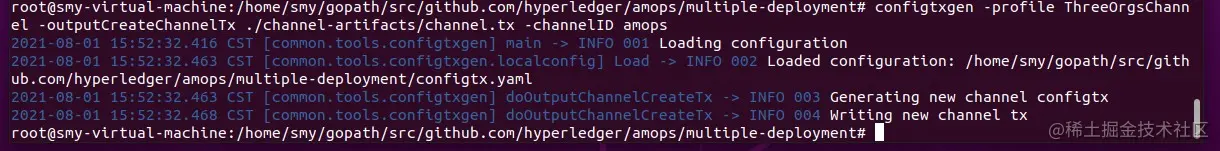

生成通道交易配置
configtxgen -profile ThreeOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID amops

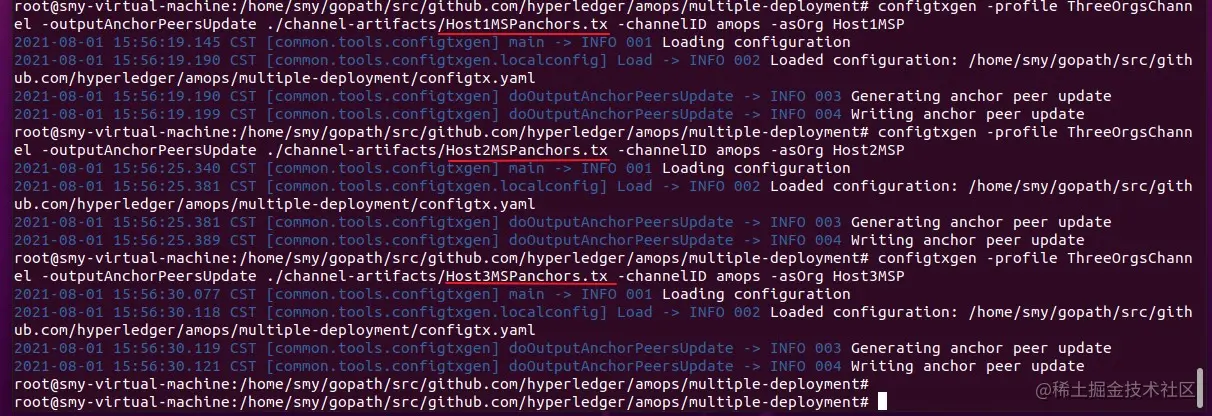

生成组织1锚节点更新配置
configtxgen -profile ThreeOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Host1MSPanchors.tx -channelID amops -asOrg Host1MSP
生成组织2锚节点更新配置
configtxgen -profile ThreeOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Host2MSPanchors.tx -channelID amops -asOrg Host2MSP
生成组织3锚节点更新配置
configtxgen -profile ThreeOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Host3MSPanchors.tx -channelID amops -asOrg Host3MSP
4.2.6 将host1所有生成的材料复制到另外两台主机（scp命令） 将生成的channel-artifacts、crypto-config文件夹拷贝至 服务器2、3 中的multiple-deployment文件夹下， 我们使用scp命令进行传输，因此需要先给服务器2，3的相应文件夹权限。
在服务器2,3上的操作
来到amops目录下
chmod 777 multiple-deployment

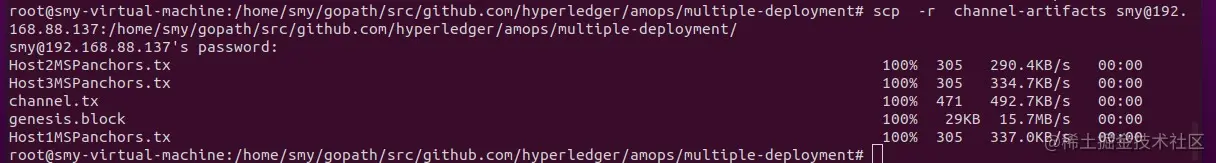

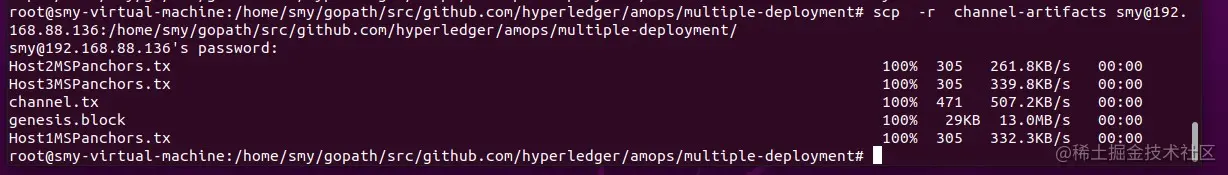

回到服务器1，执行下列操作
scp -r channel-artifacts smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
scp -r crypto-config smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
scp -r channel-artifacts smy@192.168.88.137:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
scp -r crypto-config smy@192.168.88.137:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
4.2.7 编写网络启动配置文件
同样在multiple-deployment文件夹下创建并编辑Fabric启动代码（在三台虚拟机上都需要）
touch docker-compose-up.yaml
编写Fabric启动的yaml文件，这里只展现其中一个服务器的启动代码，其他两个服务器的Fabric启动代码对照编写即可
version: '2'
services:
ca.host1.amops.com:
container_name: ca.host1.amops.com
image: hyperledger/fabric-ca
environment:
- FABRIC_CA_HOME=/etc/hyperledger/fabric-ca-server
- FABRIC_CA_SERVER_CA_NAME=ca.host1.amops.com
- FABRIC_CA_SERVER_CA_CERTFILE=/etc/hyperledger/fabric-ca-server-config/ca.host1.amops.com-cert.pem
- FABRIC_CA_SERVER_CA_KEYFILE=/etc/hyperledger/fabric-ca-server-config/priv_sk
- FABRIC_CA_SERVER_TLS_ENABLED=true
- FABRIC_CA_SERVER_TLS_CERTFILE=/etc/hyperledger/fabric-ca-server-tls/tlsca.host1.amops.com-cert.pem
- FABRIC_CA_SERVER_TLS_KEYFILE=/etc/hyperledger/fabric-ca-server-tls/priv_sk
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/ca
command: sh -c 'fabric-ca-server start -b admin:adminpw -d'
volumes:
- ./crypto-config/peerOrganizations/host1.amops.com/ca/:/etc/hyperledger/fabric-ca-server-config
- ./crypto-config/peerOrganizations/host1.amops.com/tlsca/:/etc/hyperledger/fabric-ca-server-tls
ports:
- "7054:7054"
host1orderer.amops.com:
container_name: host1orderer.amops.com
image: hyperledger/fabric-orderer
environment:
- FABRIC_LOGGING_SPEC=DEBUG
- ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
- ORDERER_GENERAL_BOOTSTRAPMETHOD=file
- ORDERER_GENERAL_BOOTSTRAPFILE=/var/hyperledger/orderer/orderer.genesis.block
- ORDERER_GENERAL_LOCALMSPID=OrdererMSP
- ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
# enabled TLS
- ORDERER_GENERAL_TLS_ENABLED=true
- ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
- ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
- ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
- ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
- ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
- ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
- ORDERER_OPERATIONS_LISTENADDRESS=0.0.0.0:8443
- ORDERER_METRICS_PROVIDER=prometheus
working_dir: /opt/gopath/src/github.com/hyperledger/fabric
command: orderer
volumes:
- ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
- ./crypto-config/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp:/var/hyperledger/orderer/msp
- ./crypto-config/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/tls/:/var/hyperledger/orderer/tls
ports:
- 7050:7050
extra_hosts:
- "host1orderer.amops.com:192.168.xxx.xxx"
- "host2orderer.amops.com:192.168.xxx.xxx"
- "host3orderer.amops.com:192.168.xxx.xxx"
peer0.host1.amops.com:
container_name: peer0.host1.amops.com
image: hyperledger/fabric-peer
environment:
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_PEER_ID=peer0.host1.amops.com
- CORE_PEER_ADDRESS=peer0.host1.amops.com:7051
- CORE_PEER_LISTENADDRESS=0.0.0.0:7051
- CORE_PEER_CHAINCODEADDRESS=peer0.host1.amops.com:7052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
- CORE_PEER_GOSSIP_BOOTSTRAP=peer0.host1.amops.com:7051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.host1.amops.com:7051
- CORE_PEER_LOCALMSPID=Host1MSP
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
# Allow more time for chaincode container to build on install.
- CORE_CHAINCODE_EXECUTETIMEOUT=300s
- CORE_OPERATIONS_LISTENADDRESS=0.0.0.0:9443
- CORE_METRICS_PROVIDER=prometheus
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /var/run/:/host/var/run/
- ./crypto-config/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls:/etc/hyperledger/fabric/tls
ports:
- 7051:7051
- 7052:7052
- 7053:7053
extra_hosts:
- "host1orderer.amops.com:192.168.xxx.xxx"
- "host2orderer.amops.com:192.168.xxx.xxx"
- "host3orderer.amops.com:192.168.xxx.xxx"
peer1.host1.amops.com:
container_name: peer1.host1.amops.com
image: hyperledger/fabric-peer
environment:
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
- CORE_PEER_ID=peer1.host1.amops.com
- CORE_PEER_ADDRESS=peer1.host1.amops.com:8051
- CORE_PEER_LISTENADDRESS=0.0.0.0:8051
- CORE_PEER_CHAINCODEADDRESS=peer1.host1.amops.com:8052
- CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:8052
- CORE_PEER_GOSSIP_BOOTSTRAP=peer1.host1.amops.com:8051
- CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.host1.amops.com:8051
- CORE_PEER_LOCALMSPID=Host1MSP
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_GOSSIP_USELEADERELECTION=true
- CORE_PEER_GOSSIP_ORGLEADER=false
- CORE_PEER_PROFILE_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
# Allow more time for chaincode container to build on install.
- CORE_CHAINCODE_EXECUTETIMEOUT=300s
- CORE_OPERATIONS_LISTENADDRESS=0.0.0.0:10443
- CORE_METRICS_PROVIDER=prometheus
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: peer node start
volumes:
- /var/run/:/host/var/run/
- ./crypto-config/peerOrganizations/host1.amops.com/peers/peer1.host1.amops.com/msp:/etc/hyperledger/fabric/msp
- ./crypto-config/peerOrganizations/host1.amops.com/peers/peer1.host1.amops.com/tls:/etc/hyperledger/fabric/tls
ports:
- 8051:8051
- 8052:8052
- 8053:8053
extra_hosts:
- "host1orderer.amops.com:192.168.xxx.xxx"
- "host2orderer.amops.com:192.168.xxx.xxx"
- "host3orderer.amops.com:192.168.xxx.xxx"
cli1:
container_name: cli1
image: hyperledger/fabric-tools
tty: true
stdin_open: true
environment:
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
#- FABRIC_LOGGING_SPEC=DEBUG
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_ID=cli1
- CORE_PEER_ADDRESS=peer0.host1.amops.com:7051
- CORE_PEER_LOCALMSPID=Host1MSP
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/users/Admin@host1.amops.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: /bin/bash
volumes:
- /var/run/:/host/var/run/
- ./chaincode/fabcar/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/fabcar/go
- ./chaincode/sacc/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/sacc/go
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
extra_hosts:
- "host1orderer.amops.com:192.168.xxx.xxx"
- "host2orderer.amops.com:192.168.xxx.xxx"
- "host3orderer.amops.com:192.168.xxx.xxx"
- "peer0.host1.amops.com:192.168.xxx.xxx"
- "peer1.host1.amops.com:192.168.xxx.xxx"
- "peer0.host2.amops.com:192.168.xxx.xxx"
- "peer1.host2.amops.com:192.168.xxx.xxx"
- "peer0.host3.amops.com:192.168.xxx.xxx"
- "peer1.host3.amops.com:192.168.xxx.xxx"
cli2:
container_name: cli2
image: hyperledger/fabric-tools
tty: true
stdin_open: true
environment:
- GOPATH=/opt/gopath
- CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
#- FABRIC_LOGGING_SPEC=DEBUG
- FABRIC_LOGGING_SPEC=INFO
- CORE_PEER_ID=cli2
- CORE_PEER_ADDRESS=peer1.host1.amops.com:8051
- CORE_PEER_LOCALMSPID=Host1MSP
- CORE_PEER_TLS_ENABLED=true
- CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer1.host1.amops.com/tls/server.crt
- CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer1.host1.amops.com/tls/server.key
- CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer1.host1.amops.com/tls/ca.crt
- CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/users/Admin@host1.amops.com/msp
working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
command: /bin/bash
volumes:
- /var/run/:/host/var/run/
- ./chaincode/fabcar/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/fabcar/go
- ./chaincode/sacc/go/:/opt/gopath/src/github.com/hyperledger/multiple-deployment/chaincode/sacc/go
- ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
- ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
extra_hosts:
- "host1orderer.amops.com:192.168.xxx.xxx"
- "host2orderer.amops.com:192.168.xxx.xxx"
- "host3orderer.amops.com:192.168.xxx.xxx"
- "peer0.host1.amops.com:192.168.xxx.xxx"
- "peer1.host1.amops.com:192.168.xxx.xxx"
- "peer0.host2.amops.com:192.168.xxx.xxx"
- "peer1.host2.amops.com:192.168.xxx.xxx"
- "peer0.host3.amops.com:192.168.xxx.xxx"
- "peer1.host3.amops.com:192.168.xxx.xxx"

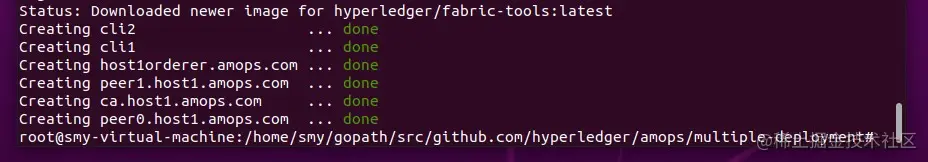

4.2.8 启动Fabric网络
在服务器1、2、3的操作
docker-compose -f docker-compose-up.yaml up -d
4.2.9 创建通道、加入通道与更新组织锚节点
服务器1的操作
进入cli1容器内
docker exec -it cli1 bash
创建通道(等网络启动15s后，再创建通道，Raft选举leader需要时间)
peer channel create -o host1orderer.amops.com:7050 -c amops -f ./channel-artifacts/channel.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
将host1.peer0.amops.com加入通道
peer channel join -b amops.block
更新组织host1锚节点
peer channel update -o host1orderer.amops.com:7050 -c amops -f ./channel-artifacts/Host1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
退出cli1容器，将区块文件amops.block从容器中拷贝出来，拷贝至cli2容器中，使host1.peer1.amops.com也加入区块中
退出容器
exit
将容器1中的通道区块文件复制到本地
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/amops.block ./
将本地文件复制到容器cli2中
docker cp amops.block cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/

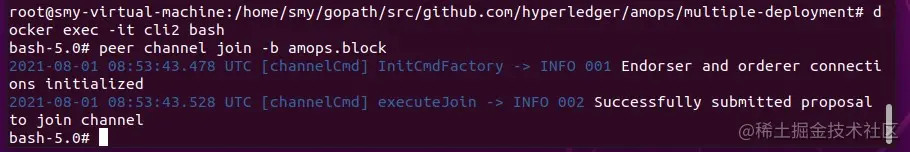

进入容器cli2
docker exec -it cli2 bash
host1.peer1节点加入通道
peer channel join -b amops.block
将amops.block区块文件拷贝至服务器2、3
scp amops.block smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
scp amops.block smy@192.168.88.137:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment/
服务器2的操作：节点0、1加入通道，并更新组织2的锚节点
将amops.block复制到cli1,cli2
docker cp amops.block cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/
docker cp amops.block cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/
进入cli1容器中
docker exec -it cli1 bash

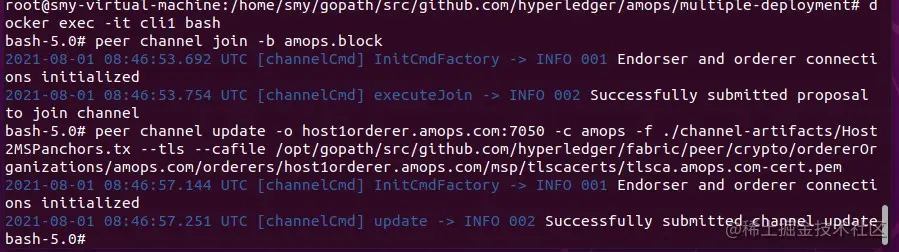

peer0.host2节点加入通道
peer channel join -b amops.block
更新组织2的锚节点
peer channel update -o host1orderer.amops.com:7050 -c amops -f ./channel-artifacts/Host2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
退出cli1，来到cli2容器
exit
docker exec -it cli2 bash
peer1.host2节点加入通道
peer channel join -b amops.block
服务器3的操作：节点0、1加入通道，并更新组织3的锚节点
将amops.block复制到cli1,cli2下
docker cp amops.block cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/
docker cp amops.block cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/
进入cli1
docker exec -it cli1 bash
将peer0.host3节点加入通道
peer channel join -b amops.block
更新组织3锚节点
peer channel update -o host1orderer.amops.com:7050 -c amops -f ./channel-artifacts/Host3MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
进入容器2
docker exec -it cli2 bash
将peer1.host3节点加入通道
peer channel join -b amops.block
4.2.10 打包并安装链码
4.2.10.1 虚拟机11的操作
进入cli1中，
docker exec -it cli1 bash

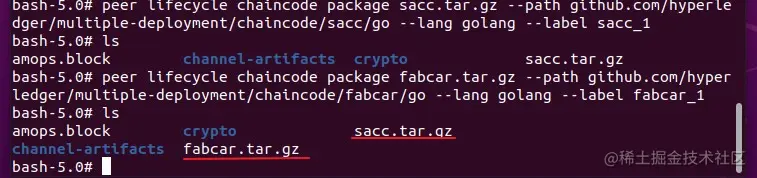

打包链码sacc
peer lifecycle chaincode package sacc.tar.gz --path github.com/hyperledger/multiple-deployment/chaincode/sacc --lang golang --label sacc_1
打包链码fabcar
peer lifecycle chaincode package fabcar.tar.gz --path github.com/hyperledger/multiple-deployment/chaincode/fabcar/go --lang golang --label fabcar_1

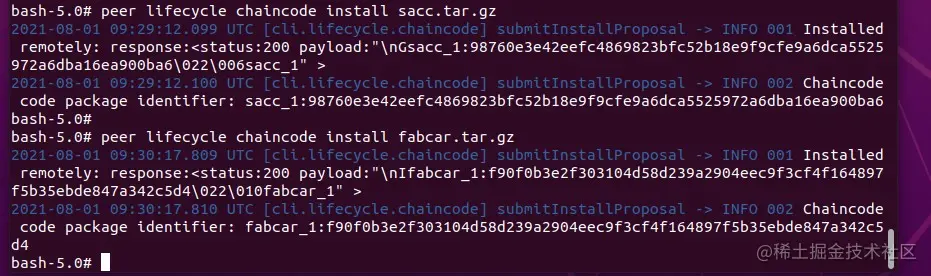

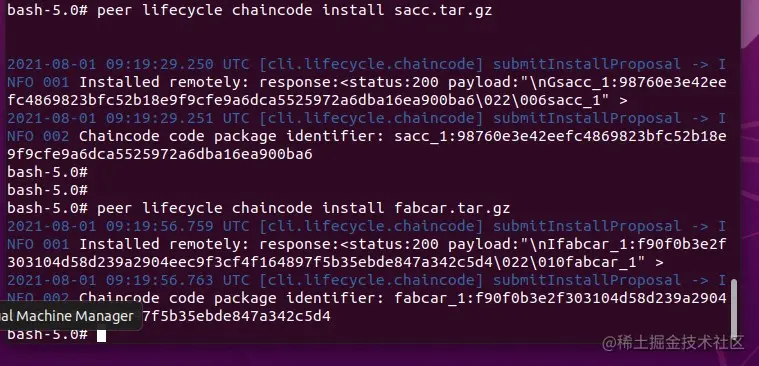

在peer0上安装链码sacc
peer lifecycle chaincode install sacc.tar.gz
在peer0上安装链码fabcar
peer lifecycle chaincode install fabcar.tar.gz
将cli1的链码先复制到本地
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/sacc.tar.gz ./
docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/fabcar.tar.gz ./
将本地的链码复制到cli2容器中
docker cp sacc.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/
docker cp fabcar.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer/
进入cli2容器中，并在peer1安装这两个链码
docker exec -it cli2 bash
peer lifecycle chaincode install sacc.tar.gz
peer lifecycle chaincode install fabcar.tar.gz
将链码复制到服务器2和服务器3(回到服务器1的终端)
scp fabcar.tar.gz smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment
scp fabcar.tar.gz smy@192.168.88.137:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment
scp sacc.tar.gz smy@192.168.88.136:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment
scp sacc.tar.gz smy@192.168.88.137:/home/smy/gopath/src/github.com/hyperledger/amops/multiple-deployment
4.2.10.2 在虚拟机2上的操作
将链码复制到cli1 和 cli2
docker cp sacc.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp sacc.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp fabcar.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp fabcar.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer
进入容器cli1中
docker exec -it cli1 bash
在peer0上安装两个链码
peer lifecycle chaincode install sacc.tar.gz
peer lifecycle chaincode install fabcar.tar.gz
进入容器cli2中
docker exec -it cli2 bash
在peer1上安装两个链码
peer lifecycle chaincode install sacc.tar.gz
peer lifecycle chaincode install fabcar.tar.gz
4.2.10.3 在虚拟机3上的操作 ####
将链码复制到cli1 和 cli2
docker cp sacc.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp sacc.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp fabcar.tar.gz cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer
docker cp fabcar.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer
进入容器cli1中
docker exec -it cli1 bash
在peer0上安装两个链码
peer lifecycle chaincode install sacc.tar.gz
peer lifecycle chaincode install fabcar.tar.gz
进入容器cli2中
docker exec -it cli2 bash
在peer1上安装两个链码
peer lifecycle chaincode install sacc.tar.gz
peer lifecycle chaincode install fabcar.tar.gz

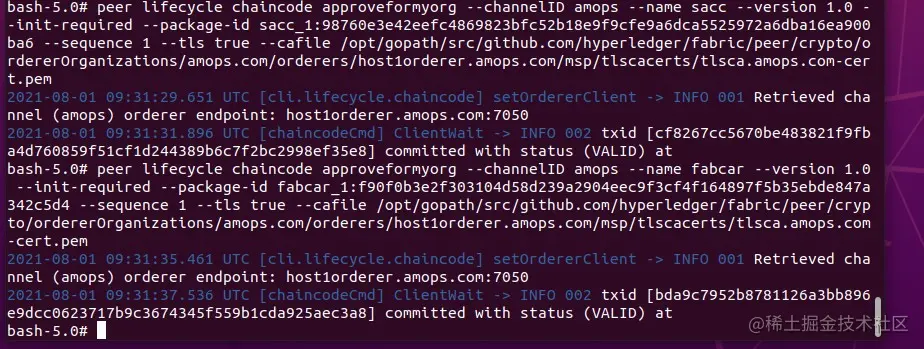

4.2.11 各组织锚节点同意提交链码
组织1同意提交链码（在虚拟机1上操作）
进入cli1容器中
docker exec -it cli1 bash
锚节点同意提交链码sacc
peer lifecycle chaincode approveformyorg --channelID amops --name sacc --version 1.0 --init-required --package-id sacc_1:98760e3e42eefc4869823bfc52b18e9f9cfe9a6dca5525972a6dba16ea900ba6 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
锚节点同意提交链码fabcar
peer lifecycle chaincode approveformyorg --channelID amops --name fabcar --version 1.0 --init-required --package-id fabcar_1:f90f0b3e2f303104d58d239a2904eec9f3cf4f164897f5b35ebde847a342c5d4 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
组织2同意提交链码（在虚拟机2上操作）
进入cli1容器中
docker exec -it cli1 bash
锚节点同意提交链码sacc
peer lifecycle chaincode approveformyorg --channelID amops --name sacc --version 1.0 --init-required --package-id sacc_1:98760e3e42eefc4869823bfc52b18e9f9cfe9a6dca5525972a6dba16ea900ba6 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
锚节点同意提交链码fabcar
peer lifecycle chaincode approveformyorg --channelID amops --name fabcar --version 1.0 --init-required --package-id fabcar_1:f90f0b3e2f303104d58d239a2904eec9f3cf4f164897f5b35ebde847a342c5d4 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
组织3同意提交链码（在虚拟机3上操作）
进入cli1容器中
docker exec -it cli1 bash
锚节点同意提交链码sacc
peer lifecycle chaincode approveformyorg --channelID amops --name sacc --version 1.0 --init-required --package-id sacc_1:98760e3e42eefc4869823bfc52b18e9f9cfe9a6dca5525972a6dba16ea900ba6 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem
锚节点同意提交链码fabcar
peer lifecycle chaincode approveformyorg --channelID amops --name fabcar --version 1.0 --init-required --package-id fabcar_1:f90f0b3e2f303104d58d239a2904eec9f3cf4f164897f5b35ebde847a342c5d4 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem

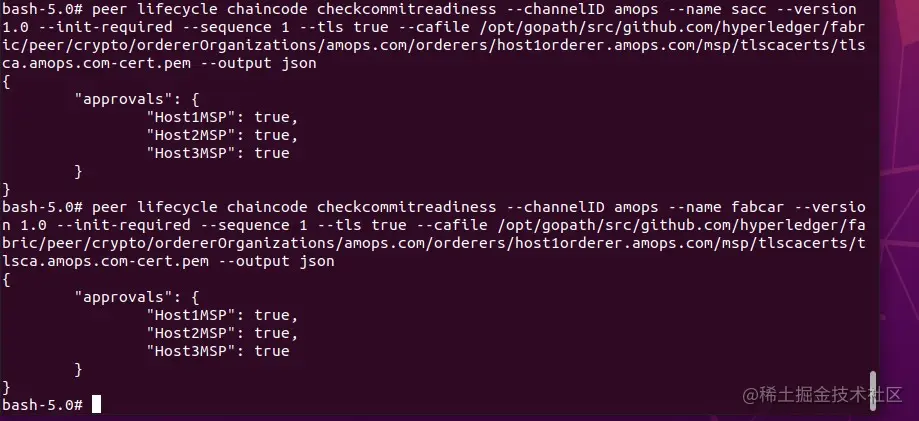

4.2.12 查看链码状态是否就绪
使用任一服务器操作都可
查询sacc链码状态是否就绪
peer lifecycle chaincode checkcommitreadiness --channelID amops --name sacc --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem --output json
查询fabcar链码状态是否就绪
peer lifecycle chaincode checkcommitreadiness --channelID amops --name fabcar --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem --output json
4.2.13 提交链码
使用任一服务器操作都可

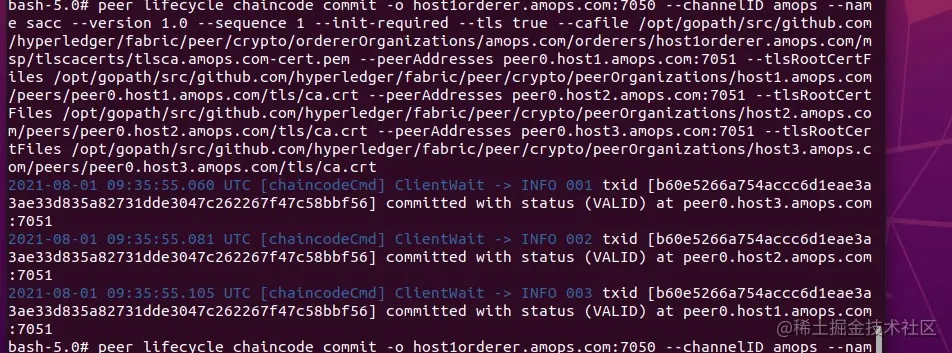

在通道上提交链码sacc
peer lifecycle chaincode commit -o host1orderer.amops.com:7050 --channelID amops --name sacc --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt

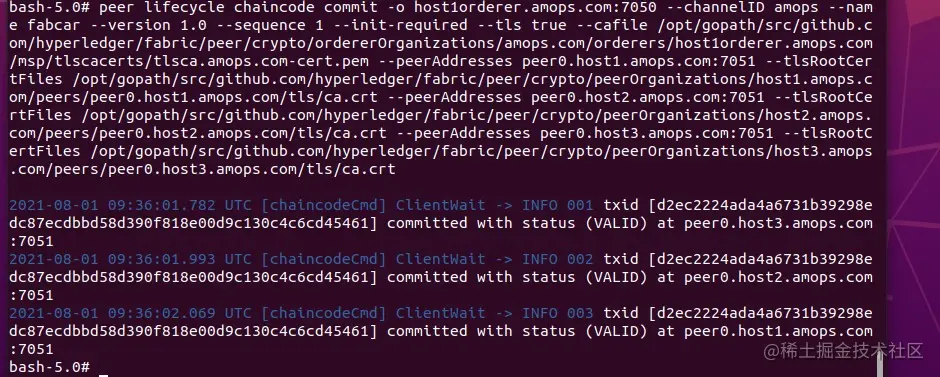

在通道上提交链码fabcar
peer lifecycle chaincode commit -o host1orderer.amops.com:7050 --channelID amops --name fabcar --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt
4.2.14 初始化链码 ###

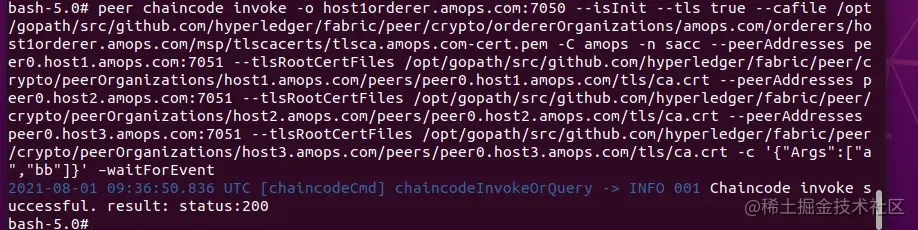

初始化链码sacc
peer chaincode invoke -o host1orderer.amops.com:7050 --isInit --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n sacc --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["a","bb"]}' –waitForEvent

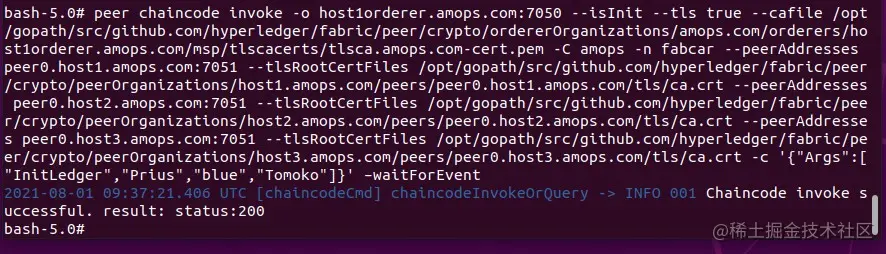

初始化链码fabcar
peer chaincode invoke -o host1orderer.amops.com:7050 --isInit --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n fabcar --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["InitLedger","Prius","blue","Tomoko"]}' –waitForEvent
4.2.15 与链码进行交互
4.2.15.1 与链码sacc交互

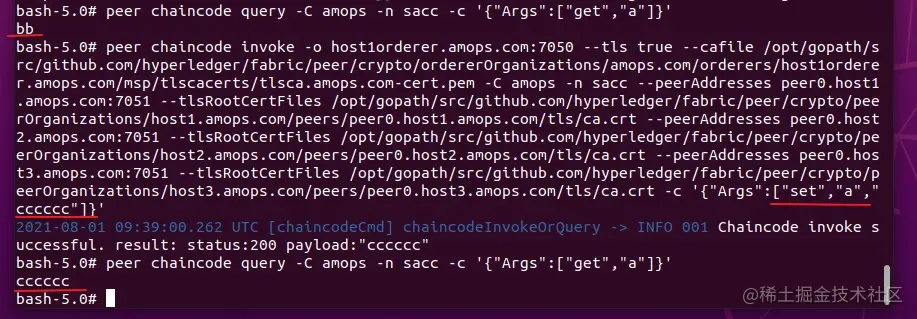

查询键为a的值
peer chaincode query -C amops -n sacc -c '{"Args":["get","a"]}'
更改键a的值
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n sacc --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["set","a","cccccc"]}'
查询更改后的键a的值

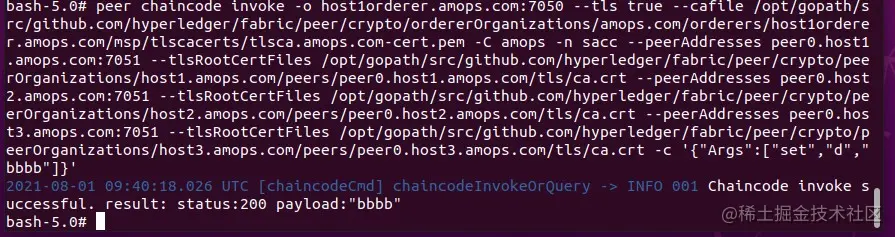

增加新的键值记录
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n sacc --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["set","c","bbbb"]}'
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n sacc --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["set","d","bbbb"]}'

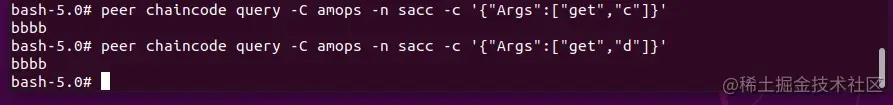

查询两个新增的键值记录
peer chaincode query -C amops -n sacc -c '{"Args":["get","c"]}'
peer chaincode query -C amops -n sacc -c '{"Args":["get","d"]}'
4.2.15.2 与链码fabcar交互

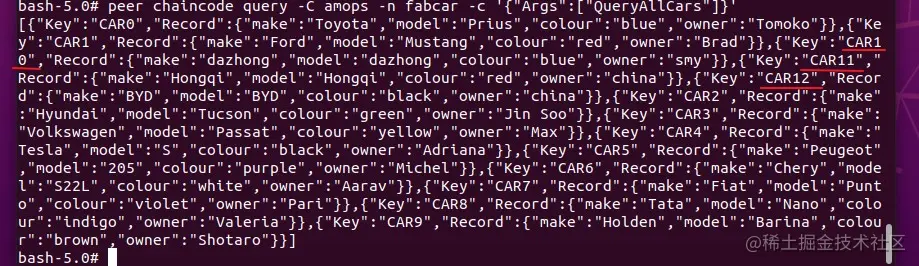

查询所有的车辆信息（fabcar）
peer chaincode query -C amops -n fabcar -c '{"Args":["QueryAllCars"]}'
可以看到一共有CAR0->CAR9十条车辆信息
增加新的车辆信息
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n fabcar --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["CreateCar","CAR10","dazhong","dazhong","blue","smy"]}'
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n fabcar --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["CreateCar","CAR11","Hongqi","Hongqi","red","china"]}'
peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n fabcar --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["CreateCar","CAR12","BYD","BYD","black","china"]}'
再次查询所有车辆信息，观察新的信息是否已经成功添加
peer chaincode query -C amops -n fabcar -c '{"Args":["QueryAllCars"]}'
可以看到CAR10,CAR11,CAR12信息已经成功添加
更改某个车辆的车主信息

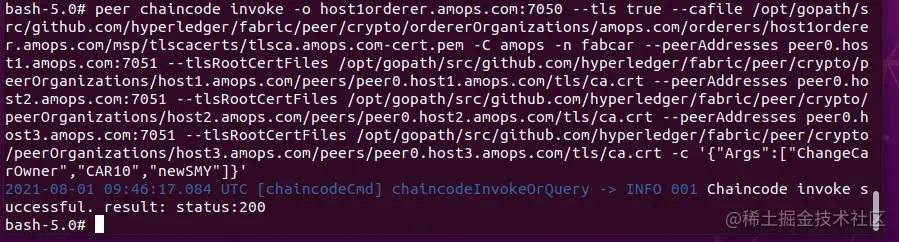

peer chaincode invoke -o host1orderer.amops.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/amops.com/orderers/host1orderer.amops.com/msp/tlscacerts/tlsca.amops.com-cert.pem -C amops -n fabcar --peerAddresses peer0.host1.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host1.amops.com/peers/peer0.host1.amops.com/tls/ca.crt --peerAddresses peer0.host2.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host2.amops.com/peers/peer0.host2.amops.com/tls/ca.crt --peerAddresses peer0.host3.amops.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/host3.amops.com/peers/peer0.host3.amops.com/tls/ca.crt -c '{"Args":["ChangeCarOwner","CAR10","newSMY"]}'
有之前查询的所有车辆信息可知CAR10原有的车主为smy，先将车主信息改为newSMY
特定查询(查看信息是否已经成功更改)
peer chaincode query -C amops -n fabcar -c '{"Args":["QueryCar","CAR10"]}'
