3 Hyperledger Fabric 2.3 环境搭建

3.1 前言

在前面Hyperledger Fabric 1.4 版本的环境搭建中，我们已经非常详细的讲解了环境搭建的过程，因此在2.3版本，我们就只列出大致步骤以及命令参考，如果中间有不理解的地方，请移步1.4版本环境搭建进行查询。

3.2 测试网络环境搭建

3.2.1 Hyperledger Fabric v2.3 下载

我们有两种方式进行2.3版本的网络测试，第一种是另开一台虚拟机，然后按照1.4版本环境搭建过程再执行一遍，只需要在下载fabric时，将脚本bootstrap.sh中的version改为2.3.2即可。

第二种方式，就是直接利用已经下载好的环境，将1.4版本的镜像删除，然后下载2.3版本的镜像。

为了讲解方便，我们使用第二种方式。

我们执行以下命令：

docker stop $(docker ps -aq)

docker rm -f $(docker ps -aq)

docker rmi -f $(docker images -q)

然后我们来到hyperledger目录下，将之前的fabric-samples更名为fabric-samples1.4

cd /home/xxx/gopath/src/github.com/hyperledger mv fabric-samples fabric-samples1.4

修改脚本文件bootstrap.sh

vi bootstrap.sh 将第一个version改为2.3.2，保存并退出

执行脚本文件

./bootstrap.sh

如果下载速度很慢，使用crtl+c强制中断，然后继续尝试下载，多试几次即可。

脚本文件会将fabric示例文件、二进制文件以及最新版镜像拉取下来

我们来到fabric-samples/test-network目录下，

cd fabric-samples/test-network

3.2.2 测试网络的组成部分

与Fabric网络互动的每个节点和用户都必须属于一个网络成员的组织。 Fabric网络成员的所有组织通常称为联盟(consortium)。 测试网络有两个联盟成员，Org1和Org2。 该网络还包括一个维护网络排序服务的排序组织。Peer 节点 是任何Fabric网络的基本组件。 对等节点存储区块链账本并在进行交易之前对其进行验证。网络中的每个对等方都必须属于该联盟的成员。 在测试网络里，每个组织各自运营一个对等节点， peer0.org1.example.com和peer0.org2.example.com。

3.3 启动测试网络

和1.4版本相同，2.3版本同样可以分为使用启动脚本启动和手动部署自己的网络。

3.3.1 使用启动脚本启动网络

3.3.1.1 启动容器

./network.sh up

部署测试网络后，您可能需要一些时间来检查其网络组件。 运行以下命令以列出所有正在您的计算机上运行的Docker容器。

docker ps -a

现在我们的机器上正在运行对等节点和排序节点， 我们可以使用脚本创建用于在Org1和Org2之间进行交易的Fabric通道。 通道是特定网络成员之间的专用通信层。通道只能由被邀请加入通道的组织使用，并且对网络的其他成员不可见。 每个通道都有一个单独的区块链账本。被邀请的组织“加入”他们的对等节点来存储其通道账本并验证交易。您可以使用network.sh脚本在Org1和Org2之间创建通道并加入他们的对等节点。 运行以下命令以创建一个默认名称为“ mychannel”的通道：

3.3.1.2 创建通道

./network.sh createChannel

您也可以使用channel标志创建具有自定义名称的通道。 作为一个例子，以下命令将创建一个名为channel1的通道：

./network.sh createChannel -c channel1

通道标志还允许您创建多个不同名称的多个通道。 创建mychannel或channel1之后，您可以使用下面的命令创建另一个名为channel2的通道：

./network.sh createChannel -c channel2

如果您想一步建立网络并创建频道，则可以使用up和createChannel模式一起：

./network.sh up createChannel

3.3.1.3 在通道上启动一个链码

创建通道后，您可以开始使用智能合约与通道账本交互。 智能合约包含管理区块链账本上资产的业务逻辑。 由成员运行的应用程序网络可以在账本上调用智能合约创建，更改和转让这些资产。 应用程序还通过智能合约查询，以在分类帐上读取数据。

为确保交易有效，使用智能合约创建的交易通常需要由多个组织签名才能提交到通道账本。 多个签名是Fabric信任模型不可或缺的一部分。 一项交易需要多次背书，以防止一个通道上的单一组织使用通道不同意的业务逻辑篡改其对等节点的分类账本。 要签署交易，每个组织都需要调用并在其对等节点上执行智能合约，然后签署交易的输出。 如果输出是一致的并且已经有足够的组织签名，则可以将交易提交到账本。 该政策被称为背书政策，指定需要执行智能交易的通道上的已设置组织合同，针对每个链码设置为链码定义的一部分。

在Fabric中，智能合约作为链码以软件包的形式部署在网络上。 链码安装在组织的对等节点上，然后部署到某个通道，然后可以在该通道中用于认可交易和区块链账本交互。 在将链码部署到通道前，该频道的成员需要就链码定义达成共识，建立链码治理。 当达到要求数量的组织同意后，链码定义就可以提交给通道，然后就可以使用链码了。

使用network.sh创建频道后，您可以使用以下命令在通道上启动链码：

./network.sh deployCC -ccn basic -ccp ../asset-transfer-basic/chaincode-go -ccl go

deployCC子命令将在peer0.org1.example.com和peer0.org2.example.com上安装 asset-transfer (basic) 链码。 然后在使用通道标志（或mychannel如果未指定通道）的通道上部署指定的通道的链码。 如果您第一次部署一套链码，脚本将安装链码的依赖项

3.3.1.4 与网络交互

在您启用测试网络后，可以使用peer CLI与您的网络进行交互。 peer CLI允许您调用已部署的智能合约，更新通道，或安装和部署新的智能合约。

将fabric-samples代码库中的FABRIC_CFG_PATH设置为指向其中的core.yaml文件

export FABRIC_CFG_PATH=$PWD/../config/

设置环境变量，以允许您作为Org1操作peer CLI

export CORE_PEER_TLS_ENABLED=true export CORE_PEER_LOCALMSPID="Org1MSP"

export CORE_PEER_TLS_ROOTCERT_FILE=${PWD}/organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt

export CORE_PEER_MSPCONFIGPATH=${PWD}/organizations/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp

export CORE_PEER_ADDRESS=localhost:7051

运行以下命令用一些资产来初始化账本

peer chaincode invoke -o localhost:7050 --ordererTLSHostnameOverride orderer.example.com --tls --cafile ${PWD}/organizations/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n basic --peerAddresses localhost:7051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses localhost:9051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"function":"InitLedger","Args":[]}'

现在你可以用你的 CLI 工具来查询账本。运行以下指令来获取添加到通道账本的资产列表

peer chaincode query -C mychannel -n basic -c '{"Args":["GetAllAssets"]}'

当一个网络成员希望在账本上转一些或者改变一些资产，链码会被调用。使用以下的指令来通过调用 asset-transfer (basic) 链码改变账本上的资产所有者

peer chaincode invoke -o localhost:7050 --ordererTLSHostnameOverride orderer.example.com --tls --cafile ${PWD}/organizations/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n basic --peerAddresses localhost:7051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses localhost:9051 --tlsRootCertFiles ${PWD}/organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"function":"TransferAsset","Args":["asset6","Christopher"]}'

因为 asset-transfer (basic) 链码的背书策略需要交易同时被 Org1 和 Org2 签名，链码调用指令需要使用 --peerAddresses 标签来指向 peer0.org1.example.com 和 peer0.org2.example.com。因为网络的 TLS 被开启，指令也需要用 --tlsRootCertFiles 标签指向每个 peer 节点的 TLS 证书。

调用链码之后，我们可以使用另一个查询来查看调用如何改变了区块链账本的资产。因为我们已经查询了 Org1 的 peer，我们可以把这个查询链码的机会通过 Org2 的 peer 来运行。设置以下的环境变量来操作 Org2

export CORE_PEER_TLS_ENABLED=true
export CORE_PEER_LOCALMSPID="Org2MSP"
export CORE_PEER_TLS_ROOTCERT_FILE=${PWD}/organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
export CORE_PEER_MSPCONFIGPATH=${PWD}/organizations/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
export CORE_PEER_ADDRESS=localhost:9051

你可以查询运行在 peer0.org2.example.com asset-transfer (basic) 链码

peer chaincode query -C mychannel -n basic -c '{"Args":["ReadAsset","asset6"]}'

3.3.1.6 关停网络、清理网络环境

关停网络

使用完测试网络后，您可以使用以下命令关闭网络：

./network.sh down

该命令将停止并删除节点和链码容器，删除组织加密材料，并从Docker Registry移除链码镜像。 该命令还删除之前运行的通道项目和docker卷。

3.3.2 部署一个生产网络

我们已经完成2.3版本的环境搭建，下面我们尝试一下自己手动部署一个简单的生产网络。

该网络中，有一个通道，两个cli,一个排序节点，两个组织，每个组织中有一个peer节点。

首先在自己的 /home/xxx/目录下创建一个文件夹twonodes

mkdir twonodes cd twonodes

3.3.2.1 准备需要用到的配置文件 ####

** configtx.yaml

将fabric-samples/test-network/configtx/configtx.yaml复制到twonodes文件夹下

cp /home/xxx/gopath/src/github.com/hyperledger/fabric-samples/test-network/configtx/configtx.yaml ./

修改配置文件configtx.yaml

# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

---
################################################################################
#
#   Section: Organizations
#
#   - This section defines the different organizational identities which will
#   be referenced later in the configuration.
#
################################################################################
Organizations:

    # SampleOrg defines an MSP using the sampleconfig.  It should never be used
    # in production but may be used as a template for other definitions
    - &OrdererOrg
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: OrdererOrg

        # ID to load the MSP definition as
        ID: OrdererMSP

        # MSPDir is the filesystem path which contains the MSP configuration
        MSPDir: crypto-config/ordererOrganizations/example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Writers:
                Type: Signature
                Rule: "OR('OrdererMSP.member')"
            Admins:
                Type: Signature
                Rule: "OR('OrdererMSP.admin')"

        OrdererEndpoints:
            - orderer.example.com:7050

    - &Org1
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org1MSP

        # ID to load the MSP definition as
        ID: Org1MSP

        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org1MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org1MSP.peer')"
        AnchorPeers:
          - Host: peer0.org1.example.com
            Port: 7051

    - &Org2
        # DefaultOrg defines the organization which is used in the sampleconfig
        # of the fabric.git development environment
        Name: Org2MSP

        # ID to load the MSP definition as
        ID: Org2MSP

        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp

        # Policies defines the set of policies at this level of the config tree
        # For organization policies, their canonical path is usually
        #   /Channel/<Application|Orderer>/<OrgName>/<PolicyName>
        Policies:
            Readers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"
            Writers:
                Type: Signature
                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"
            Admins:
                Type: Signature
                Rule: "OR('Org2MSP.admin')"
            Endorsement:
                Type: Signature
                Rule: "OR('Org2MSP.peer')"
        AnchorPeers:
          - Host: peer0.org2.example.com
            Port: 9051

################################################################################
#
#   SECTION: Capabilities
#
#   - This section defines the capabilities of fabric network. This is a new
#   concept as of v1.1.0 and should not be utilized in mixed networks with
#   v1.0.x peers and orderers.  Capabilities define features which must be
#   present in a fabric binary for that binary to safely participate in the
#   fabric network.  For instance, if a new MSP type is added, newer binaries
#   might recognize and validate the signatures from this type, while older
#   binaries without this support would be unable to validate those
#   transactions.  This could lead to different versions of the fabric binaries
#   having different world states.  Instead, defining a capability for a channel
#   informs those binaries without this capability that they must cease
#   processing transactions until they have been upgraded.  For v1.0.x if any
#   capabilities are defined (including a map with all capabilities turned off)
#   then the v1.0.x peer will deliberately crash.
#
################################################################################
Capabilities:
    # Channel capabilities apply to both the orderers and the peers and must be
    # supported by both.
    # Set the value of the capability to true to require it.
    Channel: &ChannelCapabilities
        # V2_0 capability ensures that orderers and peers behave according
        # to v2.0 channel capabilities. Orderers and peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 capability.
        # Prior to enabling V2.0 channel capabilities, ensure that all
        # orderers and peers on a channel are at v2.0.0 or later.
        V2_0: true

    # Orderer capabilities apply only to the orderers, and may be safely
    # used with prior release peers.
    # Set the value of the capability to true to require it.
    Orderer: &OrdererCapabilities
        # V2_0 orderer capability ensures that orderers behave according
        # to v2.0 orderer capabilities. Orderers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 orderer capability.
        # Prior to enabling V2.0 orderer capabilities, ensure that all
        # orderers on channel are at v2.0.0 or later.
        V2_0: true

    # Application capabilities apply only to the peer network, and may be safely
    # used with prior release orderers.
    # Set the value of the capability to true to require it.
    Application: &ApplicationCapabilities
        # V2_0 application capability ensures that peers behave according
        # to v2.0 application capabilities. Peers from
        # prior releases would behave in an incompatible way, and are therefore
        # not able to participate in channels at v2.0 application capability.
        # Prior to enabling V2.0 application capabilities, ensure that all
        # peers on channel are at v2.0.0 or later.
        V2_0: true

################################################################################
#
#   SECTION: Application
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for application related parameters
#
################################################################################
Application: &ApplicationDefaults

    # Organizations is the list of orgs which are defined as participants on
    # the application side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Application policies, their canonical path is
    #   /Channel/Application/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        LifecycleEndorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"
        Endorsement:
            Type: ImplicitMeta
            Rule: "MAJORITY Endorsement"

    Capabilities:
        <<: *ApplicationCapabilities
################################################################################
#
#   SECTION: Orderer
#
#   - This section defines the values to encode into a config transaction or
#   genesis block for orderer related parameters
#
################################################################################
Orderer: &OrdererDefaults

    # Orderer Type: The orderer implementation to start
    OrdererType: etcdraft
    # Addresses used to be the list of orderer addresses that clients and peers
    # could connect to.  However, this does not allow clients to associate orderer
    # addresses and orderer organizations which can be useful for things such
    # as TLS validation.  The preferred way to specify orderer addresses is now
    # to include the OrdererEndpoints item in your org definition
    Addresses:
        - orderer.example.com:7050

    EtcdRaft:
        Consenters:
        - Host: orderer.example.com
          Port: 7050
          ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
          ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt

    # Batch Timeout: The amount of time to wait before creating a batch
    BatchTimeout: 2s

    # Batch Size: Controls the number of messages batched into a block
    BatchSize:

        # Max Message Count: The maximum number of messages to permit in a batch
        MaxMessageCount: 10

        # Absolute Max Bytes: The absolute maximum number of bytes allowed for
        # the serialized messages in a batch.
        AbsoluteMaxBytes: 99 MB

        # Preferred Max Bytes: The preferred maximum number of bytes allowed for
        # the serialized messages in a batch. A message larger than the preferred
        # max bytes will result in a batch larger than preferred max bytes.
        PreferredMaxBytes: 512 KB

    # Organizations is the list of orgs which are defined as participants on
    # the orderer side of the network
    Organizations:

    # Policies defines the set of policies at this level of the config tree
    # For Orderer policies, their canonical path is
    #   /Channel/Orderer/<PolicyName>
    Policies:
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"
        # BlockValidation specifies what signatures must be included in the block
        # from the orderer for the peer to validate it.
        BlockValidation:
            Type: ImplicitMeta
            Rule: "ANY Writers"

################################################################################
#
#   CHANNEL
#
#   This section defines the values to encode into a config transaction or
#   genesis block for channel related parameters.
#
################################################################################
Channel: &ChannelDefaults
    # Policies defines the set of policies at this level of the config tree
    # For Channel policies, their canonical path is
    #   /Channel/<PolicyName>
    Policies:
        # Who may invoke the 'Deliver' API
        Readers:
            Type: ImplicitMeta
            Rule: "ANY Readers"
        # Who may invoke the 'Broadcast' API
        Writers:
            Type: ImplicitMeta
            Rule: "ANY Writers"
        # By default, who may modify elements at this config level
        Admins:
            Type: ImplicitMeta
            Rule: "MAJORITY Admins"

    # Capabilities describes the channel level capabilities, see the
    # dedicated Capabilities section elsewhere in this file for a full
    # description
    Capabilities:
        <<: *ChannelCapabilities

################################################################################
#
#   Profile
#
#   - Different configuration profiles may be encoded here to be specified
#   as parameters to the configtxgen tool
#
################################################################################
Profiles:

    TwoOrgsOrdererGenesis:
        <<: *ChannelDefaults
        Orderer:
            <<: *OrdererDefaults
            Organizations:
                - *OrdererOrg
            Capabilities:
                <<: *OrdererCapabilities
        Consortiums:
            SampleConsortium:
                Organizations:
                    - *Org1
                    - *Org2
    TwoOrgsChannel:
        Consortium: SampleConsortium
        <<: *ChannelDefaults
        Application:
            <<: *ApplicationDefaults
            Organizations:
                - *Org1
                - *Org2
            Capabilities:
                <<: *ApplicationCapabilities

** docker-compose.yaml

将fabric-samples/test-network/docker/docker-compose-test-net.yaml复制到twonodes文件夹下

重命名docker-compose-test-net.yaml为 docker-compose.yaml

mv docker-compose-test-net.yaml docker-compose.yaml

对配置文件docker-compose.yaml进行修改

version: '2.4'

volumes:
  orderer.example.com:
  peer0.org1.example.com:
  peer0.org2.example.com:

networks:
  test:
    name: twonodes_test

services:

  orderer.example.com:
    container_name: orderer.example.com
    image: hyperledger/fabric-orderer:latest
    labels:
      service: hyperledger-fabric
    environment:
      - FABRIC_LOGGING_SPEC=INFO
      - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0
      - ORDERER_GENERAL_LISTENPORT=7050
      - ORDERER_GENERAL_LOCALMSPID=OrdererMSP
      - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp
      # enabled TLS
      - ORDERER_GENERAL_TLS_ENABLED=true
      - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_KAFKA_TOPIC_REPLICATIONFACTOR=1
      - ORDERER_KAFKA_VERBOSE=true
      - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_GENERAL_GENESISMETHOD=file
      - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block
      - ORDERER_CHANNELPARTICIPATION_ENABLED=true
      - ORDERER_ADMIN_TLS_ENABLED=true
      - ORDERER_ADMIN_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt
      - ORDERER_ADMIN_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key
      - ORDERER_ADMIN_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_ADMIN_TLS_CLIENTROOTCAS=[/var/hyperledger/orderer/tls/ca.crt]
      - ORDERER_ADMIN_LISTENADDRESS=0.0.0.0:7053
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric
    command: orderer
    volumes:
      - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp
      - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls
      - orderer.example.com:/var/hyperledger/production/orderer
    ports:
      - 7050:7050
      - 7053:7053
    networks:
      - test

  peer0.org1.example.com:
    container_name: peer0.org1.example.com
    image: hyperledger/fabric-peer:latest
    labels:
      service: hyperledger-fabric
    environment:
      #Generic peer variables
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=twonodes_test
      - FABRIC_LOGGING_SPEC=INFO
      #- FABRIC_LOGGING_SPEC=DEBUG
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Peer specific variabes
      - CORE_PEER_ID=peer0.org1.example.com
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:7051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
    volumes:
      - /var/run/docker.sock:/host/var/run/docker.sock
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls
      - peer0.org1.example.com:/var/hyperledger/production
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    ports:
      - 7051:7051
    networks:
      - test

  peer0.org2.example.com:
    container_name: peer0.org2.example.com
    image: hyperledger/fabric-peer:latest
    labels:
      service: hyperledger-fabric
    environment:
      #Generic peer variables
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=twonodes_test
      - FABRIC_LOGGING_SPEC=INFO
      #- FABRIC_LOGGING_SPEC=DEBUG
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_PROFILE_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt
      # Peer specific variabes
      - CORE_PEER_ID=peer0.org2.example.com
      - CORE_PEER_ADDRESS=peer0.org2.example.com:9051
      - CORE_PEER_LISTENADDRESS=0.0.0.0:9051
      - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:9052
      - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:9052
      - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:9051
      - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:9051
      - CORE_PEER_LOCALMSPID=Org2MSP
    volumes:
      - /var/run/docker.sock:/host/var/run/docker.sock
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp
      - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls
      - peer0.org2.example.com:/var/hyperledger/production
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: peer node start
    ports:
      - 9051:9051
    networks:
      - test

  cli1:
    container_name: cli1
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli1
      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051
      - CORE_PEER_LOCALMSPID=Org1MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    networks:
      - test

  cli2:
    container_name: cli2
    image: hyperledger/fabric-tools:latest
    tty: true
    stdin_open: true
    environment:
      - GOPATH=/opt/gopath
      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock
      - FABRIC_LOGGING_SPEC=INFO
      - CORE_PEER_ID=cli2
      - CORE_PEER_ADDRESS=peer0.org2.example.com:9051
      - CORE_PEER_LOCALMSPID=Org2MSP
      - CORE_PEER_TLS_ENABLED=true
      - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt
      - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key
      - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
      - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp
    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer
    command: /bin/bash
    volumes:
      - /var/run/:/host/var/run/
      - ./chaincode/go/:/opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go
      - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/
      - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts
    networks:
      - test

** crypto-config.yaml

# ---------------------------------------------------------------------------
# "OrdererOrgs" - Definition of organizations managing orderer nodes
# ---------------------------------------------------------------------------
OrdererOrgs:
  # ---------------------------------------------------------------------------
  # Orderer
  # ---------------------------------------------------------------------------
  - Name: Orderer
    Domain: example.com
    EnableNodeOUs: true

    # ---------------------------------------------------------------------------
    # "Specs" - See PeerOrgs below for complete description
    # ---------------------------------------------------------------------------
    Specs:
      - Hostname: orderer

# ---------------------------------------------------------------------------
# "PeerOrgs" - Definition of organizations managing peer nodes
# ---------------------------------------------------------------------------
PeerOrgs:
  # ---------------------------------------------------------------------------
  # Org1
  # ---------------------------------------------------------------------------
  - Name: Org1
    Domain: org1.example.com
    EnableNodeOUs: true

    # ---------------------------------------------------------------------------
    # "CA"
    # ---------------------------------------------------------------------------
    # Uncomment this section to enable the explicit definition of the CA for this
    # organization.  This entry is a Spec.  See "Specs" section below for details.
    # ---------------------------------------------------------------------------
    # CA:
    #    Hostname: ca # implicitly ca.org1.example.com
    #    Country: US
    #    Province: California
    #    Locality: San Francisco
    #    OrganizationalUnit: Hyperledger Fabric
    #    StreetAddress: address for org # default nil
    #    PostalCode: postalCode for org # default nil

    # ---------------------------------------------------------------------------
    # "Specs"
    # ---------------------------------------------------------------------------
    # Uncomment this section to enable the explicit definition of hosts in your
    # configuration.  Most users will want to use Template, below
    #
    # Specs is an array of Spec entries.  Each Spec entry consists of two fields:
    #   - Hostname:   (Required) The desired hostname, sans the domain.
    #   - CommonName: (Optional) Specifies the template or explicit override for
    #                 the CN.  By default, this is the template:
    #
    #                              "{{.Hostname}}.{{.Domain}}"
    #
    #                 which obtains its values from the Spec.Hostname and
    #                 Org.Domain, respectively.
    #   - SANS:       (Optional) Specifies one or more Subject Alternative Names
    #                 to be set in the resulting x509. Accepts template
    #                 variables {{.Hostname}}, {{.Domain}}, {{.CommonName}}. IP
    #                 addresses provided here will be properly recognized. Other
    #                 values will be taken as DNS names.
    #                 NOTE: Two implicit entries are created for you:
    #                     - {{ .CommonName }}
    #                     - {{ .Hostname }}
    # ---------------------------------------------------------------------------
    # Specs:
    #   - Hostname: foo # implicitly "foo.org1.example.com"
    #     CommonName: foo27.org5.example.com # overrides Hostname-based FQDN set above
    #     SANS:
    #       - "bar.{{.Domain}}"
    #       - "altfoo.{{.Domain}}"
    #       - "{{.Hostname}}.org6.net"
    #       - 172.16.10.31
    #   - Hostname: bar
    #   - Hostname: baz

    # ---------------------------------------------------------------------------
    # "Template"
    # ---------------------------------------------------------------------------
    # Allows for the definition of 1 or more hosts that are created sequentially
    # from a template. By default, this looks like "peer%d" from 0 to Count-1.
    # You may override the number of nodes (Count), the starting index (Start)
    # or the template used to construct the name (Hostname).
    #
    # Note: Template and Specs are not mutually exclusive.  You may define both
    # sections and the aggregate nodes will be created for you.  Take care with
    # name collisions
    # ---------------------------------------------------------------------------
    Template:
      Count: 1
      # Start: 5
      # Hostname: {{.Prefix}}{{.Index}} # default
      # SANS:
      #   - "{{.Hostname}}.alt.{{.Domain}}"

    # ---------------------------------------------------------------------------
    # "Users"
    # ---------------------------------------------------------------------------
    # Count: The number of user accounts _in addition_ to Admin
    # ---------------------------------------------------------------------------
    Users:
      Count: 1

  # ---------------------------------------------------------------------------
  # Org2: See "Org1" for full specification
  # ---------------------------------------------------------------------------
  - Name: Org2
    Domain: org2.example.com
    EnableNodeOUs: true
    Template:
      Count: 1
    Users:
      Count: 1

3.3.2.2 准备链码

我们使用官方链码，在fabric-samples/chaincode目录下有几个链码可供选择，我们选择sacc ,将sacc.go复制到/home/xxx/twonodes/chaincode/go/目录下

cp /home/xxx/gopath/src/github.com/hyperledger/fabric-samples/chaincode/sacc/sacc.go ./chaincode/go/

进入到容器内找到链码存放的目录

docker exec -it cli1 bash

进入cli1中时，默认路径时/opt/gopath/src/github.com/hyperledger/fabric/peer/

我们进入存放链码的路径

cd /opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go

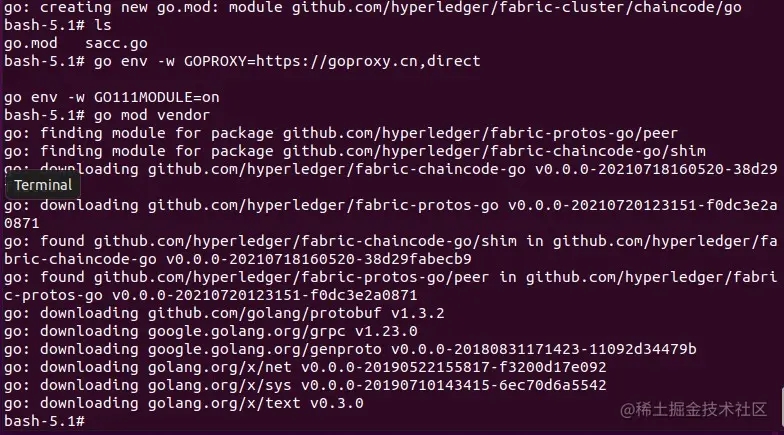

新建一个go mod并下载依赖

go mod init

在容器内部需要重新配置GO的代理服务器

go env -w GOPROXY=goproxy.cn,direct

go env -w GO111MODULE=on

下载链码需要的依赖

go mod vendor

3.3.2.3 生成加密材料和证书

cryptogen generate --config=crypto-config.yaml

3.3.2.4 生成创世块、通道配置交易、锚节点更新文件 ####

告诉configtxgen去哪里寻找configtx.yaml文件

FABRIC_CFG_PATH=$PWD

输出创世区块

configtxgen -profile TwoOrgsOrdererGenesis -outputBlock ./channel-artifacts/genesis.block -channelID fabric-channel

输出通道交易配置

configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel

生成组织1锚节点更新配置交易

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP

生成组织2锚节点更新配置交易

configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP

3.3.2.5 使用docker容器 启动网络 ####

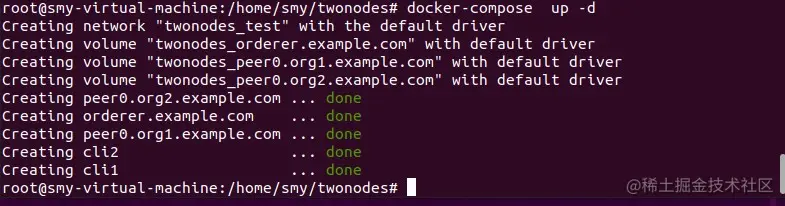

使用以下命令启动网络

docker-compose up -d

开启两个终端，分别进入组织1的终端节点cli1和组织2的终端节点cli2

docker exec -it cli1 bash

docker exec -it cli2 bash

2.3版本进入cli容器，不会再显示像1.4版本那样长长的一串，而是只显示bash-5.1#,就表示你已经进入容器了。

3.3.2.6 创建通道 ####

在cli1中执行下面的命令

peer channel create -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/channel.tx --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

将生成的mychannel.block分别复制到cli1，cli2

• 退出容器，来到终端1

exit

• 将cli1中的mychannel.block复制到终端1

docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/mychannel.block ./

• 将终端1下的mychannel.block复制到cli2中

docker cp ./mychannel.block cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer

• 终端1进入cli1

docker exec -it cli1 bash

• 将两个peer节点都加入到通道mychannel中

cli1中执行：

peer channel join -b mychannel.block

cli2中执行：

peer channel join -b mychannel.block

3.3.2.7 更新锚节点

更新组织1锚节点（cli1中）

peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org1MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

更新组织2锚节点 (cli2中)

peer channel update -o orderer.example.com:7050 -c mychannel -f ./channel-artifacts/Org2MSPanchors.tx --tls --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

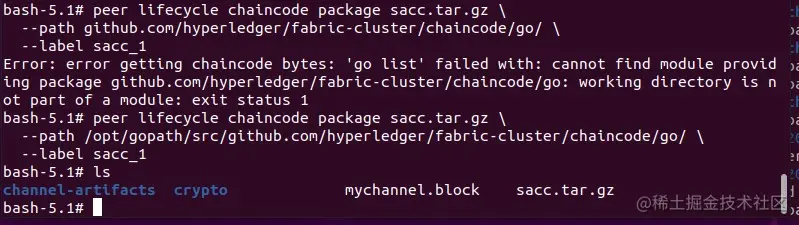

3.3.2.8 打包链码

再次来到peer目录下

cd /opt/gopath/src/github.com/hyperledger/fabric/peer

使用命令打包链码

peer lifecycle chaincode package sacc.tar.gz
--path /opt/gopath/src/github.com/hyperledger/fabric-cluster/chaincode/go/
--label sacc_1

备用命令

peer lifecycle chaincode package sacc.tar.gz
--path github.com/hyperledger/fabric-cluster/chaincode/go/
--label sacc_1

3.3.2.9 安装链码

将sacc.tar.gz复制到终端1和cli2

退出cli1,来到终端1

exit

将cli1中的sacc.tar.gz复制到终端1

docker cp cli1:/opt/gopath/src/github.com/hyperledger/fabric/peer/sacc.tar.gz ./

将终端1下的sacc.tar.gz复制到cli2下

docker cp ./sacc.tar.gz cli2:/opt/gopath/src/github.com/hyperledger/fabric/peer

重新进入cli1中，

docker exec -it cli1 bash

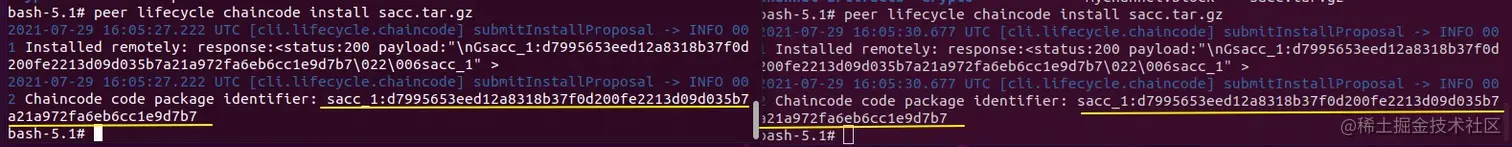

在peer0.org1节点上安装链码sacc

peer lifecycle chaincode install sacc.tar.gz

在cli2中，执行同样的命令在peer0.org2节点上安装链码sacc

peer lifecycle chaincode install sacc.tar.gz

记住上面图片中的sacc_1的值 在下面链码批准时需要用到

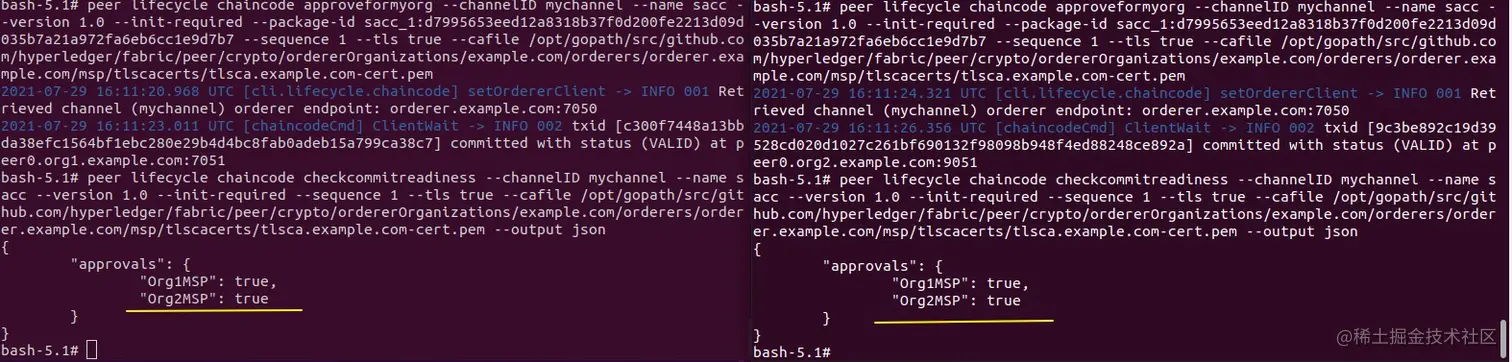

3.3.2.10 同意提交链码

只有每个组织都批准链码，链码才能被安装在通道上

组织1同意提交链码（将下面命令中package-id的值用你自己生成的sacc_1的值代替）

peer lifecycle chaincode approveformyorg --channelID mychannel --name sacc --version 1.0 --init-required --package-id sacc_1:d7995653eed12a8318b37f0d200fe2213d09d035b7a21a972fa6eb6cc1e9d7b7 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

组织2同意提交链码 (cli2中)

peer lifecycle chaincode approveformyorg --channelID mychannel --name sacc --version 1.0 --init-required --package-id sacc_1:d7995653eed12a8318b37f0d200fe2213d09d035b7a21a972fa6eb6cc1e9d7b7 --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

3.3.2.11 查看链码状态是否就绪

下面这个操作在cli1或者cli2中均可执行

peer lifecycle chaincode checkcommitreadiness --channelID mychannel --name sacc --version 1.0 --init-required --sequence 1 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --output json

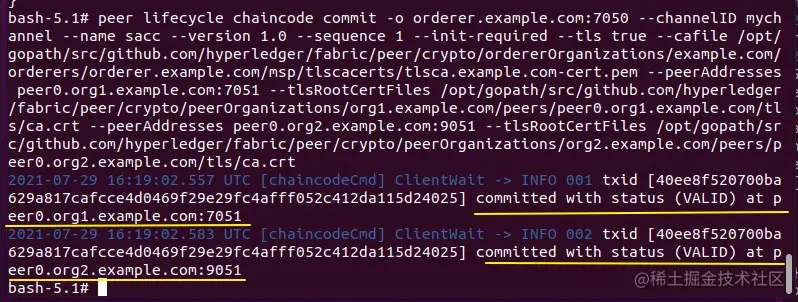

3.3.2.12 提交链码

只需要一个cli提交即可

peer lifecycle chaincode commit -o orderer.example.com:7050 --channelID mychannel --name sacc --version 1.0 --sequence 1 --init-required --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt

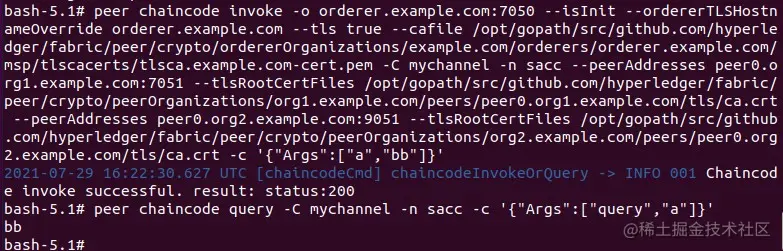

3.3.2.13 链码初始化

初始化传参(一个键值对)

peer chaincode invoke -o orderer.example.com:7050 --isInit --ordererTLSHostnameOverride orderer.example.com --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n sacc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["a","bb"]}'

3.3.2.14 与链码交互

查询键值对（cli1 OR cli2）

peer chaincode query -C mychannel -n sacc -c '{"Args":["query","a"]}'

将键为a的值改为cc，使用链码中的set()函数（数据覆盖）

peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n sacc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["set","a","cc"]}'

set()函数不仅可以修改值，也可以初始化键值对

初始化一个键为b的键值对

peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n sacc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["set","b","111"]}'

初始化一个键为c的键值对

peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n sacc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["set","c","222"]}'

初始化一个键为d的键值对

peer chaincode invoke -o orderer.example.com:7050 --tls true --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem -C mychannel -n sacc --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt -c '{"Args":["set","d","333"]}'

查询键a的值

peer chaincode query -C mychannel -n sacc -c '{"Args":["query","a"]}'

查询键d的值

peer chaincode query -C mychannel -n sacc -c '{"Args":["query","d"]}'

键a的值已经成功更改，键d的值也成功初始化。部署一个自己的生产网络讲解结束，如果你想实现更复杂的网络，请参照1.4版本的修改，尝试自己实现更加复杂的网络，这对你理解fabric网络会有很大的帮助！

若想关闭网络

docker-compose down

docker volume prune

(先别关闭网络，下面的区块链浏览器搭建需要用到这个网络)

部署一个简单的网络讲解完毕，下面我们在twonodes网络的基础上尝试启动官方的区块链浏览器项目。
