1. 客户端开发
一个正常的生产逻辑需要具备以下几个步骤：
-
配置生产者客户端参数及创建相应的生产者实例。
-
构建待发送的消息。
-
发送消息。
-
关闭生产者实例。
生产者客户端示例代码
public class KafkaProducerDemo {
public static final String brokerList = "localhost:9092";
public static final String topic = "topic-demo";
public static Properties initConfig(){
Properties props = new Properties();
props.put("bootstrap.servers", brokerList);
props.put("key.serializer",
"org.apache.kafka.common.serialization.StringSerializer");
props.put("value.serializer",
"org.apache.kafka.common.serialization.StringSerializer");
props.put("client.id", "producer.client.id.demo");
return props;
}
public static void main(String[] args) {
Properties props = initConfig();
KafkaProducer<String, String> producer = new KafkaProducer<>(props);
ProducerRecord<String, String> record =
new ProducerRecord<>(topic, "Hello, Kafka!");
try {
producer.send(record);
} catch (Exception e) {
e.printStackTrace();
}
}
}
生产者的 API 使用还是比较简单，创建一个 ProducerRecord 对象 (这个对象包含目标主题和要发送的内容，当然还可以指定键以及分区), 然后调用 send 方法就把消息发送出去了。在发送 ProducerRecord 对象时，生产者要先把键和值对象序列化成字节数组，这样才能在网络上进行传输。
2 源码分析
new KafkaProducer<>(props);做了什么？
public KafkaProducer(Properties properties) {
this(new ProducerConfig(properties), (Serializer)null, (Serializer)null, (Metadata)null, (KafkaClient)null);
}
KafkaProducer(ProducerConfig config, Serializer<K> keySerializer, Serializer<V> valueSerializer, Metadata metadata, KafkaClient kafkaClient) {
try {
Map<String, Object> userProvidedConfigs = config.originals();
this.producerConfig = config;
this.time = Time.SYSTEM;
String clientId = config.getString("client.id");
if (clientId.length() <= 0) {
clientId = "producer-" + PRODUCER_CLIENT_ID_SEQUENCE.getAndIncrement();
}
this.clientId = clientId;
String transactionalId = userProvidedConfigs.containsKey("transactional.id") ? (String)userProvidedConfigs.get("transactional.id") : null;
LogContext logContext;
if (transactionalId == null) {
logContext = new LogContext(String.format("[Producer clientId=%s] ", clientId));
} else {
logContext = new LogContext(String.format("[Producer clientId=%s, transactionalId=%s] ", clientId, transactionalId));
}
this.log = logContext.logger(KafkaProducer.class);
this.log.trace("Starting the Kafka producer");
Map<String, String> metricTags = Collections.singletonMap("client-id", clientId);
MetricConfig metricConfig = (new MetricConfig()).samples(config.getInt("metrics.num.samples")).timeWindow(config.getLong("metrics.sample.window.ms"), TimeUnit.MILLISECONDS).recordLevel(RecordingLevel.forName(config.getString("metrics.recording.level"))).tags(metricTags);
List<MetricsReporter> reporters = config.getConfiguredInstances("metric.reporters", MetricsReporter.class);
reporters.add(new JmxReporter("kafka.producer"));
this.metrics = new Metrics(metricConfig, reporters, this.time);
ProducerMetrics metricsRegistry = new ProducerMetrics(this.metrics);
this.partitioner = (Partitioner)config.getConfiguredInstance("partitioner.class", Partitioner.class);
long retryBackoffMs = config.getLong("retry.backoff.ms");
if (keySerializer == null) {
this.keySerializer = Wrapper.ensureExtended((Serializer)config.getConfiguredInstance("key.serializer", Serializer.class));
this.keySerializer.configure(config.originals(), true);
} else {
config.ignore("key.serializer");
this.keySerializer = Wrapper.ensureExtended(keySerializer);
}
if (valueSerializer == null) {
this.valueSerializer = Wrapper.ensureExtended((Serializer)config.getConfiguredInstance("value.serializer", Serializer.class));
this.valueSerializer.configure(config.originals(), false);
} else {
config.ignore("value.serializer");
this.valueSerializer = Wrapper.ensureExtended(valueSerializer);
}
userProvidedConfigs.put("client.id", clientId);
List<ProducerInterceptor<K, V>> interceptorList = (new ProducerConfig(userProvidedConfigs, false)).getConfiguredInstances("interceptor.classes", ProducerInterceptor.class);
// 拦截器
this.interceptors = new ProducerInterceptors(interceptorList);
ClusterResourceListeners clusterResourceListeners = this.configureClusterResourceListeners(keySerializer, valueSerializer, interceptorList, reporters);
this.maxRequestSize = config.getInt("max.request.size");
this.totalMemorySize = config.getLong("buffer.memory");
this.compressionType = CompressionType.forName(config.getString("compression.type"));
this.maxBlockTimeMs = config.getLong("max.block.ms");
this.requestTimeoutMs = config.getInt("request.timeout.ms");
this.transactionManager = configureTransactionState(config, logContext, this.log);
int retries = configureRetries(config, this.transactionManager != null, this.log);
int maxInflightRequests = configureInflightRequests(config, this.transactionManager != null);
short acks = configureAcks(config, this.transactionManager != null, this.log);
this.apiVersions = new ApiVersions();
// 创建RecordAccumulator
// RecordAccumulator：每一个是生产上都会维护一个固定大小的内存空间，主要用于合并单条消息，进行批量发送，提高吞吐量，减少带宽消耗。
// RecordAccumulator的大小是可配置的，可以配置buffer.memory来修改缓冲区大小，默认值为：33554432（32M）
//RecordAccumulator内存结构分为两部分
// 第一部分为已经使用的内存，这一部分主要存放了很多的队列。每一个主题的每一个分区都会创建一个队列，来存放当前分区下待发送的消息集合
// 第二部分为未使用的内存，这一部分分为已经池化后的内存和未池化的整个剩余内存（nonPooledAvailableMemory）。
// 池化的内存的会根据batch.size（默认值为16K）的配置进行池化多个ByteBuffer，放入一个队列中。所有的剩余空间会形成一个未池化的剩余空间。
this.accumulator = new RecordAccumulator(logContext, config.getInt("batch.size"), this.totalMemorySize, this.compressionType, config.getLong("linger.ms"), retryBackoffMs, this.metrics, this.time, this.apiVersions, this.transactionManager);
List<InetSocketAddress> addresses = ClientUtils.parseAndValidateAddresses(config.getList("bootstrap.servers"));
if (metadata != null) {
this.metadata = metadata;
} else {
this.metadata = new Metadata(retryBackoffMs, config.getLong("metadata.max.age.ms"), true, true, clusterResourceListeners);
this.metadata.update(Cluster.bootstrap(addresses), Collections.emptySet(), this.time.milliseconds());
}
ChannelBuilder channelBuilder = ClientUtils.createChannelBuilder(config);
Sensor throttleTimeSensor = Sender.throttleTimeSensor(metricsRegistry.senderMetrics);
// 创建一个KafkaClient负责和borker通信
KafkaClient client = kafkaClient != null ? kafkaClient : new NetworkClient(new Selector(config.getLong("connections.max.idle.ms"), this.metrics, this.time, "producer", channelBuilder, logContext), this.metadata, clientId, maxInflightRequests, config.getLong("reconnect.backoff.ms"), config.getLong("reconnect.backoff.max.ms"), config.getInt("send.buffer.bytes"), config.getInt("receive.buffer.bytes"), this.requestTimeoutMs, this.time, true, this.apiVersions, throttleTimeSensor, logContext);
// 以下是创建Sender线程
// Sender 类实现了Runnable接口
this.sender = new Sender(logContext, (KafkaClient)client, this.metadata, this.accumulator, maxInflightRequests == 1, config.getInt("max.request.size"), acks, retries, metricsRegistry.senderMetrics, Time.SYSTEM, this.requestTimeoutMs, config.getLong("retry.backoff.ms"), this.transactionManager, this.apiVersions);
String ioThreadName = "kafka-producer-network-thread | " + clientId;
// 创建一个线程 实际运行线程是 Sender,（KafkaThread 是对 Sender 的封装），用于扫描 RecordAccumulator 中是否有消息
this.ioThread = new KafkaThread(ioThreadName, this.sender, true);
// 启动Sender线程
this.ioThread.start();
this.errors = this.metrics.sensor("errors");
config.logUnused();
AppInfoParser.registerAppInfo("kafka.producer", clientId, this.metrics);
this.log.debug("Kafka producer started");
} catch (Throwable var26) {
this.close(0L, TimeUnit.MILLISECONDS, true);
throw new KafkaException("Failed to construct kafka producer", var26);
}
}

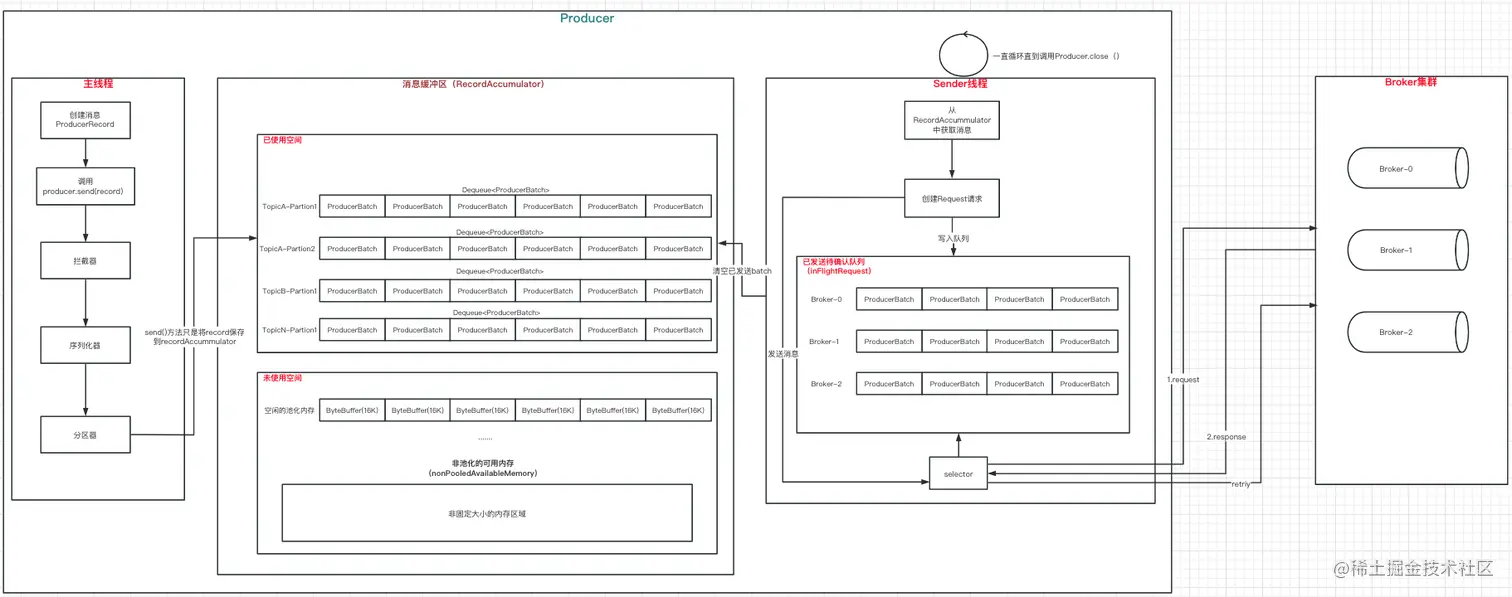

上面的代码就是构造 KafkaProducer 时核心逻辑，它会构造一个 KafkaClient 负责和 broker 通信，同时构造一个 Sender 并启动一个异步线程，这个线程会被命名为：kafka-producer-network-thread|${clientId}, 如果你在创建 producer 的时候指定 client.id 的值为 myclient, 那么线程名称就是 kafka-producer-network-thread|myclient
创建好Producer实例后，与Producer交互的代码就是producer.send(record);
producer.send(record)做了什么
代码一直追下去发现逻辑是放在doSend()方法中
/**
* Implementation of asynchronously send a record to a topic.
*/
private Future<RecordMetadata> doSend(ProducerRecord<K, V> record, Callback callback) {
TopicPartition tp = null;
try {
throwIfProducerClosed();
// first make sure the metadata for the topic is available
ClusterAndWaitTime clusterAndWaitTime;
try {
clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), maxBlockTimeMs);
} catch (KafkaException e) {
if (metadata.isClosed())
throw new KafkaException("Producer closed while send in progress", e);
throw e;
}
long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
Cluster cluster = clusterAndWaitTime.cluster;
byte[] serializedKey;
try {
// 对key进行序列化
serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert key of class " + record.key().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG).getName() +
" specified in key.serializer", cce);
}
byte[] serializedValue;
try {
// 对value进行序列化
serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert value of class " + record.value().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG).getName() +
" specified in value.serializer", cce);
}
// 获取partition
int partition = partition(record, serializedKey, serializedValue, cluster);
// 这个也很重要
// 可以想像下他的数据结构，因为他要被当做Map的key
tp = new TopicPartition(record.topic(), partition);
setReadOnly(record.headers());
Header[] headers = record.headers().toArray();
int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
compressionType, serializedKey, serializedValue, headers);
ensureValidRecordSize(serializedSize);
long timestamp = record.timestamp() == null ? time.milliseconds() : record.timestamp();
log.trace("Sending record {} with callback {} to topic {} partition {}", record, callback, record.topic(), partition);
// producer callback will make sure to call both 'callback' and interceptor callback
Callback interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
if (transactionManager != null && transactionManager.isTransactional())
transactionManager.maybeAddPartitionToTransaction(tp);
// 核心代码
// 发送消息实际上是将消息缓存起来放到accumulator中
RecordAccumulator.RecordAppendResult result = accumulator.append(tp, timestamp, serializedKey,
serializedValue, headers, interceptCallback, remainingWaitMs);
if (result.batchIsFull || result.newBatchCreated) {
log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), partition);
this.sender.wakeup();
}
return result.future;
// handling exceptions and record the errors;
// for API exceptions return them in the future,
// for other exceptions throw directly
} catch (ApiException e) {
log.debug("Exception occurred during message send:", e);
if (callback != null)
callback.onCompletion(null, e);
this.errors.record();
this.interceptors.onSendError(record, tp, e);
return new FutureFailure(e);
} catch (InterruptedException e) {
this.errors.record();
this.interceptors.onSendError(record, tp, e);
throw new InterruptException(e);
} catch (BufferExhaustedException e) {
this.errors.record();
this.metrics.sensor("buffer-exhausted-records").record();
this.interceptors.onSendError(record, tp, e);
throw e;
} catch (KafkaException e) {
this.errors.record();
this.interceptors.onSendError(record, tp, e);
throw e;
} catch (Exception e) {
// we notify interceptor about all exceptions, since onSend is called before anything else in this method
this.interceptors.onSendError(record, tp, e);
throw e;
}
}
private final ConcurrentMap<TopicPartition, Deque<ProducerBatch>> batches;
public RecordAppendResult append(TopicPartition tp,
long timestamp,
byte[] key,
byte[] value,
Header[] headers,
Callback callback,
long maxTimeToBlock) throws InterruptedException {
// We keep track of the number of appending thread to make sure we do not miss batches in
// abortIncompleteBatches().
appendsInProgress.incrementAndGet();
ByteBuffer buffer = null;
if (headers == null) headers = Record.EMPTY_HEADERS;
try {
// dq是一个双向队列
// 从batchs(ConcurrentMap<TopicPartition, Deque<ProducerBatch>>)中
// 根据主题分区获取对应的队列，如果没有则new ArrayDeque<>返回
// check if we have an in-progress batch
Deque<ProducerBatch> dq = getOrCreateDeque(tp);
synchronized (dq) {
if (closed)
throw new KafkaException("Producer closed while send in progress");
RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq);
if (appendResult != null)
return appendResult;
}
// we don't have an in-progress record batch try to allocate a new batch
byte maxUsableMagic = apiVersions.maxUsableProduceMagic();
//计算同一个记录批次占用空间大小，batchSize根据batch.size参数决定
int size = Math.max(this.batchSize, AbstractRecords.estimateSizeInBytesUpperBound(maxUsableMagic, compression, key, value, headers));
log.trace("Allocating a new {} byte message buffer for topic {} partition {}", size, tp.topic(), tp.partition());
//为同一个topic,partition分配buffer，如果同一个记录批次的内存不足，
//那么会阻塞maxTimeToBlock(max.block.ms参数)这么长时间
buffer = free.allocate(size, maxTimeToBlock);
synchronized (dq) {
// Need to check if producer is closed again after grabbing the dequeue lock.
if (closed)
throw new KafkaException("Producer closed while send in progress");
RecordAppendResult appendResult = tryAppend(timestamp, key, value, headers, callback, dq);
if (appendResult != null) {
// Somebody else found us a batch, return the one we waited for! Hopefully this doesn't happen often...
return appendResult;
}
//创建MemoryRecordBuilder,通过buffer初始化appendStream(DataOutputStream)属性
MemoryRecordsBuilder recordsBuilder = recordsBuilder(buffer, maxUsableMagic);
ProducerBatch batch = new ProducerBatch(tp, recordsBuilder, time.milliseconds());
//将key,value写入到MemoryRecordsBuilder中的appendStream(DataOutputStream)中
FutureRecordMetadata future = Utils.notNull(batch.tryAppend(timestamp, key, value, headers, callback, time.milliseconds()));
//把消息放到了deque
dq.addLast(batch);
incomplete.add(batch);
// Don't deallocate this buffer in the finally block as it's being used in the record batch
buffer = null;
return new RecordAppendResult(future, dq.size() > 1 || batch.isFull(), true);
}
} finally {
if (buffer != null)
free.deallocate(buffer);
appendsInProgress.decrementAndGet();
}
}
可以发现每个kafka producer在new 的时候都会创建一个backgroud的ioThread，每个producer都有一个ioThread。实际上，producer的send()并不是直接发送消息到broker上的，而是在执行send()时把消息保存到 RecordAccumulator 中，实际上就是保存到一个 Map 中 (ConcurrentMap<TopicPartition, Deque>), 这条消息会被记录到同一个记录批次 (相同主题相同分区算同一个批次) 里面，这个批次的所有消息会被发送到相同的主题和分区上。
然后后端的IOThread会一直扫描这个缓冲池中的消息，也就是这个线程负责真正地把消息发送到broker中。每一个Producer都是由一个持有未发送消息的资源池和一个用来向kafka集群发送消息记录的后台IOThread组成。使用后未关闭producer将导致这些资源泄漏。
将RecordAccumulator中的数据发送消息到 Kafka Broker
上面已经将消息存储 RecordAccumulator 中去了，现在看看怎么发送消息。上面我们提到了创建 KafkaProducer 的时候会启动一个异步线程去从 RecordAccumulator 中取得消息然后发送到 Kafka, 发送消息的核心代码是 Sender.java, 它实现了 Runnable 接口并在后台一直运行处理发送请求并将消息发送到合适的节点，直到 KafkaProducer 被关闭
/**
* The background thread that handles the sending of produce requests to the Kafka cluster. This thread makes metadata
* requests to renew its view of the cluster and then sends produce requests to the appropriate nodes.
*/
public class Sender implements Runnable {
public void run() {
// 一直运行直到kafkaProducer.close()方法被调用
while (running) {
run(time.milliseconds());
}
//从日志上看是开始处理KafkaProducer被关闭后的逻辑
log.debug("Beginning shutdown of Kafka producer I/O thread, sending remaining records.");
//当非强制关闭的时候，可能还仍然有请求并且accumulator中还仍然存在数据，此时我们需要将请求处理完成
while (!forceClose && (this.accumulator.hasUndrained() || this.client.inFlightRequestCount() > 0)) {
run(time.milliseconds());
}
if (forceClose) {
//如果是强制关闭,且还有未发送完毕的消息，则取消发送并抛出一个异常new KafkaException("Producer is closed forcefully.")
this.accumulator.abortIncompleteBatches();
}
...
}
KafkaProducer 的关闭方法有 2 个，close() 以及 close(long timeout,TimeUnit timUnit), 其中 timeout 参数的意思是等待生产者完成任何待处理请求的最长时间，第一种方式的 timeout 为 Long.MAX_VALUE 毫秒，如果采用第二种方式关闭，当 timeout=0 的时候则表示强制关闭，直接关闭 Sender (设置 running=false)。
run (long) 方法中包含对 transactionManager 的处理和发送消息的流程
代码如下：
/**
* Run a single iteration of sending
*
* @param now The current POSIX time in milliseconds
*/
void run(long now) {
// 对 transactionManager 的处理
if (transactionManager != null) {
try {
if (transactionManager.shouldResetProducerStateAfterResolvingSequences())
// Check if the previous run expired batches which requires a reset of the producer state.
transactionManager.resetProducerId();
if (!transactionManager.isTransactional()) {
// this is an idempotent producer, so make sure we have a producer id
maybeWaitForProducerId();
} else if (transactionManager.hasUnresolvedSequences() && !transactionManager.hasFatalError()) {
transactionManager.transitionToFatalError(new KafkaException("The client hasn't received acknowledgment for " +
"some previously sent messages and can no longer retry them. It isn't safe to continue."));
} else if (transactionManager.hasInFlightTransactionalRequest() || maybeSendTransactionalRequest(now)) {
// as long as there are outstanding transactional requests, we simply wait for them to return
client.poll(retryBackoffMs, now);
return;
}
// do not continue sending if the transaction manager is in a failed state or if there
// is no producer id (for the idempotent case).
if (transactionManager.hasFatalError() || !transactionManager.hasProducerId()) {
RuntimeException lastError = transactionManager.lastError();
if (lastError != null)
maybeAbortBatches(lastError);
client.poll(retryBackoffMs, now);
return;
} else if (transactionManager.hasAbortableError()) {
accumulator.abortUndrainedBatches(transactionManager.lastError());
}
} catch (AuthenticationException e) {
// This is already logged as error, but propagated here to perform any clean ups.
log.trace("Authentication exception while processing transactional request: {}", e);
transactionManager.authenticationFailed(e);
}
}
long pollTimeout = sendProducerData(now);
client.poll(pollTimeout, now);
}
}
首先查看 sendProducerData () 方法，它的核心逻辑在 sendProduceRequest() 方法 (处于 Sender.java) 中
private void sendProduceRequest(long now, int destination, short acks, int timeout, List<ProducerBatch> batches) {
if (batches.isEmpty())
return;
Map<TopicPartition, MemoryRecords> produceRecordsByPartition = new HashMap<>(batches.size());
final Map<TopicPartition, ProducerBatch> recordsByPartition = new HashMap<>(batches.size());
// find the minimum magic version used when creating the record sets
byte minUsedMagic = apiVersions.maxUsableProduceMagic();
for (ProducerBatch batch : batches) {
if (batch.magic() < minUsedMagic)
minUsedMagic = batch.magic();
}
for (ProducerBatch batch : batches) {
TopicPartition tp = batch.topicPartition;
//将ProducerBatch中MemoryRecordsBuilder转换为MemoryRecords(发送的数据就在这里面)
MemoryRecords records = batch.records();
// down convert if necessary to the minimum magic used. In general, there can be a delay between the time
// that the producer starts building the batch and the time that we send the request, and we may have
// chosen the message format based on out-dated metadata. In the worst case, we optimistically chose to use
// the new message format, but found that the broker didn't support it, so we need to down-convert on the
// client before sending. This is intended to handle edge cases around cluster upgrades where brokers may
// not all support the same message format version. For example, if a partition migrates from a broker
// which is supporting the new magic version to one which doesn't, then we will need to convert.
if (!records.hasMatchingMagic(minUsedMagic))
records = batch.records().downConvert(minUsedMagic, 0, time).records();
produceRecordsByPartition.put(tp, records);
recordsByPartition.put(tp, batch);
}
String transactionalId = null;
if (transactionManager != null && transactionManager.isTransactional()) {
transactionalId = transactionManager.transactionalId();
}
ProduceRequest.Builder requestBuilder = ProduceRequest.Builder.forMagic(minUsedMagic, acks, timeout,
produceRecordsByPartition, transactionalId);
//消息发送完成时的回调
RequestCompletionHandler callback = new RequestCompletionHandler() {
public void onComplete(ClientResponse response) {
//处理响应消息
handleProduceResponse(response, recordsByPartition, time.milliseconds());
}
};
String nodeId = Integer.toString(destination);
//根据参数构造ClientRequest,此时需要发送的消息在requestBuilder中
ClientRequest clientRequest = client.newClientRequest(nodeId, requestBuilder, now, acks != 0,
requestTimeoutMs, callback);
//将clientRequest转换成Send对象(Send.java,包含了需要发送数据的buffer)，
//给KafkaChannel设置该对象，这里还没有发送数据
client.send(clientRequest, now);
log.trace("Sent produce request to {}: {}", nodeId, requestBuilder);
}
上面的 client.send () 方法最终会定位到 NetworkClient.doSend () 方法，所有的请求 (无论是 producer 发送消息的请求还是获取 metadata 的请求) 都是通过该方法设置对应的 Send 对象。所支持的请求在 ApiKeys.java 中都有定义，这里面可以看到每个请求的 request 以及 response 对应的数据结构。
上面只是设置了发送消息所需要准备的内容，现在进入到发送消息的主流程，发送消息的核心代码在 Selector.java 的 pollSelectionKeys () 方法中，代码如下:
void pollSelectionKeys(Set<SelectionKey> selectionKeys,
boolean isImmediatelyConnected,
long currentTimeNanos) {
for (SelectionKey key : determineHandlingOrder(selectionKeys)) {
//....
/* if channel is ready write to any sockets that have space in their buffer and for which we have data */
if (channel.ready() && key.isWritable()) {
Send send = null;
try {
//底层实际调用的是java8 GatheringByteChannel的write方法
send = channel.write();
} catch (Exception e) {
sendFailed = true;
throw e;
}
if (send != null) {
this.completedSends.add(send);
this.sensors.recordBytesSent(channel.id(), send.size());
}
}
....
}
}
就这样，我们的消息就发送到了 broker 中了，发送流程分析完毕，这个是完美的情况，但是总会有发送失败的时候 (消息过大或者没有可用的 leader)，那么发送失败后重发又是在哪里完成的呢？还记得上面的回调函数吗？没错，就是在回调函数这里设置的，先来看下回调函数源码
//org.apache.kafka.clients.producer.internals.Sender#handleProduceResponse
private void handleProduceResponse(ClientResponse response, Map<TopicPartition, ProducerBatch> batches, long now) {
RequestHeader requestHeader = response.requestHeader();
if (response.wasDisconnected()) {
//如果是网络断开则构造Errors.NETWORK_EXCEPTION的响应
for (ProducerBatch batch : batches.values())
completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.NETWORK_EXCEPTION), correlationId, now, 0L);
} else if (response.versionMismatch() != null) {
//如果是版本不匹配，则构造Errors.UNSUPPORTED_VERSION的响应
for (ProducerBatch batch : batches.values())
completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.UNSUPPORTED_VERSION), correlationId, now, 0L);
} else {
if (response.hasResponse()) {
//如果存在response就返回正常的response
...
}
} else {
//如果acks=0，那么则构造Errors.NONE的响应，因为这种情况只需要发送不需要响应结果
for (ProducerBatch batch : batches.values()) {
completeBatch(batch, new ProduceResponse.PartitionResponse(Errors.NONE), correlationId, now, 0L);
}
}
}
}
而在 completeBatch 方法中我们主要关注失败的逻辑处理，核心源码如下：
//org.apache.kafka.clients.producer.internals.Sender#completeBatch
private void completeBatch(ProducerBatch batch, ProduceResponse.PartitionResponse response, long correlationId,
long now, long throttleUntilTimeMs) {
Errors error = response.error;
//如果发送的消息太大，需要重新进行分割发送
if (error == Errors.MESSAGE_TOO_LARGE && batch.recordCount > 1 &&
(batch.magic() >= RecordBatch.MAGIC_VALUE_V2 || batch.isCompressed())) {
this.accumulator.splitAndReenqueue(batch);
this.accumulator.deallocate(batch);
this.sensors.recordBatchSplit();
} else if (error != Errors.NONE) {
//发生了错误，如果此时可以retry(retry次数未达到限制以及产生异常是RetriableException)
if (canRetry(batch, response)) {
if (transactionManager == null) {
//把需要重试的消息放入队列中，等待重试，实际就是调用deque.addFirst(batch)
reenqueueBatch(batch, now);
}
}
}
分区算法
List<PartitionInfo> partitions = cluster.partitionsForTopic(topic);
int numPartitions = partitions.size();
if (keyBytes == null) {
//如果key为null,则使用Round Robin算法
int nextValue = nextValue(topic);
List<PartitionInfo> availablePartitions = cluster.availablePartitionsForTopic(topic);
if (availablePartitions.size() > 0) {
int part = Utils.toPositive(nextValue) % availablePartitions.size();
return availablePartitions.get(part).partition();
} else {
// no partitions are available, give a non-available partition
return Utils.toPositive(nextValue) % numPartitions;
}
} else {
// 根据key进行散列
return Utils.toPositive(Utils.murmur2(keyBytes)) % numPartitions;
}
Kafka 中对于分区的算法有两种情况
-
如果键值为 null, 并且使用了默认的分区器，那么记录键随机地发送到主题内各个可用的分区上。分区器使用轮询 (Round Robin) 算法键消息均衡地分布到各个分区上。
-
如果键不为空，并且使用了默认的分区器，那么 Kafka 会对键进行散列 (使用 Kafka 自己的散列算法，即使升级 Java 版本，散列值也不会发生变化)，然后根据散列值把消息映射到特定的分区上。同一个键总是被映射到同一个分区上 (如果分区数量发生了变化则不能保证)，映射的时候会使用主题所有的分区，而不仅仅是可用分区，所以如果写入数据分区是不可用的，那么就会发生错误，当然这种情况很少发生。
