有个需求，有A、B、C、D四个组，每个组又有几个小组，要展示每个小组的目标与完成值对比。

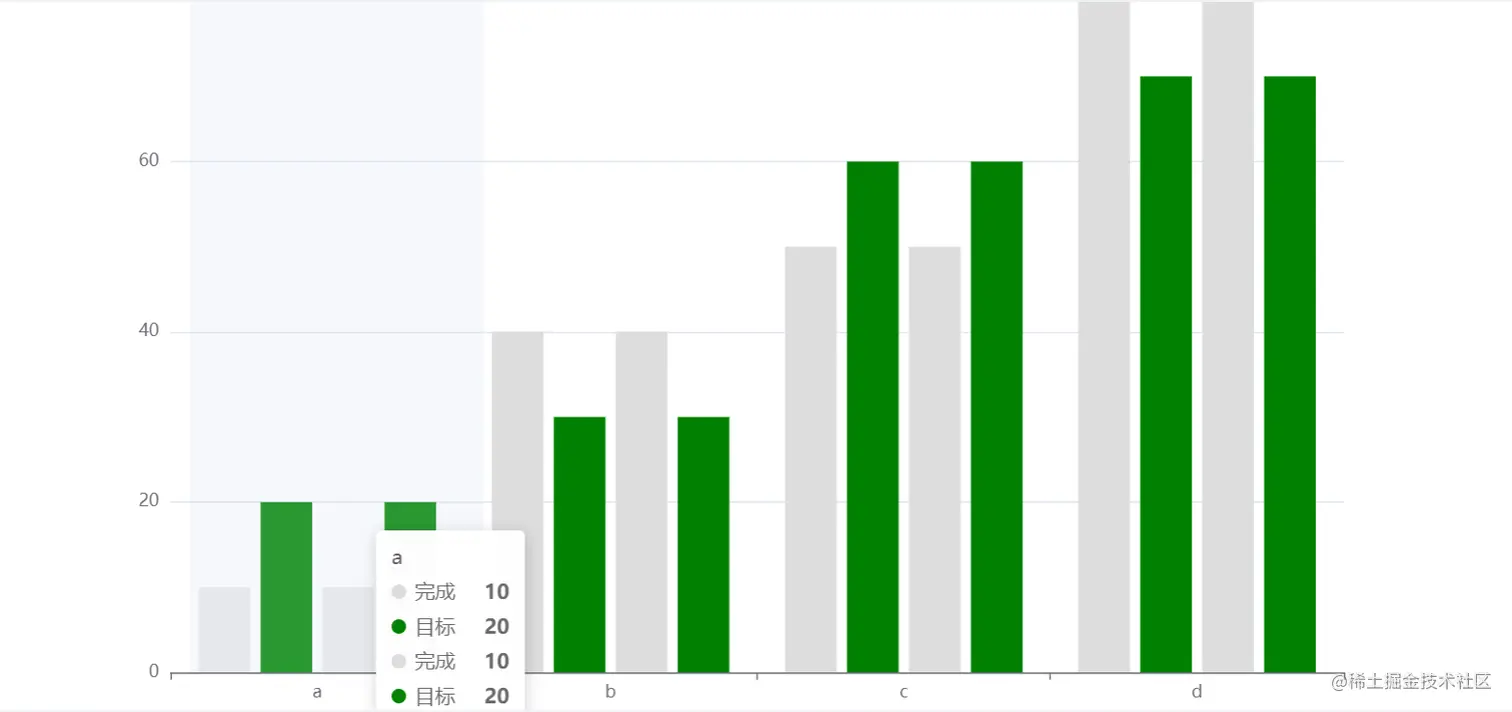

一、最直接的就是下边这种方式。
代码如下：
<template> <div> <div id="main" style="width: 100%;height:600px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; option = { legend: {}, tooltip: { trigger: 'axis', axisPointer: { type: 'shadow' } }, xAxis: { type: 'category', data: ['a', 'b', 'c', 'd'], // axisTick: { show: false }, // axisLabel: { // formatter: "barGap: '-100%'" // } }, yAxis: { // splitLine: { show: false } }, // animationDurationUpdate: 1200, series: [ { type: 'bar', itemStyle: { normal: { color: '#ddd' } }, name: '完成', data: [10, 40, 50, 80] }, { type: 'bar', name: '目标', itemStyle: { normal: { color: 'green' } }, data: [20, 30, 60, 70] }, { type: 'bar', itemStyle: { normal: { color: '#ddd' } }, name: '完成', data: [10, 40, 50, 80] }, { type: 'bar', silent: true, name: '目标', itemStyle: { normal: { color: 'green' } }, data: [20, 30, 60, 70] }, ] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>

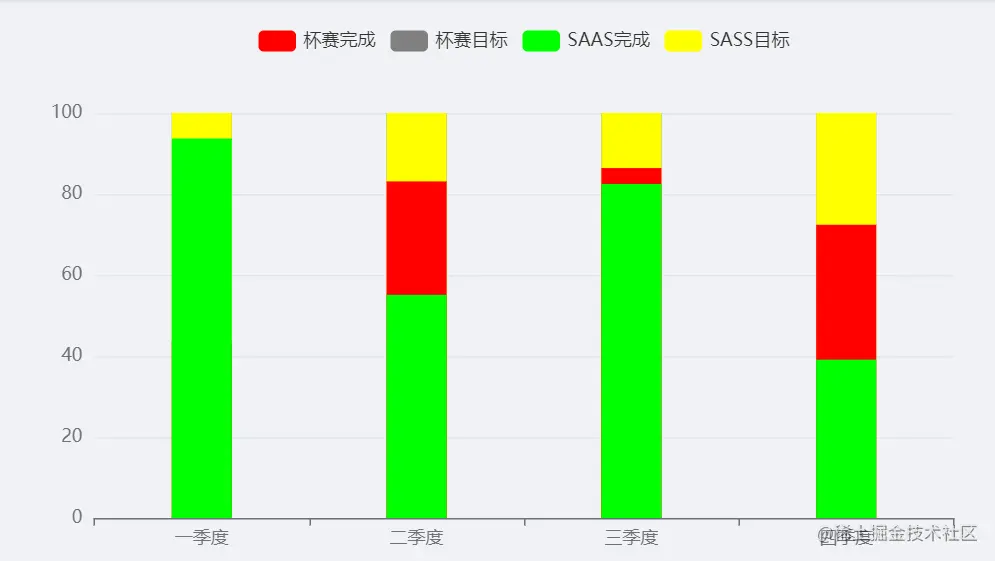

二、但是有时候需求需要我们把小组的目标与完成柱子叠加在一起。我们可以使用堆叠柱状图。
代码如下：
<template> <div> <div id="main" style="width: 100%;height:400px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; option = { legend: {}, tooltip: {}, dataset: { source: [ ['product', '杯赛完成', '杯赛目标', 'SAAS完成','SASS目标','官网完成','官网目标'], ['一季度', 43.3, 100, 93.7,100, 85.8, 93.7], ['二季度', 83.1, 100, 55.1,100, 85.8, 93.7], ['三季度', 86.4, 100, 82.5,100, 85.8, 93.7], ['四季度', 72.4, 100, 39.1,100, 85.8, 93.7] ] }, xAxis: { type: 'category' }, yAxis: {}, series: [{ type: 'bar',color:'#f00',barGap: 7,z:11,barWidth: 40, }, { type: 'bar',color:'gray',barWidth: 40, }, { type: 'bar',color:'#0f0',barGap: '-100%',z:12,barWidth: 40, },{ type: 'bar',color:'yellow',barWidth: 40, }] // series: [{ type: 'bar',color:'#f00',barGap: '-10%', }, { type: 'bar',color:'gray' }, { type: 'bar',color:'#f00',barGap: '-100%', },{ type: 'bar',color:'gray' }, { type: 'bar',color:'#f00',barGap: '-100%', }, { type: 'bar',color:'gray' }] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>

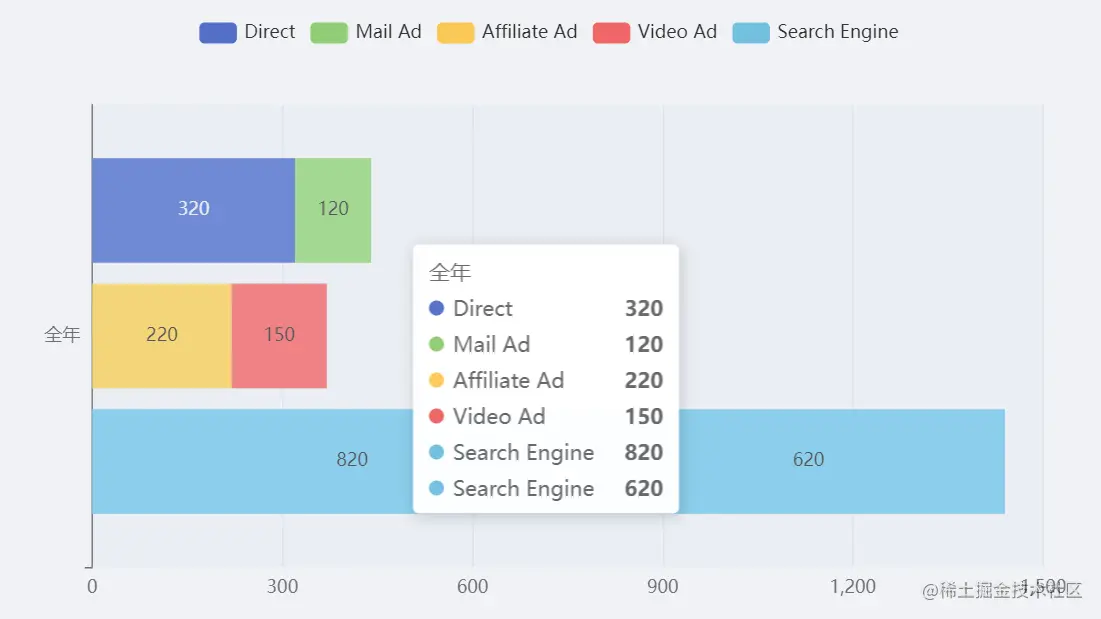

也有横向的
<template> <div> <div id="main" style="width: 100%;height:400px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; option = { tooltip: { trigger: 'axis', axisPointer: { // Use axis to trigger tooltip type: 'shadow' // 'shadow' as default; can also be 'line' or 'shadow' } }, legend: {}, grid: { left: '3%', right: '4%', bottom: '3%', containLabel: true }, xAxis: { type: 'value' }, yAxis: { type: 'category', data: ['全年'] }, series: [ { name: 'Direct', type: 'bar', stack: 'total', label: { show: true }, emphasis: { focus: 'series' }, data: [320] }, { name: 'Mail Ad', type: 'bar', stack: 'total', label: { show: true }, emphasis: { focus: 'series' }, data: [120] }, { name: 'Affiliate Ad', type: 'bar', stack: 'total1', label: { show: true }, emphasis: { focus: 'series' }, data: [220] }, { name: 'Video Ad', type: 'bar', stack: 'total1', label: { show: true }, emphasis: { focus: 'series' }, data: [150] }, { name: 'Search Engine', type: 'bar', stack: 'total2', label: { show: true }, emphasis: { focus: 'series' }, data: [820] }, { name: 'Search Engine', type: 'bar', stack: 'total2', label: { show: true }, emphasis: { focus: 'series' }, data: [620] }, ] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>
这个图的缺点就是叠加时候每一个叠加是在上一个数值基础上叠加的，目标值与实际完成值的差值体现的不明显。

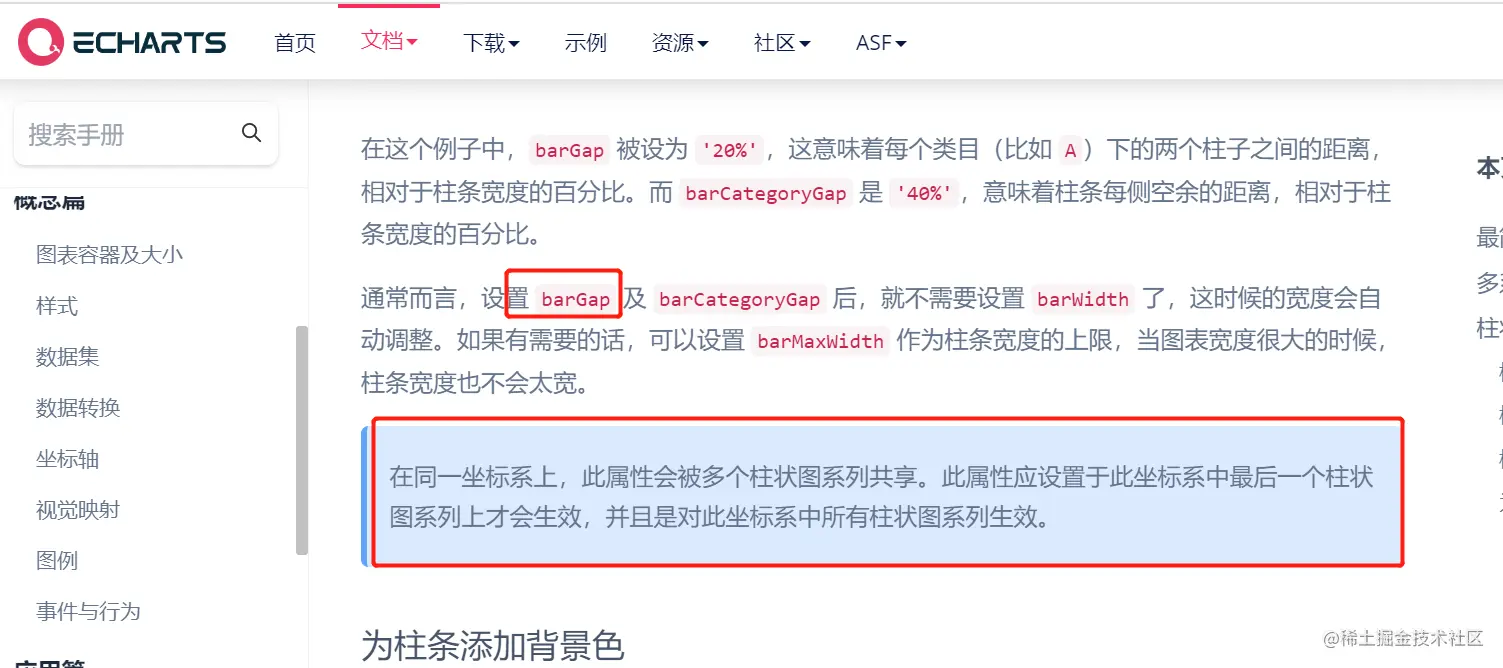

三、看到官网上提供了一种移动坐标轴的案例。
代码如下：
<template> <div> <div id="main" style="width: 100%;height:400px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; option = { legend: {}, tooltip: {}, xAxis: { type: 'category', data: ['a', 'b', 'c', 'd'], // axisTick: { show: false }, // axisLabel: { // formatter: "barGap: '-100%'" // } }, yAxis: { // splitLine: { show: false } }, // animationDurationUpdate: 1200, series: [ { type: 'bar', itemStyle: { normal: { color: '#ddd' } }, silent: true, barWidth: 40, barGap: '-100%', data: [60, 60, 60, 60] }, { type: 'bar', silent: true, barWidth: 40, z: 10, data: [45, 60, 13, 25] } ] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>
但是这种方法有弊端，首先层级没法确定，可能出现其中一个数据覆盖另一个小的数据，然后就是每一组只能展示一组数据，对多组数据也都会重叠在一起。
详细地址：echarts.apache.org/handbook/zh…

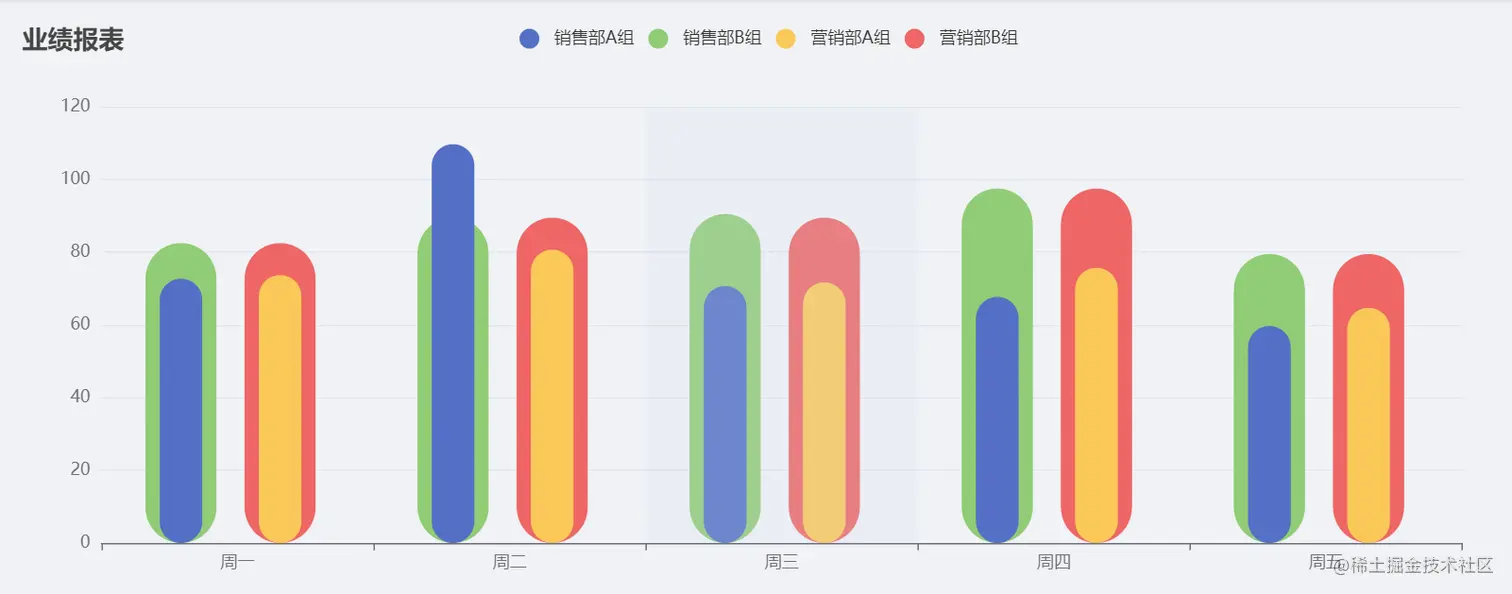

四、有一种是可以满足上述需求的。
代码如下：
<template> <div> <div id="main" style="width: 100%;height:400px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; //下面就是上图的配置项，关键部分有注释 option = { title: { text: '业绩报表' }, tooltip: { trigger: 'axis', axisPointer: { type: 'shadow' } }, legend: {}, grid: { left: '3%', right: '4%', bottom: '3%', containLabel: true }, xAxis: { type: 'category', data: ['周一', '周二', '周三', '周四', '周五'] }, yAxis: { type: 'value', boundaryGap: [0, 0.01] }, series: [ {//里层的柱子 name: '销售部A组', type: 'pictorialBar',//象形柱状图 barWidth: 30,//柱子的宽度 data: [72, 109, 70, 67, 59],//柱子的数据 symbol: 'circle',//柱子的形状 symbolRepeat: true,//是否重复 symbolOffset: [-30, 0],//柱子的位置 symbolBoundingData: 1,//图形的个数 z: 12//柱子的层级 }, { //外层的柱子 name: "销售部B组", type: "pictorialBar", barWidth: 50, //symbolSize: [40, 18], //调整截面形状 symbolOffset: [-40, 0], symbol: 'circle', symbolRepeat: true, symbolBoundingData: 1, itemStyle: { color: '' }, data: [82, 89, 90, 97, 79] }, {//里面的柱子 name: '营销部A组', type: 'pictorialBar', data: [73, 80, 71, 75, 64], barWidth: 30, symbol: 'circle', symbolRepeat: true, symbolOffset: [40, 0], symbolBoundingData: 1, z: 12 }, { //外面的柱子 name: "营销部B组", type: "pictorialBar", barWidth: 50, //symbolSize: [40, 18], //调整截面形状 symbolOffset: [30, 0], symbol: 'circle', symbolRepeat: true, symbolBoundingData: 1, itemStyle: { color: '' }, data: [82, 89, 89, 97, 79] }, ] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>
通过设置柱子粗细就不会有覆盖问题了。
参考文章：blog.csdn.net/m0_52313178…

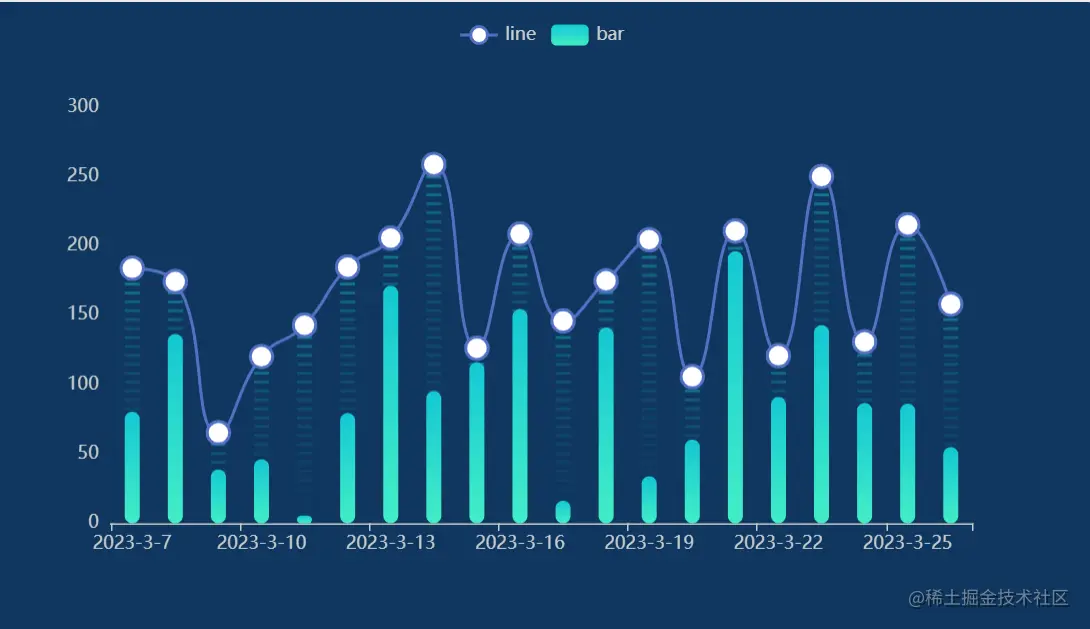

五、最后无意间看到一个很好看的折线图柱状图混合的图，对每组只有一组数据适用。
代码如下：
<template> <div> <div id="main" style="width: 100%;height:400px;"></div> </div></template><script lang="ts">import { defineComponent, onMounted,} from 'vue'import * as echarts from 'echarts';export default defineComponent({ setup(props) { const initCharts = () => { var chartDom = document.getElementById('main'); if (!chartDom) return let myChart = echarts.init(chartDom); var option; let category = []; let dottedBase = +new Date(); let lineData = []; let barData = []; for (let i = 0; i < 20; i++) { let date = new Date((dottedBase += 3600 * 24 * 1000)); category.push( [date.getFullYear(), date.getMonth() + 1, date.getDate()].join('-') ); let b = Math.random() * 200; let d = Math.random() * 200; barData.push(b); lineData.push(d + b); } option = { backgroundColor: '#0f375f', tooltip: { trigger: 'axis', axisPointer: { type: 'shadow' } }, legend: { data: ['line', 'bar'], textStyle: { color: '#ccc' } }, xAxis: { data: category, axisLine: { lineStyle: { color: '#ccc' } } }, yAxis: { splitLine: { show: false }, axisLine: { lineStyle: { color: '#ccc' } } }, series: [ { name: 'line', type: 'line', smooth: true, showAllSymbol: true, symbol: 'emptyCircle', symbolSize: 15, data: lineData }, { name: 'bar', type: 'bar', barWidth: 10, itemStyle: { borderRadius: 5, color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [ { offset: 0, color: '#14c8d4' }, { offset: 1, color: '#43eec6' } ]) }, data: barData }, { name: 'line', type: 'bar', barGap: '-100%', barWidth: 10, itemStyle: { color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [ { offset: 0, color: 'rgba(20,200,212,0.5)' }, { offset: 0.2, color: 'rgba(20,200,212,0.2)' }, { offset: 1, color: 'rgba(20,200,212,0)' } ]) }, z: -12, data: lineData }, { name: 'dotted', type: 'pictorialBar', symbol: 'rect', itemStyle: { color: '#0f375f' }, symbolRepeat: true, symbolSize: [12, 4], symbolMargin: 1, z: -10, data: lineData } ] }; option && myChart.setOption(option); window.addEventListener("resize", () => { myChart.resize(); }); } onMounted(() => { initCharts() }) }})</script>
