图片和应用内图标管理

覆盖内容

在这里, 我将向您展示如何使用Compose for Desktop来处理图片.

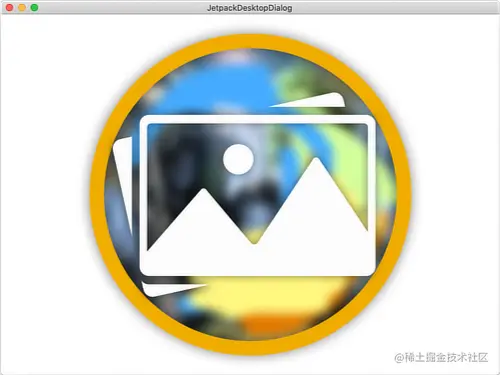

从资源中加载图片

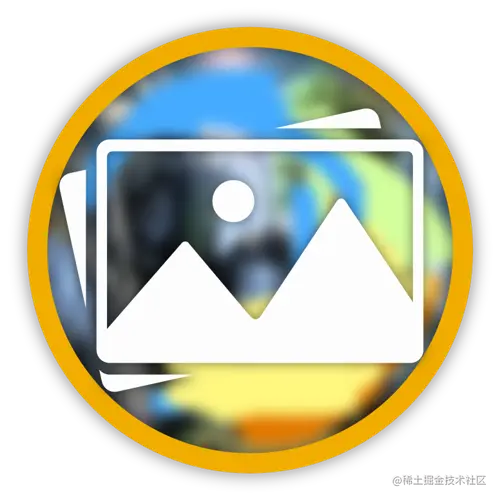

从应用程序的资源中使用图片是非常简单的. 假设我们有一张PNG图片, 它被放置在我们项目的resources目录下. 在这里, 我们将使用图片样本.

Sample

import androidx.compose.foundation.Image
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.painterResource
import androidx.compose.ui.window.singleWindowApplication

fun main() = singleWindowApplication {
    Image(
        painter = painterResource("sample.png"),
        contentDescription = "Sample",
        modifier = Modifier.fillMaxSize()
    )
}

painterResource支持raster(BMP, GIF, HEIF, ICO, JPEG, PNG, WBMP, WebP)和vector格式(SVG, XML vector drawable).

从设备存储或者网络中异步加载图片

要从设备内存或者网络中加载图片, 你可以使用loadImageBitmap, loadSvgPainter或者loadXmlImageVector. 下面的例子展示了如何使用这些函数异步加载图片.

fun main() = singleWindowApplication {
    val density = LocalDensity.current
    Column {
        AsyncImage(
            load = { loadImageBitmap(File("sample.png")) },
            painterFor = { remember { BitmapPainter(it) } },
            contentDescription = "Sample",
            modifier = Modifier.width(200.dp)
        )
        AsyncImage(
            load = { loadSvgPainter("https://github.com/JetBrains/compose-jb/raw/master/artwork/idea-logo.svg", density) },
            painterFor = { it },
            contentDescription = "Idea logo",
            contentScale = ContentScale.FillWidth,
            modifier = Modifier.width(200.dp)
        )
        AsyncImage(
            load = { loadXmlImageVector(File("compose-logo.xml"), density) },
            painterFor = { rememberVectorPainter(it) },
            contentDescription = "Compose logo",
            contentScale = ContentScale.FillWidth,
            modifier = Modifier.width(200.dp)
        )
    }
}

@Composable
fun <T> AsyncImage(
    load: suspend () -> T,
    painterFor: @Composable (T) -> Painter,
    contentDescription: String,
    modifier: Modifier = Modifier,
    contentScale: ContentScale = ContentScale.Fit,
) {
    val image: T? by produceState<T?>(null) {
        value = withContext(Dispatchers.IO) {
            try {
                load()
            } catch (e: IOException) {
                // instead of printing to console, you can also write this to log,
                // or show some error placeholder
                e.printStackTrace()
                null
            }
        }
    }

    if (image != null) {
        Image(
            painter = painterFor(image!!),
            contentDescription = contentDescription,
            contentScale = contentScale,
            modifier = modifier
        )
    }
}

/* Loading from file with java.io API */

fun loadImageBitmap(file: File): ImageBitmap =
    file.inputStream().buffered().use(::loadImageBitmap)

fun loadSvgPainter(file: File, density: Density): Painter =
    file.inputStream().buffered().use { loadSvgPainter(it, density) }

fun loadXmlImageVector(file: File, density: Density): ImageVector =
    file.inputStream().buffered().use { loadXmlImageVector(InputSource(it), density) }

/* Loading from network with java.net API */

fun loadImageBitmap(url: String): ImageBitmap =
    URL(url).openStream().buffered().use(::loadImageBitmap)

fun loadSvgPainter(url: String, density: Density): Painter =
    URL(url).openStream().buffered().use { loadSvgPainter(it, density) }

fun loadXmlImageVector(url: String, density: Density): ImageVector =
    URL(url).openStream().buffered().use { loadXmlImageVector(InputSource(it), density) }

/* Loading from network with Ktor client API (https://ktor.io/docs/client.html). */

/*

suspend fun loadImageBitmap(url: String): ImageBitmap =
    urlStream(url).use(::loadImageBitmap)

suspend fun loadSvgPainter(url: String, density: Density): Painter =
    urlStream(url).use { loadSvgPainter(it, density) }

suspend fun loadXmlImageVector(url: String, density: Density): ImageVector =
    urlStream(url).use { loadXmlImageVector(InputSource(it), density) }

@OptIn(KtorExperimentalAPI::class)
private suspend fun urlStream(url: String) = HttpClient(CIO).use {
    ByteArrayInputStream(it.get(url))
}

 */

PNG

SVG

XML vector drawable

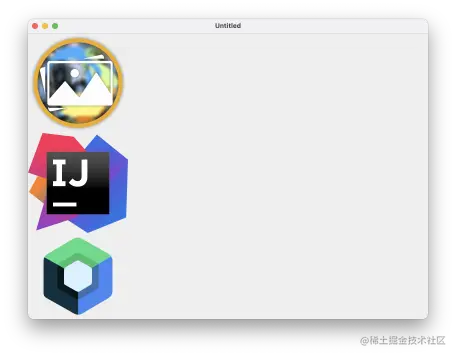

使用Canvas绘制图片

fun main() = singleWindowApplication {
    val density = LocalDensity.current // to calculate the intrinsic size of vector images (SVG, XML)

    val sample = remember {
        useResource("sample.png", ::loadImageBitmap)
    }
    val ideaLogo = remember {
        useResource("idea-logo.svg") { loadSvgPainter(it, density) }
    }
    val composeLogo = rememberVectorPainter(
        remember {
            useResource("compose-logo.xml") { loadXmlImageVector(InputSource(it), density) }
        }
    )

    Canvas(
        modifier = Modifier.fillMaxSize()
    ) {
        drawIntoCanvas { canvas ->
            canvas.withSave {
                canvas.drawImage(sample, Offset.Zero, Paint())
                canvas.translate(sample.width.toFloat(), 0f)
                with(ideaLogo) {
                    draw(ideaLogo.intrinsicSize)
                }
                canvas.translate(ideaLogo.intrinsicSize.width, 0f)
                with(composeLogo) {
                    draw(Size(100f, 100f))
                }
            }
        }
    }
}

PNG

SVG

XML vector drawable

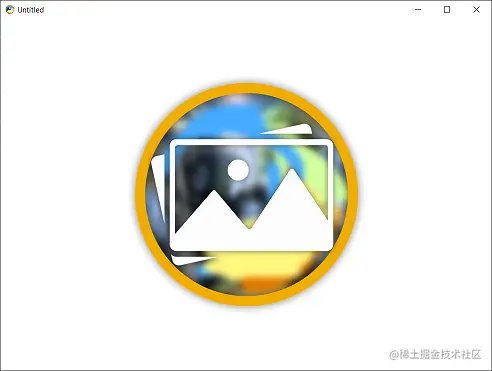

设置应用窗口图标

你可以通过Window函数中的参数设置窗口的图标.

注意, 要改变某些操作系统(macOs)任务栏上的图标, 你应该在build.gradle中改变图标.

fun main() = application {
    val icon = painterResource("sample.png")
    Window(
        onCloseRequest = ::exitApplication,
        icon = icon
    ) {
        Box(Modifier.paint(icon).fillMaxSize())
    }
}

对于singleWindowApplication的用法, 你可以使用下面的方式:

fun main() {
    val icon = BitmapPainter(useResource("sample.png", ::loadImageBitmap))
    singleWindowApplication(icon = icon) {
        Text("Hello World!")
    }
}

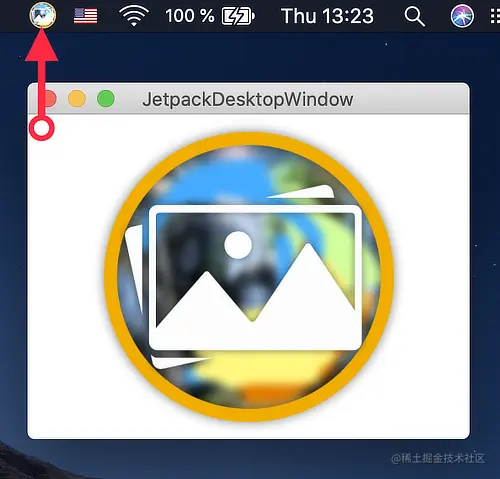

设置应用托盘图标

你可以为应用创建托盘图标:

fun main() = application {
    val icon = painterResource("sample.png")

    Tray(
        icon = icon,
        menu = {
            Item("Quit App", onClick = ::exitApplication)
        }
    )

    Window(onCloseRequest = ::exitApplication, icon = icon) {
        Image(
            painter = icon,
            contentDescription = "Icon",
            modifier = Modifier.fillMaxSize()
        )
    }
}
