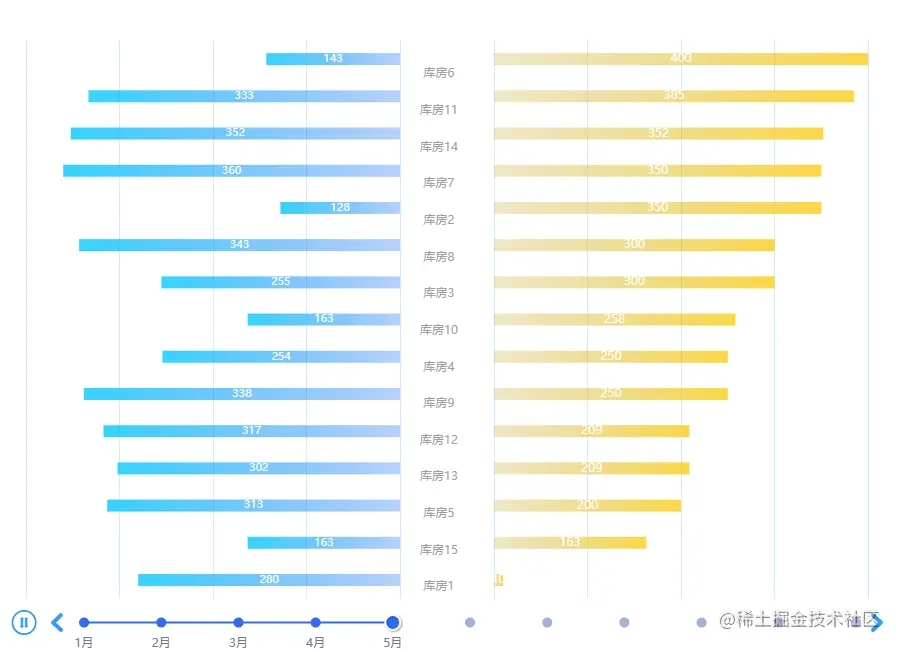

漂亮的图表
//图表标题
var chart_title='';
//图表X轴数据
var Xdata = ['库房1', '库房2', '库房3', '库房4', '库房5', '库房6', '库房7', '库房 8', '库房9', '库房10', '库房11', '库房12', '库房13', '库房14','库房15']
//图表项目
var fp_key = ['出库', '入库'];
var fp_bar_postion = ["left","left","left","left","right","right","right","right"];
var fp_coler=[''];
let lineColor="rgba(40,158,255,0.2)";
let colors = [{
borderColor: "rgba(2, 201, 254,1)",
start: "rgba(2, 201, 254,0.8)",
end: "rgba(17, 107, 243, 0.3)"
},
{
borderColor: "rgba(0,222,255,1)",
start: "rgba(205, 178, 73,0.3)",
end: "rgba(252,205,20,0.8)"
},
];
//图表项目数据
var LF_val = {
0: [80, 128, 255, 254, 313, 143, 360, 343, 338, 163, 333, 317, 302, 352, 163,],
1: [389, 259, 262, 324, 232, 176, 196, 214, 133, 370, 268, 360, 395, 352, 163,],
2: [111, 315, 139, 375, 204, 352, 163, 258, 385, 209, 209, 243, 352, 352, 163,],
3: [227, 210, 328, 292, 241, 110, 130, 185, 392, 392, 153, 187, 200, 352, 163,],
4: [100, 350, 300, 250, 200, 150, 100, 150, 200, 250, 300, 350, 350, 352, 163,],
5: [280, 128, 255, 254, 313, 143, 360, 343, 338, 163, 333, 317, 302, 352, 163,],
6: [121, 388, 233, 309, 133, 308, 297, 283, 349, 273, 229, 238, 291, 352, 163,],
7: [200, 350, 300, 250, 200, 150, 100, 150, 200, 250, 300, 350, 350, 352, 163,],
8: [380, 129, 173, 101, 310, 393, 386, 296, 366, 268, 208, 149, 239, 352, 163,],
9: [363, 396, 388, 108, 325, 120, 180, 292, 200, 309, 223, 236, 271, 352, 163,],
10: [300, 350, 300, 250, 200, 150, 100, 150, 200, 250, 300, 350, 350, 352, 163,],
11: [100, 350, 300, 250, 200, 150, 100, 150, 200, 250, 300, 350, 350, 352, 163,],
};
var TS_val = {
0: [80, 128, 255, 254, 313, 263, 302, 372, 163, 258, 385, 209, 209, 352, 163,],
1: [20, 350, 300, 250, 200, 400, 350, 300, 250, 258, 385, 209, 209, 352, 163,],
2: [30, 129, 173, 101, 310, 356, 239, 208, 330, 258, 385, 209, 209, 352, 163,],
3: [33, 396, 388, 108, 325, 209, 271, 215, 216, 258, 385, 209, 209, 352, 163,],
4: [30, 350, 300, 250, 200, 400, 350, 300, 250, 258, 385, 209, 209, 352, 163,],
5: [10, 350, 300, 250, 200, 400, 350, 300, 250, 258, 385, 209, 209, 352, 163,],
6: [80, 128, 255, 254, 313, 263, 302, 372, 163, 258, 385, 209, 209, 352, 163,],
7: [89, 259, 262, 324, 232, 185, 392, 392, 153, 258, 385, 209, 209, 352, 163,],
8: [11, 315, 139, 375, 204, 204, 352, 163, 258, 258, 385, 209, 209, 352, 163,],
9: [27, 210, 328, 292, 241, 150, 200, 250, 300, 258, 385, 209, 209, 352, 163,],
10: [10, 350, 300, 250, 200, 400, 350, 300, 250, 258, 385, 209, 209, 352, 163,],
11: [20, 128, 255, 254, 313, 263, 302, 372, 163, 258, 385, 209, 209, 352, 163,],
};
//图表月份
var timeLineData = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11];
diskData = [
{
name: '来访',
value: 1,
children: [
{
name: '来访1',
value: 1
},
{
name: '来访2',
value: 1
},
{
name: '来访3',
value: 1
},
{
name: '来访4',
value: 1
},
{
name: '来访5',
value: 1
}
]
},
{
name: '推送',
value: 1,
children: [
{
name: '推送1',
value: 1
},
{
name: '推送2',
value: 1
},
{
name: '推送3',
value: 1
},
{
name: '推送4',
value: 1
},
{
name: '推送5',
value: 1
},
{
name: '推送6',
value: 1
}
]
},
{
name: '来访',
value: 1,
children: [
{
name: '来访1',
value: 1
},
{
name: '来访2',
value: 1
},
{
name: '来访3',
value: 1
},
{
name: '来访4',
value: 1
},
{
name: '来访5',
value: 1
}
]
}
]
//图表配置
const option = {
baseOption: {
timeline: {
show: true,
axisType: 'category',
tooltip: {
show: true,
formatter: function(params) {
console.log(params);
return params.name + '月份数据统计';
}
},
autoPlay: true,
currentIndex: 6,
playInterval: 3000,
left: '3%',
right: '3%',
bottom: '0%',
width: '94%',
label: {
normal: {
show: true,
interval: 'auto',
formatter: '{value}月',
textStyle: {
color: '#fff',
}
},
emphasis: {
textStyle: {
color: '#fff'
}
}
},
symbolSize: 10,
lineStyle: {
color: '#fff'
},
checkpointStyle: {
borderColor: '#fff',
borderWidth: 2
},
controlStyle: {
showNextBtn: true,
showPrevBtn: true,
normal: {
color: '#319af3',
borderColor: '#319af3'
},
emphasis: {
color: '#fff',
borderColor: '#fff'
}
},
data: [],
},
title: {
// text:'',
textStyle: {
color: '#fff',
fontSize: 16,
},
//subtext: '作者:',
},
legend: {
data: fp_key,
top: '0%',
right: '5%',
itemWidth: 12,
itemHeight: 5,
// itemGap: 343,
icon: 'horizontal',
textStyle: {
color: '#fff',
fontSize: 14,
},
},
tooltip: {
show: true,
trigger: 'axis',
//formatter: '{b}<br/>{a}: {c}人',
axisPointer: {
type: 'shadow',
}
},
grid: [
{
show: false,
left: '5%',
top: '10%',
bottom: '8%',
containLabel: true,
width: '40%'
}, {
show: false,
left: '50%',
top: '15%',
bottom: '7%',
width: '0%'
}, {
show: false,
left: '55%',
top: '10%',
bottom: '8%',
containLabel: true,
width: '40%'
},
{
gridindex:3,
show: false,
}],
xAxis: [
{
type: 'value',
triggerEvent: true,
inverse: true,
axisLine: {
show: false,
},
axisTick: {
show: false,
},
position: 'top',
axisLabel: {
show: true,
textStyle: {
color: '#fff',
fontSize: 12,
},
},
splitLine: {
show: true,
lineStyle:{
color:lineColor
}
},
},
{
gridIndex: 1,
show: false,
},
{
gridIndex: 2,
type: 'value',
axisLine: {
show: false,
},
axisTick: {
show: false,
},
position: 'top',
axisLabel: {
show: true,
textStyle: {
color: '#fff',
fontSize: 12,
},
},
splitLine: {
show: true,
lineStyle:{
color:lineColor
}
},
} ,
{
gridIndex: 3,
type: 'value',
show: false,
}
],
yAxis: [{
type: 'category',
inverse: true,
position: 'right',
axisLine: {
show: false
},
axisTick: {
show: false
},
axisLabel: {
show: false,
margin: 8,
textStyle: {
color: '#fff',
fontSize: 12,
},
},
data: Xdata,
}, {
gridIndex: 1,
type: 'category',
inverse: true,
position: 'left',
axisLine: {
show: false
},
axisTick: {
show: false
},
axisLabel: {
show: true,
textStyle: {
color: '#9D9EA0',
fontSize: 12,
},
},
data: Xdata.map(function(value) {
return {
value: value,
textStyle: {
align: 'center',
}
}
}),
}, {
gridIndex: 2,
type: 'category',
inverse: true,
position: 'left',
axisLine: {
show: false
},
axisTick: {
show: false
},
axisLabel: {
show: false,
textStyle: {
color: '#9D9EA0',
fontSize: 12,
},
},
data: Xdata,
},{
gridIndex:3,
type: 'category',
inverse: true,
position: 'left',
axisLine: {
show: false
},
axisTick: {
show: false
},
axisLabel: {
show: false,
textStyle: {
color: '#9D9EA0',
fontSize: 12,
},
},
data: Xdata,
} ],
series: [],
},
options: [],
};
for (var i = 0; i < timeLineData.length; i++) {
option.baseOption.timeline.data.push(timeLineData[i]);
option.options.push({
series: [
{
name: fp_key[0],
type: 'bar',
stack: 'one',
realtimeSort: false,
barGap: 12,
barWidth: 12,
label: {
normal: {
show: true,
position:'inside',
textStyle: {
color: '#fff',
fontSize: 11,
},
},
emphasis: {
show: true,
position: 'inside',
offset: [0, 0],
textStyle: {
color: '#fff',
fontSize: 12,
},
},
},
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [{
offset: 0,
color: colors[0].start
},
{
offset: 1,
color: colors[0].end
}
]),
}
},
data: LF_val[timeLineData[i]],
},
{
name: fp_key[1],
stack: 'right',
type: 'bar',
realtimeSort: true,
barGap: 12,
barWidth: 12,
xAxisIndex: 2,
yAxisIndex: 2,
label: {
normal: {
show: true,
position:'inside',
textStyle: {
color: '#fff',
fontSize: 12,
},
},
emphasis: {
show: true,
position: 'inside',
offset: [0, 0],
textStyle: {
color: '#fff',
fontSize: 12,
},
},
},
itemStyle: {
normal: {
color: new echarts.graphic.LinearGradient(0, 0, 1, 0, [{
offset: 0,
color: colors[1].start
},
{
offset: 1,
color: colors[1].end
}
]),
}
},
data: TS_val[timeLineData[i]],
},
]
});
}
