Spring-11 AOP JDK & CGLIB 动态代理详解

Spring 源码系列文章会遵循由浅入深,由易到难,由宏观到微观的原则,目标是尽量降低学习难度,而不是一上来就迷失在源码当中. 文章会从一个场景作为出发点，针对性的目的性极强的针对该场景对 Spring 的实现原理，源码进行探究学习。该系列文章会让你收获什么? 从对 Spring 的使用者成为 Spring 专家。该文章会同步在微信公众号 【DevXJava】, 方便在微信客户端阅读。

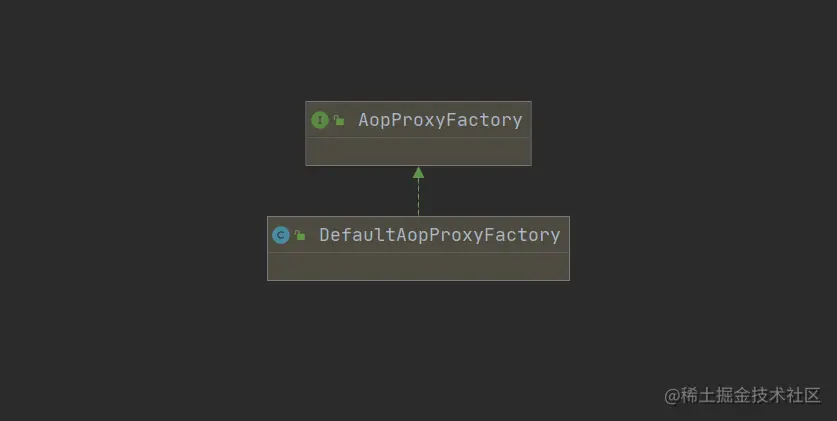

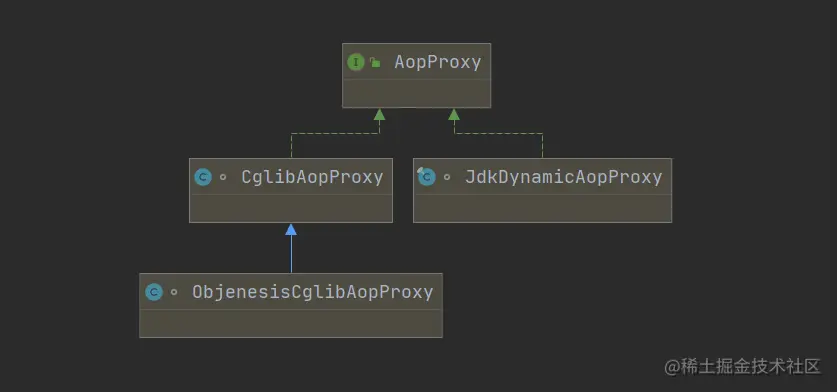

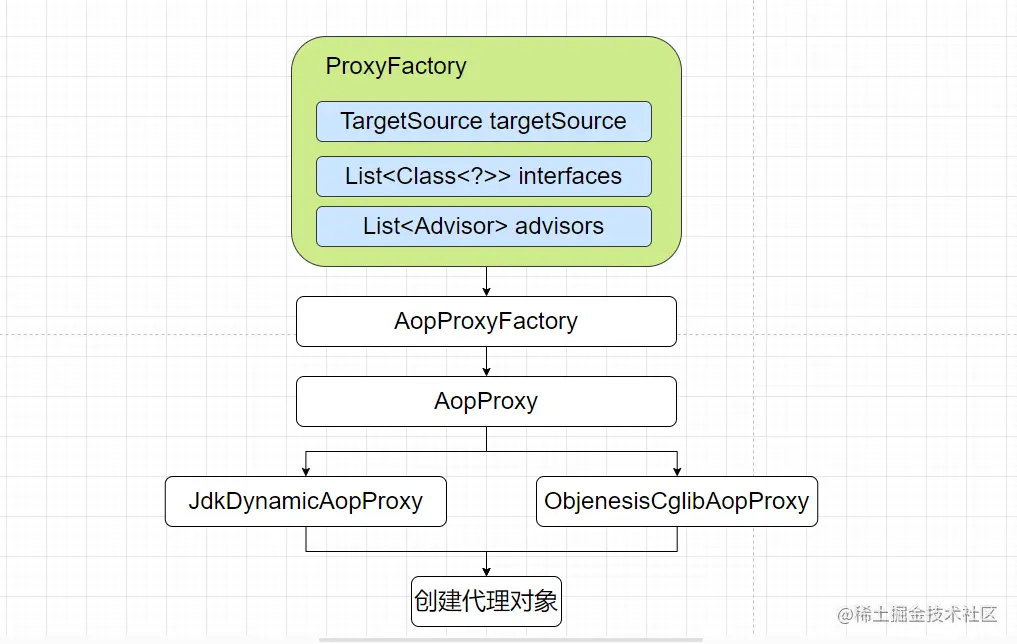

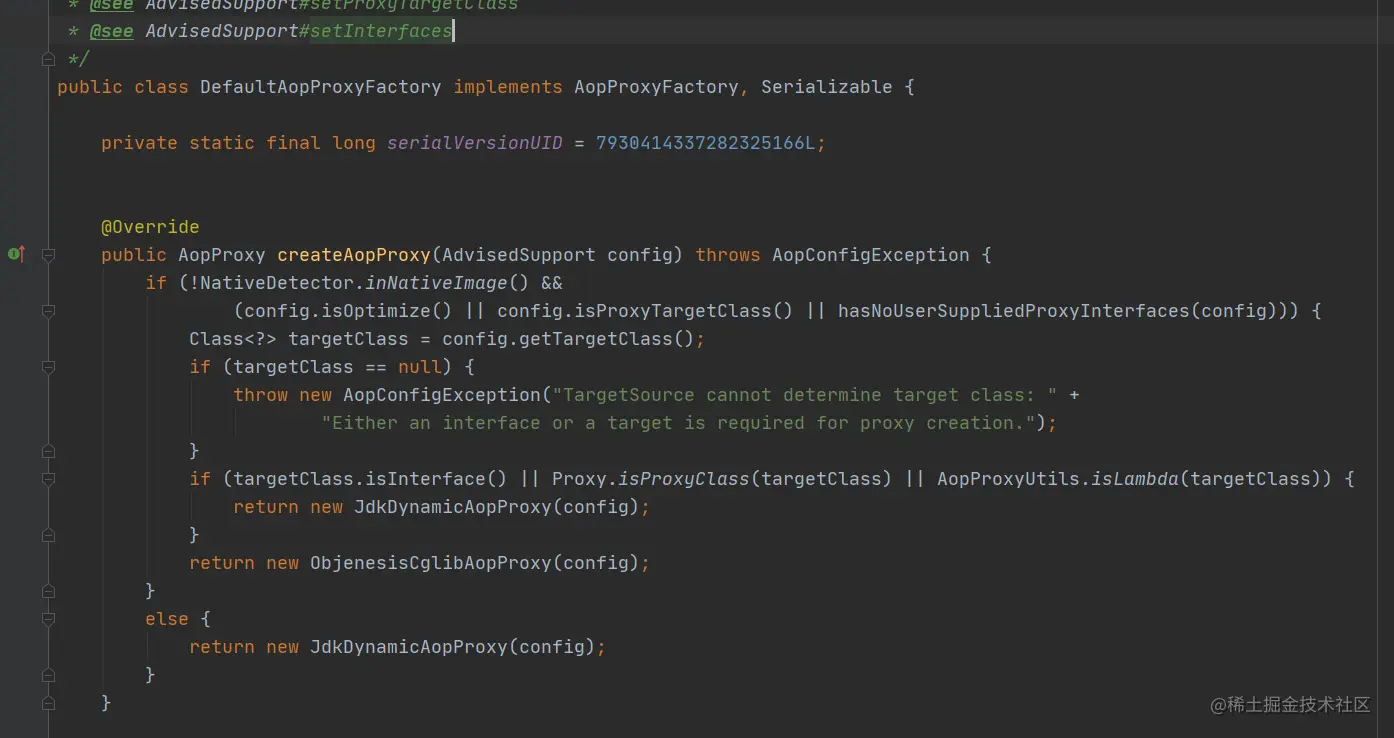

ProxyFactory & AopProxyFactory & AopProxy & 代理对象之间的关系

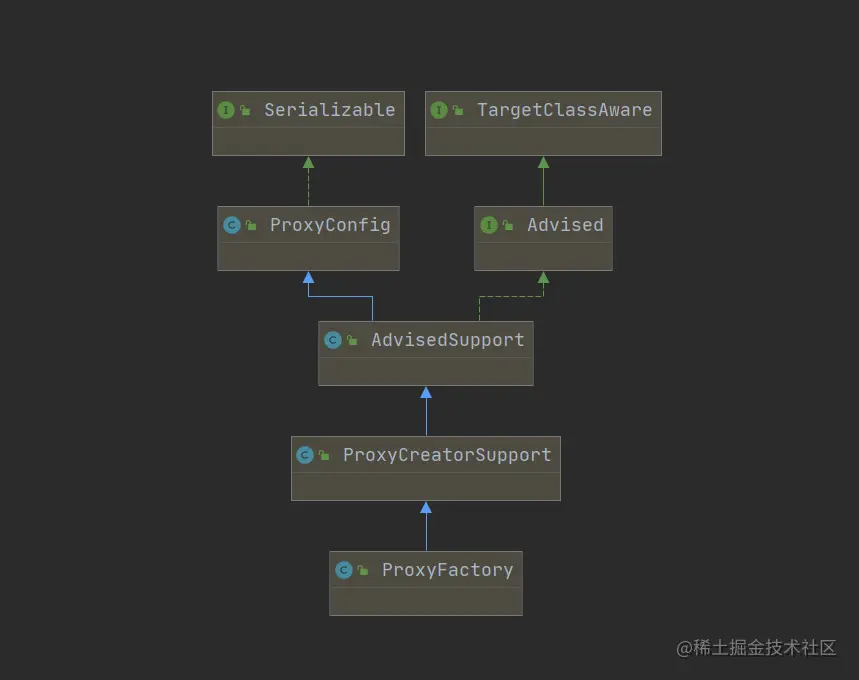

ProxyFactory 中的重要属性有 targetSource 封装了目标对象, interfaces 目标对象类型的接口 , advisors 封装了切面和连接点信息。在创建代理对象的过程中会将 ProxyFactory 对象层层传递以保留 AOP 的相关配置信息。

JDK 动态代理

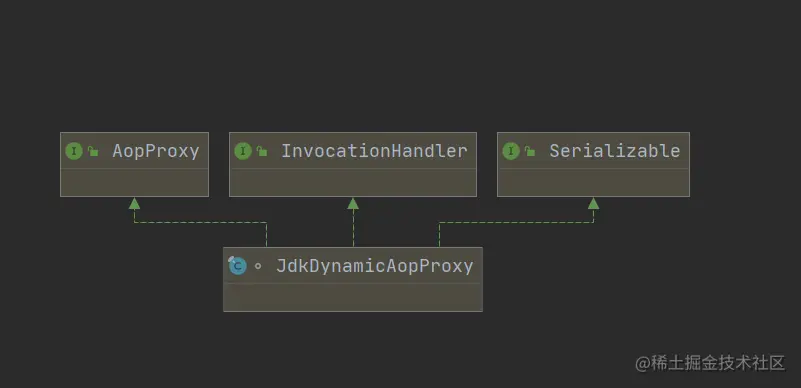

jdk 代理使用的是 JdkDynamicAopProxy 创建的。JdkDynamicAopProxy 本身就是 InvocationHandler 的实现。在创建代理时就是使用 jdk Proxy 创建代理对象。

@Override
public Object getProxy(@Nullable ClassLoader classLoader) {
   if (logger.isTraceEnabled()) {
      logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
   }
   return Proxy.newProxyInstance(classLoader, this.proxiedInterfaces, this);
}

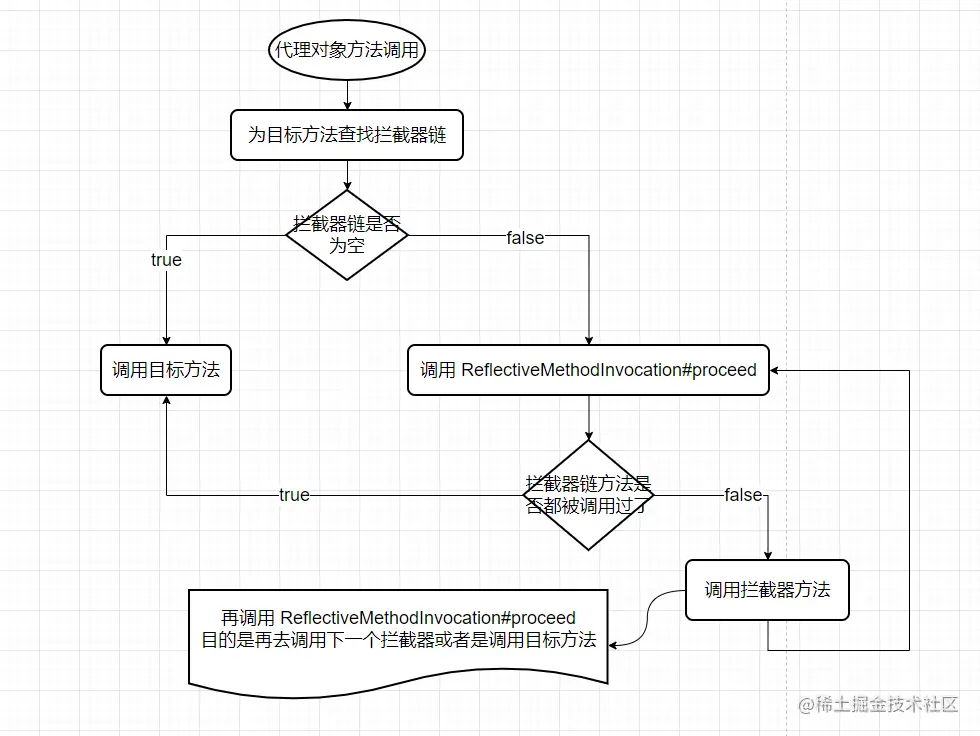

核心 invoke 方法

List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass); 是获取跟当前调用方法适用的切面集合。 将代理对象，目标对象，目标对象类型，方法，方法调用参数，切面集合封装到 ReflectiveMethodInvocation 最终是由 ReflectiveMethodInvocation proceed 方法进行调用。

/**
 * Implementation of {@code InvocationHandler.invoke}.
 * <p>Callers will see exactly the exception thrown by the target,
 * unless a hook method throws an exception.
 */
@Override
@Nullable
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
   Object oldProxy = null;
   boolean setProxyContext = false;

   TargetSource targetSource = this.advised.targetSource;
   Object target = null;

   try {
      if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
         // The target does not implement the equals(Object) method itself.
         return equals(args[0]);
      }
      else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
         // The target does not implement the hashCode() method itself.
         return hashCode();
      }
      else if (method.getDeclaringClass() == DecoratingProxy.class) {
         // There is only getDecoratedClass() declared -> dispatch to proxy config.
         return AopProxyUtils.ultimateTargetClass(this.advised);
      }
      else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
            method.getDeclaringClass().isAssignableFrom(Advised.class)) {
         // Service invocations on ProxyConfig with the proxy config...
         return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
      }

      Object retVal;

      if (this.advised.exposeProxy) {
         // Make invocation available if necessary.
         oldProxy = AopContext.setCurrentProxy(proxy);
         setProxyContext = true;
      }

      // Get as late as possible to minimize the time we "own" the target,
      // in case it comes from a pool.
      target = targetSource.getTarget();
      Class<?> targetClass = (target != null ? target.getClass() : null);

      // Get the interception chain for this method.
      List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

      // Check whether we have any advice. If we don't, we can fallback on direct
      // reflective invocation of the target, and avoid creating a MethodInvocation.
      if (chain.isEmpty()) {
         // We can skip creating a MethodInvocation: just invoke the target directly
         // Note that the final invoker must be an InvokerInterceptor so we know it does
         // nothing but a reflective operation on the target, and no hot swapping or fancy proxying.
         Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
         retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
      }
      else {
         // We need to create a method invocation...
         MethodInvocation invocation =
               new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
         // Proceed to the joinpoint through the interceptor chain.
         retVal = invocation.proceed();
      }

      // Massage return value if necessary.
      Class<?> returnType = method.getReturnType();
      if (retVal != null && retVal == target &&
            returnType != Object.class && returnType.isInstance(proxy) &&
            !RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
         // Special case: it returned "this" and the return type of the method
         // is type-compatible. Note that we can't help if the target sets
         // a reference to itself in another returned object.
         retVal = proxy;
      }
      else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
         throw new AopInvocationException(
               "Null return value from advice does not match primitive return type for: " + method);
      }
      return retVal;
   }
   finally {
      if (target != null && !targetSource.isStatic()) {
         // Must have come from TargetSource.
         targetSource.releaseTarget(target);
      }
      if (setProxyContext) {
         // Restore old proxy.
         AopContext.setCurrentProxy(oldProxy);
      }
   }
}

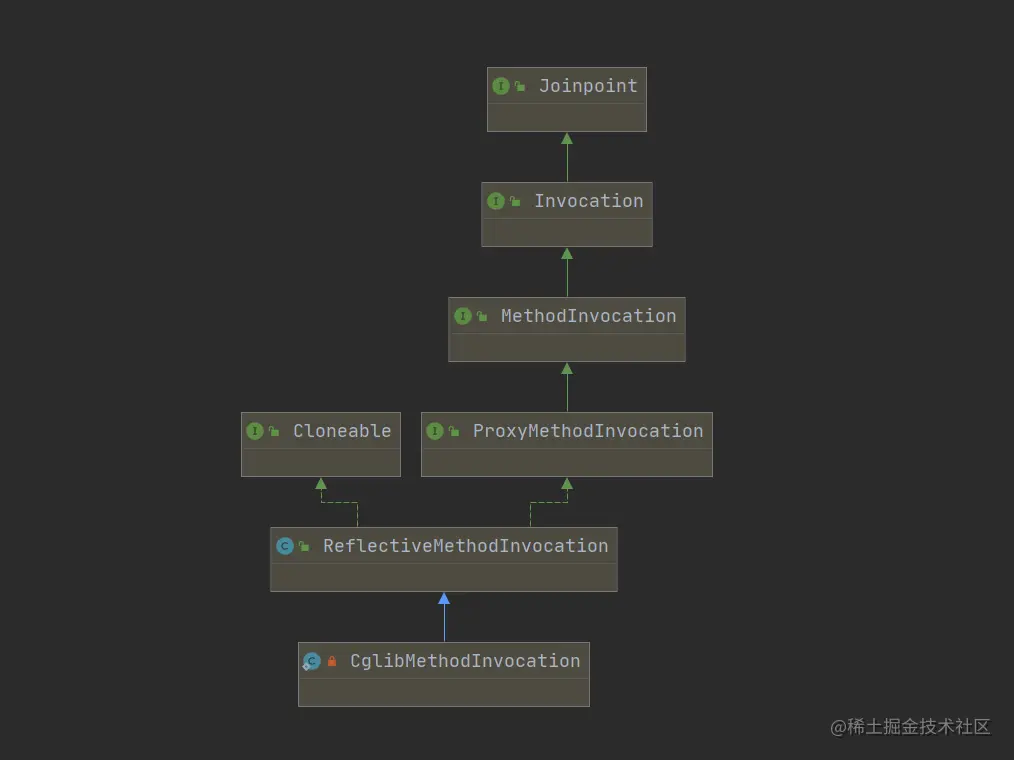

核心 proceed 方法

@Override
@Nullable
public Object proceed() throws Throwable {
   // We start with an index of -1 and increment early.
   if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
      return invokeJoinpoint();
   }

   Object interceptorOrInterceptionAdvice =
         this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
   if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
      // Evaluate dynamic method matcher here: static part will already have
      // been evaluated and found to match.
      InterceptorAndDynamicMethodMatcher dm =
            (InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
      Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
      if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
         return dm.interceptor.invoke(this);
      }
      else {
         // Dynamic matching failed.
         // Skip this interceptor and invoke the next in the chain.
         return proceed();
      }
   }
   else {
      // It's an interceptor, so we just invoke it: The pointcut will have
      // been evaluated statically before this object was constructed.
      return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
   }
}

CGLIB 动态代理

CGLIB 代理使用的是 ObjenesisCglibAopProxy 创建的,内部使用了 CGLIB 技术。

@Override
public Object getProxy(@Nullable ClassLoader classLoader) {
   if (logger.isTraceEnabled()) {
      logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());
   }

   try {
      Class<?> rootClass = this.advised.getTargetClass();
      Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");

      Class<?> proxySuperClass = rootClass;
      if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {
         proxySuperClass = rootClass.getSuperclass();
         Class<?>[] additionalInterfaces = rootClass.getInterfaces();
         for (Class<?> additionalInterface : additionalInterfaces) {
            this.advised.addInterface(additionalInterface);
         }
      }

      // Validate the class, writing log messages as necessary.
      validateClassIfNecessary(proxySuperClass, classLoader);

      // Configure CGLIB Enhancer...
      Enhancer enhancer = createEnhancer();
      if (classLoader != null) {
         enhancer.setClassLoader(classLoader);
         if (classLoader instanceof SmartClassLoader &&
               ((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {
            enhancer.setUseCache(false);
         }
      }
      enhancer.setSuperclass(proxySuperClass);
      enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));
      enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
      enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

      Callback[] callbacks = getCallbacks(rootClass);
      Class<?>[] types = new Class<?>[callbacks.length];
      for (int x = 0; x < types.length; x++) {
         types[x] = callbacks[x].getClass();
      }
      // fixedInterceptorMap only populated at this point, after getCallbacks call above
      enhancer.setCallbackFilter(new ProxyCallbackFilter(
            this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));
      enhancer.setCallbackTypes(types);

      // Generate the proxy class and create a proxy instance.
      return createProxyClassAndInstance(enhancer, callbacks);
   }
   catch (CodeGenerationException | IllegalArgumentException ex) {
      throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
            ": Common causes of this problem include using a final class or a non-visible class",
            ex);
   }
   catch (Throwable ex) {
      // TargetSource.getTarget() failed
      throw new AopConfigException("Unexpected AOP exception", ex);
   }
}

private Callback[] getCallbacks(Class<?> rootClass) throws Exception {
   // Parameters used for optimization choices...
   boolean exposeProxy = this.advised.isExposeProxy();
   boolean isFrozen = this.advised.isFrozen();
   boolean isStatic = this.advised.getTargetSource().isStatic();

   // Choose an "aop" interceptor (used for AOP calls).
   Callback aopInterceptor = new DynamicAdvisedInterceptor(this.advised);

   // Choose a "straight to target" interceptor. (used for calls that are
   // unadvised but can return this). May be required to expose the proxy.
   Callback targetInterceptor;
   if (exposeProxy) {
      targetInterceptor = (isStatic ?
            new StaticUnadvisedExposedInterceptor(this.advised.getTargetSource().getTarget()) :
            new DynamicUnadvisedExposedInterceptor(this.advised.getTargetSource()));
   }
   else {
      targetInterceptor = (isStatic ?
            new StaticUnadvisedInterceptor(this.advised.getTargetSource().getTarget()) :
            new DynamicUnadvisedInterceptor(this.advised.getTargetSource()));
   }

   // Choose a "direct to target" dispatcher (used for
   // unadvised calls to static targets that cannot return this).
   Callback targetDispatcher = (isStatic ?
         new StaticDispatcher(this.advised.getTargetSource().getTarget()) : new SerializableNoOp());

   Callback[] mainCallbacks = new Callback[] {
         aopInterceptor,  // for normal advice
         targetInterceptor,  // invoke target without considering advice, if optimized
         new SerializableNoOp(),  // no override for methods mapped to this
         targetDispatcher, this.advisedDispatcher,
         new EqualsInterceptor(this.advised),
         new HashCodeInterceptor(this.advised)
   };

   Callback[] callbacks;

   // If the target is a static one and the advice chain is frozen,
   // then we can make some optimizations by sending the AOP calls
   // direct to the target using the fixed chain for that method.
   if (isStatic && isFrozen) {
      Method[] methods = rootClass.getMethods();
      Callback[] fixedCallbacks = new Callback[methods.length];
      this.fixedInterceptorMap = CollectionUtils.newHashMap(methods.length);

      // TODO: small memory optimization here (can skip creation for methods with no advice)
      for (int x = 0; x < methods.length; x++) {
         Method method = methods[x];
         List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, rootClass);
         fixedCallbacks[x] = new FixedChainStaticTargetInterceptor(
               chain, this.advised.getTargetSource().getTarget(), this.advised.getTargetClass());
         this.fixedInterceptorMap.put(method, x);
      }

      // Now copy both the callbacks from mainCallbacks
      // and fixedCallbacks into the callbacks array.
      callbacks = new Callback[mainCallbacks.length + fixedCallbacks.length];
      System.arraycopy(mainCallbacks, 0, callbacks, 0, mainCallbacks.length);
      System.arraycopy(fixedCallbacks, 0, callbacks, mainCallbacks.length, fixedCallbacks.length);
      this.fixedInterceptorOffset = mainCallbacks.length;
   }
   else {
      callbacks = mainCallbacks;
   }
   return callbacks;
}

CGLIB 动态代理将 advised 信息封装到了 DynamicAdvisedInterceptor 作为生成的代理对象的 Callback 之一。

核心 DynamicAdvisedInterceptor intercept 方法

该方法是用来处理 AOP 代理对象调用的核心方法。它的处理过程其实和前面讲过的是完全一致的，spring 通过统一的 API 保证了这一点。

@Override
@Nullable
public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
   Object oldProxy = null;
   boolean setProxyContext = false;
   Object target = null;
   TargetSource targetSource = this.advised.getTargetSource();
   try {
      if (this.advised.exposeProxy) {
         // Make invocation available if necessary.
         oldProxy = AopContext.setCurrentProxy(proxy);
         setProxyContext = true;
      }
      // Get as late as possible to minimize the time we "own" the target, in case it comes from a pool...
      target = targetSource.getTarget();
      Class<?> targetClass = (target != null ? target.getClass() : null);
      List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
      Object retVal;
      // Check whether we only have one InvokerInterceptor: that is,
      // no real advice, but just reflective invocation of the target.
      if (chain.isEmpty() && CglibMethodInvocation.isMethodProxyCompatible(method)) {
         // We can skip creating a MethodInvocation: just invoke the target directly.
         // Note that the final invoker must be an InvokerInterceptor, so we know
         // it does nothing but a reflective operation on the target, and no hot
         // swapping or fancy proxying.
         Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
         try {
            retVal = methodProxy.invoke(target, argsToUse);
         }
         catch (CodeGenerationException ex) {
            CglibMethodInvocation.logFastClassGenerationFailure(method);
            retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
         }
      }
      else {
         // We need to create a method invocation...
         retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
      }
      retVal = processReturnType(proxy, target, method, retVal);
      return retVal;
   }
   finally {
      if (target != null && !targetSource.isStatic()) {
         targetSource.releaseTarget(target);
      }
      if (setProxyContext) {
         // Restore old proxy.
         AopContext.setCurrentProxy(oldProxy);
      }
   }
}

---

DevX 会持续分享 Java 技术干货，如果你觉得本文对你有帮助希望你可以分享给更多的朋友看到。该文章会同步在微信公众号 【DevXJava】, 方便在微信客户端阅读。
