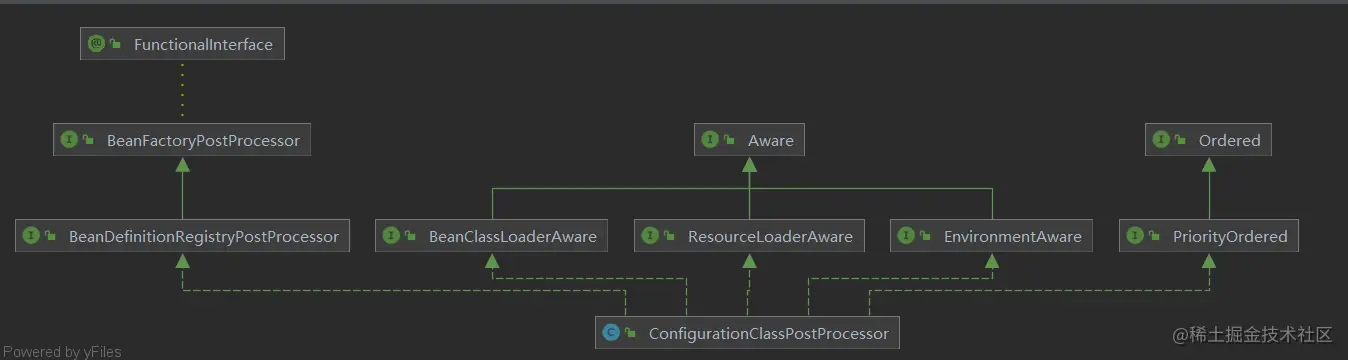

ConfigurationClassPostProcessor是一个BeanFactoryPostProcessor,同时也是BeanDefinitionRegistryPostProcessor,那么它发挥作用和执行逻辑就在于两个PostProcessor的方法,分别是 postProcessBeanFactory和postProcessBeanDefinitionRegistry
主要作用
- 对于候选配置类使用CGLIB Enhancer增强
- 解析处理@PropertySource 注解
- 解析@ComponentScan注解,扫描@Configuration、@Service、@Controller、@Repository和@Component注解并注册BeanDefinition
- 解析@Import注解,然后进行实例化,并执行ImportBeanDefinitionRegistrar的registerBeanDefinitions逻辑,或者ImportSelector的selectImports逻辑
- 解析@ImportResource注解,并加载相关配置信息
- 解析方法级别@Bean注解并将返回值注册成BeanDefinition
- 注册ImportRegistry到容器中,用于处理ImportAware
一、postProcessBeanDefinitionRegistry
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
int registryId = System.identityHashCode(registry);
if (this.registriesPostProcessed.contains(registryId)) {
throw new IllegalStateException(
"postProcessBeanDefinitionRegistry already called on this post-processor against " + registry);
}
if (this.factoriesPostProcessed.contains(registryId)) {
throw new IllegalStateException(
"postProcessBeanFactory already called on this post-processor against " + registry);
}
//当前注册器已经被执行器执行
this.registriesPostProcessed.add(registryId);
processConfigBeanDefinitions(registry);
}
public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
List<BeanDefinitionHolder> configCandidates = new ArrayList<>();
String[] candidateNames = registry.getBeanDefinitionNames();
// 1.1 确定配置类和组件
for (String beanName : candidateNames) {
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
if (ConfigurationClassUtils.isFullConfigurationClass(beanDef) ||
ConfigurationClassUtils.isLiteConfigurationClass(beanDef)) {
if (logger.isDebugEnabled()) {
logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
}
}
else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
// Return immediately if no @Configuration classes were found
if (configCandidates.isEmpty()) {
return;
}
// Sort by previously determined @Order value, if applicable
// 对配置类进行排序
configCandidates.sort((bd1, bd2) -> {
int i1 = ConfigurationClassUtils.getOrder(bd1.getBeanDefinition());
int i2 = ConfigurationClassUtils.getOrder(bd2.getBeanDefinition());
return Integer.compare(i1, i2);
});
// Detect any custom bean name generation strategy supplied through the enclosing application context
// 1.2 加载获取BeanNameGenerator
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
if (!this.localBeanNameGeneratorSet) {
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
if (this.environment == null) {
this.environment = new StandardEnvironment();
}
// Parse each @Configuration class
// 加载所有配置类
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
do {
//1.3 解析配置类
parser.parse(candidates);
parser.validate();
Set<ConfigurationClass> configClasses = new LinkedHashSet<>(parser.getConfigurationClasses());
configClasses.removeAll(alreadyParsed);
// Read the model and create bean definitions based on its content
if (this.reader == null) {
this.reader = new ConfigurationClassBeanDefinitionReader(
registry, this.sourceExtractor, this.resourceLoader, this.environment,
this.importBeanNameGenerator, parser.getImportRegistry());
}
// 1.4 解析配置类中的内容
this.reader.loadBeanDefinitions(configClasses);
alreadyParsed.addAll(configClasses);
candidates.clear();
// 1.5 加载配置类中的被@Bean标注的组件
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
}
while (!candidates.isEmpty());
// Register the ImportRegistry as a bean in order to support ImportAware @Configuration classes
// 将ImportRegistry注册为Bean，以支持ImportAware @Configuration类
if (sbr != null && !sbr.containsSingleton(IMPORT_REGISTRY_BEAN_NAME)) {
sbr.registerSingleton(IMPORT_REGISTRY_BEAN_NAME, parser.getImportRegistry());
}
// 清除缓存
if (this.metadataReaderFactory instanceof CachingMetadataReaderFactory) {
// Clear cache in externally provided MetadataReaderFactory; this is a no-op
// for a shared cache since it'll be cleared by the ApplicationContext.
((CachingMetadataReaderFactory) this.metadataReaderFactory).clearCache();
}
}
1.1 确定配置类和组件
for (String beanName : candidateNames) {
BeanDefinition beanDef = registry.getBeanDefinition(beanName);
//判断Bean是否已作为配置类被处理了
if (beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE) != null) {
if (logger.isDebugEnabled()) {
logger.debug("Bean definition has already been processed as a configuration class: " + beanDef);
}
}//1.1.1检查是否是配置类
else if (ConfigurationClassUtils.checkConfigurationClassCandidate(beanDef, this.metadataReaderFactory)) {
//如果是配置类将配置类添加至候选项
configCandidates.add(new BeanDefinitionHolder(beanDef, beanName));
}
}
1.1.1checkConfigurationClassCandidate 检查是否是配置类
判断配置类是否被处理过
beanDef.getAttribute(ConfigurationClassUtils.CONFIGURATION_CLASS_ATTRIBUTE
判断是否是配置类
public static boolean checkConfigurationClassCandidate(
BeanDefinition beanDef, MetadataReaderFactory metadataReaderFactory) {
String className = beanDef.getBeanClassName();
if (className == null || beanDef.getFactoryMethodName() != null) {
return false;
}
AnnotationMetadata metadata;
//如果是注解Bean，获取注解元数据
if (beanDef instanceof AnnotatedBeanDefinition &&
className.equals(((AnnotatedBeanDefinition) beanDef).getMetadata().getClassName())) {
// Can reuse the pre-parsed metadata from the given BeanDefinition...
metadata = ((AnnotatedBeanDefinition) beanDef).getMetadata();
}//如果是其他Bean
else if (beanDef instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) beanDef).hasBeanClass()) {
//如果是BeanFactory执行器或Bean执行器或免被AOP代理的标记接口或事件监听工厂子类都不是配置类
Class<?> beanClass = ((AbstractBeanDefinition) beanDef).getBeanClass();
if (BeanFactoryPostProcessor.class.isAssignableFrom(beanClass) ||
BeanPostProcessor.class.isAssignableFrom(beanClass) ||
AopInfrastructureBean.class.isAssignableFrom(beanClass) ||
EventListenerFactory.class.isAssignableFrom(beanClass)) {
return false;
}
//获取类上注解元数据
metadata = AnnotationMetadata.introspect(beanClass);
}
else {
//没有被找到的类
try {
MetadataReader metadataReader = metadataReaderFactory.getMetadataReader(className);
metadata = metadataReader.getAnnotationMetadata();
}
catch (IOException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Could not find class file for introspecting configuration annotations: " +
className, ex);
}
return false;
}
}
//获取@Configuration的属性值
Map<String, Object> config = metadata.getAnnotationAttributes(Configuration.class.getName());
//设置FULL模式，标识已经处理过
if (config != null && !Boolean.FALSE.equals(config.get("proxyBeanMethods"))) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_FULL);
}
//设置LITE模式，标识已经处理过
else if (config != null || isConfigurationCandidate(metadata)) {
beanDef.setAttribute(CONFIGURATION_CLASS_ATTRIBUTE, CONFIGURATION_CLASS_LITE);
}
//如果没有找到@Configuration说明不是配置类
else {
return false;
}
//设置排序
Integer order = getOrder(metadata);
if (order != null) {
beanDef.setAttribute(ORDER_ATTRIBUTE, order);
}
return true;
}
总结:
- 判断配置类是否已经处理过
- 获取Bean的注解元信息
- 注解元信息中如果有@Configuration属性才是配置
- 标识配置类已经被处理
1.1.1.1 full模式
- 被@Configuration修饰，且属性proxyBeanMethods = true(proxyBeanMethods 默认为true)
优点：
- 可以支持通过常规Java调用相同类的@Bean方法而保证是容器内的Bean，这有效规避了在“Lite模式”下操作时难以跟踪的细微错误。特别对于萌新程序员，这个特点很有意义
缺点：
- 运行时会给该类生成一个CGLIB子类放进容器，有一定的性能、时间开销（这个开销在Spring Boot这种拥有大量配置类的情况下是不容忽视的，这也是为何Spring5.2新增了proxyBeanMethods属性的最直接原因）
- 正因为被代理了，所以@Bean方法不可以是private、final，也就是说必须是可以被继承的方法，具体原因可以去看CGLib的相关知识，这里不做过多赘述。
总结
- 配置类会被CGLIB增强(生成代理对象)，放进IoC容器内的是代理
- 配置类内部可以通过方法调用来处理依赖，并且能够保证是同一个实例，都指向IoC内的那个单例
- @Bean方法不能被private/final等进行修饰，否则编译报错
1.1.1.2 lite模式
- 没有被@Configuration修饰，被@Component修饰
- 没有被@Configuration修饰，被@ComponentScan修饰
- 没有被@Configuration修饰，被@Import修饰
- 没有被@Configuration修饰，被@ImportResource修饰
- 没有任何Spring相关注解，类里面有@Bean修饰的方法
- 被@Configuration修饰，但是属性proxyBeanMethods = false
优点：
- 运行时不再需要给对应类生成CGLIB子类，每次获取对象并不会优先去获取Ioc容器中的对象，提高了运行性能，降低了服务的启动和加载时间
- 配置类可以当作一个普通类使用：也就是说@Bean方法可以是private、final
缺点：
- 不能声明@Bean之间的依赖，也就是说不能通过方法调用来依赖其它Bean
总结
- 配置类本身不会被CGLIB增强，放进容器内的就是原始类型
- 配置类内部不能通过方法调用来处理依赖，否则每次生成的都是一个新实例而并非IoC容器内的单例
- 配置类可以是普通类，所以@Bean方法可以使用private/final/static等进行修饰
1.2 加载获取BeanNameGenerator
如果注册器中有配置命名器（ConfigurationBeanNameGenerator）则先实例化出配置命名器
SingletonBeanRegistry sbr = null;
if (registry instanceof SingletonBeanRegistry) {
sbr = (SingletonBeanRegistry) registry;
if (!this.localBeanNameGeneratorSet) {
BeanNameGenerator generator = (BeanNameGenerator) sbr.getSingleton(
AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
if (generator != null) {
this.componentScanBeanNameGenerator = generator;
this.importBeanNameGenerator = generator;
}
}
}
1.3解析配置类
//创建配置类解析器
ConfigurationClassParser parser = new ConfigurationClassParser(
this.metadataReaderFactory, this.problemReporter, this.environment,
this.resourceLoader, this.componentScanBeanNameGenerator, registry);
Set<BeanDefinitionHolder> candidates = new LinkedHashSet<>(configCandidates);
Set<ConfigurationClass> alreadyParsed = new HashSet<>(configCandidates.size());
do {
//解析配置类
parser.parse(candidates);
parser.validate();
这里会根据Bean的类型进行解析，带有@Configuration的属于注解Bean会走第一个解析
public void parse(Set<BeanDefinitionHolder> configCandidates) {
for (BeanDefinitionHolder holder : configCandidates) {
BeanDefinition bd = holder.getBeanDefinition();
try {
//注解Bean解析
if (bd instanceof AnnotatedBeanDefinition) {
parse(((AnnotatedBeanDefinition) bd).getMetadata(), holder.getBeanName());
}
//普通Bean解析
else if (bd instanceof AbstractBeanDefinition && ((AbstractBeanDefinition) bd).hasBeanClass()) {
parse(((AbstractBeanDefinition) bd).getBeanClass(), holder.getBeanName());
}
else {
parse(bd.getBeanClassName(), holder.getBeanName());
}
}
catch (BeanDefinitionStoreException ex) {
throw ex;
}
catch (Throwable ex) {
throw new BeanDefinitionStoreException(
"Failed to parse configuration class [" + bd.getBeanClassName() + "]", ex);
}
}
this.deferredImportSelectorHandler.process();
}
使用ConfigurationClass进行包装
protected final void parse(AnnotationMetadata metadata, String beanName) throws IOException {
processConfigurationClass(new ConfigurationClass(metadata, beanName), DEFAULT_EXCLUSION_FILTER);
}
对配置类进行一些处理
protected void processConfigurationClass(ConfigurationClass configClass, Predicate<String> filter) throws IOException {
if (this.conditionEvaluator.shouldSkip(configClass.getMetadata(), ConfigurationPhase.PARSE_CONFIGURATION)) {
return;
}
//判断配置类是否已被加载
ConfigurationClass existingClass = this.configurationClasses.get(configClass);
if (existingClass != null) {
//判断配置类是否以及被导入
if (configClass.isImported()) {
if (existingClass.isImported()) {
existingClass.mergeImportedBy(configClass);
}
// Otherwise ignore new imported config class; existing non-imported class overrides it.
return;
}
else {
// Explicit bean definition found, probably replacing an import.
// Let's remove the old one and go with the new one.
this.configurationClasses.remove(configClass);
this.knownSuperclasses.values().removeIf(configClass::equals);
}
}
// 使用SourceClass对ConfigurationClass做一次包装
SourceClass sourceClass = asSourceClass(configClass, filter);
do {
//对配置类真正做处理的方法
sourceClass = doProcessConfigurationClass(configClass, sourceClass, filter);
}
while (sourceClass != null);
this.configurationClasses.put(configClass, configClass);
}
处理配置类
protected final SourceClass doProcessConfigurationClass(
ConfigurationClass configClass, SourceClass sourceClass, Predicate<String> filter)
throws IOException {
if (configClass.getMetadata().isAnnotated(Component.class.getName())) {
// Recursively process any member (nested) classes first
processMemberClasses(configClass, sourceClass, filter);
}
// Process any @PropertySource annotations
for (AnnotationAttributes propertySource : AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), PropertySources.class,
org.springframework.context.annotation.PropertySource.class)) {
if (this.environment instanceof ConfigurableEnvironment) {
processPropertySource(propertySource);
}
else {
logger.info("Ignoring @PropertySource annotation on [" + sourceClass.getMetadata().getClassName() +
"]. Reason: Environment must implement ConfigurableEnvironment");
}
}
// Process any @ComponentScan annotations
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
// The config class is annotated with @ComponentScan -> perform the scan immediately
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
// Check the set of scanned definitions for any further config classes and parse recursively if needed
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
// Process any @Import annotations
processImports(configClass, sourceClass, getImports(sourceClass), filter, true);
// Process any @ImportResource annotations
AnnotationAttributes importResource =
AnnotationConfigUtils.attributesFor(sourceClass.getMetadata(), ImportResource.class);
if (importResource != null) {
String[] resources = importResource.getStringArray("locations");
Class<? extends BeanDefinitionReader> readerClass = importResource.getClass("reader");
for (String resource : resources) {
String resolvedResource = this.environment.resolveRequiredPlaceholders(resource);
configClass.addImportedResource(resolvedResource, readerClass);
}
}
// Process individual @Bean methods
Set<MethodMetadata> beanMethods = retrieveBeanMethodMetadata(sourceClass);
for (MethodMetadata methodMetadata : beanMethods) {
configClass.addBeanMethod(new BeanMethod(methodMetadata, configClass));
}
// Process default methods on interfaces
processInterfaces(configClass, sourceClass);
// Process superclass, if any
if (sourceClass.getMetadata().hasSuperClass()) {
String superclass = sourceClass.getMetadata().getSuperClassName();
if (superclass != null && !superclass.startsWith("java") &&
!this.knownSuperclasses.containsKey(superclass)) {
this.knownSuperclasses.put(superclass, configClass);
// Superclass found, return its annotation metadata and recurse
return sourceClass.getSuperClass();
}
}
// No superclass -> processing is complete
return null;
}
1.3.1 处理内部类
1.3.2 处理@PropertySources和@PropertySource
1.3.3 处理@ComponentScans和@ComponentScan
//获取@ComponentScans和@ComponentScan属性值
Set<AnnotationAttributes> componentScans = AnnotationConfigUtils.attributesForRepeatable(
sourceClass.getMetadata(), ComponentScans.class, ComponentScan.class);
//1.3.3.1通过@Condition条件判断器判定配置类是否应该忽略
if (!componentScans.isEmpty() &&
!this.conditionEvaluator.shouldSkip(sourceClass.getMetadata(), ConfigurationPhase.REGISTER_BEAN)) {
for (AnnotationAttributes componentScan : componentScans) {
#### 1.3.3.2扫描包
Set<BeanDefinitionHolder> scannedBeanDefinitions =
this.componentScanParser.parse(componentScan, sourceClass.getMetadata().getClassName());
//1.3.3.3 扫描的定义集中是否有其他配置类，并在进行递归解析
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
}
}
1.3.3.1通过@Condition条件判断器判定配置类是否应该忽略
//判定基于@Conditional注解的配置类是否应该忽略
public boolean shouldSkip(@Nullable AnnotatedTypeMetadata metadata, @Nullable ConfigurationPhase phase) {
//首先判定配置类是否存在注解，然后判定注解中是否包含@Conditional注解
if (metadata == null || !metadata.isAnnotated(Conditional.class.getName())) {
return false;
}
//如果注册过程为空
if (phase == null) {
//配置类上被注解标注，并且也被@Configuration或@Bean等注解标注
if (metadata instanceof AnnotationMetadata &&
ConfigurationClassUtils.isConfigurationCandidate((AnnotationMetadata) metadata)) {
//将当前注册阶段标记为转换为配置类阶段继续判定
return shouldSkip(metadata, ConfigurationPhase.PARSE_CONFIGURATION);
}
return shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN);
}
List<Condition> conditions = new ArrayList<>();
//首先获取@Conditional注解属性value指定的条件判定类
for (String[] conditionClasses : getConditionClasses(metadata)) {
for (String conditionClass : conditionClasses) {
//获取条件判定类的Condition实例对象
Condition condition = getCondition(conditionClass, this.context.getClassLoader());
conditions.add(condition);
}
}
//将条件判定类排序
AnnotationAwareOrderComparator.sort(conditions);
for (Condition condition : conditions) {
ConfigurationPhase requiredPhase = null;
if (condition instanceof ConfigurationCondition) {
requiredPhase = ((ConfigurationCondition) condition).getConfigurationPhase();
}
//调用具体条件判定类的matches方法判定是否匹配
if ((requiredPhase == null || requiredPhase == phase) && !condition.matches(this.context, metadata)) {
return true;
}
}
return false;
}
//获取@Conditional条件注解的属性值，即条件判定类
private List<String[]> getConditionClasses(AnnotatedTypeMetadata metadata) {
MultiValueMap<String, Object> attributes = metadata.getAllAnnotationAttributes(Conditional.class.getName(), true);
Object values = (attributes != null ? attributes.get("value") : null);
return (List<String[]>) (values != null ? values : Collections.emptyList());
}
//获取条件判定类的Condition实例对象
private Condition getCondition(String conditionClassName, @Nullable ClassLoader classloader) {
Class<?> conditionClass = ClassUtils.resolveClassName(conditionClassName, classloader);
return (Condition) BeanUtils.instantiateClass(conditionClass);
}
1.3.3.2 扫描包
public Set<BeanDefinitionHolder> parse(AnnotationAttributes componentScan, final String declaringClass) {
//创建包扫描器
ClassPathBeanDefinitionScanner scanner = new ClassPathBeanDefinitionScanner(this.registry,
componentScan.getBoolean("useDefaultFilters"), this.environment, this.resourceLoader);
Class<? extends BeanNameGenerator> generatorClass = componentScan.getClass("nameGenerator");
boolean useInheritedGenerator = (BeanNameGenerator.class == generatorClass);
scanner.setBeanNameGenerator(useInheritedGenerator ? this.beanNameGenerator :
BeanUtils.instantiateClass(generatorClass));
//设置作用域代理
ScopedProxyMode scopedProxyMode = componentScan.getEnum("scopedProxy");
if (scopedProxyMode != ScopedProxyMode.DEFAULT) {
scanner.setScopedProxyMode(scopedProxyMode);
}
else {
//创建@Scope注解解析器
Class<? extends ScopeMetadataResolver> resolverClass = componentScan.getClass("scopeResolver");
scanner.setScopeMetadataResolver(BeanUtils.instantiateClass(resolverClass));
}
scanner.setResourcePattern(componentScan.getString("resourcePattern"));
//添加IncludeFilter过滤器
for (AnnotationAttributes filter : componentScan.getAnnotationArray("includeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addIncludeFilter(typeFilter);
}
}
//添加ExcludeFilter过滤器
for (AnnotationAttributes filter : componentScan.getAnnotationArray("excludeFilters")) {
for (TypeFilter typeFilter : typeFiltersFor(filter)) {
scanner.addExcludeFilter(typeFilter);
}
}
//设置懒加载
boolean lazyInit = componentScan.getBoolean("lazyInit");
if (lazyInit) {
scanner.getBeanDefinitionDefaults().setLazyInit(true);
}
//设置包扫描路径
Set<String> basePackages = new LinkedHashSet<>();
String[] basePackagesArray = componentScan.getStringArray("basePackages");
for (String pkg : basePackagesArray) {
String[] tokenized = StringUtils.tokenizeToStringArray(this.environment.resolvePlaceholders(pkg),
ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS);
Collections.addAll(basePackages, tokenized);
}
for (Class<?> clazz : componentScan.getClassArray("basePackageClasses")) {
basePackages.add(ClassUtils.getPackageName(clazz));
}
if (basePackages.isEmpty()) {
basePackages.add(ClassUtils.getPackageName(declaringClass));
}
//添加ExcludeFilter过滤器
scanner.addExcludeFilter(new AbstractTypeHierarchyTraversingFilter(false, false) {
@Override
protected boolean matchClassName(String className) {
return declaringClass.equals(className);
}
});
//进行包扫描
return scanner.doScan(StringUtils.toStringArray(basePackages));
}
这里在包扫描之前做一些前期准备，添加一些过滤器，作用域解析器等。真正的执行扫描工作在解析器中。具体分析： juejin.cn/post/720368…
1.3.3.3 扫描的定义集中是否有其他配置类，并在进行递归解析
for (BeanDefinitionHolder holder : scannedBeanDefinitions) {
//获取Bean定义信息
BeanDefinition bdCand = holder.getBeanDefinition().getOriginatingBeanDefinition();
if (bdCand == null) {
bdCand = holder.getBeanDefinition();
}
//判断是否是配置类（同1.1.1）
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bdCand, this.metadataReaderFactory)) {
//解析配置类
parse(bdCand.getBeanClassName(), holder.getBeanName());
}
}
1.3.4 处理@Import
1.3.5 处理@ImportResource,解析配置文件
1.3.6 处理@Bean
1.3.7 处理接口上的默认方法
1.4 解析配置类中的内容
private void loadBeanDefinitionsForConfigurationClass(
ConfigurationClass configClass, TrackedConditionEvaluator trackedConditionEvaluator) {
if (trackedConditionEvaluator.shouldSkip(configClass)) {
String beanName = configClass.getBeanName();
if (StringUtils.hasLength(beanName) && this.registry.containsBeanDefinition(beanName)) {
this.registry.removeBeanDefinition(beanName);
}
this.importRegistry.removeImportingClass(configClass.getMetadata().getClassName());
return;
}
if (configClass.isImported()) {
registerBeanDefinitionForImportedConfigurationClass(configClass);
}
for (BeanMethod beanMethod : configClass.getBeanMethods()) {
loadBeanDefinitionsForBeanMethod(beanMethod);
}
loadBeanDefinitionsFromImportedResources(configClass.getImportedResources());
loadBeanDefinitionsFromRegistrars(configClass.getImportBeanDefinitionRegistrars());
}
由于在之前已经解析过这个 configClass 了，所以在这里可以很容易的解析出这里面的 @Import 、标注了 @Bean 的方法、@ImportResource 等，并进行相应处理。
咱们以 读取 @Bean 注解标注的方法为例，看一眼它对Bean的解析和加载：（方法很长，关键注释已标注在源码中）
private void loadBeanDefinitionsForBeanMethod(BeanMethod beanMethod) {
ConfigurationClass configClass = beanMethod.getConfigurationClass();
MethodMetadata metadata = beanMethod.getMetadata();
String methodName = metadata.getMethodName();
// 判断该Bean是否要被跳过
if (this.conditionEvaluator.shouldSkip(metadata, ConfigurationPhase.REGISTER_BEAN)) {
configClass.skippedBeanMethods.add(methodName);
return;
}
if (configClass.skippedBeanMethods.contains(methodName)) {
return;
}
// 校验是否标注了@Bean注解
AnnotationAttributes bean = AnnotationConfigUtils.attributesFor(metadata, Bean.class);
Assert.state(bean != null, "No @Bean annotation attributes");
// Bean的名称处理规则：如果Bean中标注了name，取第一个；没有标注，取方法名
List<String> names = new ArrayList<>(Arrays.asList(bean.getStringArray("name")));
String beanName = (!names.isEmpty() ? names.remove(0) : methodName);
// 其余声明的name被视为Bean的别名
for (String alias : names) {
this.registry.registerAlias(beanName, alias);
}
// 注解Bean如果覆盖了xml配置的Bean，要看BeanName是否相同，相同则抛出异常
if (isOverriddenByExistingDefinition(beanMethod, beanName)) {
if (beanName.equals(beanMethod.getConfigurationClass().getBeanName())) {
throw new BeanDefinitionStoreException(beanMethod.getConfigurationClass().getResource().getDescription(),
beanName, "Bean name derived from @Bean method '" + beanMethod.getMetadata().getMethodName() +
"' clashes with bean name for containing configuration class; please make those names unique!");
}
return;
}
ConfigurationClassBeanDefinition beanDef = new ConfigurationClassBeanDefinition(configClass, metadata, beanName);
beanDef.setSource(this.sourceExtractor.extractSource(metadata, configClass.getResource()));
// 被@Bean标注的方法是否为一个静态方法
if (metadata.isStatic()) {
// static @Bean method
if (configClass.getMetadata() instanceof StandardAnnotationMetadata) {
beanDef.setBeanClass(((StandardAnnotationMetadata) configClass.getMetadata()).getIntrospectedClass());
}
else {
beanDef.setBeanClassName(configClass.getMetadata().getClassName());
}
beanDef.setUniqueFactoryMethodName(methodName);
}
else {
// instance @Bean method
// 实例Bean，设置它的工厂方法为该方法名。这个工厂方法在后续创建Bean时会利用到
beanDef.setFactoryBeanName(configClass.getBeanName());
beanDef.setUniqueFactoryMethodName(methodName);
}
if (metadata instanceof StandardMethodMetadata) {
beanDef.setResolvedFactoryMethod(((StandardMethodMetadata) metadata).getIntrospectedMethod());
}
beanDef.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_CONSTRUCTOR);
beanDef.setAttribute(org.springframework.beans.factory.annotation.RequiredAnnotationBeanPostProcessor.
SKIP_REQUIRED_CHECK_ATTRIBUTE, Boolean.TRUE);
AnnotationConfigUtils.processCommonDefinitionAnnotations(beanDef, metadata);
Autowire autowire = bean.getEnum("autowire");
if (autowire.isAutowire()) {
beanDef.setAutowireMode(autowire.value());
}
// 是否需要自动注入
boolean autowireCandidate = bean.getBoolean("autowireCandidate");
if (!autowireCandidate) {
beanDef.setAutowireCandidate(false);
}
// 初始化方法
String initMethodName = bean.getString("initMethod");
if (StringUtils.hasText(initMethodName)) {
beanDef.setInitMethodName(initMethodName);
}
// 销毁方法
String destroyMethodName = bean.getString("destroyMethod");
beanDef.setDestroyMethodName(destroyMethodName);
// Consider scoping
ScopedProxyMode proxyMode = ScopedProxyMode.NO;
AnnotationAttributes attributes = AnnotationConfigUtils.attributesFor(metadata, Scope.class);
if (attributes != null) {
beanDef.setScope(attributes.getString("value"));
proxyMode = attributes.getEnum("proxyMode");
if (proxyMode == ScopedProxyMode.DEFAULT) {
proxyMode = ScopedProxyMode.NO;
}
}
// 如果有必要，将原始bean定义替换为目标bean定义
BeanDefinition beanDefToRegister = beanDef;
if (proxyMode != ScopedProxyMode.NO) {
BeanDefinitionHolder proxyDef = ScopedProxyCreator.createScopedProxy(
new BeanDefinitionHolder(beanDef, beanName), this.registry,
proxyMode == ScopedProxyMode.TARGET_CLASS);
beanDefToRegister = new ConfigurationClassBeanDefinition(
(RootBeanDefinition) proxyDef.getBeanDefinition(), configClass, metadata, beanName);
}
if (logger.isTraceEnabled()) {
logger.trace(String.format("Registering bean definition for @Bean method %s.%s()",
configClass.getMetadata().getClassName(), beanName));
}
// 注册Bean定义信息
this.registry.registerBeanDefinition(beanName, beanDefToRegister);
}
1.5 加载配置类中的被@Bean标注的组件
在上面的配置类都加载完成后，它要比对 BeanDefinition 的个数，以及被处理过的数量。只要数量不对应，就会展开那些配置类继续加载。这部分的源码与上面比较类似，只是检测逻辑的不同，小册不再详细展开，有兴趣的小伙伴可以自行Debug看一下效果。
// 1.4 加载配置类中的被@Bean标注的组件
if (registry.getBeanDefinitionCount() > candidateNames.length) {
String[] newCandidateNames = registry.getBeanDefinitionNames();
Set<String> oldCandidateNames = new HashSet<>(Arrays.asList(candidateNames));
Set<String> alreadyParsedClasses = new HashSet<>();
for (ConfigurationClass configurationClass : alreadyParsed) {
alreadyParsedClasses.add(configurationClass.getMetadata().getClassName());
}
for (String candidateName : newCandidateNames) {
if (!oldCandidateNames.contains(candidateName)) {
BeanDefinition bd = registry.getBeanDefinition(candidateName);
if (ConfigurationClassUtils.checkConfigurationClassCandidate(bd, this.metadataReaderFactory) &&
!alreadyParsedClasses.contains(bd.getBeanClassName())) {
candidates.add(new BeanDefinitionHolder(bd, candidateName));
}
}
}
candidateNames = newCandidateNames;
}
例如
AppConfig类加了Configuration注解，是一个配置类，且实现了AppConfigInterface接口，这个接口中有一个默认的实现方法(JDK8开始，接口中的方法可以有默认实现)，该方法上添加了@Bean注解。这个时候，经过第(1.3.7)步的解析，会向spring容器中添加一个InterfaceMethodBean类型的bean。
@Configuration
public class AppConfig implements AppConfigInterface{
}
public interface AppConfigInterface {
@Bean
default InterfaceMethodBean interfaceMethodBean() {
return new InterfaceMethodBean();
}
}
1.3.8 处理父类SuperClass
二、postProcessBeanFactory
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
int factoryId = System.identityHashCode(beanFactory);
if (this.factoriesPostProcessed.contains(factoryId)) {
throw new IllegalStateException(
"postProcessBeanFactory already called on this post-processor against " + beanFactory);
}
this.factoriesPostProcessed.add(factoryId);
if (!this.registriesPostProcessed.contains(factoryId)) {
// BeanDefinitionRegistryPostProcessor hook apparently not supported...
// Simply call processConfigurationClasses lazily at this point then.
processConfigBeanDefinitions((BeanDefinitionRegistry) beanFactory);
}
enhanceConfigurationClasses(beanFactory);
beanFactory.addBeanPostProcessor(new ImportAwareBeanPostProcessor(beanFactory));
}
