Spring ⑩ AOP 创建代理对象详解

Spring 源码系列文章会遵循由浅入深,由易到难,由宏观到微观的原则,目标是尽量降低学习难度,而不是一上来就迷失在源码当中. 文章会从一个场景作为出发点，针对性的目的性极强的针对该场景对 Spring 的实现原理，源码进行探究学习。该系列文章会让你收获什么? 从对 Spring 的使用者成为 Spring 专家。该文章会同步在微信公众号 【DevXJava】, 方便在微信客户端阅读。

本章会探究 spring AOP 代理对象创建的详细过程和原理. 详细探究 AnnotationAwareAspectJAutoProxyCreator 的工作原理。

场景

public class AopExp2 {

    public static void main(String[] args) throws Exception {

        LoggerContext loggerContext = (LoggerContext) LoggerFactory.getILoggerFactory();
        Logger logger = loggerContext.getLogger(AnnotationAwareAspectJAutoProxyCreator.class);
        logger.setLevel(Level.TRACE);

        DefaultListableBeanFactory factory = new DefaultListableBeanFactory();

        AnnotationAwareAspectJAutoProxyCreator proxyCreator = new AnnotationAwareAspectJAutoProxyCreator();
        proxyCreator.setBeanFactory(factory);
        factory.addBeanPostProcessor(proxyCreator);

        factory.registerBeanDefinition("myAspect" , BeanDefinitionBuilder
                .genericBeanDefinition(MyAspect.class)
                .getBeanDefinition());

        factory.registerBeanDefinition("bean1" , BeanDefinitionBuilder
                .genericBeanDefinition(Bean1.class)
                .getBeanDefinition());

        factory.registerBeanDefinition("bean2" , BeanDefinitionBuilder
                .genericBeanDefinition(Bean2.class)
                .getBeanDefinition());

        Inter1 inter1 = factory.getBean(Inter1.class);
        System.out.println("inter1 type -> " + inter1.getClass());
        inter1.foo();

        Bean2 bean2 = factory.getBean(Bean2.class);
        System.out.println("bean2 type -> " + bean2.getClass());
        bean2.foo();

//        System.in.read();
    }


    @Aspect
    static class MyAspect {

        @Before("execution(* foo())")
        public void before() {
            System.out.println("@Aspect @Before ------------------------------");
        }

    }

    interface Inter1 {

        void foo();
    }

    static class Bean1 implements Inter1 {


        public Bean1() {
            System.out.println("======================== bean1 实例化 ");
        }

        @Override
        public void foo() {
            System.out.println("======================== Bean1 foo ");
        }
    }

    static class Bean2 {


        public Bean2() {
            System.out.println("======================== Bean2 实例化 ");
        }

        public void foo() {
            System.out.println("======================== Bean2 foo ");
        }
    }
}

发现切面

AnnotationAwareAspectJAutoProxyCreator 中有一个方法 findCandidateAdvisors 作用是发现切面类。发现切面的过程是在 bean 实例化之前进行的，入口在 AnnotationAwareAspectJAutoProxyCreator postProcessBeforeInstantiation 方法。

@Override
protected List<Advisor> findCandidateAdvisors() {
   // Add all the Spring advisors found according to superclass rules.
   List<Advisor> advisors = super.findCandidateAdvisors();
   // Build Advisors for all AspectJ aspects in the bean factory.
   if (this.aspectJAdvisorsBuilder != null) {
      advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
   }
   return advisors;
}

AbstractAdvisorAutoProxyCreator#findCandidateAdvisors

父类中的 findCandidateAdvisors 方法是在 BeanFactory 中寻找类型为 Advisor 的实例, 是通过 this.advisorRetrievalHelper.findAdvisorBeans() 方法调用实现的。重点来看 buildAspectJAdvisors 方法，这个方法的作用是在 BeanFactory 所有的 bean 中寻找 AspectJ 的切面类（判断该类是不是 AspectJ 切面会检查是否有 @Aspect 注解，同时不是经过 AJC 编译器编译的 ），并封装为 Advisor 。

/**
 * Find all candidate Advisors to use in auto-proxying.
 * @return the List of candidate Advisors
 */
protected List<Advisor> findCandidateAdvisors() {
   Assert.state(this.advisorRetrievalHelper != null, "No BeanFactoryAdvisorRetrievalHelper available");
   return this.advisorRetrievalHelper.findAdvisorBeans();
}

BeanFactoryAspectJAdvisorsBuilder#buildAspectJAdvisors

/**
 * Look for AspectJ-annotated aspect beans in the current bean factory,
 * and return to a list of Spring AOP Advisors representing them.
 * <p>Creates a Spring Advisor for each AspectJ advice method.
 * @return the list of {@link org.springframework.aop.Advisor} beans
 * @see #isEligibleBean
 */
public List<Advisor> buildAspectJAdvisors() {
   List<String> aspectNames = this.aspectBeanNames;

   if (aspectNames == null) {
      synchronized (this) {
         aspectNames = this.aspectBeanNames;
         if (aspectNames == null) {
            List<Advisor> advisors = new ArrayList<>();
            aspectNames = new ArrayList<>();
            String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
                  this.beanFactory, Object.class, true, false);
            for (String beanName : beanNames) {
               if (!isEligibleBean(beanName)) {
                  continue;
               }
               // We must be careful not to instantiate beans eagerly as in this case they
               // would be cached by the Spring container but would not have been weaved.
               Class<?> beanType = this.beanFactory.getType(beanName, false);
               if (beanType == null) {
                  continue;
               }
               if (this.advisorFactory.isAspect(beanType)) {
                  aspectNames.add(beanName);
                  AspectMetadata amd = new AspectMetadata(beanType, beanName);
                  if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
                     MetadataAwareAspectInstanceFactory factory =
                           new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
                     List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
                     if (this.beanFactory.isSingleton(beanName)) {
                        this.advisorsCache.put(beanName, classAdvisors);
                     }
                     else {
                        this.aspectFactoryCache.put(beanName, factory);
                     }
                     advisors.addAll(classAdvisors);
                  }
                  else {
                     // Per target or per this.
                     if (this.beanFactory.isSingleton(beanName)) {
                        throw new IllegalArgumentException("Bean with name '" + beanName +
                              "' is a singleton, but aspect instantiation model is not singleton");
                     }
                     MetadataAwareAspectInstanceFactory factory =
                           new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
                     this.aspectFactoryCache.put(beanName, factory);
                     advisors.addAll(this.advisorFactory.getAdvisors(factory));
                  }
               }
            }
            this.aspectBeanNames = aspectNames;
            return advisors;
         }
      }
   }

   if (aspectNames.isEmpty()) {
      return Collections.emptyList();
   }
   List<Advisor> advisors = new ArrayList<>();
   for (String aspectName : aspectNames) {
      List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);
      if (cachedAdvisors != null) {
         advisors.addAll(cachedAdvisors);
      }
      else {
         MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);
         advisors.addAll(this.advisorFactory.getAdvisors(factory));
      }
   }
   return advisors;
}

ReflectiveAspectJAdvisorFactory#getAdvisors

将 AspectJ 切面封装为 Advisor , 其中每一个切面方法都会被封装为一个 Advisor。

@Override
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
   Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
   String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
   validate(aspectClass);

   // We need to wrap the MetadataAwareAspectInstanceFactory with a decorator
   // so that it will only instantiate once.
   MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
         new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

   List<Advisor> advisors = new ArrayList<>();
   for (Method method : getAdvisorMethods(aspectClass)) {
      // Prior to Spring Framework 5.2.7, advisors.size() was supplied as the declarationOrderInAspect
      // to getAdvisor(...) to represent the "current position" in the declared methods list.
      // However, since Java 7 the "current position" is not valid since the JDK no longer
      // returns declared methods in the order in which they are declared in the source code.
      // Thus, we now hard code the declarationOrderInAspect to 0 for all advice methods
      // discovered via reflection in order to support reliable advice ordering across JVM launches.
      // Specifically, a value of 0 aligns with the default value used in
      // AspectJPrecedenceComparator.getAspectDeclarationOrder(Advisor).
      Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);
      if (advisor != null) {
         advisors.add(advisor);
      }
   }

   // If it's a per target aspect, emit the dummy instantiating aspect.
   if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
      Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
      advisors.add(0, instantiationAdvisor);
   }

   // Find introduction fields.
   for (Field field : aspectClass.getDeclaredFields()) {
      Advisor advisor = getDeclareParentsAdvisor(field);
      if (advisor != null) {
         advisors.add(advisor);
      }
   }

   return advisors;
}

ReflectiveAspectJAdvisorFactory#getAdvice

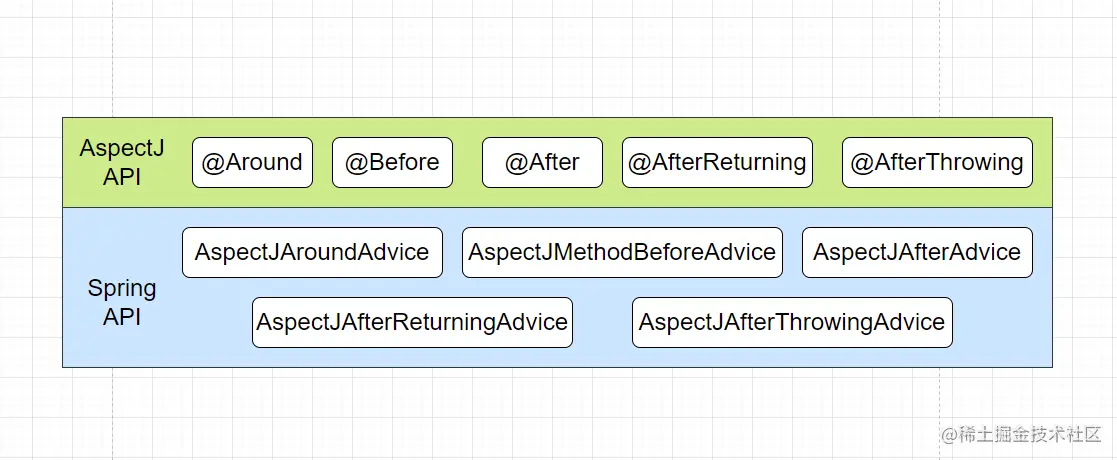

在 AspectJ 切面类中寻找切面方法,将每个切面方法封装为 Advice 。

@Override
@Nullable
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
      MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

   Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
   validate(candidateAspectClass);

   AspectJAnnotation<?> aspectJAnnotation =
         AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
   if (aspectJAnnotation == null) {
      return null;
   }

   // If we get here, we know we have an AspectJ method.
   // Check that it's an AspectJ-annotated class
   if (!isAspect(candidateAspectClass)) {
      throw new AopConfigException("Advice must be declared inside an aspect type: " +
            "Offending method '" + candidateAdviceMethod + "' in class [" +
            candidateAspectClass.getName() + "]");
   }

   if (logger.isDebugEnabled()) {
      logger.debug("Found AspectJ method: " + candidateAdviceMethod);
   }

   AbstractAspectJAdvice springAdvice;

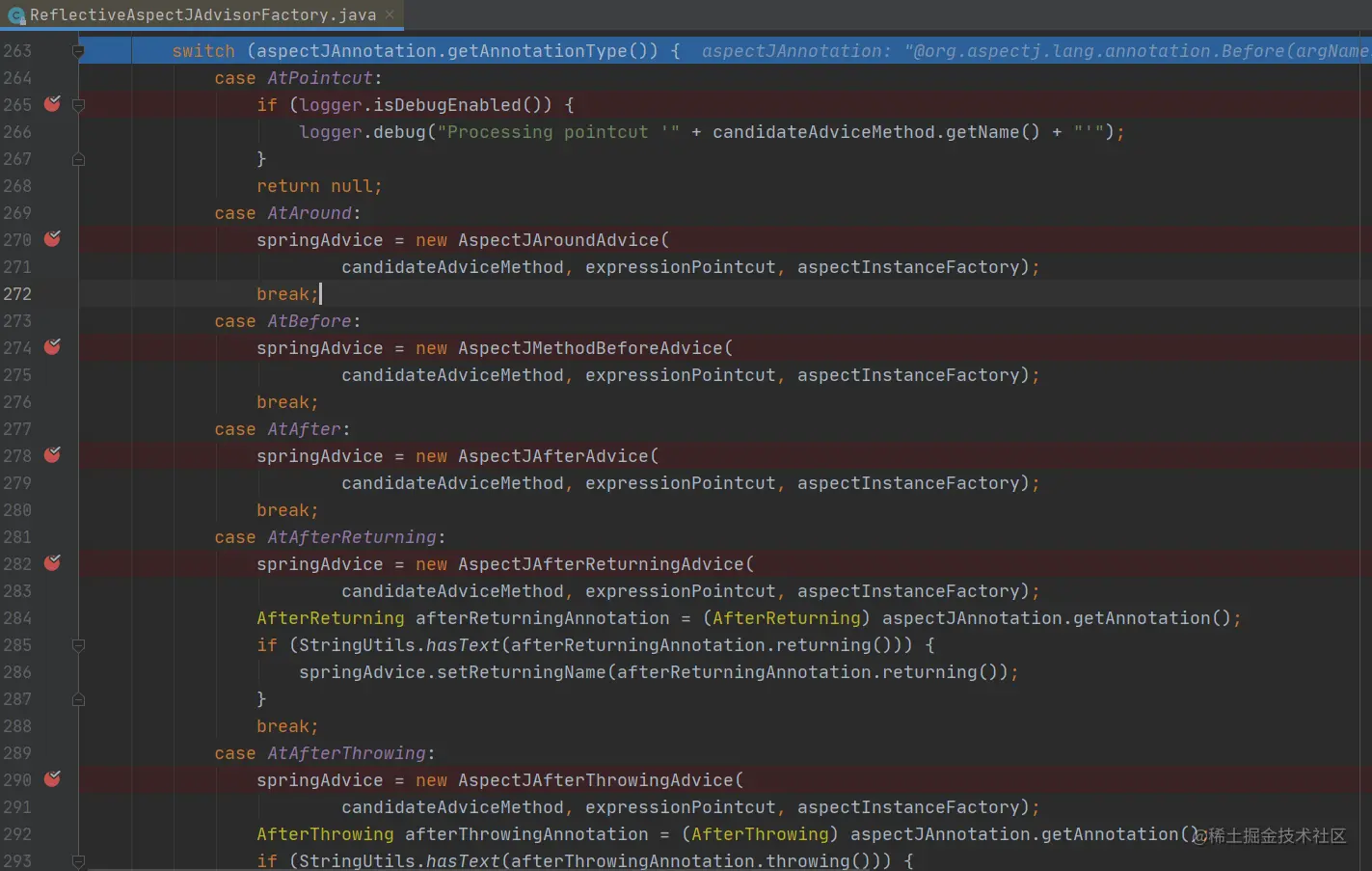

   switch (aspectJAnnotation.getAnnotationType()) {
      case AtPointcut:
         if (logger.isDebugEnabled()) {
            logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
         }
         return null;
      case AtAround:
         springAdvice = new AspectJAroundAdvice(
               candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
         break;
      case AtBefore:
         springAdvice = new AspectJMethodBeforeAdvice(
               candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
         break;
      case AtAfter:
         springAdvice = new AspectJAfterAdvice(
               candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
         break;
      case AtAfterReturning:
         springAdvice = new AspectJAfterReturningAdvice(
               candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
         AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
         if (StringUtils.hasText(afterReturningAnnotation.returning())) {
            springAdvice.setReturningName(afterReturningAnnotation.returning());
         }
         break;
      case AtAfterThrowing:
         springAdvice = new AspectJAfterThrowingAdvice(
               candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
         AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
         if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
            springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
         }
         break;
      default:
         throw new UnsupportedOperationException(
               "Unsupported advice type on method: " + candidateAdviceMethod);
   }

   // Now to configure the advice...
   springAdvice.setAspectName(aspectName);
   springAdvice.setDeclarationOrder(declarationOrder);
   String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
   if (argNames != null) {
      springAdvice.setArgumentNamesFromStringArray(argNames);
   }
   springAdvice.calculateArgumentBindings();

   return springAdvice;
}

对这些 Advice 的源码就不做具体研究了有兴趣的读者可以自己研究一下都很简单。

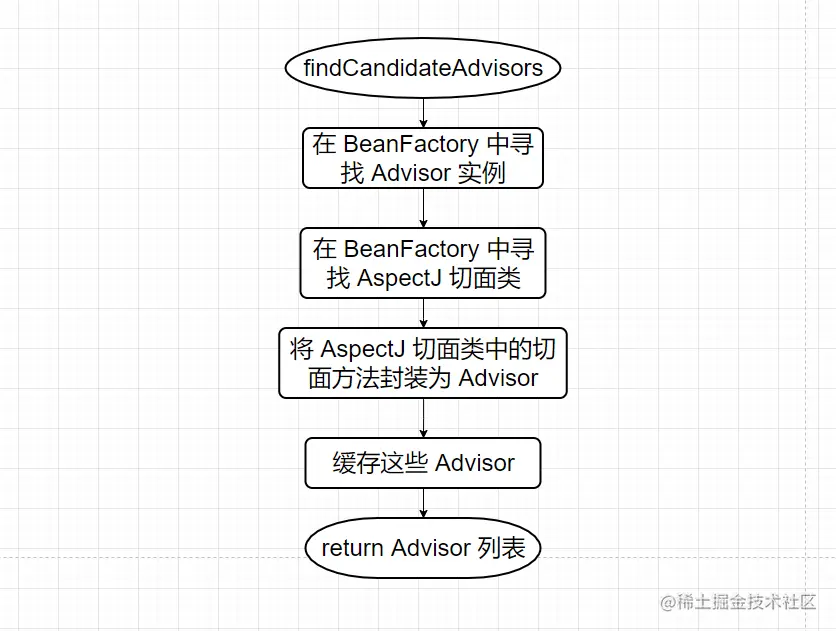

大致的过程如下图所示

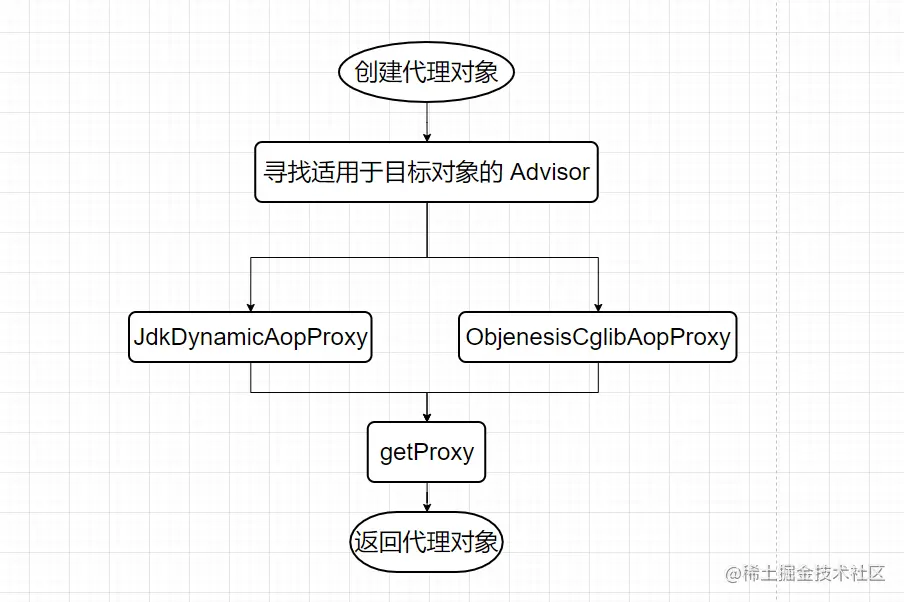

创建代理

创建代理的核心方法是 AbstractAutoProxyCreator 类的 wrapIfNecessary 方法。

/**
 * Wrap the given bean if necessary, i.e. if it is eligible for being proxied.
 * @param bean the raw bean instance
 * @param beanName the name of the bean
 * @param cacheKey the cache key for metadata access
 * @return a proxy wrapping the bean, or the raw bean instance as-is
 */
protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
   if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
      return bean;
   }
   if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
      return bean;
   }
   if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
      this.advisedBeans.put(cacheKey, Boolean.FALSE);
      return bean;
   }

   // Create proxy if we have advice.
   Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
   if (specificInterceptors != DO_NOT_PROXY) {
      this.advisedBeans.put(cacheKey, Boolean.TRUE);
      Object proxy = createProxy(
            bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
      this.proxyTypes.put(cacheKey, proxy.getClass());
      return proxy;
   }

   this.advisedBeans.put(cacheKey, Boolean.FALSE);
   return bean;
}

AbstractAutoProxyCreator#getAdvicesAndAdvisorsForBean

@Override
@Nullable
protected Object[] getAdvicesAndAdvisorsForBean(
      Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {

   List<Advisor> advisors = findEligibleAdvisors(beanClass, beanName);
   if (advisors.isEmpty()) {
      return DO_NOT_PROXY;
   }
   return advisors.toArray();
}

AbstractAutoProxyCreator#findEligibleAdvisors

会对目标对象的每个方法进行检测该切面是否能够应用于该方法。是对所有 Advisor 进行一次过滤只选择适用于该目标对象的 Advisor , 过滤后会对选中的 Advisor 进行一次排序 ， 排序使用的比较器是 AspectJPrecedenceComparator 。

/**
 * Find all eligible Advisors for auto-proxying this class.
 * @param beanClass the clazz to find advisors for
 * @param beanName the name of the currently proxied bean
 * @return the empty List, not {@code null},
 * if there are no pointcuts or interceptors
 * @see #findCandidateAdvisors
 * @see #sortAdvisors
 * @see #extendAdvisors
 */
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {
   List<Advisor> candidateAdvisors = findCandidateAdvisors();
   List<Advisor> eligibleAdvisors = findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
   extendAdvisors(eligibleAdvisors);
   if (!eligibleAdvisors.isEmpty()) {
      eligibleAdvisors = sortAdvisors(eligibleAdvisors);
   }
   return eligibleAdvisors;
}

AbstractAutoProxyCreator#createProxy

终于到了创建代理对象的时候了。

/**
 * Create an AOP proxy for the given bean.
 * @param beanClass the class of the bean
 * @param beanName the name of the bean
 * @param specificInterceptors the set of interceptors that is
 * specific to this bean (may be empty, but not null)
 * @param targetSource the TargetSource for the proxy,
 * already pre-configured to access the bean
 * @return the AOP proxy for the bean
 * @see #buildAdvisors
 */
protected Object createProxy(Class<?> beanClass, @Nullable String beanName,
      @Nullable Object[] specificInterceptors, TargetSource targetSource) {

   if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
      AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory) this.beanFactory, beanName, beanClass);
   }

   ProxyFactory proxyFactory = new ProxyFactory();
   proxyFactory.copyFrom(this);

   if (proxyFactory.isProxyTargetClass()) {
      // Explicit handling of JDK proxy targets (for introduction advice scenarios)
      if (Proxy.isProxyClass(beanClass)) {
         // Must allow for introductions; can't just set interfaces to the proxy's interfaces only.
         for (Class<?> ifc : beanClass.getInterfaces()) {
            proxyFactory.addInterface(ifc);
         }
      }
   }
   else {
      // No proxyTargetClass flag enforced, let's apply our default checks...
      if (shouldProxyTargetClass(beanClass, beanName)) {
         proxyFactory.setProxyTargetClass(true);
      }
      else {
         evaluateProxyInterfaces(beanClass, proxyFactory);
      }
   }

   Advisor[] advisors = buildAdvisors(beanName, specificInterceptors);
   proxyFactory.addAdvisors(advisors);
   proxyFactory.setTargetSource(targetSource);
   customizeProxyFactory(proxyFactory);

   proxyFactory.setFrozen(this.freezeProxy);
   if (advisorsPreFiltered()) {
      proxyFactory.setPreFiltered(true);
   }

   // Use original ClassLoader if bean class not locally loaded in overriding class loader
   ClassLoader classLoader = getProxyClassLoader();
   if (classLoader instanceof SmartClassLoader && classLoader != beanClass.getClassLoader()) {
      classLoader = ((SmartClassLoader) classLoader).getOriginalClassLoader();
   }
   return proxyFactory.getProxy(classLoader);
}

DefaultAopProxyFactory#createAopProxy

这里决定了是使用 jdk 动态代理还是使用 cglib 动态代理。jdk 代理会使用 JdkDynamicAopProxy ，cglib 代理会使用 ObjenesisCglibAopProxy 。

@Override
public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
   if (!NativeDetector.inNativeImage() &&
         (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config))) {
      Class<?> targetClass = config.getTargetClass();
      if (targetClass == null) {
         throw new AopConfigException("TargetSource cannot determine target class: " +
               "Either an interface or a target is required for proxy creation.");
      }
      if (targetClass.isInterface() || Proxy.isProxyClass(targetClass) || AopProxyUtils.isLambda(targetClass)) {
         return new JdkDynamicAopProxy(config);
      }
      return new ObjenesisCglibAopProxy(config);
   }
   else {
      return new JdkDynamicAopProxy(config);
   }
}

后续的文章中会详细探究 JdkDynamicAopProxy 和 ObjenesisCglibAopProxy 的异同。

---

DevX 会持续分享 Java 技术干货，如果你觉得本文对你有帮助希望你可以分享给更多的朋友看到。该文章会同步在微信公众号 【DevXJava】, 方便在微信客户端阅读。
