构建CICD流程-3 k8s上部署ingress-nginx以及可视化界面kuboard安装

月明星稀丶乌鹊南飞
876 阅读3分钟

ingress-nginx顾名思义，他的作用就像nginx一样，通过对service管控的端口对外进行暴露，从而实现负载均衡和服务暴露。

今天主要实现两个功能：

1、k8s上安装indress-nginx

2、安装k8s可视化界面kuboard

1.官网下载配置文件mandatory.yaml

github.com/kubernetes/…

如无法下载，可用如下配置文件

apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
​
---
​
apiVersion: apps/v1
kind: Deployment
metadata:
  name: default-http-backend
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
  namespace: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: default-http-backend
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: default-http-backend
        app.kubernetes.io/part-of: ingress-nginx
    spec:
      terminationGracePeriodSeconds: 60
      containers:
        - name: default-http-backend
          # Any image is permissible as long as:
          # 1. It serves a 404 page at /
          # 2. It serves 200 on a /healthz endpoint
          image: k8s.gcr.io/defaultbackend-amd64:1.5
          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
              scheme: HTTP
            initialDelaySeconds: 30
            timeoutSeconds: 5
          ports:
            - containerPort: 8080
          resources:
            limits:
              cpu: 10m
              memory: 20Mi
            requests:
              cpu: 10m
              memory: 20Mi
​
---
apiVersion: v1
kind: Service
metadata:
  name: default-http-backend
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
spec:
  ports:
    - port: 80
      targetPort: 8080
  selector:
    app.kubernetes.io/name: default-http-backend
    app.kubernetes.io/part-of: ingress-nginx
​
---
​
kind: ConfigMap
apiVersion: v1
metadata:
  name: nginx-configuration
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
​
---
​
kind: ConfigMap
apiVersion: v1
metadata:
  name: tcp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
​
---
​
kind: ConfigMap
apiVersion: v1
metadata:
  name: udp-services
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
​
---
​
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nginx-ingress-serviceaccount
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
​
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: nginx-ingress-clusterrole
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - "extensions"
    resources:
      - ingresses/status
    verbs:
      - update
​
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: nginx-ingress-role
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
    resourceNames:
      # Defaults to "<election-id>-<ingress-class>"
      # Here: "<ingress-controller-leader>-<nginx>"
      # This has to be adapted if you change either parameter
      # when launching the nginx-ingress-controller.
      - "ingress-controller-leader-nginx"
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - endpoints
    verbs:
      - get
​
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: nginx-ingress-role-nisa-binding
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: nginx-ingress-role
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx
​
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: nginx-ingress-clusterrole-nisa-binding
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: nginx-ingress-clusterrole
subjects:
  - kind: ServiceAccount
    name: nginx-ingress-serviceaccount
    namespace: ingress-nginx
​
---
​
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-ingress-controller
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
      annotations:
        prometheus.io/port: "10254"
        prometheus.io/scrape: "true"
    spec:
      serviceAccountName: nginx-ingress-serviceaccount
      hostNetwork: true
      nodeSelector:
        app: ingress
      containers:
        - name: nginx-ingress-controller
          image: quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.19.0
          args:
            - /nginx-ingress-controller
            - --default-backend-service=$(POD_NAMESPACE)/default-http-backend
            - --configmap=$(POD_NAMESPACE)/nginx-configuration
            - --tcp-services-configmap=$(POD_NAMESPACE)/tcp-services
            - --udp-services-configmap=$(POD_NAMESPACE)/udp-services
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx
            - --annotations-prefix=nginx.ingress.kubernetes.io
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            # www-data -> 33
            runAsUser: 33
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          ports:
            - name: http
              containerPort: 80
            - name: https
              containerPort: 443
          livenessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
​
---

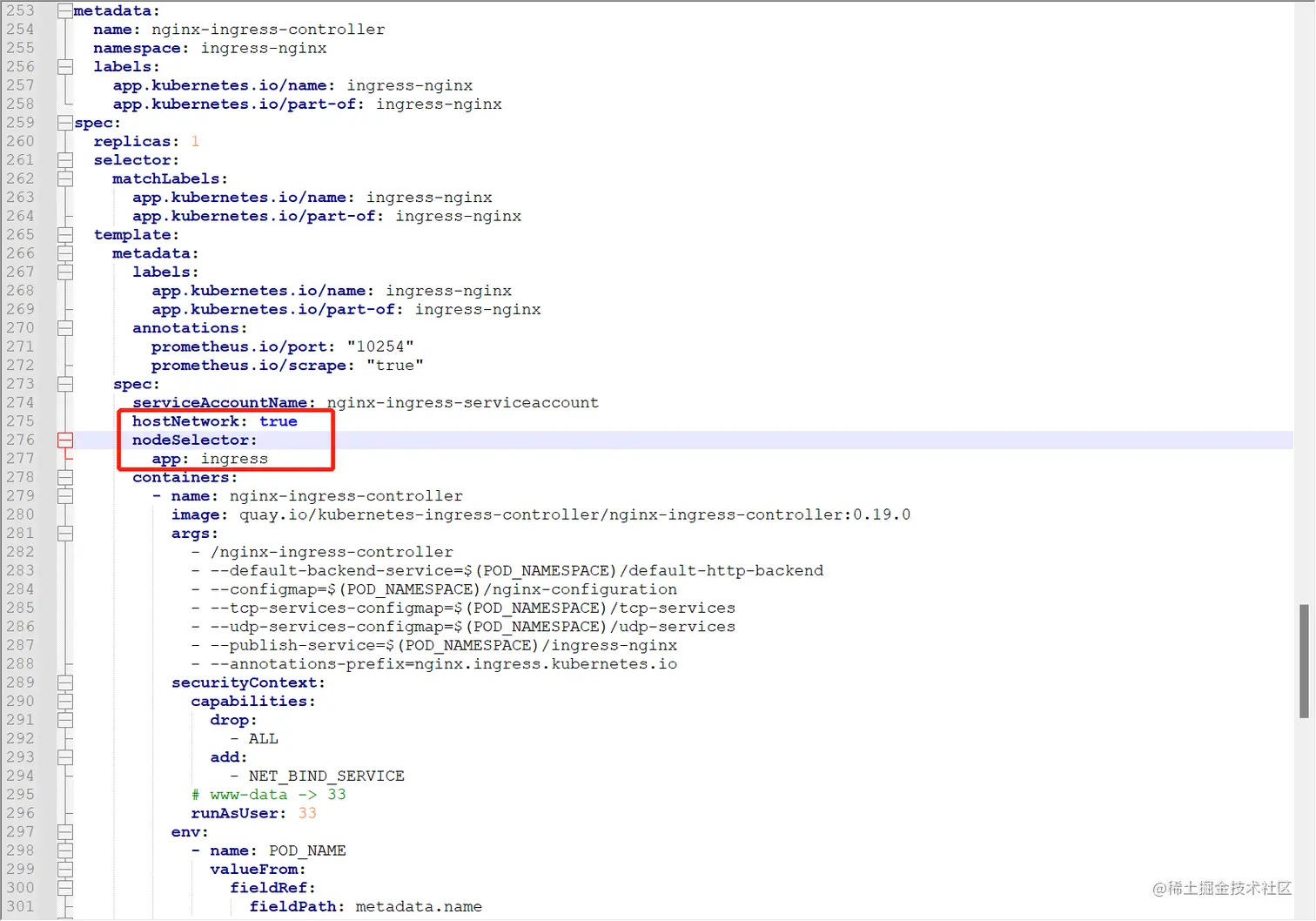

2.修改配置文件


3.给节点打标签

ingress-nginx运行在哪个节点，就给哪个节点打标签，此处ingress-nginx运行在root-2的节点上。

kubectl label node root-2 app=ingress

4.执行配置文件

执行如下命令之后，会自动拉取镜像，过程大概需要30min,需要耐心等待下
kubectl apply -f  mandatory.yaml

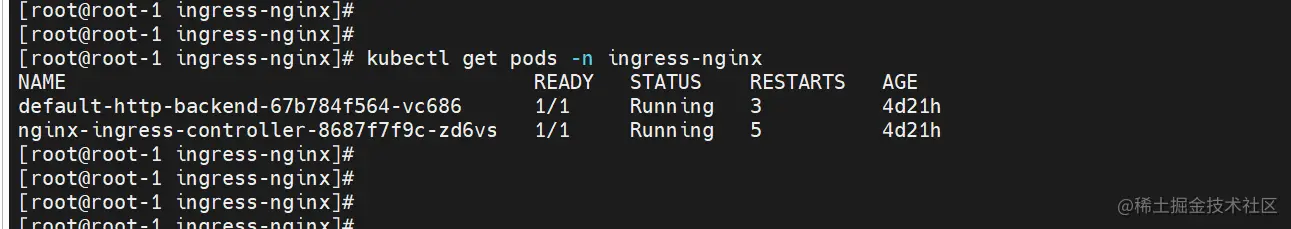

5.查询ingress-nginx 的pod状态：

kubectl get pods -n ingress-nginx


6.可能会遇到的问题

1.执行配置文件之后，查看ingress-nginx pod发现default-http-backend是ImagePullBackOff状态。httpbackend是一个附属品，对主流程没有影响，当找不到页面时候会甩给它。

这种情况一般都是镜像无法拉取导致的，可以采用如下操作：

用docker手动拉取镜像之后打tag（注意这里手动拉取的镜像版本要与上面配置文件当中的版本一致）:
1: docker pull registry.cn-hangzhou.aliyuncs.com/liuyi01/defaultbackend-amd64:1.5
​
2: docker tag registry.cn-hangzhou.aliyuncs.com/liuyi01/defaultbackend-amd64:1.5 k8s.gcr.io/defaultbackend-amd64:1.5

安装kuboard-k8s可视化界面

  1. kubectl apply -f addons.kuboard.cn/kuboard/kub…
  2. kubectl get pods -n kuboard（这里需要多等一会）
  3. 出现running表示成功
  4. http://安装主机的ip:30080 端口是30080
  5. 账号:admin
  6. 密码：Kuboard123

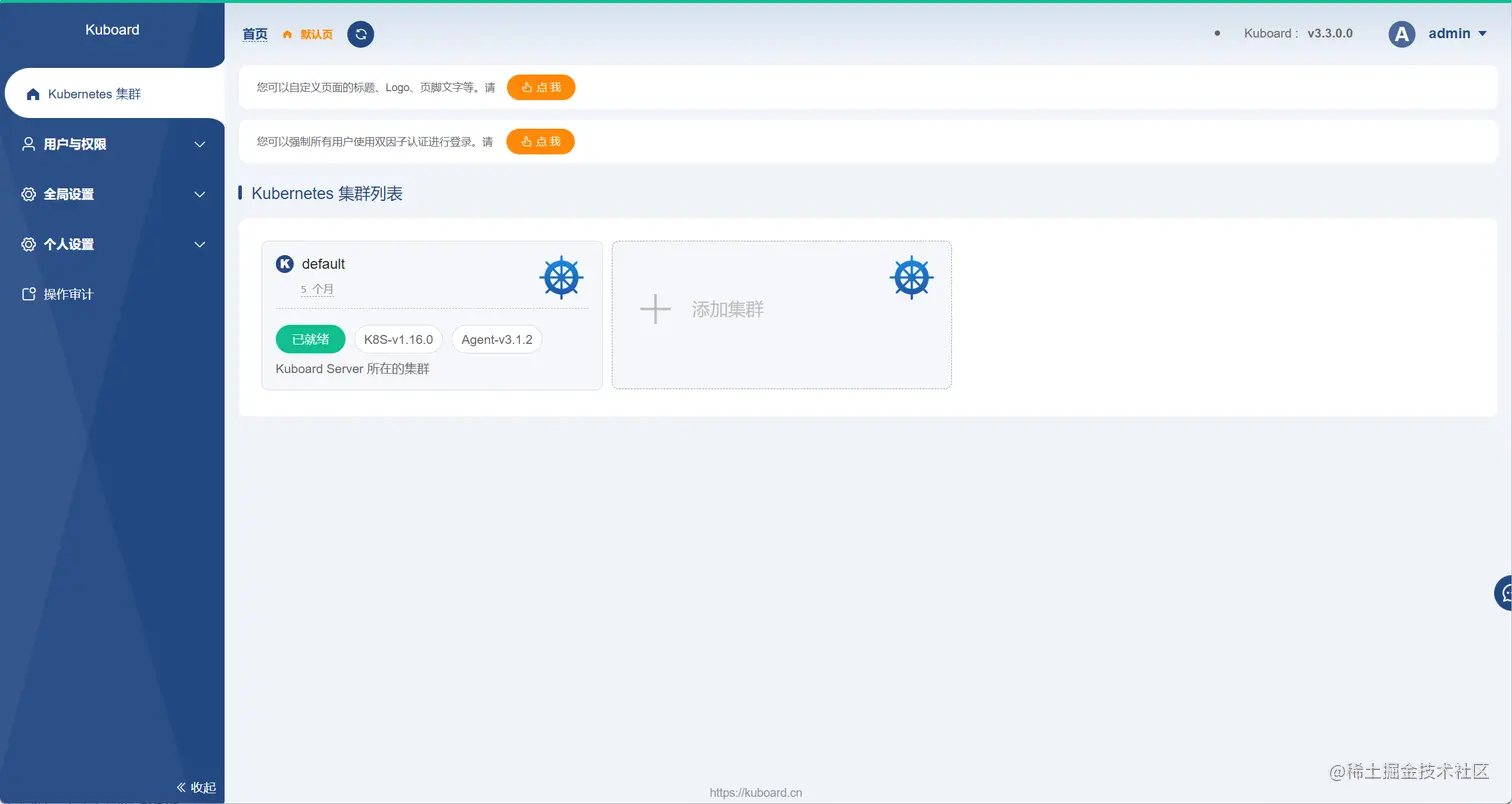

登陆成功，爽歪歪 image-20230222173642062.png
