CentOS8 已废弃network.service，网卡操作需要使用nmcli ，当整理配置文件操作及命令
命令：nmcli
配置文件：/etc/sysconfig/network-scripts/ifcfg-eth0
配置单个ipv4地址
- IP:60.247.159.221 掩码：255.255.255.0 网关：60.247.159.1
[root@ebs-113436 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
# 申明网卡eth0
DEVICE=eth0
BOOTPROTO=static
IPADDR=60.247.159.221
NETMASK=255.255.255.0
GATEWAY=60.247.159.1
TYPE=Ethernet
ONBOOT=yes
配置多个ipv4地址
-
IP1:60.247.159.221 掩码1：255.255.255.0 网关1：60.247.159.152
-
IP2:60.247.159.221 掩码2：255.255.255.0
多ip配置一般只需要配置一个GATEWAY0 网关即可
[root@ebs-113436 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
# 申明网卡eth0
DEVICE=eth0
BOOTPROTO=static
TYPE=Ethernet
ONBOOT=yes
IPADDR0=60.247.159.221
IPADDR1=60.247.159.152
NETMASK0=255.255.255.0
NETMASK1=255.255.255.0
.
.
.
.
.
.
GATEWAY0=60.247.159.1
几个依此添加即可，如果ip较多，一个IP段添加。

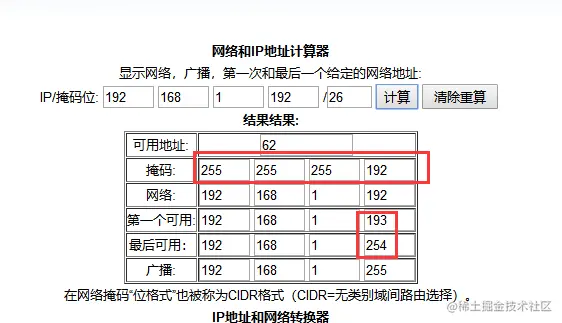

先通过tool.520101.com/wangluo/ipj… 计算ip地址
获取到第一个和最后一个可用ip尾数为193和254，以及掩码255.255.255.192，并注意服务器上网络连接名称，加入
for I in $(seq 193 254); do nmcli con mod eth0 +ipv4.addresses 192.168.1.${I}/26; done
单个ipv6配置
* ipv4：60.247.159.221 掩码：255.255.255.0 网关：60.247.159.1
* ipv6：240E:D9:C200:160:9404::1A80 掩码位数：64 网关：240e:d9:c200:160::1
[root@ebs-113436 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
# 申明网卡eth0
DEVICE=eth0
BOOTPROTO=static
IPADDR=60.247.159.221
NETMASK=255.255.255.0
GATEWAY=60.247.159.1
TYPE=Ethernet
ONBOOT=yes
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6ADDR=240E:D9:C200:160:9404::1A80/64
IPV6_DEFAULTGW=240e:d9:c200:160::1
多个ipv6配置
- ipv4：60.247.159.221 掩码：255.255.255.0 网关：60.247.159.1
- ipv6：240E:D9:C200:160:9404::1A80-240E:D9:C200:160:9404::1a9f 掩码位数：64 网关：240e:d9:c200:160::1
[root@ebs-113436 ~]# vim /etc/sysconfig/network-scripts/ifcfg-eth0
# 申明网卡eth0
DEVICE=eth0
BOOTPROTO=static
IPADDR=60.247.159.221
NETMASK=255.255.255.0
GATEWAY=60.247.159.1
TYPE=Ethernet
ONBOOT=yes
# IPV6配置
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6ADDR=240E:D9:C200:160:9404::1A80/64
IPV6_DEFAULTGW=240e:d9:c200:160::1
# 多IPV6配置 用空格分开
IPV6ADDR_SECONDARIES="240E:D9:C200:160:9404::1a80/64 240E:D9:C200:160:9404::1a81/64 240E:D9:C200:160:9404::1a82/64 240E:D9:C200:160:9404::1a83/64 240E:D9:C200:160:9404::1a84/64 240E:D9:C200:160:9404::1a85/64 240E:D9:C200:160:9404::1a86/64 240E:D9:C200:160:9404::1a87/64 240E:D9:C200:160:9404::1a88/64 240E:D9:C200:160:9404::1a89/64 240E:D9:C200:160:9404::1a8a/64 240E:D9:C200:160:9404::1a8b/64 240E:D9:C200:160:9404::1a8c/64 240E:D9:C200:160:9404::1a8d/64 240E:D9:C200:160:9404::1a8e/64 240E:D9:C200:160:9404::1a8f/64 240E:D9:C200:160:9404::1a90/64 240E:D9:C200:160:9404::1a91/64 240E:D9:C200:160:9404::1a92/64 240E:D9:C200:160:9404::1a93/64 240E:D9:C200:160:9404::1a94/64 240E:D9:C200:160:9404::1a95/64 240E:D9:C200:160:9404::1a96/64 240E:D9:C200:160:9404::1a97/64 240E:D9:C200:160:9404::1a98/64 240E:D9:C200:160:9404::1a99/64 240E:D9:C200:160:9404::1a9a/64 240E:D9:C200:160:9404::1a9b/64 240E:D9:C200:160:9404::1a9c/64 240E:D9:C200:160:9404::1a9d/64 240E:D9:C200:160:9404::1a9e/64 240E:D9:C200:160:9404::1a9f/64"
ipv6 批量配置教程www.west.cn/faq/list.as…
以上配置后需要重启网卡生效；
网卡服务重启
# 查看网卡名称
[root@ebs-113436 ~]# nmcli c
NAME UUID TYPE DEVICE
System eth0 5fb06bd0-0bb0-7ffb-45f1-d6edd65f3e03 ethernet eth0
System eth1 9c92fad9-6ecb-3e6c-eb4d-8a47c6f50c04 ethernet eth1
# 重启网卡服务
[root@ebs-113436 ~]# nmcli c reload "System eth0" / nmcli c up "System eth0"
# 如果不生效
[root@ebs-113436 ~]# nmcli device reapply eth0
[root@ebs-113436 ~]# nmcli device connect eth0
