以 BrowserRouter 为例子
1.react router 使用 history 核心库管理路由，实现了路由监听。

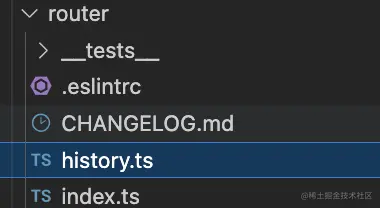

文件路径

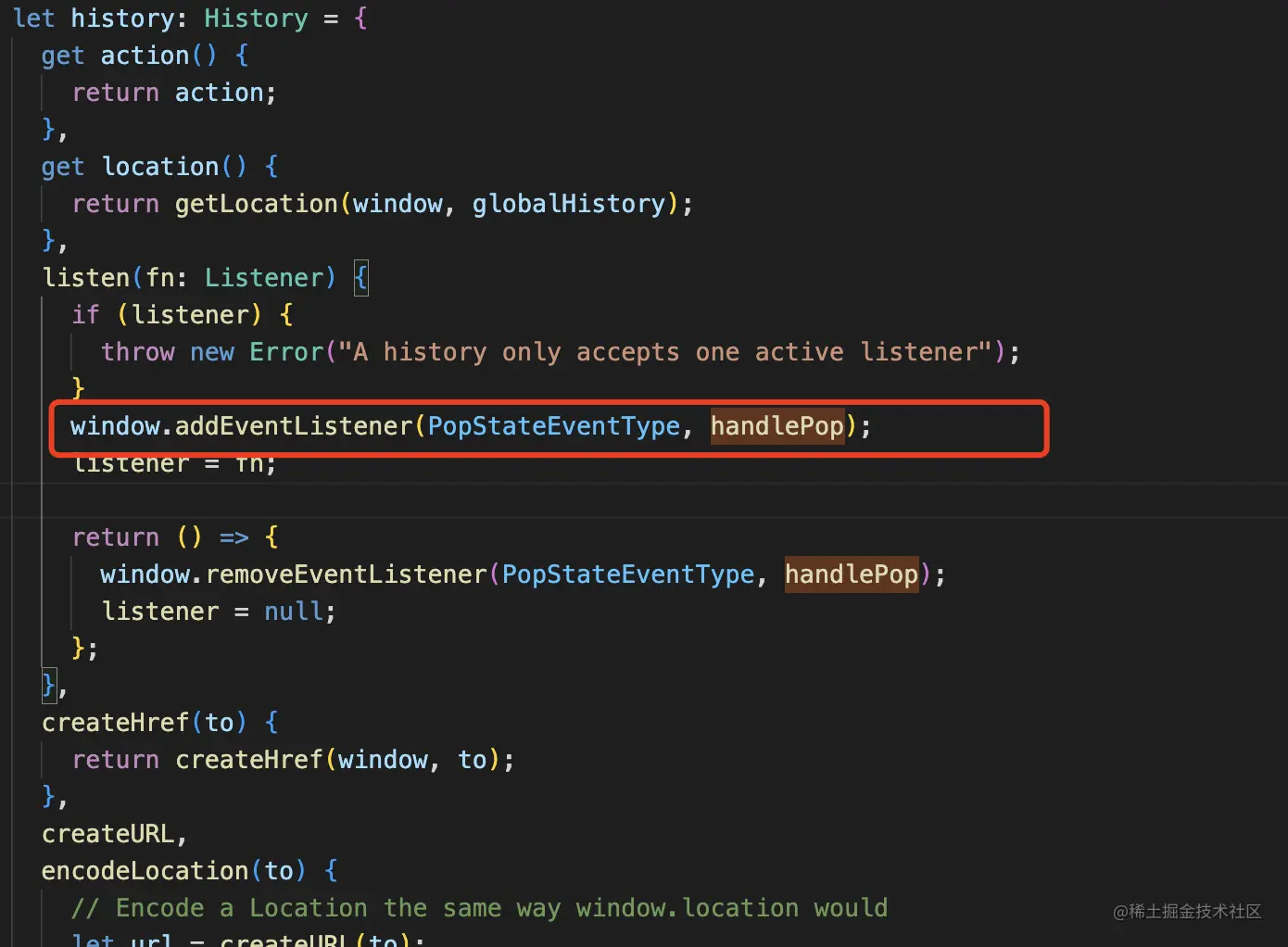

路由监听部分：
let history: History = {
get action() {
return action;
},
get location() {
return getLocation(window, globalHistory);
},
listen(fn: Listener) {
if (listener) {
throw new Error("A history only accepts one active listener");
}
window.addEventListener(PopStateEventType, handlePop);
listener = fn;
return () => {
window.removeEventListener(PopStateEventType, handlePop);
listener = null;
};
},
createHref(to) {
return createHref(window, to);
},
createURL,
encodeLocation(to) {
// Encode a Location the same way window.location would
let url = createURL(to);
return {
pathname: url.pathname,
search: url.search,
hash: url.hash,
};
},
push,
replace,
go(n) {
return globalHistory.go(n);
},
};
history 库导出的 createBrowserHistory 方法（包含了路由监听）
BrowserRouter 使用 createBrowserHistory 的 history 实例。
利用 useLayoutEffect 注册了监听
当 url 变化就会触发 setState 更新
3.查看 BrowserRouter 返回的 Router 定义
export function Router({
basename: basenameProp = "/",
children = null,
location: locationProp,
navigationType = NavigationType.Pop,
navigator,
static: staticProp = false,
}: RouterProps): React.ReactElement | null {
invariant(
!useInRouterContext(),
`You cannot render a <Router> inside another <Router>.` +
` You should never have more than one in your app.`
);
// Preserve trailing slashes on basename, so we can let the user control
// the enforcement of trailing slashes throughout the app
let basename = basenameProp.replace(/^\/*/, "/");
let navigationContext = React.useMemo(
() => ({ basename, navigator, static: staticProp }),
[basename, navigator, staticProp]
);
if (typeof locationProp === "string") {
locationProp = parsePath(locationProp);
}
let {
pathname = "/",
search = "",
hash = "",
state = null,
key = "default",
} = locationProp;
let location = React.useMemo(() => {
let trailingPathname = stripBasename(pathname, basename);
if (trailingPathname == null) {
return null;
}
return {
pathname: trailingPathname,
search,
hash,
state,
key,
};
}, [basename, pathname, search, hash, state, key]);
warning(
location != null,
`<Router basename="${basename}"> is not able to match the URL ` +
`"${pathname}${search}${hash}" because it does not start with the ` +
`basename, so the <Router> won't render anything.`
);
if (location == null) {
return null;
}
return (
<NavigationContext.Provider value={navigationContext}>
<LocationContext.Provider
children={children}
value={{ location, navigationType }}
/>
</NavigationContext.Provider>
);
}
看源码可得知 上面的 setState 会更新 location ，更新 location ，会更新 LocationContext 的值

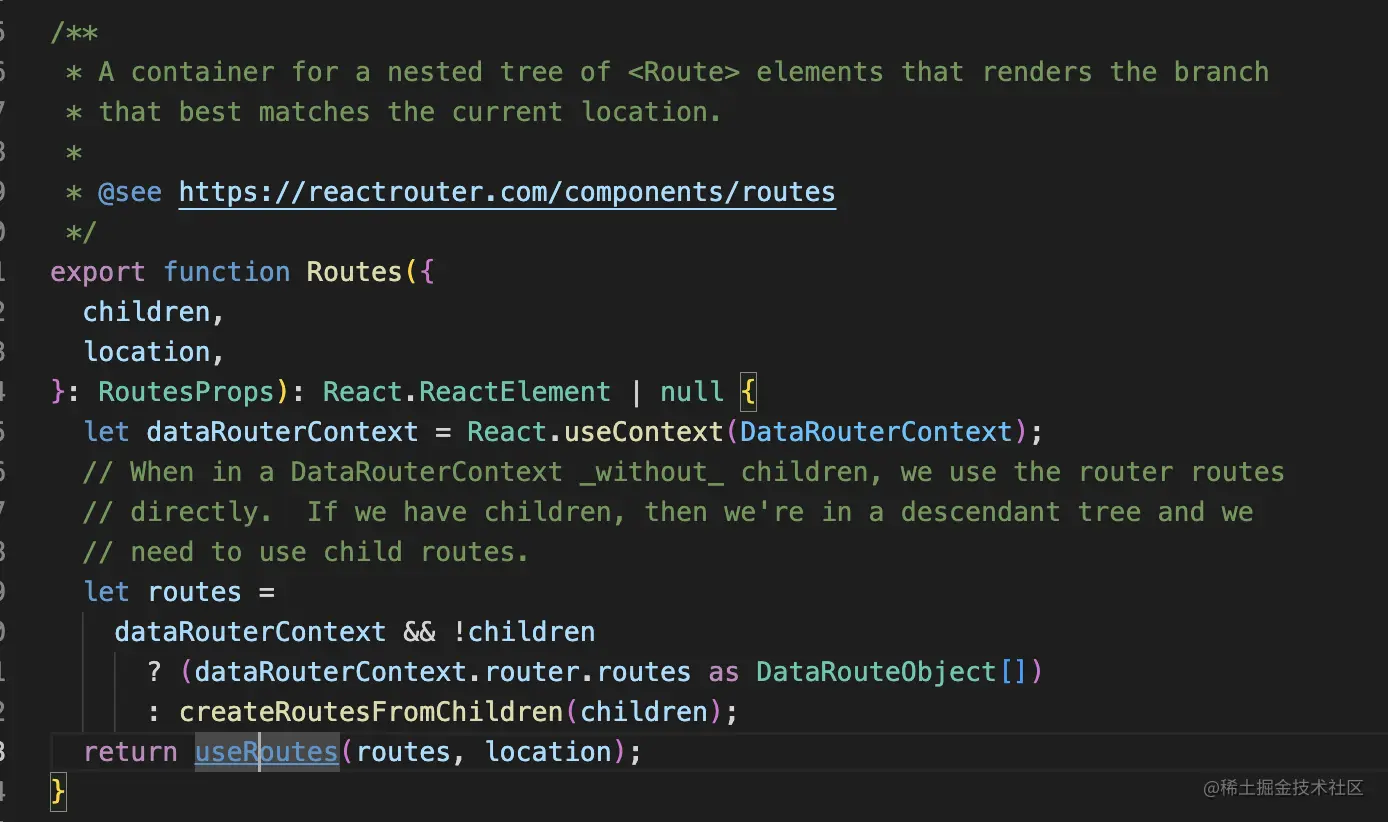

4.再看Routes 的定义
其中 createRoutesFromChildren 传入了 children (也就是我们 Routes 包着的 Route)，创建返回了我们定义的所有路由组件。
该方法返回了 useRoutes ，我们再看 useRoutes
export function useRoutes(
routes: RouteObject[],
locationArg?: Partial<Location> | string
): React.ReactElement | null {
invariant(
useInRouterContext(),
// TODO: This error is probably because they somehow have 2 versions of the
// router loaded. We can help them understand how to avoid that.
`useRoutes() may be used only in the context of a <Router> component.`
);
let { navigator } = React.useContext(NavigationContext);
let dataRouterStateContext = React.useContext(DataRouterStateContext);
let { matches: parentMatches } = React.useContext(RouteContext);
let routeMatch = parentMatches[parentMatches.length - 1];
let parentParams = routeMatch ? routeMatch.params : {};
let parentPathname = routeMatch ? routeMatch.pathname : "/";
let parentPathnameBase = routeMatch ? routeMatch.pathnameBase : "/";
let parentRoute = routeMatch && routeMatch.route;
if (__DEV__) {
// You won't get a warning about 2 different <Routes> under a <Route>
// without a trailing *, but this is a best-effort warning anyway since we
// cannot even give the warning unless they land at the parent route.
//
// Example:
//
// <Routes>
// {/* This route path MUST end with /* because otherwise
// it will never match /blog/post/123 */}
// <Route path="blog" element={<Blog />} />
// <Route path="blog/feed" element={<BlogFeed />} />
// </Routes>
//
// function Blog() {
// return (
// <Routes>
// <Route path="post/:id" element={<Post />} />
// </Routes>
// );
// }
let parentPath = (parentRoute && parentRoute.path) || "";
warningOnce(
parentPathname,
!parentRoute || parentPath.endsWith("*"),
`You rendered descendant <Routes> (or called \`useRoutes()\`) at ` +
`"${parentPathname}" (under <Route path="${parentPath}">) but the ` +
`parent route path has no trailing "*". This means if you navigate ` +
`deeper, the parent won't match anymore and therefore the child ` +
`routes will never render.\n\n` +
`Please change the parent <Route path="${parentPath}"> to <Route ` +
`path="${parentPath === "/" ? "*" : `${parentPath}/*`}">.`
);
}

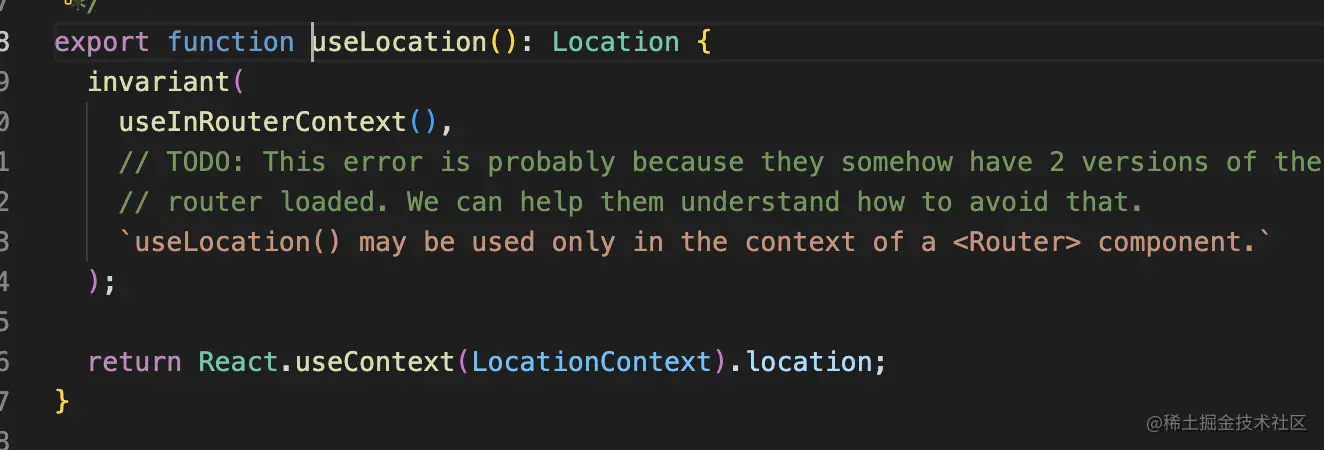

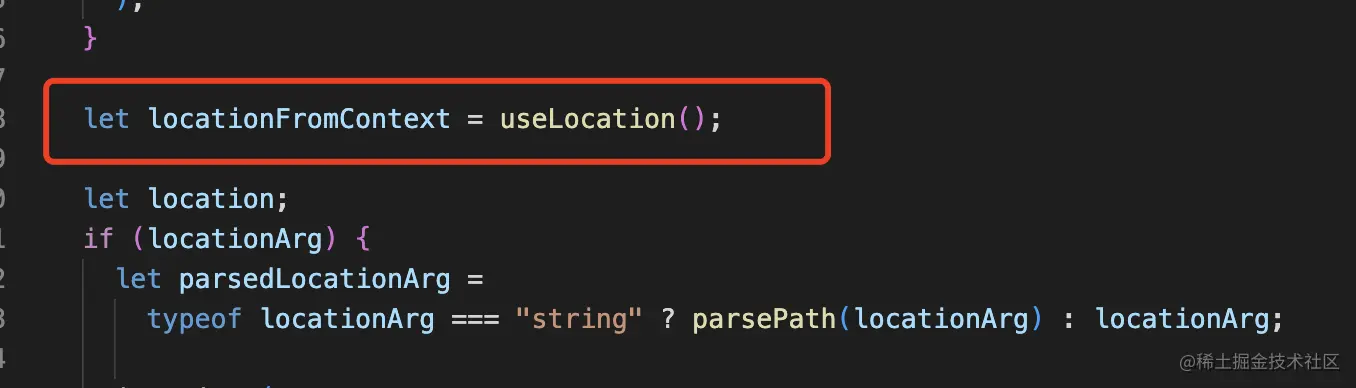

let locationFromContext = useLocation();
let location;
if (locationArg) {
let parsedLocationArg =
typeof locationArg === "string" ? parsePath(locationArg) : locationArg;
invariant(
parentPathnameBase === "/" ||
parsedLocationArg.pathname?.startsWith(parentPathnameBase),
`When overriding the location using \`<Routes location>\` or \`useRoutes(routes, location)\`, ` +
`the location pathname must begin with the portion of the URL pathname that was ` +
`matched by all parent routes. The current pathname base is "${parentPathnameBase}" ` +
`but pathname "${parsedLocationArg.pathname}" was given in the \`location\` prop.`
);
location = parsedLocationArg;
} else {
location = locationFromContext;
}
let pathname = location.pathname || "/";
let remainingPathname =
parentPathnameBase === "/"
? pathname
: pathname.slice(parentPathnameBase.length) || "/";
let matches = matchRoutes(routes, { pathname: remainingPathname });
if (__DEV__) {
warning(
parentRoute || matches != null,
`No routes matched location "${location.pathname}${location.search}${location.hash}" `
);
warning(
matches == null ||
matches[matches.length - 1].route.element !== undefined,
`Matched leaf route at location "${location.pathname}${location.search}${location.hash}" does not have an element. ` +
`This means it will render an <Outlet /> with a null value by default resulting in an "empty" page.`
);
}

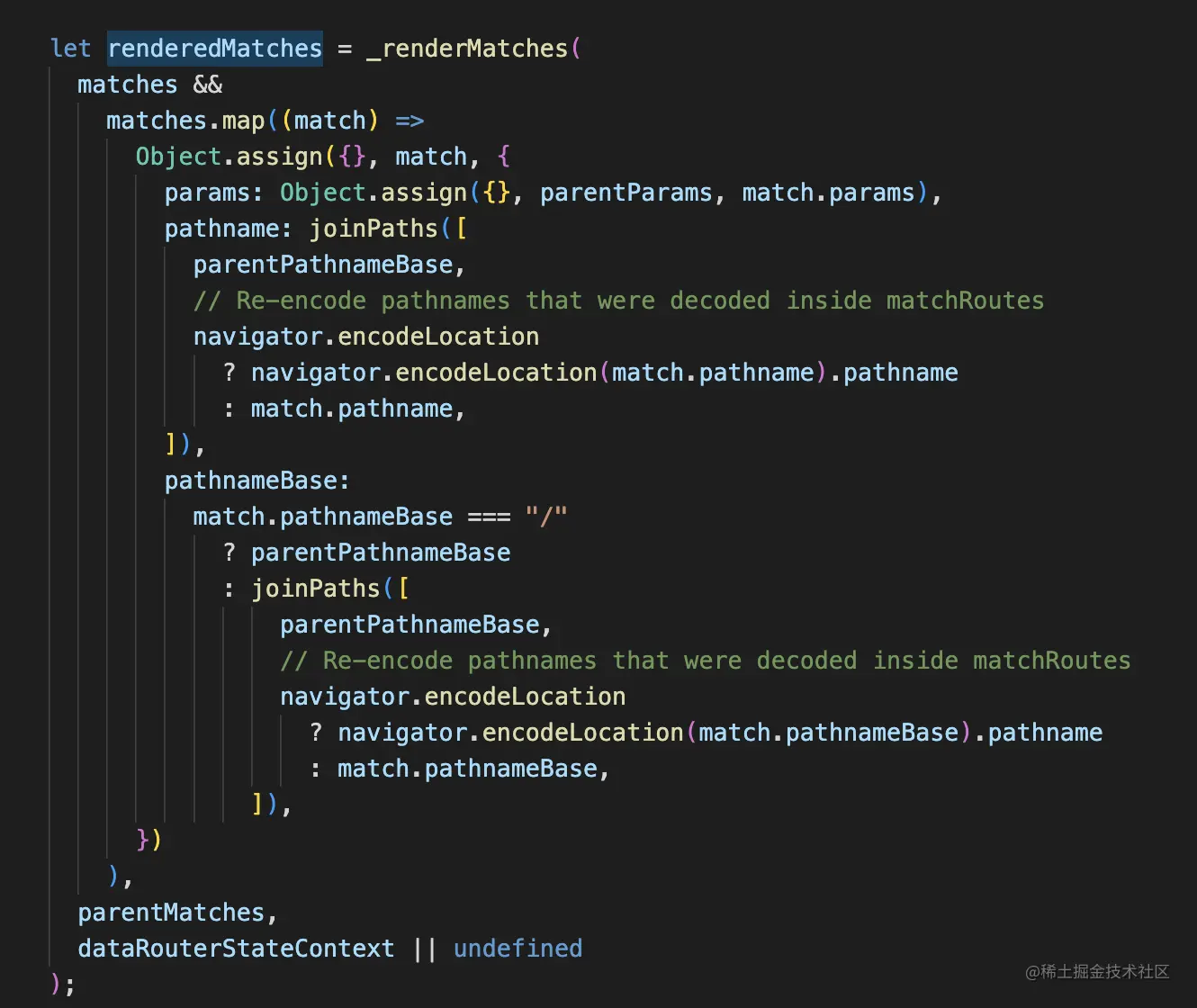

let renderedMatches = _renderMatches(
matches &&
matches.map((match) =>
Object.assign({}, match, {
params: Object.assign({}, parentParams, match.params),
pathname: joinPaths([
parentPathnameBase,
// Re-encode pathnames that were decoded inside matchRoutes
navigator.encodeLocation
? navigator.encodeLocation(match.pathname).pathname
: match.pathname,
]),
pathnameBase:
match.pathnameBase === "/"
? parentPathnameBase
: joinPaths([
parentPathnameBase,
// Re-encode pathnames that were decoded inside matchRoutes
navigator.encodeLocation
? navigator.encodeLocation(match.pathnameBase).pathname
: match.pathnameBase,
]),
})
),
parentMatches,
dataRouterStateContext || undefined
);
// When a user passes in a `locationArg`, the associated routes need to
// be wrapped in a new `LocationContext.Provider` in order for `useLocation`
// to use the scoped location instead of the global location.
if (locationArg && renderedMatches) {
return (
<LocationContext.Provider
value={{
location: {
pathname: "/",
search: "",
hash: "",
state: null,
key: "default",
...location,
},
navigationType: NavigationType.Pop,
}}
>
{renderedMatches}
</LocationContext.Provider>
);
}
return renderedMatches;
}
看源码知道 每个 Routes 注入了 LocationContext
上面 context 的更新 会重新匹配对应路由的组件然后实现组件更新
总结：
- 使用 history 核心库实现了 对路由的监听。
- BrowserRouter 注册了监听，当路由变化的时候 触发setState 更新 location
- location 更新后更新到 LocationContext
- Routes 注入了 LocationContext 的 钩子，更新后会重新匹配路由实现组件刷新。
