一、Kubeadm介绍
1.通俗点讲，kubeadm跟minikube一样，都是一个搭建kubernetes环境一个工具；
区别在于：minikube是搭建单机kubernetes环境的一个工具
kubeadm是搭建集群kubernetes环境的一个工具，这个常用；
2.对于具体的使用说明，大家可以参考下面的地址去学习(中英文都有)
二.使用Kubeamd搭建kubernetes集群环境
1.首先准备一个三台的centos机器
1.三台机器需要能够互相ping通
2.三台机器的网段需要一致，保持在一个网络之中；
3.搭建可以参考下面的地址
2.yum -y update [在三台机器上执行更新包]
[root@manager-node ~]# yum -y update
。。。。。。
[root@manager-node ~]# yum install -y conntrack ipvsadm ipset jq sysstat curl iptables libseccomp
[root@manager-node ~]# yum install -y conntrack ipvsadm ipset jq sysstat curl iptables libseccomp
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
* base: ftp.sjtu.edu.cn
* extras: mirror.bit.edu.cn
* updates: mirror.bit.edu.cn
Package ipset-7.1-1.el7.x86_64 already installed and latest version
No package jq available.
Package curl-7.29.0-54.el7_7.1.x86_64 already installed and latest version
Package iptables-1.4.21-33.el7.x86_64 already installed and latest version
Package libseccomp-2.3.1-3.el7.x86_64 already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package conntrack-tools.x86_64 0:1.4.4-5.el7_7.2 will be installed
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.1)(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1(LIBNETFILTER_CTTIMEOUT_1.0)(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0(LIBNETFILTER_CTHELPER_1.0)(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
--> Processing Dependency: libnetfilter_queue.so.1()(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
--> Processing Dependency: libnetfilter_cttimeout.so.1()(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
--> Processing Dependency: libnetfilter_cthelper.so.0()(64bit) for package: conntrack-tools-1.4.4-5.el7_7.2.x86_64
---> Package ipvsadm.x86_64 0:1.27-7.el7 will be installed
---> Package sysstat.x86_64 0:10.1.5-18.el7 will be installed
--> Processing Dependency: libsensors.so.4()(64bit) for package: sysstat-10.1.5-18.el7.x86_64
--> Running transaction check
---> Package libnetfilter_cthelper.x86_64 0:1.0.0-10.el7_7.1 will be installed
---> Package libnetfilter_cttimeout.x86_64 0:1.0.0-6.el7_7.1 will be installed
---> Package libnetfilter_queue.x86_64 0:1.0.2-2.el7_2 will be installed
---> Package lm_sensors-libs.x86_64 0:3.4.0-8.20160601gitf9185e5.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
===================================================================================================================================================================================================================
Package Arch Version Repository Size
===================================================================================================================================================================================================================
Installing:
conntrack-tools x86_64 1.4.4-5.el7_7.2 updates 187 k
ipvsadm x86_64 1.27-7.el7 base 45 k
sysstat x86_64 10.1.5-18.el7 base 315 k
Installing for dependencies:
libnetfilter_cthelper x86_64 1.0.0-10.el7_7.1 updates 18 k
libnetfilter_cttimeout x86_64 1.0.0-6.el7_7.1 updates 18 k
libnetfilter_queue x86_64 1.0.2-2.el7_2 base 23 k
lm_sensors-libs x86_64 3.4.0-8.20160601gitf9185e5.el7 base 42 k
Transaction Summary
===================================================================================================================================================================================================================
Install 3 Packages (+4 Dependent packages)
Total download size: 647 k
Installed size: 1.9 M
Downloading packages:
(1/7): ipvsadm-1.27-7.el7.x86_64.rpm | 45 kB 00:00:00
(2/7): lm_sensors-libs-3.4.0-8.20160601gitf9185e5.el7.x86_64.rpm | 42 kB 00:00:00
(3/7): libnetfilter_cthelper-1.0.0-10.el7_7.1.x86_64.rpm | 18 kB 00:00:00
(4/7): libnetfilter_cttimeout-1.0.0-6.el7_7.1.x86_64.rpm | 18 kB 00:00:00
(5/7): sysstat-10.1.5-18.el7.x86_64.rpm | 315 kB 00:00:00
(6/7): libnetfilter_queue-1.0.2-2.el7_2.x86_64.rpm | 23 kB 00:00:00
(7/7): conntrack-tools-1.4.4-5.el7_7.2.x86_64.rpm | 187 kB 00:00:00
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 721 kB/s | 647 kB 00:00:00
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : libnetfilter_cttimeout-1.0.0-6.el7_7.1.x86_64 1/7
Installing : lm_sensors-libs-3.4.0-8.20160601gitf9185e5.el7.x86_64 2/7
Installing : libnetfilter_queue-1.0.2-2.el7_2.x86_64 3/7
Installing : libnetfilter_cthelper-1.0.0-10.el7_7.1.x86_64 4/7
Installing : conntrack-tools-1.4.4-5.el7_7.2.x86_64 5/7
Installing : sysstat-10.1.5-18.el7.x86_64 6/7
Installing : ipvsadm-1.27-7.el7.x86_64 7/7
Verifying : libnetfilter_cthelper-1.0.0-10.el7_7.1.x86_64 1/7
Verifying : conntrack-tools-1.4.4-5.el7_7.2.x86_64 2/7
Verifying : libnetfilter_queue-1.0.2-2.el7_2.x86_64 3/7
Verifying : ipvsadm-1.27-7.el7.x86_64 4/7
Verifying : sysstat-10.1.5-18.el7.x86_64 5/7
Verifying : lm_sensors-libs-3.4.0-8.20160601gitf9185e5.el7.x86_64 6/7
Verifying : libnetfilter_cttimeout-1.0.0-6.el7_7.1.x86_64 7/7
Installed:
conntrack-tools.x86_64 0:1.4.4-5.el7_7.2 ipvsadm.x86_64 0:1.27-7.el7 sysstat.x86_64 0:10.1.5-18.el7
Dependency Installed:
3.docker 安装 [在三台机器上都要这么执行]
卸载docker
[root@manager-node ~]# sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine
安装Docker的依赖
[root@manager-node ~]# sudo yum install -y yum-utils \
device-mapper-persistent-data \
lvm2
指定一下Docker的仓库
[root@manager-node ~]# sudo yum-config-manager \
--add-repo \
https://download.docker.com/linux/centos/docker-ce.repo
Loaded plugins: fastestmirror
adding repo from: https://download.docker.com/linux/centos/docker-ce.repo
grabbing file https://download.docker.com/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo
[root@manager-node ~]#
开始安装（这里我们指定版本18.09.0）
yum install -y docker-ce-18.09.0 docker-ce-cli-18.09.0 containerd.io
开始启动
[root@manager-node ~]# sudo systemctl start docker
[root@manager-node ~]#
设置开机启动
[root@manager-node ~]# sudo systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
4.修改三台机器的hosts文件
manager-node节点
设置服务器的hostname为manager-node 主要是用于hosts文件解析
[root@manager-node ~]# hostnamectl set-hostname manager-node
设置/etc/hosts文件 新增下面的配置项目
192.168.37.101 manager-node
192.168.37.201 workder01-node
192.168.37.132 workder02-node
node节点
设置服务器的hostname为workder01-node（workder02-node同理） 主要是用于hosts文件解析
[root@worker01-node ~]# hostnamectl set-hostname worker01-node
设置hosts文件 新增下面的配置项目
192.168.37.101 manager-node
192.168.37.201 workder01-node
192.168.37.132 workder02-node
测试域名解析(任意节点去ping其他的节点都能ping通)
5.系统配置(三台机器全部执行,这个我们都是基于官网的要求去做的)
关闭防火墙[使得集群之间的ip端口能否都可以ping通]
[root@manager-node ~]# systemctl stop firewalld && systemctl disable firewalld
关闭selinux [这个也是一个安全的linux模块，可以指明某个进程可以访问的资源，我们不过多解析，可以忽略]
[root@manager-node ~]# setenforce 0
[root@manager-node ~]# sed -i 's/^SELINUX=enforcing$/SELINUX=permissive/' /etc/selinux/config
关闭swap [swap是虚拟内存转换用的，可以忽略]
[root@manager-node ~]# swapoff -a
[root@manager-node ~]# sed -i '/swap/s/^\(.*\)$/#\1/g' /etc/fstab
配置iptables的ACCEPT规则
[root@manager-node ~]# iptables -F && iptables -X && iptables -F -t nat && iptables -X -t nat && iptables -P FORWARD ACCEPT
设置系统参数
执行脚本
cat <<EOF > /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system
执行样例
[root@manager-node ~]# cat <<EOF > /etc/sysctl.d/k8s.conf
> net.bridge.bridge-nf-call-ip6tables = 1
> net.bridge.bridge-nf-call-iptables = 1
> EOF
[root@manager-node ~]#
[root@manager-node ~]# sysctl --system
* Applying /usr/lib/sysctl.d/00-system.conf ...
net.bridge.bridge-nf-call-ip6tables = 0
net.bridge.bridge-nf-call-iptables = 0
net.bridge.bridge-nf-call-arptables = 0
* Applying /usr/lib/sysctl.d/10-default-yama-scope.conf ...
kernel.yama.ptrace_scope = 0
* Applying /usr/lib/sysctl.d/50-default.conf ...
kernel.sysrq = 16
kernel.core_uses_pid = 1
net.ipv4.conf.default.rp_filter = 1
net.ipv4.conf.all.rp_filter = 1
net.ipv4.conf.default.accept_source_route = 0
net.ipv4.conf.all.accept_source_route = 0
net.ipv4.conf.default.promote_secondaries = 1
net.ipv4.conf.all.promote_secondaries = 1
fs.protected_hardlinks = 1
fs.protected_symlinks = 1
* Applying /etc/sysctl.d/99-sysctl.conf ...
* Applying /etc/sysctl.d/k8s.conf ...
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
* Applying /etc/sysctl.conf ...
6.Installing kubeadm, kubelet and kubectl
kubeadm: the command to bootstrap the cluster.
kubelet: the component that runs on all of the machines in your cluster and does things like starting pods and containers.
kubectl: the command line util to talk to your cluster.
配置安装的yum源
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
这里注意下，cat 相当于显示输出的内容
<<EOF 相当于文件开始
后面的EOF相当于文件结束的标记
/etc/yum.repos.d/kubernetes.repo 是输入的那个文件中
文件中的内容是是下面这些；
文件内容
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
安装kubeadm&kubelet&kubectl
查看kubeadm的版本，并且排序
[root@manager-node ~]# yum list kubeadm --showduplicates | sort -r
* updates: mirror.bit.edu.cn
Loading mirror speeds from cached hostfile
......
kubeadm.x86_64 1.14.9-0 kubernetes
kubeadm.x86_64 1.14.8-0 kubernetes
kubeadm.x86_64 1.14.7-0 kubernetes
kubeadm.x86_64 1.14.6-0 kubernetes
kubeadm.x86_64 1.14.5-0 kubernetes
kubeadm.x86_64 1.14.4-0 kubernetes
....
Available Packages
[root@manager-node ~]# yum install -y kubeadm-1.14.0-0 kubelet-1.14.0-0 kubectl-1.14.0-0
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
* base: ftp.sjtu.edu.cn
* extras: mirror.bit.edu.cn
* updates: mirror.bit.edu.cn
No package kubeadm-1.14.0-0 available.
No package kubelet-1.14.0-0 available.
No package kubectl-1.14.0-0 available.
Error: Nothing to do
[root@manager-node ~]#
[root@manager-node ~]# cat /etc/yum.repos.d/kubernetes.repo
cat: /etc/yum.repos.d/kubernetes.repo: No such file or directory
[root@manager-node ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo
> [kubernetes]
> name=Kubernetes
> baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
> enabled=1
> gpgcheck=0
> repo_gpgcheck=0
> gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
> http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
> EOF
[root@manager-node ~]# cat /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
[root@manager-node ~]#
[root@manager-node ~]#
[root@manager-node ~]#
[root@manager-node ~]#
[root@manager-node ~]# > baseurl=http://mirrors.
-bash: baseurl=http://mirrors.: No such file or directory
[root@manager-node ~]# vi /etc/docker/daemon.json
[root@manager-node ~]# systemctl restart docker
[root@manager-node ~]# sed -i "s/cgroup-driver=systemd/cgroup-driver=cgroupfs/g" /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
sed: can't read /etc/systemd/system/kubelet.service.d/10-kubeadm.conf: No such file or directory
[root@manager-node ~]# sed -i "s/cgroup-driver=systemd/cgroup-driver=cgroupfs/g" /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
sed: can't read /etc/systemd/system/kubelet.service.d/10-kubeadm.conf: No such file or directory
[root@manager-node ~]# systemctl enable kubelet && systemctl start kubelet
Failed to execute operation: No such file or directory
[root@manager-node ~]# yum install -y kubeadm-1.14.0-0 kubelet-1.14.0-0 kubectl-1.14.0-0
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
* base: ftp.sjtu.edu.cn
* extras: mirror.bit.edu.cn
* updates: mirror.bit.edu.cn
kubernetes | 1.4 kB 00:00:00
kubernetes/primary | 61 kB 00:00:00
kubernetes 442/442
Resolving Dependencies
--> Running transaction check
---> Package kubeadm.x86_64 0:1.14.0-0 will be installed
--> Processing Dependency: kubernetes-cni >= 0.7.5 for package: kubeadm-1.14.0-0.x86_64
--> Processing Dependency: cri-tools >= 1.11.0 for package: kubeadm-1.14.0-0.x86_64
---> Package kubectl.x86_64 0:1.14.0-0 will be installed
---> Package kubelet.x86_64 0:1.14.0-0 will be installed
--> Processing Dependency: socat for package: kubelet-1.14.0-0.x86_64
--> Running transaction check
---> Package cri-tools.x86_64 0:1.13.0-0 will be installed
---> Package kubernetes-cni.x86_64 0:0.7.5-0 will be installed
---> Package socat.x86_64 0:1.7.3.2-2.el7 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
===================================================================================================================================================================================================================
Package Arch Version Repository Size
===================================================================================================================================================================================================================
Installing:
kubeadm x86_64 1.14.0-0 kubernetes 8.7 M
kubectl x86_64 1.14.0-0 kubernetes 9.5 M
kubelet x86_64 1.14.0-0 kubernetes 23 M
Installing for dependencies:
cri-tools x86_64 1.13.0-0 kubernetes 5.1 M
kubernetes-cni x86_64 0.7.5-0 kubernetes 10 M
socat x86_64 1.7.3.2-2.el7 base 290 k
Transaction Summary
===================================================================================================================================================================================================================
Install 3 Packages (+3 Dependent packages)
Total download size: 57 M
Installed size: 258 M
Downloading packages:
(1/6): fea2c041b42bef6e4de4ee45eee4456236f2feb3d66572ac310f857676fe9598-kubeadm-1.14.0-0.x86_64.rpm | 8.7 MB 00:00:40
(2/6): 14bfe6e75a9efc8eca3f638eb22c7e2ce759c67f95b43b16fae4ebabde1549f3-cri-tools-1.13.0-0.x86_64.rpm | 5.1 MB 00:00:45
(3/6): 2b52e839216dfc620bd1429cdb87d08d00516eaa75597ad4491a9c1e7db3c392-kubectl-1.14.0-0.x86_64.rpm | 9.5 MB 00:00:25
(4/6): socat-1.7.3.2-2.el7.x86_64.rpm | 290 kB 00:00:10
(5/6): 6089961a11403e579c547532462e16b1bb1f97ec539e4671c4c15f377c427c18-kubelet-1.14.0-0.x86_64.rpm | 23 MB 00:02:31
(6/6): 548a0dcd865c16a50980420ddfa5fbccb8b59621179798e6dc905c9bf8af3b34-kubernetes-cni-0.7.5-0.x86_64.rpm | 10 MB 00:02:16
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 287 kB/s | 57 MB 00:03:22
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Installing : socat-1.7.3.2-2.el7.x86_64 1/6
Installing : kubernetes-cni-0.7.5-0.x86_64 2/6
Installing : kubelet-1.14.0-0.x86_64 3/6
Installing : kubectl-1.14.0-0.x86_64 4/6
Installing : cri-tools-1.13.0-0.x86_64 5/6
Installing : kubeadm-1.14.0-0.x86_64 6/6
Verifying : kubelet-1.14.0-0.x86_64 1/6
Verifying : kubeadm-1.14.0-0.x86_64 2/6
Verifying : cri-tools-1.13.0-0.x86_64 3/6
Verifying : kubectl-1.14.0-0.x86_64 4/6
Verifying : kubernetes-cni-0.7.5-0.x86_64 5/6
Verifying : socat-1.7.3.2-2.el7.x86_64 6/6
Installed:
kubeadm.x86_64 0:1.14.0-0 kubectl.x86_64 0:1.14.0-0 kubelet.x86_64 0:1.14.0-0
Dependency Installed:
cri-tools.x86_64 0:1.13.0-0 kubernetes-cni.x86_64 0:0.7.5-0 socat.x86_64 0:1.7.3.2-2.el7
Complete!
docker和k8s设置同一个cgroup
[root@worker01-node ~]# vi /etc/docker/daemon.json
内容如下：
{
"exec-opts": ["native.cgroupdriver=systemd"]
}
---
#重启docker
[root@worker01-node ~]# systemctl restart docker
---
#kubelet设置 下面出现No such file or directory 是正常的
[root@manager-node ~]# sed -i "s/cgroup-driver=systemd/cgroup-driver=cgroupfs/g" /etc/systemd/system/kubelet.service.d/10-kubeadm.conf
sed: can't read /etc/systemd/system/kubelet.service.d/10-kubeadm.conf: No such file or directory
[root@manager-node ~]#
---
#设置开启启动kubelete
[root@manager-node ~]# systemctl enable kubelet && systemctl start kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.
[root@manager-node ~]#
[root@manager-node ~]
7.拉取pull镜像并推送push到自己的仓库中
[root@manager-node ~]# kubeadm config images list
I1229 08:30:24.617466 4852 version.go:96] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled while waiting for connection (Client.Timeout exceeded while awaiting headers)
I1229 08:30:24.617556 4852 version.go:97] falling back to the local client version: v1.14.0
k8s.gcr.io/kube-apiserver:v1.14.0
k8s.gcr.io/kube-controller-manager:v1.14.0
k8s.gcr.io/kube-scheduler:v1.14.0
k8s.gcr.io/kube-proxy:v1.14.0
k8s.gcr.io/pause:3.1
k8s.gcr.io/etcd:3.3.10
k8s.gcr.io/coredns:1.3.1
---
#拉取镜像 设置执行的脚本
vim kubeadm.sh
#!/bin/bash
set -e
KUBE_VERSION=v1.14.0
KUBE_PAUSE_VERSION=3.1
ETCD_VERSION=3.3.10
CORE_DNS_VERSION=1.3.1
GCR_URL=k8s.gcr.io
ALIYUN_URL=registry.cn-hangzhou.aliyuncs.com/google_containers
images=(kube-proxy:${KUBE_VERSION}
kube-scheduler:${KUBE_VERSION}
kube-controller-manager:${KUBE_VERSION}
kube-apiserver:${KUBE_VERSION}
pause:${KUBE_PAUSE_VERSION}
etcd:${ETCD_VERSION}
coredns:${CORE_DNS_VERSION})
for imageName in ${images[@]} ; do
docker pull $ALIYUN_URL/$imageName
docker tag $ALIYUN_URL/$imageName $GCR_URL/$imageName
docker rmi $ALIYUN_URL/$imageName
done
---
#执行上面的脚本
[root@manager-node kubeadm]# sh kubeadm.sh
v1.14.0: Pulling from google_containers/kube-proxy
346aee5ea5bc: Pull complete
1e695dec1fee: Pull complete
9ce77f082c19: Pull complete
Digest: sha256:a704064100b363856afa4cee160a51948b9ac49bbc34ba97caeb7928055e9de1
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy@sha256:a704064100b363856afa4cee160a51948b9ac49bbc34ba97caeb7928055e9de1
v1.14.0: Pulling from google_containers/kube-scheduler
346aee5ea5bc: Already exists
25d09f49ddd0: Pull complete
Digest: sha256:0484d3f811282a124e60a48de8f19f91913bac4d0ba0805d2ed259ea3b691a5e
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler@sha256:0484d3f811282a124e60a48de8f19f91913bac4d0ba0805d2ed259ea3b691a5e
v1.14.0: Pulling from google_containers/kube-controller-manager
346aee5ea5bc: Already exists
fb9302cbe084: Pull complete
Digest: sha256:09c62c11cdfe8dc43e0314174271ca434329c7991d6db5ef7c41a95da399cbf8
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager@sha256:09c62c11cdfe8dc43e0314174271ca434329c7991d6db5ef7c41a95da399cbf8
v1.14.0: Pulling from google_containers/kube-apiserver
346aee5ea5bc: Already exists
a1448280d5df: Pull complete
Digest: sha256:ebfb9018e345697e85d7adc4664c9340570bca33fff126e158264a791c6a5708
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.14.0
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver@sha256:ebfb9018e345697e85d7adc4664c9340570bca33fff126e158264a791c6a5708
3.1: Pulling from google_containers/pause
cf9202429979: Pull complete
Digest: sha256:759c3f0f6493093a9043cc813092290af69029699ade0e3dbe024e968fcb7cca
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/pause@sha256:759c3f0f6493093a9043cc813092290af69029699ade0e3dbe024e968fcb7cca
3.3.10: Pulling from google_containers/etcd
90e01955edcd: Pull complete
6369547c492e: Pull complete
bd2b173236d3: Pull complete
Digest: sha256:240bd81c2f54873804363665c5d1a9b8e06ec5c63cfc181e026ddec1d81585bb
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.10
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.3.10
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd@sha256:240bd81c2f54873804363665c5d1a9b8e06ec5c63cfc181e026ddec1d81585bb
1.3.1: Pulling from google_containers/coredns
e0daa8927b68: Pull complete
3928e47de029: Pull complete
Digest: sha256:638adb0319813f2479ba3642bbe37136db8cf363b48fb3eb7dc8db634d8d5a5b
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.3.1
Untagged: registry.cn-hangzhou.aliyuncs.com/google_containers/coredns@sha256:638adb0319813f2479ba3642bbe37136db8cf363b48fb3eb7dc8db634d8d5a5b
8.kubeadm init初始化master节点
kubeadm reset 还原
这个主要是假如你初始化了想还原或者放弃，重新搭建，可以用此命令
[root@manager-node ~]# kubeadm reset
[reset] WARNING: Changes made to this host by 'kubeadm init' or 'kubeadm join' will be reverted.
[reset] Are you sure you want to proceed? [y/N]: y
[preflight] Running pre-flight checks
W1229 09:23:34.757252 7056 reset.go:234] [reset] No kubeadm config, using etcd pod spec to get data directory
[reset] No etcd config found. Assuming external etcd
[reset] Please manually reset etcd to prevent further issues
[reset] Stopping the kubelet service
[reset] unmounting mounted directories in "/var/lib/kubelet"
[reset] Deleting contents of stateful directories: [/var/lib/kubelet /etc/cni/net.d /var/lib/dockershim /var/run/kubernetes]
[reset] Deleting contents of config directories: [/etc/kubernetes/manifests /etc/kubernetes/pki]
[reset] Deleting files: [/etc/kubernetes/admin.conf /etc/kubernetes/kubelet.conf /etc/kubernetes/bootstrap-kubelet.conf /etc/kubernetes/controller-manager.conf /etc/kubernetes/scheduler.conf]
The reset process does not reset or clean up iptables rules or IPVS tables.
If you wish to reset iptables, you must do so manually.
For example:
iptables -F && iptables -t nat -F && iptables -t mangle -F && iptables -X
If your cluster was setup to utilize IPVS, run ipvsadm --clear (or similar)
to reset your system's IPVS tables.
kubeadm init 初始化
kubeadm init --kubernetes-version=1.14.0 --apiserver-advertise-address=192.168.37.101 --pod-network-cidr=10.244.0.0/16
--
#参数说明
1.--apiserver-advertise-address=192.168.1.111 这里的ip 实际就是master节点的内网ip，我这里manager-node节点是192.168.37.101
---
#执行样例
[root@manager-node ~]# kubeadm init --kubernetes-version=1.14.0 --apiserver-advertise-address=192.168.1.111 --pod-network-cidr=10.244.0.0/16
[init] Using Kubernetes version: v1.14.0
[preflight] Running pre-flight checks
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Activating the kubelet service
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [manager-node kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 192.168.1.111]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "etcd/ca" certificate and key
[certs] Generating "etcd/healthcheck-client" certificate and key
[certs] Generating "apiserver-etcd-client" certificate and key
[certs] Generating "etcd/server" certificate and key
[certs] etcd/server serving cert is signed for DNS names [manager-node localhost] and IPs [192.168.1.111 127.0.0.1 ::1]
[certs] Generating "etcd/peer" certificate and key
[certs] etcd/peer serving cert is signed for DNS names [manager-node localhost] and IPs [192.168.1.111 127.0.0.1 ::1]
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
[kubeconfig] Writing "admin.conf" kubeconfig file
[kubeconfig] Writing "kubelet.conf" kubeconfig file
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests"
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 15.506013 seconds
[upload-config] storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config-1.14" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --experimental-upload-certs
[mark-control-plane] Marking the node manager-node as control-plane by adding the label "node-role.kubernetes.io/master=''"
[mark-control-plane] Marking the node manager-node as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: 3wgo6s.s8gm0tum1vy4a89f
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] creating the "cluster-info" ConfigMap in the "kube-public" namespace
[addons] Applied essential addon: CoreDNS
[addons] Applied essential addon: kube-proxy

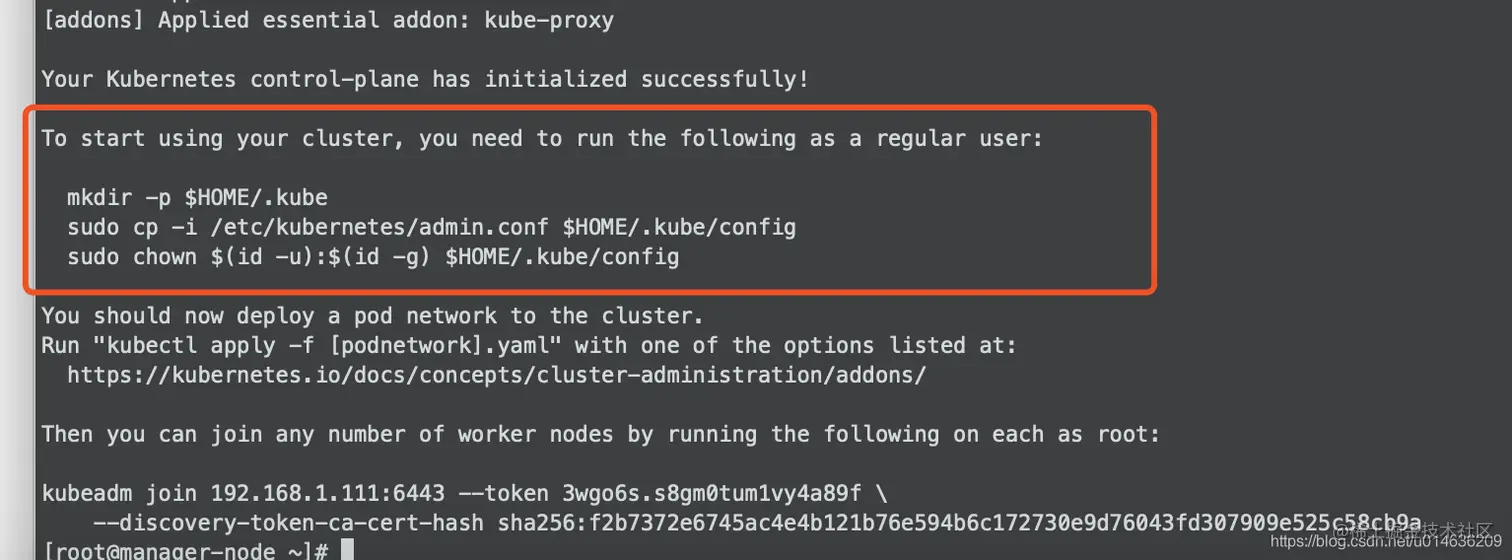

Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.1.111:6443 --token 3wgo6s.s8gm0tum1vy4a89f \
--discovery-token-ca-cert-hash sha256:f2b7372e6745ac4e4b121b76e594b6c172730e9d76043fd307909e525c58cb9a
[root@manager-node ~]#
---
#备注
1.保存好最后一个执行的命令：(因此待会worker节点搭建集群的时候，需要跟主节点进行集群搭建)
kubeadm join 192.168.37.101:6443 --token 3wgo6s.s8gm0tum1vy4a89f \
--discovery-token-ca-cert-hash sha256:f2b7372e6745ac4e4b121b76e594b6c172730e9d76043fd307909e525c58cb9a
根据上面init的提示，在master节点上执行下面的命令
[root@manager-node ~]# mkdir -p $HOME/.kube
[root@manager-node ~]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@manager-node ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config
[root@manager-node ~]#
---
验证是否安装成功
[root@manager-node ~]# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-fb8b8dccf-6hvcz 0/1 Pending 0 9m8s
coredns-fb8b8dccf-x8xxc 0/1 Pending 0 9m8s
etcd-manager-node 1/1 Running 0 8m30s
kube-apiserver-manager-node 1/1 Running 0 8m12s
kube-controller-manager-manager-node 1/1 Running 0 8m21s
kube-proxy-rvddm 1/1 Running 0 9m9s
kube-scheduler-manager-node 1/1 Running 0 8m2s
---
备注:
1.通过上面命令查看我们可以看到 etc，controller，scheduler等组件都以pod的方式安装成功了；
2.这里注意 coredns没有启动，需要安装网络插件(参考下面的calico网络插件安装)
---
健康健康校验
[root@manager-node ~]# curl -k https://localhost:6443/healthz
ok
9.kube join [worker节点关联集群]
下面的命令是初始化kubeadm init成功 提示的需要在子节点上执行的命令
kubeadm join 192.168.37.101:6443 --token 3wgo6s.s8gm0tum1vy4a89f \
--discovery-token-ca-cert-hash sha256:f2b7372e6745ac4e4b121b76e594b6c172730e9d76043fd307909e525c58cb9a
在worker01-node节点上执行
[root@worker01-node ~]# kubeadm join 192.168.37.101:6443 --token 3wgo6s.s8gm0tum1vy4a89f \
> --discovery-token-ca-cert-hash sha256:f2b7372e6745ac4e4b121b76e594b6c172730e9d76043fd307909e525c58cb9a
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.14" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Activating the kubelet service
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@worker01-node ~]# kubectl get nodes
The connection to the server localhost:8080 was refused - did you specify the right host or port?
在worker02-node节点上执行
[root@worker02-node ~]# kubeadm join 192.168.37.101:6443 --token 3wgo6s.s8gm0tum1vy4a89f \
> --discovery-token-ca-cert-hash sha256:f2b7372e6745ac4e4b121b76e594b6c172730e9d76043fd307909e525c58cb9a
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml'
[kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.14" ConfigMap in the kube-system namespace
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Activating the kubelet service
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
[root@worker02-node ~]# kubectl get nodes
The connection to the server localhost:8080 was refused - did you specify the right host or port?
[root@worker02-node ~]#
在Manager-node(master主节点)上查看是否已经有子节点
[root@manager-node ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
manager-node Ready master 15h v1.14.0
worker01-node Ready <none> 87s v1.14.0
worker02-node NotReady <none> 83s v1.14.0
[root@manager-node ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
manager-node Ready master 15h v1.14.0
worker01-node Ready <none> 5m21s v1.14.0
worker02-node Ready <none> 5m17s v1.14.0
