这份代码存了有一定时间了，忘记从哪里弄来的，原作者也忘记是谁了。。。为了保持原文的准确性，我就不翻译了（没错，就是懒！），但是为了方便之后翻阅，我把格式和重点部分整了整。

原作如是说

I will never learn how to write shaders by heart

I wrote all text preceeding with so that shader highlighting can be used in your favourite software (like sublime)

All categories mentioned in comments for searching are written in caps, for example "see MY TITLE" To navigate to a category, like MY TITLE find it with hashtag like "#MY TITLE"

Every "See.." Has a category below

正文

VERT/FRAG shader

Shader "Custom/Name"
{
	Properties
	{
		// See PROPERTIES
	}

	Tags    // See TAGS
	Blend   // See BLEND MODES

	Pass
	{
		CGPROGRAM

		#include            // See INCLUDES

		#pragma vertex vert // See PRAGMAS
		#pragma fragment frag

		// custom variables

		struct v2f {  };

		v2f vert () { };

		fixed4 frag (v2f i) : SV_Target {};

		ENDCG
	}

	Pass // Another pass...
	{

	}
}

SURFACE shader


Shader "Example/Diffuse Simple"
{
    // Properties, same as above

    SubShader // Note, SubShader instead of Pass
    {
    	Tags // see tags. Note, tags inside the SubShader {} unlike vert/frag shaders

    	CGPROGRAM
    	#pragma surface surf Lambert

    	struct Input {
    	    float4 color : COLOR;
    	};

    	void surf (Input IN, inout SurfaceOutput o) {
    	    o.Albedo = 1;
    	}

    	ENDCG
    }
    Fallback "Diffuse"
  }

PROPERTIES

Properties
{
	_RangedFloat ("Ranged Float", Range (min, max)) = number
	_Float ("Float", Float) = number
	_Int ("Int", Int) = number
	_Color ("Some Color", Color) = (1,1,1,1)
	_Vector ("Some Vector", Vector) = (0,0,0,0)
	_Texture ("Texture", 2D) = "white" {}
	_Cubemap ("Cubemap", CUBE) = "" {}
	_3DTexture ("3DTexture", 3D) = "defaulttexture" {}

	// Standard properties:
	_MainTex ("Main Tex", 2D) = "white" {}
	// Missing - color, normal map
}

// They would be accessed in HLSL code as:
half _Float;
fixed _Float;
float _Float;

int _Int; // uint for unsigned
uint _Int; // TODO: Check if viable ??

fixed4 _Color; // low precision type is usually enough for colors
float4 _Vector;

sampler2D _Texture;
samplerCUBE _Cubemap;
sampler3D _3DTexture;

// Tiling and Offset information can be obtain by [TEXTURE NAME]_ST
float4 _Texture_ST; // (x = x tiling, y = y tiling, z = x offset, w = y offset)

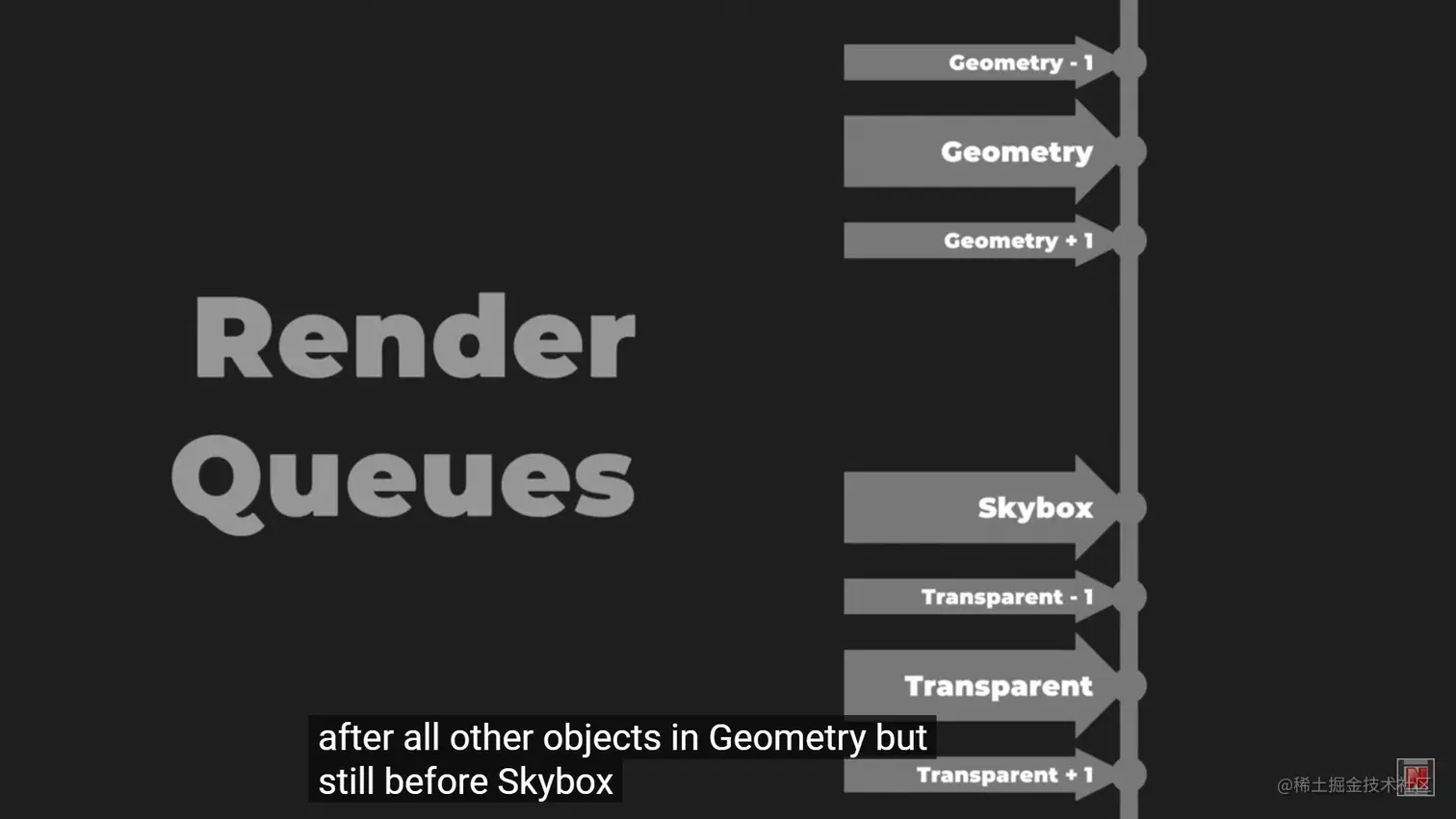

TAGS

Tags {
	"Queue"="Transparent"
	"RenderType"="Transparent"
	"IgnoreProjector"="True"
	// TODO
}
// incomplete

BLEND MODES

Blend Off

Blend SrcAlpha OneMinusSrcAlpha // Traditional transparency
Blend One OneMinusSrcAlpha      // Premultiplied transparency
Blend One One                   // Additive
Blend OneMinusDstColor One      // Soft Additive
Blend DstColor Zero             // Multiplicative
Blend DstColor SrcColor         // 2x Multiplicative

BlendOp colorOp
BlendOp colorOp, alphaOp
AlphaToMask On | Off

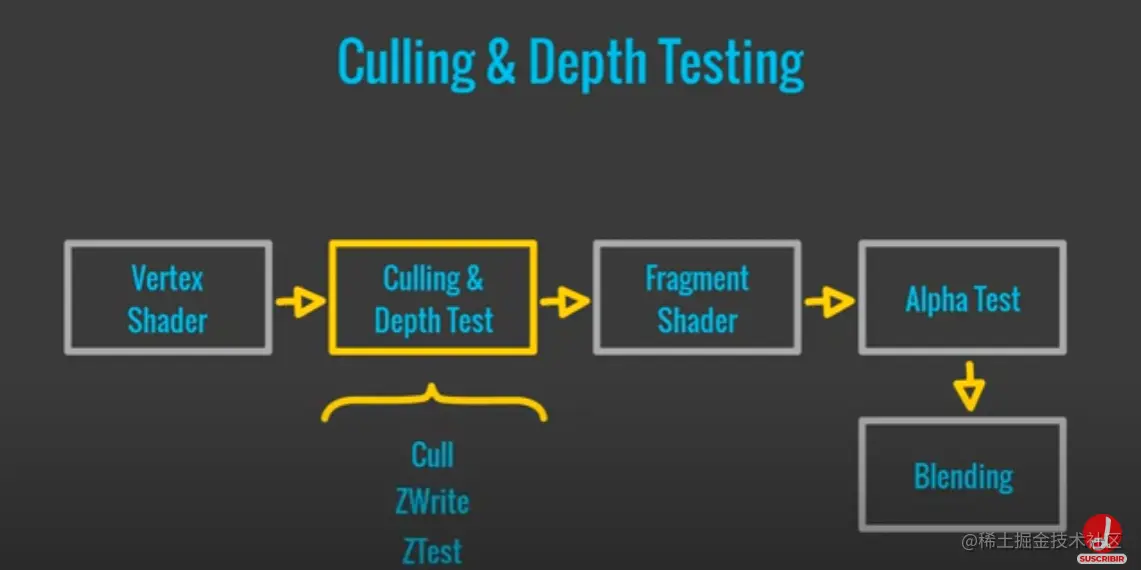

Culling & Z

Cull Back | Front | Off
ZWrite On | Off
ZTest Less | Greater | LEqual | GEqual | Equal | NotEqual | Always
Offset Factor, Units
Name "PassName" // Name a pass so that it can be reused by calling UsePass from other shaders
ColorMask RGB | A | 0 | any combination of R, G, B, A // used to select which channel to use with blending


PRAGMAS

Pragmas are compilation directives They written inside the CGPROGRAM ENDCG block

#pragma vertex name   // function that acts on every mesh vertex
#pragma fragment name // function that acts on every visible pixel
#pragma geometry name // DX10 geometry shader function. Acts per triangle. Turns on #pragma target 4.0

Used for tessellation:

#pragma hull name     // DX11 hull shader function. Acts once per patch. Turns on #pragma target 5.0
#pragma domain name   // DX11 domain shader function. Turns on #pragma target 5.0

STRUCTS (VERTEX )

// built-in shortcut appdatas:
appdata_base // position, normal and one texture coordinate.
appdata_tan  // position, tangent, normal and one texture coordinate.
appdata_full // position, tangent, normal, four texture coordinates and color.
appdata_img  // vertex shader input with position and one texture coordinate.

// or custom struct like:
struct appdata {
	// built in types:
    float4 vertex : POSITION;
    float3 normal : NORMAL;
    float4 tangent : TANGENT;
    fixed4 color : COLOR;

    float4 texcoord : TEXCOORD0; // or some people write "uv"
	float3 mycustomthing : TEXCOORD1; // for other custom things use TEXCOORD-number
};

// this is what appdata_full has:
struct appdata_full {
    float4 vertex : POSITION;
    float4 tangent : TANGENT;
    float3 normal : NORMAL;
    float4 texcoord : TEXCOORD0;
    float4 texcoord1 : TEXCOORD1;
    fixed4 color : COLOR;
#if defined(SHADER_API_XBOX360)
    half4 texcoord2 : TEXCOORD2;
    half4 texcoord3 : TEXCOORD3;
    half4 texcoord4 : TEXCOORD4;
    half4 texcoord5 : TEXCOORD5;
#endif
};

STRUCTS (VERTEX TO FRAGMENT STRUCT)

COLOR0, COLOR2.. etc is used for low precision 0-1 values TEXCOORD0, TEXCOORD1.. etc is used for high precision

^ this only matters on older, dx9 hardware

Note: COLOR is the same as COLOR0, the same goes for TEXCOORD and TEXCOORD0 (TODO: check if true)

struct v2f {
    float4 pos : SV_POSITION;
    fixed4 color : COLOR; // this didn't neeed to be COLOR (see above)

    float4 uv : TEXCOORD0;
    float3 normal : TEXCOORD1;

    uint vid : SV_VertexID // vertex ID, needs to be uint, requires #pragma target 3.5
}; // NOTE THE SEMICOLON HERE AFTER STRUCT!

VERTEX SHADER

If you only need position, you can return just a float4 in clip space

float4 vert (float4 vertex : POSITION) : SV_POSITION
{
    return UnityObjectToClipPos(vertex);
}

if you have more data, you need to return a custom structure (see VERTEX TO FRAGMENT STRUCT)

The values output from the vertex shader will be interpolated across the face of the rendered triangles, and the values at each pixel will be passed as inputs to the fragment shader.

v2f vert (appdata_base v)
{
    v2f o;
    o.pos = UnityObjectToClipPos(v.vertex); // clip pos, NOT object position
    // uv
    o.uv = float4( v.texcoord.xy, 0, 0 );
    // vertex color
    o.color = v.color;

    // VIEW (camera) - camera view
    o.viewDir = normalize(WorldSpaceViewDir(v.vertex));
    return o;
} // NO SEMICOLON AFTER FUNCTIONS!

o.vertex = mul(UNITY_MATRIX_MVP, v.vertex);
vs
o.vertex = UnityObjectToClipPos(v.vertex);
?

FRAGMENT SHADER

usually, you would use : SV_Target semantic, like:

fixed4 frag (v2f i) : SV_Target
{
	return i.color // to visualize vertex color for eg.
}

but you can also return custom structure if you need additional colors (as in multiple render targets):

struct fragOutput
{
	fixed4 color : SV_Target;
	fixed4 color2 : SV_Target0; // for additional render targets .. add as many SV_TargetN as you need
	fixed4 depth : SV_Depth;    // overrides the z buffer value. Note on some GPUs it turns off depth buffer optimizations
};

fragOutput frag (v2f i)
{
	fragOutput o;
	o.color = fixed4(i.uv, 0, 0);
	o.color2 = i.color;
	o.depth = 0;
	return o;
}

You can use VPOS to obtain screen space vertex position in pixels requires #pragma target 3.0

fixed4 frag (v2f i, UNITY_VPOS_TYPE screenPos : VPOS) : SV_Target
{
	return fixed4(screenPos.xy, 0, 0); // X Y is in pixels!
}

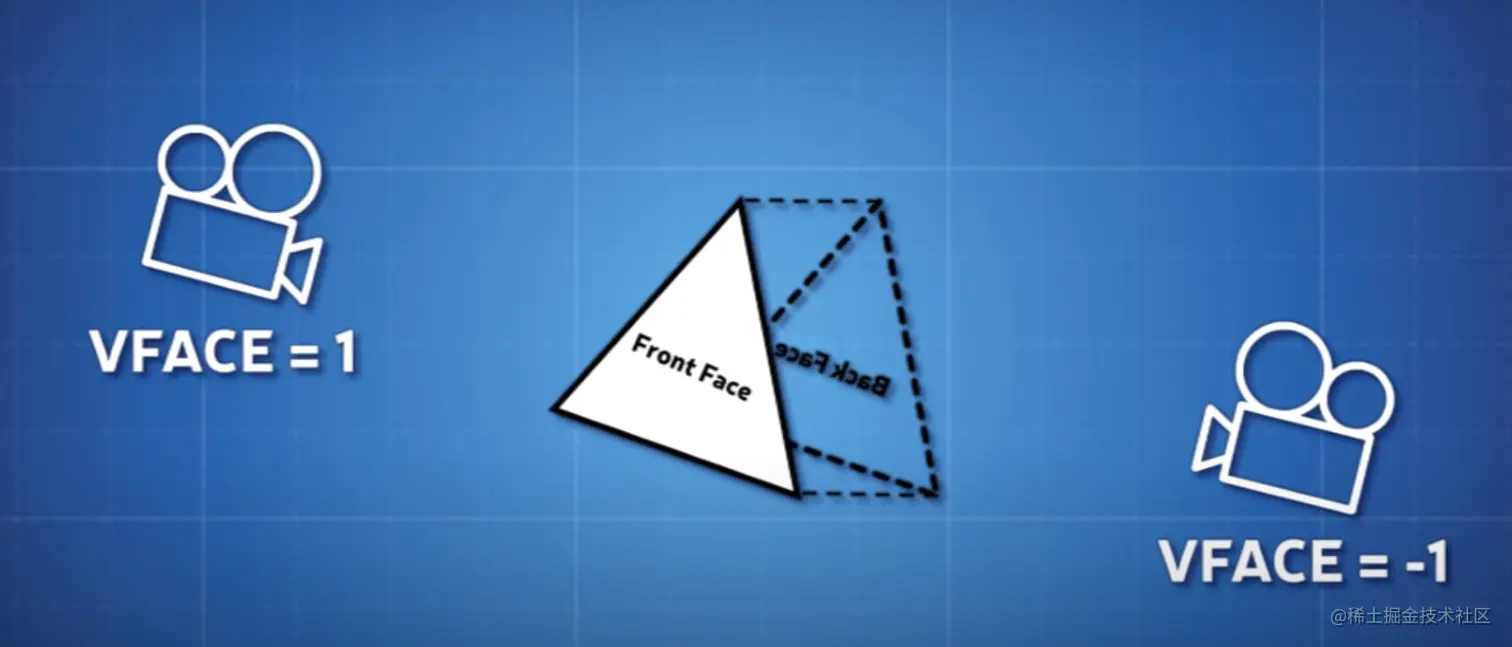

You can use VFACE to obtain face facing

VFACE input

  • positive for frontbaces,
  • negative for backfaces


requires #pragma target 3.0

fixed4 frag (fixed facing : VFACE) : SV_Target
{
    return facing > 0 ? _ColorFront : _ColorBack;
}

BUILT-IN FUNCTIONS

INCLUDES

#include HLSLSupport.cginc          // (automatically included) Helper macros and definitions for cross-platform shader compilation.
#include UnityShaderVariables.cginc // (automatically included) Commonly used global variables.

#include UnityCG.cginc       // commonly used helper functions.
#include AutoLight.cginc     // lighting & shadowing functionality, e.g. surface shaders use this file internally.
#include Lighting.cginc      // standard surface shader lighting models; automatically included when you’re writing surface shaders.
#include TerrainEngine.cginc // helper functions for Terrain & Vegetation shaders.
  • Vertex transformation functions in UnityCG.cginc
float4 UnityObjectToClipPos(float3 pos)	// Transforms a point from object space to the camera’s clip space in homogeneous coordinates. This is the equivalent of mul(UNITY_MATRIX_MVP, float4(pos, 1.0)), and should be used in its place.
float3 UnityObjectToViewPos(float3 pos)	// Transforms a point from object space to view space. This is the equivalent of mul(UNITY_MATRIX_MV, float4(pos, 1.0)).xyz, and should be used in its place.
  • Generic helper functions in UnityCG.cginc
float3 WorldSpaceViewDir (float4 v)	// Returns world space direction (not normalized) from given object space vertex position towards the camera.
float3 ObjSpaceViewDir (float4 v)	// Returns object space direction (not normalized) from given object space vertex position towards the camera.
float2 ParallaxOffset (half h, half height, half3 viewDir)	// calculates UV offset for parallax normal mapping.
fixed Luminance (fixed3 c)	        // Converts color to luminance (grayscale).
fixed3 DecodeLightmap (fixed4 color)	// Decodes color from Unity lightmap (RGBM or dLDR depending on platform).
float4 EncodeFloatRGBA (float v)	// Encodes [0..1) range float into RGBA color, for storage in low precision render target.
float DecodeFloatRGBA (float4 enc)	// Decodes RGBA color into a float.
float2 EncodeFloatRG (float v)	        // Encodes [0..1) range float into a float2.
float DecodeFloatRG (float2 enc)	// Decodes a previously-encoded RG float.
float2 EncodeViewNormalStereo (float3 n)	// Encodes view space normal into two numbers in 0..1 range.
float3 DecodeViewNormalStereo (float4 enc4)	// Decodes view space normal from enc4.xy.
  • Only in forward rendering
float3 WorldSpaceLightDir (float4 v)	// Computes world space direction (not normalized) to light, given object space vertex position.
float3 ObjSpaceLightDir (float4 v)	// Computes object space direction (not normalized) to light, given object space vertex position.
float3 Shade4PointLights (...)	        // Computes illumination from four point lights, with light data tightly packed into vectors. Forward rendering uses this to compute per-vertex lighting
  • Screen-space helper functions in UnityCG.cginc
float4 ComputeScreenPos (float4 clipPos)	        // Computes texture coordinate for doing a screenspace-mapped texture sample. Input is clip space position. The function takes care of platform differences in render texture coordinates.
float4 ComputeGrabScreenPos (float4 clipPos)	        // Computes texture coordinate for sampling a GrabPass texure. Input is clip space position. The function takes care of platform differences in render texture coordinates.
float3 ShadeVertexLights (float4 vertex, float3 normal)	// Computes illumination from four per-vertex lights and ambient, given object space position & normal.

UnityObjectToWorldNormal(normal); // To convert normals to world space

tex2D(_Tex, float2); // Texture sampling

BUILT-IN VARIABLES

Transformations

// TODOL CHeck if these still work
UNITY_MATRIX_MVP	// Current model * view * projection matrix.
UNITY_MATRIX_MV		// Current model * view matrix.
UNITY_MATRIX_V		// Current view matrix.
UNITY_MATRIX_P		// Current projection matrix.
UNITY_MATRIX_VP		// Current view * projection matrix.
UNITY_MATRIX_T_MV	// Transpose of model * view matrix.
UNITY_MATRIX_IT_MV	// Inverse transpose of model * view matrix.

unity_WorldToObject // Inverse of current world matrix. _World2Object is obsolete
unity_ObjectToWorld // Current model matrix. _Object2World is obsolete

// To get UVs
newUV = TRANSFORM_TEX(oldUV, _MainTex); // replace with the name of your texture
// also remember to declare the float4 _MainTex_ST; variable before using the macro

Camera & Screen

_WorldSpaceCameraPos	// float3	World space position of the camera.
_ProjectionParams	// float4	x is 1.0 (or –1.0 if currently rendering with a flipped projection matrix), y is the camera’s near plane, z is the camera’s far plane and w is 1/FarPlane.
_ScreenParams	        // float4	x is the camera’s render target width in pixels, y is the camera’s render target height in pixels, z is 1.0 + 1.0/width and w is 1.0 + 1.0/height.
_ZBufferParams	        // float4	Used to linearize Z buffer values. x is (1-far/near), y is (far/near), z is (x/far) and w is (y/far).
unity_OrthoParams	// float4	x is orthographic camera’s width, y is orthographic camera’s height, z is unused and w is 1.0 when camera is orthographic, 0.0 when perspective.
unity_CameraProjection	// float4x4	Camera’s projection matrix.
unity_CameraInvProjection	// float4x4	Inverse of camera’s projection matrix.
unity_CameraWorldClipPlanes[6]	// float4	Camera frustum plane world space equations, in this order: left, right, bottom, top, near, far.

Time

_Time	        // float4	Time since level load (t/20, t, t*2, t*3), use to animate things inside the shaders.
_SinTime	// float4	Sine of time: (t/8, t/4, t/2, t).
_CosTime	// float4	Cosine of time: (t/8, t/4, t/2, t).
unity_DeltaTime	// float4	Delta time: (dt, 1/dt, smoothDt, 1/smoothDt).

Lights

_LightColor0            // (declared in Lighting.cginc)	fixed4	Light color
_WorldSpaceLightPos0	// float4	Directional lights: (world space direction, 0). Other lights: (world space position, 1).
_LightMatrix0           // (declared in AutoLight.cginc)	float4x4	World-to-light matrix. Used to sample cookie & attenuation textures.
  • forward only:
unity_4LightPosX0, unity_4LightPosY0, unity_4LightPosZ0	// float4	(ForwardBase pass only) world space positions of first four non-important point lights.
unity_4LightAtten0	// float4	(ForwardBase pass only) attenuation factors of first four non-important point lights.
unity_LightColor	// half4[4]	(ForwardBase pass only) colors of of first four non-important point lights.
  • deferred:
_LightColor	//float4	Light color.
_LightMatrix0	//float4x4	World-to-light matrix. Used to sample cookie & attenuation textures.
  • vertex lit:
unity_LightColor	// half4[8]	Light colors.
unity_LightPosition	// float4[8]	View-space light positions. (-direction,0) for directional lights; (position,1) for point/spot lights.
unity_LightAtten	// half4[8]	Light attenuation factors. x is cos(spotAngle/2) or –1 for non-spot lights; y is 1/cos(spotAngle/4) or 1 for non-spot lights; z is quadratic attenuation; w is squared light range.
unity_SpotDirection	// float4[8]	View-space spot light positions; (0,0,1,0) for non-spot lights.

Ambient

unity_AmbientSky	// fixed4	Sky ambient lighting color in gradient ambient lighting case.
unity_AmbientEquator	// fixed4	Equator ambient lighting color in gradient ambient lighting case.
unity_AmbientGround	// fixed4	Ground ambient lighting color in gradient ambient lighting case.

Fog

// UNITY_LIGHTMODEL_AMBIENT	// fixed4	Ambient lighting color (sky color in gradient ambient case). Legacy variable.
unity_FogColor	                // fixed4	Fog color.
unity_FogParams	                // float4	Parameters for fog calculation: (density / sqrt(ln(2)), density / ln(2), –1/(end-start), end/(end-start)). x is useful for Exp2 fog mode, y for Exp mode, z and w for Linear mode.

LOD

unity_LODFade	// float4	Level-of-detail fade when using LODGroup. x is fade (0..1), y is fade quantized to 16 levels, z and w unused.

IN SURFACE SHADERS：

// IN SURFACE SHADERS:
IN.worldNormal
IN.viewDir


// TODO: Add HLSL functions



// TODO:
== SURFACE SHADER CUSTOM LIGHTING ==

Shader again:

TRANSPARENCY




ALPHA TEST TRANSPARENCY

aka CUTOFF, CUTOUT

// To make a thing transparent:
// Make sure you use have these 2 tags:
Tags {
	"Queue" = "AlphaTest"
	"RenderType" = "TransparentCutout"
}

In frag shader add:

clip(col.a - 0.5); // this 0.5 is the cutoff value, you can put it in a variable or property

ALPHA BLEND TRANSPARENCY

Tags {
	"Queue"="Transparent"
	"RenderType"="Transparent"
}

Use one of the Blend modes see BLEND MODES

Blend SrcAlpha OneMinusSrcAlpha
ColorMask RGB
ZWrite Off
//Cull Off // optional

FOG

Unity provides some useful macros for implementing built-in fog that can be configured in Lighting tab

#pragma multi_compile_fog

#include "UnityCG.cginc"

// inside your v2f struct add:
struct v2f {
	...
	UNITY_FOG_COORDS(1) // the number (1) is an unused TEXCOORD-number, so if you already have TEXCOORD1, use (2)
}

// in the vert shader add UNITY_TRANSFER_FOG
v2f vert (appdata_t v) {
	v2f o;
	...
	UNITY_TRANSFER_FOG(o,o.vertex);
	return o;
}

// add UNITY_APPLY_FOG to your frag shader like
fixed4 frag (v2f i) : SV_Target {
	...
	UNITY_APPLY_FOG(i.fogCoord, col); // i.fogCoord is generated by UNITY_FOG_COORDS
	return col;
}

GPU INSTANCING

INSTANCING

#pragma multi_compile_instancing

#include "UnityCG.cginc"

struct appdata_t {
	...
	UNITY_VERTEX_INPUT_INSTANCE_ID
};

// It seems that this block required even tho you don't have any per instance properties
UNITY_INSTANCING_BUFFER_START(Props)
UNITY_DEFINE_INSTANCED_PROP(fixed4, _Color) // Make _Color an instanced property (i.e. an array)
#define _Color_arr Props
UNITY_INSTANCING_BUFFER_END(Props)

v2f vert (appdata_t v)
{
	v2f o;
	UNITY_SETUP_INSTANCE_ID(v);
	...
	return o;
}

VR

STEREO SINGLE PASS

To support stereo single pass you need to put these macros to pass the eye index to the fragment shader.

For example, if you’re using any of the view or projection matrices or the camera position in the fragment shader these need the eye index to give the correct value, otherwise you’ll always access the left eye.



#include "UnityCG.cginc"

struct appdata_t {
	...
	UNITY_VERTEX_INPUT_INSTANCE_ID
}

struct v2f {
	...
	UNITY_VERTEX_OUTPUT_STEREO
}

v2f vert (appdata_t v)
{
	v2f o;
	UNITY_SETUP_INSTANCE_ID();       // for single pass instanced. Not necessary?
	UNITY_INITIALIZE_OUTPUT(v2f, o); // for single pass instanced. Not necessary?
	UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
	...
	return o;
}

// in frag shader, eye can be accessed with
UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(i)
// but it is not necessary, unless you are writing a post shader for example

SAMPLE

Pass
{
	Tags{ "LightMode" = "ShadowCaster" }

	Fog{ Mode Off }
	ZWrite On ZTest Less Cull Off
	Offset 1, 1

	CGPROGRAM

		#pragma vertex vert
		#pragma fragment frag
		#pragma multi_compile_shadowcaster
		#pragma fragmentoption ARB_precision_hint_fastest

		#include "UnityCG.cginc"

		struct v2f
		{
			V2F_SHADOW_CASTER;
		};

		v2f vert(appdata_base v)
		{
			v2f o;
			TRANSFER_SHADOW_CASTER_NORMALOFFSET(o)
			return o;
		}

		float4 frag(v2f i) : COLOR
		{
			SHADOW_CASTER_FRAGMENT(i)
		}

	ENDCG
}
avatar
文章
阅读
粉丝
