URL Loading System

NSURLSession

当前iOS中网络请求最常用的是基于NSURLSession实现和封装的网络库，NSURLSession属于URL Loading System的一部分。

NSURLProtocol

URL Loading System中提供的NSURLProtocol，能够拦截所有基于URL Loading System发出的网络请求，网络请求拦截之后可以方便采集数据和做相关处理。

适用范围

由于Background Session, WKWebView由另外的进程处理，所以URLProtocol无法对其做拦截处理。由于CFNetwork, libcurl不属于URL Loading System，所以URLProtocol也无法对其处理。

一、网络流程

iOS中HTTP请求流程

二、网络监控

监控代码

注册

URLProtocol的注册有2种方式

registerClass

open class func registerClass(_ protocolClass: AnyClass) -> Bool

URLProtocol.registerClass(NetworkProtocol.classForCoder())

//用于sharedSession

protocolClasses

open var protocolClasses: [AnyClass]?

URLSessionConfiguration.default.protocolClasses = [NetworkProtocol.classForCoder()]

//用于defaultSessionConfiguration/ephemeralSessionConfiguration

对应的2种注册方式，protocol 的调用顺序都是按照 protocolClasses 数组中的顺序，从前往后依次调用各个 protocol 的 canInitWith 方法，找到第一个可以 handle 的 protocol，后续的 protocol 就不会再调用了。

Hook URLSessionConfiguration.protocolClasses.get()

对于URLSessionConfiguration.default，每次返回的都是copy出来的对象，所以当我们无法得到对应URLSessionConfiguration创建出来的URLSession，我们只能hook URLSessionConfiguration中protocolClasses的get方法，来实现拦截。



#import <Foundation/Foundation.h>



NS_ASSUME_NONNULL_BEGIN



 @interface SSRURLSessionConfiguration : NSObject



+ (SSRURLSessionConfiguration *)defaultConfiguration;



 @property (nonatomic, assign) BOOL isSwizzle;



 @property (nonatomic, strong) NSMutableArray *allProtocolClasses;



- (void)addURLProtocol:(Class)protocol;



- (void)swizzleURLSessionConfiguration;



 @end



NS_ASSUME_NONNULL_END



#import "SSRURLSessionConfiguration.h"

#import <objc/runtime.h>



 @implementation SSRURLSessionConfiguration



+ (SSRURLSessionConfiguration *)defaultConfiguration {

    static SSRURLSessionConfiguration *staticConfiguration;

    static dispatch_once_t onceToken;

    dispatch_once(&onceToken, ^{

        staticConfiguration = [[SSRURLSessionConfiguration alloc] init];

    });

    return staticConfiguration;

}



- (void)swizzleURLSessionConfiguration {

    self.isSwizzle = YES;

    Class cls = NSClassFromString(@"__NSCFURLSessionConfiguration") ?: NSClassFromString(@"NSURLSessionConfiguration");

    [self swizzleSelector: @selector(protocolClasses) fromClass:cls toClass:[self class]];

}



- (void)swizzleSelector:(SEL)selector fromClass:(Class)original toClass:(Class)stub {

    Method originalMethod = class_getInstanceMethod(original, selector);

    Method stubMethod = class_getInstanceMethod(stub, selector);

    if (!originalMethod || !stubMethod) {

        [NSException raise:NSInternalInconsistencyException format:@"Couldn't load NEURLSessionConfiguration."];

    }

    method_exchangeImplementations(originalMethod, stubMethod);

}



- (void)addURLProtocol:(NSURLProtocol *)protocol {

    if (self.allProtocolClasses == nil) {

        self.allProtocolClasses = [NSMutableArray array];

    }

    if (![self.allProtocolClasses containsObject:protocol]) {

        [self.allProtocolClasses addObject:protocol];

    }

}



- (NSArray *)protocolClasses {

    return [SSRURLSessionConfiguration defaultConfiguration].allProtocolClasses;

}



 @end



let sessionConfiguration = SSRURLSessionConfiguration.default()

sessionConfiguration.addURLProtocol(YourNetworkProtocol.classForCoder())

if !sessionConfiguration.isSwizzle {

    sessionConfiguration.swizzleURLSessionConfiguration()

}

拦截到网络请求后，URLProtocol会依次执行下列方法：

// 该请求是否需要当前的协议对象拦截并处理

// 通常情况下判断scheme不为空，之后判断需要拦截的scheme，判断已经拦截过的scheme

override class func canInit(with request: URLRequest) -> Bool {

        if let scheme = request.url?.scheme, (scheme == "http" || scheme == "https"),

           URLProtocol.property(forKey: "Your Key Here", in: request) == nil {

            return true

        } else {

            return false

        }

    }

// 返回规范化的请求（通常只要返回原来的请求就可以）

override class func canonicalRequest(for request: URLRequest) -> URLRequest {

    return request

}

// 判断两个请求是否为同一个请求，如果为同一个请求就使用缓存数据

override class func requestIsCacheEquivalent(_ a: URLRequest, to b: URLRequest) -> Bool {

    return super.requestIsCacheEquivalent(a, to: b)

}

在startLoading方法中，我们需要标记已拦截的请求，发起新的请求。

新的请求可以通过多种方式发起，URLSession, CFNetwork, Libcurl, Cronet等都可以，这边网络监控我们继续基于URLSession实现，iOS10以后URLSession提供了Metircs网络性能数据，iOS提供了更加丰富的网络性能数据，更加方便。

这边创建新的请求的时候，需要使用sharedSession，如果每次都创建新的Session，TCP连接将无法复用，每次都创建新的连接。



override func startLoading() {

    if let mutableReqeust = (request as NSURLRequest).mutableCopy() as? NSMutableURLRequest {

        // 标记已拦截的请求

        URLProtocol.setProperty(true, forKey: "Your Key Here", in: mutableReqeust)



        // 创建新的请求

        let task = SSRNetworkSessionManager.shared.session.dataTask(with: mutableReqeust as URLRequest)



        // 设置task回调

        SSRNetworkSessionManager.shared.setDelegate(self, task: task)



        sessionDataTask = task

        sessionDataTask?.resume()

    }

}



override func stopLoading() {

    sessionDataTask?.cancel()

}

由于使用了sharedSession来发起新的请求，所以在回调的时候，需要根据task.identifier来找到对应的delegate，所以创建了task与delegate对应的dict



class SSRNetworkSessionManager: NSObject {

    @objc public static dynamic let shared = SSRNetworkSessionManager()



    weak var delegate: (SessionDelegate)?



    var taskIdDelegateDict = [String: SessionDelegate]()



    @objc dynamic let lock = NSLock()



    lazy var session: URLSession = {

        let configuration: URLSessionConfiguration = URLSessionConfiguration.ephemeral

        let session = URLSession(configuration: configuration, delegate: self, delegateQueue: nil)

        return session

    }()



    func setDelegate(_ delegate: SessionDelegate, task: URLSessionTask) {

        lock.lock()

        defer {

            lock.unlock()

        }

        taskIdDelegateDict[String(task.taskIdentifier)] = delegate

    }



    func delegate(_ task: URLSessionTask) -> SessionDelegate? {

        lock.lock()

        defer {

            lock.unlock()

        }

        return taskIdDelegateDict[String(task.taskIdentifier)]

    }



    func removeDelegate(task: URLSessionTask) {

        lock.lock()

        defer {

            lock.unlock()

        }

        taskIdDelegateDict.removeValue(forKey: String(task.taskIdentifier))

    }

}



extension SSRNetworkSessionManager: URLSessionDataDelegate {



    func urlSession(_ session: URLSession,

                    dataTask: URLSessionDataTask,

                    didReceive response: URLResponse,

                    completionHandler: @escaping (URLSession.ResponseDisposition) -> Void) {

        if let delegate = SSRNetworkSessionManager.shared.delegate(dataTask) {

            delegate.urlSession?(session, dataTask: dataTask, didReceive: response, completionHandler: completionHandler)

        }

    }



    func urlSession(_ session: URLSession, dataTask: URLSessionDataTask, didReceive data: Data) {

        if let delegate = SSRNetworkSessionManager.shared.delegate(dataTask) {

            delegate.urlSession?(session, dataTask: dataTask, didReceive: data)

        }

    }

}



extension SSRNetworkSessionManager: URLSessionTaskDelegate {



    func urlSession(_ session: URLSession, task: URLSessionTask, didFinishCollecting metrics: URLSessionTaskMetrics) {

        if let delegate = SSRNetworkSessionManager.shared.delegate(task) {

            delegate.urlSession?(session, task: task, didFinishCollecting: metrics)

        }

    }



    func urlSession(_ session: URLSession, task: URLSessionTask, didCompleteWithError error: Error?) {

        if let delegate = SSRNetworkSessionManager.shared.delegate(task) {

            delegate.urlSession?(session, task: task, didCompleteWithError: error)

        }

    }



    func urlSession(_ session: URLSession,

                    task: URLSessionTask,

                    willPerformHTTPRedirection response: HTTPURLResponse,

                    newRequest request: URLRequest,

                    completionHandler: @escaping (URLRequest?) -> Void) {

        if let delegate = SSRNetworkSessionManager.shared.delegate(task) {

            delegate.urlSession?(session, task: task, willPerformHTTPRedirection: response, newRequest: request, completionHandler: completionHandler)

        }

    }

}

回调

URLSessionDataDelegate



func urlSession(_ session: URLSession,

                    dataTask: URLSessionDataTask,

                    didReceive response: URLResponse,

                    completionHandler: @escaping (URLSession.ResponseDisposition) -> Void) {

        self.client?.urlProtocol(self, didReceive: response, cacheStoragePolicy: URLCache.StoragePolicy.allowed)

        completionHandler(URLSession.ResponseDisposition.allow)

    }

// 该方法会多次回调，Body数据需要进行叠加

func urlSession(_ session: URLSession, dataTask: URLSessionDataTask, didReceive data: Data) {



        if self.responseBodyData == nil {

            self.responseBodyData = data

        } else {

            self.responseBodyData?.append(data)

        }



        self.client?.urlProtocol(self, didLoad: data)

    }

URLSessionTaskDelegate

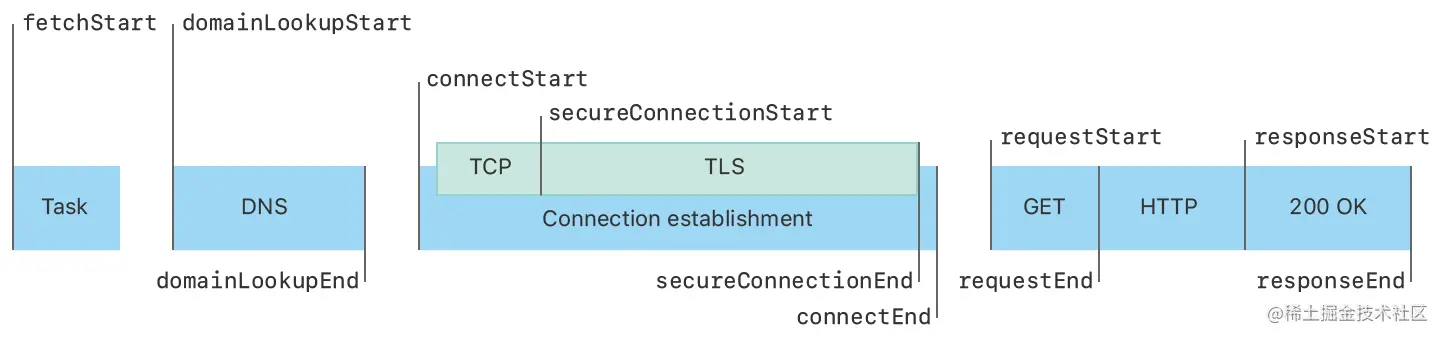

URLSessionTaskMetrics中提供了丰富的性能数据，在下方提供了对应的结构体信息



func urlSession(_ session: URLSession, task: URLSessionTask, didFinishCollecting metrics: URLSessionTaskMetrics) {}

didCompleteWithError是整个Task回调最后调用的方法，可以在这个方法里对数据进行计算和处理



func urlSession(_ session: URLSession, task: URLSessionTask, didCompleteWithError error: Error?) {}



func urlSession(_ session: URLSession,

                    task: URLSessionTask,

                    willPerformHTTPRedirection response: HTTPURLResponse,

                    newRequest request: URLRequest,

                    completionHandler: @escaping (URLRequest?) -> Void) {



    self.client?.urlProtocol(self, wasRedirectedTo: request, redirectResponse: response)

}

URLSessionTaskMetrics数据结构



 @available(iOS 10.0, *)

open class URLSessionTaskTransactionMetrics : NSObject, @unchecked Sendable {





    open var request: URLRequest { get }





    @NSCopying open var response: URLResponse? { get }





    open var fetchStartDate: Date? { get }





    open var domainLookupStartDate: Date? { get }





    open var domainLookupEndDate: Date? { get }





    open var connectStartDate: Date? { get }





    open var secureConnectionStartDate: Date? { get }





    open var secureConnectionEndDate: Date? { get }





    open var connectEndDate: Date? { get }





    open var requestStartDate: Date? { get }





    open var requestEndDate: Date? { get }





    open var responseStartDate: Date? { get }





    open var responseEndDate: Date? { get }





    open var networkProtocolName: String? { get }





    open var isProxyConnection: Bool { get }





    open var isReusedConnection: Bool { get }





    open var resourceFetchType: URLSessionTaskMetrics.ResourceFetchType { get }





    @available(iOS 13.0, *)

    open var countOfRequestHeaderBytesSent: Int64 { get }





    @available(iOS 13.0, *)

    open var countOfRequestBodyBytesSent: Int64 { get }





    @available(iOS 13.0, *)

    open var countOfRequestBodyBytesBeforeEncoding: Int64 { get }





    @available(iOS 13.0, *)

    open var countOfResponseHeaderBytesReceived: Int64 { get }





    @available(iOS 13.0, *)

    open var countOfResponseBodyBytesReceived: Int64 { get }





    @available(iOS 13.0, *)

    open var countOfResponseBodyBytesAfterDecoding: Int64 { get }





    @available(iOS 13.0, *)

    open var localAddress: String? { get }





    @available(iOS 13.0, *)

    open var remoteAddress: String? { get }





    @available(iOS 13.0, *)

    open var isCellular: Bool { get }





    @available(iOS 13.0, *)

    open var isExpensive: Bool { get }





    @available(iOS 13.0, *)

    open var isConstrained: Bool { get }





    @available(iOS 13.0, *)

    open var isMultipath: Bool { get }





    @available(iOS 14.0, *)

    open var domainResolutionProtocol: URLSessionTaskMetrics.DomainResolutionProtocol { get }





    @available(iOS, introduced: 10.0, deprecated: 13.0, message: "Not supported")

    public init()



    @available(iOS, introduced: 10.0, deprecated: 13.0, message: "Not supported")

    open class func new() -> Self

}

数据指标

基础信息和源信息

port
remoteAddress
localAddress
tlsVersionCode
networkProtocolName
resourceFetchType
isProxyConnection

requestHeadSize
requestBodySize
responseHeadSize
responseBodySize

成功率

Status/HTTP Code

200..<300 的占比可以作为成功的网络请求

Business Code

部分失败的网络请求中，又可以按照业务状态码聚合和分类

耗时

整体耗时

阶段耗时

连接复用率

在连接复用的情况下，TCP+TLS建连这个阶段是没有的，可以节约很多的耗时，所以连接复用率是一个很重要的指标

三、网络优化

ROI

耗时类的ROI基本可以按照阶段耗时/总耗时来计算，之后降序排列，再依次按照难易度来解决和优化即可。

网络请求类型

接口请求
图片请求
日志请求

接口请求按照下述做优化，图片请求侧重源和硬件侧的优化，日志请求侧重压缩和聚合上传

阶段优化

TCP+TLS

HTTP2.0，QUIC等提升连接复用率，优化连接耗时

OCSP提升证书校验和TLS的耗时

TLS升级至1.3版本，提升TLS耗时

DNS

HTTPDNS，IP直连

HTTP服务端响应耗时

推进服务端处理

Task

缓存池复用

源

网络监控中我们得到Reqeust Size，Response Size，可以通过排序逐步排查优化Type和Size

硬件

CDN，全站加速等云方案

引用

URLProtocol 注册方式的细节问题

APM - iOS 网络监控
