第一种效果图：
vue代码：
<template>
<div class="all-legend" ref="allUI">
<div
class="each-legend"
:style="'background-color: rgba(' + item + ');'"
v-for="(item, index) in legendData.rgbacolors"
:key="index"
>
<span class="val">
{{ index % interval == 0 ? index : '' }}
</span>
</div>
</div>
</template>
js代码：
<script>
export default {
components: {},
props: {},
data() {
return {
legendData: {
rgbacolors: [
['138', '42', '10'],
['138', '42', '10'],
['142', '43', '11'],
['144', '45', '11'],
['148', '46', '12'],
['150', '47', '12'],
['153', '49', '13'],
['155', '49', '13'],
['159', '51', '13'],
['161', '52', '14'],
['164', '53', '14'],
['166', '54', '14'],
['170', '56', '15'],
['172', '57', '15'],
['175', '59', '16'],
['177', '59', '16'],
['180', '61', '16'],
['183', '62', '17'],
['187', '64', '18'],
['188', '64', '17'],
['191', '66', '18'],
['194', '67', '18'],
['197', '69', '18'],
['199', '70', '17'],
['202', '72', '18'],
['203', '73', '18'],
['206', '75', '19'],
['208', '76', '18'],
['211', '78', '19'],
['213', '79', '19'],
['216', '81', '19'],
['218', '82', '18'],
['221', '84', '19'],
['223', '86', '19'],
['226', '88', '20'],
['227', '89', '19'],
['230', '90', '20'],
['233', '92', '20'],
['236', '94', '20'],
['236', '96', '19'],
['237', '99', '18'],
['237', '102', '17'],
['237', '105', '17'],
['238', '108', '16'],
['238', '111', '16'],
['238', '114', '15'],
['239', '117', '14'],
['239', '120', '13'],
['239', '123', '13'],
['239', '126', '11'],
['240', '129', '11'],
['239', '131', '10'],
['241', '135', '10'],
['241', '138', '9'],
['241', '141', '9'],
['241', '144', '7'],
['242', '147', '7'],
['242', '150', '6'],
['241', '152', '6'],
['239', '152', '5'],
['238', '154', '6'],
['237', '156', '6'],
['237', '157', '6'],
['235', '158', '5'],
['234', '160', '6'],
['233', '161', '6'],
['232', '163', '6'],
['231', '164', '5'],
['231', '166', '6'],
['229', '167', '6'],
['228', '169', '6'],
['226', '170', '5'],
['226', '172', '6'],
['225', '173', '6'],
['224', '175', '6'],
['222', '175', '5'],
['221', '177', '6'],
['218', '175', '7'],
['215', '175', '7'],
['212', '174', '7'],
['210', '173', '8'],
['207', '172', '8'],
['205', '172', '9'],
['201', '170', '9'],
['199', '170', '10'],
['196', '168', '10'],
['194', '167', '11'],
['190', '166', '11'],
['187', '165', '12'],
['184', '164', '12'],
['182', '164', '12'],
['179', '162', '13'],
['176', '162', '13'],
['173', '161', '13'],
['171', '160', '14'],
['168', '159', '14'],
['166', '159', '15'],
['163', '157', '16'],
['161', '157', '17'],
['158', '157', '17'],
],
values: [
40, 39.75, 39.5, 39.25, 39, 38.75, 38.5, 38.25, 38, 37.75, 37.5,
37.25, 37, 36.75, 36.5, 36.25, 36, 35.75, 35.5, 35.25, 35, 34.75,
34.5, 34.25, 34, 33.75, 33.5, 33.25, 33, 32.75, 32.5, 32.25, 32,
31.75, 31.5, 31.25, 31, 30.75, 30.5, 30.25, 30, 29.75, 29.5, 29.25,
29, 28.75, 28.5, 28.25, 28, 27.75, 27.5, 27.25, 27, 26.75, 26.5,
26.25, 26, 25.75, 25.5, 25.25, 25, 24.75, 24.5, 24.25, 24, 23.75,
23.5, 23.25, 23, 22.75, 22.5, 22.25, 22, 21.75, 21.5, 21.25, 21,
20.75, 20.5, 20.25, 20, 19.75, 19.5, 19.25, 19, 18.75, 18.5, 18.25,
18, 17.75, 17.5, 17.25, 17, 16.75, 16.5, 16.25, 16, 15.75, 15.5,
15.25,
],
},
interval: 1, //控制显示数值内容
};
},
computed: {},
watch: {},
created() {},
mounted() {
this.setEachHeight();
},
methods: {
/**
* 图例数据分割
*/
setEachHeight() {
if (!this.legendData || !this.legendData.values) return;
this.interval = Math.ceil(this.legendData.values.length / 10);
this.$refs.allUI.style.setProperty(
'--eachHeight',
100 / this.legendData.rgbacolors.length + '%',
);
},
},
};
</script>
<style scoped lang="less">
.all-legend {
width: 10rem;
padding: 3rem;
background: rgba(255, 255, 255, 0.5);
margin: 0 auto;
.each-legend {
height: var(--eachHeight);
width: 3rem;
.val {
display: block;
margin-left: 3rem;
text-align: center;
width: 3rem;
z-index: 100;
}
}
}
</style>
- vue项目里，在方法中控制style的样式需要定义ref
- 在setEachHeight方法执行 this.$refs.allUI.style.setPropert(--eachHeight,100 / this.legendData.rgbacolors.length + '%') 给变量赋值（第二个参数是要取得的参数）
- style应该写： height:var(--eachHeight)
第二种效果图：

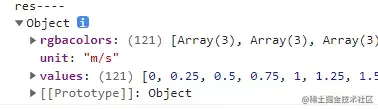

后台接口形式：

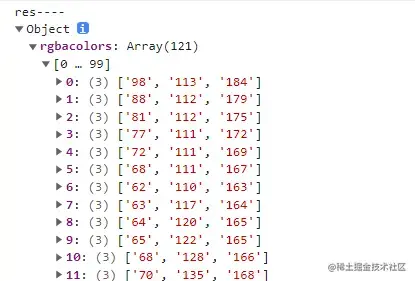

颜色的格式：
数值的格式：
代码片段：
<template>
<div class="legends">
<div class="legend" v-for="(item, index) in legends" :key="index">
<!-- <div class="name">
{{ item.name }}<span v-if="item.unit != ''">（{{ item.unit }}）</span>
</div> -->
<div class="name">{{ item.name }}<span>（单位: ）</span></div>
<div
class="bar"
:style="{
background: 'linear-gradient(to right,' + item.bgColors + ')',
}"
>
<div class="number">
<p v-for="(i, idx) in item.value" :key="idx">{{ i }}</p>
</div>
</div>
</div>
</div>
</template>
<script>
export default {
props: {
legendData: {
type: Object,
default: function () {
return {};
},
},
},
mounted() {
console.log(this.legendData);
this.createLegend(this.legendData);
},
data() {
return {
legends: [
{
name: '',
unit: '',
bgColors: '',
value: [0, 7.5, 15, 22.5, 30],
},
],
};
},
methods: {
createLegend(info) {
this.legends = [];
let bgColors = info.rgbacolors;
let values = info.values;
if (!bgColors) return;
let arr = [];
for (let i = 0; i < bgColors.length; i++) {
let color = bgColors[i];
arr.push(`rgb(${color[0]},${color[1]},${color[2]})`);
}
let bgColorsText = arr.join(',');
let endValue =
values.length > bgColors.length
? values[values.length - 2]
: values[values.length - 1];
let numValue = [];
if (bgColors.length < 5) {
numValue = [
values[0],
values[parseInt((values.length - 1) / 2)],
endValue,
];
} else if (bgColors.length == 6) {
numValue = [
values[0],
values[1],
values[2],
values[3],
values[4],
values[5],
];
} else if (bgColors.length == 5 || bgColors.length > 6) {
numValue = [
values[0],
values[parseInt((values.length - 1) / 2 / 2)],
values[parseInt((values.length - 1) / 2)],
values[
parseInt(
(values.length - 1 - (values.length - 1) / 2) / 2 +
(values.length - 1) / 2,
)
],
endValue,
];
}
this.legends.push({
name: name,
unit: info.unit || '',
bgColors: bgColorsText,
value: numValue,
});
},
},
};
</script>
<style lang="scss" scoped>
// .legends {
// position: absolute;
// right: 28rem;
// top: 10rem;
// width: auto;
// height: 80%;
// }
.legends {
position: absolute;
z-index: 99;
bottom: 110px;
left: 28px;
.legend {
padding: 4px;
border-radius: 2px;
.name {
padding-left: 1px;
margin-bottom: 4px;
font-size: 12px;
color: #fff;
text-shadow: 0 0 3px #000;
}
.bar {
width: 280px;
position: relative;
height: 14px;
border-radius: 10px;
box-shadow: 0 0 4px #252525;
.number {
display: flex;
align-items: center;
justify-content: space-between;
position: absolute;
left: 0;
right: 0px;
top: 1px;
padding: 0 5px;
box-sizing: border-box;
p {
font-size: 12px;
color: #fff;
// width: 80px;
text-align: center;
text-shadow: -1px 1px #000;
line-height: 1;
}
p:nth-child(1) {
text-align: left;
}
p:nth-child(3) {
text-align: right;
}
}
}
}
}
</style>
