Spectrograms and MFCCs

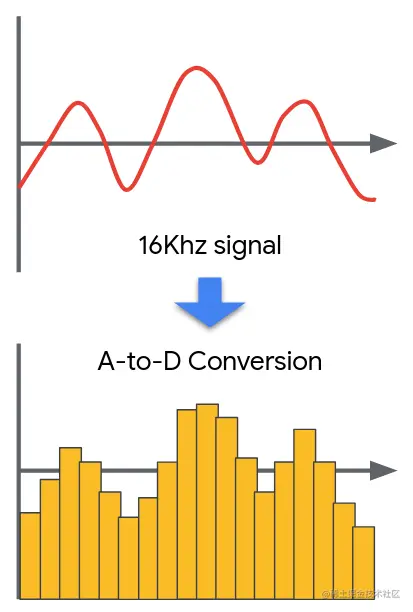

The raw analog audio signal is first transformed into a digital signal.

You then saw how the digital signal in the time domain (time on the x-axis and amplitude on the y-axis) is transformed into the frequency domain (frequency on the x-axis and amplitude on the y-axis) through the use of a fourier transform. If you’d like to dive deeper into understanding how the fourier transform works I suggest you watch this fantastic video on the 3Brown1Blue channel.

Of course for the purposes of TinyML we need to worry about how we can compute this transformation efficiently -- both in the memory needed to store the program, and in the memory and latency needed for the computation. The solution is the use of an approximate fast fourier transform (FFT) of which there are multiple possible implementations. TensorflowLite Micro uses the KISS_FFT library, which includes more documentation about the design choices made by the library to be compact in memory on their GitHub page.

By applying the FFT through a sliding window procedure we can analyze the intensity (in color) of each of frequencies over time. This is a spectrogram.

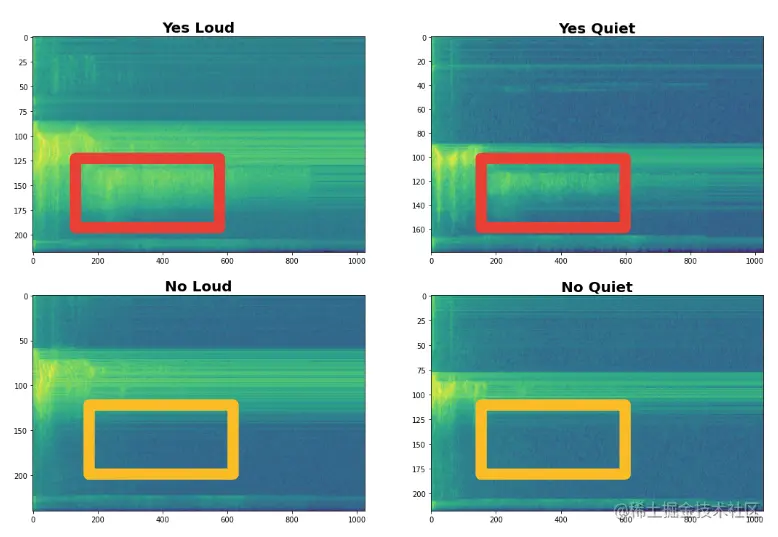

A spectrogram is a better input for a deep learning system than the standard input audio signal as we have already extracted the frequencies for the neural network and so it doesn’t need to learn how to do that on its own. Even visually, it is easier to see the difference between the “yes” and “no” spectrograms.

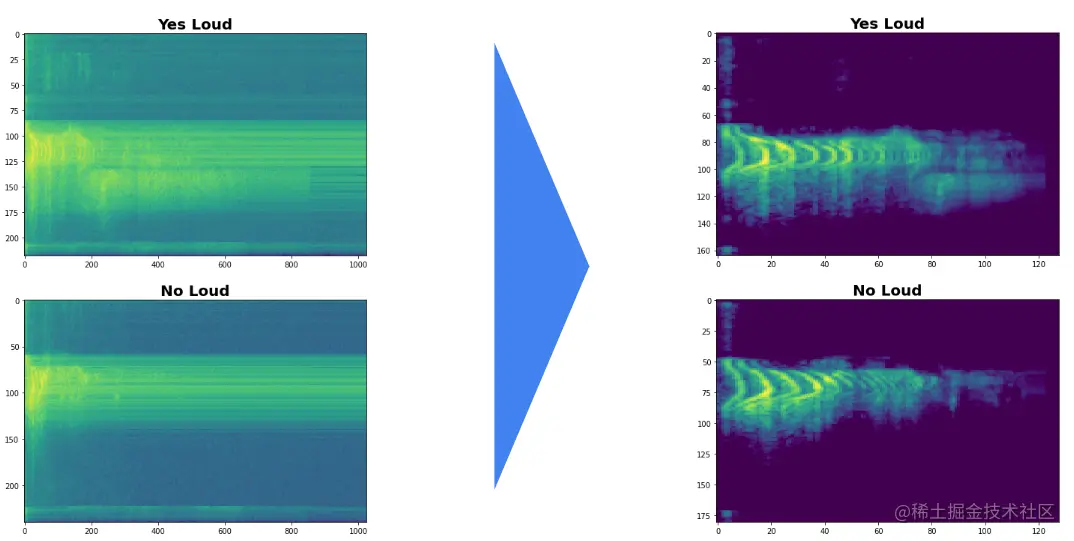

The human ear can tell low frequency signals apart easier than high frequency signals according to the Mel Scale. We can therefore create a Mel Filter Bank to take advantage of this phenomenon and group together larger clusters of higher frequency signals to provide more useful data to our machine learning algorithm. The output of this process is a Mel Frequency Cepstral Coefficient (MFCC). For more information on how this works here are three great posts: post1, post2, post3.

Of course there are many different ways you could solve this learning problem and it is likely that very large neural networks would perform quite well on this task without this preprocessing. However, for the case of TinyML this preprocessing is vital and drastically improves the final model performance without taking up a lot of memory or latency!

MFCC

colab.research.google.com/github/tiny…

First load in the function to record your own audio!

!pip install ffmpeg-python &> 0
!pip install tensorflow-io &> 0
!pip install python_speech_features &> 0
print("Packages Installed")

Import everything we will need

from IPython.display import HTML, Audio
from google.colab.output import eval_js
from base64 import b64decode
import numpy as np
from scipy.io.wavfile import read as wav_read
import io
import ffmpeg
import tensorflow as tf
import tensorflow_io as tfio
import matplotlib.pyplot as plt
import numpy as np
from python_speech_features import mfcc
from matplotlib import cm
import pickle
import librosa
print("Packages Imported")

Define the audio importing function

Adapted from: ricardodeazambuja.com/deep_learni… and colab.research.google.com/drive/1Z6VI…

AUDIO_HTML = """
<script>
var my_div = document.createElement("DIV");
var my_p = document.createElement("P");
var my_btn = document.createElement("BUTTON");
var t = document.createTextNode("Press to start recording");

my_btn.appendChild(t);
//my_p.appendChild(my_btn);
my_div.appendChild(my_btn);
document.body.appendChild(my_div);

var base64data = 0;
var reader;
var recorder, gumStream;
var recordButton = my_btn;

var handleSuccess = function(stream) {
  gumStream = stream;
  var options = {
    //bitsPerSecond: 8000, //chrome seems to ignore, always 48k
    mimeType : 'audio/webm;codecs=opus'
    //mimeType : 'audio/webm;codecs=pcm'
  };
  //recorder = new MediaRecorder(stream, options);
  recorder = new MediaRecorder(stream);
  recorder.ondataavailable = function(e) {
    var url = URL.createObjectURL(e.data);
    var preview = document.createElement('audio');
    preview.controls = true;
    preview.src = url;
    document.body.appendChild(preview);

    reader = new FileReader();
    reader.readAsDataURL(e.data);
    reader.onloadend = function() {
      base64data = reader.result;
      //console.log("Inside FileReader:" + base64data);
    }
  };
  recorder.start();
  };

recordButton.innerText = "Recording... press to stop";

navigator.mediaDevices.getUserMedia({audio: true}).then(handleSuccess);


function toggleRecording() {
  if (recorder && recorder.state == "recording") {
      recorder.stop();
      gumStream.getAudioTracks()[0].stop();
      recordButton.innerText = "Saving the recording... pls wait!"
  }
}

// https://stackoverflow.com/a/951057
function sleep(ms) {
  return new Promise(resolve => setTimeout(resolve, ms));
}

var data = new Promise(resolve=>{
//recordButton.addEventListener("click", toggleRecording);
recordButton.onclick = ()=>{
toggleRecording()

sleep(2000).then(() => {
  // wait 2000ms for the data to be available...
  // ideally this should use something like await...
  //console.log("Inside data:" + base64data)
  resolve(base64data.toString())

});

}
});

</script>
"""

def get_audio():
  display(HTML(AUDIO_HTML))
  data = eval_js("data")
  binary = b64decode(data.split(',')[1])

  process = (ffmpeg
    .input('pipe:0')
    .output('pipe:1', format='wav')
    .run_async(pipe_stdin=True, pipe_stdout=True, pipe_stderr=True, quiet=True, overwrite_output=True)
  )
  output, err = process.communicate(input=binary)

  riff_chunk_size = len(output) - 8
  # Break up the chunk size into four bytes, held in b.
  q = riff_chunk_size
  b = []
  for i in range(4):
      q, r = divmod(q, 256)
      b.append(r)

  # Replace bytes 4:8 in proc.stdout with the actual size of the RIFF chunk.
  riff = output[:4] + bytes(b) + output[8:]

  sr, audio = wav_read(io.BytesIO(riff))

  return audio, sr

print("Chrome Audio Recorder Defined")

Load in the Audio Samples

Record your own audio samples!

After you run each cell wait for the stop button to appear then start recording and then press the button to stop the recording once you have said the word! If you do not want to record audio then see below for a way to load in the default audio used in the lecture slides.

audio_yes_loud, sr_yes_loud = get_audio()
print("DONE")

audio_yes_quiet, sr_yes_quiet = get_audio()
print("DONE")

audio_no_loud, sr_no_loud = get_audio()
print("DONE")

audio_no_quiet, sr_no_quiet = get_audio()
print("DONE")

# if you would like to save your files for later, uncomment and run the following
# then you can find your files in the folder icon to the left

# audio_files = {
#   'audio_yes_loud': audio_yes_loud, 'sr_yes_loud': sr_yes_loud,
#   'audio_yes_quiet': audio_yes_quiet, 'sr_yes_quiet': sr_yes_quiet,
#   'audio_no_loud': audio_no_loud, 'sr_no_loud': sr_no_loud,
#   'audio_no_quiet': audio_no_quiet, 'sr_no_quiet': sr_no_quiet,
# }
# with open('audio_files.pkl', 'wb') as fid:
#   pickle.dump(audio_files,fid)

Or load in the default audio samples

By uncommenting and running the below

#!wget --no-check-certificate --content-disposition https://github.com/tinyMLx/colabs/blob/master/audio_files.pkl?raw=true
#print("Wait a minute for the file to sync in the Colab and then run the next cell!")

# fid = open('audio_files.pkl', 'rb')
# audio_files = pickle.load(fid)
# audio_yes_loud = audio_files['audio_yes_loud']
# sr_yes_loud = audio_files['sr_yes_loud']
# audio_yes_quiet = audio_files['audio_yes_quiet']
# sr_yes_quiet = audio_files['sr_yes_quiet']
# audio_no_loud = audio_files['audio_no_loud']
# sr_no_loud = audio_files['sr_no_loud']
# audio_no_quiet = audio_files['audio_no_quiet']
# sr_no_quiet = audio_files['sr_no_quiet']

You can hear the audio files you loaded by uncommenting and running the below

#Audio(audio_yes_loud, rate=sr_yes_loud)

#Audio(audio_yes_quiet, rate=sr_yes_quiet)

#Audio(audio_no_loud, rate=sr_no_loud)

#Audio(audio_no_quiet, rate=sr_no_quiet)

Visualize the samples

First as signals

# Plot the figure
fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(nrows=2, ncols=2)
max_val = max(np.append(np.append(np.append(audio_yes_loud,audio_yes_quiet),audio_no_loud),audio_no_quiet))
ax1.plot(audio_yes_loud)
ax1.set_title("Yes Loud", {'fontsize':20, 'fontweight':'bold'})
ax1.set_ylim(-max_val, max_val)
ax2.plot(audio_yes_quiet)
ax2.set_title("Yes Quiet", {'fontsize':20, 'fontweight':'bold'})
ax2.set_ylim(-max_val, max_val)
ax3.plot(audio_no_loud)
ax3.set_title("No Loud", {'fontsize':20, 'fontweight':'bold'})
ax3.set_ylim(-max_val, max_val)
ax4.plot(audio_no_quiet)
ax4.set_title("No Quiet", {'fontsize':20, 'fontweight':'bold'})
ax4.set_ylim(-max_val, max_val)
fig.set_size_inches(18,12)

Then view the Fourier Transform of the Signal

Viewing the signal in the frequency domain.

#Adapted from https://makersportal.com/blog/2018/9/13/audio-processing-in-python-part-i-sampling-and-the-fast-fourier-transform
# compute the FFT and take the single-sided spectrum only and remove imaginary part
fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(nrows=2, ncols=2)
ft_audio_yes_loud = np.abs(2*np.fft.fft(audio_yes_loud))
ft_audio_yes_quiet = np.abs(2*np.fft.fft(audio_yes_quiet))
ft_audio_no_loud = np.abs(2*np.fft.fft(audio_no_loud))
ft_audio_no_quiet = np.abs(2*np.fft.fft(audio_no_quiet))

# Plot the figure
ax1.plot(ft_audio_yes_loud)
ax1.set_xscale('log')
ax1.set_yscale('log')
ax1.set_title("Yes Loud", {'fontsize':20, 'fontweight':'bold'})
ax2.plot(ft_audio_yes_quiet)
ax2.set_xscale('log')
ax2.set_yscale('log')
ax2.set_title("Yes Quiet", {'fontsize':20, 'fontweight':'bold'})
ax3.plot(ft_audio_no_loud)
ax3.set_xscale('log')
ax3.set_yscale('log')
ax3.set_title("No Loud", {'fontsize':20, 'fontweight':'bold'})
ax4.plot(ft_audio_no_quiet)
ax4.set_xscale('log')
ax4.set_yscale('log')
ax4.set_title("No Quiet", {'fontsize':20, 'fontweight':'bold'})
fig.set_size_inches(18,12)
fig.text(0.5, 0.06, 'Frequency [Hz]', {'fontsize':20, 'fontweight':'bold'}, ha='center');
fig.text(0.08, 0.5, 'Amplitude', {'fontsize':20, 'fontweight':'bold'}, va='center', rotation='vertical');

Then as spectrograms

Can you see how spectrograms can help machine learning models better differentiate between audio samples?

# Convert to spectrogram and display
# adapted from https://aruno14.medium.com/comparaison-of-audio-representation-in-tensorflow-b6c33a83d77f
spectrogram_yes_loud = tfio.audio.spectrogram(audio_yes_loud/1.0, nfft=2048, window=len(audio_yes_loud), stride=int(sr_yes_loud * 0.008))
spectrogram_yes_quiet = tfio.audio.spectrogram(audio_yes_quiet/1.0, nfft=2048, window=len(audio_yes_quiet), stride=int(sr_yes_quiet * 0.008))
spectrogram_no_loud = tfio.audio.spectrogram(audio_no_loud/1.0, nfft=2048, window=len(audio_no_loud), stride=int(sr_no_loud * 0.008))
spectrogram_no_quiet = tfio.audio.spectrogram(audio_no_quiet/1.0, nfft=2048, window=len(audio_no_quiet), stride=int(sr_no_quiet * 0.008))

# Plot the figure
fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(nrows=2, ncols=2)
ax1.imshow(tf.math.log(spectrogram_yes_loud).numpy(), aspect='auto')
ax1.set_title("Yes Loud", {'fontsize':20, 'fontweight':'bold'})
ax2.imshow(tf.math.log(spectrogram_yes_quiet).numpy(), aspect='auto')
ax2.set_title("Yes Quiet", {'fontsize':20, 'fontweight':'bold'})
ax3.imshow(tf.math.log(spectrogram_no_loud).numpy(), aspect='auto')
ax3.set_title("No Loud", {'fontsize':20, 'fontweight':'bold'})
ax4.imshow(tf.math.log(spectrogram_no_quiet).numpy(), aspect='auto')
ax4.set_title("No Quiet", {'fontsize':20, 'fontweight':'bold'})
fig.set_size_inches(18,12)

Then as MFCCs

Using the Mel Scale to better associate the features to human hearing!

# Convert to MFCC using the Mel Scale
# adapted from: https://towardsdatascience.com/getting-to-know-the-mel-spectrogram-31bca3e2d9d0
mfcc_yes_loud = librosa.power_to_db(librosa.feature.melspectrogram(
    np.float32(audio_yes_loud), sr=sr_yes_loud, n_fft=2048, hop_length=512, n_mels=128), ref=np.max)
mfcc_yes_quiet = librosa.power_to_db(librosa.feature.melspectrogram(
    np.float32(audio_yes_quiet), sr=sr_yes_quiet, n_fft=2048, hop_length=512, n_mels=128), ref=np.max)
mfcc_no_loud = librosa.power_to_db(librosa.feature.melspectrogram(
    np.float32(audio_no_loud), sr=sr_no_loud, n_fft=2048, hop_length=512, n_mels=128), ref=np.max)
mfcc_no_quiet = librosa.power_to_db(librosa.feature.melspectrogram(
    np.float32(audio_no_quiet), sr=sr_no_quiet, n_fft=2048, hop_length=512, n_mels=128), ref=np.max)

# Plot the figure
fig, ((ax1, ax2), (ax3, ax4)) = plt.subplots(nrows=2, ncols=2)
ax1.imshow(np.swapaxes(mfcc_yes_loud, 0 ,1), interpolation='nearest', cmap=cm.viridis, origin='lower', aspect='auto')
ax1.set_title("Yes Loud", {'fontsize':20, 'fontweight':'bold'})
ax1.set_ylim(ax1.get_ylim()[::-1])
ax2.imshow(np.swapaxes(mfcc_yes_quiet, 0 ,1), interpolation='nearest', cmap=cm.viridis, origin='lower', aspect='auto')
ax2.set_title("Yes Quiet", {'fontsize':20, 'fontweight':'bold'})
ax2.set_ylim(ax2.get_ylim()[::-1])
ax3.imshow(np.swapaxes(mfcc_no_loud, 0 ,1), interpolation='nearest', cmap=cm.viridis, origin='lower', aspect='auto')
ax3.set_title("No Loud", {'fontsize':20, 'fontweight':'bold'})
ax3.set_ylim(ax3.get_ylim()[::-1])
ax4.imshow(np.swapaxes(mfcc_no_quiet, 0 ,1), interpolation='nearest', cmap=cm.viridis, origin='lower', aspect='auto')
ax4.set_title("No Quiet", {'fontsize':20, 'fontweight':'bold'})
ax4.set_ylim(ax4.get_ylim()[::-1])
fig.set_size_inches(18,12)
