笔者是一名大三的土木工程专业的学生,自学编程一年半,今年寒假找了一份做CAD插件的实习,实习中第二个项目就是几乎是自己独立完成的项目.虽然项目不大,但是还是收获良多.
暖通接天正
项目背景

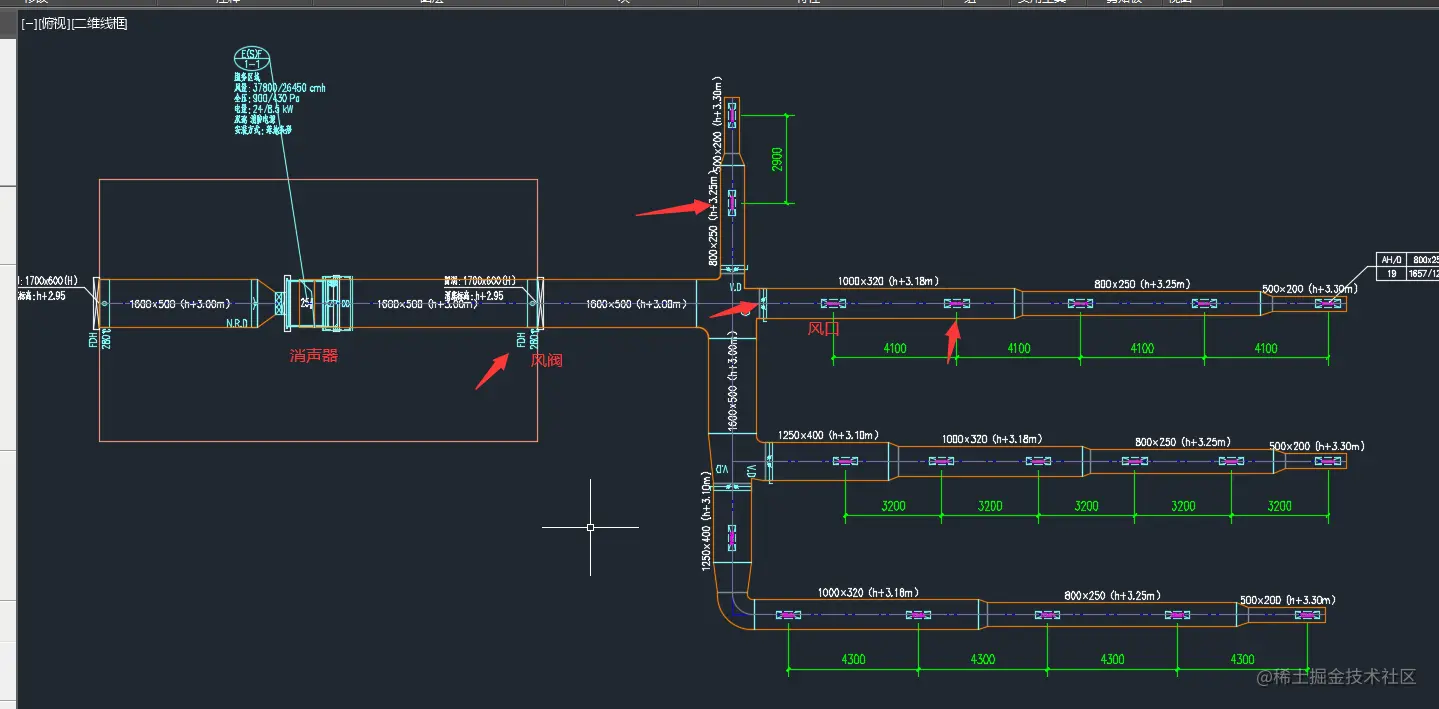

这是一个CAD设计图的一部分,这个图有点不清晰,我们找到其中一个代表图
先要用netload导入dll文件,然后输入THFPM即可调用生成风口和风阀程序

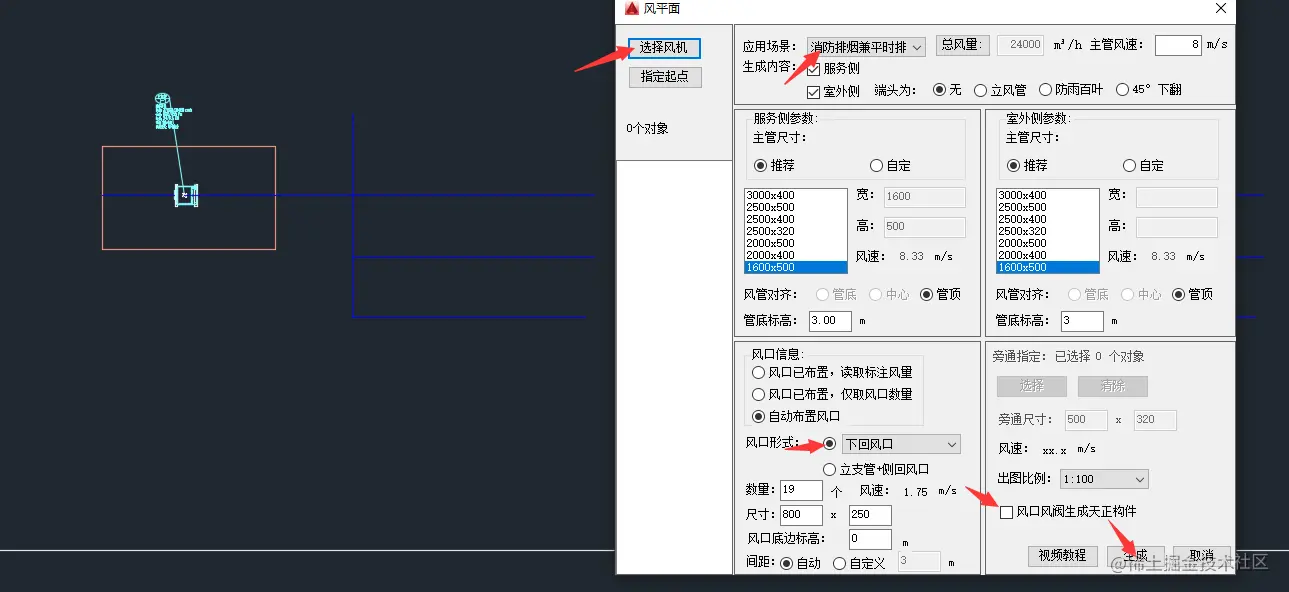

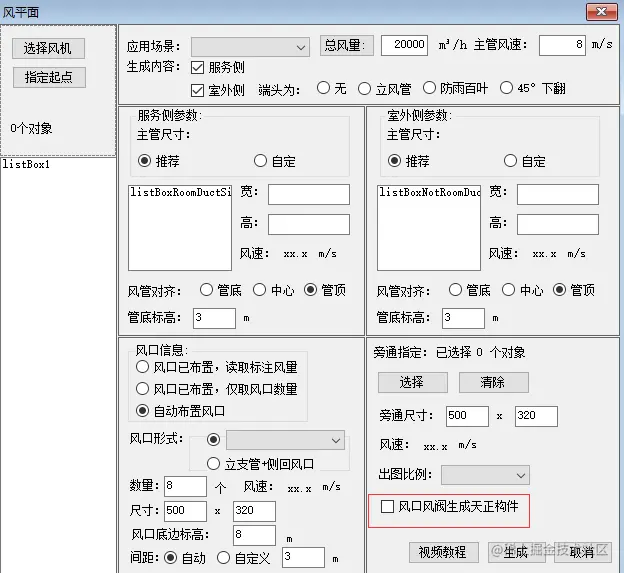

注意到右下角的是否生成天正构件的选框,这个选框原本是没有的,笔者后来在UI上面添加了,这里我们先不勾选进行操作
- 选中风机(风机具有不同的类型)不同的类型的生成逻辑还不一样
- 调整不同类型的风口
- 进行生成

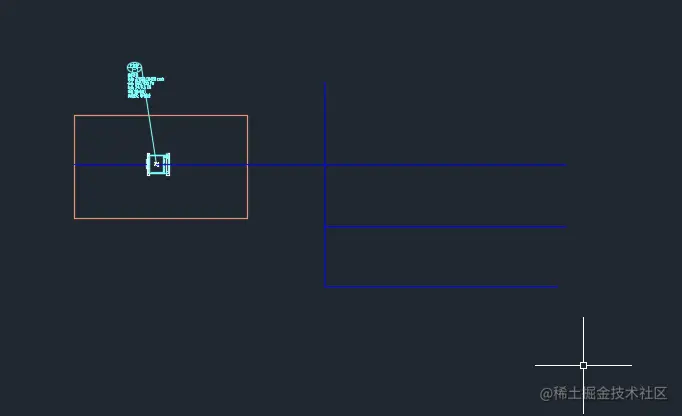

这些构件是平面图形,而且位置是不对的,应该生成在风管里面才对
这里生成的构件是CAD构件,只是一个平面图形,实际上在生产应用中,设计图要是立体的才行,而且要可以有其他属性,所以我们引入了天正构件

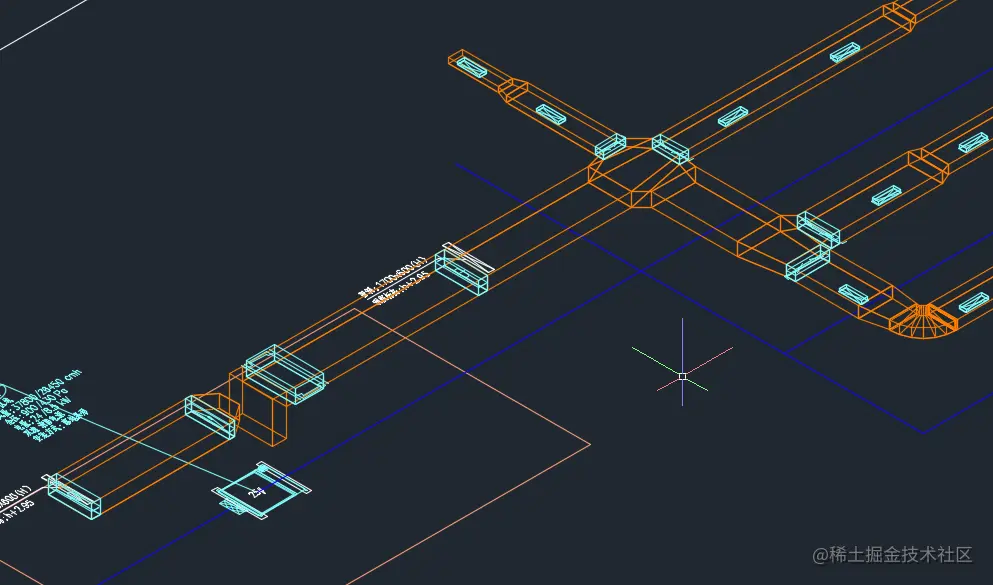

我们对于选框进行勾选,从而生成天正构件,下面是效果图
代码逻辑
UI界面的设计

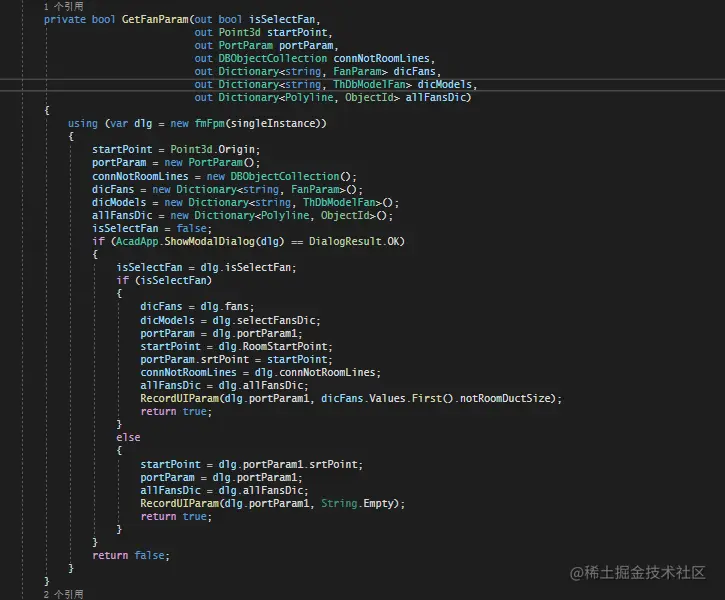

红色的选框是我添加的,使用了winform工具来生成UI,winform我用的并不熟悉,但是还是勉强可以做的.

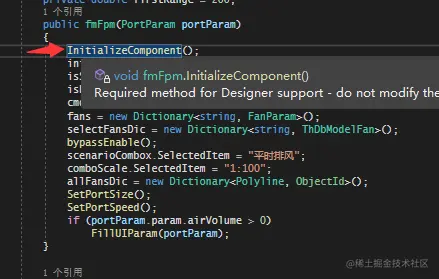

然后在winform的代码中添加checkbox

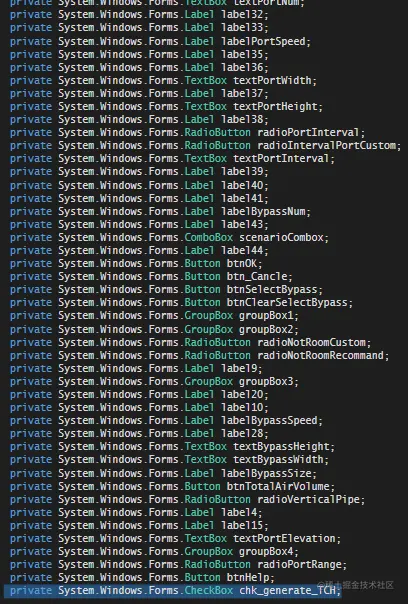

private System.Windows.Forms.CheckBox chk_generate_TCH;
这里有很多的UI的变量
这些变量都是要被初始化的
记录UI的值实际上用到了单例设计模式
public ThHvacFpmCmd()
{
ActionName = "风平面";
CommandName = "THFPM";
cmdService = new ThHvacCmdService();
if (singleInstance == null)
{
singleInstance = new PortParam();
singleInstance.param = new ThMEPHVACParam(); ;
}
}
插入天正构件的逻辑
插入天正构件的逻辑其实并不算太复杂,但是对于当时的我还是有一定挑战的,简单的来说就是要构造出一个天正构件的对象,这个对象有充足的数据,将这些数据插入到和天正建筑软件链接的数据库,就可以实现插入天正构件
插入天正风口 这段代码的的业务逻辑也不算简单,依据生成的风管,读取风管的数据,还要读取要生成的风口的数据,而且最困难的是对于不同情况,数据要做不同的处理,其中还包含了一些几何变换等等,
public void DrawVerticalPipePorts(EndlineSegInfo info,
ThMEPHVACParam portParam,
Vector3d orgDisVec,
double portWidth,
double portHeight,
double avgAirVolume,
out List<SegInfo> verticalPipes)
{
using (var db = Linq2Acad.AcadDatabase.Active())
{
var portRange = portParam.portRange;
var dirVec = ThMEPHVACService.GetEdgeDirection(info.seg.l);
double angle = ThMEPHVACService.GetPortRotateAngle(dirVec);
double angleSub = angle - Math.PI * 0.5;
double angleAdd = angle + Math.PI * 0.5;
verticalPipes = new List<SegInfo>();
// 立管长为风口长左右各加100
var size = GetVerticalPipeHeight(avgAirVolume, portWidth + 200);
var h = size.Item2;
var vec = Vector3d.ZAxis * ((portHeight + 100) * 0.5);
var portSelfEleVec = vec * 2;
var mmElevation = portParam.elevation * 1000;
var mainHeight = ThMEPHVACService.GetHeight(portParam.inDuctSize);
var selfEleOftVec = Vector3d.ZAxis * (portParam.portBottomEle * 1000);
foreach (var pos in info.portsInfo)
{
var ductHeight = ThMEPHVACService.GetHeight(pos.ductSize);
GetSidePortInsertPosTCH(dirVec, pos.position, h, out Point3d pL, out Point3d pR);
var pLR = pL + selfEleOftVec + orgDisVec;
pLR = new Point3d(pLR.X, pLR.Y, portParam.portBottomEle * 1000 + 0.5 * portHeight);
var pRR = pR + selfEleOftVec + orgDisVec;
pRR = new Point3d(pRR.X, pRR.Y, portParam.portBottomEle * 1000 + 0.5 * portHeight);
//ThTCHService.GenerateTCHEle(portRange, pos, ref _blkId, ref _equipName, ref _type, ref _number, ref _subSysTableName, ref _subSysTableID, ref _isSide, ref _thick, _scenario);
var paramR = ThTCHService.GeneratePortExample(IDNumber++, pRR, angleAdd - (Math.PI * 0.5), portHeight, portWidth, avgAirVolume * 0.5, portRange, portParam.scenario);
var paramL = ThTCHService.GeneratePortExample(IDNumber++, pLR, angleSub - (Math.PI * 0.5), portHeight, portWidth, avgAirVolume * 0.5, portRange, portParam.scenario);
//var paramR = ThTCHService.GenerateParamExample(IDNumber++, _blkId,pRR, angleAdd - (Math.PI * 0.5), _equipName, portHeight, portWidth, _thick, avgAirVolume/2, _type, _number, _subSysTableID, _isSide,portRange);
//var paramL = ThTCHService.GenerateParamExample(IDNumber++, _blkId, pLR, angleSub - (Math.PI * 0.5), _equipName, portHeight, portWidth, _thick, avgAirVolume/2, _type, _number, _subSysTableID, _isSide,portRange);
string curDbPath = Path.GetTempPath() + "TG20.db";
var sqliteHelper = new THMEPSQLiteServices(curDbPath);
if (portParam.isCheckedGenerateTCH == true)
{
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam> { paramR, paramL });
var t = Math.Max(portParam.portBottomEle * 1000 - mmElevation - mainHeight, 50);
var sp = pos.position + (mmElevation + mainHeight) * Vector3d.ZAxis;
var ep = sp + (portHeight + 50 + t) * Vector3d.ZAxis;
verticalPipes.Add(new SegInfo()
{
l = new Line(sp, ep),
horizontalVec = dirVec,
airVolume = avgAirVolume,
ductSize = (portWidth + 200).ToString() + "x" + h.ToString()
});
}
else
{
GetSidePortInsertPos(dirVec, pos.position, h, out Point3d pLNew, out Point3d pRNew);
InsertPort(pR + orgDisVec + selfEleOftVec, angle - Math.PI * 0.5, portWidth, portHeight, portRange, avgAirVolume * 0.5);
InsertPort(pL + orgDisVec + selfEleOftVec, angle + Math.PI * 0.5, portWidth, portHeight, portRange, avgAirVolume * 0.5);
var t = Math.Max(portParam.portBottomEle * 1000 - mmElevation - mainHeight, 50);
var sp = pos.position + (mmElevation + mainHeight) * Vector3d.ZAxis;
var ep = sp + (portHeight + 50 + t) * Vector3d.ZAxis;
verticalPipes.Add(new SegInfo()
{
l = new Line(sp, ep),
horizontalVec = dirVec,
airVolume = avgAirVolume,
ductSize = (portWidth + 200).ToString() + "x" + h.ToString()
});
}
}
}
}
public void DrawPorts(EndlineSegInfo info, ThMEPHVACParam portParam, Vector3d orgDisVec, double portWidth, double portHeight, double avgAirVolume)
{
using (var db = Linq2Acad.AcadDatabase.Active())
{
var portRange = portParam.portRange;
var dirVec = ThMEPHVACService.GetEdgeDirection(info.seg.l);
double angle = ThMEPHVACService.GetPortRotateAngle(dirVec);
double angleAdd = angle + (Math.PI * 0.5);
double angleSub = angle - (Math.PI * 0.5);//对于不同的风口还要有不同的旋转角度的计算
var mmElevation = portParam.elevation * 1000;
var mainHeight = ThMEPHVACService.GetHeight(portParam.inDuctSize);
foreach (var pos in info.portsInfo)
{
var ductHeight = ThMEPHVACService.GetHeight(pos.ductSize);
var selfEleOftVec = Vector3d.ZAxis * (mmElevation + mainHeight - ductHeight);//风口的高度也是一个麻烦的地方
var p = pos.position + orgDisVec;
string curDbPath = Path.GetTempPath() + "TG20.db";
var sqliteHelper = new THMEPSQLiteServices(curDbPath);
if (portParam.isCheckedGenerateTCH == true)
{
if (portRange.Contains("下") || portRange == "方形散流器" || portRange == "圆形风口")
{
var paramL = ThTCHService.GeneratePortExample(IDNumber++, p + selfEleOftVec, angleAdd, portWidth, portHeight, avgAirVolume, portRange, portParam.scenario);
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam>() { paramL });
}
else
{
var curDuctW = ThMEPHVACService.GetWidth(pos.ductSize);
GetSidePortInsertPosTCH(dirVec, pos.position, curDuctW, out Point3d pL, out Point3d pR);
pL += orgDisVec;
pR += orgDisVec;
var pLR = pL + selfEleOftVec;
pLR = new Point3d(pLR.X, pLR.Y, portParam.portBottomEle * 1000 + 0.5 * portHeight);
var pRR = pR + selfEleOftVec;
pRR = new Point3d(pRR.X, pRR.Y, portParam.portBottomEle * 1000 + 0.5 * portHeight);
if (pos.haveRight)
{
if (portRange == "侧送风口" || portRange == "侧回风口")
{
var paramL = ThTCHService.GeneratePortExample(IDNumber++, pLR, angleSub - (Math.PI * 0.5), portHeight, portWidth, avgAirVolume * 0.5, portRange, portParam.scenario);
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam>() { paramL });//这里便是插入风口的实现
}
else
{
var paramL = ThTCHService.GeneratePortExample(IDNumber++, pLR, angleSub - (Math.PI * 0.5), portWidth, portHeight, avgAirVolume * 0.5, portRange, portParam.scenario);
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam>() { paramL });
}
}
if (pos.haveLeft)
{
if (portRange == "侧送风口" || portRange == "侧回风口")
{
var paramR = ThTCHService.GeneratePortExample(IDNumber++, pRR, angleAdd - (Math.PI * 0.5), portHeight, portWidth, avgAirVolume * 0.5, portRange, portParam.scenario);
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam>() { paramR });
}
else
{
var paramR = ThTCHService.GeneratePortExample(IDNumber++, pRR, angleAdd - (Math.PI * 0.5), portWidth, portHeight, avgAirVolume * 0.5, portRange, portParam.scenario);
ThTCHService.RecordTCHPortInfo(sqliteHelper, new List<TCHPortParam>() { paramR });
}
}
}
}
else
{
if (portRange.Contains("下"))
{
InsertPort(p + selfEleOftVec, angle + (Math.PI * 0.5), portWidth, portHeight, portRange, avgAirVolume);
}
else
{
var curDuctW = ThMEPHVACService.GetWidth(pos.ductSize);
GetSidePortInsertPos(dirVec, pos.position, curDuctW, out Point3d pL, out Point3d pR);
pL += orgDisVec;
pR += orgDisVec;
if (pos.haveRight)
InsertPort(pR + selfEleOftVec, angle - Math.PI * 0.5, portWidth, portHeight, portRange, avgAirVolume * 0.5);
if (pos.haveLeft)
InsertPort(pL + selfEleOftVec, angle + Math.PI * 0.5, portWidth, portHeight, portRange, avgAirVolume * 0.5);
}
}
}
}
}
其中比较重要的两个函数
-
数据的填充
-
向数据库进行插入
public static TCHPortParam GeneratePortExample(ulong IDNumber, Point3d point, double angle, double portWidth, double portHeight, double avgAirVolume, string portRange, string _scenario) { var paramBlk = new TCHBlkParam() { BlkID = 0, type = "自定义设备",}; var paramMaterial = new TCHMaterialParam() { maID = 3, maTablesname = "", maTablesremark = "暖通风系统" }; var paramSubSysType = new TCHSubParam() { subID = 2, subTablesname="排风加排烟", subTablesremark="暖通风系统" }; var paramPorts = new TCHDuctPortParam() { ID = IDNumber, blkId = 0, subSystemTypeId = 2, materialId = 3, centerPoint = point, airWayVector = new Vector3d(0, 0, -1), mainVector = new Vector3d(Math.Cos(angle), Math.Sin(angle), 0), normalVector = new Vector3d(0, 0, -1), scaleVector = new Vector3d(0.0013, 0.004, 0.004), lablePoint = new Point3d(0, 0, 0), labelText = "", eqiupName = "", isSide = 0, sectType = 0, length = portWidth, width = portHeight, thick = 100, airLoad = avgAirVolume, areaRatio = 1, pScale = 100, }; switch (_scenario) { case "消防加压送风": paramPorts.subSystemTypeId = 1; paramSubSysType.subID = 1; paramSubSysType.subTablesname = "消防加压"; break; case "消防排烟": paramPorts.subSystemTypeId = 2; paramSubSysType.subID = 2; paramSubSysType.subTablesname = "消防排烟"; break; case "消防补风": paramPorts.subSystemTypeId = 3; paramSubSysType.subID = 3; paramSubSysType.subTablesname = "消防补风"; break; case "消防排烟兼平时排风": paramPorts.subSystemTypeId = 4; paramSubSysType.subID = 4; paramSubSysType.subTablesname = "排风兼排烟"; break; case "消防补风兼平时送风": paramPorts.subSystemTypeId = 5; paramSubSysType.subID = 5; paramSubSysType.subTablesname = "送风兼补风"; break; case "平时排风兼事故排风": paramPorts.subSystemTypeId = 6; paramSubSysType.subID = 6; paramSubSysType.subTablesname = "排风"; break; case "平时排风": paramPorts.subSystemTypeId = 6; paramSubSysType.subID = 6; paramSubSysType.subTablesname = "排风"; break; case "平时送风兼事故补风": paramPorts.subSystemTypeId = 7; paramSubSysType.subID = 7; paramSubSysType.subTablesname = "送风"; break; case "平时送风": paramPorts.subSystemTypeId = 7; paramSubSysType.subID = 7; paramSubSysType.subTablesname = "送风"; break; case "空调送风": paramPorts.subSystemTypeId = 8; paramSubSysType.subID = 8; paramSubSysType.subTablesname = "空调送风"; break; case "空调回风": paramPorts.subSystemTypeId = 9; paramSubSysType.subID=9; paramSubSysType.subTablesname = "空调回风"; break; case "空调新风": paramPorts.subSystemTypeId = 10; paramSubSysType.subID=10; paramSubSysType.subTablesname = "空调新风"; break; case "厨房排油烟": paramPorts.subSystemTypeId = 11; paramSubSysType.subID=11; paramSubSysType.subTablesname = "排油烟"; break; case "厨房排油烟补风": paramPorts.subSystemTypeId = 12; paramSubSysType.subID = 12; paramSubSysType.subTablesname = "排油烟"; break; case "事故排风": paramPorts.subSystemTypeId = 13; paramSubSysType.subID = 13; paramSubSysType.subTablesname = "事故排风"; break; case "事故补风": paramPorts.subSystemTypeId = 13; paramSubSysType.subID=13; paramSubSysType.subTablesname = "事故补风"; break; default: paramPorts.subSystemTypeId = 0; break; } switch (portRange) { case "下回风口": paramPorts.blkId = 1; paramPorts.eqiupName = "矩形风口"; paramPorts.airWayVector =new Vector3d(0, 0, 1); paramPorts.normalVector= new Vector3d(0, 0, 1); paramBlk.BlkID = 1; paramBlk.type = "自定义设备"; paramBlk.number = "13151244"; break; case "侧回风口": paramPorts.blkId = 2; paramPorts.eqiupName = "侧回风口1"; paramPorts.airWayVector = new Vector3d(-Math.Cos(angle), -Math.Sin(angle), 0); paramPorts.normalVector= new Vector3d(-Math.Cos(angle), -Math.Sin(angle), 0); paramPorts.mainVector = new Vector3d(0, 0, 1); paramPorts.scaleVector = new Vector3d(0.0025, 0.0025, 0.01); paramBlk.BlkID = 2; paramBlk.type = "风口"; paramBlk.number = "00000144"; paramPorts.isSide = 1; break; case "下送风口": paramPorts.blkId = 3; paramPorts.eqiupName = "矩形风口"; paramBlk.BlkID = 3; paramBlk.type = "自定义设备"; paramBlk.number = "13101702"; break; case "侧送风口": paramPorts.blkId = 4; paramPorts.eqiupName = "侧送风口1"; paramPorts.airWayVector = new Vector3d(Math.Cos(angle), Math.Sin(angle), 0); paramPorts.normalVector = new Vector3d(Math.Cos(angle), Math.Sin(angle), 0); paramPorts.mainVector = new Vector3d(0, 0, 1); paramPorts.scaleVector = new Vector3d(0.0025, 0.0025, 0.01); paramBlk.BlkID = 4; paramBlk.type = "风口"; paramBlk.number = "00000098"; paramPorts.isSide = 1; break; case "方形散流器": paramPorts.blkId = 5; paramPorts.airWayVector = new Vector3d(0, 0, 1); paramPorts.normalVector = new Vector3d(0, 0, 1); paramPorts.scaleVector = new Vector3d(0.0025, 0.0025, 0.01); paramPorts.eqiupName = "方形散流器"; paramBlk.BlkID = 5; paramBlk.type = "自定义设备"; paramBlk.number = "01162127"; break; case "圆形风口": paramPorts.blkId = 6; paramPorts.airWayVector = new Vector3d(0, 0, 1); paramPorts.normalVector = new Vector3d(0, 0, 1); paramPorts.scaleVector = new Vector3d(0.004, 0.004, 0.004); paramPorts.sectType = 1; paramPorts.eqiupName = "圆形风口"; paramBlk.BlkID = 6; paramBlk.type = "自定义设备"; paramBlk.number = "13145951"; break; case "外墙防雨百叶": paramPorts.blkId = 7; paramPorts.airWayVector=new Vector3d(0, -1, 0); paramPorts.normalVector=new Vector3d(0,-1, 0); paramPorts.scaleVector = new Vector3d(0.0025, 0.0017, 0.0050); paramPorts.isSide = 1; paramPorts.eqiupName = "单层防雨百叶"; paramBlk.BlkID = 7; paramBlk.type = "风口"; paramBlk.number = "00000150"; break; default: paramPorts.blkId = 0; paramBlk.type = "0"; paramBlk.number = "0"; paramPorts.eqiupName = "Unknown"; break; } var paramRes = new TCHPortParam() { tCHBlkParam = paramBlk, tCHMaterialParam = paramMaterial, tCHDuctPortParam = paramPorts, tCHSubSystemParam = paramSubSysType, }; return paramRes; }
public static void RecordTCHPortInfo(THMEPSQLiteServices sqliteHelper, List<TCHPortParam> interfaces)
{
foreach (var p in interfaces)
{
string recordTCHInfo = $"INSERT INTO " + ThTCHCommonTables.ductPortTableName +
" VALUES ('" + p.tCHDuctPortParam.ID.ToString() + "'," +
"'" + p.tCHDuctPortParam.blkId.ToString() + "'," +
"'" + p.tCHDuctPortParam.subSystemTypeId.ToString() + "'," +
"'" + p.tCHDuctPortParam.materialId.ToString() + "'," +
"'" + CovertPoint(p.tCHDuctPortParam.centerPoint) + "'," +
"'" + CovertVector(p.tCHDuctPortParam.airWayVector) + "'," +
"'" + CovertVector(p.tCHDuctPortParam.mainVector) + "'," +
"'" + CovertVector(p.tCHDuctPortParam.normalVector) + "'," +
"'" + CovertVector(p.tCHDuctPortParam.scaleVector) + "'," +
"'" + CovertPoint(p.tCHDuctPortParam.lablePoint) + "'," +
"'" + p.tCHDuctPortParam.labelText.ToString() + "'," +
"'" + p.tCHDuctPortParam.eqiupName.ToString() + "'," +
"'" + p.tCHDuctPortParam.isSide.ToString() + "'," +
"'" + p.tCHDuctPortParam.sectType.ToString() + "'," +
"'" + p.tCHDuctPortParam.length.ToString() + "'," +
"'" + p.tCHDuctPortParam.width.ToString() + "'," +
"'" + p.tCHDuctPortParam.thick.ToString() + "'," +
"'" + p.tCHDuctPortParam.airLoad.ToString() + "'," +
"'" + p.tCHDuctPortParam.areaRatio.ToString() + "'," +
"'" + p.tCHDuctPortParam.pScale.ToString() + "')";
string recordDWBBlocks = $"INSERT INTO " + ThTCHCommonTables.DWBBlocksTableName +
" VALUES ('" + p.tCHBlkParam.BlkID.ToString() + "'," +
"'" + p.tCHBlkParam.type.ToString() + "'," +
"'" + p.tCHBlkParam.number.ToString() + "')";
string recordMaterials = $"INSERT INTO " + ThTCHCommonTables.materialsTableName +
" VALUES ('" + p.tCHMaterialParam.maID.ToString() + "'," +
"'" + p.tCHMaterialParam.maTablesname.ToString() + "'," +
"'" + p.tCHMaterialParam.maTablesremark.ToString() + "')";
sqliteHelper.ExecuteNonQuery(recordTCHInfo);
sqliteHelper.ExecuteNonQuery(recordDWBBlocks);
sqliteHelper.ExecuteNonQuery(recordMaterials);
}
}
风口表的对应关系

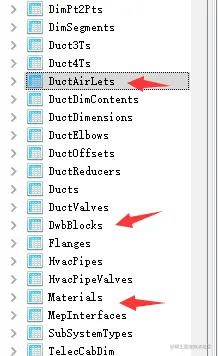

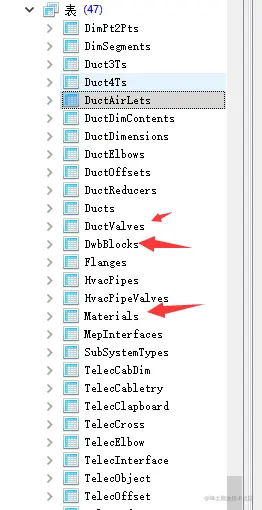

分别是三张表

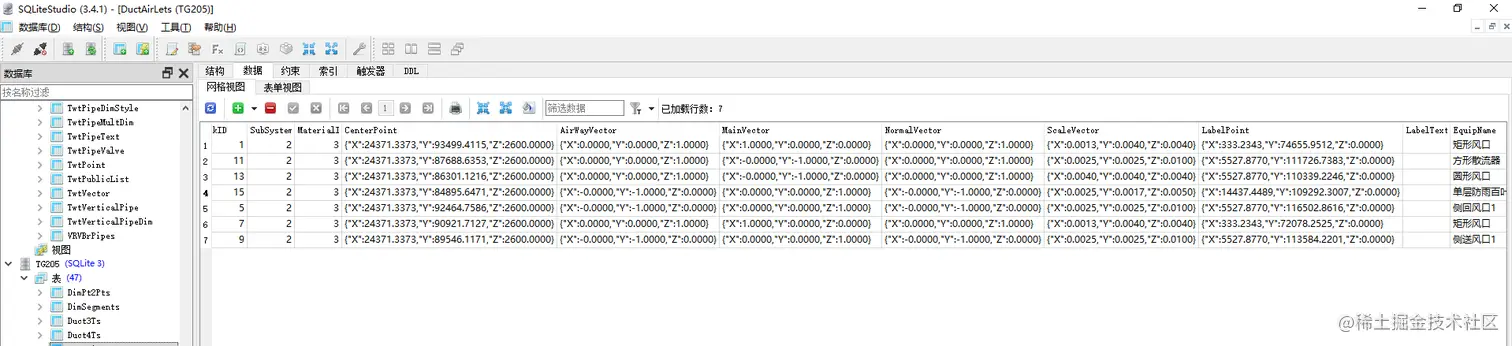

- DuctAirLets
- DwbBlocks
- Materials 这三张表的数据是相互关联的,因为产品经理也不知道,经过很多核对,终于发现要插入的是这三张表,当时给我带来了很大困扰

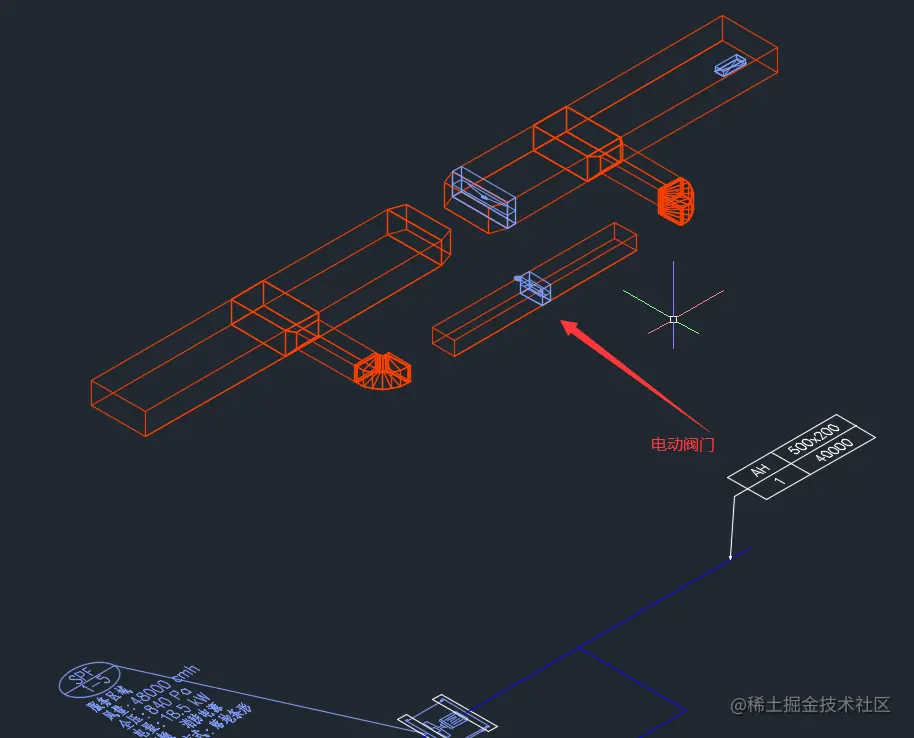

插入风阀
插入风阀总体来说和插入风口的逻辑相似,但是它的难点在于天正阀门和CAD阀门的定位点是不一样的,所以插入位置会有很大偏差,不仅如此,各个阀门的方向还不一样,这就给获取合适的定位点带来了挑战,这里我的解决方式是构造两个互相垂直的向量,在两个互相垂直的向量上移动相应的距离,从而获取正确的位置

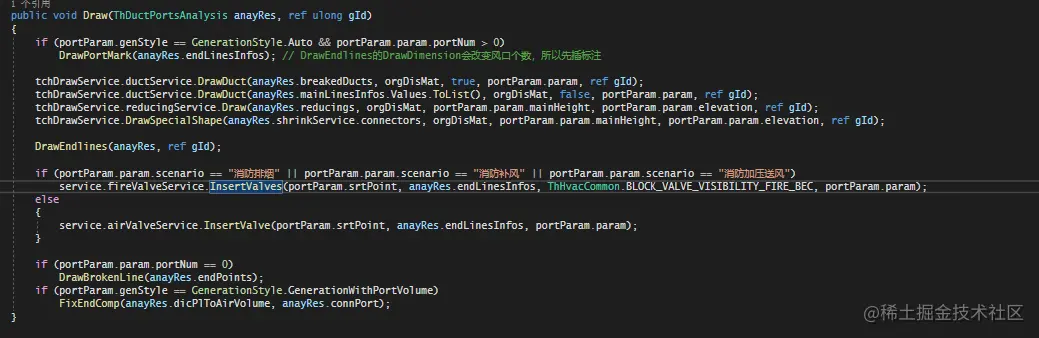

public void InsertValves(Point3d srtPoint, List<EndlineInfo> endlines, string visibility, ThMEPHVACParam portParam)
{
if (endlines.Count == 1)// 只有一条endline的情况不插阀
return;
var mmElevation = portParam.elevation * 1000;
var mainHeight = ThMEPHVACService.GetHeight(portParam.inDuctSize);
using (var db = Linq2Acad.AcadDatabase.Active())
{
foreach (var endline in endlines)
{
var rootSeg = endline.endlines.Values.LastOrDefault();
var width = ThMEPHVACService.GetWidth(rootSeg.seg.ductSize);
var dirVec = ThMEPHVACService.GetEdgeDirection(rootSeg.seg.l);
var verticalR = ThMEPHVACService.GetRightVerticalVec(dirVec);
var angle = dirVec.GetAngleTo(Vector3d.XAxis);
var thick = ThMEPHVACService.GetHeight(rootSeg.seg.ductSize);
var selfEleOftVec = Vector3d.ZAxis * (mmElevation + mainHeight-0.5*thick );
if (Vector3d.XAxis.CrossProduct(dirVec).Z < 0)
angle = 2 * Math.PI - angle;
angle += 0.5 * Math.PI;
var textAngle = (angle >= Math.PI * 0.5) ? Math.PI * 0.5 : 0;
var p = rootSeg.seg.l.StartPoint + (dirVec * rootSeg.seg.srcShrink);
var insertP = p + verticalR * width * 0.5 + srtPoint.GetAsVector();
var mainVector = new Vector3d(Math.Cos(angle + Math.PI / 2), Math.Sin(angle + Math.PI / 2), 0);
var Aimpoint = new Point3d(insertP.X - 0.5 * 300 * mainVector.X, insertP.Y - 0.5 * 300 * mainVector.Y, 0);
var newMainVector = ThTCHService.GenerateVerticalVector(mainVector, Math.PI / 2);//逆时针旋转90度的向量
Aimpoint = new Point3d(Aimpoint.X - 0.5 * width * newMainVector.X, Aimpoint.Y - 0.5 * width * newMainVector.Y, selfEleOftVec.Z);
var Aimpointp = new Point3d(Aimpoint.X - 300 * mainVector.X, Aimpoint.Y - 300 * mainVector.Y, selfEleOftVec.Z);
string curDbPath = Path.GetTempPath() + "TG20.db";
var sqliteHelper = new THMEPSQLiteServices(curDbPath);
if (portParam.isCheckedGenerateTCH == true)
{
int _blkId = 0;
Point3d _lablePoint = new Point3d(insertP.X, insertP.Y, 0);
Point3d _dimPoint = new Point3d(insertP.X, insertP.Y - 705, 0);
Point3d _lablePoint1 = new Point3d(Aimpoint.X, Aimpoint.Y - 600, 0);
Point3d _lablePoint2 = new Point3d(Aimpointp.X, Aimpointp.Y + 600, 0);
Point3d _codePoint = new Point3d(insertP.X + 200, insertP.Y + 625, 0);
double _length = 300;
double _width = width;
double _thick = thick;
var param = ThTCHService.GenerateValvesExample(valveVisibility, ID++, _blkId, Aimpoint, _lablePoint1, _dimPoint, _codePoint, _length, _width, _thick, angle, portParam.scenario);
var paramp = ThTCHService.GenerateValvesExample(visibility, ID++, _blkId, Aimpointp, _lablePoint2, _dimPoint, _codePoint, _length, _width, _thick, angle, portParam.scenario);
ThTCHService.RecordTCHValve(sqliteHelper, new List<TCHValvesParam> { param, paramp });
}
else
{
InsertValve(insertP, width, angle, textAngle);//150
insertP += (dirVec * 320);// 320是默认阀宽
InsertValve(insertP, width, angle, textAngle, visibility);//BEC
}
}
}
}
public void InsertValve(Point3d srtPoint, List<EndlineInfo> endlines, ThMEPHVACParam portParam)
{
Point3d pos = endlines.First().endlines.First().Value.portsInfo.First().position;
var ductHeight = ThMEPHVACService.GetHeight(endlines.First().endlines.First().Value.portsInfo.First().ductSize);
var Z = pos.Z;
if (endlines.Count == 1)// 只有一条endline的情况不插阀
return;
using (var db = Linq2Acad.AcadDatabase.Active())
{
var mmElevation = portParam.elevation * 1000;
var mainHeight = ThMEPHVACService.GetHeight(portParam.inDuctSize);
foreach (var endline in endlines)
{
var rootSeg = endline.endlines.Values.LastOrDefault();
var width = ThMEPHVACService.GetWidth(rootSeg.seg.ductSize);
var thick = ThMEPHVACService.GetHeight(rootSeg.seg.ductSize);
var dirVec = ThMEPHVACService.GetEdgeDirection(rootSeg.seg.l);
var verticalR = ThMEPHVACService.GetRightVerticalVec(dirVec);
var angle = dirVec.GetAngleTo(Vector3d.XAxis);
var selfEleOftVec = Vector3d.ZAxis * (mmElevation + mainHeight-0.5*thick );
if (Vector3d.XAxis.CrossProduct(dirVec).Z < 0)
angle = 2 * Math.PI - angle;
angle += 0.5 * Math.PI;
var textAngle = (angle >= Math.PI * 0.5) ? Math.PI * 0.5 : 0;
var p = rootSeg.seg.l.StartPoint + (dirVec * rootSeg.seg.srcShrink);
var insertP = p + verticalR * width * 0.5 + srtPoint.GetAsVector();
var mainVector = new Vector3d(Math.Cos(angle + Math.PI / 2), Math.Sin(angle + Math.PI / 2), 0);
var Aimpoint = new Point3d(insertP.X - 0.5 * 300 * mainVector.X, insertP.Y - 0.5 * 300 * mainVector.Y, 0);
var newMainVector = ThTCHService.GenerateVerticalVector(mainVector, Math.PI / 2);
Aimpoint = new Point3d(Aimpoint.X - 0.5 * width * newMainVector.X, Aimpoint.Y - 0.5 * width * newMainVector.Y , selfEleOftVec.Z);
if (portParam.isCheckedGenerateTCH == true)
{
int _blkId = 0;
Point3d _lablePoint = new Point3d(insertP.X, insertP.Y, 0);
Point3d _dimPoint = new Point3d(insertP.X, insertP.Y - 705, 0);//???
Point3d _codePoint = new Point3d(insertP.X + 200, insertP.Y + 625, 0);//???
double _length = 300;
double _width = width;
double _thick = thick;
var param = ThTCHService.GenerateValvesExample(valveVisibility, ID++, _blkId, Aimpoint, _lablePoint, _dimPoint, _codePoint, _length, _width, _thick, angle, portParam.scenario);
string curDbPath = Path.GetTempPath() + "TG20.db";
var sqliteHelper = new THMEPSQLiteServices(curDbPath);
ThTCHService.RecordTCHValve(sqliteHelper, new List<TCHValvesParam> { param });
}
else
InsertValve(insertP, width, angle, textAngle);
}
}
}
这里在生成阀门的时候要分成两种情况
生成阀门需要的数据库表
是否消防加压送风也要分成两种情况
public override void SubExecute()
{
string curDbPath = Path.GetTempPath() + "TG20.db";
string templateDbPath = ThCADCommon.TCHHVACDBPath();
ulong gId = 0;
ThHvacCmdService.InitTables(curDbPath, templateDbPath, ref gId);
var status = GetFanParam(out bool isSelectFan,
out Point3d startPoint,
out PortParam portParam,
out DBObjectCollection connNotRoomLines,
out Dictionary<string, FanParam> dicFans,
out Dictionary<string, ThDbModelFan> dicModels,
out Dictionary<Polyline, ObjectId> allFansDic);
if (portParam.param == null)
return;
DrawBrokenLines(portParam, out ObjectIdList brokenLineIds);
if (!status)
return;
if (isSelectFan)
{
var knife = new ThSepereateFansDuct(startPoint, connNotRoomLines, dicFans);
var anay = new ThFansMainDuctAnalysis(knife.mainDucts, knife.dicLineParam);
var fanParam = GetInfo(dicFans);
var flag = dicFans.Count > 1;
if (flag)
{
ThNotRoomStartComp.DrawEndLineEndComp(ref anay.fanDucts, startPoint, portParam);// 先插入comp
DrawMultiFanMainDuct(ref gId, anay, startPoint, fanParam, curDbPath, portParam);// 会改变线信息
}
var mat = Matrix3d.Displacement(-portParam.srtPoint.GetAsVector());
var wallIndex = ThMEPHVACService.CreateRoomOutlineIndex(portParam.srtPoint);
foreach (var key in dicFans.Keys)
{
var fan = dicFans[key];
var model = dicModels[key];
var p = model.FanInletBasePoint.TransformBy(mat);
var wallLines = GetWalls(p, wallIndex);
portParam.param.inDuctSize = fan.roomDuctSize;
if (model.scenario == "消防加压送风")//??
cmdService.PressurizedAirSupply(ref gId, curDbPath, fan, model, wallLines, portParam, flag, allFansDic, brokenLineIds);
else
cmdService.NotPressurizedAirSupply(ref gId, curDbPath, fan, model, wallLines, portParam, flag, allFansDic, brokenLineIds);
}
}
else
{
var ductPort = new ThHvacDuctPortsCmd(curDbPath, portParam, allFansDic); //所有操作的service都是在这里先初始化
ductPort.Execute(ref gId, brokenLineIds);
}
ThDuctPortsDrawService.ClearGraphs(brokenLineIds);
#if ACAD_ABOVE_2014
Active.Editor.Command("TIMPORTTG20HVAC", curDbPath, " ");
#else
ResultBuffer args = new ResultBuffer(
new TypedValue((int)LispDataType.Text, "_.TIMPORTTG20HVAC"),
new TypedValue((int)LispDataType.Text, curDbPath),
new TypedValue((int)LispDataType.Text, " "));
Active.Editor.AcedCmd(args);
#endif
}

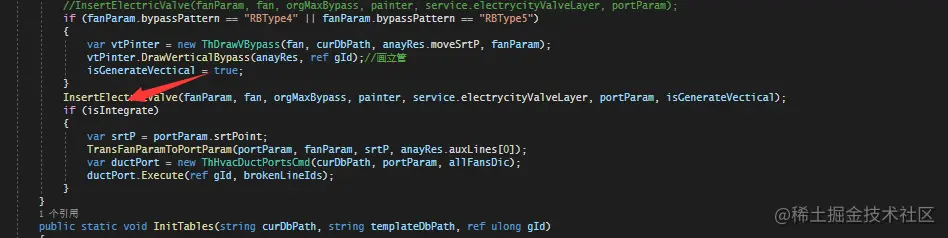

这里面最令人头痛的莫过于要额外插入电动阀门,这个插入电动阀门的的位置是很难获取的,因为它和上面获取位置的逻辑又不太一样,而且电动阀门的长宽也要重新寻找
插入两种电动阀门的寻找位置的逻辑完全不同,产品经理也没给我具体的方法,只能硬着头皮去前任程序员写的代码一点点去找线索.
改BUG
前任程序员在生成CAD构件的时候出现了一个bug,就是生成构件的标高居然是负的,而且负的没有规律,然后我也按照他的逻辑去生成构件,结果产品经理告诉我是错的,那没办法,只能我一个实习生去给他擦屁股了. 费了我一个下午的时间,终于把问题找到了,原来是前任程序员在进行位置变换的时候出现了一个低级的错误,我在他的基础上把错误进行修正,但是要修改的地方实在是很多,费了我很多精力,终于算是解决了.
public void DrawVTDuct(List<SegInfo> segInfos, Matrix3d mat, bool isTextSide, ThMEPHVACParam param, ref ulong gId)
{
var gap = ThTCHCommonTables.flgThickness * 0.5;
foreach (var seg in segInfos)
{
var l = seg.GetShrinkedLine();
l.StartPoint = new Point3d(l.StartPoint.X, l.StartPoint.Y, l.StartPoint.Z - mat.CoordinateSystem3d.Origin.Z);
l.EndPoint = new Point3d(l.EndPoint.X, l.EndPoint.Y, l.EndPoint.Z - mat.CoordinateSystem3d.Origin.Z);
//改bug的地方
if (l.Length < lineLimition)
continue;
RecordDuctInfo(seg.airVolume, ref gId);
RecordDuctDimContents(ref gId);
RecordDuctDimensions(mat, seg, param, isTextSide, ref gId);
GetWidthAndHeight(seg.ductSize, out double width, out double height);
var dirVec = (l.EndPoint - l.StartPoint).GetNormal();
var sEndParam = new TCHInterfaceParam()
{
ID = ductParam.startFaceID,
sectionType = ductParam.sectionType,
height = height,
width = width,
normalVector = dirVec,
heighVector = new Vector3d(0, 0, 1),
centerPoint = (l.StartPoint.TransformBy(mat) + (gap * dirVec)),
};
var eEndParam = new TCHInterfaceParam()
{
ID = ductParam.endFaceID,
sectionType = ductParam.sectionType,
height = height,
width = width,
normalVector = -dirVec,
heighVector = new Vector3d(0, 0, 1),
centerPoint = (l.EndPoint.TransformBy(mat) - (gap * dirVec))
};
ThTCHService.RecordPortInfo(sqliteHelper, new List<TCHInterfaceParam>() { sEndParam, eEndParam });
}
sqliteHelper.CloseConnect();
}
整个项目做完还是很有收获的,掌握了很多调试技巧,提升了很多分析代码和写代码的能力,转码路漫漫,感觉做什么都不容易,继续加油吧.
