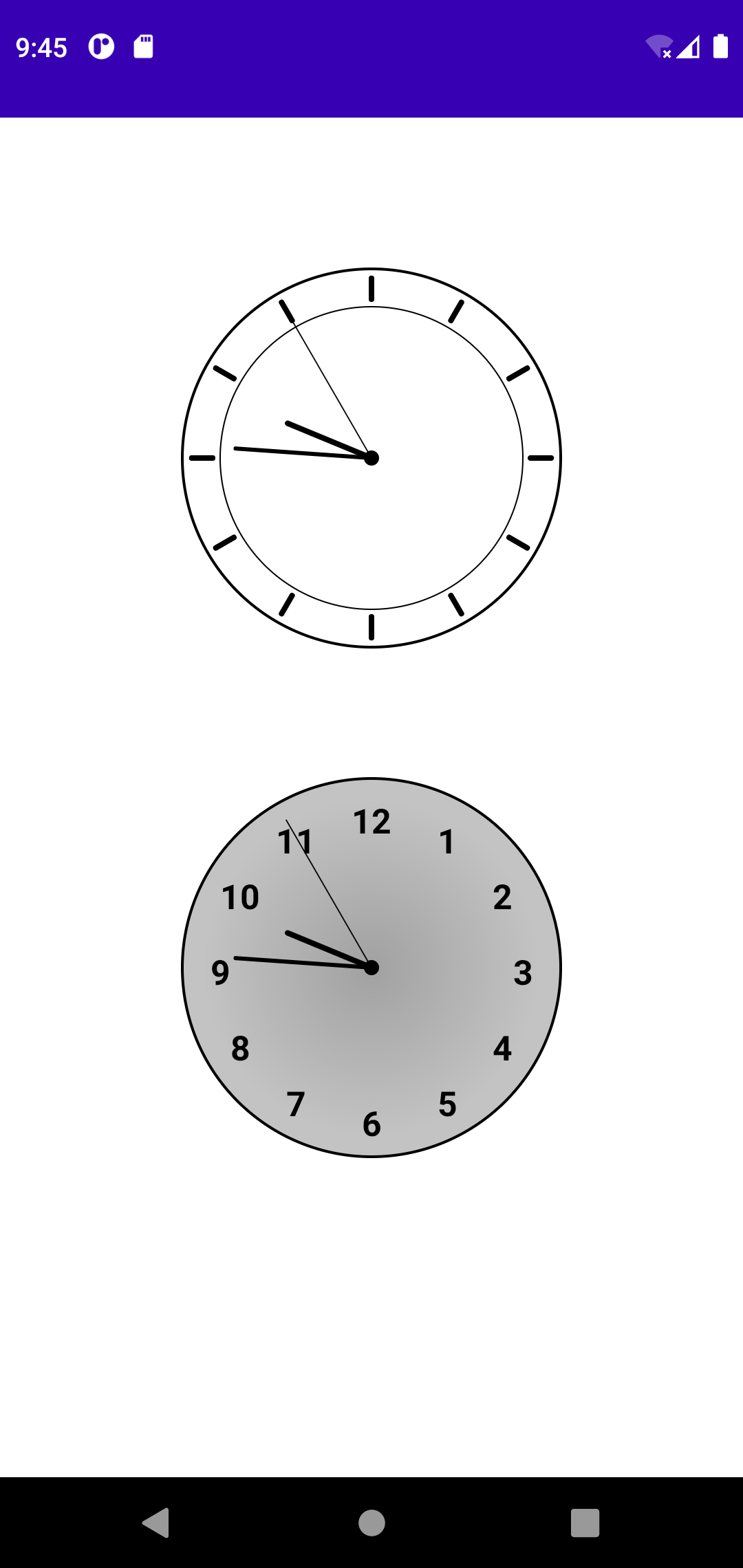

17. Compose 时钟Clock的绘制

class ClockActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            Column(modifier = Modifier.fillMaxSize()) {
                Box(
                    contentAlignment = Alignment.Center,
                    modifier = Modifier
                        .fillMaxWidth()
                        .fillMaxHeight(0.5f)
                ) {
                    Clock()
                }

                Box(
                    contentAlignment = Alignment.Center,
                    modifier = Modifier
                        .fillMaxWidth()
                        .fillMaxHeight(0.5f)
                ) {
                    Clock1()
                }

            }
        }
    }


    @Composable
    fun Clock1() {
        val hour = remember {
            mutableStateOf(0f)
        }
        val minute = remember {
            mutableStateOf(0f)
        }
        val second = remember {
            mutableStateOf(0f)
        }

        LaunchedEffect(key1 = "") {
            while (true) {
                val cal = Calendar.getInstance()
                hour.value = cal.get(Calendar.HOUR).toFloat()
                minute.value = cal.get(Calendar.MINUTE).toFloat()
                second.value = cal.get(Calendar.SECOND).toFloat()
                delay(1000)
            }
        }
        val diameter = 200.dp
        val color1 = Color.Black
        Canvas(
            modifier = Modifier.size(diameter, diameter)
        ) {

            val outCircleR = size.width / 2
            val innerCircleR = (size.width / 2 * 0.8).toFloat()
            drawCircle(
                brush = Brush.radialGradient(
                    colors = listOf(Color.DarkGray, Color.Gray)
                )
            ,
                radius = outCircleR,
               alpha = 0.5f
            )
            //最里面的圆心
            drawCircle(color = color1, radius = size.width * 0.02f)
            //外部大圆
            drawCircle(color = color1, radius = outCircleR, style = Stroke(4f))

            translate(size.width / 2, size.height / 2) {
                //画刻度
                drawIntoCanvas { canvas ->
                    //将 Jetpack Compose 环境的 Paint 对象转换为原生的 Paint 对象
                    val textPaint = Paint().asFrameworkPaint().apply {
                        isAntiAlias = true
//                            isDither = true
                        typeface = Typeface.create(Typeface.SANS_SERIF, Typeface.BOLD)
                        textAlign = android.graphics.Paint.Align.CENTER
                    }
                    textPaint.color = android.graphics.Color.BLACK
                    textPaint.textSize = 50f
                    //拿到原生的 Canvas 对象
                    val nativeCanvas = canvas.nativeCanvas
                    var text = 3
                    for (index in 0..330 step 30) {

                        val centerX = (innerCircleR * cos(index * Math.PI / 180)).toFloat()
                        val centerY = (innerCircleR * sin(index * Math.PI / 180)).toFloat()
                        nativeCanvas.drawText(
                            text.toString(),
                            centerX, centerY + 25f, textPaint
                        )

                        text++
                        if (text > 12) {
                            text = 1
                        }
                    }
                }
                //画时针
                //hour的角度 -3 + 分钟  / 12   * 360
                val hourLength = innerCircleR * 0.6f
                val hourAngle = (hour.value.plus(minute.value.div(60)).minus(3)).div(12) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (hourLength * cos(hourAngle * Math.PI / 180)).toFloat(),
                        (hourLength * sin(hourAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 8f,
                    cap = StrokeCap.Round
                )
                //画分针
                val minuteLength = innerCircleR * 0.9f
                val minuteAngle =
                    (minute.value.plus(second.value.div(60)).minus(15)).div(60) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (minuteLength * cos(minuteAngle * Math.PI / 180)).toFloat(),
                        (minuteLength * sin(minuteAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 6f,
                    cap = StrokeCap.Round
                )
                //画秒针
                val secondLength = outCircleR * 0.9f
                val secondAngle = second.value.div(60) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (secondLength * cos(secondAngle * Math.PI / 180)).toFloat(),
                        (secondLength * sin(secondAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 2f,
                    cap = StrokeCap.Round
                )
            }
        }
    }

    @Composable
    fun Clock() {
        val hour = remember {
            mutableStateOf(0f)
        }
        val minute = remember {
            mutableStateOf(0f)
        }
        val second = remember {
            mutableStateOf(0f)
        }

        LaunchedEffect(key1 = "") {
            while (true) {
                val cal = Calendar.getInstance()
                hour.value = cal.get(Calendar.HOUR).toFloat()
                minute.value = cal.get(Calendar.MINUTE).toFloat()
                second.value = cal.get(Calendar.SECOND).toFloat()
                delay(1000)
            }
        }

        val diameter = 200.dp
        val color1 = Color.Black

        Canvas(
            modifier = Modifier
                .size(diameter, diameter)
        ) {

            val outCircleR = size.width / 2
            val innerCircleR = (size.width / 2 * 0.8).toFloat()
            //最里面的圆心
            drawCircle(color = color1, radius = size.width * 0.02f)
            //外部大圆
            drawCircle(color = color1, radius = outCircleR, style = Stroke(4f))
            //里面小圆
            drawCircle(
                color = color1,
                radius = innerCircleR,
                style = Stroke(2f)
            )
            translate(size.width / 2, size.height / 2) {
                //画刻度
                for (index in 0..330 step 30) {
                    drawLine(
                        color = color1,
                        start = Offset(
                            (innerCircleR * 1.05f * cos(index * Math.PI / 180)).toFloat(),
                            (innerCircleR * 1.05f * sin(index * Math.PI / 180)).toFloat()
                        ),
                        end = Offset(
                            (outCircleR * 0.95f * cos(index * Math.PI / 180)).toFloat(),
                            (outCircleR * 0.95f * sin(index * Math.PI / 180)).toFloat()
                        ),
                        strokeWidth = 8f,
                        cap = StrokeCap.Round
                    )
                }

                //画时针
                //hour的角度 -3 + 分钟  / 12   * 360
                val hourLength = innerCircleR * 0.6f
                val hourAngle = (hour.value.plus(minute.value.div(60)).minus(3)).div(12) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (hourLength * cos(hourAngle * Math.PI / 180)).toFloat(),
                        (hourLength * sin(hourAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 8f,
                    cap = StrokeCap.Round
                )
                //画分针
                val minuteLength = innerCircleR * 0.9f
                val minuteAngle =
                    (minute.value.plus(second.value.div(60)).minus(15)).div(60) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (minuteLength * cos(minuteAngle * Math.PI / 180)).toFloat(),
                        (minuteLength * sin(minuteAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 6f,
                    cap = StrokeCap.Round
                )
                //画秒针
                val secondLength = outCircleR * 0.9f
                val secondAngle = second.value.div(60) * 360
                drawLine(
                    color = color1,
                    start = Offset.Zero,
                    end = Offset(
                        (secondLength * cos(secondAngle * Math.PI / 180)).toFloat(),
                        (secondLength * sin(secondAngle * Math.PI / 180)).toFloat()
                    ),
                    strokeWidth = 2f,
                    cap = StrokeCap.Round
                )
            }
        }
    }
}
