跳表的定义

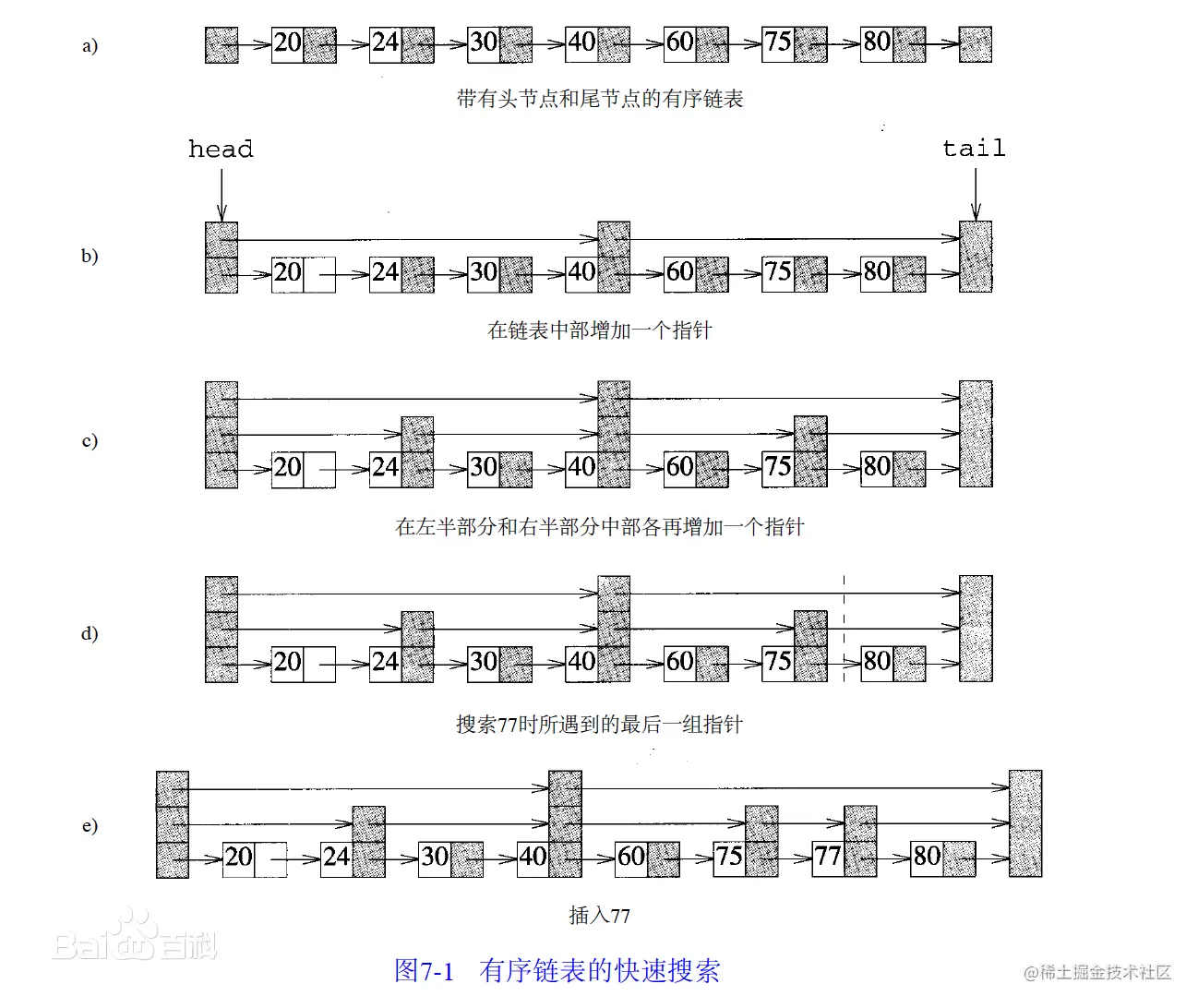

增加了向前指针的链表叫作跳表。跳表全称叫做跳跃表，简称跳表。 跳表是一个随机化的数据结构，实质就是一种可以进行二分查找的有序链表。 跳表在原有的有序链表上面增加了多级索引，通过索引来实现快速查找。 跳表不仅能提高搜索性能，同时也可以提高插入和删除操作的性能。
coding
import (
"math/bits"
"math/rand"
)
const (
maxLevel = 16
)
// Element is a key-score pair
type Element struct {
Member string
Score float64
}
// Level aspect of a node
type Level struct {
forward *node // forward node has greater score
span int64
}
type node struct {
Element
backward *node
level []*Level // level[0] is base level
}
type skiplist struct {
header *node
tail *node
length int64
level int16
}
func makeNode(level int16, score float64, member string) *node {
n := &node{
Element: Element{
Score: score,
Member: member,
},
level: make([]*Level, level),
}
for i := range n.level {
n.level[i] = new(Level)
}
return n
}
func makeSkiplist() *skiplist {
return &skiplist{
level: 1,
header: makeNode(maxLevel, 0, ""),
}
}
func randomLevel() int16 {
total := uint64(1)<<uint64(maxLevel) - 1
k := rand.Uint64() % total
return maxLevel - int16(bits.Len64(k+1)) + 1
}
func (skiplist *skiplist) insert(member string, score float64) *node {
update := make([]*node, maxLevel) // link new node with node in `update`
rank := make([]int64, maxLevel)
// find position to insert
node := skiplist.header
for i := skiplist.level - 1; i >= 0; i-- {
if i == skiplist.level-1 {
rank[i] = 0
} else {
rank[i] = rank[i+1] // store rank that is crossed to reach the insert position
}
if node.level[i] != nil {
// traverse the skip list
for node.level[i].forward != nil &&
(node.level[i].forward.Score < score ||
(node.level[i].forward.Score == score && node.level[i].forward.Member < member)) { // same score, different key
rank[i] += node.level[i].span
node = node.level[i].forward
}
}
update[i] = node
}
level := randomLevel()
// extend skiplist level
if level > skiplist.level {
for i := skiplist.level; i < level; i++ {
rank[i] = 0
update[i] = skiplist.header
update[i].level[i].span = skiplist.length
}
skiplist.level = level
}
// make node and link into skiplist
node = makeNode(level, score, member)
for i := int16(0); i < level; i++ {
node.level[i].forward = update[i].level[i].forward
update[i].level[i].forward = node
// update span covered by update[i] as node is inserted here
node.level[i].span = update[i].level[i].span - (rank[0] - rank[i])
update[i].level[i].span = (rank[0] - rank[i]) + 1
}
// increment span for untouched levels
for i := level; i < skiplist.level; i++ {
update[i].level[i].span++
}
// set backward node
if update[0] == skiplist.header {
node.backward = nil
} else {
node.backward = update[0]
}
if node.level[0].forward != nil {
node.level[0].forward.backward = node
} else {
skiplist.tail = node
}
skiplist.length++
return node
}
/*
* param node: node to delete
* param update: backward node (of target)
*/
func (skiplist *skiplist) removeNode(node *node, update []*node) {
for i := int16(0); i < skiplist.level; i++ {
if update[i].level[i].forward == node {
update[i].level[i].span += node.level[i].span - 1
update[i].level[i].forward = node.level[i].forward
} else {
update[i].level[i].span--
}
}
if node.level[0].forward != nil {
node.level[0].forward.backward = node.backward
} else {
skiplist.tail = node.backward
}
for skiplist.level > 1 && skiplist.header.level[skiplist.level-1].forward == nil {
skiplist.level--
}
skiplist.length--
}
/*
* return: has found and removed node
*/
func (skiplist *skiplist) remove(member string, score float64) bool {
/*
* find backward node (of target) or last node of each level
* their forward need to be updated
*/
update := make([]*node, maxLevel)
node := skiplist.header
for i := skiplist.level - 1; i >= 0; i-- {
for node.level[i].forward != nil &&
(node.level[i].forward.Score < score ||
(node.level[i].forward.Score == score &&
node.level[i].forward.Member < member)) {
node = node.level[i].forward
}
update[i] = node
}
node = node.level[0].forward
if node != nil && score == node.Score && node.Member == member {
skiplist.removeNode(node, update)
// free x
return true
}
return false
}
/*
* return: 1 based rank, 0 means member not found
*/
func (skiplist *skiplist) getRank(member string, score float64) int64 {
var rank int64 = 0
x := skiplist.header
for i := skiplist.level - 1; i >= 0; i-- {
for x.level[i].forward != nil &&
(x.level[i].forward.Score < score ||
(x.level[i].forward.Score == score &&
x.level[i].forward.Member <= member)) {
rank += x.level[i].span
x = x.level[i].forward
}
/* x might be equal to zsl->header, so test if obj is non-NULL */
if x.Member == member {
return rank
}
}
return 0
}
/*
* 1-based rank
*/
func (skiplist *skiplist) getByRank(rank int64) *node {
var i int64 = 0
n := skiplist.header
// scan from top level
for level := skiplist.level - 1; level >= 0; level-- {
for n.level[level].forward != nil && (i+n.level[level].span) <= rank {
i += n.level[level].span
n = n.level[level].forward
}
if i == rank {
return n
}
}
return nil
}
func (skiplist *skiplist) hasInRange(min *ScoreBorder, max *ScoreBorder) bool {
// min & max = empty
if min.Value > max.Value || (min.Value == max.Value && (min.Exclude || max.Exclude)) {
return false
}
// min > tail
n := skiplist.tail
if n == nil || !min.less(n.Score) {
return false
}
// max < head
n = skiplist.header.level[0].forward
if n == nil || !max.greater(n.Score) {
return false
}
return true
}
func (skiplist *skiplist) getFirstInScoreRange(min *ScoreBorder, max *ScoreBorder) *node {
if !skiplist.hasInRange(min, max) {
return nil
}
n := skiplist.header
// scan from top level
for level := skiplist.level - 1; level >= 0; level-- {
// if forward is not in range than move forward
for n.level[level].forward != nil && !min.less(n.level[level].forward.Score) {
n = n.level[level].forward
}
}
/* This is an inner range, so the next node cannot be NULL. */
n = n.level[0].forward
if !max.greater(n.Score) {
return nil
}
return n
}
func (skiplist *skiplist) getLastInScoreRange(min *ScoreBorder, max *ScoreBorder) *node {
if !skiplist.hasInRange(min, max) {
return nil
}
n := skiplist.header
// scan from top level
for level := skiplist.level - 1; level >= 0; level-- {
for n.level[level].forward != nil && max.greater(n.level[level].forward.Score) {
n = n.level[level].forward
}
}
if !min.less(n.Score) {
return nil
}
return n
}
/*
* return removed elements
*/
func (skiplist *skiplist) RemoveRangeByScore(min *ScoreBorder, max *ScoreBorder, limit int) (removed []*Element) {
update := make([]*node, maxLevel)
removed = make([]*Element, 0)
// find backward nodes (of target range) or last node of each level
node := skiplist.header
for i := skiplist.level - 1; i >= 0; i-- {
for node.level[i].forward != nil {
if min.less(node.level[i].forward.Score) { // already in range
break
}
node = node.level[i].forward
}
update[i] = node
}
// node is the first one within range
node = node.level[0].forward
// remove nodes in range
for node != nil {
if !max.greater(node.Score) { // already out of range
break
}
next := node.level[0].forward
removedElement := node.Element
removed = append(removed, &removedElement)
skiplist.removeNode(node, update)
if limit > 0 && len(removed) == limit {
break
}
node = next
}
return removed
}
// 1-based rank, including start, exclude stop
func (skiplist *skiplist) RemoveRangeByRank(start int64, stop int64) (removed []*Element) {
var i int64 = 0 // rank of iterator
update := make([]*node, maxLevel)
removed = make([]*Element, 0)
// scan from top level
node := skiplist.header
for level := skiplist.level - 1; level >= 0; level-- {
for node.level[level].forward != nil && (i+node.level[level].span) < start {
i += node.level[level].span
node = node.level[level].forward
}
update[level] = node
}
i++
node = node.level[0].forward // first node in range
// remove nodes in range
for node != nil && i < stop {
next := node.level[0].forward
removedElement := node.Element
removed = append(removed, &removedElement)
skiplist.removeNode(node, update)
node = next
i++
}
return removed
}
一些亮点
在randomLevel这个函数中total的值是16位1，对total取余后的取值是0到11111_11111_111110。对这个数值域加一后，在这个数值域中第一位1出现在最高位的概率是1/2，出现在第二位的概率是1/4。所以用第一位1出现的位置来决定层数即可保证不相等概率的选取层数
