基于SSM实现前后端分离在线考试管理系统

编程指南针
178 阅读6分钟

文末获取源码

项目编号：BS-XX-105

前言：

互联网的普及给人们带来的便利不需多说。因此如果把题库及试卷管理系统与互联网结合起来，利用My Eclipse编程软件建设题库及试卷管理系统，实现题库及试卷管理系统的网络化。则对于进一步提高教学发展定能起到不少的促进作用。

题库及试卷管理系统能够通过互联网得到广泛的、全面的宣传，让尽可能多的学校了解和熟知学校的题库及试卷管理系统服务等，不仅为学校提供了服务，而且也推广了自己，让更多的学生了解自己。对于学校而言，若拥有自己的题库及试卷管理系统，通过题库及试卷管理系统让学校的宣传、营销提上一个新台阶，同时提升了学校形象。

根据本系统的研究现状和发展趋势，系统从需求分析、结构设计、数据库设计，在到系统实现，分别为前端实现和后端实现。论文内容从系统描述、系统分析、系统设计、系统实现、系统测试来阐述系统的开发过程。本系统力求结合实际找出一种切实可行的开发方案，经过反复研究和学习，借助My Eclipse编程软件、SSM技术、MySQL数据库和Tomcat服务器来完成系统的所有功能，最后进行系统测试，来检测系统的权限和漏洞，从而将系统完善，达到符合标准。

一，项目简介

本项目主要实现SSM开发框架实现在线考试管理系统，采用前后端分离的方式开发实现，基于接口实现前后端开发对接，后端服务系统主要实现的管理功能有：试题管理、试卷管理、考试管理、用户管理、数据字典管理、系统设置管理。前端用户服务实现的功能有：试题练习、在线考试、会员中心、统计知识掌握情况、统计分析各种考试数据等功能。整体功能比较强大，也比较完整。

根据前面的各项设计分析，按照系统开发的基本理念对系统进行分解，从模块上主要可分为用户模块和管理员模块。

用户模块只要是让普通用户使用，包括题库及试卷管理，成绩查询等功能，管理员模块只要是让管理员使用，包括学生信息管理、教师信息管理、试卷管理等功能，可以对数据进行添加、删除、修改及查询等操作。

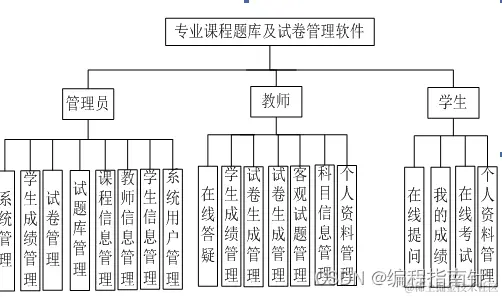

系统总体功能结构图如下图所示。

根据前面的各项设计分析，按照系统开发的基本理念对系统进行分解，从模块上主要可分为用户模块和管理员模块。

用户模块只要是让普通用户使用，包括题库及试卷管理，成绩查询等功能，管理员模块只要是让管理员使用，包括学生信息管理、教师信息管理、试卷管理等功能，可以对数据进行添加、删除、修改及查询等操作。

系统总体功能结构图如下图所示。

​编辑

二，环境介绍

语言环境：Java:  jdk1.8

数据库：Mysql: mysql5.7

应用服务器：Tomcat:  tomcat8.5.31

开发工具：IDEA或eclipse

后台开发技术：SSM框架+SpringSecurity安全框架

前台开发技术：Bootstrap+Ajax

三，系统展示

后台管理界面：

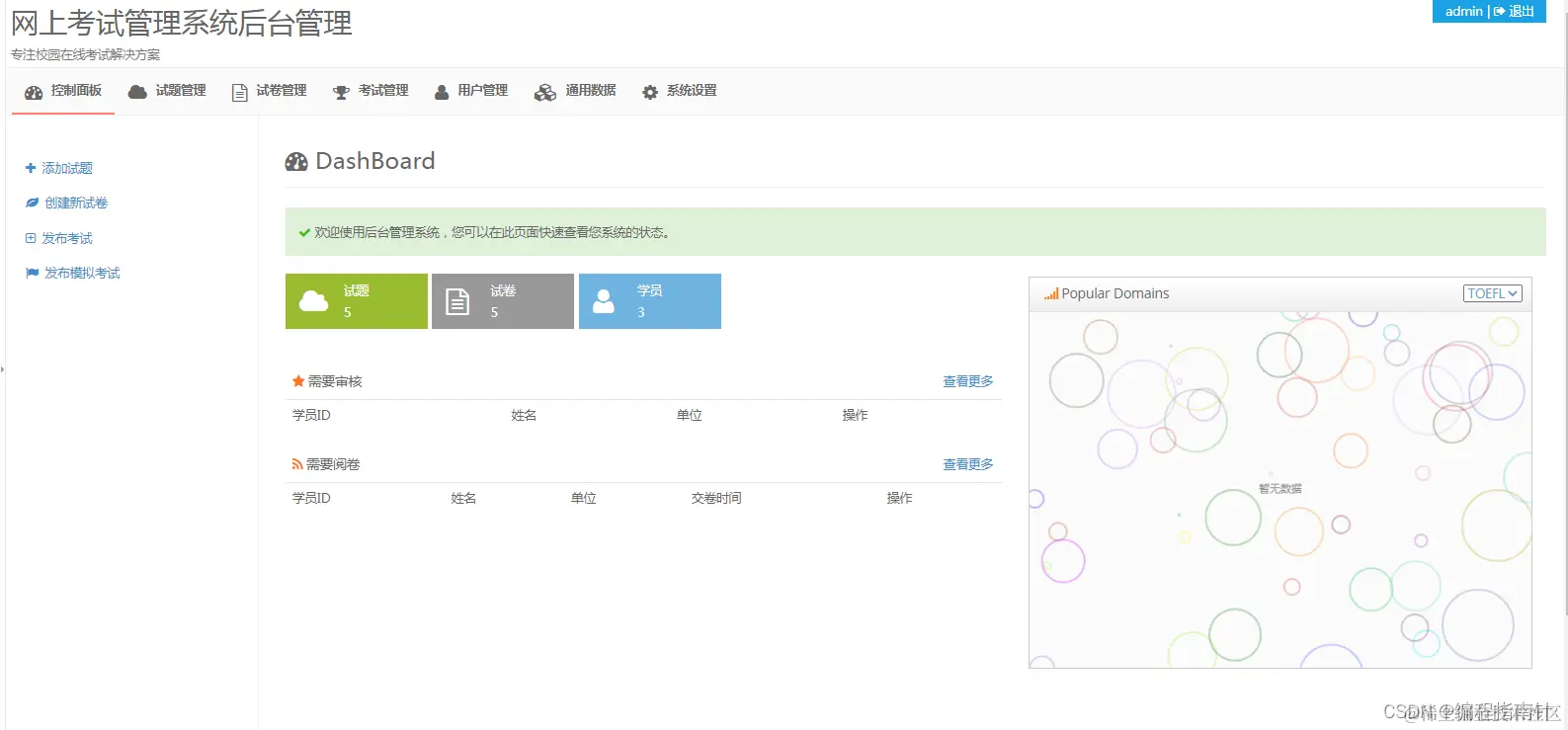

管理首页

​编辑

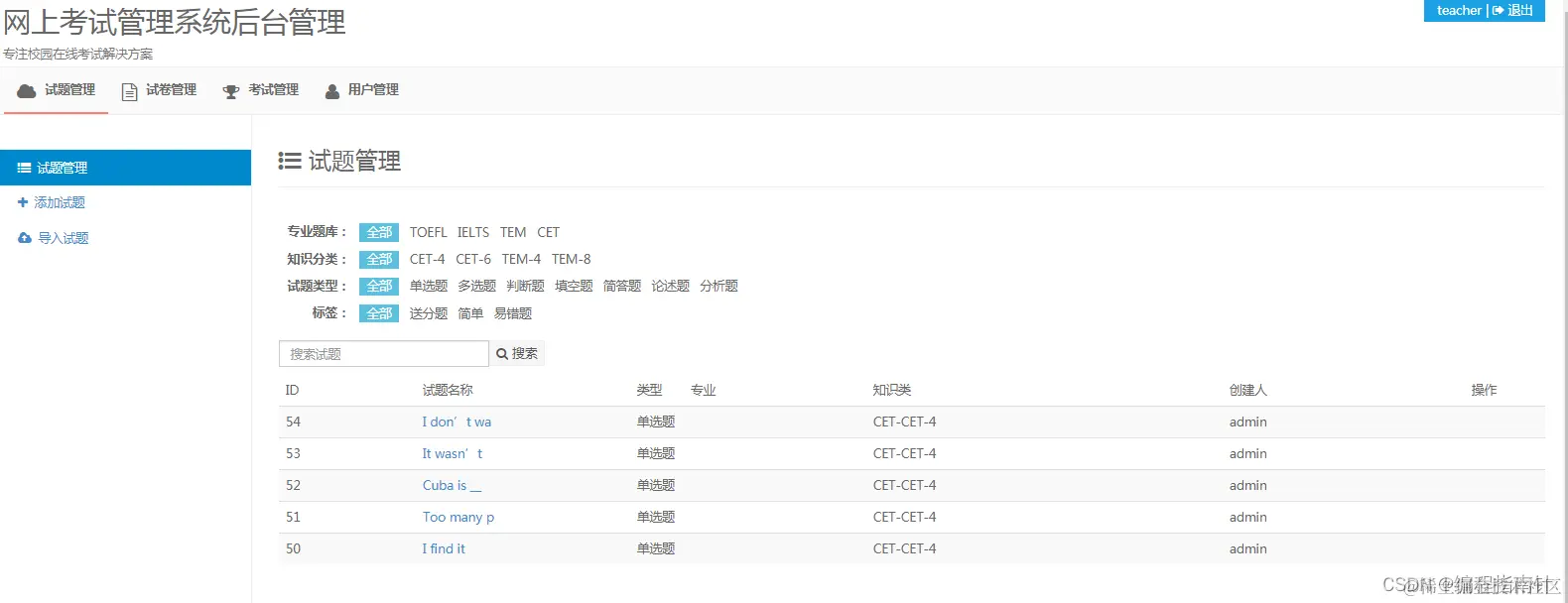

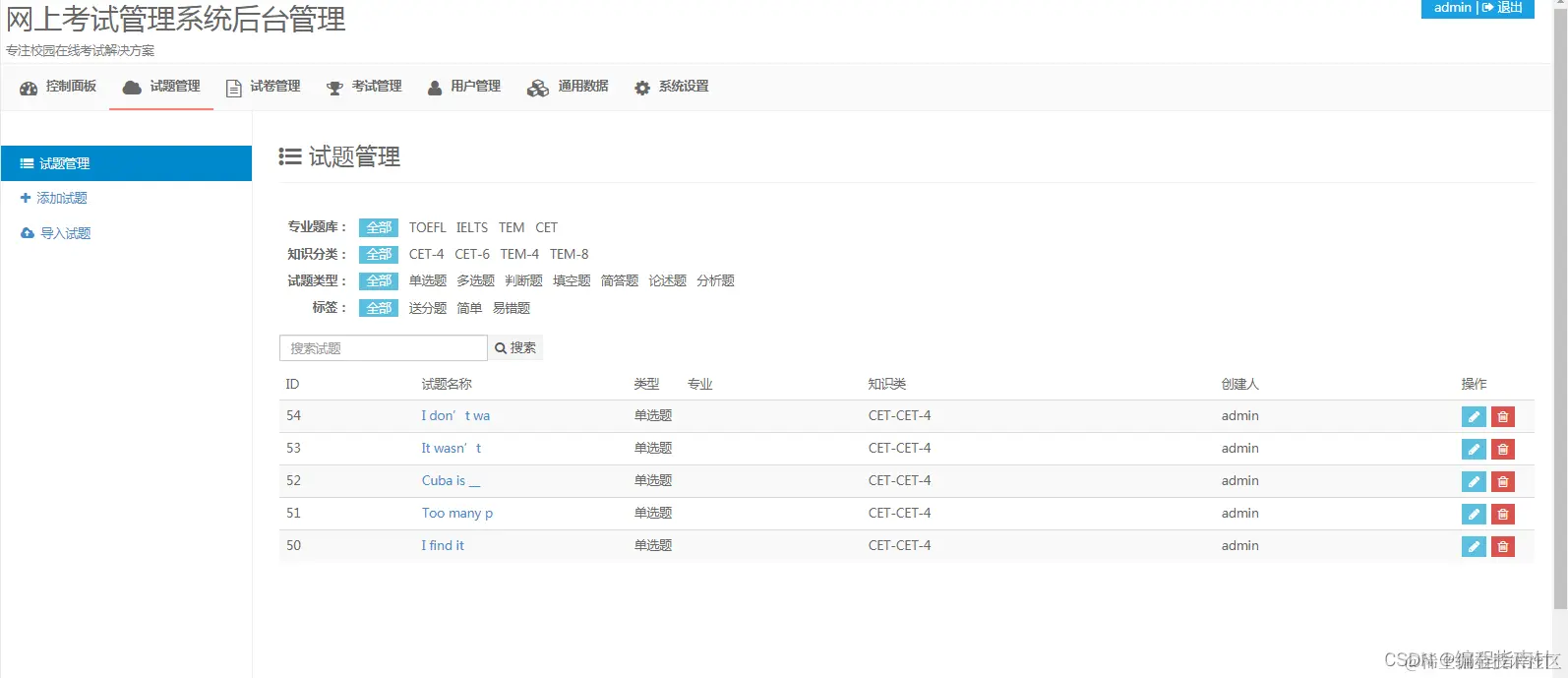

试题管理

​编辑

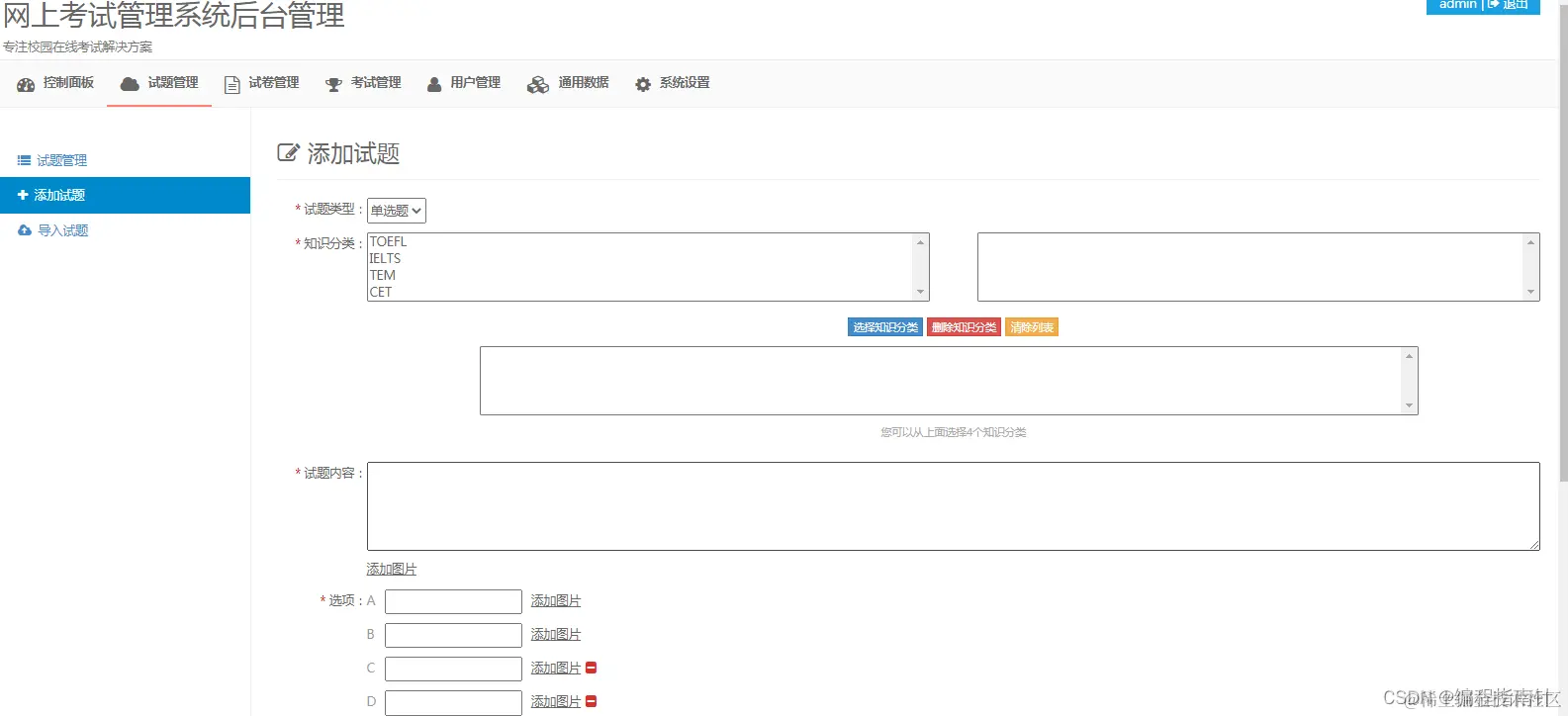

试题添加

​编辑

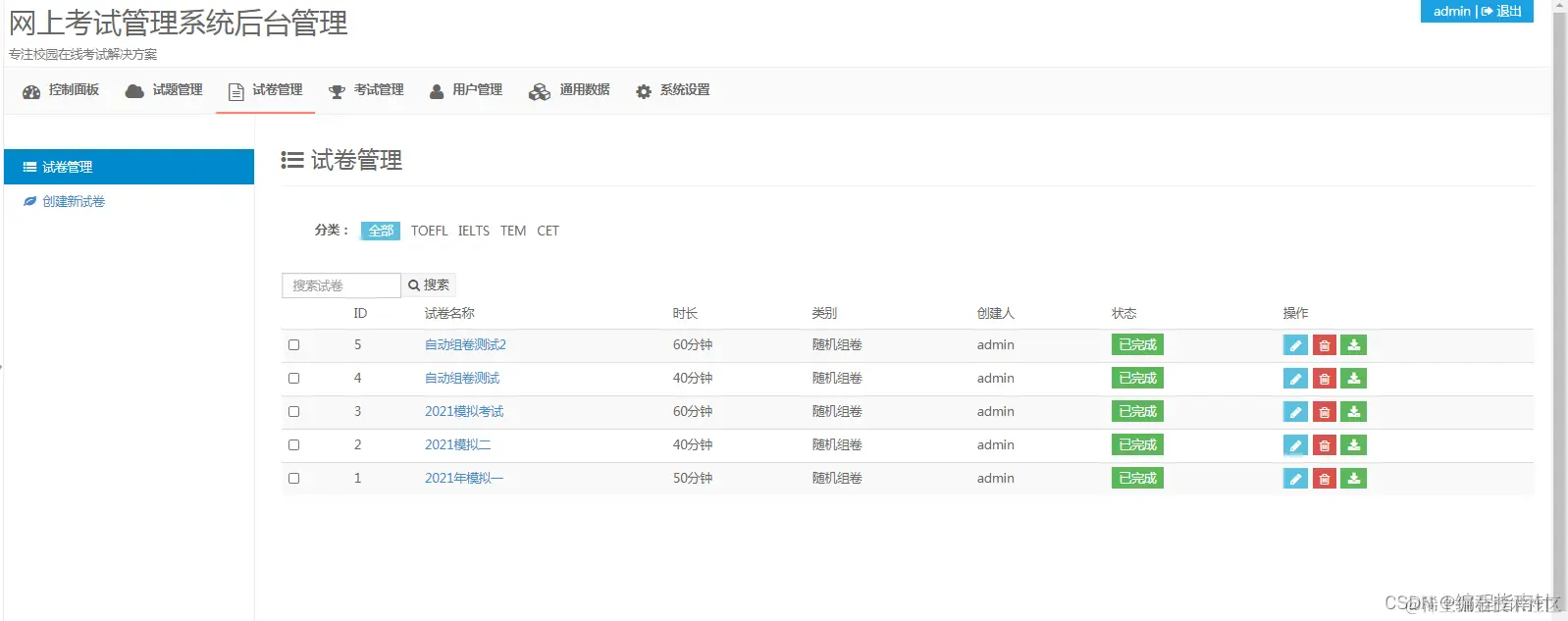

试卷管理

​编辑

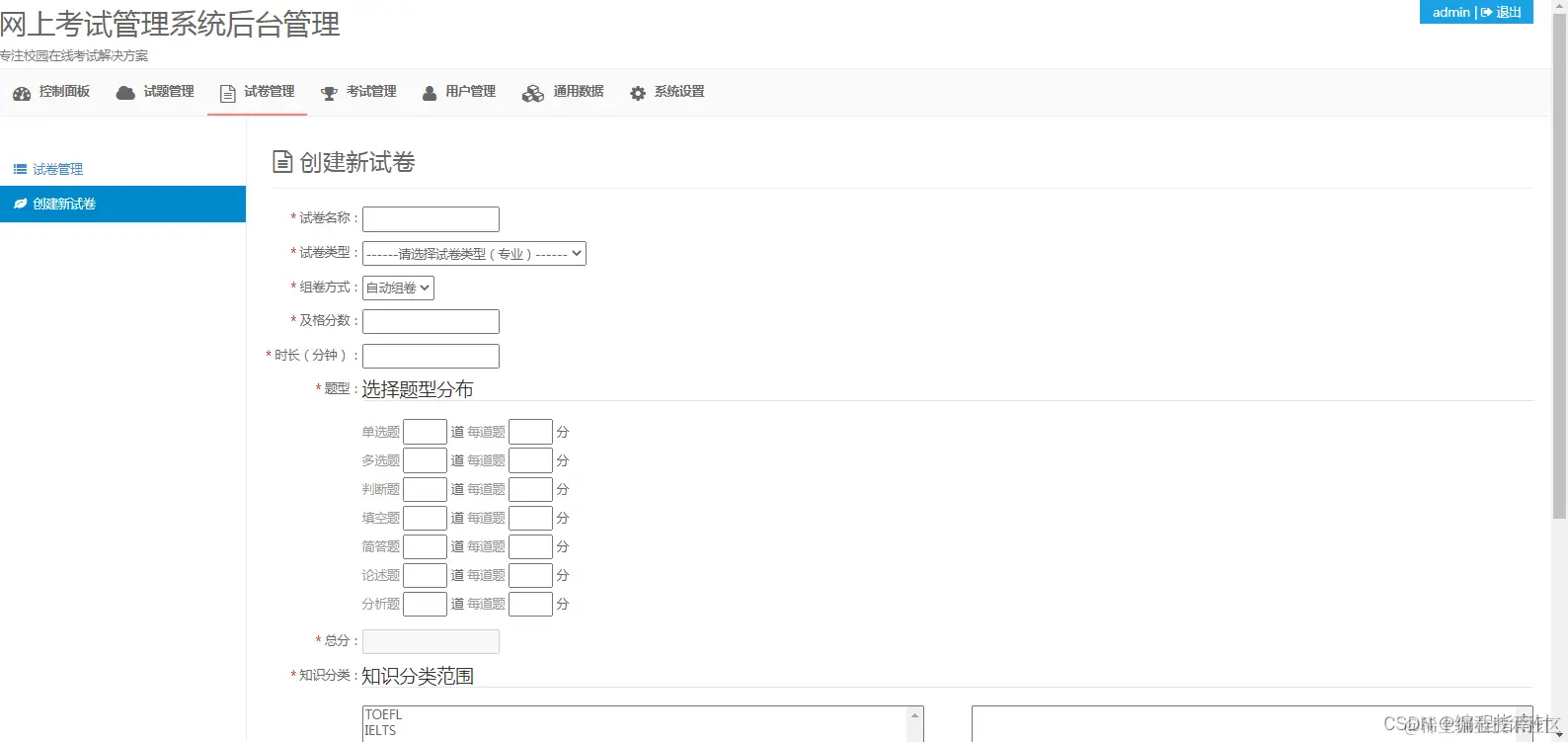

创建试卷

​编辑

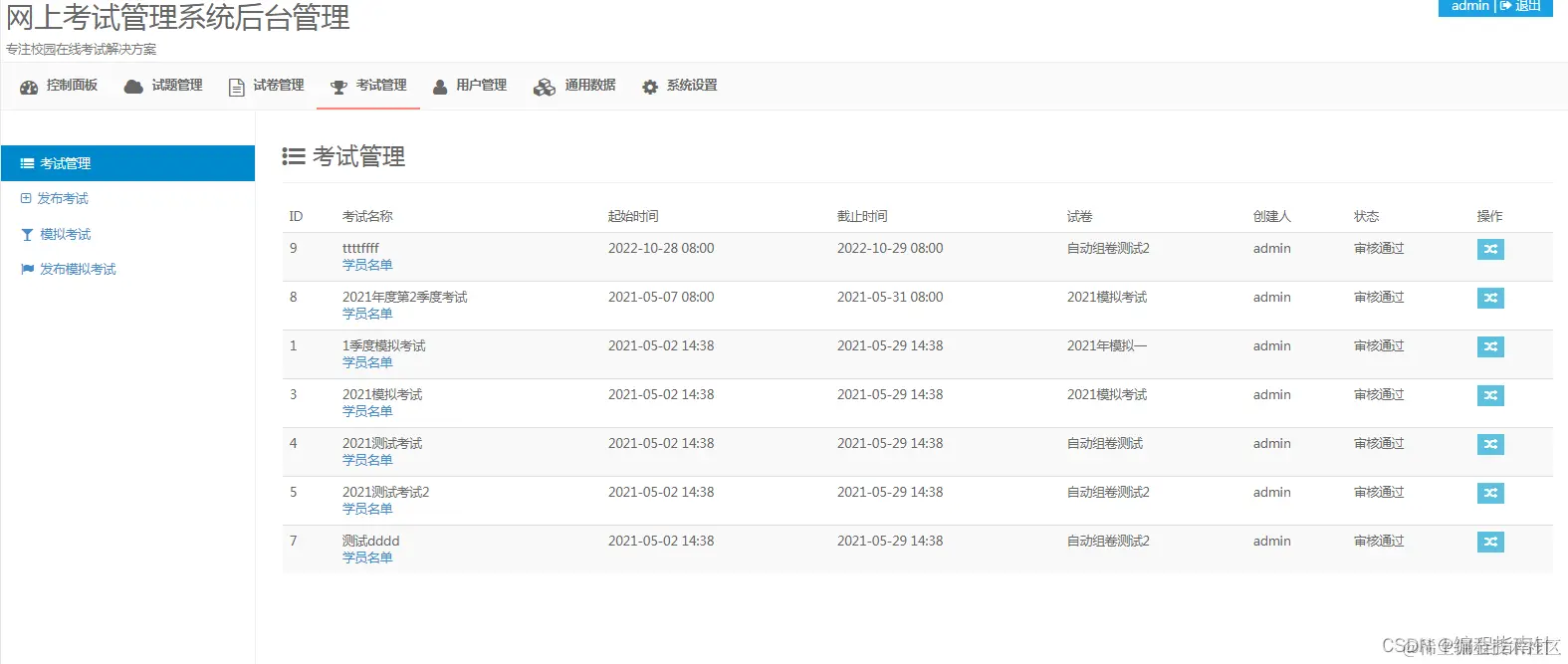

考试管理

​编辑

用户管理

​编辑

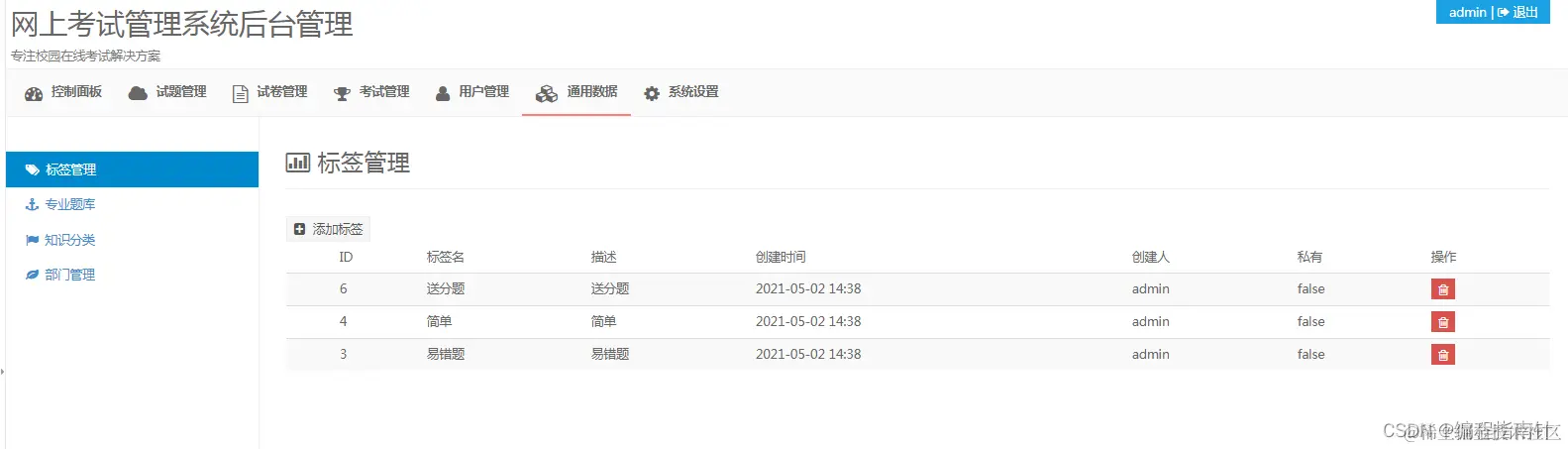

通用数据管理

​编辑

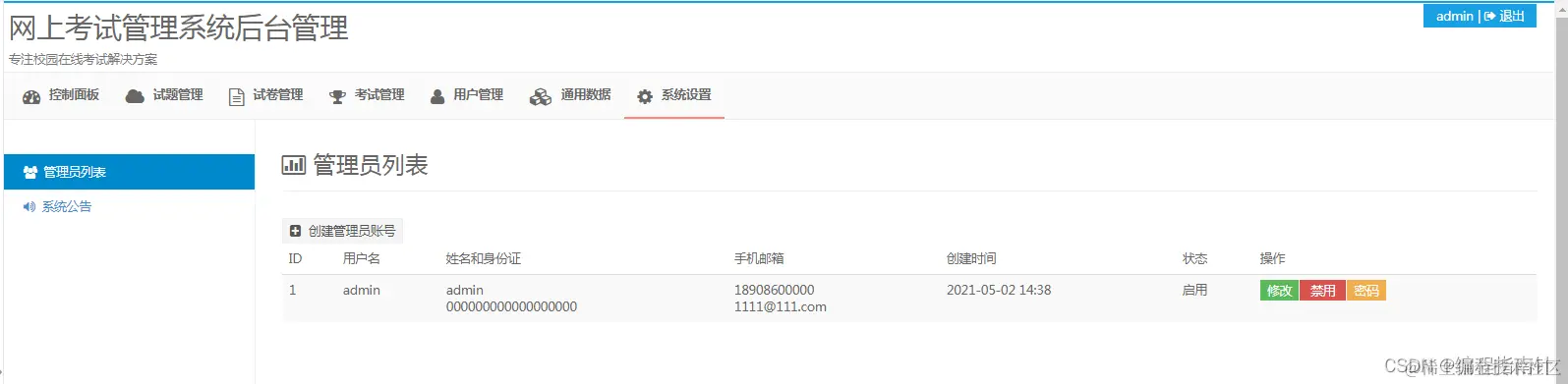

系统设置

​编辑

教师登陆系统

​编辑

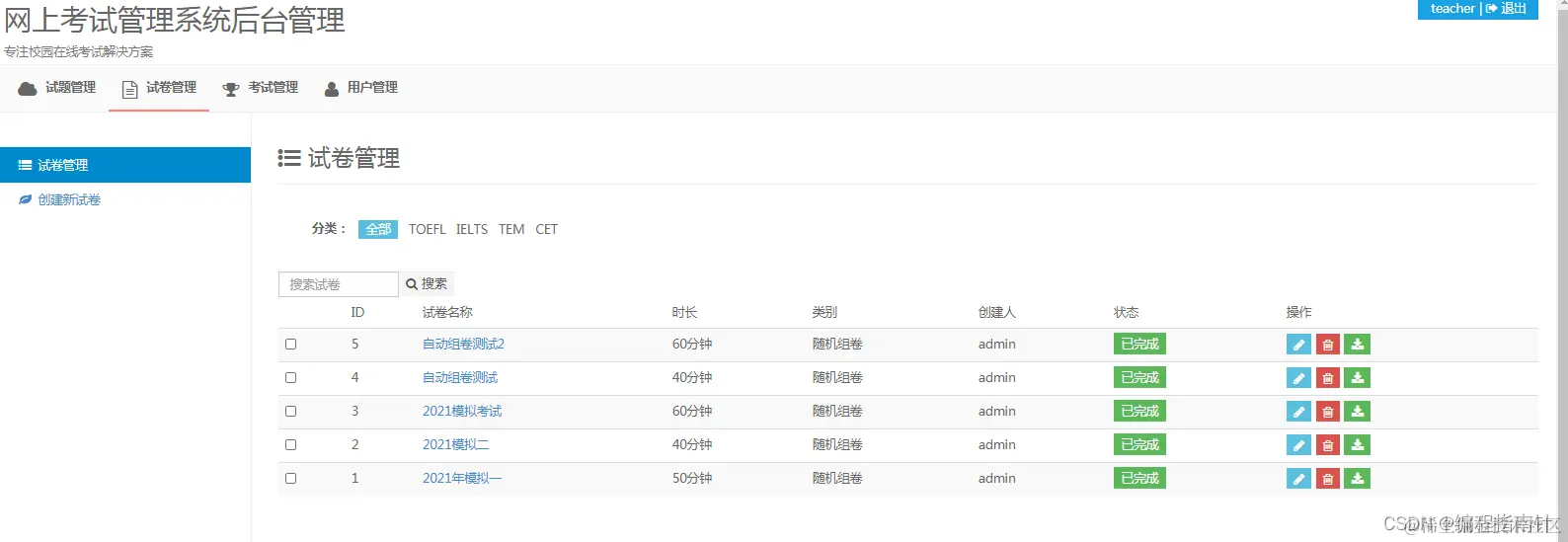

试卷管理

​编辑

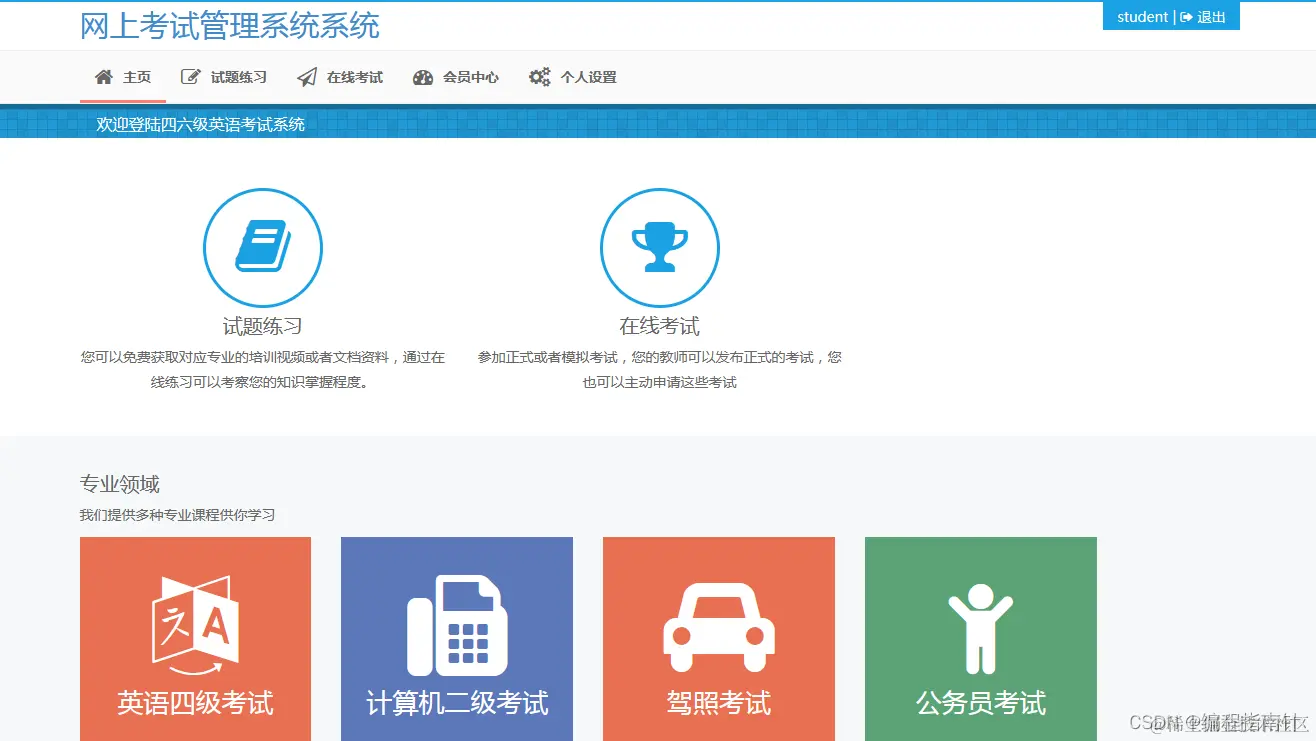

前端用户服务系统

​编辑

试题练习

​编辑

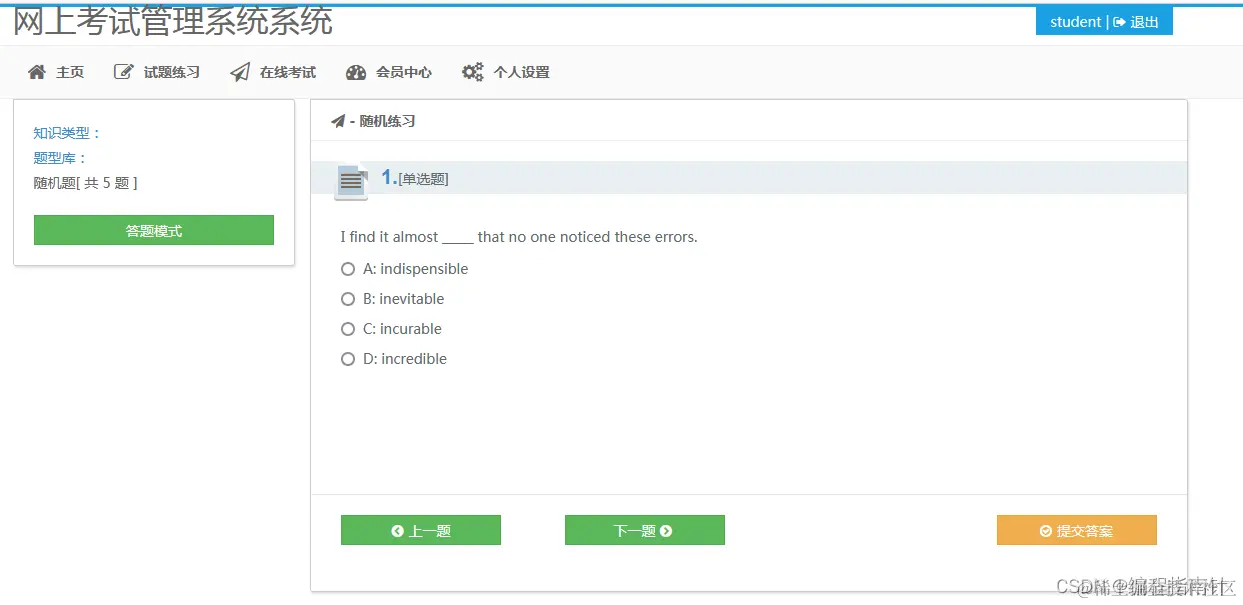

答题模式

​编辑

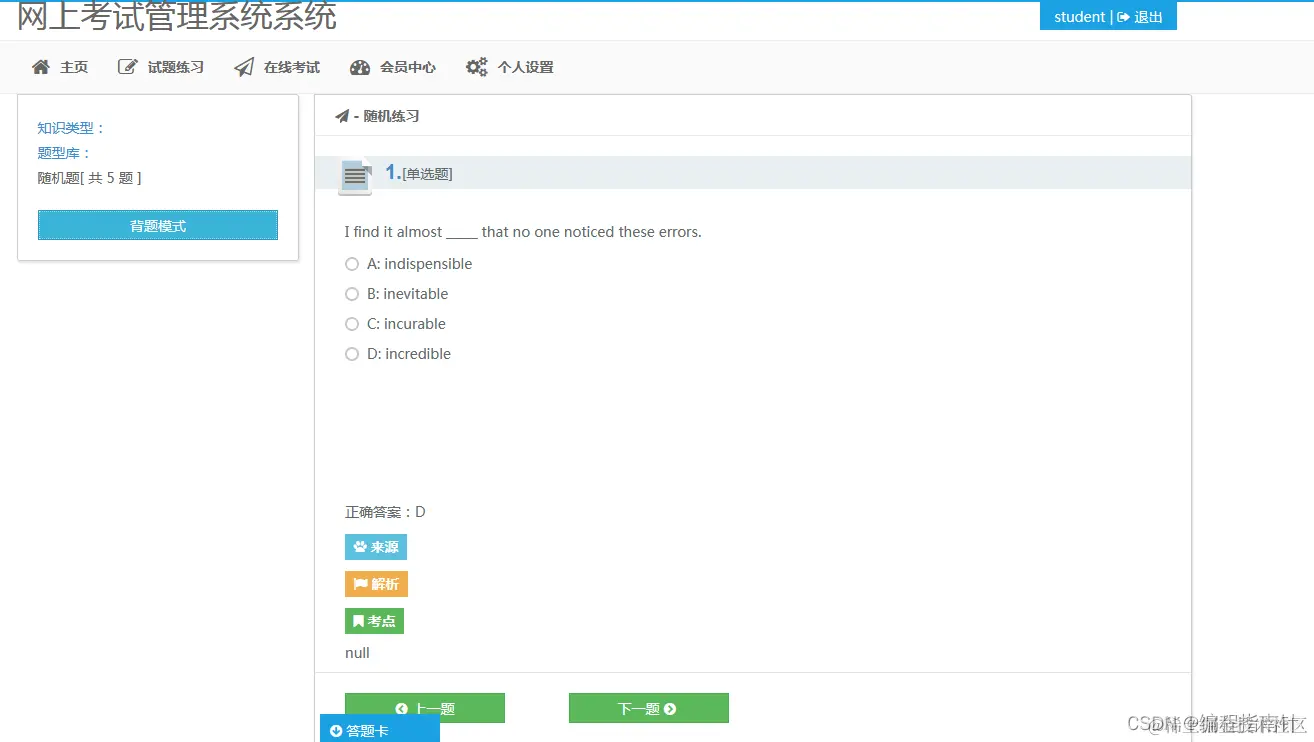

背题模式

​编辑

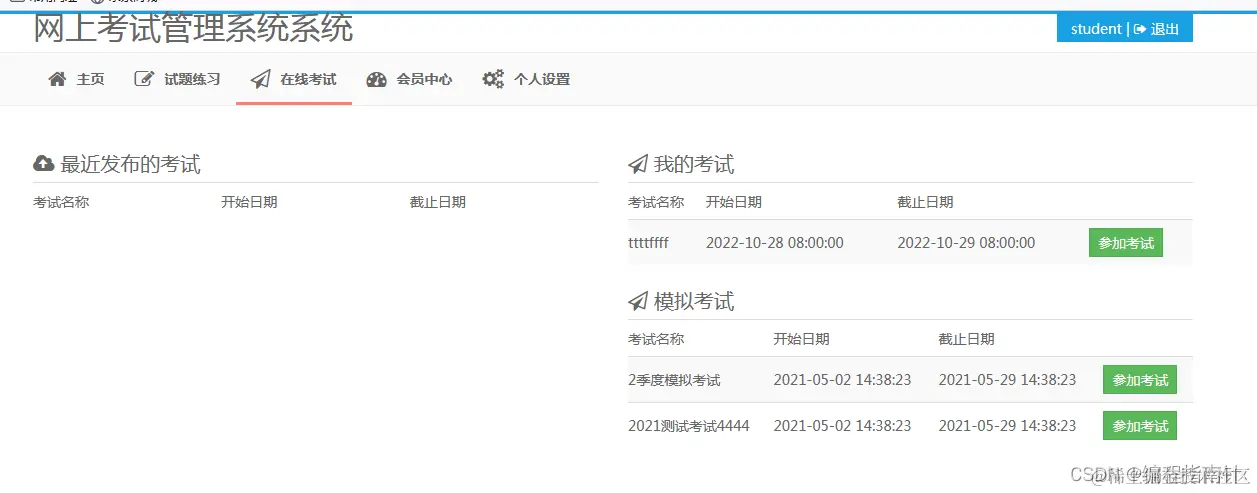

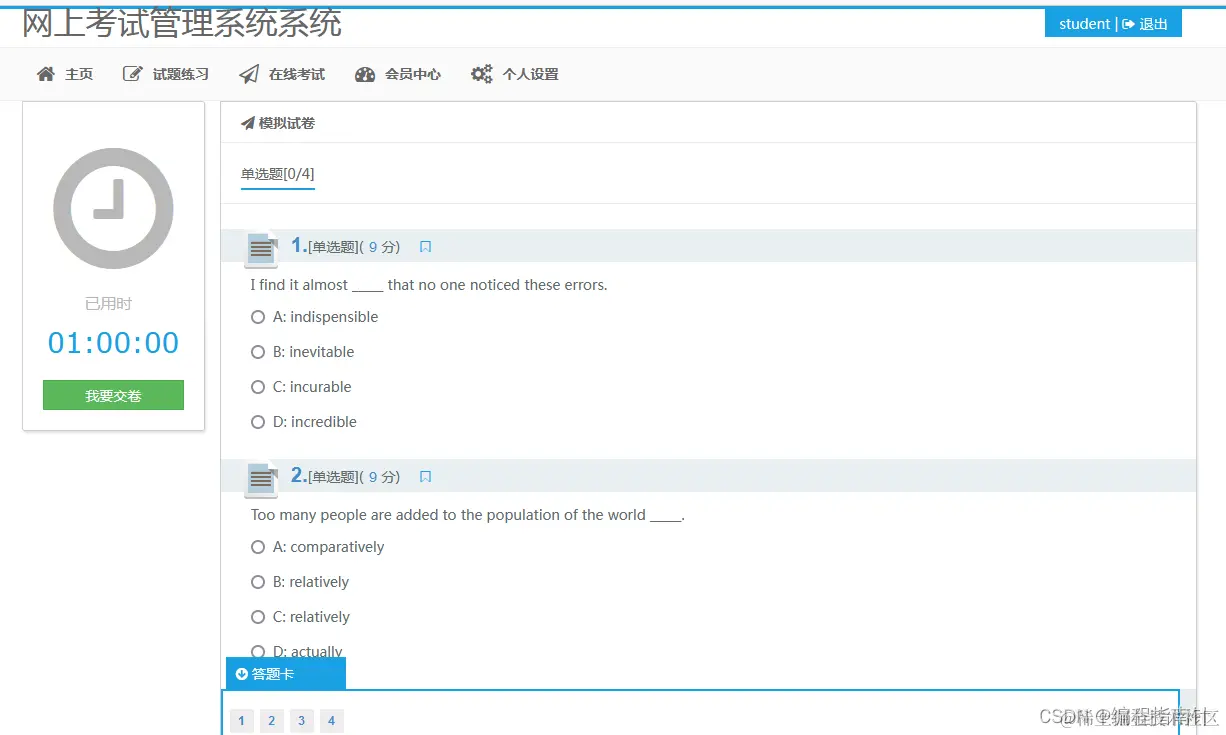

在线考试

​编辑

在线考试

​编辑

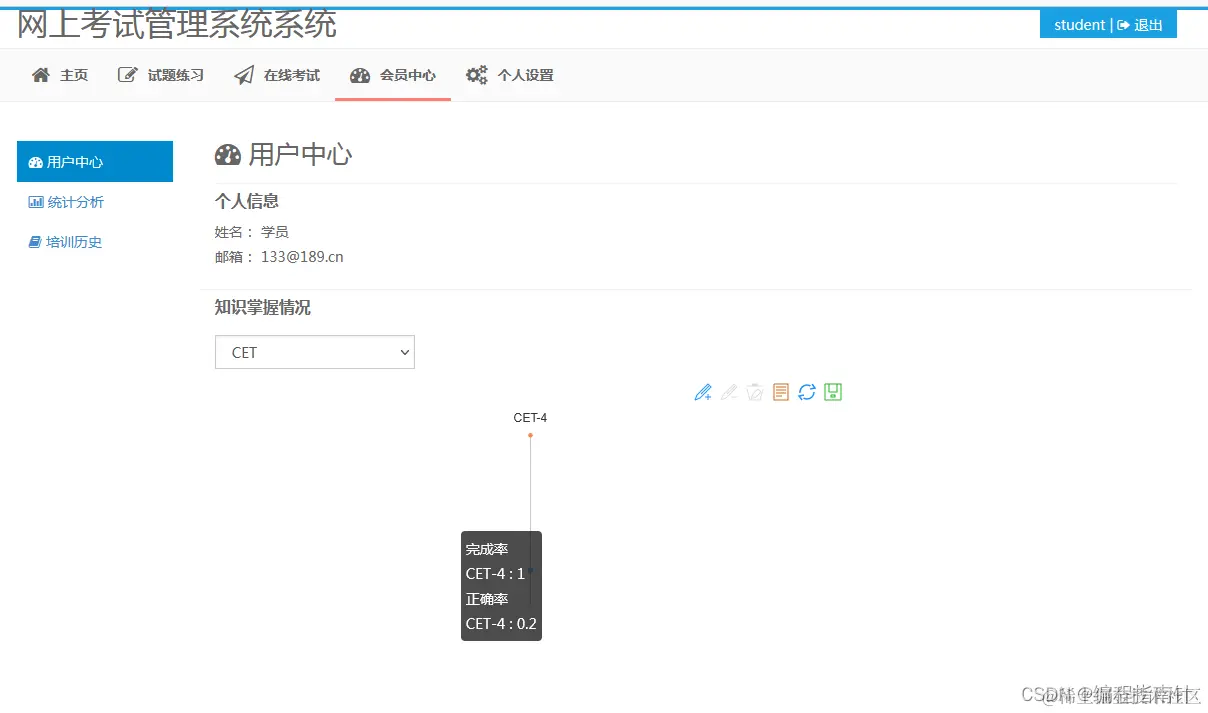

会员中心

​编辑

个人设置

​编辑

四，核心代码展示

package com.examstack.management.controller.action;

import java.util.ArrayList;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.examstack.common.domain.exam.ExamHistory;
import com.examstack.common.domain.exam.ExamPaper;
import com.examstack.common.domain.question.PointStatistic;
import com.examstack.common.domain.question.Question;
import com.examstack.common.domain.question.QuestionFilter;
import com.examstack.common.domain.user.User;
import com.examstack.common.util.Page;
import com.examstack.management.security.UserInfo;
import com.examstack.management.service.ExamPaperService;
import com.examstack.management.service.ExamService;
import com.examstack.management.service.QuestionService;
import com.examstack.management.service.UserService;

@Controller
public class DashBoardAction {

	@Autowired
	private QuestionService questionService;
	@Autowired
	private UserService userService;
	@Autowired
	private ExamPaperService examPaperService;
	@Autowired
	private ExamService examService;
	@RequestMapping(value = "/secure/dashboard/baseinfo", method = RequestMethod.GET)
	public @ResponseBody List<Integer> baseInfo(Model model) {

		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext()
			    .getAuthentication()
			    .getPrincipal();
		Page<User> pageUser = new Page<User>();
		pageUser.setPageNo(1);
		pageUser.setPageSize(1);
		userService.getUserListByRoleId(userInfo.getRoleMap().get("ROLE_STUDENT").getRoleId(), pageUser);

		Page<Question> pageQuestion = new Page<Question>();
		pageQuestion.setPageNo(1);
		pageQuestion.setPageSize(1);
		QuestionFilter qf = new QuestionFilter();
		qf.setFieldId(0);
		qf.setKnowledge(0);
		qf.setQuestionType(0);
		qf.setTag(0);
		qf.setSearchParam("-1");
		questionService.getQuestionList(pageQuestion, qf);

		Page<ExamPaper> pageExamPaper = new Page<ExamPaper>();
		pageExamPaper.setPageNo(1);
		pageExamPaper.setPageSize(1);
		examPaperService.getEnabledExamPaperList(userInfo.getUsername(), pageExamPaper);
		List<Integer> l = new ArrayList<Integer>();
		l.add(pageQuestion.getTotalRecord());
		l.add(pageExamPaper.getTotalRecord());
		l.add(pageUser.getTotalRecord());
		return l;
	}

	@RequestMapping(value = "/secure/dashboard/studentApprovedList", method = RequestMethod.GET)
	public @ResponseBody List<ExamHistory> studentApprovedList(Model model) {
		Page<ExamHistory> page = new Page<ExamHistory>();
		page.setPageNo(1);
		page.setPageSize(4);
		List<ExamHistory> histList = examService.getUserExamHistList(page, 0);

		return histList;
	}

	@RequestMapping(value = "/secure/dashboard/StudentMarkList", method = RequestMethod.GET)
	public @ResponseBody List<ExamHistory> studentMarkList(Model model) {
		Page<ExamHistory> page = new Page<ExamHistory>();
		page.setPageNo(1);
		page.setPageSize(4);
		List<ExamHistory> histList = examService.getUserExamHistList(page, 2);

		return histList;
	}

	@RequestMapping(value = "/secure/dashboard/chartinfo/{fieldId}", method = RequestMethod.GET)
	public @ResponseBody List<FieldNumber> chartInfo(Model model,@PathVariable("fieldId") int fieldId) {

		List<PointStatistic> pointStatisticList = questionService.getPointCount(fieldId, null);
		List<FieldNumber> l = new ArrayList<FieldNumber>();

		for(PointStatistic ps : pointStatisticList){
			FieldNumber fieldNumber = new FieldNumber();
			fieldNumber.name = ps.getPointName();
			fieldNumber.amount = ps.getAmount();
			l.add(fieldNumber);
		}

		return l;
	}


	class FieldNumber{
		private String name;
		private int amount;
		public String getName() {
			return name;
		}
		public void setName(String name) {
			this.name = name;
		}
		public int getAmount() {
			return amount;
		}
		public void setAmount(int amount) {
			this.amount = amount;
		}

	}

}


package com.examstack.management.controller.action;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.examstack.common.domain.exam.AnswerSheet;
import com.examstack.common.domain.exam.AnswerSheetItem;
import com.examstack.common.domain.exam.ExamPaper;
import com.examstack.common.domain.exam.Message;
import com.examstack.management.service.ExamPaperService;
import com.examstack.management.service.ExamService;
import com.google.gson.Gson;

@Controller
public class ExamAction {
	@Autowired
	private ExamPaperService examPaperService;
	@Autowired
	private ExamService examService;
	@RequestMapping(value = "/api/exampaper/{id}", method = RequestMethod.GET)
	public @ResponseBody ExamPaper getExamPaper(@PathVariable("id") int id){
		ExamPaper paper = examPaperService.getExamPaperById(id);
		return paper;
	}

	@RequestMapping(value = "/api/answersheet", method = RequestMethod.POST)
	public @ResponseBody Message submitAnswerSheet(@RequestBody AnswerSheet answerSheet){

		List<AnswerSheetItem> itemList = answerSheet.getAnswerSheetItems();

		//全部是客观题，则状态更改为已阅卷
		int approved = 3;
		for(AnswerSheetItem item : itemList){
			if(item.getQuestionTypeId() != 1 && item.getQuestionTypeId() != 2 && item.getQuestionTypeId() != 3){
				approved = 2;
				break;
			}
		}
		Gson gson = new Gson();
		examService.updateUserExamHist(answerSheet, gson.toJson(answerSheet),approved);

		return new Message();
	}

}


package com.examstack.management.controller.action;

import java.io.FileNotFoundException;
import java.util.ArrayList;
import java.util.Date;
import java.util.HashMap;
import java.util.List;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.examstack.common.domain.exam.Message;
import com.examstack.common.domain.question.KnowledgePoint;
import com.examstack.common.domain.question.Question;
import com.examstack.common.domain.question.QuestionTag;
import com.examstack.common.util.file.FileUploadUtil;
import com.examstack.management.security.UserInfo;
import com.examstack.management.service.QuestionService;
import com.google.gson.Gson;
import com.google.gson.JsonElement;
import com.google.gson.JsonParser;
import com.google.gson.reflect.TypeToken;

@Controller
public class QuestionAction {

	@Autowired
	private QuestionService questionService;

	/**
	 * 添加试题
	 *
	 * @param question
	 * @return
	 */
	@RequestMapping(value = "/secure/question/question-add", method = RequestMethod.POST)
	public @ResponseBody Message addQuestion(@RequestBody Question question) {

		UserDetails userDetails = (UserDetails) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		Message message = new Message();
		Gson gson = new Gson();
		question.setContent(gson.toJson(question.getQuestionContent()));
		question.setCreate_time(new Date());
		question.setCreator(userDetails.getUsername());
		try {
			questionService.addQuestion(question);
		} catch (Exception e) {
			// TODO Auto-generated catch block
			message.setResult("error");
			message.setMessageInfo(e.getClass().getName());
			e.printStackTrace();
		}

		return message;
	}

	/**
	 * 获取试题的标签列表
	 *
	 * @param questionId
	 * @return
	 */
	@RequestMapping(value = "/secure/question/question-tag/{questionId}", method = RequestMethod.GET)
	public @ResponseBody Message getQuestionTag(@PathVariable("questionId") int questionId) {
		Message message = new Message();
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		List<QuestionTag> tagList = questionService.getQuestionTagByQuestionIdAndUserId(questionId,
				userInfo.getUserid(), null);
		message.setObject(tagList);
		return message;
	}

	/**
	 * 为试题添加标签
	 *
	 * @param questionId
	 * @param questionTagList
	 * @return
	 */
	@RequestMapping(value = "/secure/question/add-question-tag", method = RequestMethod.POST)
	public @ResponseBody Message addQuestionTag(@RequestBody int questionId,
			@RequestBody List<QuestionTag> questionTagList) {
		Message message = new Message();
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		try {
			questionService.addQuestionTag(questionId, userInfo.getUserid(), questionTagList);
		} catch (Exception e) {
			e.printStackTrace();
			message.setResult(e.getClass().getName());
		}

		return message;
	}

	/**
	 * 获取试题详细信息
	 * @param questionId
	 * @return
	 */
	@RequestMapping(value = "/secure/question/question-detail/{questionId}", method = RequestMethod.GET)
	public @ResponseBody Message getQuestionDetail(@PathVariable("questionId") int questionId) {
		Message message = new Message();
		//UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		try {
			Question question = questionService.getQuestionDetail(questionId, 0);
			message.setObject(question);
		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
			message.setResult(e.getCause().getMessage());
		}
		return message;
	}
	/**
	 * 修改试题知识点
	 *
	 * @param questionId
	 * @param pointId
	 * @param questionTagList
	 * @return
	 */
	@RequestMapping(value = "/secure/question/question-update/{questionId}/{pointId}", method = RequestMethod.POST)
	public @ResponseBody Message updateQuestionKnowledge(@PathVariable int questionId, @PathVariable int pointId,
			@RequestBody List<QuestionTag> questionTagList) {

		Message message = new Message();
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		Question question = new Question();
		question.setId(questionId);
		List<Integer> pointIdList = new ArrayList<Integer>();
		pointIdList.add(pointId);
		question.setPointList(pointIdList);
		try {
			questionService.updateQuestionPoint(question, userInfo.getUserid(), questionTagList);
		} catch (Exception e) {
			message.setResult(e.getClass().getName());
		}

		return message;
	}

	@RequestMapping(value = "/secure/question/question-update", method = RequestMethod.POST)
	public @ResponseBody Message updateQuestion(@RequestBody String jsonStr){
		Message msg = new Message();
		Gson gson = new Gson();
		JsonParser parser = new JsonParser();
		JsonElement element = parser.parse(jsonStr);
		List<QuestionTag> questionTagList = gson.fromJson(element.getAsJsonObject().get("tags"), new TypeToken<ArrayList<QuestionTag>>(){}.getType());
		Question question = gson.fromJson(element.getAsJsonObject().get("question"), Question.class);
		try {
			questionService.updateQuestion(question, questionTagList);

		} catch (Exception e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
			msg.setResult(e.getCause().getMessage());
		}
		//TO-DO:需要提交到数据库，保证在事务中提交
		return msg;
	}

	@RequestMapping(value = "/secure/question/get-knowledge-point/{fieldId}", method = RequestMethod.GET)
	public @ResponseBody Message getQuestionPointByFieldId(@PathVariable int fieldId) {
		Message message = new Message();
		HashMap<Integer, String> pointMap = new HashMap<Integer, String>();
		List<KnowledgePoint> pointList = questionService.getKnowledgePointByFieldId(fieldId, null);
		for (KnowledgePoint point : pointList) {
			pointMap.put(point.getPointId(), point.getPointName());
		}
		message.setObject(pointMap);
		return message;
	}

	@RequestMapping(value = "/secure/question/delete-question/{questionId}", method = RequestMethod.GET)
	public @ResponseBody Message deleteQuestion(Model model, @PathVariable("questionId") int questionId) {

		// UserDetails userDetails = (UserDetails)
		// SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		Message message = new Message();
		try {
			questionService.deleteQuestionByQuestionId(questionId);
		} catch (Exception ex) {
			message.setResult(ex.getClass().getName());
		}

		return message;
	}

	@RequestMapping(value = "/secure/upload-uploadify-img", method = RequestMethod.POST)
	public @ResponseBody String uploadImg(HttpServletRequest request, HttpServletResponse response) {
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		List<String> filePathList = new ArrayList<String>();
		try {
			filePathList = FileUploadUtil.uploadImg(request, response, userInfo.getUsername());
		} catch (FileNotFoundException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (Exception ex) {
			ex.printStackTrace();
		}

		if (filePathList.size() == 0) {
			return "系统错误";
		}

		return filePathList.get(0);
	}

	@RequestMapping(value = "/secure/upload-uploadify", method = RequestMethod.POST)
	public @ResponseBody String uploadFile(HttpServletRequest request, HttpServletResponse response) {
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext().getAuthentication().getPrincipal();
		List<String> filePathList = new ArrayList<String>();
		try {
			filePathList = FileUploadUtil.uploadFile(request, response, userInfo.getUsername());
		} catch (FileNotFoundException e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		} catch (Exception ex) {
			ex.printStackTrace();
		}

		if (filePathList.size() == 0) {
			return "系统错误";
		}

		return filePathList.get(0);
	}

	@RequestMapping(value = "/secure/question-import/{id}", method = RequestMethod.POST)
	public @ResponseBody Message courseImport(@RequestBody String filePath, @PathVariable("id") int id) {
		Message message = new Message();
		UserInfo userInfo = (UserInfo) SecurityContextHolder.getContext()
				.getAuthentication().getPrincipal();
		if(id == 0){
			message.setResult("error");
			message.setMessageInfo("请选择题库");
			return message;
		}
		try{
			questionService.uploadQuestions(filePath, userInfo.getUsername(),id);
		}catch(RuntimeException e){
			message.setResult(e.getClass().getName() + ":" + e.getMessage());
			message.setMessageInfo(e.getMessage());
		}

		return message;
	}
}

五，项目总结

​

avatar
文章
阅读
粉丝
