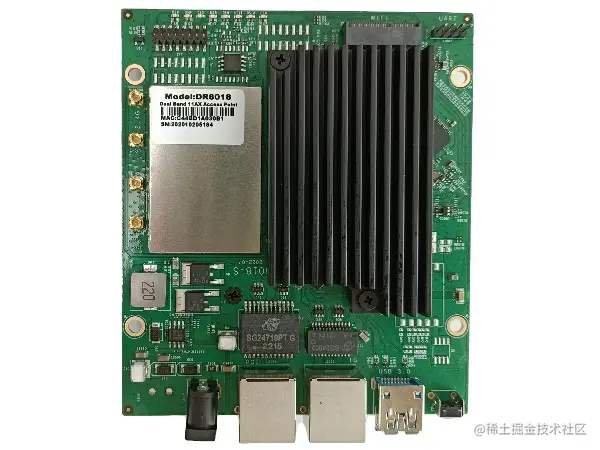

DR6018-S V02 IPQ6010/[IPQ6018]/IPQ6000
Quad-core ARM 64bit A53 @1.8GHz Processor
1GB DDRL3L System Memory
8MB NOR Flash, 256MB NAND Flash
Supports Dynamic Frequency Selection (DFS)
2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate
2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate
-
Absolute Maximum Rating -
Parameter Rating Unit Supply Voltage 24V~48V(DC Jack) V Operating Temperature Range -40 to +70 oC Storage Temperature Range -45 to +105 oC Operating Humidity Range 5 to +95 (non-condensing) % -
****Hardware Specifications -
Symbol Parameter CPU Qualcomm-Atheros[ IPQ6010] CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) SD Card Slot 1x SD Card Slot(Option) USB /header 1x USB 3.0 Port(Option) POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V~48V power supply LED header 2.0 pitch pin header Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors Nor Flash 8MB Nand Flash 256MB DDR 256MB~512MB Dimension 125mm x 105mm x 20mm -
-
Boot C onfig Switch -
Boot_Config Switch1(S7) Boot_Config Boot up Interface Select S7A S7B S7C 0 0 0 SPI NOR. (Default) 0 0 1 eMMC 0 1 0 QPIC, Parallel NAND 0 1 1 USB3.0 1 0 0 SPI-NOR-GPT S7D Boot up Interface Select 0 Boot from code ram.(Default) 1 Boot from ROM Boot_Config Switch2(S9) Boot_Config Boot up Interface Select 0 No auth.(Default) 1 Auth is required -
Interface MAP
-
