Kitex+Hertz框架的初步搭建(2) ｜青训营笔记这是我参与「第五届青训营」笔记创作活动的第3天。今天对api部

这是我参与「第五届青训营」笔记创作活动的第3天

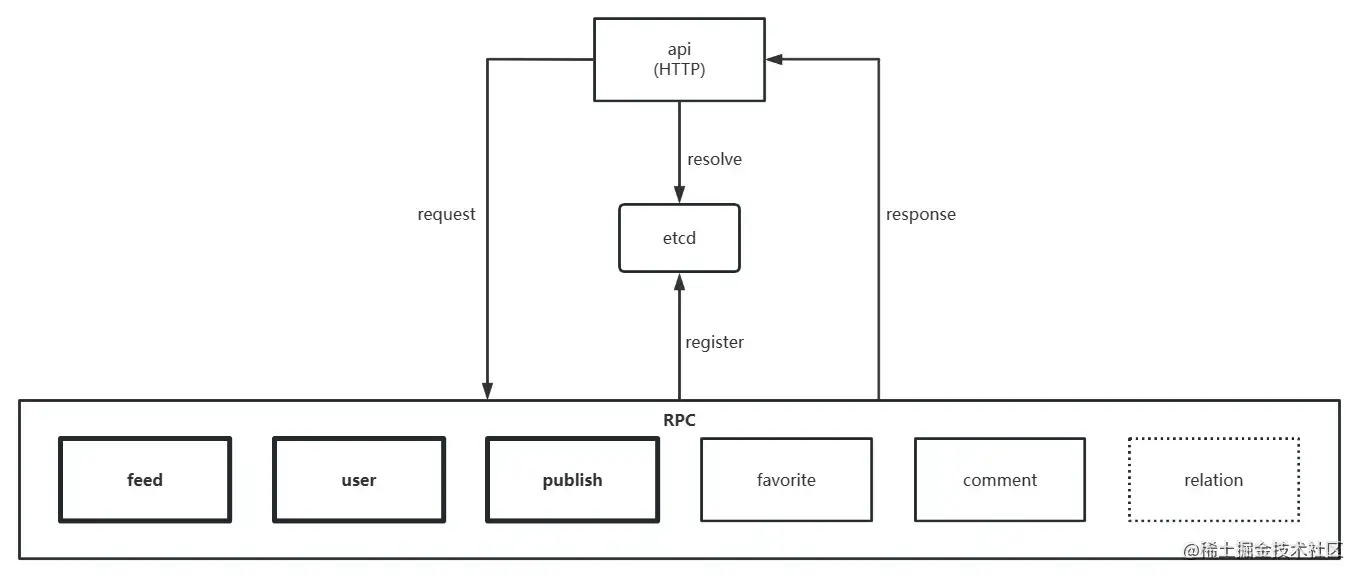

大项目基础架构图


今天对api部分每个项目文件做了具体的完善，明确了api部分的技术架构，以下作说明记录：

1. main.go

// Code generated by hertz generator.

package main

import (
	"api/biz/mw"
	"api/biz/rpc"

	"github.com/cloudwego/hertz/pkg/app/server"
)

func Init() {
	rpc.Init()
	mw.InitJWT()
}

func main() {
	Init()
	h := server.New(
		server.WithHostPorts(":8080"),
		server.WithHandleMethodNotAllowed(true), // coordinate with NoMethod
	)

	register(h)
	h.Spin()
}

main.go中，首先对rpc和middleware做了初始化，然后new了一个httpserver，供前端调用。

2. rpc/user.go

package rpc

import (
	"api/biz/consts"
	"api/biz/errno"
	"api/kitex_gen/user"
	"api/kitex_gen/user/userservice"
	"context"

	"github.com/cloudwego/kitex/client"
	"github.com/cloudwego/kitex/pkg/rpcinfo"
	etcd "github.com/kitex-contrib/registry-etcd"
)

var userClient userservice.Client

func initUser() {
	r, err := etcd.NewEtcdResolver([]string{consts.ETCDAddress})
	if err != nil {
		panic(err)
	}
	c, err := userservice.NewClient(
		consts.UserServiceName,
		client.WithResolver(r),
		client.WithMuxConnection(1),
		// client.WithMiddleware(mw.CommonMiddleware),
		// client.WithInstanceMW(mw.ClientMiddleware),
		// client.WithSuite(tracing.NewClientSuite()),
		client.WithClientBasicInfo(&rpcinfo.EndpointBasicInfo{ServiceName: consts.ApiServiceName}),
	)
	if err != nil {
		panic(err)
	}
	userClient = c

}

// CreateUser create user info
func CreateUser(ctx context.Context, req *user.CreateUserRequest) error {
	resp, err := userClient.CreateUser(ctx, req)
	if err != nil {
		return err
	}
	if resp.BaseResp.StatusCode != 0 {
		return errno.NewErrNo(resp.BaseResp.StatusCode, resp.BaseResp.StatusMessage)
	}
	return nil
}

// CheckUser check user info
func CheckUser(ctx context.Context, req *user.CheckUserRequest) (int64, error) {
	resp, err := userClient.CheckUser(ctx, req)
	if err != nil {
		return 0, err
	}
	if resp.BaseResp.StatusCode != 0 {
		return 0, errno.NewErrNo(resp.BaseResp.StatusCode, resp.BaseResp.StatusMessage)
	}
	return resp.UserId, nil
}

rpc/user.go文件中，声明并初始化了一个rpc客户端userservice.Client。提供了两个调用rpc服务器的函数CreateUser和CheckUser，是对用户注册和登录功能实现的辅助函数。二者都将api部分接收到的req中的用户名和密码进行封装，再传到对应的rpc服务端。

3. handler/api/api_service.go

// Code generated by hertz generator.

package api

import (
	"context"

	"api/biz/errno"
	api "api/biz/model/api"
	"api/biz/mw"
	"api/biz/rpc"
	"api/kitex_gen/user"

	"github.com/cloudwego/hertz/pkg/app"
)

// CreateUser .
// @router /douyin/user/register [POST]
func CreateUser(ctx context.Context, c *app.RequestContext) {
	var err error
	var req api.CreateUserRequest
	err = c.BindAndValidate(&req)
	if err != nil {
		SendResponse(c, errno.ConvertErr(err), nil)
		return
	}
	err = rpc.CreateUser(context.Background(), &user.CreateUserRequest{
		Username: req.Username,
		Password: req.Password,
	})
	if err != nil {
		SendResponse(c, errno.ConvertErr(err), nil)
		return
	}
	SendResponse(c, errno.Success, nil)
}

// CheckUser .
// @router /douyin/user/login [POST]
func CheckUser(ctx context.Context, c *app.RequestContext) {
	mw.JwtMiddleware.LoginHandler(ctx, c)
}

该文件对前端传来的username和password信息做绑定和验证，并调用上文中提到的rpc包中相应的函数，对用户的注册和登录请求做相应的处理。

4. mw/jwt.go

package mw

import (
	"api/biz/consts"
	"api/biz/errno"
	"api/biz/model/api"
	"api/biz/rpc"
	"api/kitex_gen/user"
	"context"
	"encoding/json"
	"net/http"
	"time"

	"github.com/cloudwego/hertz/pkg/app"
	"github.com/cloudwego/hertz/pkg/common/utils"
	jwtv4 "github.com/golang-jwt/jwt/v4"
	"github.com/hertz-contrib/jwt"
)

var JwtMiddleware *jwt.HertzJWTMiddleware

func InitJWT() {
	JwtMiddleware, _ = jwt.New(&jwt.HertzJWTMiddleware{
		Key:           []byte(consts.SecretKey),
		TokenLookup:   "header: Authorization, query: token, cookie: jwt",
		TokenHeadName: "Bearer",
		TimeFunc:      time.Now,
		Timeout:       time.Hour,
		MaxRefresh:    time.Hour,
		IdentityKey:   consts.IdentityKey,
		IdentityHandler: func(ctx context.Context, c *app.RequestContext) interface{} {
			claims := jwt.ExtractClaims(ctx, c)
			userid, _ := claims[consts.IdentityKey].(json.Number).Int64()
			return &api.User{
				UserID: userid,
			}
		},
		PayloadFunc: func(data interface{}) jwt.MapClaims {
			if v, ok := data.(int64); ok {
				return jwt.MapClaims{
					consts.IdentityKey: v,
				}
			}
			return jwt.MapClaims{}
		},
		Authenticator: func(ctx context.Context, c *app.RequestContext) (interface{}, error) {
			var err error
			var req api.CheckUserRequest
			if err = c.BindAndValidate(&req); err != nil {
				return "", jwt.ErrMissingLoginValues
			}
			if len(req.Username) == 0 || len(req.Password) == 0 {
				return "", jwt.ErrMissingLoginValues
			}
			return rpc.CheckUser(context.Background(), &user.CheckUserRequest{
				Username: req.Username,
				Password: req.Password,
			})
		},
		LoginResponse: func(ctx context.Context, c *app.RequestContext, code int, token string, expire time.Time) {
			c.JSON(http.StatusOK, utils.H{
				"code":   errno.Success.ErrCode,
				"token":  token,
				"expire": expire.Format(time.RFC3339),
			})
		},
		Unauthorized: func(ctx context.Context, c *app.RequestContext, code int, message string) {
			c.JSON(http.StatusOK, utils.H{
				"code":    errno.AuthorizationFailedErr.ErrCode,
				"message": message,
			})
		},
		HTTPStatusMessageFunc: func(e error, ctx context.Context, c *app.RequestContext) string {
			switch t := e.(type) {
			case errno.ErrNo:
				return t.ErrMsg
			default:
				return t.Error()
			}
		},
		ParseOptions: []jwtv4.ParserOption{jwtv4.WithJSONNumber()},
	})
}

该文件声明了一个jwt.HertzJWTMiddleware中间件，并设置了一些响应函数。当前端传入请求时，对用户token进行校验，或为登录用户分发token。这块知识尚不明晰，还需要仔细研读代码。

5. router/api/middleware.go

// Code generated by hertz generator.

package Api

import (
	"api/biz/errno"
	"context"
	"fmt"

	"github.com/cloudwego/hertz/pkg/app"
	"github.com/cloudwego/hertz/pkg/app/middlewares/server/recovery"
	"github.com/cloudwego/hertz/pkg/common/hlog"
	"github.com/cloudwego/hertz/pkg/common/utils"
	"github.com/cloudwego/hertz/pkg/protocol/consts"
	"github.com/hertz-contrib/gzip"
	"github.com/hertz-contrib/requestid"
	"go.opentelemetry.io/otel/trace"
)

func rootMw() []app.HandlerFunc {
	// your code...
	return []app.HandlerFunc{
		// use recovery mw
		recovery.Recovery(recovery.WithRecoveryHandler(
			func(ctx context.Context, c *app.RequestContext, err interface{}, stack []byte) {
				hlog.SystemLogger().CtxErrorf(ctx, "[Recovery] err=%v\nstack=%s", err, stack)
				c.JSON(consts.StatusInternalServerError, utils.H{
					"code":    errno.ServiceErr.ErrCode,
					"message": fmt.Sprintf("[Recovery] err=%v\nstack=%s", err, stack),
				})
			},
		)),
		// use requestid mw
		requestid.New(
			requestid.WithGenerator(func(ctx context.Context, c *app.RequestContext) string {
				traceID := trace.SpanFromContext(ctx).SpanContext().TraceID().String()
				return traceID
			}),
		),
		// use gzip mw
		gzip.Gzip(gzip.DefaultCompression),
	}
}

func _douyinMw() []app.HandlerFunc {
	// your code...
	return nil
}

func _userMw() []app.HandlerFunc {
	// your code...
	return nil
}

func _checkuserMw() []app.HandlerFunc {
	// your code...
	return nil
}

func _createuserMw() []app.HandlerFunc {
	// your code...
	return nil
}

该文件在rootMw函数中添加了3个middleware，分别是recovery, requestid, gzip。recovery用户在etcd注册中心发现需要的rpc服务。requestid提供每次请求的id，方便查看日志文件。gzip是Hertz启用gzip服务的中间件。

小结

通过对api部分的深入剖析，基本明确了每个文件的用途和调用结构。但中间件部分尚不清晰，需要再阅读相关资料学习。
