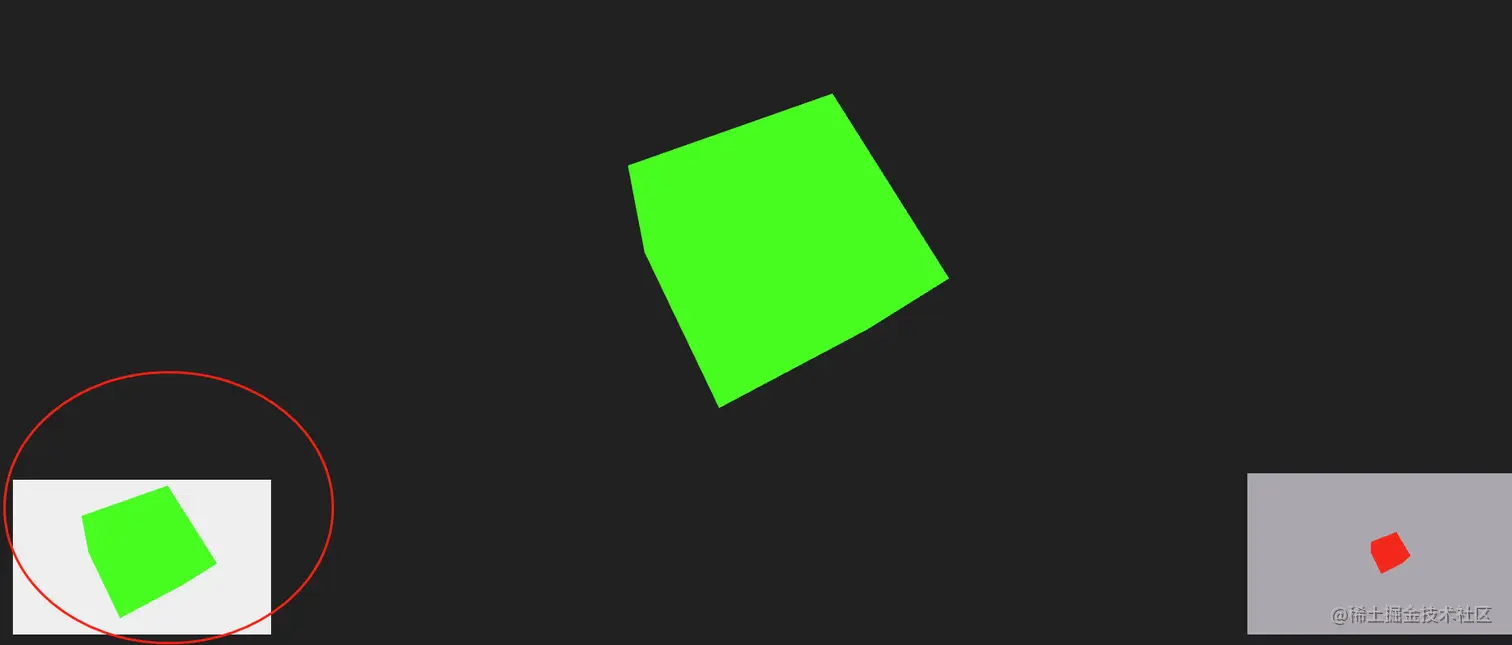

1.同步3D窗口视角(同步旋转和缩放视角)
在主的场景中，新增一个新的渲染器视口和相机（左侧窗口）,克隆赋值主相机坐标和四元数旋转；
// 左侧小窗口渲染器设置
renderer.setClearColor(0xeeeeee, 1);
renderer.clearDepth(); // 清除缓存;
renderer.setScissorTest(true);
renderer.setScissor(20, 20, insetWidth, insetHeight);
renderer.setViewport(20, 20, insetWidth, insetHeight);
// 同步相机四元数（控制旋转）
camera3.position.copy(camera.position);
camera3.quaternion.copy(camera.quaternion);
renderer.render(scene, camera3);

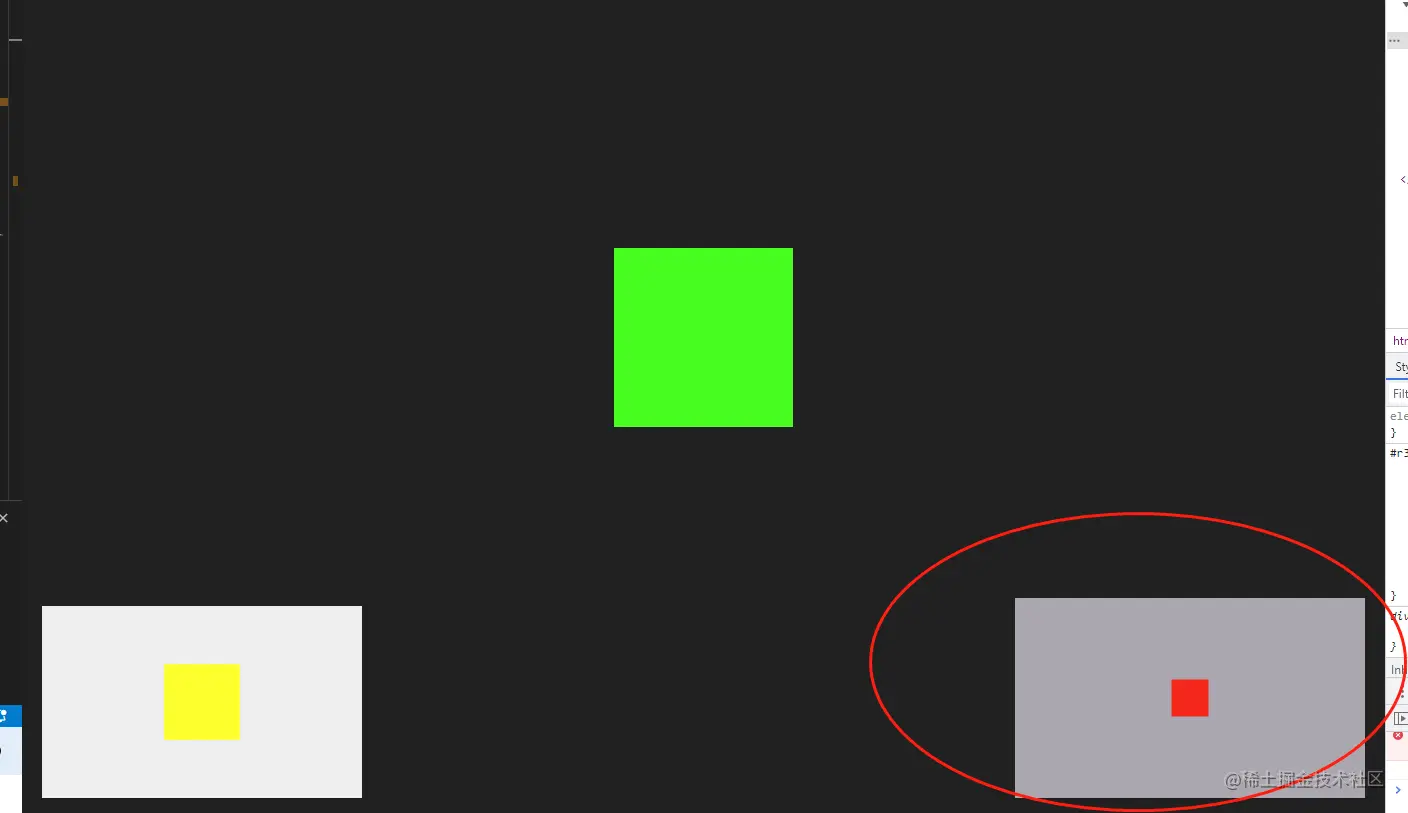

2.3D辅助方位视角（同步旋转视角，视角不跟随缩放）
在主的场景中，新增一个新的渲染器、相机（右侧窗口）、场景和控制器,克隆赋值主相机坐标和四元数旋转，调整两个相机的旋转角度和方向。
// 主场景
// renderer
threeD = document.getElementById('r3d');
renderer = new THREE.WebGLRenderer({
alpha: true,
antialias: true,
});
renderer.setSize(threeD.offsetWidth, threeD.offsetHeight);
threeD.appendChild(renderer.domElement);
// scene
scene = new THREE.Scene();
// camera
camera = new THREE.PerspectiveCamera(75, threeD.offsetWidth / threeD.offsetHeight, 0.1, 100000);
camera.position.y = 400;
camera.up.set(Math.PI / 2, 0, 0);
// 右侧窗口场景
threeD2 = document.getElementById('map');
renderer2 = new THREE.WebGLRenderer({
alpha: true,
antialias: true,
});
renderer2.setSize(threeD2.offsetWidth, threeD2.offsetHeight);
// renderer.setViewport(20, 200, window.innerWidth / 2, window.innerHeight / 2);
threeD2.appendChild(renderer2.domElement);
//矩形范围宽高都是canvas画布的二分之一 左侧偏移20 顶部偏移200
//矩形范围宽高都是canvas画布的四分之一 左侧偏移20 顶部偏移200
// scene
scene2 = new THREE.Scene();
// camera
camera2 = new THREE.PerspectiveCamera(75, threeD2.offsetWidth / threeD2.offsetHeight, 0.1, 100000);
camera2.position.z = 400;
camera2.up.set(0, 0, Math.PI / 2)
// controls
controls2 = new AMI.TrackballControl(camera2, threeD2);
controls2.noPan = true;
controls2.noRotate = true;
controls2.noZoom = true;
全部代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, user-scalable=no, minimum-scale=1.0, maximum-scale=1.0">
<title>orientation</title>
<link rel="stylesheet" type="text/css" href="demo.css">
<script type="text/javascript" src="https://use.edgefonts.net/source-code-pro.js"></script>
<script src="https://cdn.jsdelivr.net/npm/three@0.120.0/build/three.min.js"></script>
<script type="text/javascript" src="https://cdnjs.cloudflare.com/ajax/libs/ami.js/0.0.22/ami.min.js"></script>
</head>
<style>
#map {
position: absolute;
width: 350px;
height: 200px;
background: rgb(171, 167, 175);
bottom: 20px;
right: 20px;
z-index: 10;
}
</style>
<body>
<div id="my-lut-container">
<div>Transfer function<div id="my-tf" class="my-tf"></div>
</div>
</div>
<div id="r3d"></div>
<div id="map"></div>
</body>
<script>
let controls;
let threeD;
let renderer;
let camera;
let scene;
let controls2;
let threeD2;
let renderer2;
let camera2;
let scene2;
let camera3;
let scene4;
let controls4;
let insetWidth;
let insetHeight;
let objHelper = new THREE.Object3D();
let cube;
/**
* Handle window resize event
*/
function onWindowResize() {
// update the camera
// camera.aspect = threeD.offsetWidth / threeD.offsetHeight;
// camera.updateProjectionMatrix();
// notify the renderer of the size change
renderer.setSize(threeD.offsetWidth, threeD.offsetHeight);
insetWidth = window.innerHeight / 4; // square
insetHeight = window.innerHeight / 4;
camera3.aspect = insetWidth / insetHeight;
camera3.updateProjectionMatrix();
}
/**
* Init the scene
*/
function init() {
/**
* Rendering loop
*/
function animate() {
// 主窗口渲染器设置;
controls.update();
renderer.setClearColor(0x000000, 0);
renderer.setViewport(0, 0, window.innerWidth, window.innerHeight);
renderer.render(scene, camera);
// 左侧小窗口渲染器设置
renderer.setClearColor(0xeeeeee, 1);
renderer.clearDepth(); // 清除缓存;
renderer.setScissorTest(true);
renderer.setScissor(20, 20, insetWidth, insetHeight);
renderer.setViewport(20, 20, insetWidth, insetHeight);
// 同步相机四元数（控制旋转）
camera3.position.copy(camera.position);
camera3.quaternion.copy(camera.quaternion);
renderer.render(scene, camera3);
renderer.setScissorTest(false);
// ，克隆赋值主相机坐标和四元数旋转，
requestAnimationFrame(function () {
animate();
});
}
// renderer
threeD = document.getElementById('r3d');
renderer = new THREE.WebGLRenderer({
alpha: true,
antialias: true,
});
renderer.setSize(threeD.offsetWidth, threeD.offsetHeight);
threeD.appendChild(renderer.domElement);
// scene
scene = new THREE.Scene();
// camera
camera = new THREE.PerspectiveCamera(75, threeD.offsetWidth / threeD.offsetHeight, 0.1, 100000);
camera.position.y = 400;
camera.up.set(Math.PI / 2, 0, 0);
camera3 = new THREE.PerspectiveCamera(40, 1, 1, 1000);
camera3.position.copy(camera.position);
insetWidth = window.innerHeight / 3;
insetHeight = window.innerHeight / 5;
camera3.aspect = insetWidth / insetHeight;
camera3.updateProjectionMatrix();
// controls
controls = new AMI.TrackballControl(camera, threeD);
controls.rotateSpeed = 5.5;
controls.zoomSpeed = 1.2;
controls.panSpeed = 0.8;
controls.staticMoving = true;
controls.dynamicDampingFactor = 0.3;
controls4 = new AMI.TrackballControl(camera3, threeD);
controls4.noPan = true;
controls4.noRotate = true;
controls4.noZoom = true;
window.addEventListener('resize', onWindowResize, false);
animate();
const geometry = new THREE.BoxGeometry(100, 100, 100);
const material = new THREE.MeshBasicMaterial({ color: 0x00ff00 });
cube = new THREE.Mesh(geometry, material);
scene.add(cube);
const geometry4 = new THREE.BoxGeometry(100, 100, 100);
const material4 = new THREE.MeshBasicMaterial({ color: 0xffff00 });
const mesh4 = new THREE.Mesh(geometry4, material4);
scene4.add(mesh4);
init2();
}
// 开启另一个场景(右侧辅助方位);
function init2() {
/**
* Rendering loop
*/
function animate2() {
// render
controls2.update();
renderer2.render(scene2, camera2);
// 模型四元数与相机同步；
objHelper.quaternion
.copy(camera.quaternion)
.inverse();
objHelper.updateMatrixWorld();
requestAnimationFrame(function () {
animate2();
});
}
// renderer
threeD2 = document.getElementById('map');
renderer2 = new THREE.WebGLRenderer({
alpha: true,
antialias: true,
});
renderer2.setSize(threeD2.offsetWidth, threeD2.offsetHeight);
// renderer.setViewport(20, 200, window.innerWidth / 2, window.innerHeight / 2);
threeD2.appendChild(renderer2.domElement);
//矩形范围宽高都是canvas画布的二分之一 左侧偏移20 顶部偏移200
//矩形范围宽高都是canvas画布的四分之一 左侧偏移20 顶部偏移200
// scene
scene2 = new THREE.Scene();
// camera
camera2 = new THREE.PerspectiveCamera(75, threeD2.offsetWidth / threeD2.offsetHeight, 0.1, 100000);
camera2.position.z = 400;
camera2.up.set(0, 0, Math.PI / 2)
// controls
controls2 = new AMI.TrackballControl(camera2, threeD2);
controls2.noPan = true;
controls2.noRotate = true;
controls2.noZoom = true;
animate2();
const geometry = new THREE.BoxGeometry(100, 100, 100);
const material = new THREE.MeshBasicMaterial({ color: 0xff0000 });
const cube2 = new THREE.Mesh(geometry, material);
objHelper.add(cube2)
scene2.add(objHelper);
}
init();
</script>
</html>
