SortShuffleWriter

shuffle write流程：

1. 创建ExternalSorter,如果不需要mapSideCombine，把聚合函数和ordering设置为none
2. ExternalSorter插入数据
3. 对map计算结果持久化，生成一个磁盘文件，并创建索引文件
4. 创建mapstatus

SortShuffleWriter.write()

override def write(records: Iterator[Product2[K, V]]): Unit = {
  sorter = if (dep.mapSideCombine) {
    new ExternalSorter[K, V, C](
      context, dep.aggregator, Some(dep.partitioner), dep.keyOrdering, dep.serializer)
  } else {
    // In this case we pass neither an aggregator nor an ordering to the sorter, because we don't
    // care whether the keys get sorted in each partition; that will be done on the reduce side
    // if the operation being run is sortByKey.
    new ExternalSorter[K, V, V](
      context, aggregator = None, Some(dep.partitioner), ordering = None, dep.serializer)
  }
  sorter.insertAll(records)

  // Don't bother including the time to open the merged output file in the shuffle write time,
  // because it just opens a single file, so is typically too fast to measure accurately
  // (see SPARK-3570).
  val mapOutputWriter = shuffleExecutorComponents.createMapOutputWriter(
    dep.shuffleId, mapId, dep.partitioner.numPartitions)
  sorter.writePartitionedMapOutput(dep.shuffleId, mapId, mapOutputWriter)

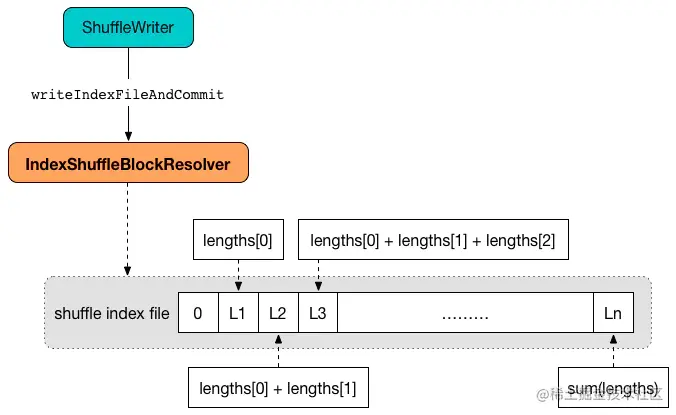

  val partitionLengths = mapOutputWriter.commitAllPartitions()//创建索引文件
  mapStatus = MapStatus(blockManager.shuffleServerId, partitionLengths, mapId)
}

ExternalSorter写入

1. 判断是否存在aggregator（根据ExternalSorter的初始化过程，其实就是判断是否需要在map端做聚合）,需要的话使用PartitionedAppendOnlyMap，否则使用PartitionedPairBuffer
2. PartitionedAppendOnlyMap：一边写入一边聚合，每次写入判断是否需要溢写磁盘
3. PartitionedPairBuffer：直接写入buffer不做聚合，每次写入判断是否需要溢写磁盘

ExternalSorter.insertAll()

def insertAll(records: Iterator[Product2[K, V]]): Unit = {
  // TODO: stop combining if we find that the reduction factor isn't high
  val shouldCombine = aggregator.isDefined

  if (shouldCombine) { //1. mapSideCombine为true
    // Combine values in-memory first using our AppendOnlyMap
    // 使用AppendOnlyMap在内存中聚合
    // 聚合函数
    val mergeValue = aggregator.get.mergeValue
    //创建聚合函数的初始值
    val createCombiner = aggregator.get.createCombiner
    var kv: Product2[K, V] = null
    //2. 偏函数，如果有值，更新，没有值，创建初始值
    val update = (hadValue: Boolean, oldValue: C) => {
      if (hadValue) mergeValue(oldValue, kv._2) else createCombiner(kv._2)
    }
    while (records.hasNext) {
      // 3. 写入map
      addElementsRead()
      kv = records.next()
      // AppendOnlyMap的changeValue方法 并进行采样
      map.changeValue((getPartition(kv._1), kv._1), update)
      // 4. 进行可能的磁盘溢出
      maybeSpillCollection(usingMap = true)
    }
  } else {
    // Stick values into our buffer
    while (records.hasNext) {
      addElementsRead()
      val kv = records.next()
      buffer.insert(getPartition(kv._1), kv._1, kv._2.asInstanceOf[C])
      maybeSpillCollection(usingMap = false)
    }
  }
}

写时聚合

PartitionedAppendOnlyMap调用父类SizeTrackingAppendOnlyMap的changeValue方法，聚合计算的同时对AppendOnlyMap大小进行采样

override def changeValue(key: K, updateFunc: (Boolean, V) => V): V = {
//1. 调用父类AppendOnlyMap的changeValue函数，应用缓存聚合算法。
  val newValue = super.changeValue(key, updateFunc)
//2. 调用继承特质SizeTracker的afterUpdate函数，增加对AppendOnlyMap大小的采样。
  super.afterUpdate()
  newValue
}

聚合算法

1. 存储结构：把key value存在数组中，key0, value0, key1, value1, key2, value2,对于计算出的pos,2pos存key,2pos+1存value。
2. 如果有值，使用aggeragtor的mergeValue: (C, V) => C进行更新,没有值，创建初始值createCombiner: V => C
3. 解决哈希冲突的方法：使用平方探测法（或者二次探测法）解决哈希冲突，随着寻址次数的增加而增加偏移量，为了减少寻址次数。实现上和标准的平方探测法有所不同，考虑了标准情况下map扩容太快的问题，这个实现在别的项目中也可以借鉴。
   • 普通二次探测法（en.wikipedia.org/wiki/Quadra…
   • AppendOnlyMap使用的二次探测法：pos+1 pos+3 pos+6 pos+10…

//1. 聚合函数
val mergeValue = aggregator.get.mergeValue
//2. 创建聚合函数的初始值
val createCombiner = aggregator.get.createCombiner
var kv: Product2[K, V] = null
//3. 偏函数，如果有值，更新，没有值，创建初始值
val update = (hadValue: Boolean, oldValue: C) => {
  if (hadValue) mergeValue(oldValue, kv._2) else createCombiner(kv._2)
}

AppendOnlyMap.changeValue()

  /**
   * Set the value for key to updateFunc(hadValue, oldValue), where oldValue will be the old value
   * for key, if any, or null otherwise. Returns the newly updated value.
   */
  def changeValue(key: K, updateFunc: (Boolean, V) => V): V = {
    assert(!destroyed, destructionMessage)
    val k = key.asInstanceOf[AnyRef]
    if (k.eq(null)) {
      if (!haveNullValue) {
        incrementSize()
      }
      nullValue = updateFunc(haveNullValue, nullValue)
      haveNullValue = true
      return nullValue
    }
    var pos = rehash(k.hashCode) & mask
    var i = 1
    while (true) {
      val curKey = data(2 * pos)
      if (curKey.eq(null)) {
        val newValue = updateFunc(false, null.asInstanceOf[V])
        data(2 * pos) = k
        data(2 * pos + 1) = newValue.asInstanceOf[AnyRef]
        incrementSize()
        return newValue
      } else if (k.eq(curKey) || k.equals(curKey)) {
        val newValue = updateFunc(true, data(2 * pos + 1).asInstanceOf[V])
        data(2 * pos + 1) = newValue.asInstanceOf[AnyRef]
        return newValue
      } else {
        val delta = i
        pos = (pos + delta) & mask
        i += 1
      }
    }
    null.asInstanceOf[V] // Never reached but needed to keep compiler happy
  }

估算map大小

AppendOnlyMap大小不可能无限增长，需要对大小进行限制，但是我们不可能每次更新完之后计算它的大小，会严重影响Spark的性能，Spark采用采样并对AppendOnlyMap未来大小进行估算的方式。

1. map大小采样
   • 当达到采样间隔 nextSampleNum == numUpdates 时，进行采样。
   • 采样步骤：
     1. 估算AppendOnlyMap所占的内存并且与当前编号（numUpdates）一起作为样本数据写入到samples＝new mutable.Queue[Sample]中。
     2. 如果当前采样数量大于2，则使samples执行一次出队操作，保证样本总数等于2。
     3. 计算每次更新增加的大小，公式如下：
        如果样本数小于2，那么bytesPerUpdate＝0。
     4. 计算下次采样的间隔nextSampleNum。

SizeTracker.afterUpdate()

protected def afterUpdate(): Unit = {
  numUpdates += 1
  if (nextSampleNum == numUpdates) {
    takeSample()
  }
}

SizeTracker.takeSample()

private def takeSample(): Unit = {
  samples.enqueue(Sample(SizeEstimator.estimate(this), numUpdates))
  // Only use the last two samples to extrapolate
  if (samples.size > 2) {
    samples.dequeue()
  }
  val bytesDelta = samples.toList.reverse match {
    case latest :: previous :: tail =>
      (latest.size - previous.size).toDouble / (latest.numUpdates - previous.numUpdates)
    // If fewer than 2 samples, assume no change
    case _ => 0
  }
  bytesPerUpdate = math.max(0, bytesDelta)
  nextSampleNum = math.ceil(numUpdates * SAMPLE_GROWTH_RATE).toLong
}

2. map大小估算
   SizeEstimator.estimate估算一个class大小，首先添加类的全部 shellSize，即内部变量大小，随后对于所有带有引用的对象，也会压入队列进行递归的计算，直到队列清空。

blog.csdn.net/BIT_666/art…

这种采样再估算大小的方式，可以有效利用内存，不必设定缓存大小而是根据内存动态调整，这种做法值得借鉴。

溢写磁盘

  private def maybeSpillCollection(usingMap: Boolean): Unit = {
    var estimatedSize = 0L
    if (usingMap) {//如果使用aggregator 对PartitionedAppendOnlyMap的大小进行估算
      estimatedSize = map.estimateSize()
      //溢出到磁盘
      if (maybeSpill(map, estimatedSize)) {
        //新建map
        map = new PartitionedAppendOnlyMap[K, C]
      }
    } else {
      estimatedSize = buffer.estimateSize()
      if (maybeSpill(buffer, estimatedSize)) {
        buffer = new PartitionedPairBuffer[K, C]
      }
    }
//更新ExternalSorter已经使用的内存大小的峰值
    if (estimatedSize > _peakMemoryUsedBytes) {
      _peakMemoryUsedBytes = estimatedSize
    }
  }

1. 判断是否溢出
   首先对 map 的大小进行估算，根据之前采样得到的每次更新大小估算 map 大小。当需要估算的内存大小大于等于之前申请到的内存大小，尝试获取内存，大小为2 * currentMemory - myMemoryThreshold。如果申请到的内存小于估算出来的内存溢出

protected def maybeSpill(collection: C, currentMemory: Long): Boolean = {
  var shouldSpill = false
  // 如果当前集合已经读取的元素数量是32的倍数，且集合当前的内存大小大于等于myMemoryThreshold
  if (elementsRead % 32 == 0 && currentMemory >= myMemoryThreshold) {
    // Claim up to double our current memory from the shuffle memory pool
    val amountToRequest = 2 * currentMemory - myMemoryThreshold
    val granted = acquireMemory(amountToRequest)
    myMemoryThreshold += granted
    // If we were granted too little memory to grow further (either tryToAcquire returned 0,
    // or we already had more memory than myMemoryThreshold), spill the current collection内存不够溢出
    shouldSpill = currentMemory >= myMemoryThreshold
  }
  shouldSpill = shouldSpill || _elementsRead > numElementsForceSpillThreshold
  // Actually spill
  if (shouldSpill) {
    _spillCount += 1
    logSpillage(currentMemory)
    spill(collection)
    _elementsRead = 0
    _memoryBytesSpilled += currentMemory
    releaseMemory()
  }
  shouldSpill
}

2. 溢出

override protected[this] def spill(collection: WritablePartitionedPairCollection[K, C]): Unit = {
  val inMemoryIterator = collection.destructiveSortedWritablePartitionedIterator(comparator)
  val spillFile = spillMemoryIteratorToDisk(inMemoryIterator)
  spills += spillFile
}

• 溢出磁盘的过程中会进行排序，比较器为：
  1. 如果定义了 ordering 或 aggregator（且有 mapSideCombine）
     • 有 ordering,先根据分区ID排序，再按照 ordering 排序
     • 没有 ordering，先按照分区ID排序，再按照 key 的 hashcode 排序
  2. 无定义（且没有 mapSideCombine）
     • 按照分区ID排序

def partitionedDestructiveSortedIterator(keyComparator: Option[Comparator[K]])
  : Iterator[((Int, K), V)] = {
  val comparator = keyComparator.map(partitionKeyComparator).getOrElse(partitionComparator)
  destructiveSortedIterator(comparator)
}

• 之后生成新的迭代器：
  1. 将 data 数组向左整理排列。
  2. 利用 Sorter、KVArraySortDataFormat 以及指定的比较器进行排序。这其中用到了 TimSort，也就是优化版的归并排序。
  3. 生成新的迭代器。

def destructiveSortedIterator(keyComparator: Comparator[K]): Iterator[(K, V)] = {
  destroyed = true
  // Pack KV pairs into the front of the underlying array
  var keyIndex, newIndex = 0
  while (keyIndex < capacity) {
    if (data(2 * keyIndex) != null) {
      data(2 * newIndex) = data(2 * keyIndex)
      data(2 * newIndex + 1) = data(2 * keyIndex + 1)
      newIndex += 1
    }
    keyIndex += 1
  }
  assert(curSize == newIndex + (if (haveNullValue) 1 else 0))

  new Sorter(new KVArraySortDataFormat[K, AnyRef]).sort(data, 0, newIndex, keyComparator)

  new Iterator[(K, V)] {
    var i = 0
    var nullValueReady = haveNullValue
    def hasNext: Boolean = (i < newIndex || nullValueReady)
    def next(): (K, V) = {
      if (nullValueReady) {
        nullValueReady = false
        (null.asInstanceOf[K], nullValue)
      } else {
        val item = (data(2 * i).asInstanceOf[K], data(2 * i + 1).asInstanceOf[V])
        i += 1
        item
      }
    }
  }
}

• 溢写磁盘 创建临时文件，默认情况每写10000条进行一次刷盘操作。

持久化计算结果

将临时文件和内存中的数据写入最终的输出文件中

• 未溢写磁盘 先在内存中排序，之后为每个partition创建一个Block文件，为每个Block文件生成一个partitionWriter，写入这些临时Block文件中。
• 有溢写磁盘，获取分区迭代器，进行merge,之后进行写入操作，和上面相同。

merge

1. 为每个 spilled file 创建 SpillReader
2. 为 inMemory 数据创建缓冲迭代器
3. 遍历每个分区，将两个迭代器合并拿到分区迭代器之后进行mergeSort
   • 为 inMermory 创建分区迭代器，将两个迭代器合并为Seq[Iterator[Product2[K, C]]]
   • 如果需要聚合，在mergeSort之后进行聚合
   • 不需要聚合，按照order进行mergeSort
   • 都不需要，直接取出K,V生成iterator

ExternalSorter.merge()

private def merge(spills: Seq[SpilledFile], inMemory: Iterator[((Int, K), C)])
    : Iterator[(Int, Iterator[Product2[K, C]])] = {
  val readers = spills.map(new SpillReader(_))
  val inMemBuffered = inMemory.buffered
  (0 until numPartitions).iterator.map { p =>
    val inMemIterator = new IteratorForPartition(p, inMemBuffered)
    val iterators = readers.map(_.readNextPartition()) ++ Seq(inMemIterator)
    if (aggregator.isDefined) {
      // Perform partial aggregation across partitions
      (p, mergeWithAggregation(
        iterators, aggregator.get.mergeCombiners, keyComparator, ordering.isDefined))
    } else if (ordering.isDefined) {
      // No aggregator given, but we have an ordering (e.g. used by reduce tasks in sortByKey);
      // sort the elements without trying to merge them
      (p, mergeSort(iterators, ordering.get))
    } else {
      (p, iterators.iterator.flatten)
    }
  }
}

mergeSort

首先明确每一个iterator中的数据都是有序的。
对多个有序的 iterator 进行排序：

1. 创建一个优先队列（堆），每个iterator入队后，对iterator的头数据，按照我们的comparator进行排序。
2. 返回一个迭代器，在next方法中，出队的就是第一个iterator的下一个元素，也是所有iterator中的最小值。如果这个iterator还有值，继续加入堆，这时仍然按照第一个值排序。这样每次获取的都是多个iterator中的最小值。

该方法可对多个有序的iterator进行排序，在别的项目中也可借鉴。
ExternalSorter.mergeSort()

private def mergeSort(iterators: Seq[Iterator[Product2[K, C]]], comparator: Comparator[K])
    : Iterator[Product2[K, C]] = {
  val bufferedIters = iterators.filter(_.hasNext).map(_.buffered)
  type Iter = BufferedIterator[Product2[K, C]]
  // Use the reverse order (compare(y,x)) because PriorityQueue dequeues the max
  val heap = new mutable.PriorityQueue[Iter]()(
    (x: Iter, y: Iter) => comparator.compare(y.head._1, x.head._1))
  heap.enqueue(bufferedIters: _*)  // Will contain only the iterators with hasNext = true
  new Iterator[Product2[K, C]] {
    override def hasNext: Boolean = heap.nonEmpty

    override def next(): Product2[K, C] = {
      if (!hasNext) {
        throw new NoSuchElementException
      }
      val firstBuf = heap.dequeue()
      val firstPair = firstBuf.next()
      if (firstBuf.hasNext) {
        heap.enqueue(firstBuf)
      }
      firstPair
    }
  }
}

聚合计算

1. 没有定义排序器： 首先进行mergeSort拿到按照comparator排序好的迭代器，但是由于没有定义order,在单个分区内是按照key的hashcode进行排序的，所以会有 hashcode 相同的 key（partial ordering），把 key 放入 keys 数组中，使用while循环遍历所有hash值相同的key，当有相同 key 时进行聚合，把聚合值放在 combiner 数组中。

External.mergeWithAggregation()

val it = new Iterator[Iterator[Product2[K, C]]] {
  val sorted = mergeSort(iterators, comparator).buffered

  // Buffers reused across elements to decrease memory allocation
  val keys = new ArrayBuffer[K]
  val combiners = new ArrayBuffer[C]

  override def hasNext: Boolean = sorted.hasNext

  override def next(): Iterator[Product2[K, C]] = {
    if (!hasNext) {
      throw new NoSuchElementException
    }
    keys.clear()
    combiners.clear()
    val firstPair = sorted.next()
    keys += firstPair._1
    combiners += firstPair._2
    val key = firstPair._1
    while (sorted.hasNext && comparator.compare(sorted.head._1, key) == 0) {
      val pair = sorted.next()
      var i = 0
      var foundKey = false
      while (i < keys.size && !foundKey) {
        if (keys(i) == pair._1) {
          combiners(i) = mergeCombiners(combiners(i), pair._2)
          foundKey = true
        }
        i += 1
      }
      if (!foundKey) {
        keys += pair._1
        combiners += pair._2
      }
    }

    // Note that we return an iterator of elements since we could've had many keys marked
    // equal by the partial order; we flatten this below to get a flat iterator of (K, C).
    keys.iterator.zip(combiners.iterator)
  }
}
it.flatten

2. 定义了排序：全排序，key 是有序的，直接把相同的 key 进行聚合

External.mergeWithAggregation()

new Iterator[Product2[K, C]] {
  val sorted = mergeSort(iterators, comparator).buffered

  override def hasNext: Boolean = sorted.hasNext

  override def next(): Product2[K, C] = {
    if (!hasNext) {
      throw new NoSuchElementException
    }
    val elem = sorted.next()
    val k = elem._1
    var c = elem._2
    while (sorted.hasNext && sorted.head._1 == k) {
      val pair = sorted.next()
      c = mergeCombiners(c, pair._2)
    }
    (k, c)
  }
}

创建索引文件

在每个 partition 数据写完调用close方法时，会把每个 block 的大小保存到long[] partitionLengths中
PartitionWriterStream.close()

public void close() {
  isClosed = true;
  partitionLengths[partitionId] = count;
  bytesWrittenToMergedFile += count;
}

之后创建索引文件，把 block 大小转成 offset 保存到索引文件中。 LocalDiskShuffleMapOutputWriter.commitAllPartitions()

blockResolver.writeIndexFileAndCommit(shuffleId, mapId, partitionLengths, resolvedTmp);

var offset = 0L
out.writeLong(offset)
for (length <- lengths) {
  offset += length
  out.writeLong(offset)
}

过程如图所示：

map任务状态传递

ByPassMergeSortShuffleWriter

ByPassMergeSortShuffleWriter首先获取reduce个数个DiskWriter,每个reduce对应一个文件，之后合并为一个文件并生成索引文件。在进行文件合并时，默认使用NIO进行字节流的copy。相比SortShuffleWriter，不需要进行排序和聚合操作，并且在文件合并时少了序列化反序列化的开销。

public void write(Iterator<Product2<K, V>> records) throws IOException {
  assert (partitionWriters == null);
  ShuffleMapOutputWriter mapOutputWriter = shuffleExecutorComponents
      .createMapOutputWriter(shuffleId, mapId, numPartitions);
  try {
    if (!records.hasNext()) {
      partitionLengths = mapOutputWriter.commitAllPartitions();
      mapStatus = MapStatus$.MODULE$.apply(
        blockManager.shuffleServerId(), partitionLengths, mapId);
      return;
    }
    final SerializerInstance serInstance = serializer.newInstance();
    final long openStartTime = System.nanoTime();
    //1. 获取reduce个数个diskWriter
    partitionWriters = new DiskBlockObjectWriter[numPartitions];
    partitionWriterSegments = new FileSegment[numPartitions];
    for (int i = 0; i < numPartitions; i++) {
      final Tuple2<TempShuffleBlockId, File> tempShuffleBlockIdPlusFile =
          blockManager.diskBlockManager().createTempShuffleBlock();
      final File file = tempShuffleBlockIdPlusFile._2();
      final BlockId blockId = tempShuffleBlockIdPlusFile._1();
      partitionWriters[i] =
          blockManager.getDiskWriter(blockId, file, serInstance, fileBufferSize, writeMetrics);
    }
    // Creating the file to write to and creating a disk writer both involve interacting with
    // the disk, and can take a long time in aggregate when we open many files, so should be
    // included in the shuffle write time.
    writeMetrics.incWriteTime(System.nanoTime() - openStartTime);
    //2. 数据迭代写入
    while (records.hasNext()) {
      final Product2<K, V> record = records.next();
      final K key = record._1();
      //通过partitioner判断在哪个分区
      partitionWriters[partitioner.getPartition(key)].write(key, record._2());
    }

    for (int i = 0; i < numPartitions; i++) {
      try (DiskBlockObjectWriter writer = partitionWriters[i]) {
        partitionWriterSegments[i] = writer.commitAndGet();
      }
    }
    //3. 把每个分区的文件为一个文件，并生成索引文件
    partitionLengths = writePartitionedData(mapOutputWriter);
    mapStatus = MapStatus$.MODULE$.apply(
      blockManager.shuffleServerId(), partitionLengths, mapId);
  } catch (Exception e) {
    try {
      mapOutputWriter.abort(e);
    } catch (Exception e2) {
      logger.error("Failed to abort the writer after failing to write map output.", e2);
      e.addSuppressed(e2);
    }
    throw e;
  }
}
