flex布局 UI同学都说了真不错

157 阅读1分钟

flex:1表示什么

{
  flex-grow:1;
  flex-shrink:1;
  flex-basis:0% // 设置了flex-grow和flex-grow这种情况下是无效的
}
  • flex-grow 分配剩余空间给设置flex-grow的dom元素

    只有一个子元素的情况下

    flex-grow:0 , 不进行任何分配。

    flex-grow:1,把所有的剩余空间分配给该元素。

    flex-grow: 0.5 , 把剩余空间的1/2分配给该元素。

    flex-grow: 2或者3,和flex:1的效果是一样的。

    flex-grow:设置负数无效。

  • flex-shrink

    flex-shrink: 1; 默认就是1,把溢出部分全部收缩。

    flex-shrink: 0; 保持溢出。

    flex-shrink:0.5 把溢出的部分搜索0.5倍。

    flex-shrink: 2或者3 :效果和设置1没有区别

  • flex-basis

    flex-basis设置宽度。

    width设置宽度和flex-basis的区别?

    width只能设置横向宽度。

    flex-basis会根据flex-direction改变,如果是默认的row,basis就是子元素的宽度,如果是column就会变成子元素的高度。

  • calc() 函数用于动态计算长度值

    1. 运算符前后都需要保留一个空格,例如:width: calc(100% - 10px);

    2. 任何长度值都可以使用calc()函数进行计算;

    3. calc()函数支持 "+", "-", "*", "/" 运算;

    4. calc()函数使用标准的数学运算优先级规则;

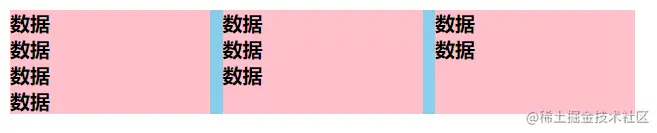

等高布局
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>等高布局</title>
    <style>
        .main{
            width: 500px;
            background: skyblue;
            overflow: hidden;
            display: flex;
        }
        .main div{
            margin-right: 10px;
            background: palevioletred;
            flex: 1;
        }
        .main div:last-child{
            margin-right: 0;
        }

    </style>
</head>
<body>
    <div class="main">
        <div class="cols1">
            <div>数据</div>
            <div>数据</div>
            <div>数据</div>
            <div>数据</div>
        </div>
        <div class="cols2">
            <div>数据</div>
            <div>数据</div>
            <div>数据</div>
        </div>
        <div class="cols3">
            <div>数据</div>
            <div>数据</div>
        </div>
    </div>
</body>
</html>

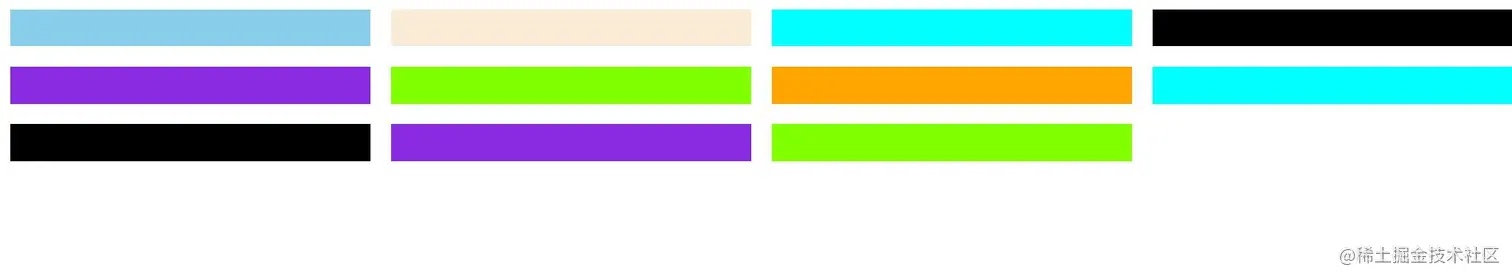

一行多个文本

<div style="display: flex; justify-content: space-between; flex-wrap: wrap; ">
    <div class="item" style="background-color: skyblue;"></div>
    <div class="item" style="background-color: antiquewhite;"></div>
    <div class="item" style="background-color: aqua;"></div>
    <div class="item" style="background-color: black;"></div>
    <div class="item" style="background-color: blueviolet;"></div>
    <div class="item" style="background-color: chartreuse;"></div>
    <div class="item" style="background-color: orange;"></div>
    <div class="item" style="background-color: aqua;"></div>
    <div class="item" style="background-color: black;"></div>
    <div class="item" style="background-color: blueviolet;"></div>
    <div class="item" style="background-color: chartreuse;"></div>
</div>

<style>
    .item{
      color: black;
      flex: 0 0 24%;
      height: 30px;
      text-align:center;
      line-height:30px;
      background-color: white;
      margin-right: calc(4% / 3);
      margin-bottom: calc(4% / 3);
    }
    /* 去除每行尾的多余边距 */
    .item:nth-child(4n){
      margin-right: 0;
    }
    /* 使最后一个元素的边距填满剩余空间 */
    .item:last-child{
      margin-right: auto;
    }

</style>
