windicss的安装和基本使用方法 | 青训营笔记

723 阅读3分钟

这是我参与「第五届青训营 」伴学笔记创作活动的第 五 天

1. 安装 npm install windicss -D

2. 在 package.json 文件中的 script 字段,我们新增如下字段:

  "scripts": {
    "windicss:help": "windicss --help",
    "windicss:init": "windicss --init . --compile",
    "windicss:build": "windicss ./index.html -to windi-acss.css"
  },

3. 初始化命令:npm run windicss:init

项目根目录将会新增三个文件:

├── index.html 新增的

├── index.windi.html 新增的

├── package.json

└── windi.css 新增的

4. 在index.html中 <link rel="stylesheet" href="windi.css">改为windi.css => windi-acss.css

5. 运行:npm run windicss:build

这个命令会根据 HTML 的类名生成对应的 CSS

├── index.html

├── index.windi.html

├── package.json

├── windi-acss.css 新增的

└── windi.css

6. 运行html,能正常显示

7. 增加热更新

  "scripts": {
   "windicss:watch": "windicss ./src/index.html -dto ./src/windi-acss.css"
  },

windicss:watch 命令添加了 -d 参数,开启开发环境下的热更新功能

调整目录结构为:


8. 使用windi

  1. bg-gray-100代表background-color为一个较浅的灰色。
  2. flex代表设置了display:flex布局。
  3. justify-center代表justify-content:center,定义了项目在主轴上的对齐方式为居中对齐。
  4. items-center代表align-items:center,定义项目在交叉轴上的对齐方式为居中对齐。
  5. min-h-screen 代表min-height: 100vh;元素最小高度为100vh。
  6. text-pink-600代表文本颜色为深粉色。
  7. text-5xl代表字体大小。
<!DOCTYPE html>
  <html lang="en">

  <head>
      <meta charset="UTF-8">
      <meta name="viewport" content="width=device-width, initial-scale=1.0">
      <title>WindiCSS-study</title>
      <link rel="stylesheet" href="windi-acss.css">
  </head>

  <body class="bg-gray-100">
      <section class="flex justify-center  items-center min-h-screen text-pink-600 text-5xl">Hello WindiCSS!</section>
  </body>
  </html>

npm run windicss:watch后再运行html文件。

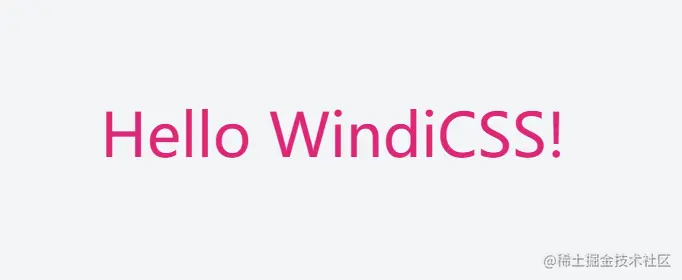

实现效果如下:


1. 案例

接下来我们简单实战一下:实现一个带有hover效果的按钮效果。

  1. w-40 h-10创建一个宽40px,高10px的超链接。
  2. bg-green-500代表background-color为一个较深的绿色。
  3. inline-block这个很重要,由于<a>标签是一个行内标签,宽高效果需要先将<a>标签变为行内块元素才能生效。
  4. text-center代表文本居中。
  5. text-white代表文本颜色为白色。
  6. loading-10代表行高为10,即2.5rem
  7. rounded-2xl代表圆角边框。
  8. hover:bg-green-200代表鼠标悬浮时,background-color变为一个较浅的绿色。
<!-- 1.用长宽 -->
<a href="" class="w-40 h-10 bg-green-500 inline-block
  text-center text-white loading-10 rounded-2xl hover:bg-green-200">提交</a>

也可以用内边距构造。

  1. px-8``paddingx轴上的距离,以px为单位。
  2. py-1``paddingy轴上的距离,以px为单位。
<!-- 2.用内边距 -->
<a href="" class="px-8 py-1 bg-green-500 inline-block
  text-center text-white rounded-2xl hover:bg-green-200">提交1</a>

实现效果如下:

image.png image.png

案例2

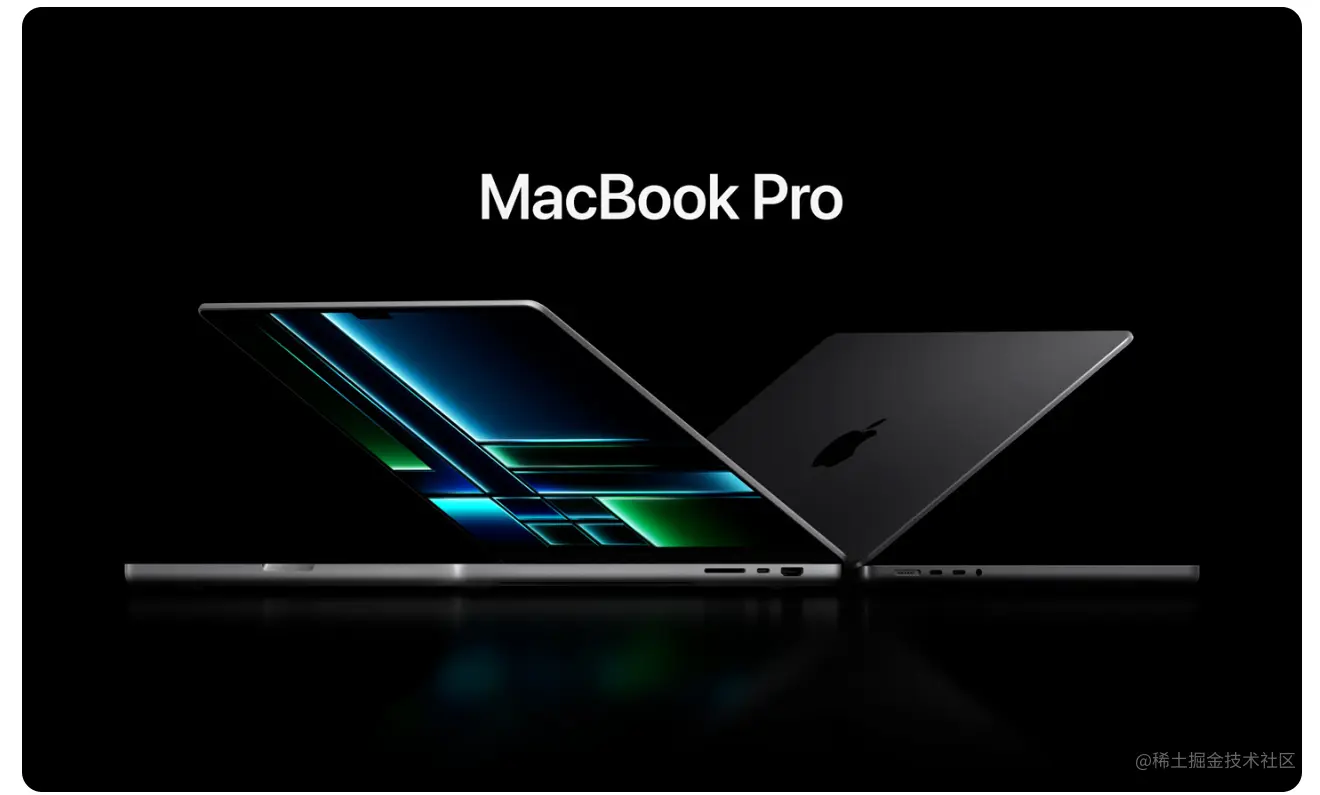

下面例子实现了仿苹果的页面。

下部的4个div能够在大屏时一行4个排列,中屏是一行2个排列,小屏时竖向排列

<div class="container mx-auto my-4">
  <img src="https://www.apple.com.cn/v/macbook-pro-14-and-16/d/images/overview/hero/hero_intro__cww8m2vra4uq_large.jpg" alt="" class="rounded-2xl" />

  <div class="my-8 overflow-hidden rounded-2xl border shadow-lg sm:flex sm:flex-wrap">
    <div class="group border-b p-6 hover:bg-gray-800 sm:w-1/2 sm:border-r md:w-1/4 md:border-b-0">
      <h2 class="text-xl font-bold mb-2 group-hover:text-white">行走的突破力</h2>
      <p class="text-gray-500 group-hover:text-white">有了 M2 Pro 或 M2 Max 芯片的强势驱动,MacBook Pro 的动力和能效再创巅峰。无论是接电源还是用电池,它都同样火力全开,而且电池续航还更持久。炫目的 Liquid 视网膜 XDR 屏,和你常用的一众强大端口,也都集结完毕。一款卓尔不凡的专业级笔记本电脑</p>
    </div>
    <div class="group border-b p-6 hover:bg-gray-800 sm:w-1/2 md:w-1/4 md:border-r md:border-b-0">
      <h2 class="text-xl font-bold mb-2 group-hover:text-white">行走的突破力</h2>
      <p class="text-gray-500 group-hover:text-white">有了 M2 Pro 或 M2 Max 芯片的强势驱动,MacBook Pro 的动力和能效再创巅峰。无论是接电源还是用电池,它都同样火力全开,而且电池续航还更持久。炫目的 Liquid 视网膜 XDR 屏,和你常用的一众强大端口,也都集结完毕。一款卓尔不凡的专业级笔记本电脑</p>
    </div>
    <div class="group border-b p-6 hover:bg-gray-800 sm:w-1/2 sm:border-r sm:border-b-0 md:w-1/4">
      <h2 class="text-xl font-bold mb-2 group-hover:text-white">行走的突破力</h2>
      <p class="text-gray-500 group-hover:text-white">有了 M2 Pro 或 M2 Max 芯片的强势驱动,MacBook Pro 的动力和能效再创巅峰。无论是接电源还是用电池,它都同样火力全开,而且电池续航还更持久。炫目的 Liquid 视网膜 XDR 屏,和你常用的一众强大端口,也都集结完毕。一款卓尔不凡的专业级笔记本电脑</p>
    </div>
    <div class="group border-b p-6 hover:bg-gray-800 sm:w-1/2 md:w-1/4">
      <h2 class="text-xl font-bold mb-2 group-hover:text-white">行走的突破力</h2>
      <p class="text-gray-500 group-hover:text-white">有了 M2 Pro 或 M2 Max 芯片的强势驱动,MacBook Pro 的动力和能效再创巅峰。无论是接电源还是用电池,它都同样火力全开,而且电池续航还更持久。炫目的 Liquid 视网膜 XDR 屏,和你常用的一众强大端口,也都集结完毕。一款卓尔不凡的专业级笔记本电脑</p>
    </div>
  </div>
</div>

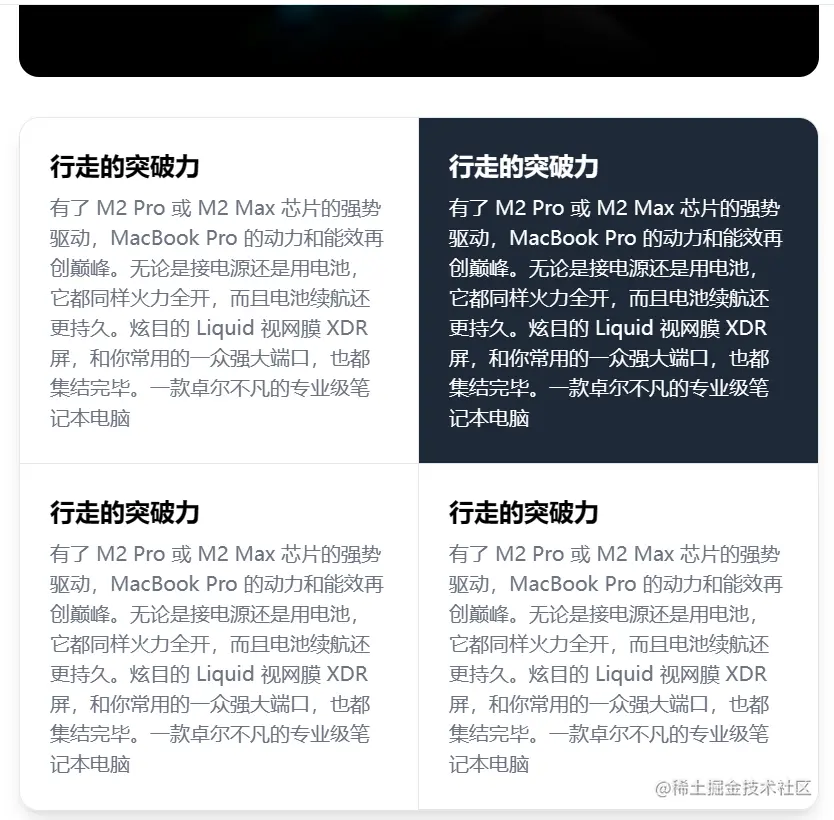

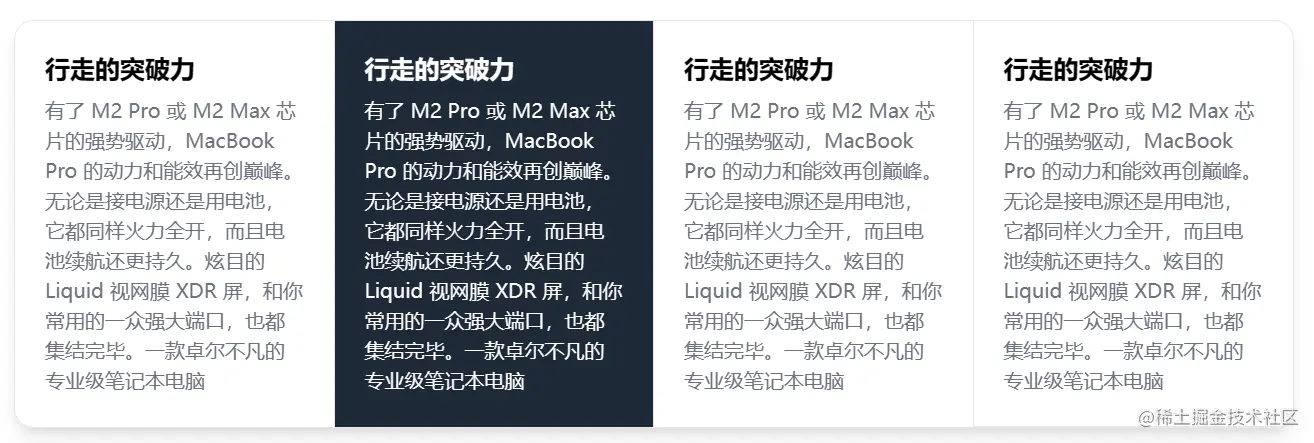

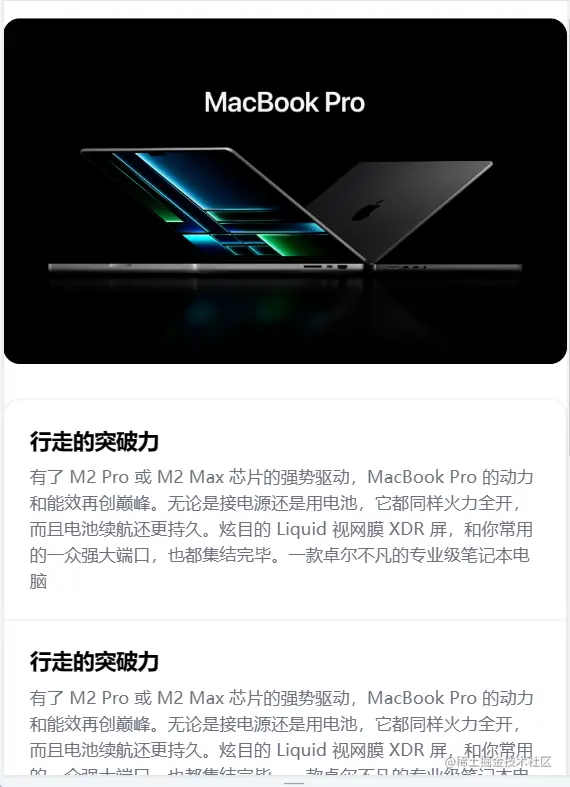

实现效果:

  • 大屏 image.png

image.png -中屏


  • 小屏
