准备系列-Mybatis(三) TKmybatis-springboot 项目集成使用

开启掘金成长之旅！这是我参与「掘金日新计划 · 2 月更文挑战」的第 3 天，点击查看活动详情

1.如何使用TKMybatis

经过上两篇文章，我们大致的介绍了 TKmybatis的配置如何与spring boot项目使用配置 我们也能够使用generator来简化SQL操作了，通过generator我们可以生成Mapper文件，xml文件及UserInfoPO文件 今天我们开始 实战，介绍具体的操作

1.1 启动项目

首先我们要启动项目，application-properteis 中还缺少一部分配置Druid数据库连接池的信息 application-properties 配置druid配置

server.port=8800

#Druid db链接配置
# 数据库地址
spring.datasource.druid.url=jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=false&allowPublicKeyRetrieval=true
# 数据库用户名
spring.datasource.druid.username=root
# 数据库密码
spring.datasource.druid.password=xxx
# 数据库连接池最大值
spring.datasource.druid.max-active=20
# 数据库连接池初始值
spring.datasource.druid.initial-size=5
# 数据库连接池最小空闲值
spring.datasource.druid.min-idle=5
# 池中空闲连接大于minIdle且连接空闲时间大于该值，则关闭该连接，单位毫秒(5分钟，默认30分钟)
spring.datasource.druid.min-evictable-idle-time-millis=300000
# 获取连接时最大等待时间，单位毫秒(1分钟)
spring.datasource.druid.max-wait=60000
# 检测连接是否有效时执行的sql命令
spring.datasource.druid.validation-query=select 1
# 借用连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能
spring.datasource.druid.test-on-borrow=false
# 归还连接时执行validationQuery检测连接是否有效，做了这个配置会降低性能
spring.datasource.druid.test-on-return=false
# 连接空闲时检测，如果连接空闲时间大于timeBetweenEvictionRunsMillis指定的毫秒，执行validationQuery指定的SQL来检测连接是否有效
spring.datasource.druid.test-while-idle=true
# 空闲连接检查、废弃连接清理、空闲连接池大小调整的操作时间间隔，单位是毫秒(1分钟)
spring.datasource.druid.time-between-eviction-runs-millis=60000

#开发环境打印 SQL日志
mybatis.configuration.log-impl=org.apache.ibatis.logging.stdout.StdOutImpl

1.2 DataSourceConfiguration 配置注入spring管理

package com.jzj.tdmybatis.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

@Configuration
public class DataSourceConfiguration {

    @ConfigurationProperties(prefix = "spring.datasource.druid")
    @Bean
    public DataSource dataSource(){
        return new DruidDataSource();
    }
}

2.测试类信息

2.1 TestController 测试

用于 测试 db链接及mapper文件是否生效

package com.jzj.tdmybatis.controller;

import com.jzj.tdmybatis.service.IUserService;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @ClassName TestController
 * @Description
 * @Author jiazijie
 * @Date 2023/2/2 22:05
 */
@RestController
public class TestController {


    @Resource
    private IUserService userService;

    /**
     * 探活接口
     */
    @RequestMapping("/temp/ping")
    @ResponseBody
    public Object ping() {

        return "pong";
    }


    /**
     * 探活接口
     */
    @RequestMapping("/temp/user")
    @ResponseBody
    public Object user(String id) {

        return userService.getUser("11");
    }


}

2.2 服务类Service 用户服务

接口

package com.jzj.tdmybatis.service;

import com.jzj.tdmybatis.domain.po.UserInfoPO;

import java.util.List;

public interface IUserService {


    UserInfoPO getUser(String userid);


    void insertUser(UserInfoPO userInfoPO);


    void batchInsert(List<UserInfoPO> userInfoPOList);


    void updateUser(UserInfoPO userInfoPO);


    void batchUpdate(List<UserInfoPO> userInfoPOList);


    void deleteUser(String userid);
}

实现类

package com.jzj.tdmybatis.service.impl;

import com.jzj.tdmybatis.domain.po.UserInfoPO;
import com.jzj.tdmybatis.repository.mapper.UserInfoMapper;
import com.jzj.tdmybatis.service.IUserService;
import org.springframework.stereotype.Service;
import tk.mybatis.mapper.entity.Example;

import javax.annotation.Resource;
import java.util.List;

/**
 * @ClassName UserServiceImpl
 * @Description
 * @Author jiazijie
 * @Date 2023/2/2 21:25
 */
@Service
public class UserServiceImpl implements IUserService {

    @Resource
    private UserInfoMapper mapper;

    @Override
    public UserInfoPO getUser(String userid) {
        Example example = new Example(UserInfoPO.class);

        Example.Criteria criteria = example.createCriteria();
        //userPO 中有 companyId字段
        criteria.andEqualTo("userId", userid);
        return mapper.selectOneByExample(example);
    }

    @Override
    public void insertUser(UserInfoPO userInfoPO) {

    }

    @Override
    public void batchInsert(List<UserInfoPO> userInfoPOList) {

    }

    @Override
    public void updateUser(UserInfoPO userInfoPO) {

    }

    @Override
    public void batchUpdate(List<UserInfoPO> userInfoPOList) {

    }

    @Override
    public void deleteUser(String userid) {

    }

}

3.启动服务

3.1 application配置mapper包扫描

@SpringBootApplication
@MapperScan(basePackages="com.jzj.tdmybatis.repository.mapper")
public class TdmybatisApplication {

   public static void main(String[] args) {
      SpringApplication.run(TdmybatisApplication.class, args);
   }

}

3.2 mysql准备数据

数据库插入测试数据

INSERT INTO `test`.`user_info` (`id`, `user_id`, `user_name`, `age`, `address`, `order_ids`, `goods`, `sort_order`, `is_del`, `addtime`, `modtime`) VALUES (1, '11', 'aa', 1, 'xxx', '[1, 2, 3]', '{\"deptId\": 2, \"deptName\": \"部门2\", \"deptLeaderId\": 4}', 0, 0, 0, 0);
INSERT INTO `test`.`user_info` (`id`, `user_id`, `user_name`, `age`, `address`, `order_ids`, `goods`, `sort_order`, `is_del`, `addtime`, `modtime`) VALUES (2, '22', 'bb', 2, 'xxx', '[4, 5, 6]', '{\"deptId\": 2, \"deptName\": \"部门2\", \"deptLeaderId\": 4}', 0, 0, 0, 0);
INSERT INTO `test`.`user_info` (`id`, `user_id`, `user_name`, `age`, `address`, `order_ids`, `goods`, `sort_order`, `is_del`, `addtime`, `modtime`) VALUES (3, '33', 'cc', 3, 'xxx', '[7, 5, 6]', '{\"deptId\": 2, \"deptName\": \"部门2\", \"deptLeaderId\": 4}', 0, 0, 0, 0);
INSERT INTO `test`.`user_info` (`id`, `user_id`, `user_name`, `age`, `address`, `order_ids`, `goods`, `sort_order`, `is_del`, `addtime`, `modtime`) VALUES (4, '44', 'dd', 4, 'xxx', '[8, 5, 6]', '{\"deptId\": 2, \"deptName\": \"部门2\", \"deptLeaderId\": 4}', 0, 0, 0, 0);

3.3 启动成功

日志信息 端口8800， 启动时长1.764 s

2023-02-03 23:23:30.138  INFO 17176 --- [           main] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port(s): 8800 (http) with context path ''
2023-02-03 23:23:30.145  INFO 17176 --- [           main] com.jzj.tdmybatis.TdmybatisApplication   : Started TdmybatisApplication in 1.764 seconds (JVM running for 2.486)

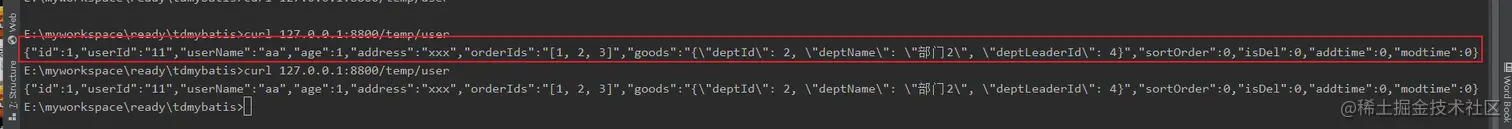

3.4 测试http请求CURL

curl 127.0.0.1:8800/temp/user

{"id":1,"userId":"11","userName":"aa","age":1,"address":"xxx","orderIds":"[1, 2, 3]","goods":"{"deptId": 2, "deptName": "部门2", "deptLeaderId": 4}","sortOrder":0,"isDel":0,"addtime":0,"modtime":0} 可以看到的确把db数据查询出来

4.启动报错 PageHelper的错误

springframework.beans.factory.BeanCreationException: Error creating bean with name 'com.github.pagehelper.autoconfigure.PageHelperAutoConfiguration':
Invocation of init method failed;
nested exception is org.springframework.beans.factory.BeanCurrentlyInCreationException:
Error creating bean with name 'com.github.pagehelper.autoconfigure.PageHelperAutoConfiguration':
Requested bean is currently in creation: Is there an unresolvable circular reference?

可以看出来是pagehelper出的问题， 我们只需要把Pom文件的 注释掉即可

<!--       &lt;!&ndash;pagehelper&ndash;&gt;-->
<!--      <dependency>-->
<!--         <groupId>com.github.pagehelper</groupId>-->
<!--         <artifactId>pagehelper-spring-boot-starter</artifactId>-->
<!--         <version>${pagehelper.version}</version>-->
<!--      </dependency>-->

我们现在已经启动成功，并且controller请求可以正常的 从db中查询出来 user信息
