Antd5.x

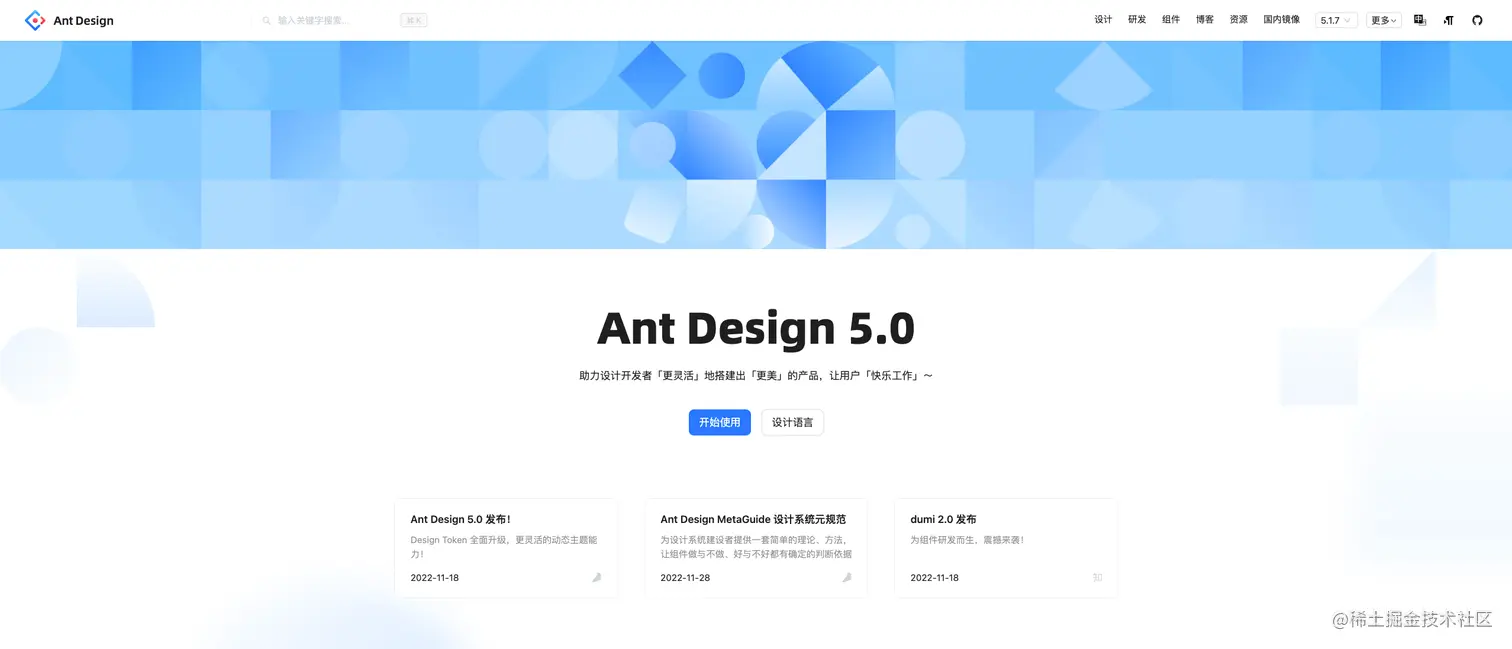

Antd5 官网

吸引我的点

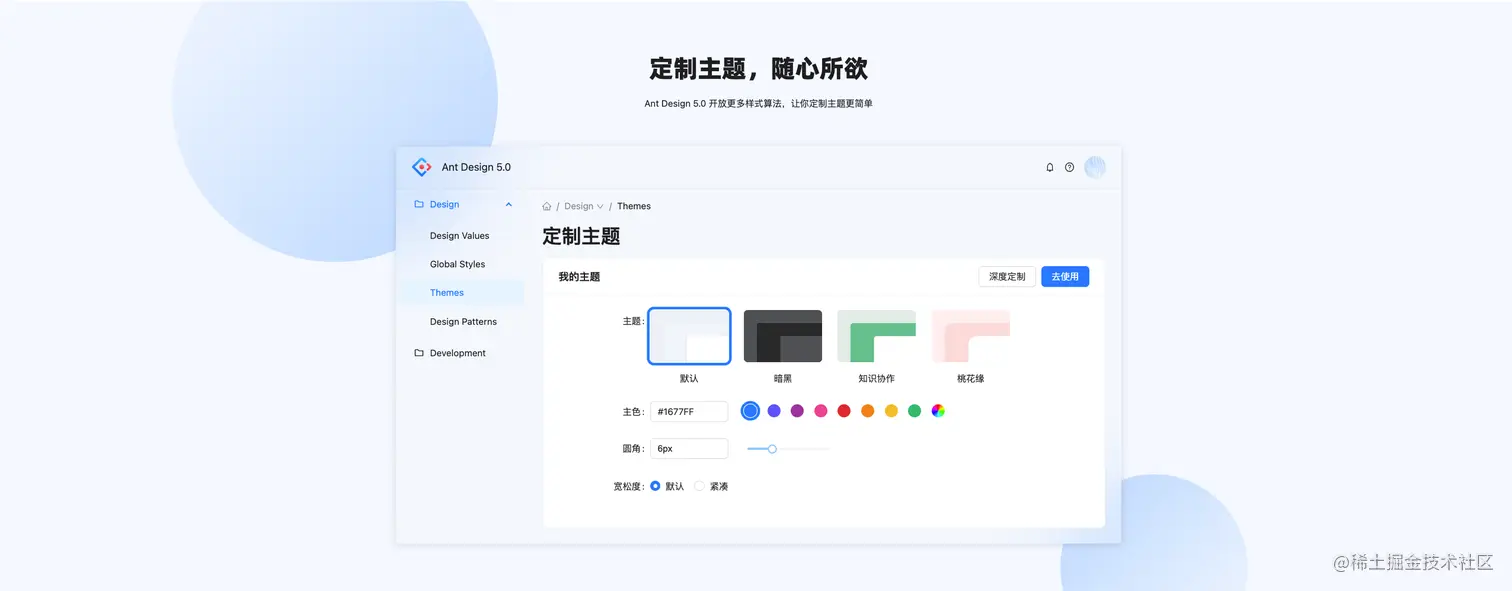

定制主题，随心所欲

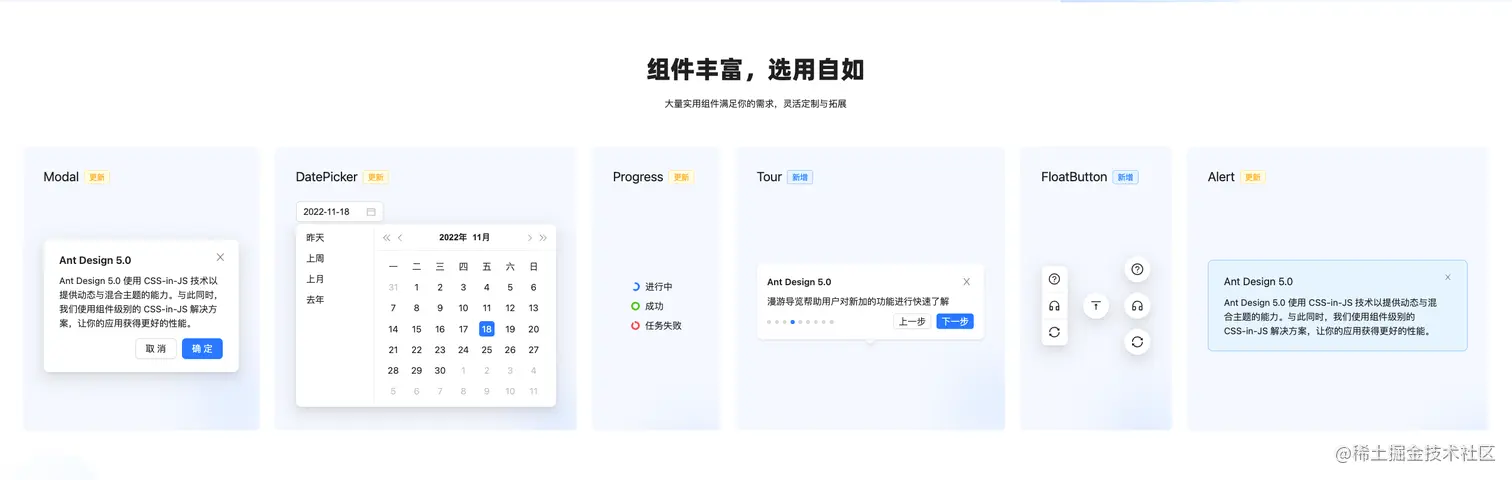

组件丰富，选用自如

开发后台管理整个流程

创建模版

pnpm create vite@latest react-admin-vite-antd5 -- --template react-ts
npm install
npm run dev

配置vite和tsconfig

vite-plugin-compression 打包增加gzip文件提高首屏访问速度
配置 "@" 别名，不用写 ../ 这种形式了
proxy 解决开发环境跨域问题
build / rollupOptions / 拆分包大小，也可以提升首屏访问速度

  import react from "@vitejs/plugin-react";
  import { fileURLToPath } from "url";
  import { defineConfig } from "vite";
  // https://vitejs.dev/config/
  import vitePluginCompression from "vite-plugin-compression";

  const baseUrl = "react-admin-vite-antd5";

  export default defineConfig(config => {
    console.log(config, "config");
    return {
      plugins: [
        react(),
        vitePluginCompression({
          threshold: 1024 * 10, // 对大于 10kb 的文件进行压缩
          // deleteOriginFile: true,
        }),
      ],
      resolve: {
        alias: {
          // for TypeScript path alias import like : @/x/y/z
          "@": fileURLToPath(new URL("./src", import.meta.url)),
        },
      },
      server: {
        open: true,
        port: 5793,
        proxy: {
          "/api": {
            target: "http://localhost:8080",
            secure: false,
            rewrite: path => path.replace(/^\/api/, ""),
          },
        },
      },
      base: config.mode === "development" ? "/" : `/${baseUrl}/`,
      build: {
        outDir: baseUrl,
        rollupOptions: {
          output: {
            chunkFileNames: "js/[name]-[hash].js", // 引入文件名的名称
            entryFileNames: "js/[name]-[hash].js", // 包的入口文件名称
            assetFileNames: "[ext]/[name]-[hash].[ext]", // 资源文件像 字体，图片等
            manualChunks(id) {
              if (id.includes("node_modules")) {
                return id
                  .toString()
                  .split("node_modules/")[1]
                  .split("/")[0]
                  .toString();
              }
            },
          },
        },
      },
    };
  });

ts类型规则配置

  {
    "compilerOptions": {
      "target": "esnext",
      "module": "esnext",
      "lib": ["dom", "dom.iterable", "esnext", "scripthost"],
      "allowJs": false,
      "allowSyntheticDefaultImports": true,
      "esModuleInterop": true,
      "forceConsistentCasingInFileNames": true,
      "isolatedModules": true,
      "jsx": "react-jsx",
      "moduleResolution": "Node",
      "noEmit": true,
      "noFallthroughCasesInSwitch": true,
      "resolveJsonModule": true,
      "skipLibCheck": true,
      "strict": true,
      "sourceMap": true,
      "types": ["vite/client", "node"],
      "baseUrl": ".",
      "paths": {
        "@/*": ["src/*"]
      }
    },
    "include": ["src", "vite.config.ts"]
  }

添加d.ts解决大部分引入文件报错的问题

declare module "*.css";
declare module "*.scss";
declare module "*.sass";
declare module "*.svg";
declare module "*.png";
declare module "*.jpg";
declare module "*.jpeg";
declare module "*.gif";
declare module "*.tiff";

添加需要用到的包

antd、lodash、sass、redux、react-redux、@reduxjs/toolkit

文件主入口

import "./main.css";

import { createRoot } from "react-dom/client";
import { Provider } from "react-redux";
import { BrowserRouter } from "react-router-dom";

import App from "./app";
import store from "./store";

const container = document.getElementById("root");
const root = createRoot(container as HTMLDivElement);
root.render(
  <Provider store={store}>
    <BrowserRouter
      // 生产环境配置二级路径
      basename={"/" + import.meta.env.BASE_URL.replaceAll("/", "")}
    >
      <App />
    </BrowserRouter>
  </Provider>
);

添加状态管理

import { configureStore } from "@reduxjs/toolkit";

import common from "./reducers/common";
import user from "./reducers/user";

const store = configureStore({
  reducer: {
    user,
    common,
  },
});

// Infer the `RootState` and `AppDispatch` types from the store itself
export type RootState = ReturnType<typeof store.getState>;
// Inferred type: {posts: PostsState, comments: CommentsState, users: UsersState}
export type AppDispatch = typeof store.dispatch;

export default store;





import { createSlice } from "@reduxjs/toolkit";

import { TOKEN } from "@/common/utils/contans";
import { getStorage } from "@/common/utils/storage";
import { MenuItem } from "@/components/Layout/layout";

export interface IUserInitialState {
  role: string[];
  token: string;
  menu: MenuItem[];
  [key: string]: any;
}

export interface Type {
  type: string;
}
// 默认状态
const initialState: IUserInitialState = {
  role: [],
  token: getStorage(TOKEN) ?? "",
  menu: [],
};

export const userSlice = createSlice({
  name: "user",
  initialState: initialState,
  reducers: {
    setUserToken: (state, action) => {
      state.token = action.payload;
    },
    setMenu: (state, action) => {
      state.menu = action.payload;
    },
  },
});

export const { setUserToken, setMenu } = userSlice.actions;

export default userSlice.reducer;

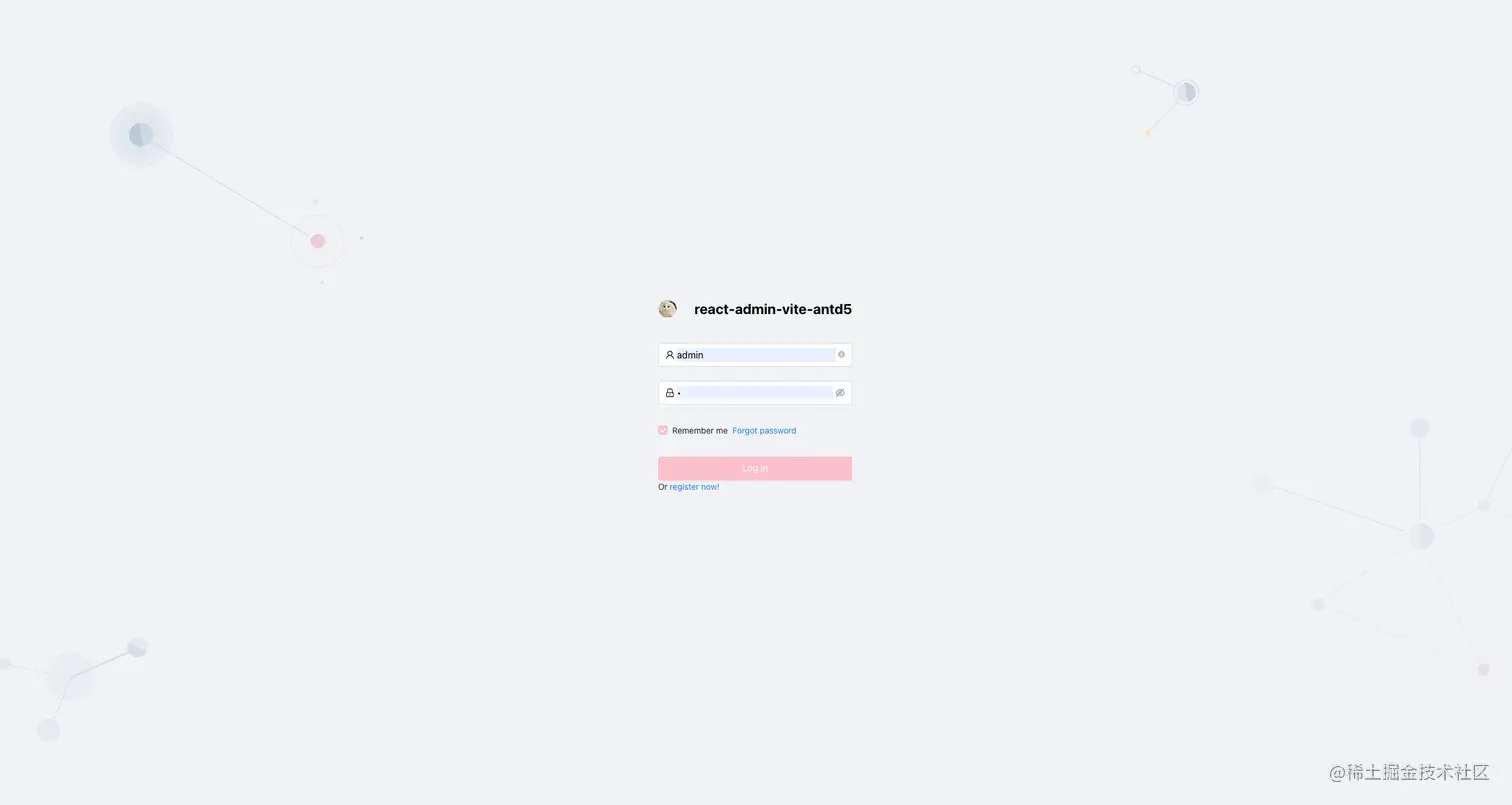

添加登陆界面

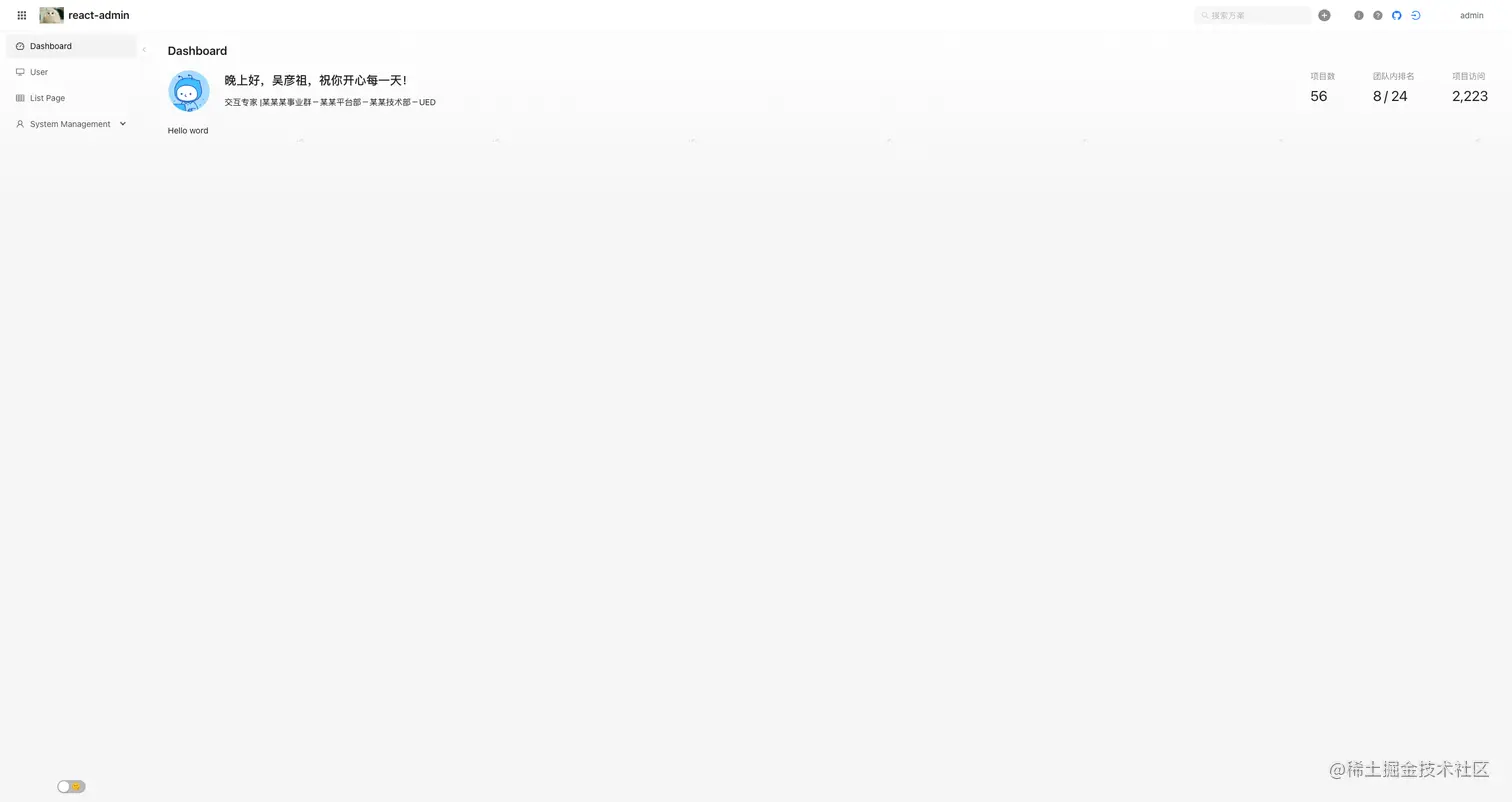

主界面

路由

路由、路由懒加载

  import { DashboardOutlined } from "@ant-design/icons";
  import { Alert, Button, Result, Spin } from "antd";
  import { lazy, Suspense } from "react";
  import { Link, Navigate } from "react-router-dom";

  import { TOKEN } from "@/common/utils/contans";
  import { getStorage } from "@/common/utils/storage";
  import Layout from "@/components/Layout";
  import { MenuItem } from "@/components/Layout/layout";
  import OutletLayoutRouter from "@/components/OutletLayoutRouter";
  import Dashboard from "@/pages/dashboard";
  import ErrorPage from "@/pages/error-page";
  import Login from "@/pages/login";

  const Permissions = ({ children }: any) => {
    const token = getStorage(TOKEN);
    return token ? children : <Navigate to="/login" />;
  };

  export const baseRouterList = [
    {
      label: "Dashboard",
      key: "dashboard",
      path: "dashboard",
      icon: <DashboardOutlined />,
      filepath: "pages/dashboard/index.tsx",
    },
  ];

  export const defaultRoutes: any = [
    {
      path: "/",
      element: <Permissions>{<Layout />}</Permissions>,
      errorElement: <ErrorPage />,
      children: [
        {
          path: "/",
          element: <Navigate to="dashboard" />,
        },
        {
          path: "dashboard",
          element: <Dashboard />,
        },
        {
          path: "/*",
          element: (
            <ErrorPage>
              <Result
                status="404"
                title="404"
                subTitle="Sorry, the page you visited does not exist."
                extra={
                  <Link to={"/"}>
                    <Button type="primary">Back Home</Button>
                  </Link>
                }
              />
            </ErrorPage>
          ),
        },
      ],
    },
    {
      path: "/login",
      element: <Login />,
    },
  ];

  // /**/ 表示二级目录 一般二级目录就够了  不够在加即可
  export const modules = import.meta.glob("../pages/**/*.tsx");

  function pathToLazyComponent(Ele: string) {
    const path = modules[`../${Ele}`] as any;
    if (!path)
      return (
        <ErrorPage>
          <Alert
            message={
              Ele +
              ":Cannot find the path, please configure the correct folder path"
            }
            type="error"
          />
        </ErrorPage>
      );
    const Components = lazy(path);
    return (
      <Suspense fallback={<Spin size="small" />}>
        <Components />
      </Suspense>
    );
  }

  // 递归算法
  export const filepathToElement = (list: MenuItem[]) =>
    list.map(item => {
      if (item.children) {
        return {
          path: item.path,
          key: item.key,
          children: item.children?.map(c => ({
            key: c.key,
            path: c.path,
            element: pathToLazyComponent(c.filepath),
          })),
          element: <OutletLayoutRouter />,
        };
      } else {
        return {
          key: item.key,
          path: item.path,
          element: pathToLazyComponent(item.filepath),
        };
      }
    });

动态路由主要hooks：useRoutes

  import "./App.scss";

  import { cloneDeep } from "lodash";
  import React, { useEffect } from "react";
  import { useRoutes } from "react-router-dom";

  import { AuthContext, signIn, signOut } from "@/common/context";
  import {
    useAppDispatch,
    useAppSelector,
    useLocationListen,
  } from "@/common/hooks";
  import { MenuData } from "@/common/mock";
  import { ADMIN } from "@/common/utils/contans";
  import { Settings } from "@/config/defaultSetting";
  import { setMenu } from "@/store/reducers/user";

  import { defaultRoutes, filepathToElement } from "./routes";

  function App() {
    const dispatch = useAppDispatch();
    const {
      user: { token, menu },
    } = useAppSelector(state => state);
    const cloneDefaultRoutes = cloneDeep(defaultRoutes);
    cloneDefaultRoutes[0].children = [
      ...filepathToElement(menu),
      ...cloneDefaultRoutes[0].children,
    ];
    // console.log(cloneDefaultRoutes, "cloneDefaultRoutes");
    useLocationListen(r => {
      document.title = `${Settings.title}: ${r.pathname.replace("/", "")}`;
    });
    const element = useRoutes(cloneDefaultRoutes);
    useEffect(() => {
      // console.log(token, "token");
      if ((token as unknown as { username: string })?.username === ADMIN) {
        dispatch(setMenu([...MenuData.admin]));
      } else {
        dispatch(setMenu([...MenuData.user]));
      }
    }, [token]);

    return (
      <AuthContext.Provider value={{ signIn, signOut }}>
        {element}
      </AuthContext.Provider>
    );
  }

  export default App;

模拟数据

  import {
    DesktopOutlined,
    TableOutlined,
    UserOutlined,
  } from "@ant-design/icons";

  import { MenuItem } from "@/components/Layout/layout";

  export const MenuData: {
    user: MenuItem[];
    admin: MenuItem[];
  } = {
    user: [
      {
        label: "User",
        key: "user",
        path: "/user",
        icon: <DesktopOutlined />,
        filepath: "pages/user/index.tsx",
      },
    ],
    admin: [
      {
        label: "User",
        key: "user",
        path: "user",
        icon: <DesktopOutlined />,
        filepath: "pages/user/index.tsx",
      },
      {
        label: "List Page",
        key: "list-page",
        path: "list-page",
        icon: <TableOutlined />,
        filepath: "pages/list-page/index.tsx",
      },
      {
        label: "System Management",
        key: "systemManagement",
        path: "systemManagement",
        icon: <UserOutlined />,
        filepath: "components/OutletLayoutRouter/index.tsx",
        children: [
          {
            label: "User Management",
            key: "userManagement",
            path: "userManagement",
            filepath: "pages/systemManagement/userManagement/index.tsx",
          },
          {
            label: "Role Management",
            key: "roleManagement",
            path: "roleManagement",
            filepath: "pages/systemManagement/roleManagement/index.tsx",
          },
        ],
      },
    ],
  };

KeepAlive组件（实验性组件，网上看别人写的，不知道性能如何）

import React, { memo, useEffect, useMemo, useReducer, useRef } from "react";
import { useLocation, useOutlet } from "react-router-dom";

const KeepAlive = (props: { include: any; keys: any }) => {
  const outlet = useOutlet();
  const { include, keys } = props;
  const { pathname } = useLocation();
  const componentList = useRef(new Map());
  // @ts-ignore
  const forceUpdate = useReducer(bool => !bool)[1]; // 强制渲染
  const cacheKey = useMemo(
    () => pathname + "__" + keys[pathname],
    [pathname, keys]
  );
  const activeKey = useRef<string>("");
  useEffect(() => {
    componentList.current.forEach(function (value, key) {
      const _key = key.split("__")[0];
      if (!include.includes(_key) || _key === pathname) {
        // @ts-ignore
        this.delete(key);
      }
    }, componentList.current);
    activeKey.current = cacheKey;
    if (!componentList.current.has(activeKey.current)) {
      componentList.current.set(activeKey.current, outlet);
    }
    forceUpdate();
  }, [cacheKey, include]); // eslint-disable-line
  return (
    <>
      {Array.from(componentList.current).map(([key, component]) => (
        <div key={key}>
          {key === activeKey.current ? (
            <div>{component}</div>
          ) : (
            <div style={{ display: "none" }}>{component}</div>
          )}
        </div>
      ))}
    </>
  );
};

export default memo(KeepAlive);

组件使用

封装主题定制

参考：ant.design/theme-edito…

<ConfigProvider theme={{ token: { borderRadius: 4, fontSize: 14, colorPrimary: "pink", }, }}

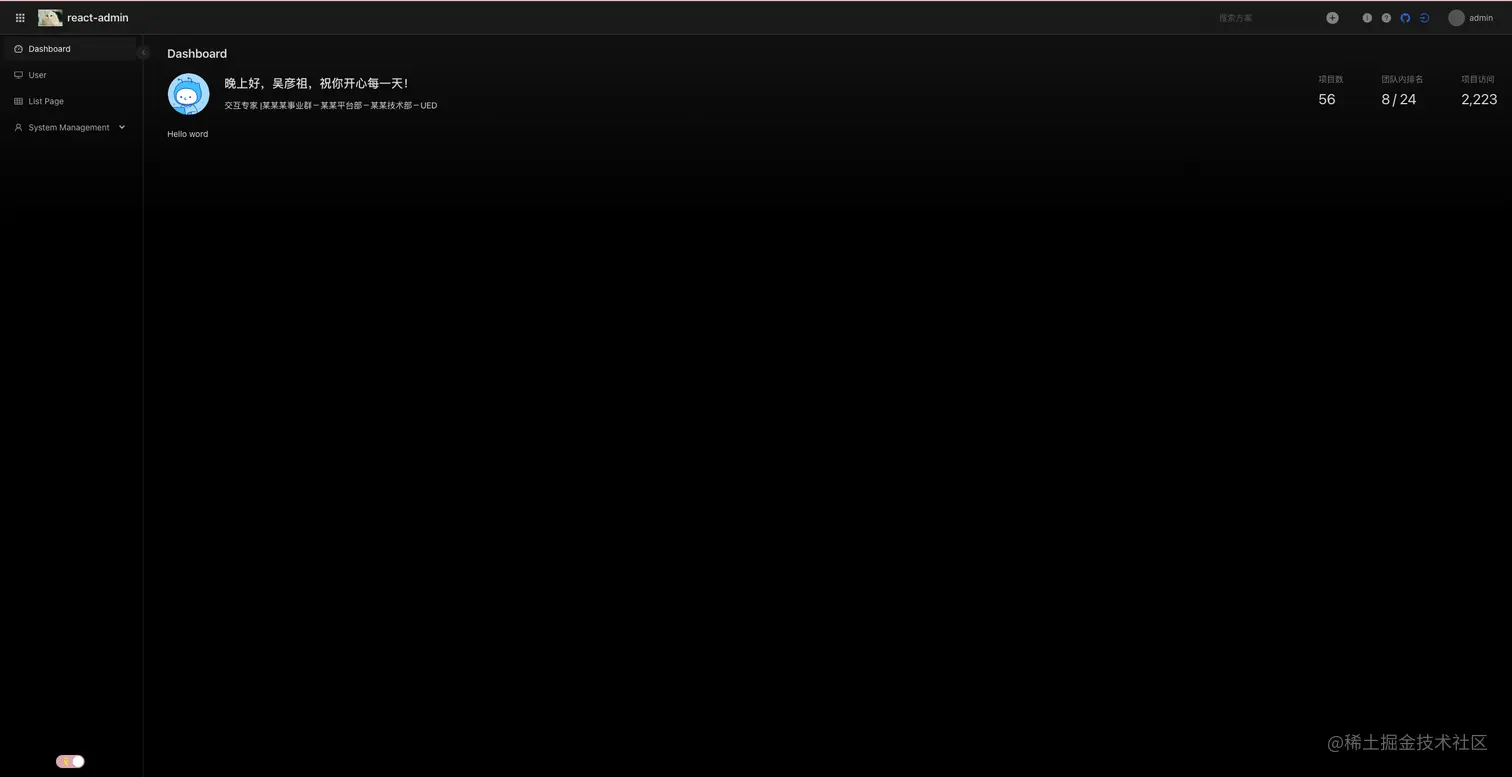

暗黑模式

@ant-design/pro-components 提供了 ProConfigProvider 组件
用的是import ProLayout from "@ant-design/pro-layout"; 组件

  import {
    GithubFilled,
    InfoCircleFilled,
    LoginOutlined,
    PlusCircleFilled,
    QuestionCircleFilled,
    SearchOutlined,
  } from "@ant-design/icons";
  import {
    ProBreadcrumb,
    ProConfigProvider,
    ProSettings,
  } from "@ant-design/pro-components";
  import ProLayout from "@ant-design/pro-layout";
  import { Input, Switch, Tooltip } from "antd";
  import ErrorBoundary from "antd/es/alert/ErrorBoundary";
  import { useContext, useState } from "react";
  import { Link, useLocation, useNavigate } from "react-router-dom";

  import { AuthContext } from "@/common/context";
  import KeepAlive from "@/common/hocs/keepAlive";
  import {
    useAppDispatch,
    useAppSelector,
    useLocationListen,
  } from "@/common/hooks";
  import { treeRouter } from "@/common/utils/common";
  import { Settings } from "@/config/defaultSetting";
  import { baseRouterList } from "@/routes";

  export default () => {
    const { user } = useAppSelector(state => state);
    const navigate = useNavigate();
    const location = useLocation();
    const [pathname, setPathname] = useState(location.pathname);
    const dispatch = useAppDispatch();
    const { signOut } = useContext(AuthContext);
    const [dark, setDark] = useState(false);

    useLocationListen(listener => {
      // console.log(listener, "listener");
      setPathname(listener.pathname);
    });

    const settings: ProSettings | undefined = {
      title: Settings.title.slice(0, 11),
      // fixSiderbar: true,
      layout: "mix",
      // splitMenus: true,
    };

    return (
      <ProConfigProvider dark={dark}>
        <div
          id="admin-pro-layout"
          style={{
            height: "100vh",
          }}
        >
          <ProLayout
            fixSiderbar
            siderWidth={245}
            logo={Settings.logo}
            ErrorBoundary={false}
            route={{
              path: "/",
              routes: treeRouter([...baseRouterList, ...user.menu]),
            }}
            {...settings}
            location={{
              pathname,
            }}
            waterMarkProps={{
              content: Settings.title,
            }}
            appList={[
              {
                icon: "https://gw.alipayobjects.com/zos/rmsportal/KDpgvguMpGfqaHPjicRK.svg",
                title: "Blog",
                desc: "杭州市较知名的 UI 设计语言",
                url: "https://hzdjs.cn",
              },
            ]}
            avatarProps={{
              src: "https://joeschmoe.io/api/v1/random",
              size: "small",
              title: (
                <div>
                  {(user.token as unknown as { username: string })?.username}
                </div>
              ),
            }}
            headerContentRender={() => <ProBreadcrumb />}
            actionsRender={props => {
              if (props.isMobile) return [];
              return [
                props.layout !== "side" && document.body.clientWidth > 1400 ? (
                  <div
                    key="SearchOutlined"
                    aria-hidden
                    style={{
                      display: "flex",
                      alignItems: "center",
                      marginInlineEnd: 24,
                    }}
                    onMouseDown={e => {
                      e.stopPropagation();
                      e.preventDefault();
                    }}
                  >
                    <Input
                      style={{
                        borderRadius: 4,
                        marginInlineEnd: 12,
                        backgroundColor: "rgba(0,0,0,0.03)",
                      }}
                      prefix={
                        <SearchOutlined
                          style={{
                            color: "rgba(0, 0, 0, 0.15)",
                          }}
                        />
                      }
                      placeholder="搜索方案"
                      bordered={false}
                    />
                    <PlusCircleFilled
                      style={{
                        color: "var(--ant-primary-color)",
                        fontSize: 24,
                      }}
                    />
                  </div>
                ) : undefined,
                <InfoCircleFilled key="InfoCircleFilled" />,
                <QuestionCircleFilled key="QuestionCircleFilled" />,

                <Tooltip placement="bottom" title={"Github"}>
                  <a
                    href="https://github.com/frontend-winter/react-admin-vite-antd5"
                    target="_blank"
                    rel="noreferrer"
                  >
                    <GithubFilled key="GithubFilled" />
                  </a>
                </Tooltip>,
                <Tooltip placement="bottom" title={"Sign Out"}>
                  <a>
                    <LoginOutlined
                      onClick={async () => {
                        await signOut(dispatch);
                        navigate("/login");
                      }}
                    />
                  </a>
                </Tooltip>,
              ];
            }}
            menuFooterRender={props => {
              if (props?.collapsed || props?.isMobile) return undefined;
              return (
                <div style={{ textAlign: "center" }}>
                  <Switch
                    checkedChildren="🌜"
                    unCheckedChildren="🌞"
                    defaultChecked={false}
                    onChange={v => setDark(v)}
                  />
                </div>
              );
            }}
            menuItemRender={(item, dom) => (
              <Link
                to={item?.path || "/"}
                onClick={() => {
                  setPathname(item.path || "/");
                }}
              >
                {dom}
              </Link>
            )}
            onMenuHeaderClick={() => navigate("/")}
          >
            <ErrorBoundary>
              <KeepAlive include={[]} keys={[]} />
            </ErrorBoundary>
          </ProLayout>
        </div>
      </ProConfigProvider>
    );
  };

结尾

这篇先讲这么多，说的比较模糊，大家可以去看下源码，还有很多可以探讨的问题，欢迎大家留言。

项目地址 github.com/frontend-wi…

线上预览地址hzdjs.cn/react-admin…

至此，一个对新手友好的管理后台项目就构建好了，而且还在不断完善中，未来会补全Node后端服务项目，敬请期待，有问题可以随时留言。。

我用Antd5.x+React18+Vite3.x+Ts做了一个后台管理模版。

Antd5.x

Antd5 官网

吸引我的点

开发后台管理整个流程

创建模版

配置vite和tsconfig

添加d.ts解决大部分引入文件报错的问题

添加需要用到的包

文件主入口

添加状态管理

添加登陆界面

主界面

路由

KeepAlive组件（实验性组件，网上看别人写的，不知道性能如何）

封装主题定制

暗黑模式

结尾
