大数据开发Spark Streaming（第五十一篇）一、Spark Streaming Spark Streaming

一、Spark Streaming

Spark Streaming是Spark Core API的一种扩展，它可以用于进行大规模、高吞吐量、容错的实时数据流的处理。这个实时：指的是近实时，最小可以支持秒级别的实时处理。

1.1、Spark Streaming的工作原理

SparkStreaming工作原理

它会接收实时输入的数据流，然后将数据拆分成多个batch，比如：每收集1s的数据给它封装为一个batch，然后将每个batch交给spark计算引擎处理。最后会产生一个结果数据流，这个结果数据流里面的数据也是由一个一个的batch所组成的。所以，SparkStreaming就是一小批一批的处理。

二、Spark Streaming WordCount代码展示

java pom依赖

<dependency>
    <groupId>org.apache.spark</groupId>
    <artifactId>spark-streaming_2.13</artifactId>
    <version>3.3.1</version>
</dependency>

package com.strivelearn.sparkstreaming;

import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaPairRDD;
import org.apache.spark.api.java.function.FlatMapFunction;
import org.apache.spark.api.java.function.Function2;
import org.apache.spark.api.java.function.PairFunction;
import org.apache.spark.api.java.function.VoidFunction;
import org.apache.spark.streaming.Duration;
import org.apache.spark.streaming.Durations;
import org.apache.spark.streaming.api.java.JavaDStream;
import org.apache.spark.streaming.api.java.JavaPairDStream;
import org.apache.spark.streaming.api.java.JavaReceiverInputDStream;
import org.apache.spark.streaming.api.java.JavaStreamingContext;
import scala.Tuple2;

import java.util.Arrays;
import java.util.Iterator;

/**
 * @author strivelearn
 * @version StreamWordCount.java, 2023年01月29日
 */
public class StreamWordCount {
    public static void main(String[] args) throws InterruptedException {
        SparkConf sparkConf = new SparkConf().setMaster("local[*]").setAppName("StreamWordCount");
        // 创建StreamingContext
        JavaStreamingContext javaStreamingContext = new JavaStreamingContext(sparkConf, Durations.seconds(3));
        // 通过socket获取实时产生的数据
        JavaReceiverInputDStream<String> linesRdd = javaStreamingContext.socketTextStream("192.168.234.100", 9001);
        JavaDStream<String> wordsRdd = linesRdd.flatMap(new FlatMapFunction<String, String>() {
            @Override
            public Iterator<String> call(String s) throws Exception {
                System.out.println("接收到数据：" + s);
                String[] split = s.split("\s+");
                return Arrays.asList(split).iterator();
            }
        });

        // 把每个单词转换为tuple2的形式
        JavaPairDStream<String, Integer> pairRdd = wordsRdd.mapToPair(new PairFunction<String, String, Integer>() {
            @Override
            public Tuple2<String, Integer> call(String s) throws Exception {
                return new Tuple2<>(s, 1);
            }
        });

        // 执行reduceByKey操作
        JavaPairDStream<String, Integer> wordCountRdd = pairRdd.reduceByKey(new Function2<Integer, Integer, Integer>() {
            @Override
            public Integer call(Integer integer, Integer integer2) throws Exception {
                return integer + integer2;
            }
        });

        wordCountRdd.print();

        // 启动任务
        javaStreamingContext.start();

        // 等待任务停止
        javaStreamingContext.awaitTermination();
    }
}

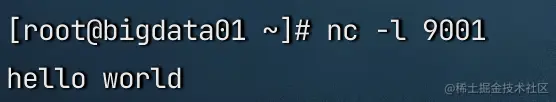

在linux虚拟机启动socket

nc -l 9001

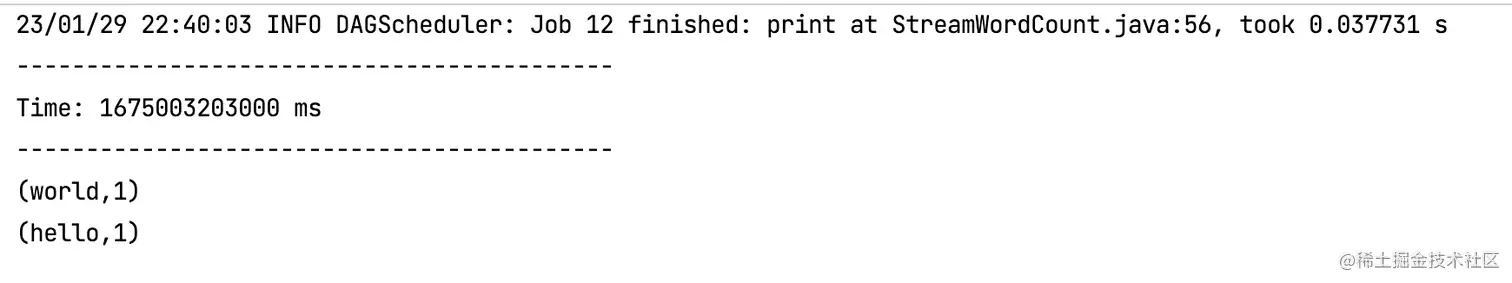

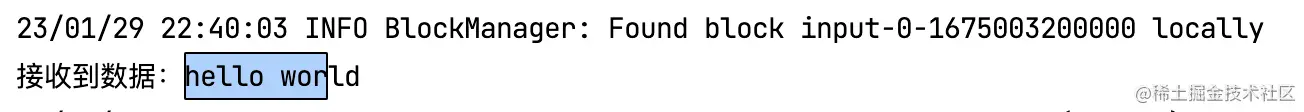

此时idea输出栏

三、Spark Streaming整合Kafka

java pom 依赖

<dependency>
    <groupId>org.apache.spark</groupId>
    <artifactId>spark-streaming-kafka-0-10_2.13</artifactId>
    <version>3.3.1</version>
</dependency>

package com.strivelearn.sparkstreaming;

import java.util.ArrayList;
import java.util.HashMap;

import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.common.serialization.StringDeserializer;
import org.apache.spark.SparkConf;
import org.apache.spark.api.java.function.Function;
import org.apache.spark.streaming.Durations;
import org.apache.spark.streaming.api.java.JavaInputDStream;
import org.apache.spark.streaming.api.java.JavaStreamingContext;
import org.apache.spark.streaming.kafka010.ConsumerStrategies;
import org.apache.spark.streaming.kafka010.KafkaUtils;
import org.apache.spark.streaming.kafka010.LocationStrategies;
import scala.Tuple2;

/**
 * @author strivelearn
 * @version StreamKafka.java, 2023年01月29日
 */
public class StreamKafka {
    public static void main(String[] args) throws InterruptedException {
        SparkConf sparkConf = new SparkConf().setMaster("local").setAppName("StreamKafka");
        JavaStreamingContext javaStreamingContext = new JavaStreamingContext(sparkConf, Durations.seconds(3));
        HashMap<String, Object> kafkaParams = new HashMap<>();
        kafkaParams.put("bootstrap.servers", "192.168.234.100:9092");
        kafkaParams.put("key.deserializer", StringDeserializer.class.getName());
        kafkaParams.put("value.deserializer", StringDeserializer.class.getName());
        kafkaParams.put("group.id", "con_2");
        kafkaParams.put("auto.offset.reset", "latest");
        kafkaParams.put("enable.auto.commit", true);

        // kafka 的topic
        ArrayList<String> topics = new ArrayList<>();
        topics.add("sparkstreamdemo");
        JavaInputDStream<ConsumerRecord<String, String>> directStream = KafkaUtils.createDirectStream(javaStreamingContext, LocationStrategies.PreferConsistent(), ConsumerStrategies.<String, String> Subscribe(topics, kafkaParams));
        // 处理数据
        directStream.map(new Function<ConsumerRecord<String, String>, Tuple2<String, String>>() {
            @Override
            public Tuple2<String, String> call(ConsumerRecord<String, String> stringStringConsumerRecord) throws Exception {
                return new Tuple2<>(stringStringConsumerRecord.key(), stringStringConsumerRecord.value());
            }
        }).print();

        javaStreamingContext.start();
        javaStreamingContext.awaitTermination();
    }
}

启动kafka

bin/kafka-server-start.sh -daemon config/server.properties
创建topic

bin/kafka-topics.sh --bootstrap-server localhost:9092 --create --topic sparkstreamdemo --partitions 1

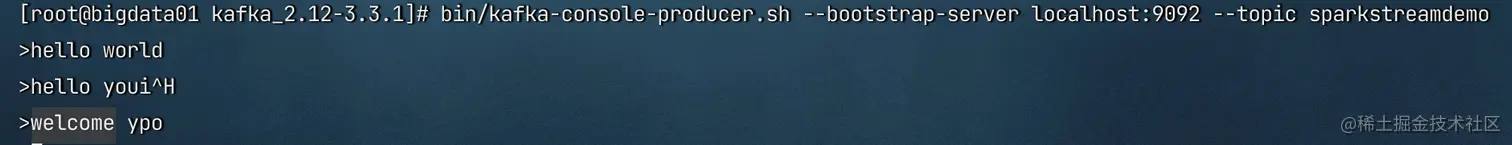

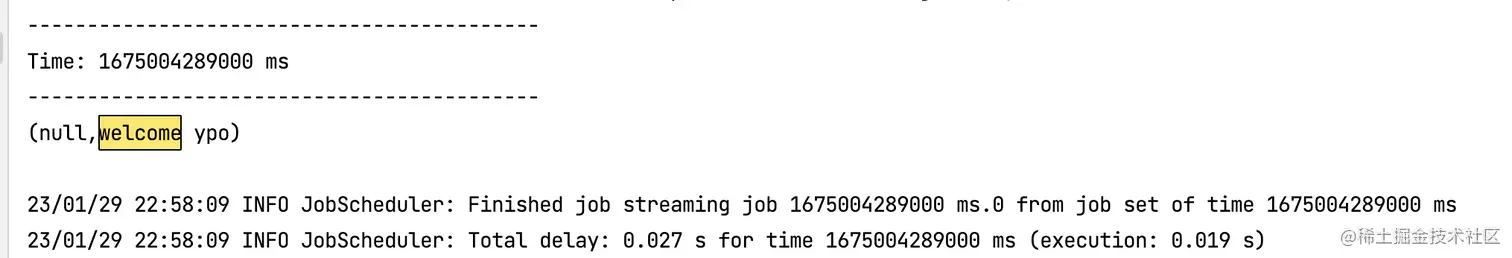

生产者生产数据

bin/kafka-console-producer.sh --bootstrap-server localhost:9092 --topic sparkstreamdemo
