4. 安装nexus3
官网：help.sonatype.com/repomanager…
nexus的全称是Nexus Repository Manager，是Sonatype公司的一个产品。它是一个强大的仓库管理器，极大地简化了内部仓库的维护和外部仓库的访问。
主要用它来搭建公司内部的maven私服。但是它的功能不仅仅是创建maven私有仓库这么简单，还可以作为nuget、docker、npm、bower、pypi、rubygems、git lfs、yum、go、apt等的私有仓库
4.1 查询并拉取镜像
[root@localhost ~]# docker search nexus --limit 5
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
sonatype/nexus3 Sonatype Nexus Repository Manager 3 1183
truecharts/nexusoss 1
nexusjpl/solr-cloud 0
nexusjpl/nexus-webapp 0
nexusjpl/solr-cloud-init 0
[root@localhost ~]# docker pull sonatype/nexus3
Using default tag: latest
latest: Pulling from sonatype/nexus3
26f1167feaf7: Pull complete
adffa6963146: Pull complete
e88dfbe0ef6a: Pull complete
0d43c5e95446: Pull complete
8ff7b45a7e29: Pull complete
Digest: sha256:eff4fb12346ceb5cd424732ee9f2765c0db0f8d5032cdb2f7f7e17acc349f651
Status: Downloaded newer image for sonatype/nexus3:latest
docker.io/sonatype/nexus3:latest
4.2 创建Nexus3容器
[root@localhost ~]# docker run -itd -p 8081:8081 --privileged=true --name nexus3 -v /data/nexus-data:/var/nexus-data --restart=always sonatype/nexus3
56cf91c3f171ed46bd32edaebc2ceebf4cecb0fb1c9fe1dcbca7c79fdab0d921
[root@localhost ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
56cf91c3f171 sonatype/nexus3 "sh -c ${SONATYPE_DI…" 10 seconds ago Up 9 seconds 0.0.0.0:8081->8081/tcp, :::8081->8081/tcp nexus3
4.3 进入容器查看密码
目录：/nexus-data/admin.password
# 密码为 f91fe420-6c27-4968-a269-0aa9647b6146
[root@localhost ~]# docker exec -it nexus3 /bin/bash
bash-4.4$ cat /nexus-data/admin.password
f91fe420-6c27-4968-a269-0aa9647b6146bash-4.4$

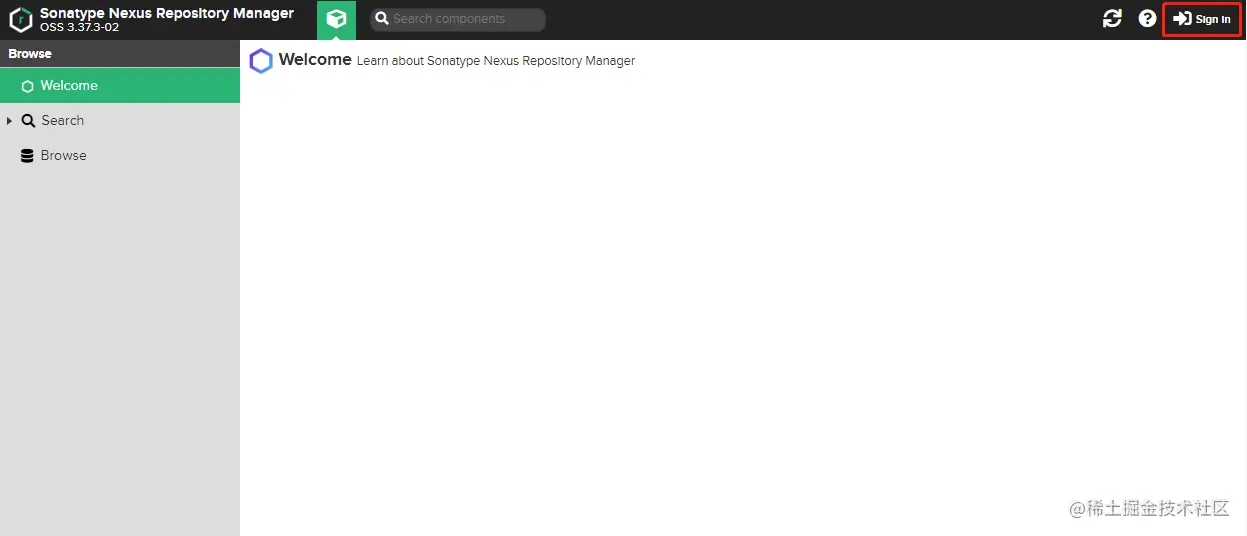

4.4 访问并重置密码
地址：http://192.168.198.100:8081/
点击右上角登录按钮进行登录，登录默认账号admin 密码为上面admin.password文件中的密码。第一次登录需要对密码进行重置 123456
4.5 创建权限/角色/用户/仓库

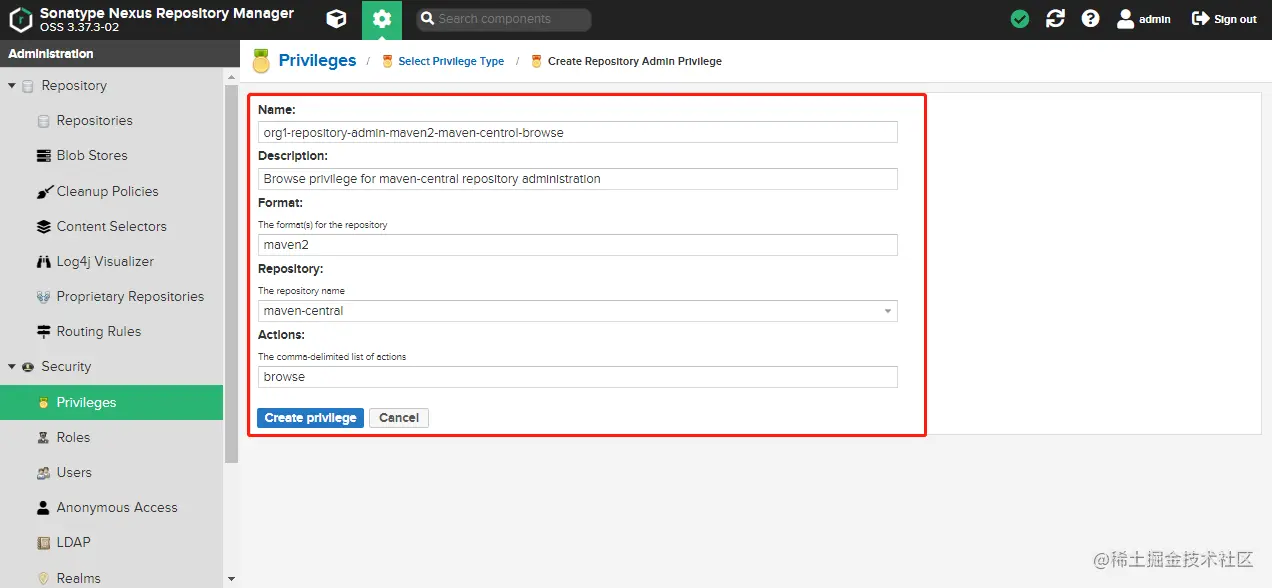

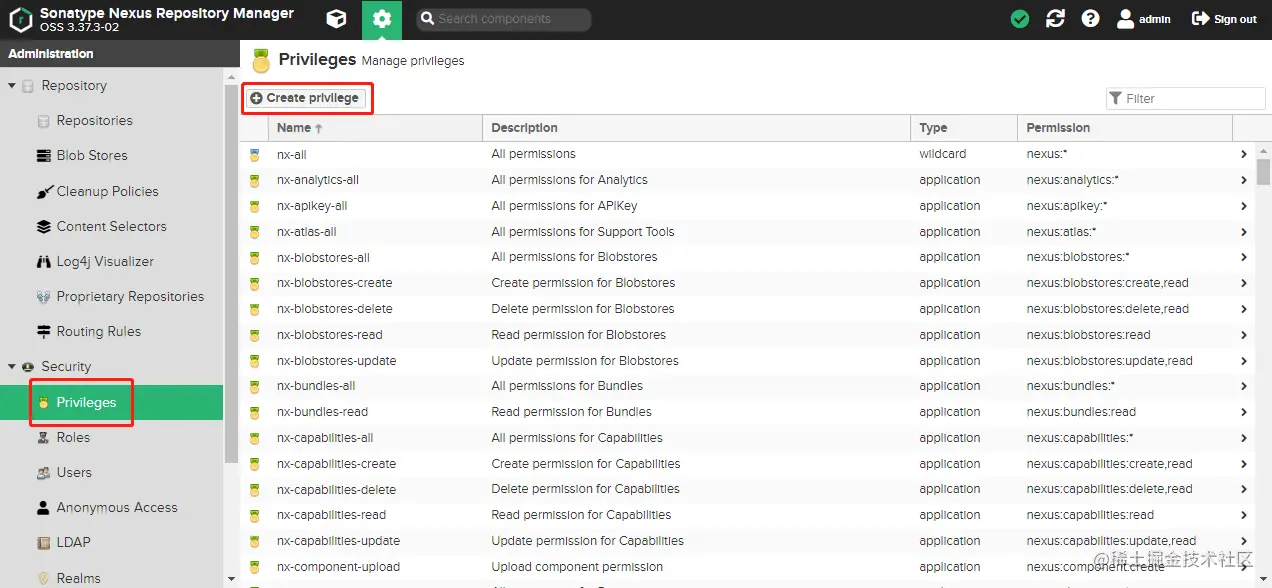

权限：
左侧菜单栏 Security->Privileges->Create Privileges->Repository Admin
下面创建了一个“Repository Admin”类型的权限，该权限具有对“maven2”格式的仓库“maven-central”的配置（注意并非仓库内容）的浏览权限。
Name：权限名称，唯一
Format：格式，如maven2，nuget
Repository：仓库，可以选择一个或整个仓库
Actions：动作，如read、browse、edit、delete、create等，可以填写多个，用逗号分隔
角色：
左侧菜单栏 Security->Roles->Create role->Nexus role

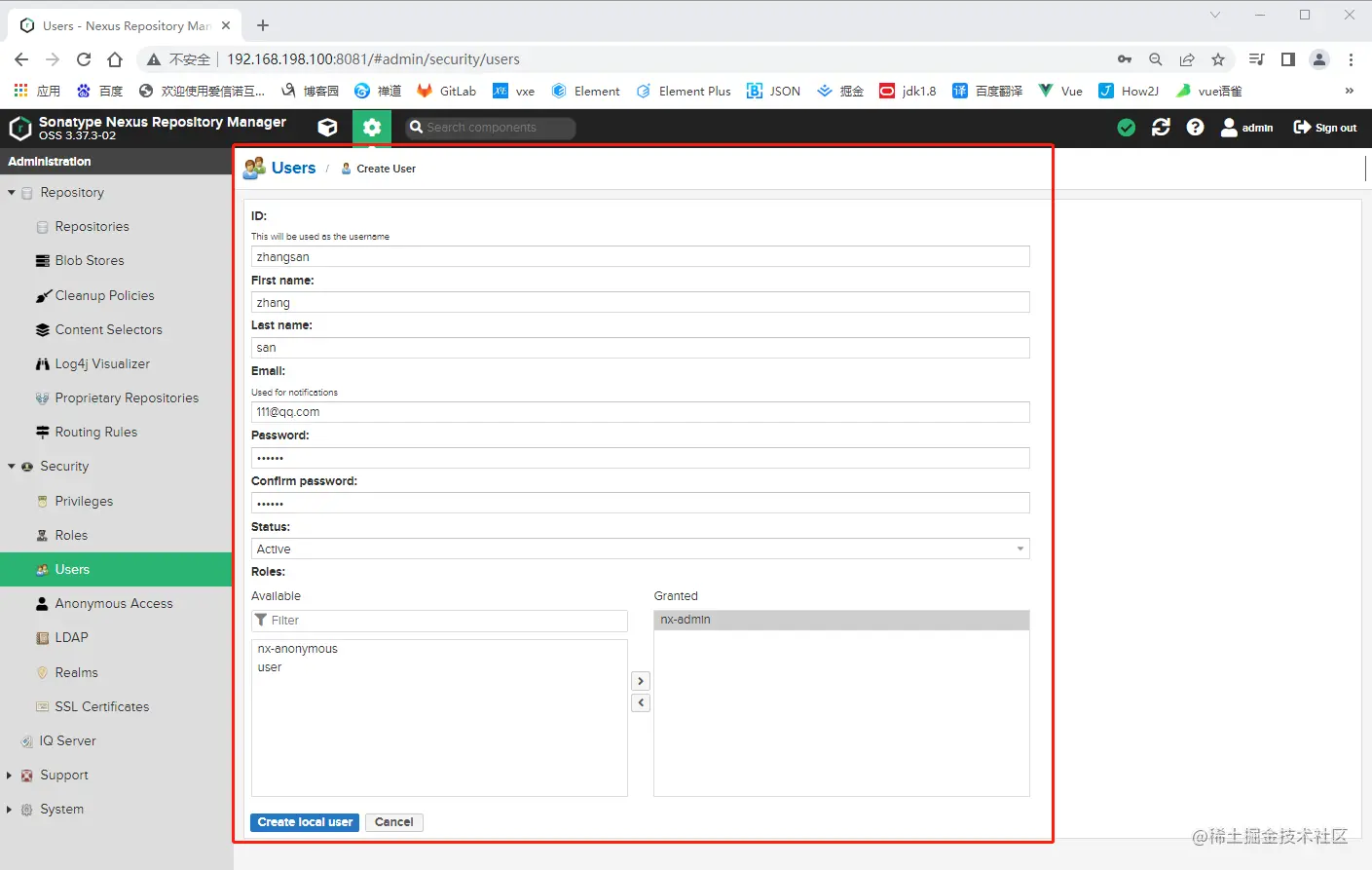

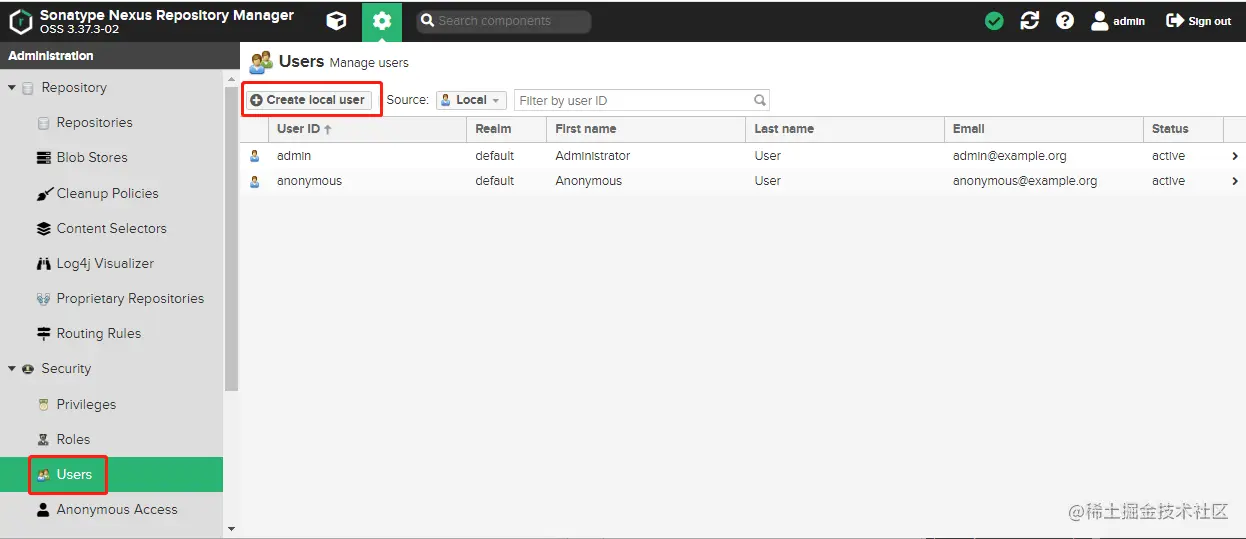

用户：
左侧菜单栏 Security->Users->Create local user

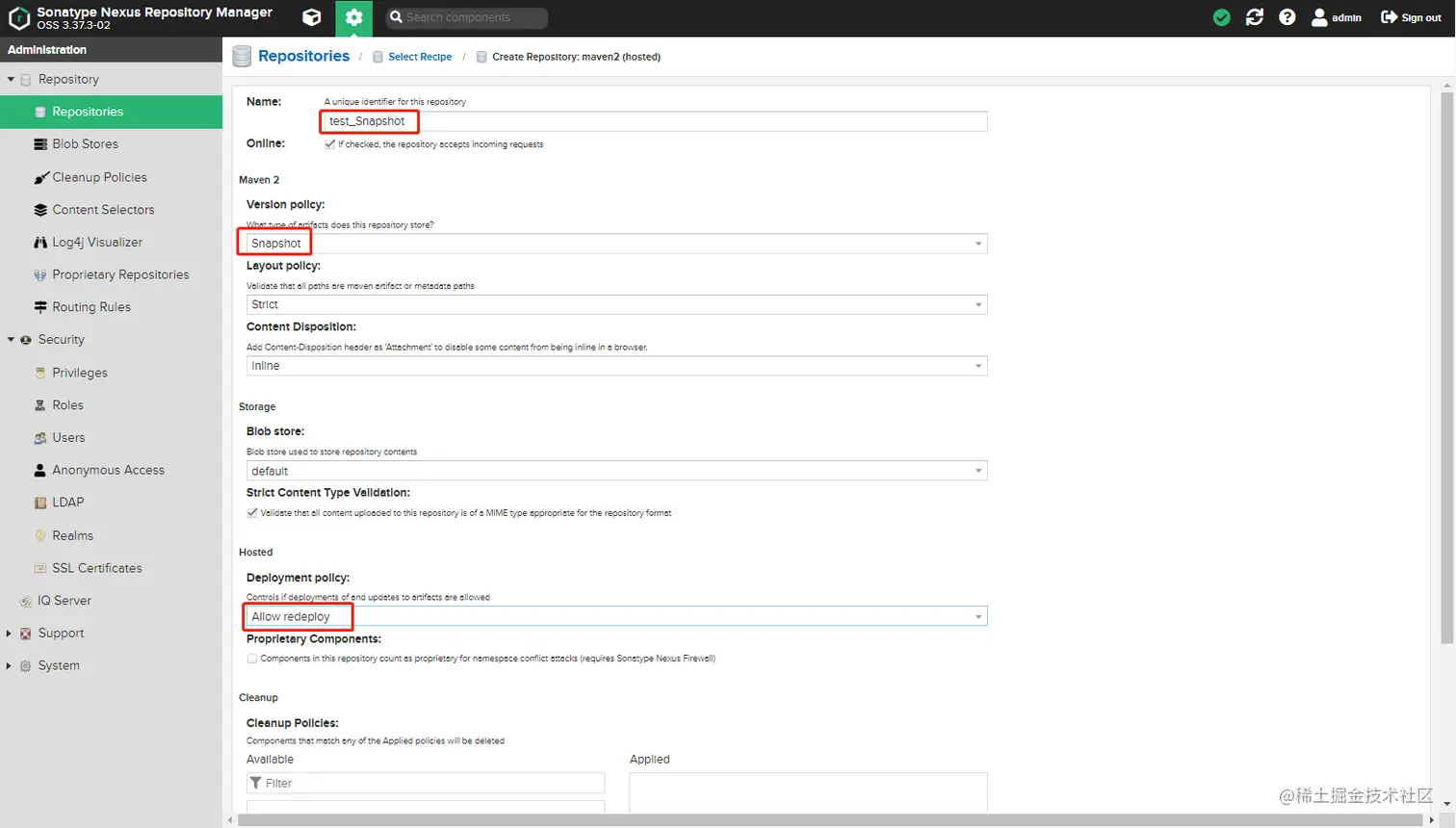

仓库：
左侧菜单栏 Repository->Repositories->Create repository->maven2(hosted)
这里要注意：
(1) 创建的仓库类型一定要是hosted类型的，否则无法上传
(2)* 演示创建两种仓库 Snapshot和release 其中 Snapshot库发布的版本必须以SNAPSHOT结尾 ，release发布的版本不能以SNAPSHOT结尾

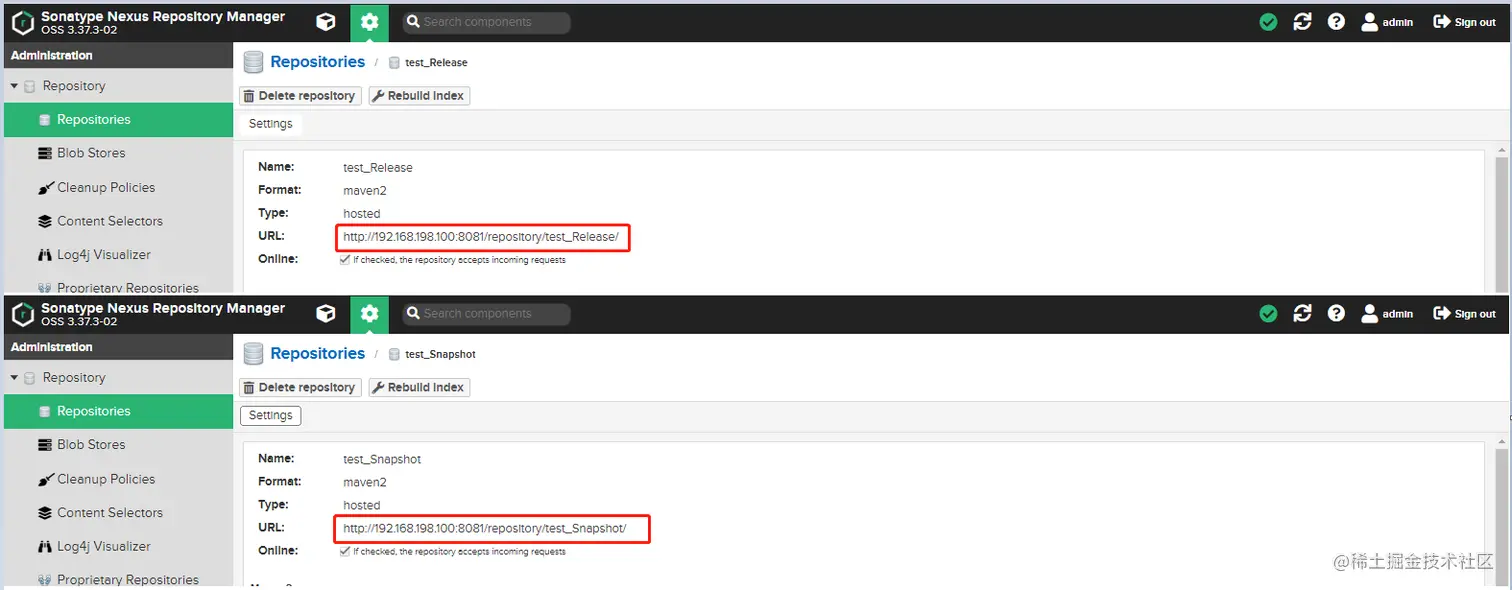

创建结束后再次点击进入可以看到具体的仓库地址，这个需要记住，下面会用到
http://192.168.198.100:8081/repository/test_Release/
http://192.168.198.100:8081/repository/test_Snapshot/
4.6 上传jar到nexus私有仓库
4.6.1 ideal方式上传项目jar包
配置settings.xml文件
<servers>
<server>
<!-- id是仓库的名字 username是nexus账号 password是nexus密码 -->
<id>test_Release</id>
<username>admin</username>
<password>123456</password>
</server>
<server>
<id>test_Snapshot</id>
<username>admin</username>
<password>123456</password>
</server>
</servers>
<mirrors>
<mirror>
<!--id 和name自定义 -->
<id>nexus release</id>
<name>nexus release repository</name>
<mirrorOf>*</mirrorOf>
<url>http://192.168.198.100:8081/repository/test_Release/</url>
</mirror>
<mirror>
<!--id 和name自定义 -->
<id>nexus snapshot</id>
<name>nexus snapshot repository</name>
<mirrorOf>*</mirrorOf>
<url>http://192.168.198.100:8081/repository/test_Snapshot/</url>
</mirror>
</mirrors>
配置pom.xml文件
<distributionManagement>
<repository>
<!--仓库id 名称-->
<id>test_Release</id>
<!--自定义名称-->
<name>Release</name>
<!--仓库对应url地址-->
<url>http://192.168.198.100:8081/repository/test_Release/</url>
</repository>
<snapshotRepository>
<!--仓库id 名称-->
<id>test_Snapshot</id>
<!--自定义名称-->
<name>Snapshot</name>
<!--仓库对应url地址-->
<url>http://192.168.198.100:8081/repository/test_Snapshot/</url>
</snapshotRepository>
</distributionManagement>

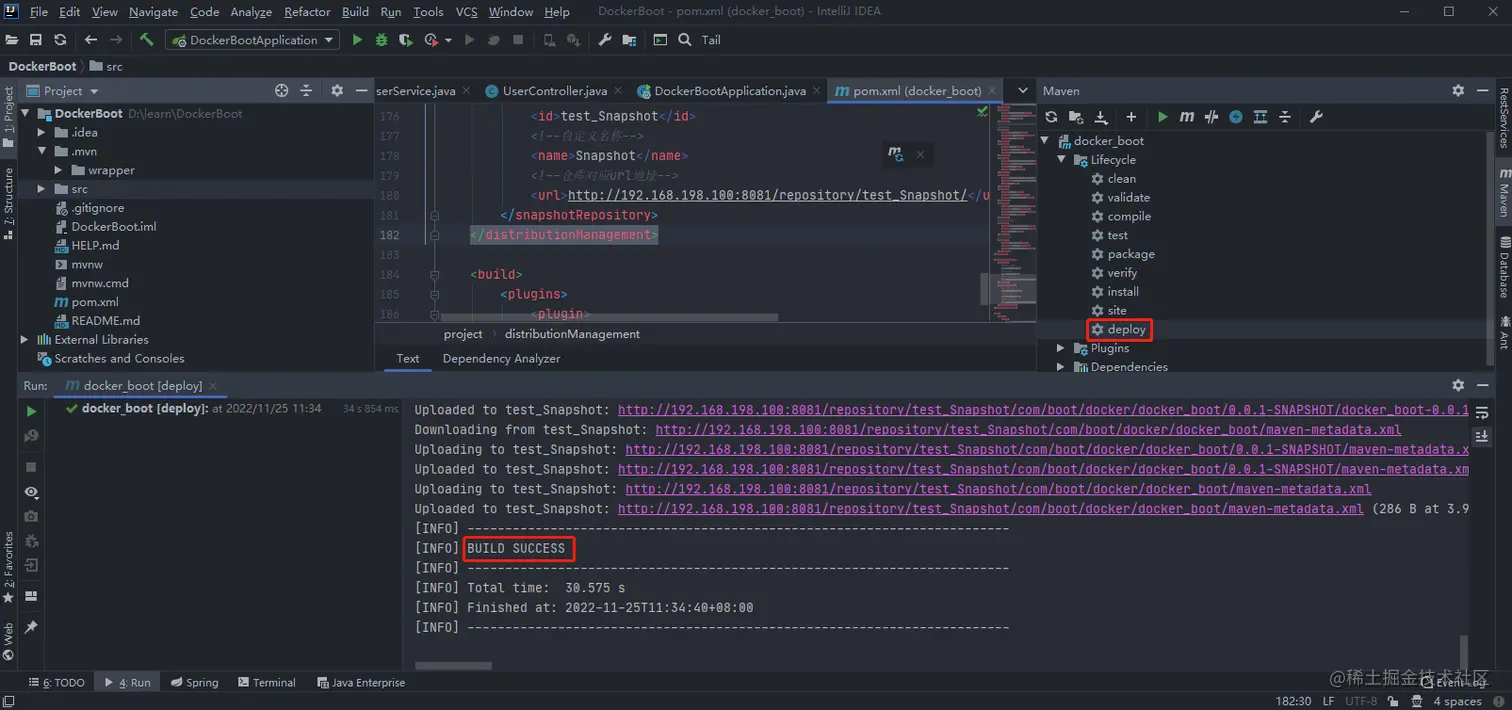

打开ideal，点击deploy，控制台出现build success说明就成功上传了。

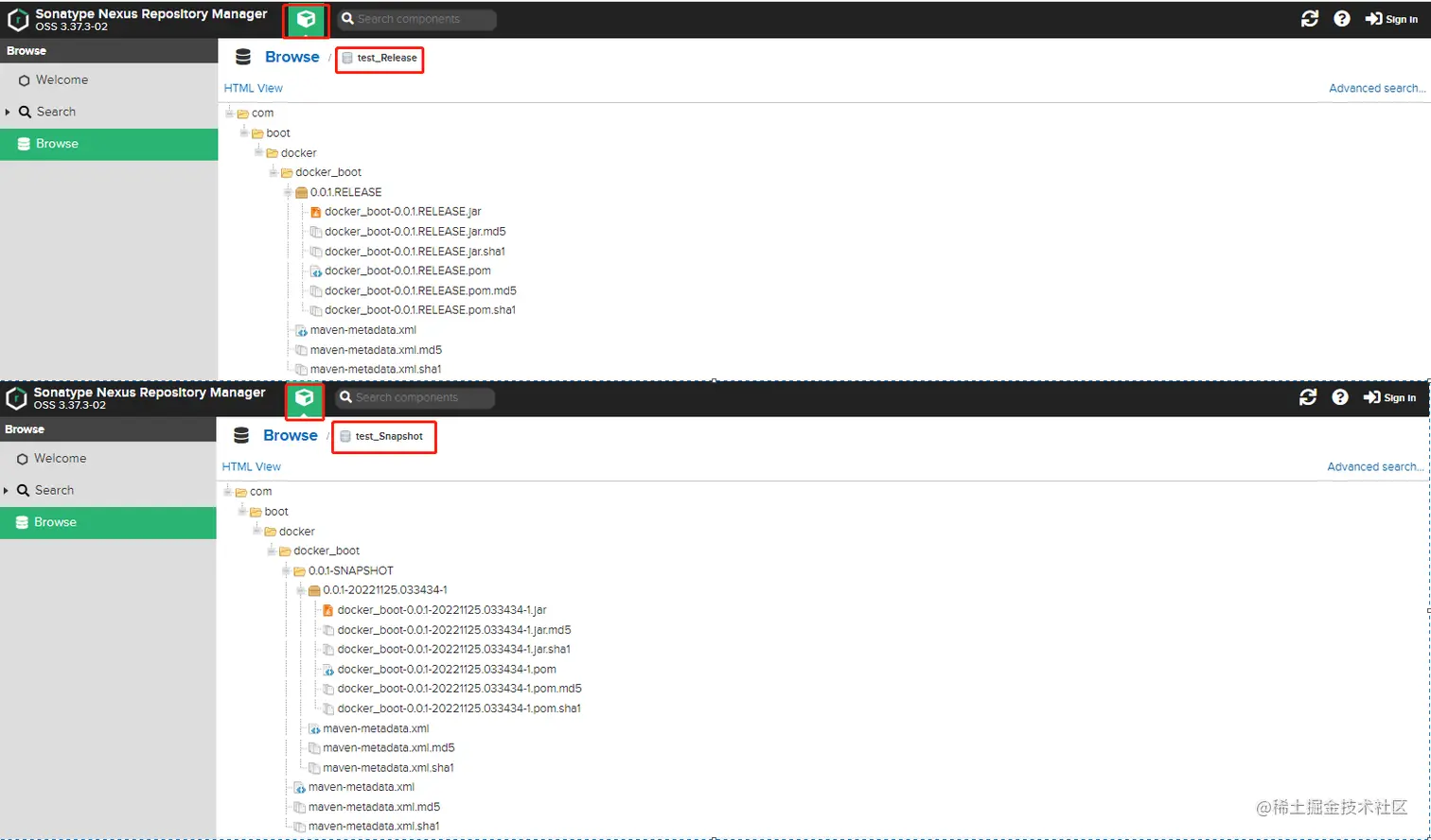

这里要注意: RELEASE结尾的会进入test_Release仓库，SNAPSHOT结尾的会进入test_Snapshot仓库
<!-- 两种后缀会进入不同的仓库中 -->
<groupId>com.boot.docker</groupId>
<artifactId>docker_boot</artifactId>
<version>0.0.1.RELEASE</version>
<groupId>com.boot.docker</groupId>
<artifactId>docker_boot</artifactId>
<version>0.0.1-SNAPSHOT</version>
4.6.2 命令方式上传jar包(单个)
settings.xml文件配置
<server>
<!-- id是仓库的名字 username是nexus账号 password是nexus密码 -->
<id>test_Release</id>
<username>admin</username>
<password>123456</password>
</server>
<server>
<id>test_Snapshot</id>
<username>admin</username>
<password>123456</password>
</server>
4.6.2.1 本地打好jar包
如果是已有jar包此步骤可以忽略。命令：
mvn install:install-file -Dfile="" -DgroupId="" -DartifactId="" -Dversion="" -Dpackaging="jar"
参数详解：
-Dfile ： 本地jar包全路径
-DgroupId: pom中定义的groupId标签内容
-DartifactId: pom中定义的artifactId标签内容
-DartifactId: pom中定义的version标签内容
4.6.2.2 上传jar包到nexus
命令：
mvn deploy:deploy-file -DgroupId="" -DartifactId="" -Dversion="" -Dpackaging="jar" -Dfile="" -DrepositoryId="" -Durl=""
参数详解：
-Dfile ： 本地jar包全路径
-DgroupId: pom中定义的groupId标签内容
-DartifactId: pom中定义的artifactId标签内容
-DartifactId: pom中定义的version标签内容
-DrepositoryId: 要上传的nexus仓库id
-Durl:nexus仓库地址

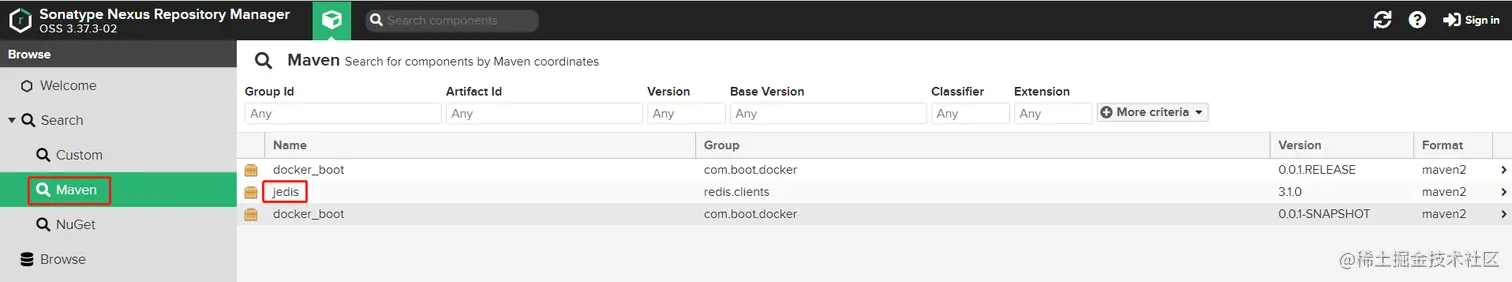

<!-- 这里我们以jedis相关jar包做演示 -->
<dependency>
<groupId>redis.clients</groupId>
<artifactId>jedis</artifactId>
<version>3.1.0</version>
</dependency>
mvn deploy:deploy-file -DgroupId="redis.clients" -DartifactId="jedis" -Dversion="3.1.0" -Dpackaging="jar" -Dfile="D:\soft\maven\apache-maven-3.6.1\repository\redis\clients\jedis\3.1.0\jedis-3.1.0.jar" -DrepositoryId="test_Release" -Durl="http://192.168.198.100:8081/repository/test_Release/"
C:\Users\tianmeng>mvn -v
Apache Maven 3.8.6 (84538c9988a25aec085021c365c560670ad80f63)
Maven home: D:\soft\maven\apache-maven-3.8.6
Java version: 1.8.0_181, vendor: Oracle Corporation, runtime: D:\soft\jdk\jre
Default locale: zh_CN, platform encoding: GBK
OS name: "windows 10", version: "10.0", arch: "amd64", family: "windows"
C:\Users\tianmeng>mvn deploy:deploy-file -DgroupId="redis.clients" -DartifactId="jedis" -Dversion="3.1.0" -Dpackaging="jar" -Dfile="D:\soft\maven\apache-maven-3.6.1\repository\redis\clients\jedis\3.1.0\jedis-3.1.0.jar" -DrepositoryId="test_Release" -Durl="http://192.168.198.100:8081/repository/test_Release/"
[INFO] Scanning for projects...
Downloading from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/apache/maven/plugins/maven-deploy-plugin/2.7/maven-deploy-plugin-2.7.pom
Downloaded from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/apache/maven/plugins/maven-deploy-plugin/2.7/maven-deploy-plugin-2.7.pom (0 B at 0 B/s)
Downloading from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/apache/maven/plugins/maven-deploy-plugin/2.7/maven-deploy-plugin-2.7.jar
Downloaded from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/apache/maven/plugins/maven-deploy-plugin/2.7/maven-deploy-plugin-2.7.jar (0 B at 0 B/s)
[INFO]
[INFO] ------------------< org.apache.maven:standalone-pom >-------------------
[INFO] Building Maven Stub Project (No POM) 1
[INFO] --------------------------------[ pom ]---------------------------------
[INFO]
[INFO] --- maven-deploy-plugin:2.7:deploy-file (default-cli) @ standalone-pom ---
Downloading from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus-utils/1.5.6/plexus-utils-1.5.6.pom
Downloaded from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus-utils/1.5.6/plexus-utils-1.5.6.pom (0 B at 0 B/s)
Downloading from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus/1.0.12/plexus-1.0.12.pom
Downloaded from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus/1.0.12/plexus-1.0.12.pom (0 B at 0 B/s)
Downloading from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus-utils/1.5.6/plexus-utils-1.5.6.jar
Downloaded from alimaven: http://maven.aliyun.com/nexus/content/repositories/central/org/codehaus/plexus/plexus-utils/1.5.6/plexus-utils-1.5.6.jar (0 B at 0 B/s)
Uploading to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/3.1.0/jedis-3.1.0.jarUploaded to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/3.1.0/jedis-3.1.0.jar (646 kB at 2.1 MB/s)
Uploading to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/3.1.0/jedis-3.1.0.pomUploaded to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/3.1.0/jedis-3.1.0.pom (392 B at 3.5 kB/s)
Downloading from test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/maven-metadata.xml
Uploading to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/maven-metadata.xml
Uploaded to test_Release: http://192.168.198.100:8081/repository/test_Release/redis/clients/jedis/maven-metadata.xml (298 B at 3.9 kB/s)
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 6.950 s
[INFO] Finished at: 2022-11-25T13:41:54+08:00
[INFO] ------------------------------------------------------------------------
4.6.3 命令方式上传jar包(多个)
首先将整个maven下的仓库复制到linux如/opt目录下
然后在/otp目录下再创建mavenimport.sh脚本，并赋权限内容如下：
chmod a+x mavenimport.sh
#!/bin/bash
# copy and run this script to the root of the repository directory containing files
# this script attempts to exclude uploading itself explicitly so the script name is important
# Get command line params
while getopts ":r:u:p:" opt; do
case $opt in
r) REPO_URL="$OPTARG"
;;
u) USERNAME="$OPTARG"
;;
p) PASSWORD="$OPTARG"
;;
esac
done
find . -type f -not -path './mavenimport\.sh*' -not -path '*/\.*' -not -path '*/\^archetype\-catalog\.xml*' -not -path '*/\^maven\-metadata\-local*\.xml' -not -path '*/\^maven\-metadata\-deployment*\.xml' | sed "s|^\./||" | xargs -I '{}' curl -u "$USERNAME:$PASSWORD" -X PUT -v -T {} ${REPO_URL}/{} ;
执行导入命令
# 其中-u后面跟着是nexus账号，-p后面跟着是nexus密码，-r后面跟着是仓库地址
./mavenimport.sh -u admin -p 123456 -r http://192.168.198.100:8081/repository/maven-releases/
4.7 从nexus私有仓库拉jar包
以后补充
5. 安装ELK
参考： www.cnblogs.com/yiMro/p/159…
5.1 编辑docker-compose.yml文件
直接编辑docker-compose.yml文件
内容如下：
version: '3.8'
services:
elasticsearch:
image: docker.elastic.co/elasticsearch/elasticsearch:7.8.0
container_name: elasticsearch
environment:
- "cluster.name=elasticsearch" #设置集群名称为elasticsearch
- "discovery.type=single-node" #以单一节点模式启动
- "ES_JAVA_OPTS=-Xms512m -Xmx512m" #设置使用jvm内存大小
volumes:
- /usr/local/docker/dockercompose/elasticsearch/plugins:/usr/share/elasticsearch/plugins #插件目录
- /usr/local/docker/dockercompose/elasticsearch/data:/usr/share/elasticsearch/data
ports:
- 9200:9200
- 9300:9300
kibana:
image: kibana:7.8.0
container_name: kibana
volumes:
- /usr/local/docker/dockercompose/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml#挂载配置文件，系统文件：容器内文件
links:
- elasticsearch:es #可以用es这个域名访问elasticsearch服务
depends_on:
- elasticsearch #kibana在elasticsearch启动之后再启动
environment:
- "elasticsearch.hosts=http://es:9200" #设置访问elasticsearch的地址
ports:
- 5601:5601
logstash:
image: logstash:7.8.0
container_name: logstash
volumes:
- /usr/local/docker/dockercompose/logstash/logstash.conf:/usr/share/logstash/config/logstash.conf #挂载logstash的配置文件
depends_on:
- elasticsearch #kibana在elasticsearch启动之后再启动
links:
- elasticsearch:es #可以用es这个域名访问elasticsearch服务
ports:
- 4560:4560
5.2 添加文件权限
为路径 /usr/local/docker/dockercompose 添加 777 权限，否则elasticsearch启动会报错。
5.3 测试
启动完成后分别进行测试 ：

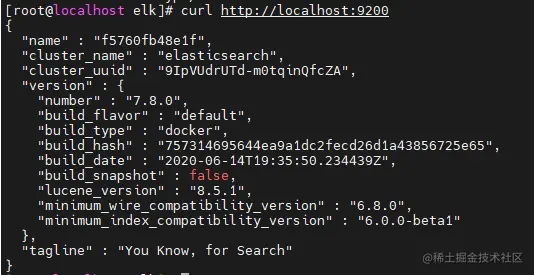

(1) elasticsearch :
浏览器输入 http://localhost:9200/ 或者
终端输入 curl http://localhost:9200/ 来检查es是否安装成功
(2) kibana :
浏览器输入地址 http://localhost:5601/
6. 安装nacos
6.1 执行数据库文件
sql地址：
这里要注意： nacos数据库文件随着nacos的版本是有所不同的，我下面贴出来的是以mysql8.0.21为配套的，如果不兼容，当在nacos控制台保存配置文件的时候，会报错，报错信息为 ： 发布失败。请检查参数是否正确。
具体内容 ：
数据库名 ： nacos_config
CREATE TABLE `config_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(255) DEFAULT NULL,
`content` longtext NOT NULL COMMENT 'content',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COMMENT 'source user',
`src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
`app_name` varchar(128) DEFAULT NULL,
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
`c_desc` varchar(256) DEFAULT NULL,
`c_use` varchar(64) DEFAULT NULL,
`effect` varchar(64) DEFAULT NULL,
`type` varchar(64) DEFAULT NULL,
`c_schema` text,
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = config_info_aggr */
/******************************************/
CREATE TABLE `config_info_aggr` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(255) NOT NULL COMMENT 'group_id',
`datum_id` varchar(255) NOT NULL COMMENT 'datum_id',
`content` longtext NOT NULL COMMENT '内容',
`gmt_modified` datetime NOT NULL COMMENT '修改时间',
`app_name` varchar(128) DEFAULT NULL,
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfoaggr_datagrouptenantdatum` (`data_id`,`group_id`,`tenant_id`,`datum_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='增加租户字段';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = config_info_beta */
/******************************************/
CREATE TABLE `config_info_beta` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`content` longtext NOT NULL COMMENT 'content',
`beta_ips` varchar(1024) DEFAULT NULL COMMENT 'betaIps',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COMMENT 'source user',
`src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfobeta_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_beta';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = config_info_tag */
/******************************************/
CREATE TABLE `config_info_tag` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
`tag_id` varchar(128) NOT NULL COMMENT 'tag_id',
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`content` longtext NOT NULL COMMENT 'content',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COMMENT 'source user',
`src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfotag_datagrouptenanttag` (`data_id`,`group_id`,`tenant_id`,`tag_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_tag';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = config_tags_relation */
/******************************************/
CREATE TABLE `config_tags_relation` (
`id` bigint(20) NOT NULL COMMENT 'id',
`tag_name` varchar(128) NOT NULL COMMENT 'tag_name',
`tag_type` varchar(64) DEFAULT NULL COMMENT 'tag_type',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
`nid` bigint(20) NOT NULL AUTO_INCREMENT,
PRIMARY KEY (`nid`),
UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = group_capacity */
/******************************************/
CREATE TABLE `group_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`group_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数，，0表示使用默认值',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_group_id` (`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群、各Group容量信息表';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = his_config_info */
/******************************************/
CREATE TABLE `his_config_info` (
`id` bigint(64) unsigned NOT NULL,
`nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT,
`data_id` varchar(255) NOT NULL,
`group_id` varchar(128) NOT NULL,
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`content` longtext NOT NULL,
`md5` varchar(32) DEFAULT NULL,
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
`src_user` text,
`src_ip` varchar(50) DEFAULT NULL,
`op_type` char(10) DEFAULT NULL,
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
PRIMARY KEY (`nid`),
KEY `idx_gmt_create` (`gmt_create`),
KEY `idx_gmt_modified` (`gmt_modified`),
KEY `idx_did` (`data_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='多租户改造';
/******************************************/
/* 数据库全名 = nacos_config */
/* 表名称 = tenant_capacity */
/******************************************/
CREATE TABLE `tenant_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`tenant_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Tenant ID',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容量信息表';
CREATE TABLE `tenant_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`kp` varchar(128) NOT NULL COMMENT 'kp',
`tenant_id` varchar(128) default '' COMMENT 'tenant_id',
`tenant_name` varchar(128) default '' COMMENT 'tenant_name',
`tenant_desc` varchar(256) DEFAULT NULL COMMENT 'tenant_desc',
`create_source` varchar(32) DEFAULT NULL COMMENT 'create_source',
`gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
`gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';
CREATE TABLE `users` (
`username` varchar(50) NOT NULL PRIMARY KEY,
`password` varchar(500) NOT NULL,
`enabled` boolean NOT NULL
);
CREATE TABLE `roles` (
`username` varchar(50) NOT NULL,
`role` varchar(50) NOT NULL,
UNIQUE INDEX `idx_user_role` (`username` ASC, `role` ASC) USING BTREE
);
CREATE TABLE `permissions` (
`role` varchar(50) NOT NULL,
`resource` varchar(255) NOT NULL,
`action` varchar(8) NOT NULL,
UNIQUE INDEX `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
);
INSERT INTO users (username, password, enabled) VALUES ('nacos', '$2a$10$EuWPZHzz32dJN7jexM34MOeYirDdFAZm2kuWj7VEOJhhZkDrxfvUu', TRUE);
INSERT INTO roles (username, role) VALUES ('nacos', 'ROLE_ADMIN');
6.2 查询并拉取镜像
[root@localhost ~]# docker search nacos
NAME DESCRIPTION STARS OFFICIAL AUTOMATED
nacos/nacos-server This project contains a Docker image meant t… 340 [OK]
[root@localhost ~]# docker pull nacos/nacos-server
6.3 运行镜像
注意修改 数据库名 ip 端口 账号 密码
docker run -d -p 8848:8848 -p 9848:9848 \
--name nacos \
--env MODE=standalone \
--env SPRING_DATASOURCE_PLATFORM=mysql \
--env MYSQL_SERVICE_HOST=192.168.198.100 \
--env MYSQL_SERVICE_PORT=3306 \
--env MYSQL_SERVICE_DB_NAME=nacos_config \
--env MYSQL_SERVICE_USER=root \
--env MYSQL_SERVICE_PASSWORD=123456 \
nacos/nacos-server:latest

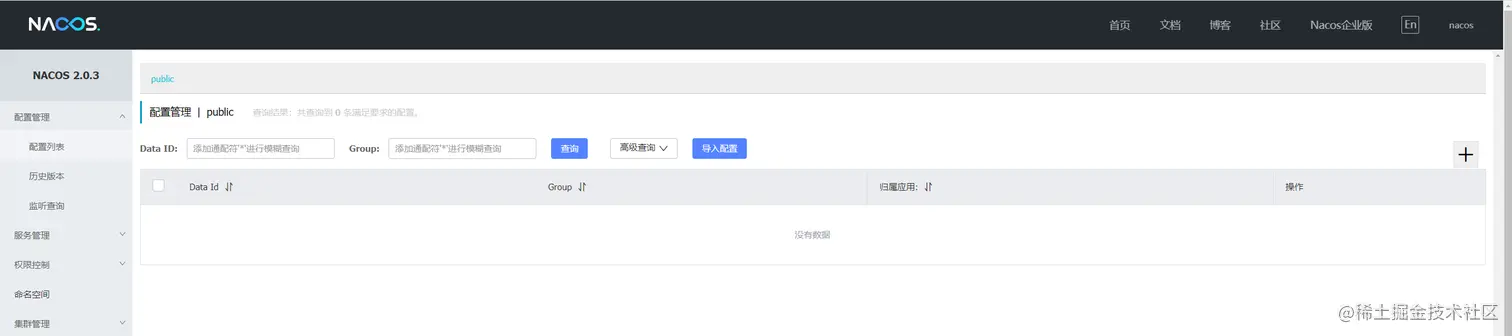

6.4 测试

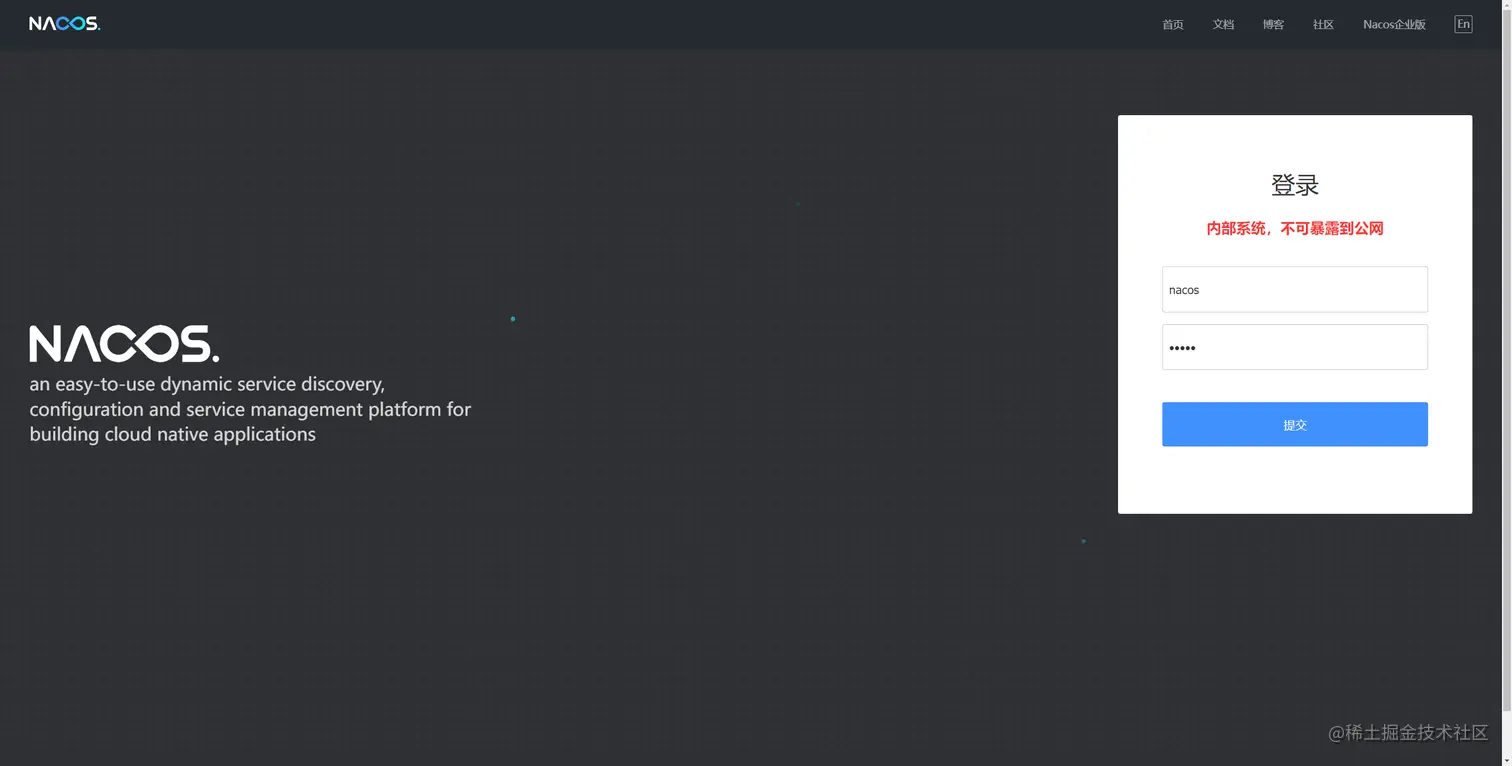

浏览器访问 ： http://ip:8848/nacos/#/login 账号密码默认 nacos nacos
如果有报错，可以查看日志
[root@localhost ~]# docker exec -it nacos bash
[root@121565357a8d nacos]# cd /home/nacos/logs/
[root@121565357a8d logs]# tail -f nacos.log
7. 安装RocketMQ
7.1 基本方式
7.1.1 部署NameServer
# 拉取镜像
docker pull rocketmqinc/rocketmq:4.4.0
# 启动NameServer，暴露9876端口
docker run --name rmqnamesrv -d -p 9876:9876 rocketmqinc/rocketmq:4.4.0 sh mqnamesrv
# 启动成功后测试
[root@localhost ~]# curl localhost:9876
curl: (52) Empty reply from server
7.1.2 部署Broker
# RocketMQ是Java编写的程序，Broker和NameServer都在上面的镜像中，只是启动命令不同而已。
docker run --name rmqbroker -d -p 10911:10911 -p 10909:10909 --link rmqnamesrv:namesrv -e "NAMESRV_ADDR=namesrv:9876" rocketmqinc/rocketmq:4.4.0 sh mqbroker
# -link 将NameServer容器起个别名，Broker中需要配置一个NAMESRV_ADDR参数指向NameServer地址。
# 启动成功后测试
[root@localhost ~]# curl localhost:10911
curl: (52) Empty reply from server
7.1.3 部署RocketMQ可视化界面控制台
# 拉取镜像
docker pull pangliang/rocketmq-console-ng
# 启动容器
docker run --name rmqconsole -d -p 8080:8080 --link rmqnamesrv:namesrv -e "JAVA_OPTS=-Drocketmq.namesrv.addr=namesrv:9876" pangliang/rocketmq-console-ng
# 启动后测试
[root@localhost ~]# curl localhost:8080
...
<head>
...
</head>
<body ng-controller="AppCtrl">
...
</body>
</html>

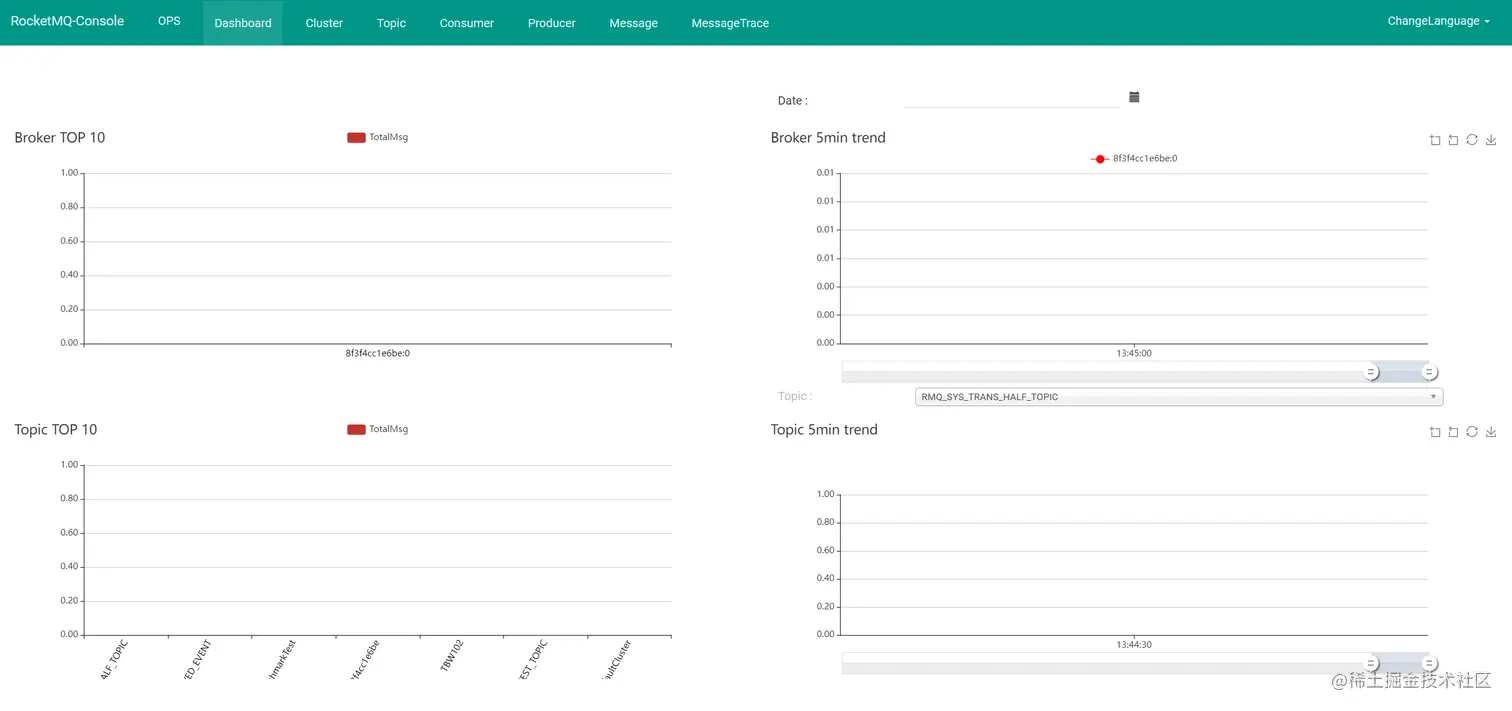

也可以通过浏览器访问 ： http://192.168.198.100:8080
7.2 docker-compose方式
7.2.1 broker.conf
创建/data/brokerconf/broker.conf文件，内容如下 ：
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# 所属集群名字
brokerClusterName=DefaultCluster
# broker 名字，注意此处不同的配置文件填写的不一样，如果在 broker-a.properties 使用: broker-a,
# 在 broker-b.properties 使用: broker-b
brokerName=broker-a
# 0 表示 Master，> 0 表示 Slave
brokerId=0
# nameServer地址，分号分割
# namesrvAddr=rocketmq-nameserver1:9876;rocketmq-nameserver2:9876
# 启动IP,如果 docker 报 com.alibaba.rocketmq.remoting.exception.RemotingConnectException: connect to <192.168.0.120:10909> failed
# 解决方式1 加上一句 producer.setVipChannelEnabled(false);，解决方式2 brokerIP1 设置宿主机IP，不要使用docker 内部IP
# brokerIP1=192.168.0.253
# 在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
defaultTopicQueueNums=4
# 是否允许 Broker 自动创建 Topic，建议线下开启，线上关闭 ！！！这里仔细看是 false，false，false
autoCreateTopicEnable=true
# 是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=true
# Broker 对外服务的监听端口
listenPort=10911
# 删除文件时间点，默认凌晨4点
deleteWhen=04
# 文件保留时间，默认48小时
fileReservedTime=120
# commitLog 每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824
# ConsumeQueue 每个文件默认存 30W 条，根据业务情况调整
mapedFileSizeConsumeQueue=300000
# destroyMapedFileIntervalForcibly=120000
# redeleteHangedFileInterval=120000
# 检测物理文件磁盘空间
diskMaxUsedSpaceRatio=88
# 存储路径
# storePathRootDir=/home/ztztdata/rocketmq-all-4.1.0-incubating/store
# commitLog 存储路径
# storePathCommitLog=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/commitlog
# 消费队列存储
# storePathConsumeQueue=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/consumequeue
# 消息索引存储路径
# storePathIndex=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/index
# checkpoint 文件存储路径
# storeCheckpoint=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/checkpoint
# abort 文件存储路径
# abortFile=/home/ztztdata/rocketmq-all-4.1.0-incubating/store/abort
# 限制的消息大小
maxMessageSize=65536
# flushCommitLogLeastPages=4
# flushConsumeQueueLeastPages=2
# flushCommitLogThoroughInterval=10000
# flushConsumeQueueThoroughInterval=60000
# Broker 的角色
# - ASYNC_MASTER 异步复制Master
# - SYNC_MASTER 同步双写Master
# - SLAVE
brokerRole=ASYNC_MASTER
# 刷盘方式
# - ASYNC_FLUSH 异步刷盘
# - SYNC_FLUSH 同步刷盘
flushDiskType=ASYNC_FLUSH
# 发消息线程池数量
# sendMessageThreadPoolNums=128
# 拉消息线程池数量
# pullMessageThreadPoolNums=128
7.2.2 docker-compose.yml
编写docker-compose.yml文件
version: '3.5'
services:
rmqnamesrv:
image: foxiswho/rocketmq:server
container_name: rmqnamesrv
ports:
- 9876:9876
volumes:
- /data/logs:/opt/logs
- /data/store:/opt/store
networks:
rmq:
aliases:
- rmqnamesrv
rmqbroker:
image: foxiswho/rocketmq:broker
container_name: rmqbroker
ports:
- 10909:10909
- 10911:10911
volumes:
- /data/logs:/opt/logs
- /data/store:/opt/store
- /data/brokerconf/broker.conf:/etc/rocketmq/broker.conf
environment:
NAMESRV_ADDR: "rmqnamesrv:9876"
JAVA_OPTS: " -Duser.home=/opt"
JAVA_OPT_EXT: "-server -Xms128m -Xmx128m -Xmn128m"
command: mqbroker -c /etc/rocketmq/broker.conf
depends_on:
- rmqnamesrv
networks:
rmq:
aliases:
- rmqbroker
rmqconsole:
image: styletang/rocketmq-console-ng
container_name: rmqconsole
ports:
- 8080:8080
environment:
JAVA_OPTS: "-Drocketmq.namesrv.addr=rmqnamesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false"
depends_on:
- rmqnamesrv
networks:
rmq:
aliases:
- rmqconsole
networks:
rmq:
name: rmq
driver: bridge
执行完成后，可以通过浏览器访问 ： http://192.168.198.100:8080 效果如下 ：
8. 安装Zipkin
8.1 拉取镜像
docker pull openzipkin/zipkin
[root@localhost ~]# docker pull openzipkin/zipkin
Using default tag: latest
latest: Pulling from openzipkin/zipkin
c0aa4990b596: Pull complete
f61f02e88f83: Pull complete
81a5bee85181: Pull complete
696d2efa2e2f: Pull complete
62513cb5ea01: Pull complete
09f47f38bd8a: Pull complete
c3a9517668cb: Pull complete
fe2e5d9110cb: Pull complete
5284867c7137: Pull complete
Digest: sha256:b3435e485f1e73266dba48ae56814c6731ffb76563a0b809456876f29a575f6b
Status: Downloaded newer image for openzipkin/zipkin:latest
docker.io/openzipkin/zipkin:latest
8.2 创建数据库
Zipkin Server默认会将数据保存到内存中，但这种方式不适合生产环境。一旦Zipkin Server重启，数据就丢失了。Zipkin支持将追踪数据持久化到mysql或者elasticsearch中。
这里演示mysql的情况 ：
首先创建名为zipkin_config的数据库，然后执行下面脚本
CREATE TABLE `zipkin_annotations` (
`trace_id_high` bigint(20) NOT NULL DEFAULT '0' COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
`trace_id` bigint(20) NOT NULL COMMENT 'coincides with zipkin_spans.trace_id',
`span_id` bigint(20) NOT NULL COMMENT 'coincides with zipkin_spans.id',
`a_key` varchar(255) NOT NULL COMMENT 'BinaryAnnotation.key or Annotation.value if type == -1',
`a_value` blob COMMENT 'BinaryAnnotation.value(), which must be smaller than 64KB',
`a_type` int(11) NOT NULL COMMENT 'BinaryAnnotation.type() or -1 if Annotation',
`a_timestamp` bigint(20) DEFAULT NULL COMMENT 'Used to implement TTL; Annotation.timestamp or zipkin_spans.timestamp',
`endpoint_ipv4` int(11) DEFAULT NULL COMMENT 'Null when Binary/Annotation.endpoint is null',
`endpoint_ipv6` binary(16) DEFAULT NULL COMMENT 'Null when Binary/Annotation.endpoint is null, or no IPv6 address',
`endpoint_port` smallint(6) DEFAULT NULL COMMENT 'Null when Binary/Annotation.endpoint is null',
`endpoint_service_name` varchar(255) DEFAULT NULL COMMENT 'Null when Binary/Annotation.endpoint is null',
UNIQUE KEY `trace_id_high` (`trace_id_high`,`trace_id`,`span_id`,`a_key`,`a_timestamp`) COMMENT 'Ignore insert on duplicate',
KEY `trace_id_high_2` (`trace_id_high`,`trace_id`,`span_id`) COMMENT 'for joining with zipkin_spans',
KEY `trace_id_high_3` (`trace_id_high`,`trace_id`) COMMENT 'for getTraces/ByIds',
KEY `endpoint_service_name` (`endpoint_service_name`) COMMENT 'for getTraces and getServiceNames',
KEY `a_type` (`a_type`) COMMENT 'for getTraces and autocomplete values',
KEY `a_key` (`a_key`) COMMENT 'for getTraces and autocomplete values',
KEY `trace_id` (`trace_id`,`span_id`,`a_key`) COMMENT 'for dependencies job'
) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=COMPRESSED;
CREATE TABLE `zipkin_dependencies` (
`day` date NOT NULL,
`parent` varchar(255) NOT NULL,
`child` varchar(255) NOT NULL,
`call_count` bigint(20) DEFAULT NULL,
`error_count` bigint(20) DEFAULT NULL,
PRIMARY KEY (`day`,`parent`,`child`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=COMPRESSED;
CREATE TABLE `zipkin_spans` (
`trace_id_high` bigint(20) NOT NULL DEFAULT '0' COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
`trace_id` bigint(20) NOT NULL,
`id` bigint(20) NOT NULL,
`name` varchar(255) NOT NULL,
`remote_service_name` varchar(255) DEFAULT NULL,
`parent_id` bigint(20) DEFAULT NULL,
`debug` bit(1) DEFAULT NULL,
`start_ts` bigint(20) DEFAULT NULL COMMENT 'Span.timestamp(): epoch micros used for endTs query and to implement TTL',
`duration` bigint(20) DEFAULT NULL COMMENT 'Span.duration(): micros used for minDuration and maxDuration query',
PRIMARY KEY (`trace_id_high`,`trace_id`,`id`),
KEY `trace_id_high` (`trace_id_high`,`trace_id`) COMMENT 'for getTracesByIds',
KEY `name` (`name`) COMMENT 'for getTraces and getSpanNames',
KEY `remote_service_name` (`remote_service_name`) COMMENT 'for getTraces and getRemoteServiceNames',
KEY `start_ts` (`start_ts`) COMMENT 'for getTraces ordering and range'
) ENGINE=InnoDB DEFAULT CHARSET=utf8 ROW_FORMAT=COMPRESSED;
8.3 启动容器
这里注意要修改数据库的名称、账号、密码、ip、port等信息
docker run -d --restart always -p 9411:9411 --name zipkin-mysql openzipkin/zipkin --STORAGE_TYPE=mysql --MYSQL_HOST=192.168.198.100 --MYSQL_TCP_PORT=3306 --MYSQL_DB=zipkin_config --MYSQL_USER=root --MYSQL_PASS=123456
8.4 测试

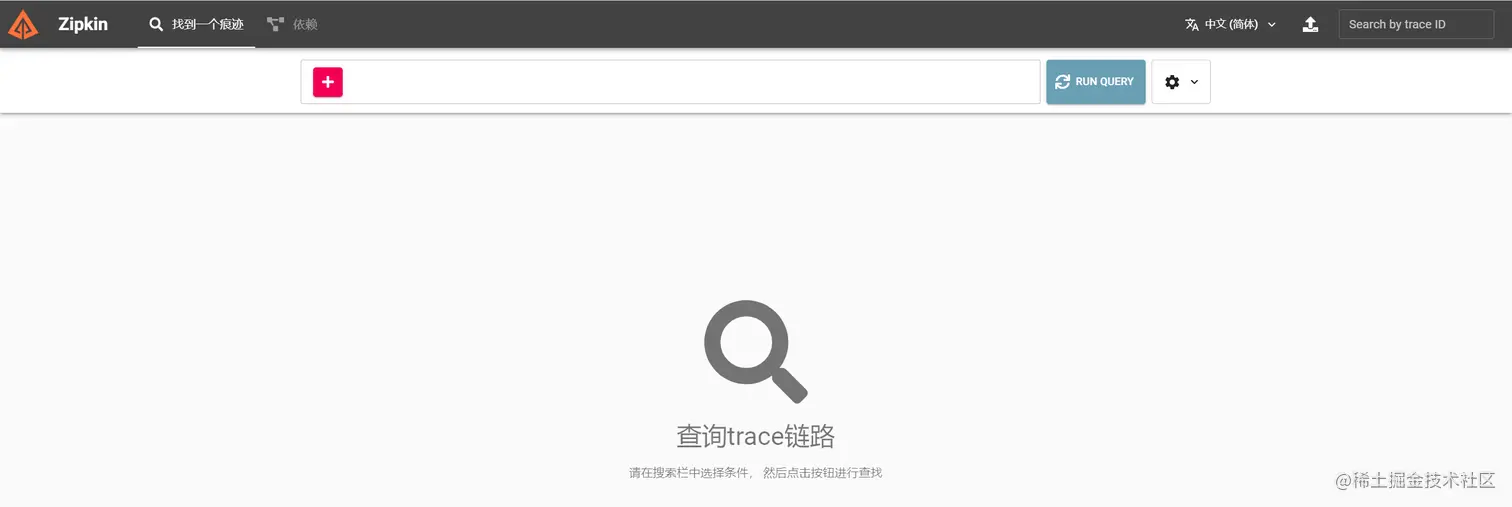

启动成功后，通过浏览器访问 ： http://192.168.198.100:9411 ,效果如下 ：
9. 安装seata
9.1 拉取镜像
docker pull seataio/seata-server:1.4.2
9.2 运行容器
docker run -d --name seata-server -e SEATA_IP=192.168.198.100 -e SEATA_PORT=8091 -p 8091:8091 seataio/seata-server:1.4.2
9.3 修改配置文件
共修改两个配置文件registry.conf和file.conf
9.3.1 创建目录
作为修改registry.conf和file.conf的目录地址
[root@localhost /]# mkdir -p /usr/local/seata
[root@localhost /]# chmod -R 777 /usr/local/seata/
9.3.2 将文件复制出来
docker cp aa543016e99c:/seata-server/resources/file.conf /usr/local/seata/file.conf
docker cp aa543016e99c:/seata-server/resources/registry.conf /usr/local/seata/registry.conf
9.3.3 修改文件
9.3.3.1 修改registry.conf文件
# -------------------------第一部分-----------------------------------
# 修改前
registry {
# file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
type = "file"
nacos {
application = "seata-server"
serverAddr = "127.0.0.1:8848"
group = "SEATA_GROUP"
namespace = ""
cluster = "default"
username = ""
password = ""
}
...
# 修改后
registry {
# file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
type = "nacos" # 这里修改成使用nacos的方式
nacos {
application = "seata-server" # 服务注册到nacos的名称
serverAddr = "192.168.198.100:8848" # 这里填写nacos的ip和端口
group = "DEFAULT_GROUP" # 这里使用默认的分组
namespace = "0c8d097b-2aaa-45f4-889a-44545ae50d3c" # 这里填写nacos对应的命名空间 我这里因为环境是dev，所以填写的是dev的
cluster = "default" # 默认不用修改
username = "nacos" # nacos的账号
password = "nacos" # nacos的密码
}
...
# -------------------------第二部分-----------------------------------
# 修改前
config {
# file、nacos 、apollo、zk、consul、etcd3
type = "file"
nacos {
serverAddr = "127.0.0.1:8848"
namespace = ""
group = "SEATA_GROUP"
username = ""
password = ""
dataId = "seataServer.properties"
}
...
# 修改后 具体值参考上面即可
config {
# file、nacos 、apollo、zk、consul、etcd3
type = "nacos"
nacos {
serverAddr = "192.168.198.100:8848"
namespace = "0c8d097b-2aaa-45f4-889a-44545ae50d3c"
group = "DEFAULT_GROUP"
username = "nacos"
password = "nacos"
dataId = "seata-dev.properties"
}
...
9.3.3.2 修改file.conf文件
# 修改前
store {
## store mode: file、db、redis
mode = "file"
## rsa decryption public key
publicKey = ""
...
## database store property
db {
## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
datasource = "druid"
## mysql/oracle/postgresql/h2/oceanbase etc.
dbType = "mysql"
driverClassName = "com.mysql.jdbc.Driver"
## if using mysql to store the data, recommend add rewriteBatchedStatements=true in jdbc connection param
url = "jdbc:mysql://127.0.0.1:3306/seata?rewriteBatchedStatements=true"
user = "mysql"
password = "mysql"
...
}
# ------------------------------------------------------------------------
# 修改后
store {
## store mode: file、db、redis
mode = "db" # 修改为使用db模式
## rsa decryption public key
publicKey = ""
...
## database store property
db {
## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
datasource = "druid"
## mysql/oracle/postgresql/h2/oceanbase etc.
dbType = "mysql"
driverClassName = "com.mysql.cj.jdbc.Driver" # 这里我是使用的mysql8.0 如果要是想要使用5.x版本 需要改成 com.mysql.jdbc.Driver
## if using mysql to store the data, recommend add rewriteBatchedStatements=true in jdbc connection param
url = "jdbc:mysql://192.168.198.100:3306/seata_config?rewriteBatchedStatements=true" # 这里要注意数据库名称为seata_config，一会需要根据这个去创建数据库
user = "root"
password = "123456"
...
}
9.4 将文件拷贝回容器
docker cp file.conf aa543016e99c:/seata-server/resources/file.conf
docker cp registry.conf aa543016e99c:/seata-server/resources/registry.conf
9.5 nacos创建对应配置文件
这里因为是dev环境下开发，所以此文件创建在dev对应的命名空间下，名称为对应registry.conf文件里的config.nacos.dataId=seata-dev.properties
seata-dev.properties内容 ：
主要修改内容就是关于mysql相关的内容
这里要注意 ： 如果调用接口报错io.seata.core.exception.RmTransactionException: Response[ TransactionException[Could not found global transaction xid = xxx.xxx.xxx.xxx:8091:36378942915387401, may be has finished.] ] 就说明是接口时间太长，默认是1000，可以改大一点。
# 二阶段提交未完成状态全局事务重试提交线程间隔时间 默认1000，单位毫秒
server.recovery.committingRetryPeriod=6000
# 二阶段异步提交状态重试提交线程间隔时间 默认1000，单位毫秒
server.recovery.asynCommittingRetryPeriod=6000
# 二阶段回滚状态重试回滚线程间隔时间
server.recovery.rollbackingRetryPeriod=6000
# 超时状态检测重试线程间隔时间 默认1000 单位毫秒 检测出超时将全局事务置入回滚会话管理器
server.recovery.timeoutRetryPeriod=6000
client.tm.defaultGlobalTransactionTimeout=60000
client.tm.degradeCheck=false
client.tm.degradeCheckAllowTimes=10
client.tm.degradeCheckPeriod=2000
client.tm.interceptorOrder=-2147482648
store.mode=db
store.lock.mode=db
store.session.mode=file
store.publicKey=
store.file.dir=file_store/data
store.file.maxBranchSessionSize=16384
store.file.maxGlobalSessionSize=512
store.file.fileWriteBufferCacheSize=16384
store.file.flushDiskMode=async
store.file.sessionReloadReadSize=100
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://192.168.198.100:3306/seata_config?useSSL=true&serverTimezone=GMT
store.db.user=root
store.db.password=123456
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.distributedLockTable=distributed_lock
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000
store.redis.mode=single
store.redis.single.host=127.0.0.1
store.redis.single.port=6379
store.redis.sentinel.masterName=
store.redis.sentinel.sentinelHosts=
store.redis.maxConn=10
store.redis.minConn=1
store.redis.maxTotal=100
store.redis.database=0
store.redis.password=
store.redis.queryLimit=100
server.recovery.committingRetryPeriod=1000
server.recovery.asynCommittingRetryPeriod=1000
server.recovery.rollbackingRetryPeriod=1000
server.recovery.timeoutRetryPeriod=1000
server.maxCommitRetryTimeout=-1
server.maxRollbackRetryTimeout=-1
server.rollbackRetryTimeoutUnlockEnable=false
server.distributedLockExpireTime=10000
client.undo.dataValidation=true
client.undo.logSerialization=jackson
client.undo.onlyCareUpdateColumns=true
server.undo.logSaveDays=7
server.undo.logDeletePeriod=86400000
client.undo.logTable=undo_log
client.undo.compress.enable=true
client.undo.compress.type=zip
client.undo.compress.threshold=64k
log.exceptionRate=100
transport.serialization=seata
transport.compressor=none
metrics.enabled=false
metrics.registryType=compact
metrics.exporterList=prometheus
metrics.exporterPrometheusPort=9898
tcc.fence.logTableName=tcc_fence_log
tcc.fence.cleanPeriod=1h
server.session.branchAsyncQueueSize=5000
server.session.enableBranchAsyncRemove=true
service.vgroupMapping.default_tx_group=default
service.vgroupMapping.uat_tx_group=default
service.vgroupMapping.test_tx_group=default
service.vgroupMapping.prod_tx_group=default
9.6 数据库创建数据库和表
数据库名 ： seata_config
CREATE TABLE `lock_table` (
`row_key` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`xid` varchar(96) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`transaction_id` mediumtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL,
`branch_id` mediumtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL,
`resource_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`table_name` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`pk` varchar(36) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`gmt_create` datetime(0) NULL DEFAULT NULL,
`gmt_modified` datetime(0) NULL DEFAULT NULL,
PRIMARY KEY (`row_key`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '存储锁表' ROW_FORMAT = Dynamic;
CREATE TABLE `global_table` (
`xid` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`transaction_id` bigint(20) NULL DEFAULT NULL,
`status` tinyint(4) NOT NULL,
`application_id` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`transaction_service_group` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`transaction_name` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`timeout` int(11) NULL DEFAULT NULL,
`begin_time` bigint(20) NULL DEFAULT NULL,
`application_data` varchar(2000) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`gmt_create` datetime(0) NULL DEFAULT NULL,
`gmt_modified` datetime(0) NULL DEFAULT NULL,
PRIMARY KEY (`xid`) USING BTREE,
INDEX `idx_gmt_modified_status`(`gmt_modified`, `status`) USING BTREE,
INDEX `idx_transaction_id`(`transaction_id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '分支事务表' ROW_FORMAT = Dynamic;
CREATE TABLE `branch_table` (
`branch_id` bigint(20) NOT NULL,
`xid` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`transaction_id` bigint(20) NULL DEFAULT NULL,
`resource_group_id` varchar(32) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`resource_id` varchar(256) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`lock_key` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`branch_type` varchar(8) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`status` tinyint(4) NULL DEFAULT NULL,
`client_id` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`application_data` varchar(2000) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
`gmt_create` datetime(0) NULL DEFAULT NULL,
`gmt_modified` datetime(0) NULL DEFAULT NULL,
PRIMARY KEY (`branch_id`) USING BTREE,
INDEX `idx_xid`(`xid`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci COMMENT = '全局事务表' ROW_FORMAT = Dynamic;
9.7 重启seata容器
查看日志命令 ： docker logs seata-server
docker restart seata-server
9.8 将来其他数据库执行的建表命令
CREATE TABLE `undo_log` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`branch_id` bigint(20) NOT NULL,
`xid` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`context` varchar(128) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
`rollback_info` longblob NOT NULL,
`log_status` int(11) NOT NULL,
`log_created` datetime(0) NOT NULL,
`log_modified` datetime(0) NOT NULL,
`ext` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL,
PRIMARY KEY (`id`) USING BTREE,
UNIQUE INDEX `ux_undo_log`(`xid`, `branch_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 5 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;
10. 安装Sentinel-dashboard
10.1 拉取镜像
docker pull bladex/sentinel-dashboard:1.7.0
10.2 运行镜像
docker run --name sentinel -d -p 8858:8858 bladex/sentinel-dashboard:1.7.0

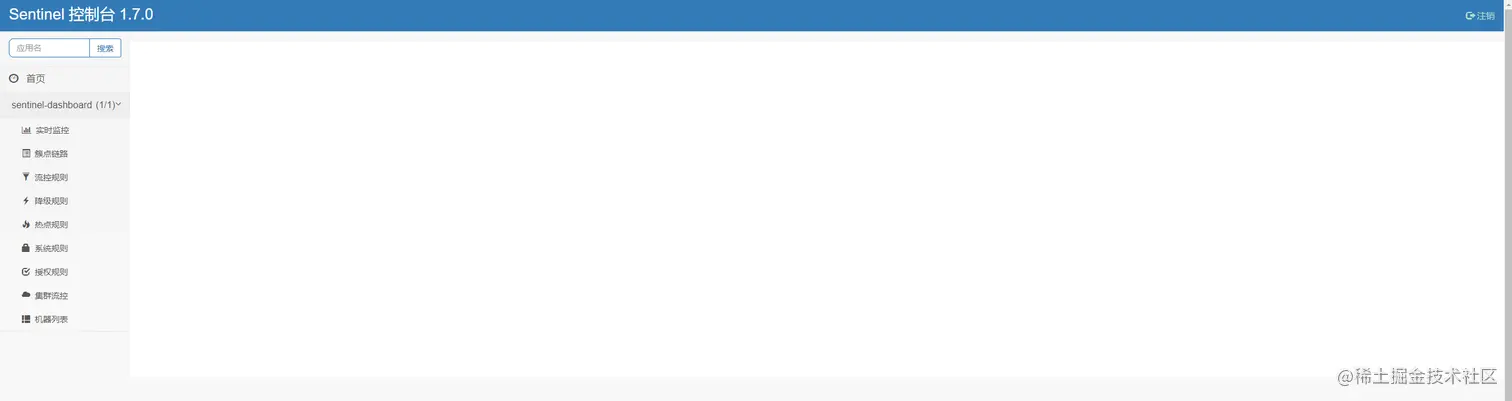

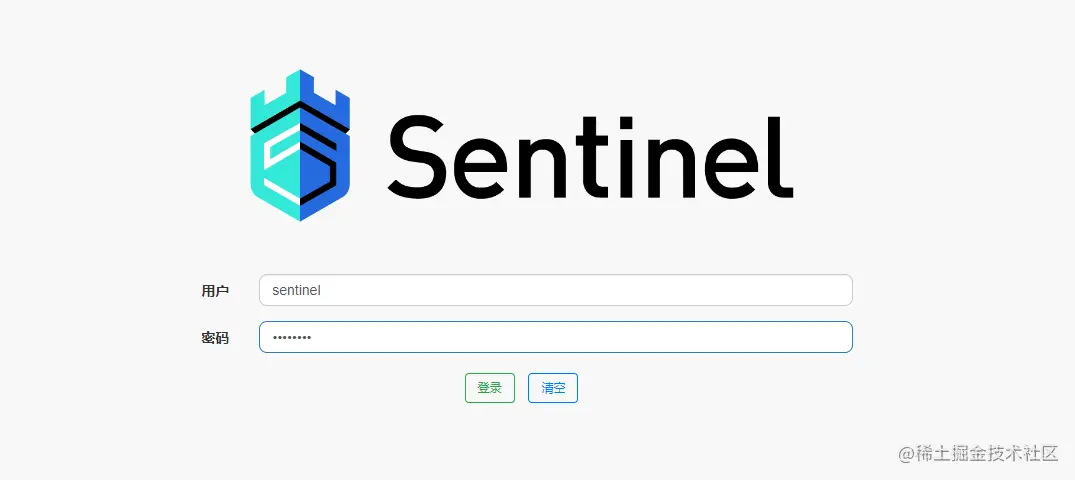

10.3 访问页面
浏览器访问 http://ip+8858 默认 账号: sentinel 密码: sentinel
