Stack（栈）
function Stack() {
this.count = 0;
this.storage = {};
this.push = function (value) {
this.storage[this.count] = value;
this.count++;
}
this.pop = function () {
if (this.count === 0) {
return undefined;
}
this.count--;
var result = this.storage[this.count];
delete this.storage[this.count];
return result;
}
this.peek = function () {
return this.storage[this.count - 1];
}
this.size = function () {
return this.count;
}
}
Queue（队列）
function Queue() {
var collection = [];
this.print = function () {
console.log(collection);
}
this.enqueue = function (element) {
collection.push(element);
}
this.dequeue = function () {
return collection.shift();
}
this.front = function () {
return collection[0];
}
this.isEmpty = function () {
return collection.length === 0;
}
this.size = function () {
return collection.length;
}
}
Priority Queue（优先队列）
给每个元素赋予优先级，优先级高的元素入列时将排到低优先级元素之前
function PriorityQueue() {
this.enqueue = function (element) {
if (this.isEmpty()) {
collection.push(element);
} else {
var added = false;
for (var i = 0; i < collection.length; i++) {
if (element[1] < collection[i][1]) {
collection.splice(i, 0, element);
added = true;
break;
}
}
if (!added) {
collection.push(element);
}
}
}
}
测试：
var p = new PriorityQueue();
p.enqueue(['test1', 3]);
p.enqueue(['test2', 1]);
p.enqueue(['test3', 2]);
p.enqueue(['test4', 4]);
p.print();
结果：
[
[ 'test2', 1 ],
[ 'test3', 2 ],
[ 'test1', 3 ],
[ 'test4', 4 ]
]
Linked List（链表）
链表是一种链式数据结构，链上的每个节点包含两种信息：节点本身的数据和指向下一个节点的指针，链表和传统的数组都是线性的数据结构，存储的都是一个序列的数据
单向链表的Javascript实现：
/**
* 链表中的节点
*/
function Node(element) {
// 节点中的数据
this.element = element;
// 指向下一个节点的指针
this.next = null;
}
function LinkedList() {
var length = 0;
var head = null;
this.size = function () {
return length;
}
this.head = function () {
return head;
}
this.add = function (element) {
var node = new Node(element);
if (head == null) {
head = node;
} else {
var currentNode = head;
while (currentNode.next) {
currentNode = currentNode.next;
}
currentNode.next = node;
}
length++;
}
this.remove = function (element) {
var currentNode = head;
var previousNode;
if (currentNode.element === element) {
head = currentNode.next;
} else {
while (currentNode.element !== element) {
previousNode = currentNode;
currentNode = currentNode.next;
}
previousNode.next = currentNode.next;
}
length--;
}
this.isEmpty = function () {
return length === 0;
}
this.indexOf = function (element) {
var currentNode = head;
var index = -1;
while (currentNode) {
index++;
if (currentNode.element === element) {
return index;
}
currentNode = currentNode.next;
}
return -1;
}
this.elementAt = function (index) {
var currentNode = head;
var count = 0;
while (count < index) {
count++;
currentNode = currentNode.next;
}
return currentNode.element;
}
this.addAt = function (index, element) {
var node = new Node(element);
var currentNode = head;
var previousNode;
var currentIndex = 0;
if (index > length) {
return false;
}
if (index === 0) {
node.next = currentNode;
head = node;
} else {
while (currentIndex < index) {
currentIndex++;
previousNode = currentNode;
currentNode = currentNode.next;
}
node.next = currentNode;
previousNode.next = node;
}
length++;
}
this.removeAt = function (index) {
var currentNode = head;
var previousNode;
var currentIndex = 0;
if (index < 0 || index >= length) {
return null;
}
if (index === 0) {
head = currentIndex.next;
} else {
while (currentIndex < index) {
currentIndex++;
previousNode = currentNode;
currentNode = currentNode.next;
}
previousNode.next = currentNode.next;
}
length--;
return currentNode.element;
}
}
Set（集合）
function MySet() {
var collection = [];
this.has = function (element) {
return (collection.indexOf(element) !== -1);
}
this.values = function () {
return collection;
}
this.size = function () {
return collection.length;
}
this.add = function (element) {
if (!this.has(element)) {
collection.push(element);
return true;
}
return false;
}
this.remove = function (element) {
if (this.has(element)) {
index = collection.indexOf(element);
collection.splice(index, 1);
return true;
}
return false;
}
this.union = function (otherSet) {
var unionSet = new MySet();
var firstSet = this.values();
var secondSet = otherSet.values();
firstSet.forEach(function (e) {
unionSet.add(e);
});
secondSet.forEach(function (e) {
unionSet.add(e);
});
return unionSet;
}
this.intersection = function (otherSet) {
var intersectionSet = new MySet();
var firstSet = this.values();
firstSet.forEach(function (e) {
if (otherSet.has(e)) {
intersectionSet.add(e);
}
});
return intersectionSet;
}
this.difference = function (otherSet) {
var differenceSet = new MySet();
var firstSet = this.values();
firstSet.forEach(function (e) {
if (!otherSet.has(e)) {
differenceSet.add(e);
}
});
return differenceSet;
}
this.subset = function (otherSet) {
var firstSet = this.values();
return firstSet.every(function (value) {
return otherSet.has(value);
});
}
}
Hash Table（哈希表/散列表）
Hash Table是一种用于存储键值对（key-value）的数据结构，因为Hash Table根据key查询value的速度很快，所以它常用于实现Map、Dictinary、Object等数据结构。如上图所示，Hash Table内部使用一个hash函数将传入的键转换成一串数字，而这串数字将作为键值对实际的key，通过这个key查询对应的value非常快，时间复杂度将达到O(1)。Hash函数要求相同输入对应的输出必须相等，而不同输入对应的输出必须不等，相当于对每对数据打上唯一的指纹。
Hash Table的Javascript实现：
function hash(string, max) {
var hash = 0;
for (var i = 0; i < string.length; i++) {
hash += string.charCodeAt(i);
}
return hash % max;
}
function HashTable() {
let storage = [];
const storageLimit = 4;
this.add = function (key, value) {
var index = hash(key, storageLimit);
if (storage[index] === undefined) {
storage[index] = [
[key, value]
];
} else {
var inserted = false;
for (var i = 0; i < storage[index].length; i++) {
if (storage[index][i][0] === key) {
storage[index][i][1] = value;
inserted = true;
}
}
if (inserted === false) {
storage[index].push([key, value]);
}
}
}
this.remove = function (key) {
var index = hash(key, storageLimit);
if (storage[index].length === 1 && storage[index][0][0] === key) {
delete storage[index];
} else {
for (var i = 0; i < storage[index]; i++) {
if (storage[index][i][0] === key) {
delete storage[index][i];
}
}
}
}
this.lookup = function (key) {
var index = hash(key, storageLimit);
if (storage[index] === undefined) {
return undefined;
} else {
for (var i = 0; i < storage[index].length; i++) {
if (storage[index][i][0] === key) {
return storage[index][i][1];
}
}
}
}
}
Tree（树）
Tree是一种多层数据结构，与Array、Stack、Queue相比是一种非线性的数据结构，在进行插入和搜索操作时很高效

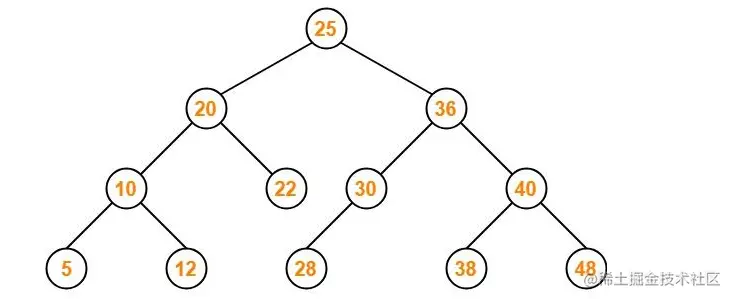

在二叉查找树中，即每个节点最多只有两个子节点，而左侧子节点小于当前节点，而右侧子节点大于当前节点
二叉查找树常用方法：
add：向树中插入一个节点findMin：查找树中最小的节点findMax：查找树中最大的节点find：查找树中的某个节点isPresent：判断某个节点在树中是否存在remove：移除树中的某个节点
二叉查找树的Javascript实现：
class Node {
constructor(data, left = null, right = null) {
this.data = data;
this.left = left;
this.right = right;
}
}
class BST {
constructor() {
this.root = null;
}
add(data) {
const node = this.root;
if (node === null) {
this.root = new Node(data);
return;
} else {
const searchTree = function (node) {
if (data < node.data) {
if (node.left === null) {
node.left = new Node(data);
return;
} else if (node.left !== null) {
return searchTree(node.left);
}
} else if (data > node.data) {
if (node.right === null) {
node.right = new Node(data);
return;
} else if (node.right !== null) {
return searchTree(node.right);
}
} else {
return null;
}
};
return searchTree(node);
}
}
findMin() {
let current = this.root;
while (current.left !== null) {
current = current.left;
}
return current.data;
}
findMax() {
let current = this.root;
while (current.right !== null) {
current = current.right;
}
return current.data;
}
find(data) {
let current = this.root;
while (current.data !== data) {
if (data < current.data) {
current = current.left
} else {
current = current.right;
}
if (current === null) {
return null;
}
}
return current;
}
isPresent(data) {
let current = this.root;
while (current) {
if (data === current.data) {
return true;
}
if (data < current.data) {
current = current.left;
} else {
current = current.right;
}
}
return false;
}
remove(data) {
const removeNode = function (node, data) {
if (node == null) {
return null;
}
if (data == node.data) {
// node没有子节点
if (node.left == null && node.right == null) {
return null;
}
// node没有左侧子节点
if (node.left == null) {
return node.right;
}
// node没有右侧子节点
if (node.right == null) {
return node.left;
}
// node有两个子节点
var tempNode = node.right;
while (tempNode.left !== null) {
tempNode = tempNode.left;
}
node.data = tempNode.data;
node.right = removeNode(node.right, tempNode.data);
return node;
} else if (data < node.data) {
node.left = removeNode(node.left, data);
return node;
} else {
node.right = removeNode(node.right, data);
return node;
}
}
this.root = removeNode(this.root, data);
}
}
测试：
const bst = new BST();
bst.add(4);
bst.add(2);
bst.add(6);
bst.add(1);
bst.add(3);
bst.add(5);
bst.add(7);
bst.remove(4);
console.log(bst.findMin());
console.log(bst.findMax());
bst.remove(7);
console.log(bst.findMax());
console.log(bst.isPresent(4));
打印：
1
7
6
false
Graph（图）

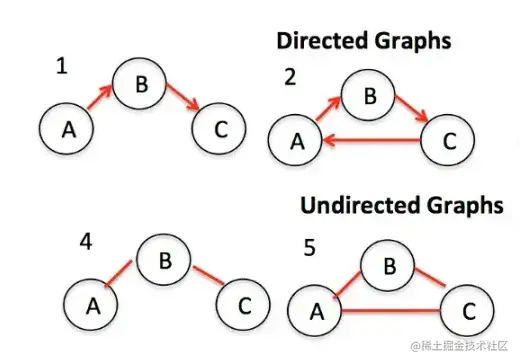

Graph是节点（或顶点）以及它们之间的连接（或边）的集合，节点之间的连接是否有方向又可以分为Directed Graph（有向图）和Undrected Graph（无向图），Graph在实际生活中的场景，比如：导航软件计算最佳路径，社交软件进行好友推荐等。
Graph通常有两种表达方式：
Adjaceny List（邻接列表）
邻接列表可以表示为左侧是节点的列表，右侧列出它所连接的所有其他节点。
Adjacency Matrix（邻接矩阵）
邻接矩阵用矩阵来表示节点之间的连接关系，每行或者每列表示一个节点，行和列的交叉处的数字表示节点之间的关系：0表示没用连接，1表示有连接，大于1表示不同的权重。
访问Graph中的节点需要使用遍历算法，遍历算法又分为广度优先和深度优先，主要用于确定目标节点和根节点之间的距离
Graph可以用一个矩阵（二维数组）表示，广度优先搜索算法：
function bfs(graph, root) {
var nodesLen = {};
for (var i = 0; i < graph.length; i++) {
nodesLen[i] = Infinity;
}
nodesLen[root] = 0;
var queue = [root];
var current;
while (queue.length != 0) {
current = queue.shift();
var curConnected = graph[current];
var neighborIdx = [];
var idx = curConnected.indexOf(1);
while (idx != -1) {
neighborIdx.push(idx);
idx = curConnected.indexOf(1, idx + 1);
}
for (var j = 0; j < neighborIdx.length; j++) {
if (nodesLen[neighborIdx[j]] == Infinity) {
nodesLen[neighborIdx[j]] = nodesLen[current] + 1;
queue.push(neighborIdx[j]);
}
}
}
return nodesLen;
}
测试：
var graph = [
[0, 1, 1, 1, 0],
[0, 0, 1, 0, 0],
[1, 1, 0, 0, 0],
[0, 0, 0, 1, 0],
[0, 1, 0, 0, 0]
];
console.log(bfs(graph, 1));
打印：
{
0: 2,
1: 0,
2: 1,
3: 3,
4: Infinity
}
